SynthsRoland ⇝ Roland SR-JV80 Expansion Boards

Roland SR-JV80-02 OrchestralRoland SR-JV80-16 Orchestral II

The Roland JV-80, JV-90, JV-1000, JV-880, and JV-1010 synths from the JV series can be expanded with one SR-JV80 wave expansion board, as can the JD-990 and the Fantom FA-76.

The XP-30 and XV-88 can accept up to two SR-JV80 boards.

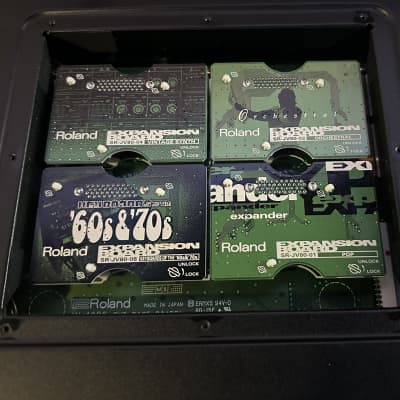

The XP-50, XP-60, XP-80, JV-1080, XV-3080, and XV-5080 can accept up to four expansion boards.

The JV-2080 can accept up to eight SR-JV80 expansion boards.

With the exception of the Experience series, these boards all contain 8 megabytes of waveform data.

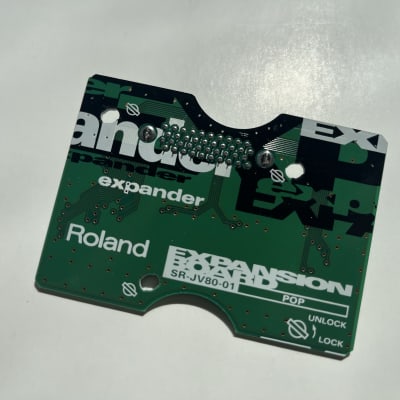

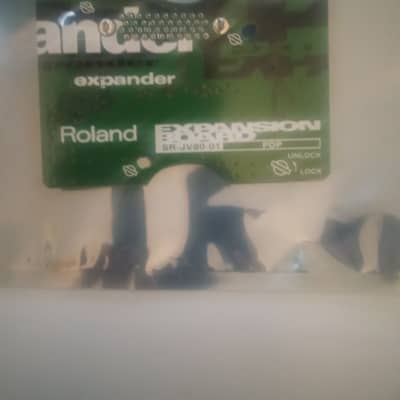

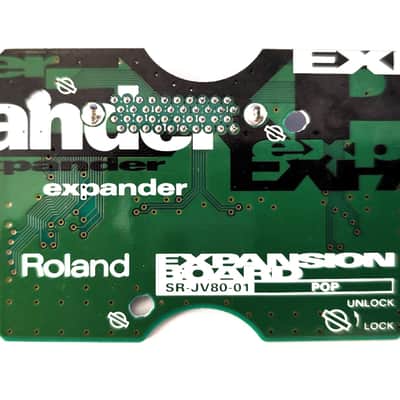

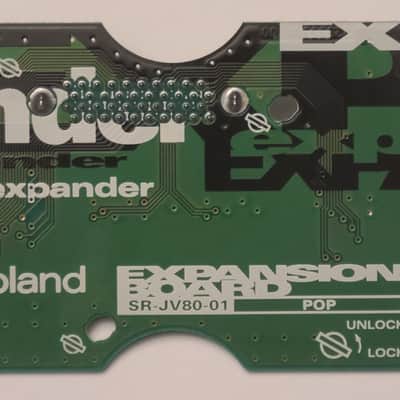

SR-JV80-01 POP Expansion Board (Manual)

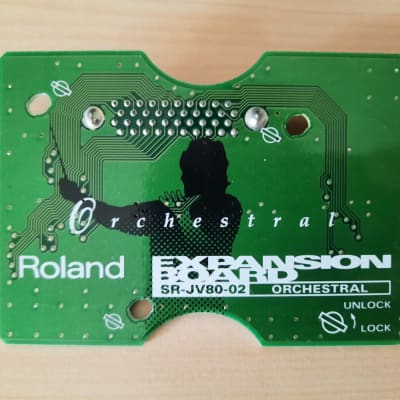

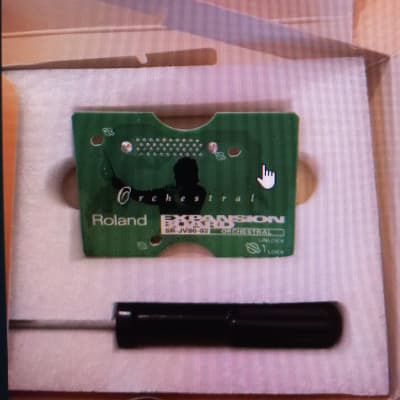

SR-JV80-02 ORCHESTRAL Expansion Board (Manual)

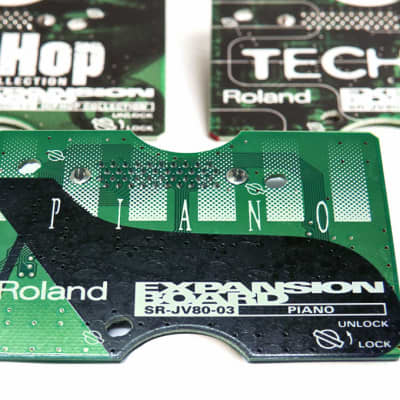

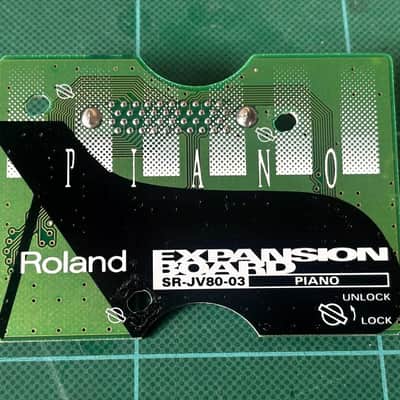

SR-JV80-03 PIANO Expansion Board (Manual)

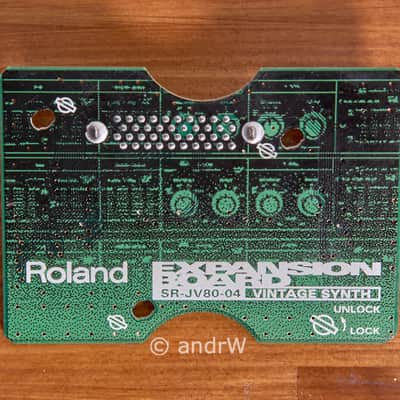

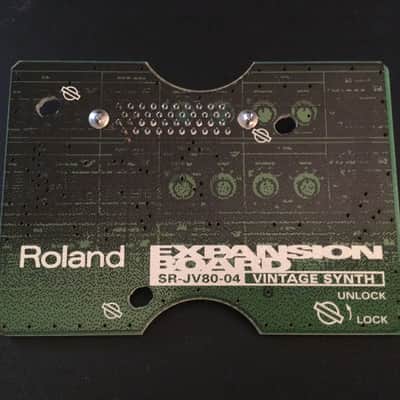

SR-JV80-04 VINTAGE SYNTH Expansion Board (Manual)

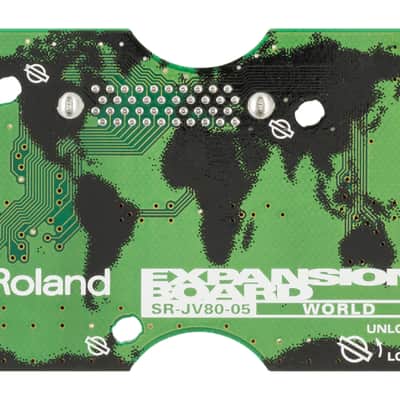

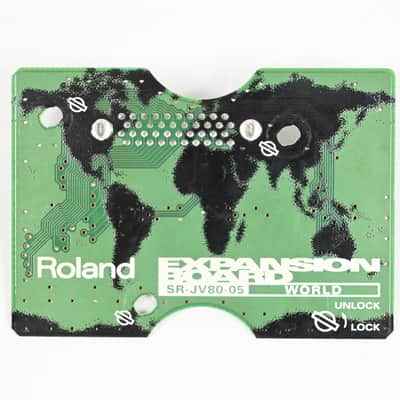

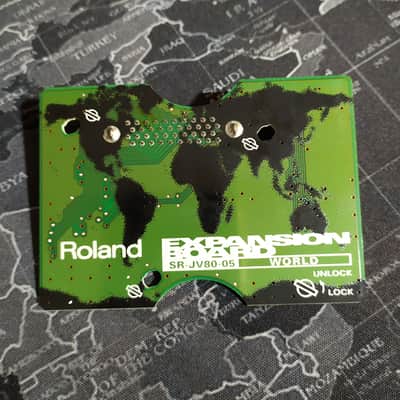

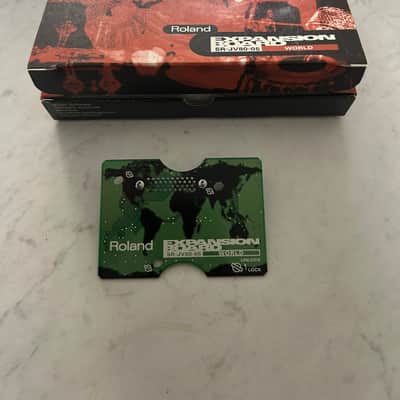

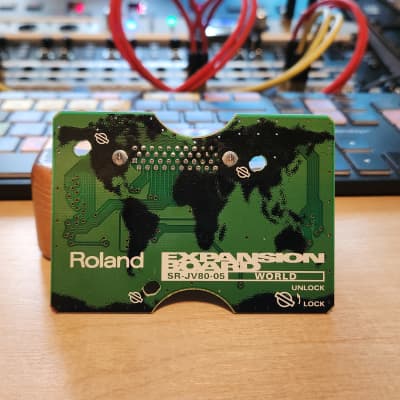

SR-JV80-05 WORLD Expansion Board (Manual)

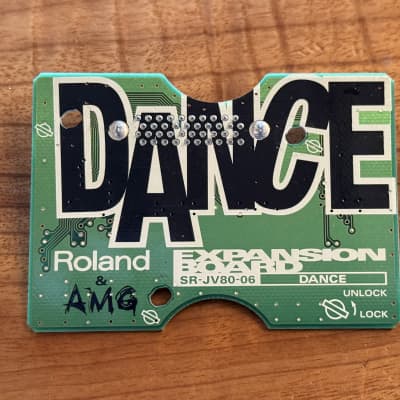

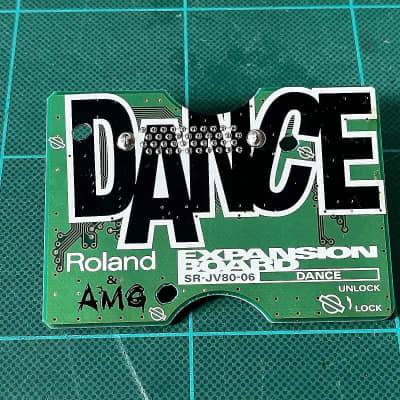

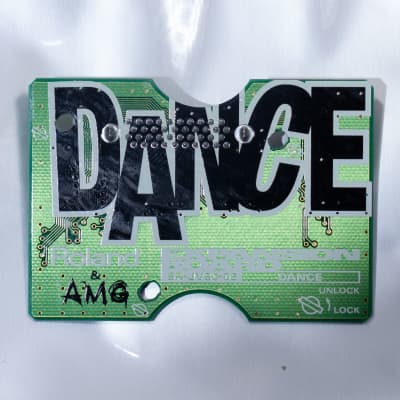

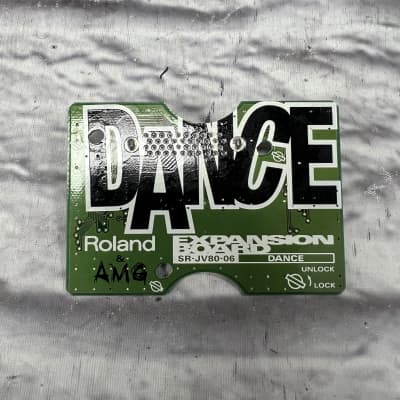

SR-JV80-06 DANCE Expansion Board (Patch List)

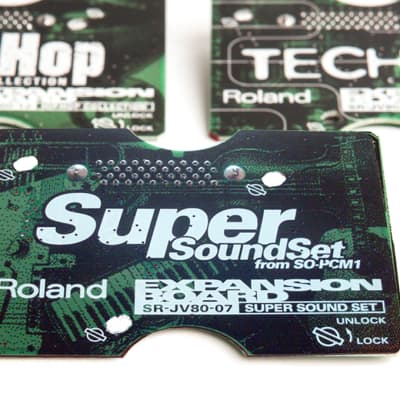

SR-JV80-07 SUPER SOUND SET Expansion Board - This board contains data from the SO-PCM1 series of expansion cards. (Manual)

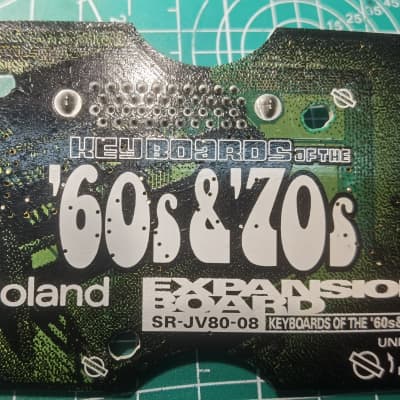

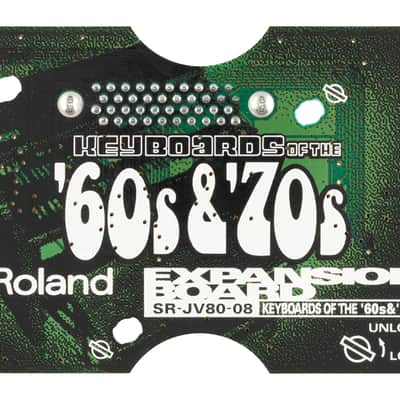

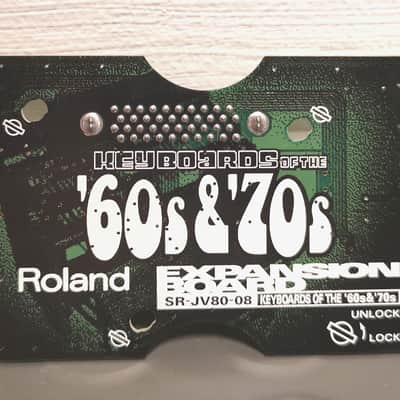

SR-JV80-08 KEYBOARDS OF THE 60's & 70's Expansion Board (Manual)

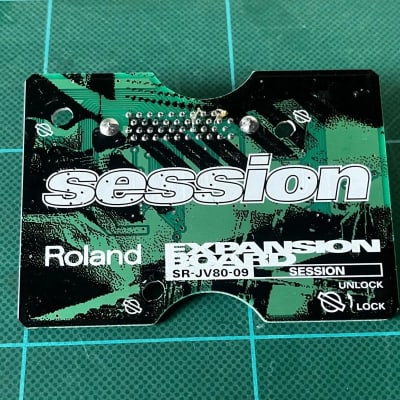

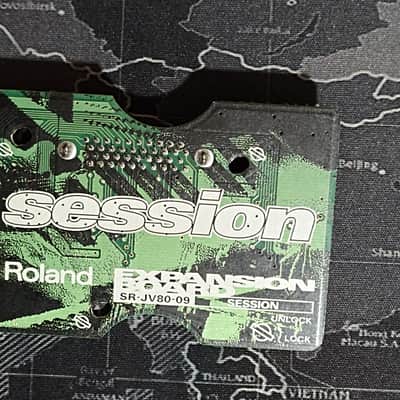

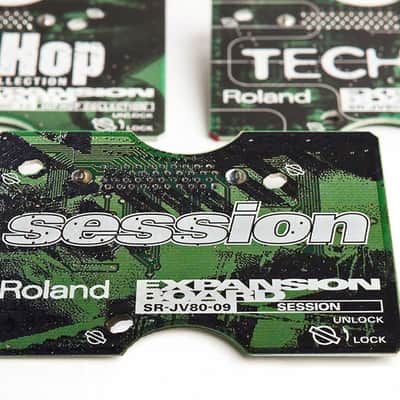

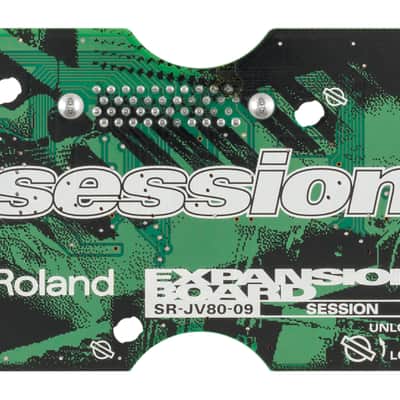

SR-JV80-09 SESSION Expansion Board (Manual)

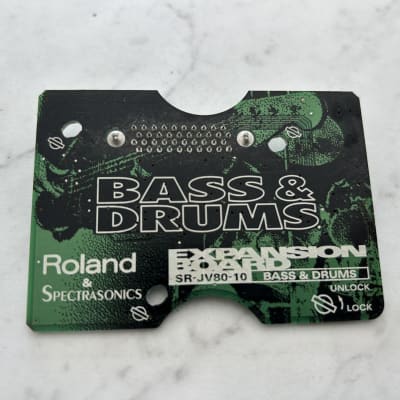

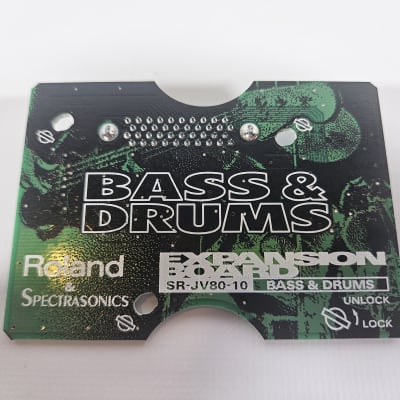

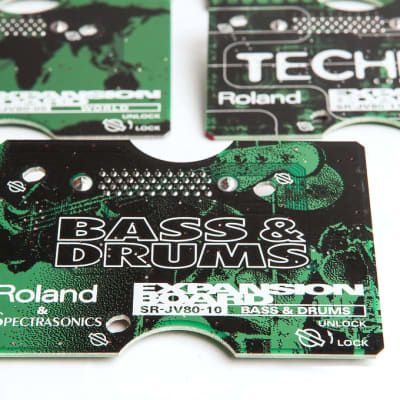

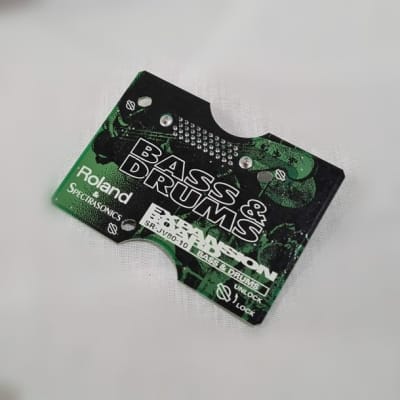

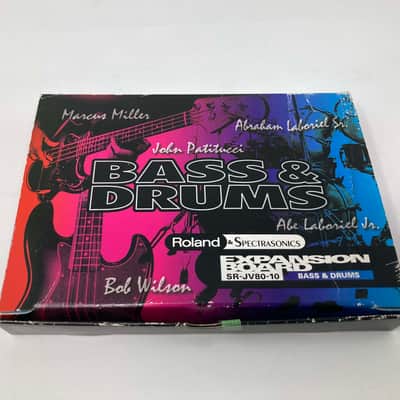

SR-JV80-10 BASS AND DRUM Expansion Board (Manual)

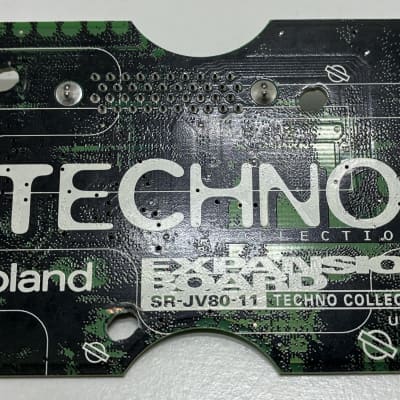

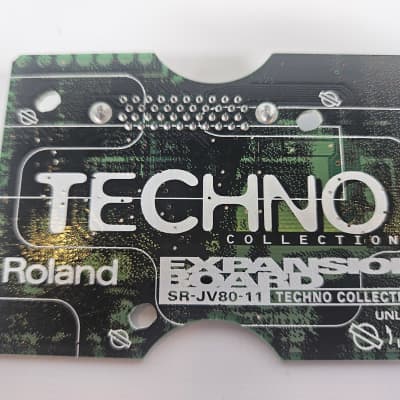

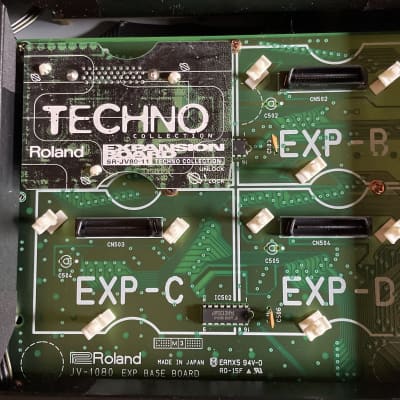

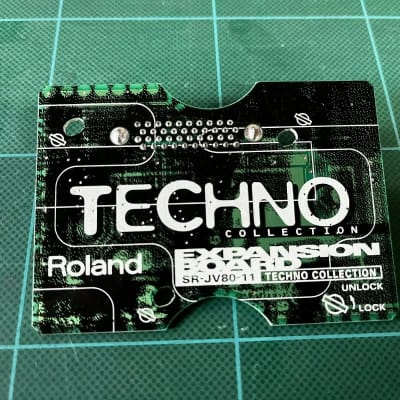

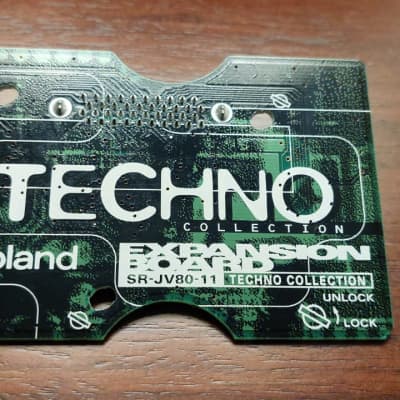

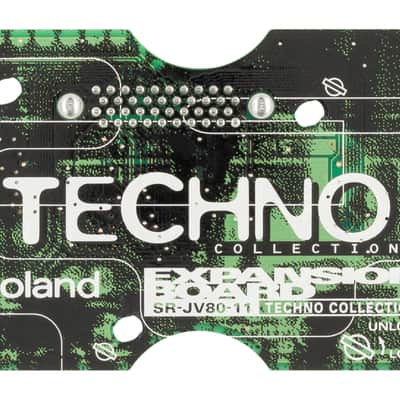

SR-JV80-11 TECHNO COLLECTION Expansion Board (Manual)

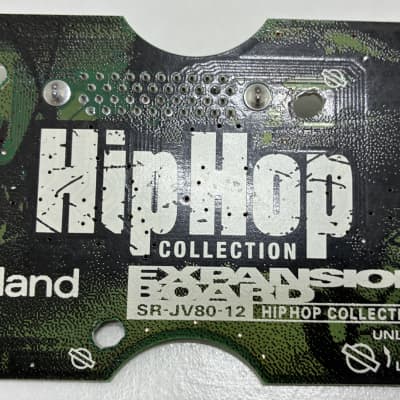

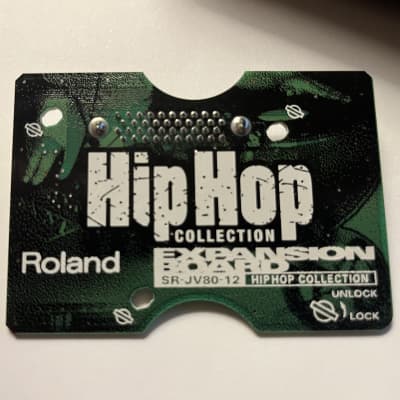

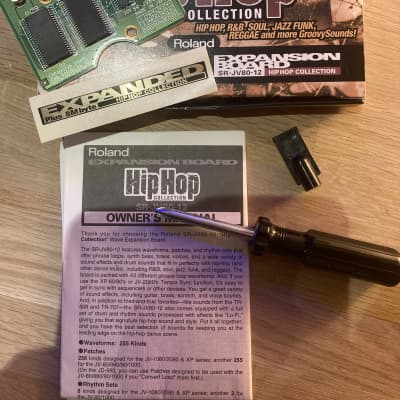

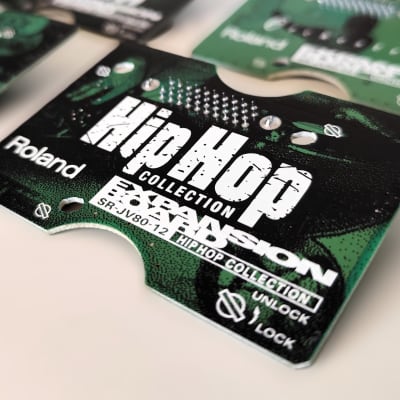

SR-JV80-12 HIP HOP Expansion Board (Manual)

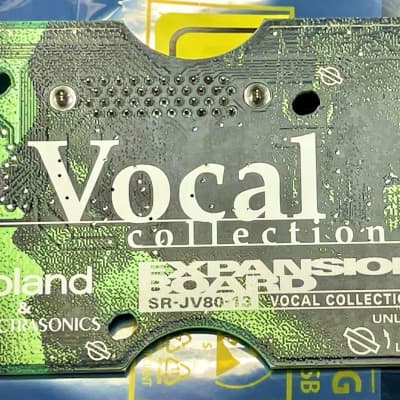

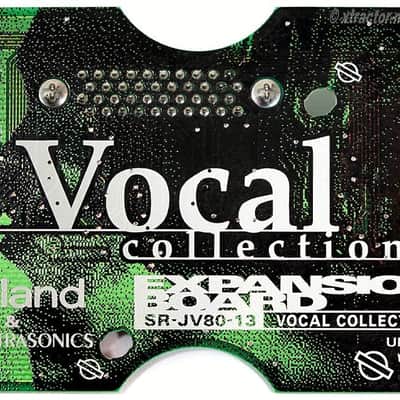

SR-JV80-13 VOCAL COLLECTION Expansion Board (Manual)

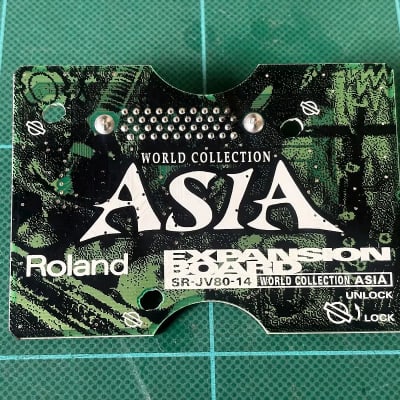

SR-JV80-14 ASIAN Expansion Board (Manual)

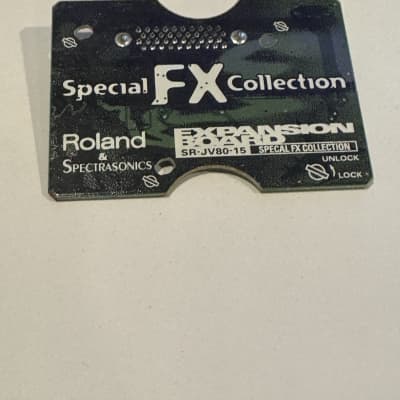

SR-JV80-15 SPECIAL FX Collection Expansion Board (Manual)

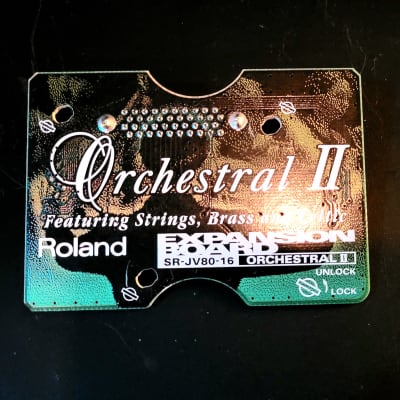

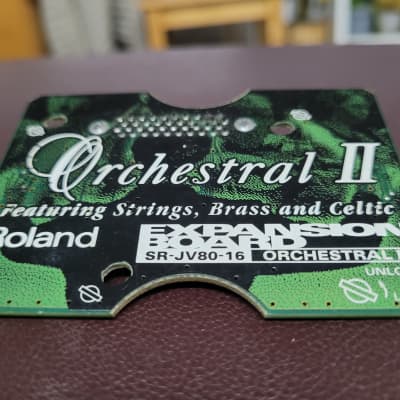

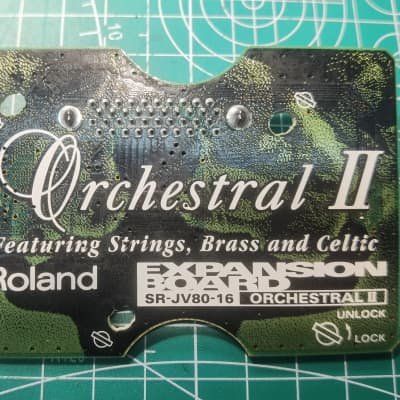

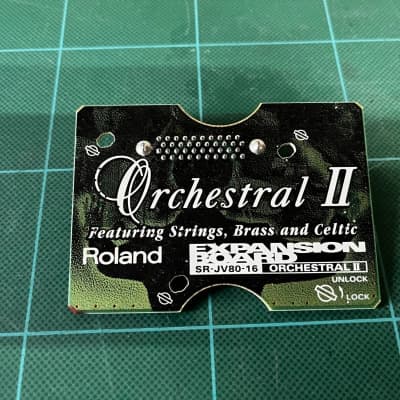

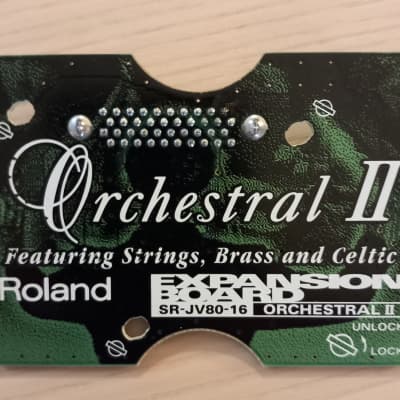

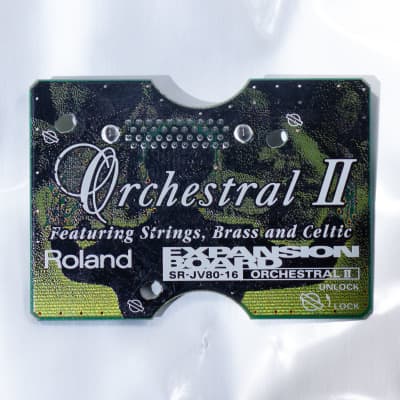

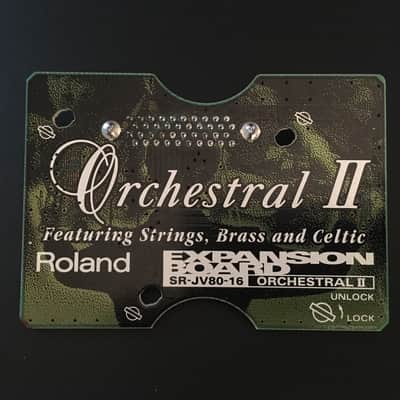

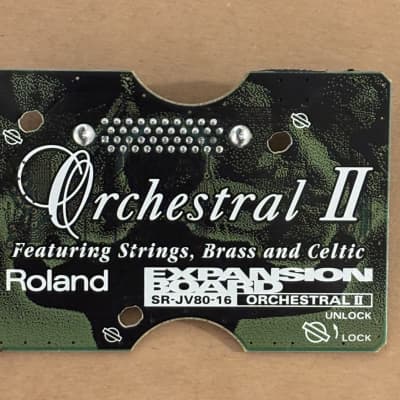

SR-JV80-16 ORCHESTRAL II Expansion Board (Manual)

SR-JV80-17 COUNTRY Collection Expansion Board (Manual)

SR-JV80-18 LATIN Collection Expansion Board (Manual)

SR-JV80-19 HOUSE Collection Expansion Board (Manual)

The Experience boards are created from a subset of waveforms from the other expansion boards. They were intended as promotional items to showcase the expandability of the JV and XV synthesizers, but they do contain some original patches not found on other boards.

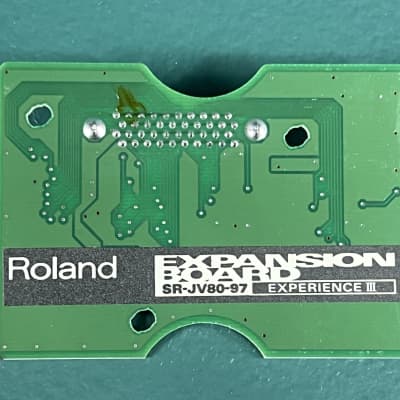

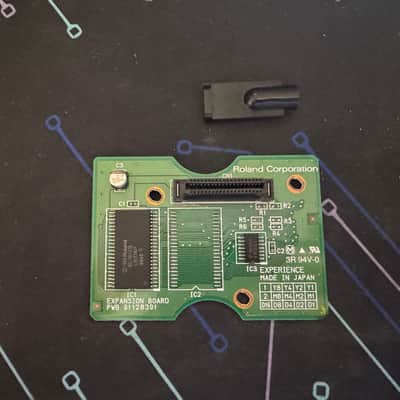

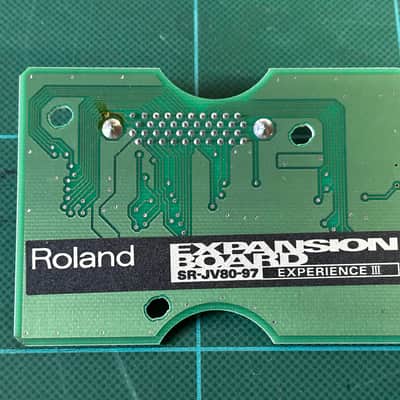

SR-JV80-97 EXPERIENCE 3 Expansion Board [34 waveforms, 100 patches] (Patch List)

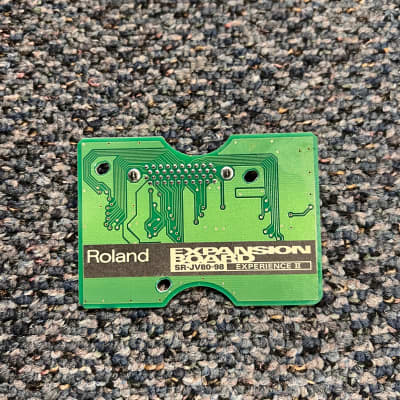

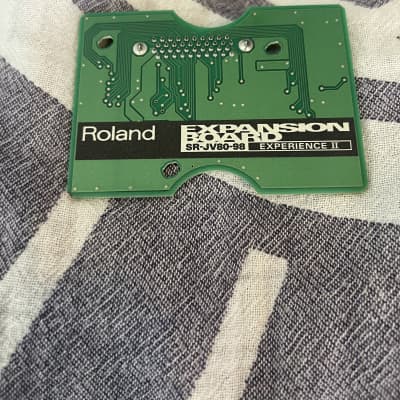

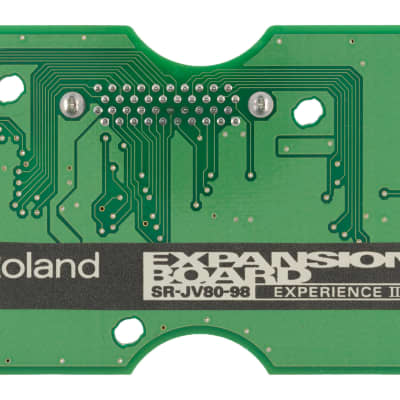

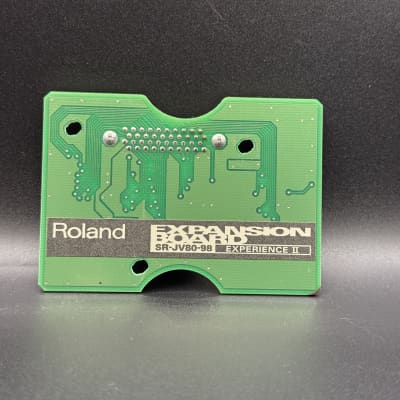

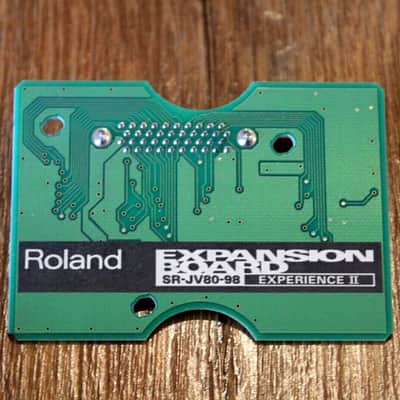

SR-JV80-98 EXPERIENCE 2 Expansion Board [27 waveforms, 100 patches] (Patch List)

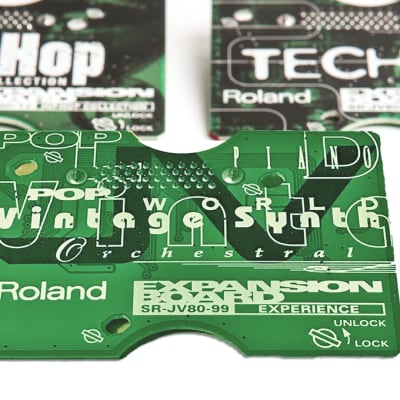

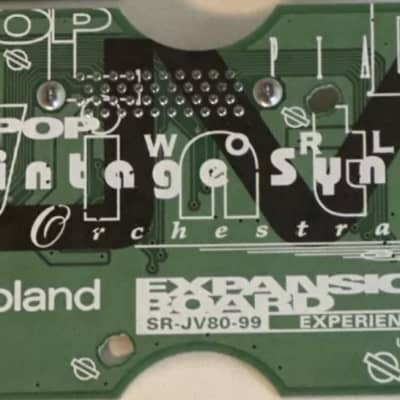

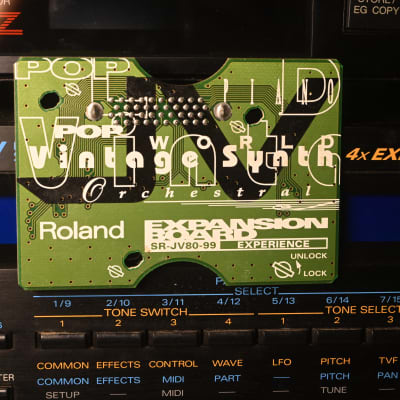

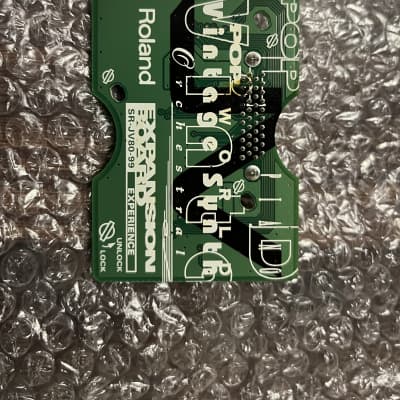

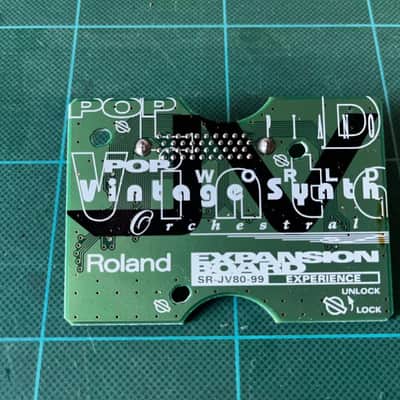

SR-JV80-99 EXPERIENCE Expansion Board [19 waveforms, 64 patches] (Patch List)

The 97 and 98 boards are not compatible with the JD-990, and the patch data does not work with the JV-80, JV-880, JV-80, and JV-1000. The waveforms are usable, though. The 99 board is incompatible with the JD-990.

Specifications

ROM: 8MB

User Demo Videos

Rating


5
(4 votes)

Items for Sale on Reverb

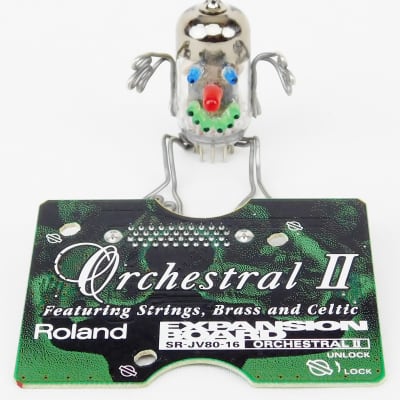

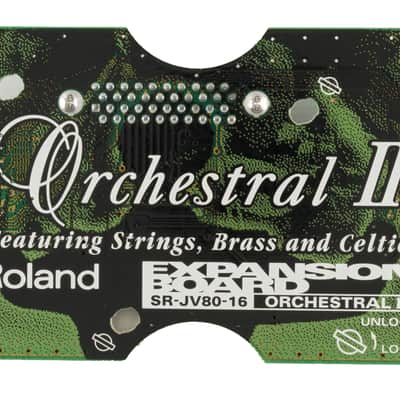

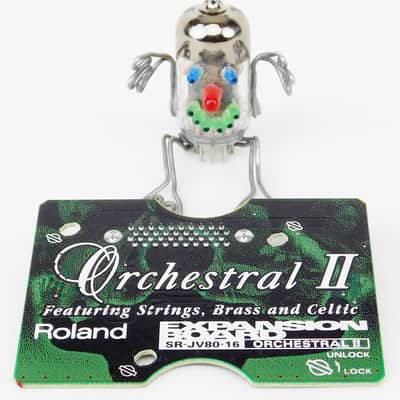

Roland SR-JV80-16 Orchestral II Expansion Board + Neuwertig + GarantieRoland SR-JV80-16 Orchestral II Expansion Board + Neuwertig + Garantie ($331.05)

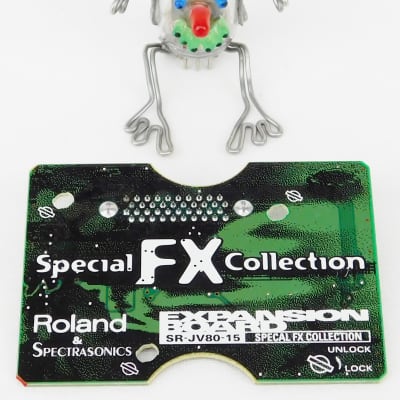

ROLAND SR-JV80-15 Expansion Board Special FX Collection + Neuwertig +GarantieROLAND SR-JV80-15 Expansion Board Special FX Collection + Neuwertig +Garantie ($312.10)

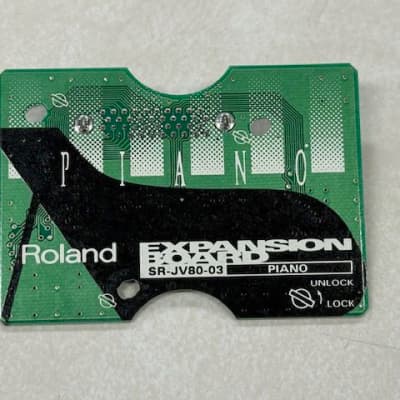

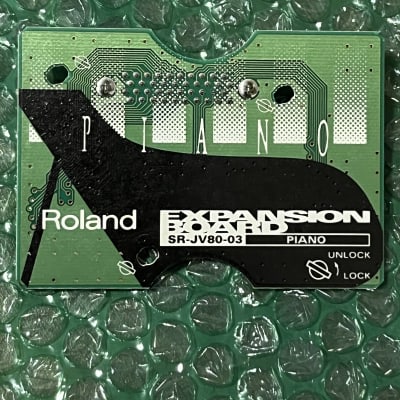

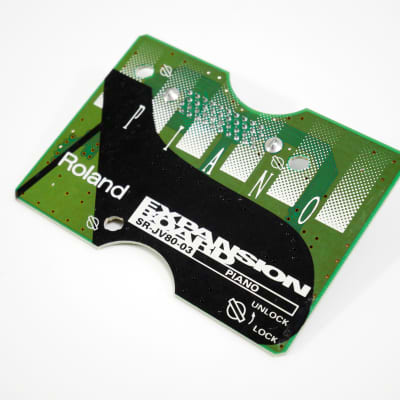

Roland SR-JV80-03 Piano Expansion BoardRoland SR-JV80-03 Piano Expansion Board ($232.46)

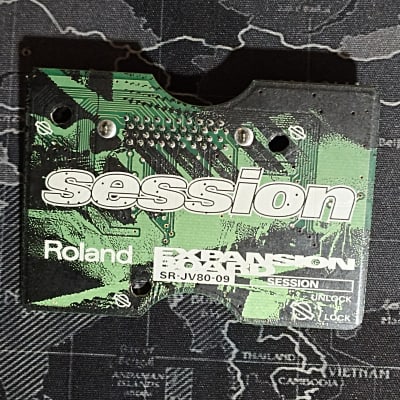

Roland SR-JV80-09 Session BoardRoland SR-JV80-09 Session Board ($159.40)

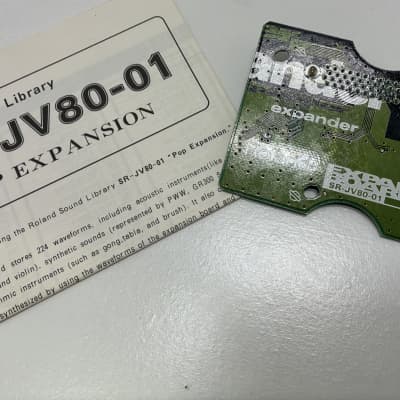

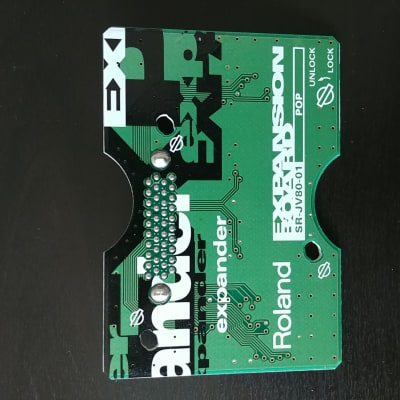

Roland Roland SR-JV80-01 POP Expansion BoardRoland Roland SR-JV80-01 POP Expansion Board ($148.23)

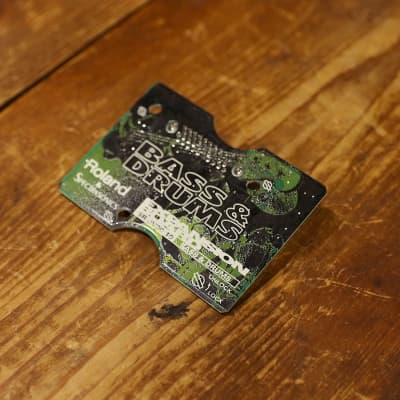

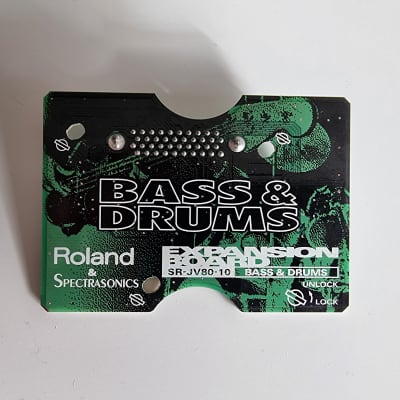

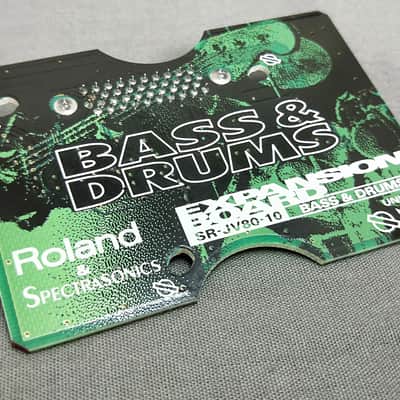

Roland SR-JV80-10 Bass & Drums Expansion BoardRoland SR-JV80-10 Bass & Drums Expansion Board ($99.62)

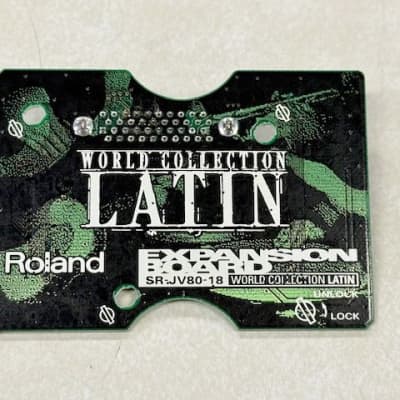

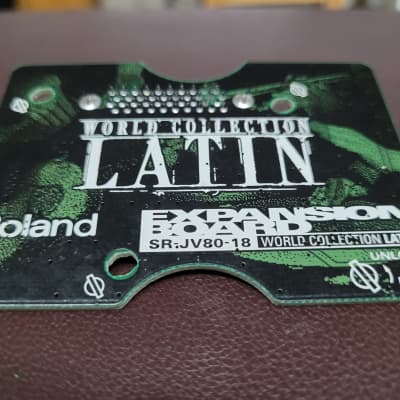

Roland SR-JV80-18 Latin Expansion BoardRoland SR-JV80-18 Latin Expansion Board ($292.23)

Roland Roland sr jv80   17 country collection 1990Roland Roland sr jv80 17 country collection 1990 ($165.53)

Roland SR-JV80-16 Orchestral II Expansion Board - 2nd HandRoland SR-JV80-16 Orchestral II Expansion Board - 2nd Hand ($130.18)

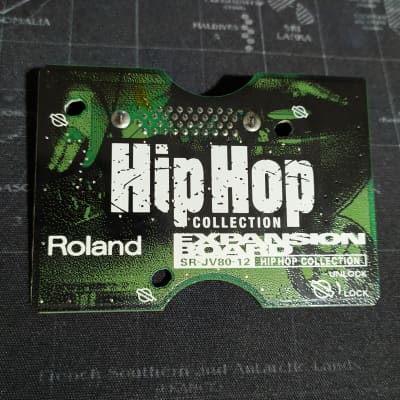

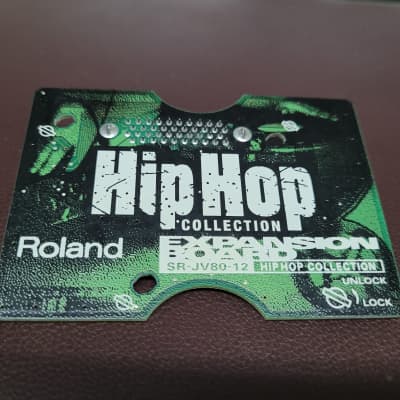

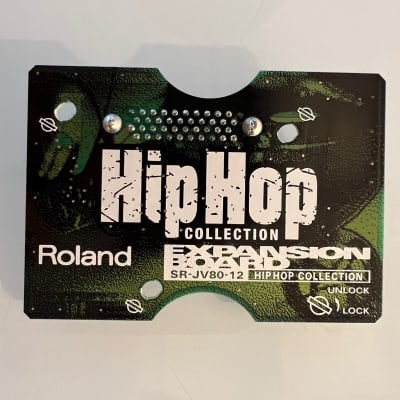

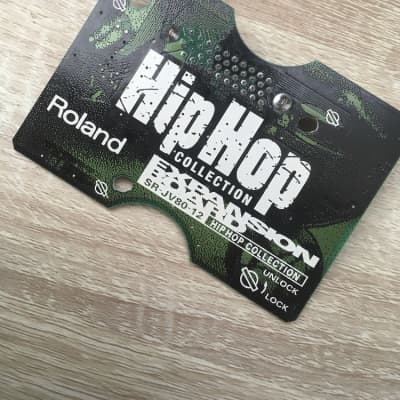

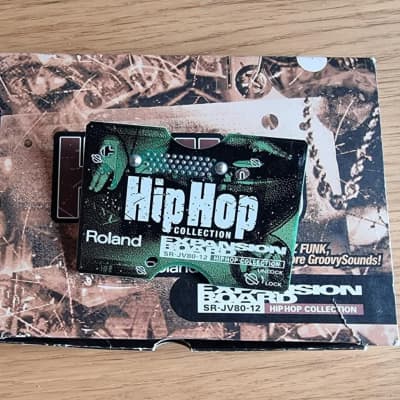

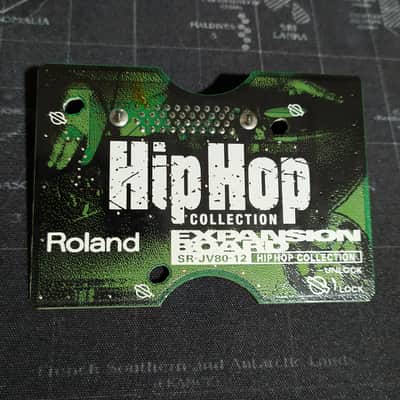

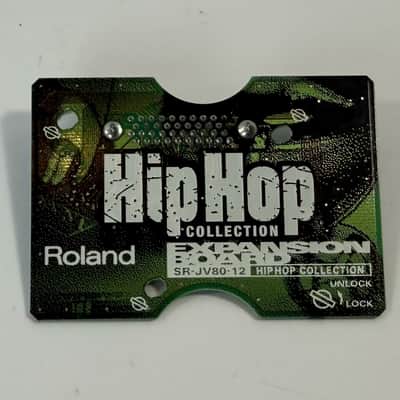

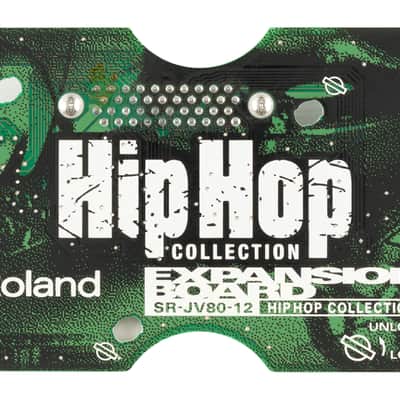

Roland SR-JV80-12 Hip Hop Collection Expansion Board SR-JV80Roland SR-JV80-12 Hip Hop Collection Expansion Board SR-JV80 ($125)

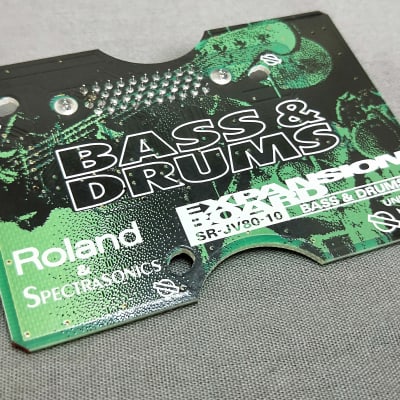

Roland & Spectrasonics Bass & Drums Expansion Board SR-JV80-10 for Roland JV80Roland & Spectrasonics Bass & Drums Expansion Board SR-JV80-10 for Roland JV80 ($139.95)

Roland Special SRX-09 World Collection SR-JV80 Expansion Board 2009 - As newRoland Special SRX-09 World Collection SR-JV80 Expansion Board 2009 - As new ($132.83)

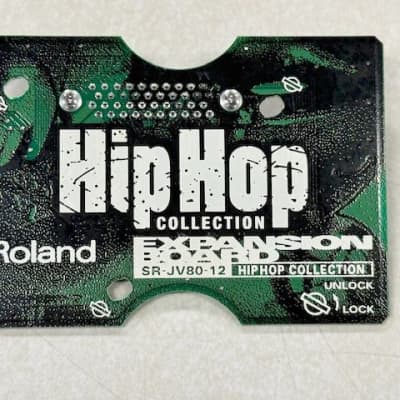

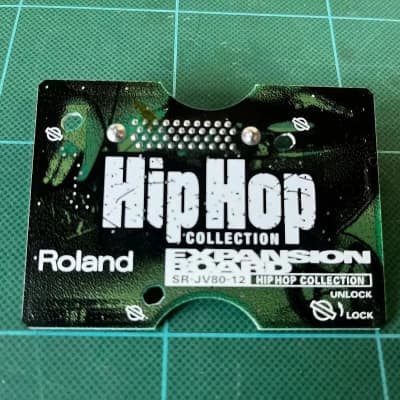

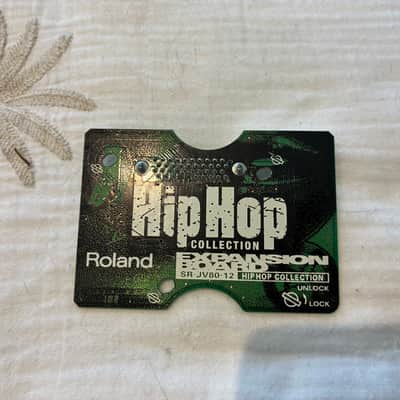

Roland SR-JV80-12 Hip Hop Expansion Board 1990s - GreenRoland SR-JV80-12 Hip Hop Expansion Board 1990s - Green ($132.42)

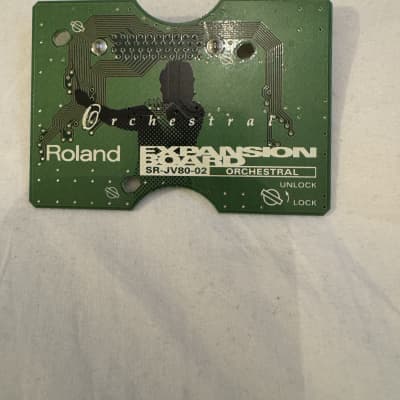

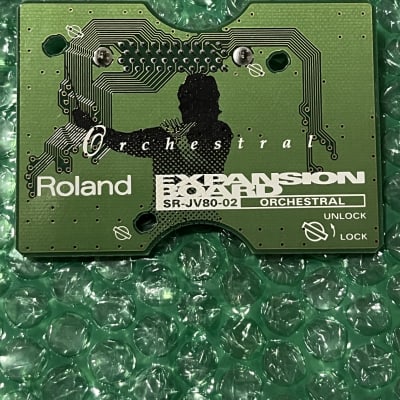

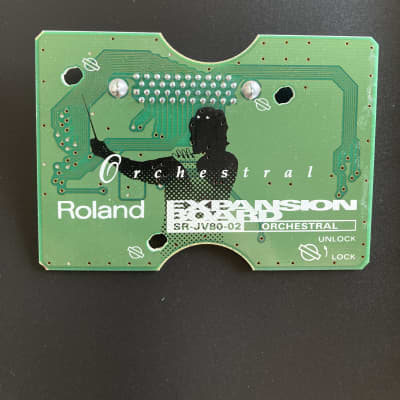

Roland SR-JV80-02 Orchestral Expansion Board - Re-CappedRoland SR-JV80-02 Orchestral Expansion Board - Re-Capped ($93.80)

Roland SR-JV80-03 Piano Expansion BoardRoland SR-JV80-03 Piano Expansion Board ($118.80)

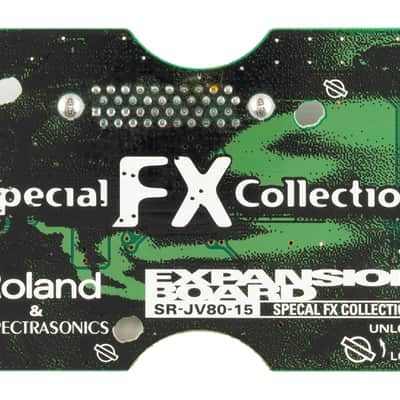

Roland SR-JV80-15 Special FX Expansion Board 1990s - GreenRoland SR-JV80-15 Special FX Expansion Board 1990s - Green ($224.99)

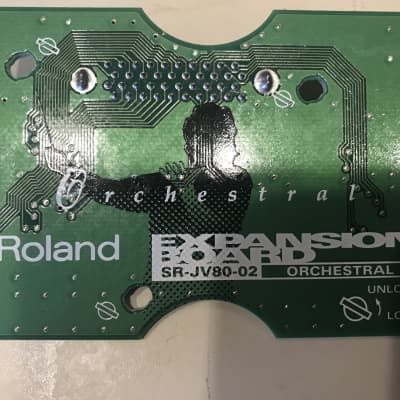

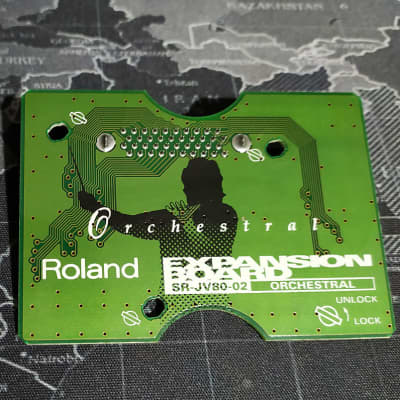

Roland SR-JV80-02 Orchestral Expansion Board 1990s - GreenRoland SR-JV80-02 Orchestral Expansion Board 1990s - Green ($76.14)

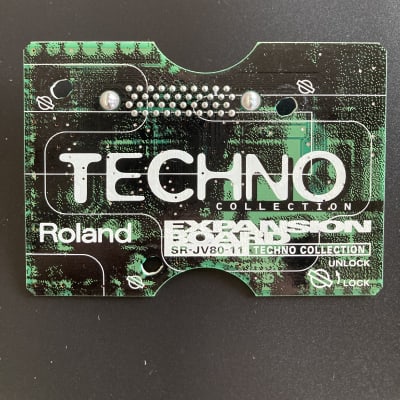

Roland SR-JV80-11 Techno Collection Expansion BoardRoland SR-JV80-11 Techno Collection Expansion Board ($150)

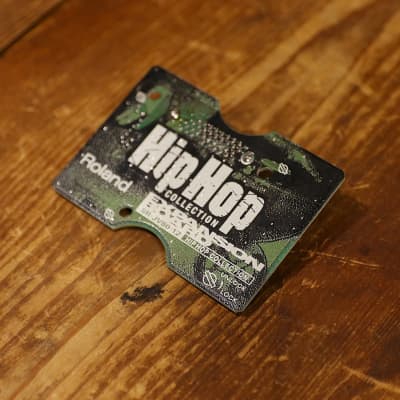

Roland SR-JV80-12 Hip Hop Expansion Board 1990s - GreenRoland SR-JV80-12 Hip Hop Expansion Board 1990s - Green ($119.54)

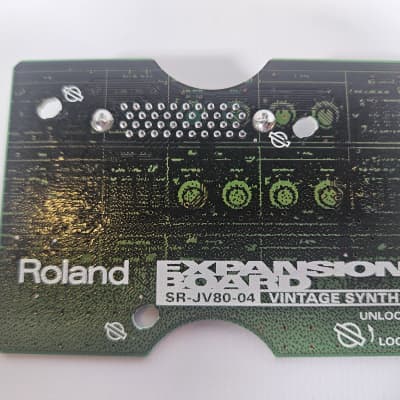

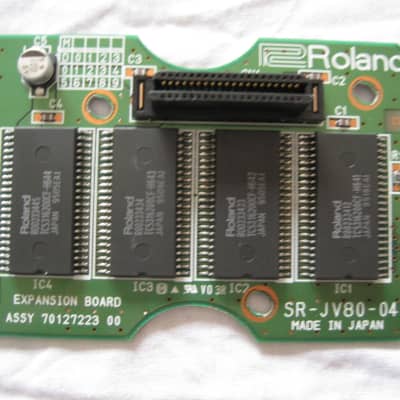

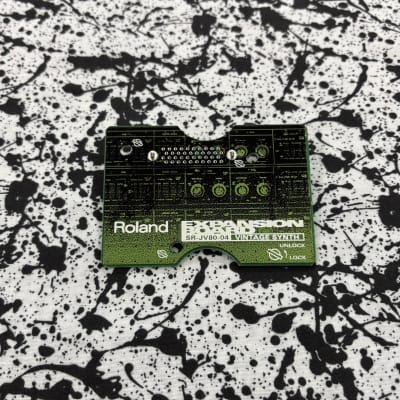

Roland SR-JV80-04 Vintage Synth Expansion Board *New Capacitor*Roland SR-JV80-04 Vintage Synth Expansion Board *New Capacitor* ($250)

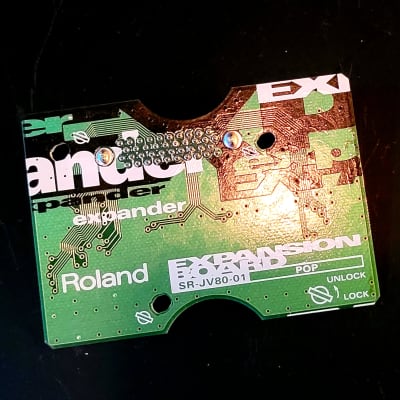

1992 • Roland SR-JV80-01 Pop Expansion Board for JD JV XV XP Series1992 • Roland SR-JV80-01 Pop Expansion Board for JD JV XV XP Series ($141.53)

Roland SR-JV80-19 House Expansion Board with BoxRoland SR-JV80-19 House Expansion Board with Box ($309.95)

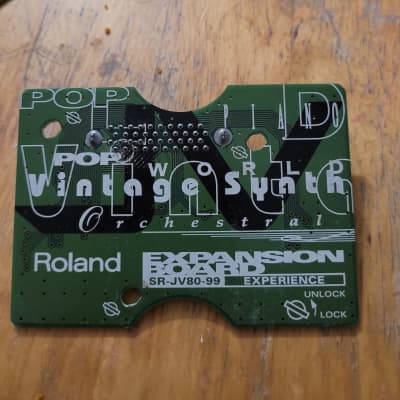

Roland SR-JV80-99 Experience Expansion Board JV XP XV 1080 2080 3080 5080Roland SR-JV80-99 Experience Expansion Board JV XP XV 1080 2080 3080 5080 ($200)

Roland SR-JV80-01 Pop Expansion BoardRoland SR-JV80-01 Pop Expansion Board ($166.04)

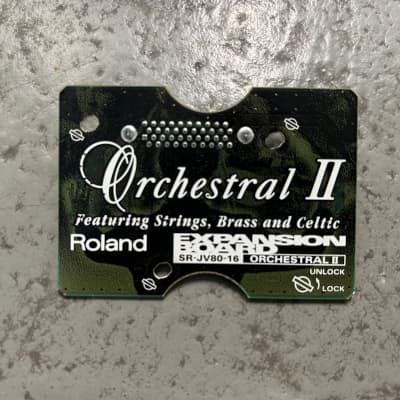

Roland SR-JV80-16 Orchestral II Expansion Board 1990s - GreenRoland SR-JV80-16 Orchestral II Expansion Board 1990s - Green ($154.49)

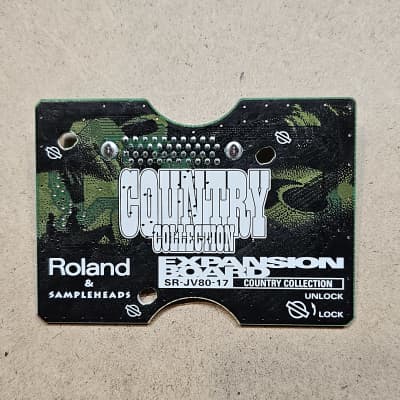

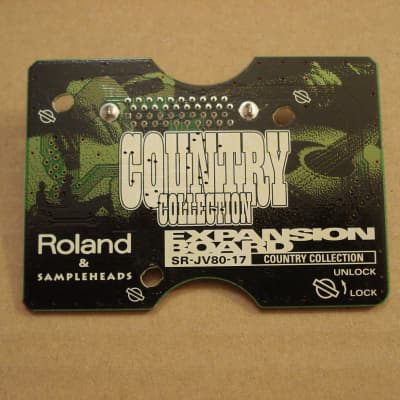

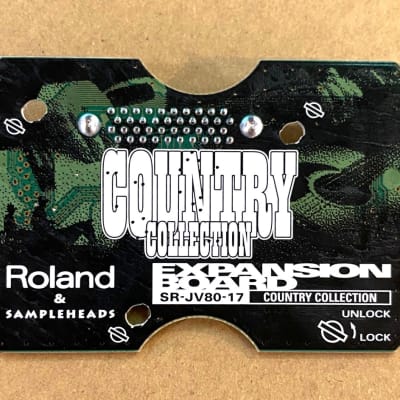

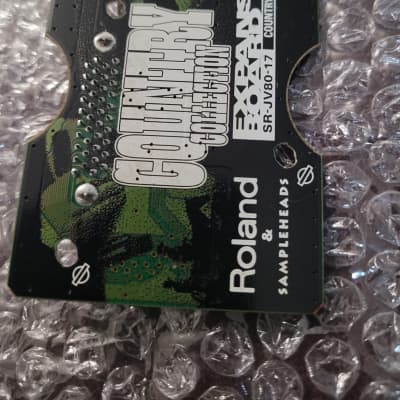

Roland SR-JV80-17 Country Collection Expansion BoardRoland SR-JV80-17 Country Collection Expansion Board ($160)

Roland SR-JV80-02 Orchestral Expansion Board 1990s - GreenRoland SR-JV80-02 Orchestral Expansion Board 1990s - Green ($75)

Roland SR-JV80-12 Hip Hop Expansion Board 1990s - GreenRoland SR-JV80-12 Hip Hop Expansion Board 1990s - Green ($49)

Roland SR-JV80-19 House Expansion Board 1990s - Green w/ boxRoland SR-JV80-19 House Expansion Board 1990s - Green w/ box ($250)

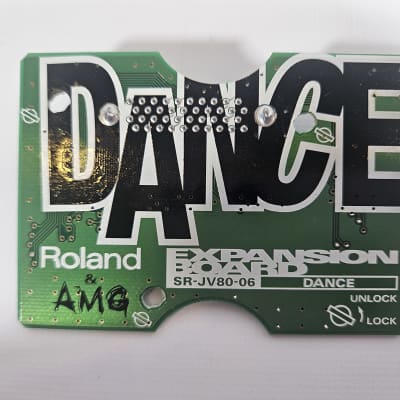

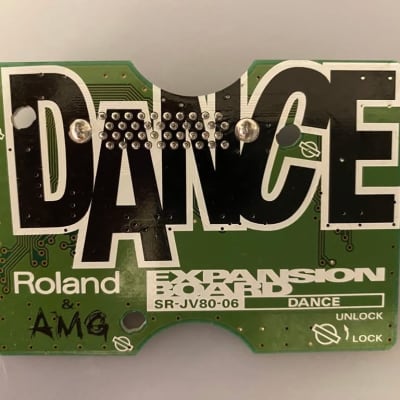

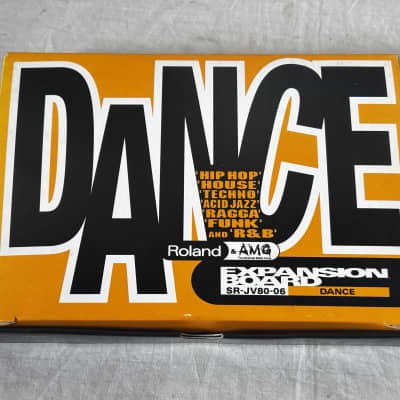

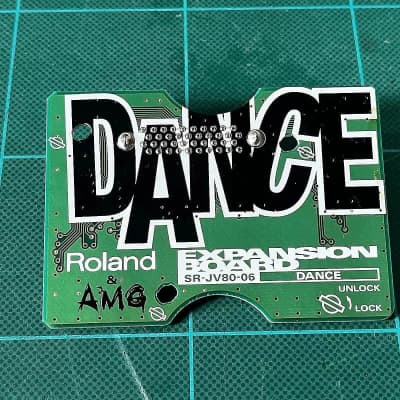

Roland SR-JV80-06 Dance Expansion Board 1990s - Green w/ boxRoland SR-JV80-06 Dance Expansion Board 1990s - Green w/ box ($180)

Roland SR-JV80-02 Orchestral Expansion Board, Mint ConditionRoland SR-JV80-02 Orchestral Expansion Board, Mint Condition ($75)

Roland SR-JV80-11 Techno Collection Expansion Board 1990s - GreenRoland SR-JV80-11 Techno Collection Expansion Board 1990s - Green ($182.08)

Roland SR-JV80-12 Hip Hop Expansion Board 1990s - GreenRoland SR-JV80-12 Hip Hop Expansion Board 1990s - Green ($165.53)

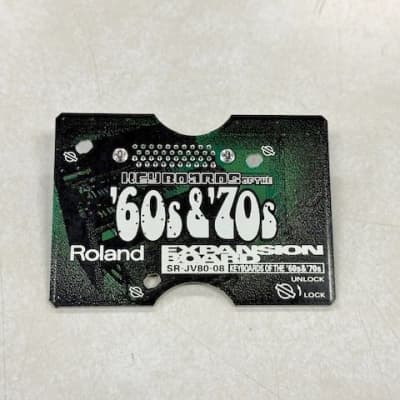

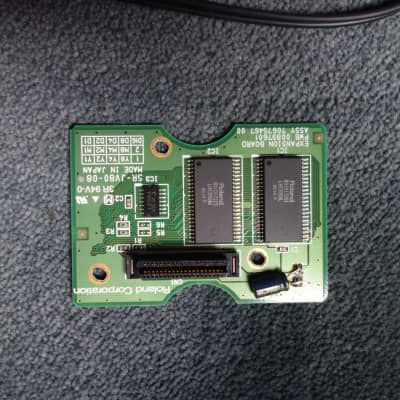

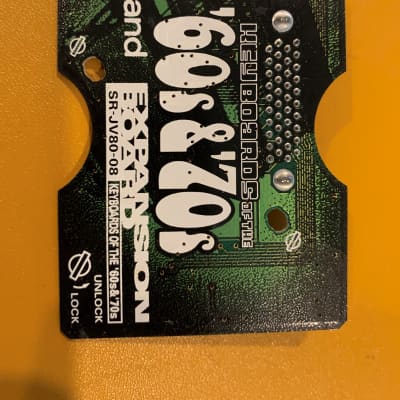

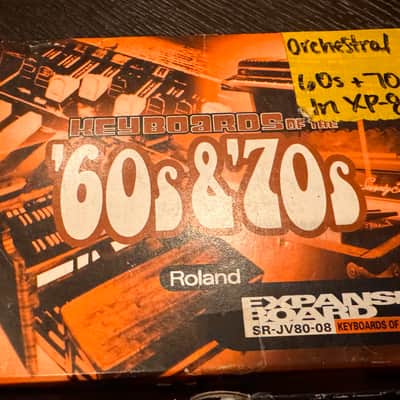

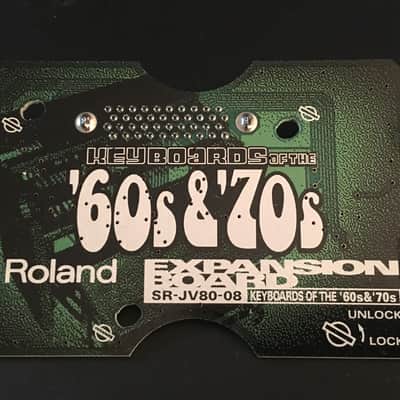

Roland SR-JV80-08 Keyboards Of The '60s & '70s Expansion Board 1990s - GreenRoland SR-JV80-08 Keyboards Of The '60s & '70s Expansion Board 1990s - Green ($164.43)

Roland SR-JV80-12 Hip Hop Expansion Board 1990s - GreenRoland SR-JV80-12 Hip Hop Expansion Board 1990s - Green ($110.35)

Roland SR-JV80-11 Techno Collection Expansion Board 1990s - GreenRoland SR-JV80-11 Techno Collection Expansion Board 1990s - Green ($139)

Roland SR-JV80-02 Orchestral Expansion Board 1990s - GreenRoland SR-JV80-02 Orchestral Expansion Board 1990s - Green ($90)

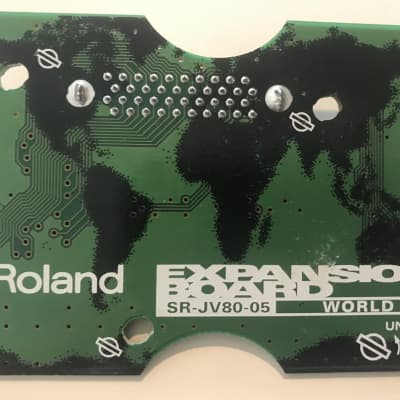

Roland SR-JV80-05 World Expansion Board JV XP XV 1080 2080 3080 5080Roland SR-JV80-05 World Expansion Board JV XP XV 1080 2080 3080 5080 ($119.99)

Roland SR-JV80-02 Orchestral Expansion Board 1990s - GreenRoland SR-JV80-02 Orchestral Expansion Board 1990s - Green ($63)

Roland SR-JV80-03 Piano Expansion Board 1990s - GreenRoland SR-JV80-03 Piano Expansion Board 1990s - Green ($126.91)

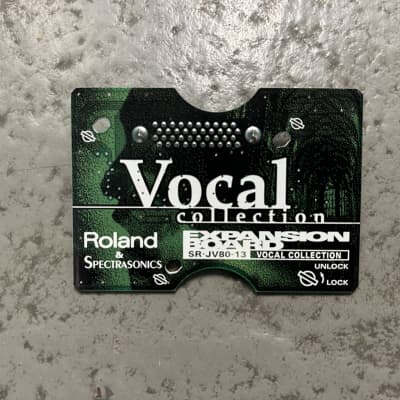

Roland SR-JV80-13 Vocal Collection Expansion Board 1990s - GreenRoland SR-JV80-13 Vocal Collection Expansion Board 1990s - Green ($154.49)

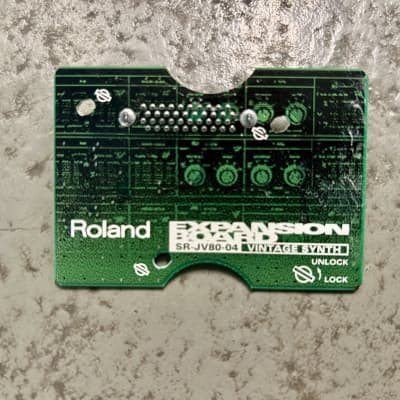

Roland SR-JV80-04 Vintage Synth Expansion Board 1990s - GreenRoland SR-JV80-04 Vintage Synth Expansion Board 1990s - Green ($200)

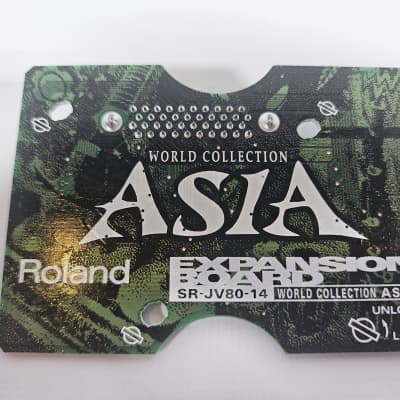

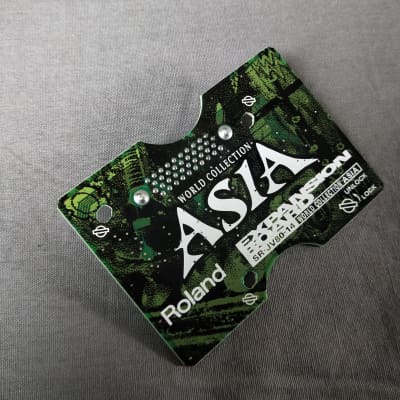

Roland SR-JV80-14 Asia Expansion Board 1990s - GreenRoland SR-JV80-14 Asia Expansion Board 1990s - Green ($175)

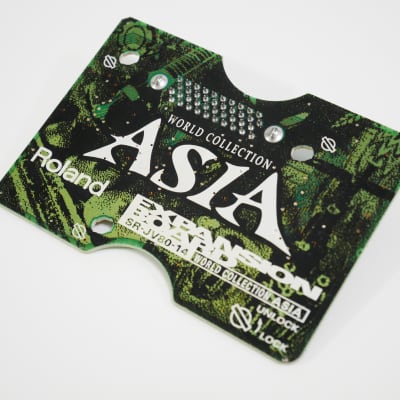

Roland SR-JV80-14 World Collection Asia Expansion Board CardRoland SR-JV80-14 World Collection Asia Expansion Board Card ($149)

Roland SR-JV80-17 Country Expansion Board 1990s - GreenRoland SR-JV80-17 Country Expansion Board 1990s - Green ($100)

Roland SR-JV80-14 Asia Expansion Board 1990s - GreenRoland SR-JV80-14 Asia Expansion Board 1990s - Green ($150)

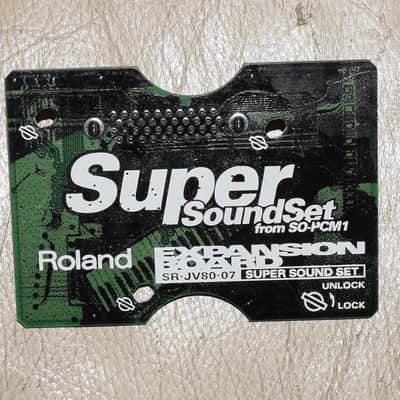

Roland SR-JV80-07 Super Sound Set Expansion Board 1990s - GreenRoland SR-JV80-07 Super Sound Set Expansion Board 1990s - Green ($125)

Roland SR-JV80-04 Vintage Synth Expansion Board 1990s - GreenRoland SR-JV80-04 Vintage Synth Expansion Board 1990s - Green ($260.71)

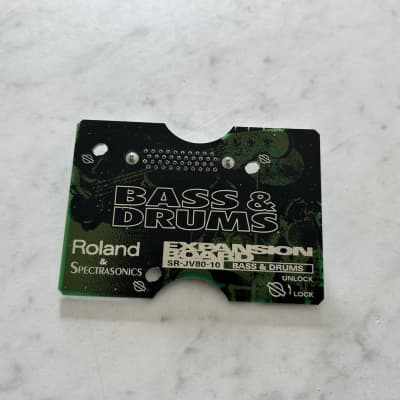

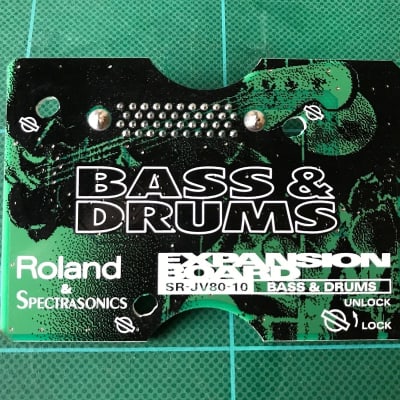

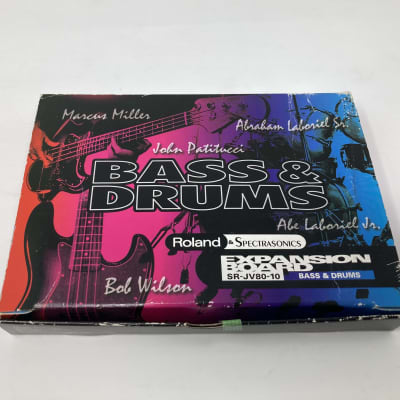

Roland SR-JV80-10 Bass and Drums Expansion Board 1990s - GreenRoland SR-JV80-10 Bass and Drums Expansion Board 1990s - Green ($50)
