Synths ⇝ Roland ⇝ Roland XV-5080

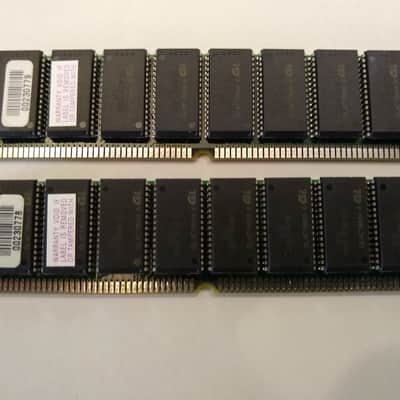

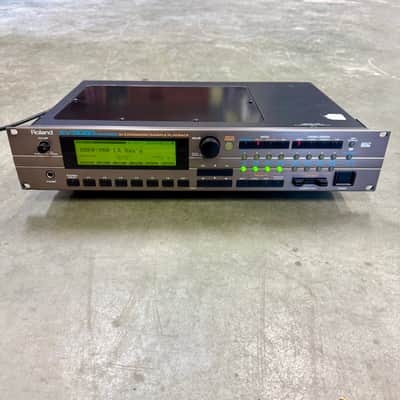

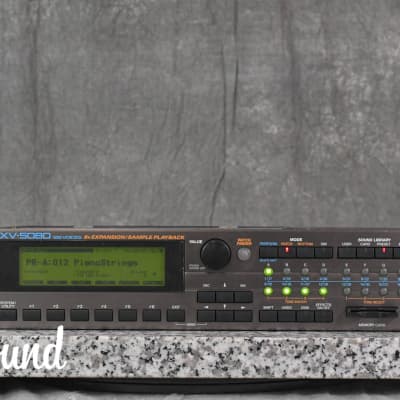

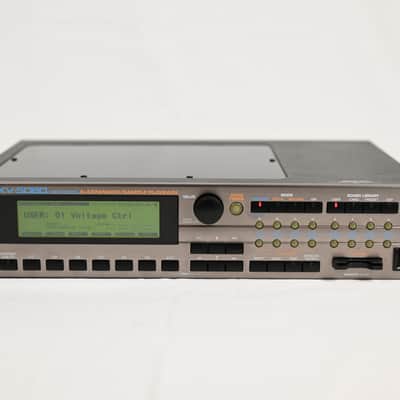

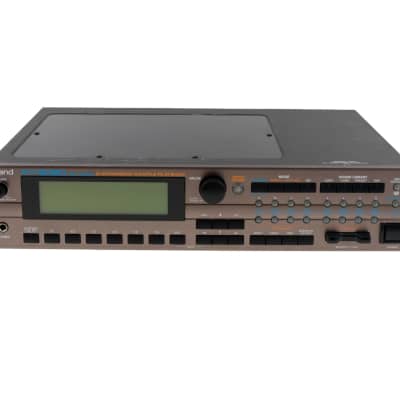

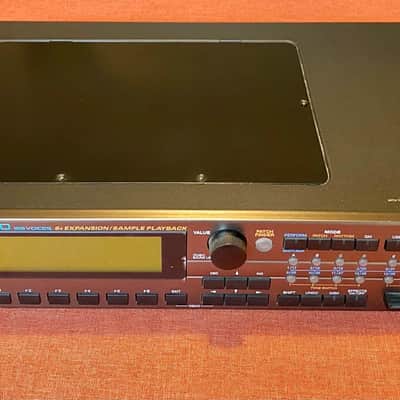

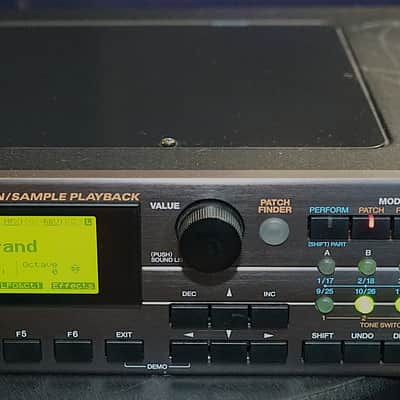

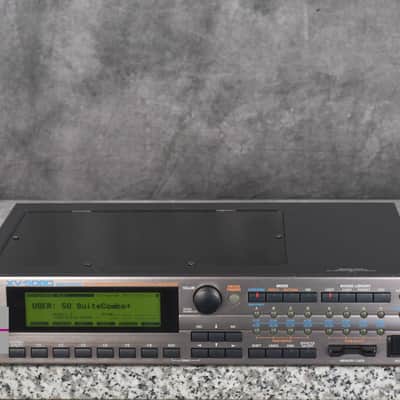

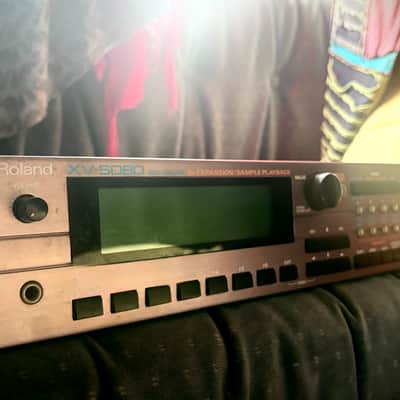

The Roland XV-5080 was the rackmounted flagship of the JV/XP/XV series of synthesizers. It contains the same sound set as the XV-3080 rack module, which also includes the sounds of the JV-1080 and JV-2080. In addition to waveform playback, it also supported playing samples in Roland S-700 or Akai format and could be expanded with up to 128MB of sample RAM.

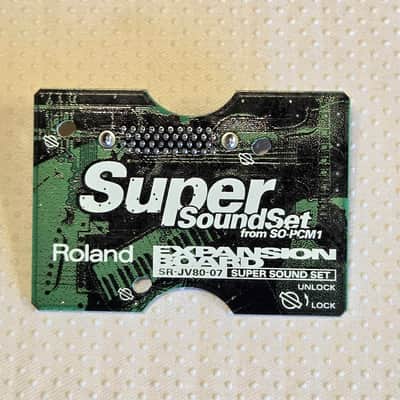

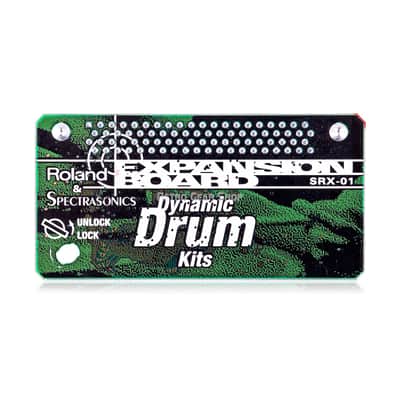

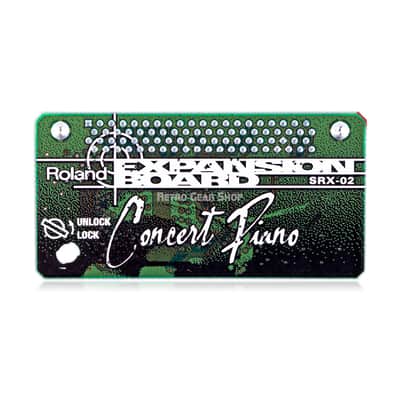

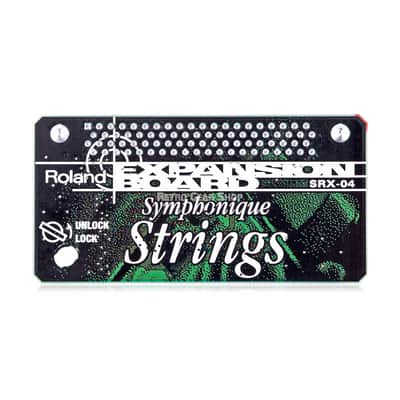

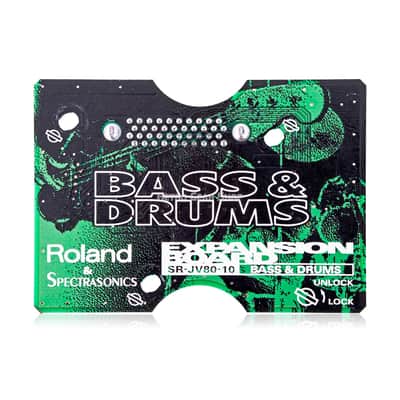

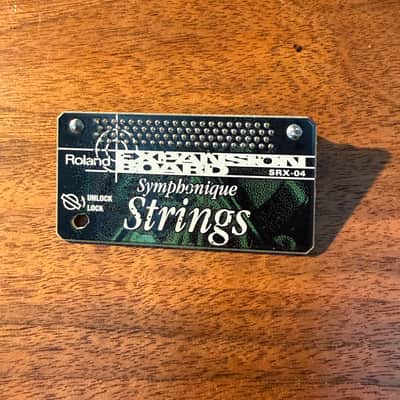

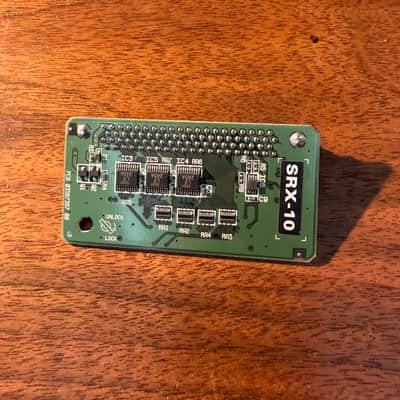

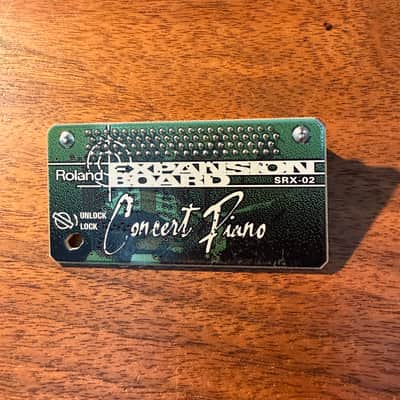

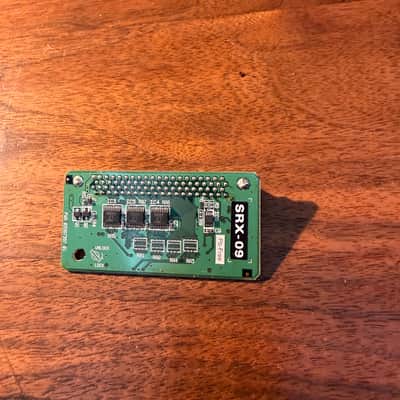

Like the XV-3080, it supports two types of expansion boards. It can be expanded with up to 4 SR-JV80 expansion boards and up to 4 SRX expansion boards.

The XV-5080 supports General MIDI Level 2.

Specifications

Year Released: 2000

Polyphony: 128 notes

Multitimbral: 32 parts

Preset Patches: 1252

User Patches: 128

Preset Performances: 64

User Performances: 64

Preset Drum Kits: 21

User Drum Kits: 4

ROM: 64MB (1083 waveforms)

Effects: 3 multi-effects processors with 90 types of effect plus 4 types of reverb and 2 types of chorus, 2-band EQ

Screen: 320 x 80 pixel backlit LCD

Outputs: 1/4" stereo pair plus 6 individual 1/4" outputs

Power Consumption: 25 watts

Dimensions: 482 mm x 281 mm x 88 mm

Weight: 4.9 kg

This is a 2-space rack unit.

User Demo Videos

Rating

File Downloads

Roland XV-5080 Manual

Roland XV-5080 Service Notes

Items for Sale on Reverb

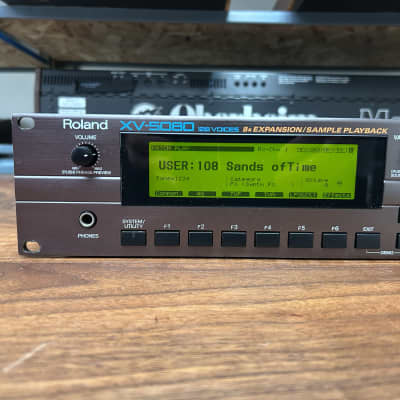

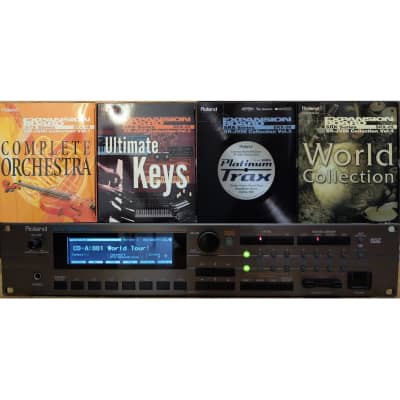

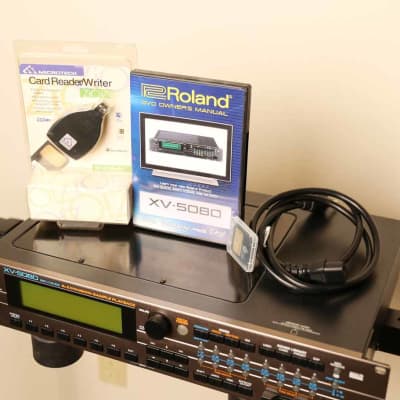

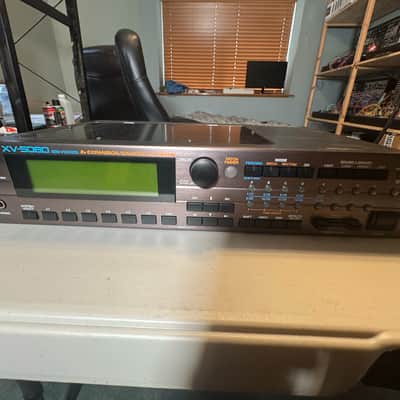

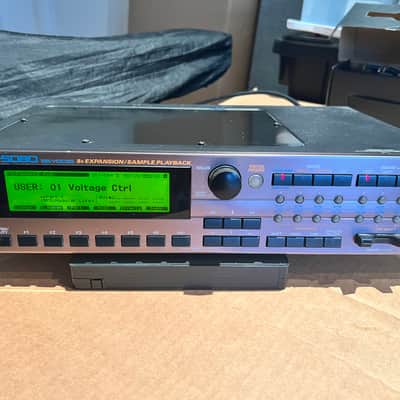

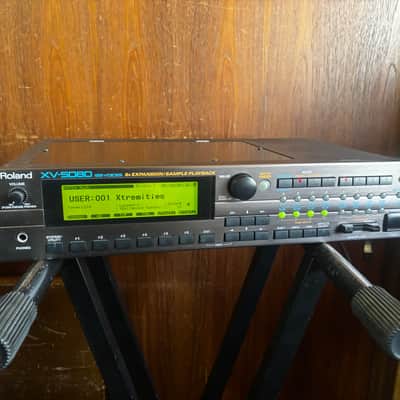

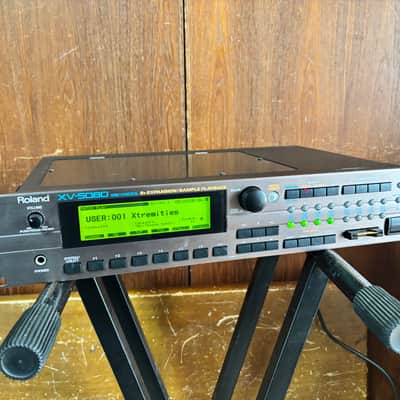

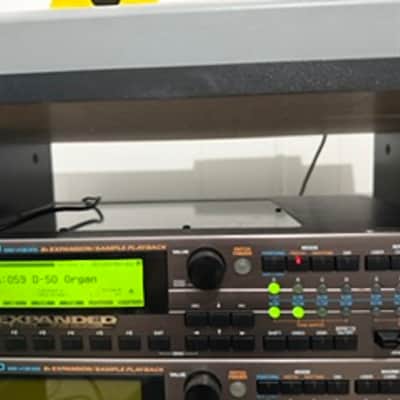

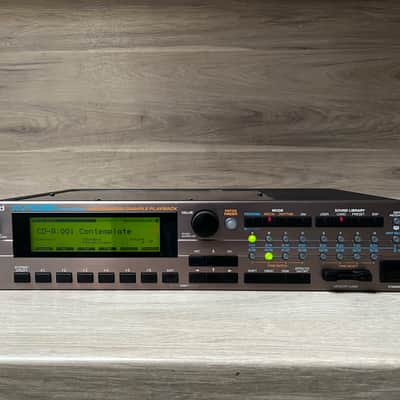

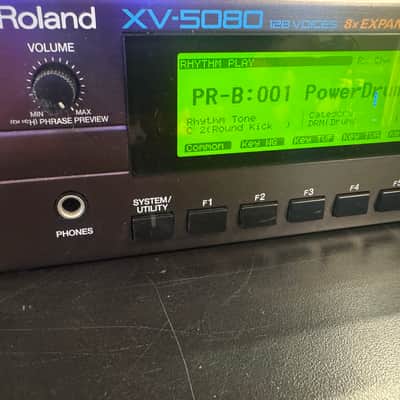

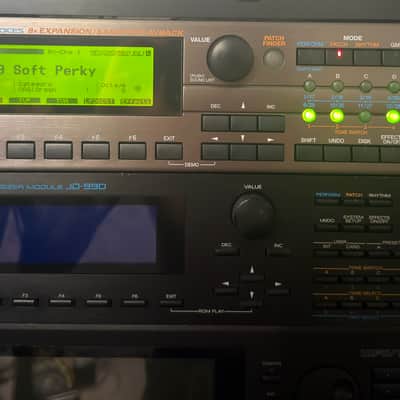

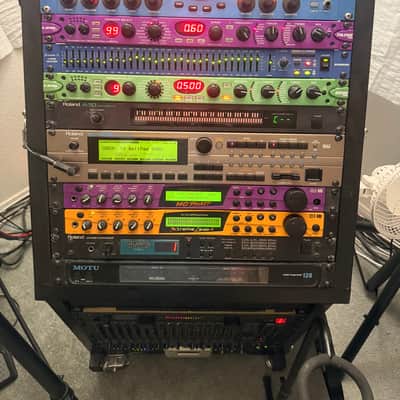

Roland XV-5080 + 7 Expansion Boards ($2,660.61)

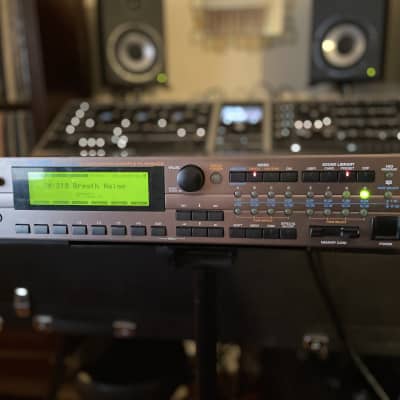

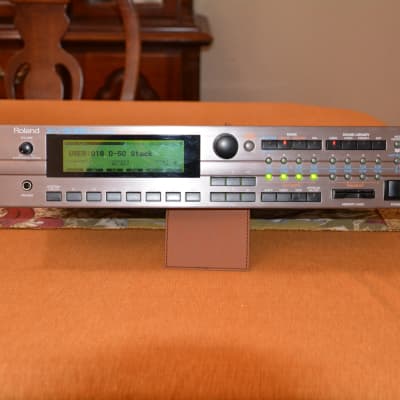

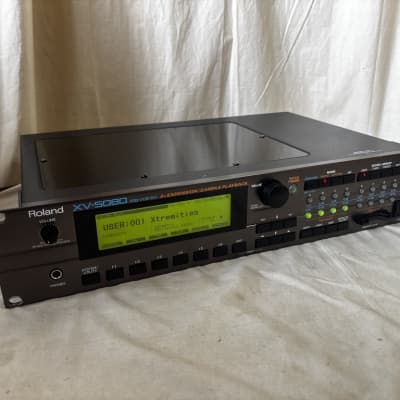

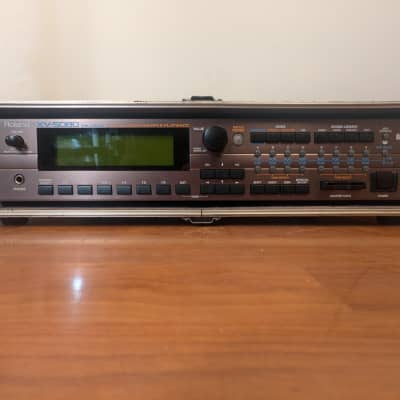

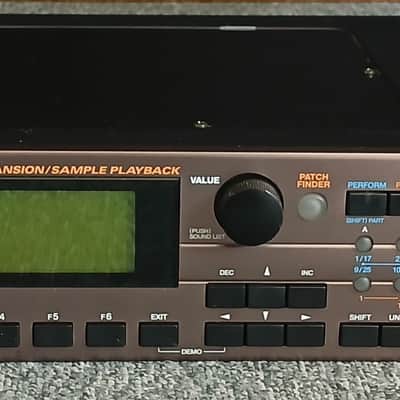

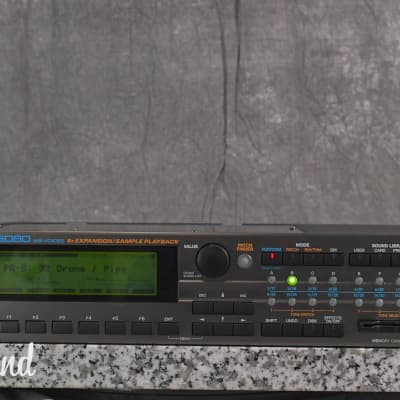

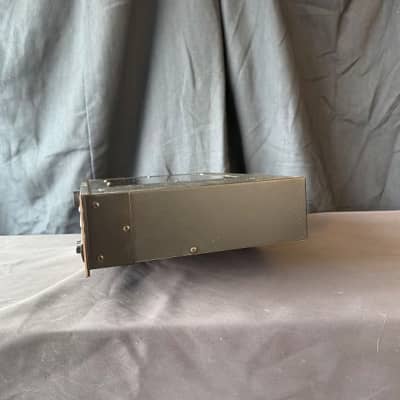

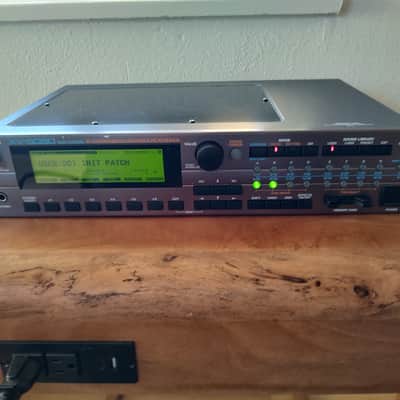

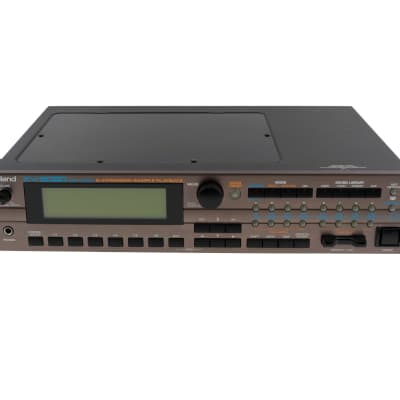

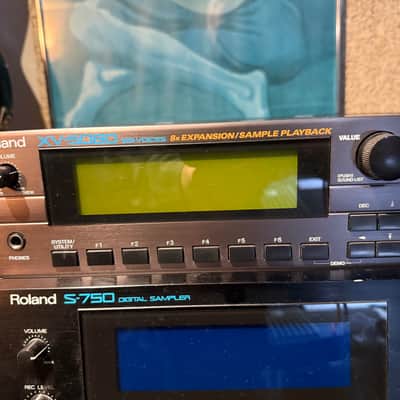

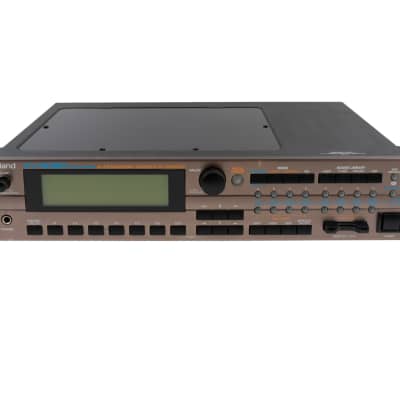

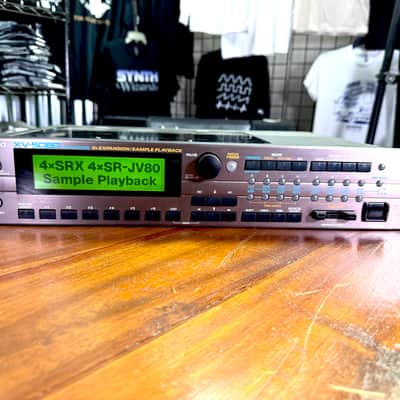

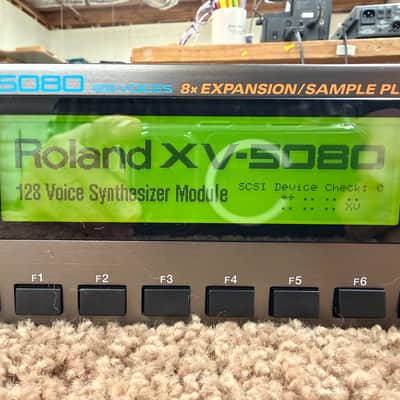

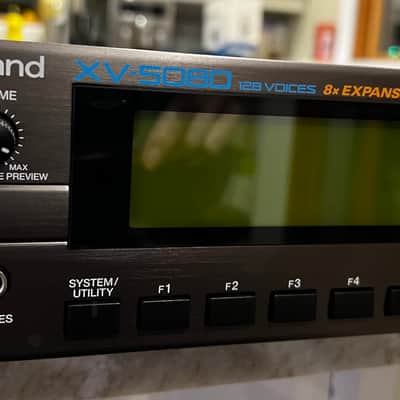

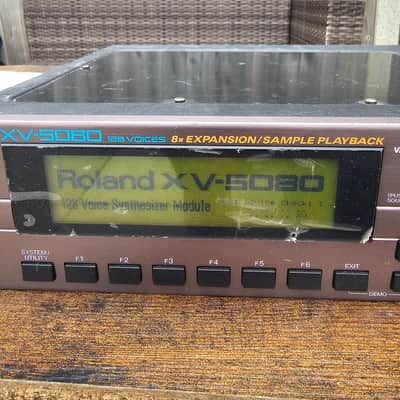

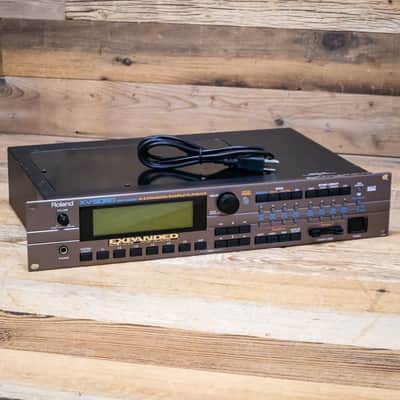

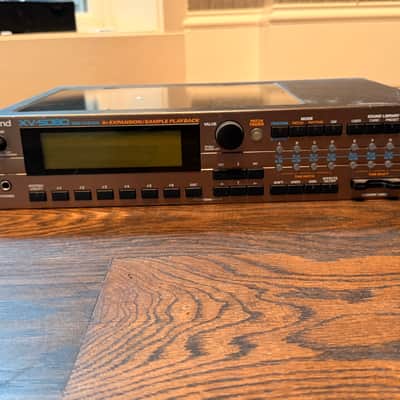

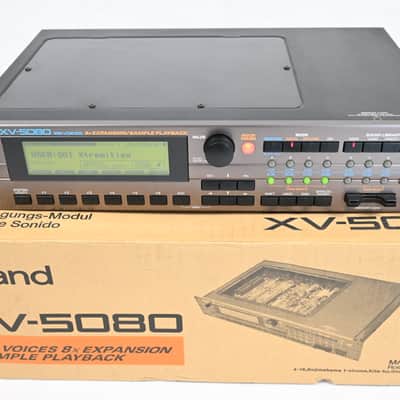

Roland XV-5080 ($501.08)

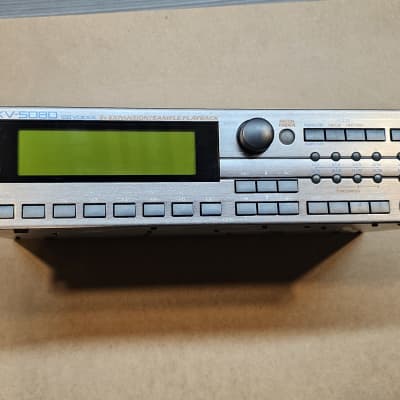

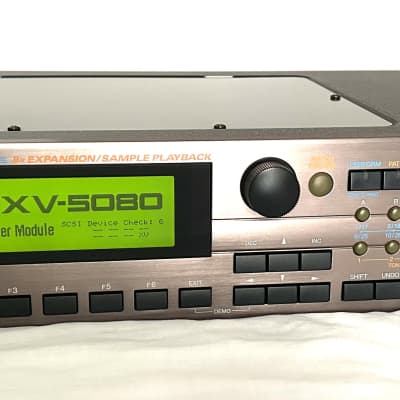

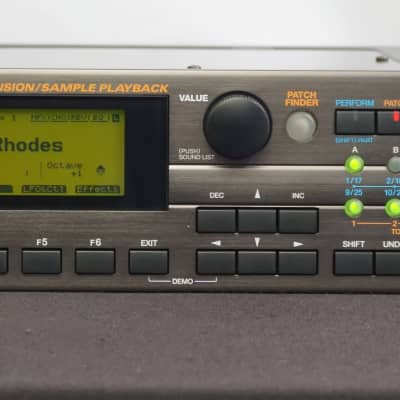

Roland XV-5080 Synthesiser Sound Module 2U Rack Mount Synth W/ MIDI - 100V ($670.14)

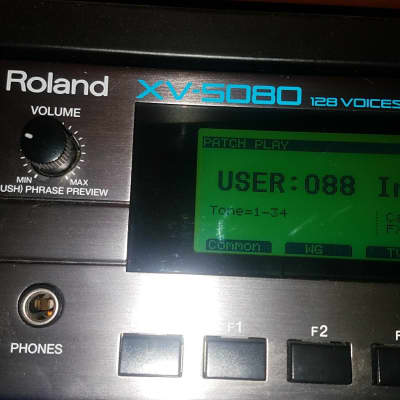

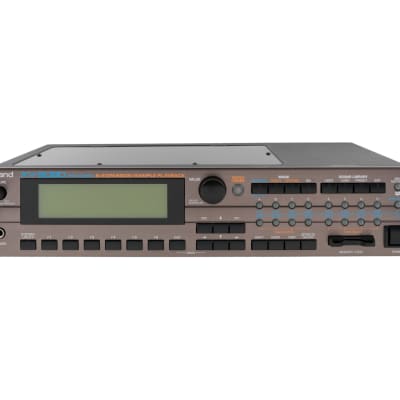

Roland XV-5080 ($917.82)

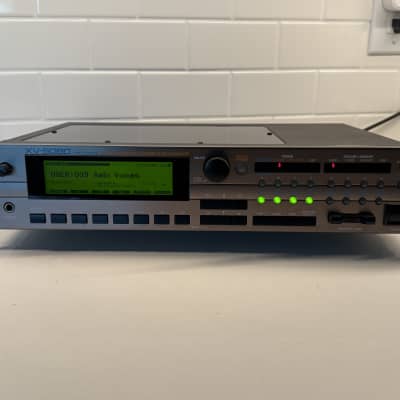

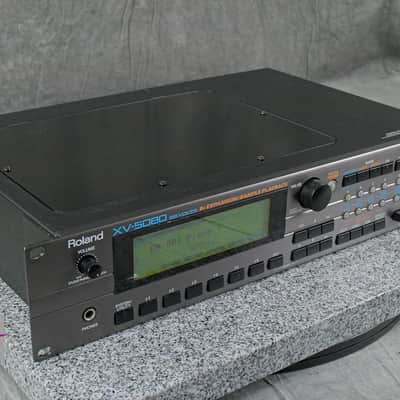

Roland XV-5080 ($1,300)

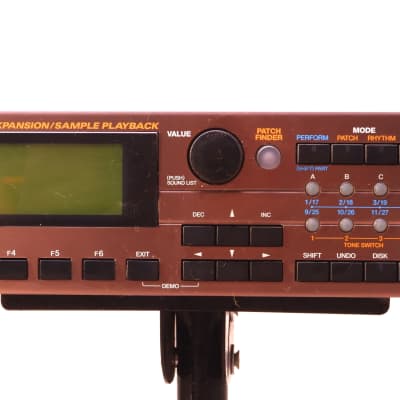

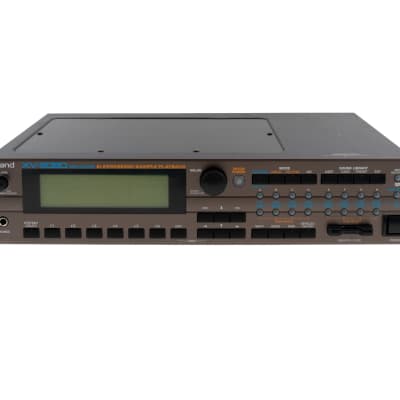

Roland XV-5080 ($519.99)

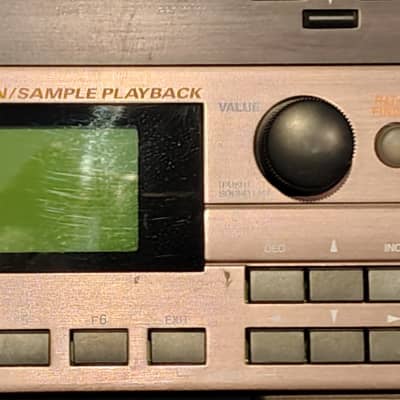

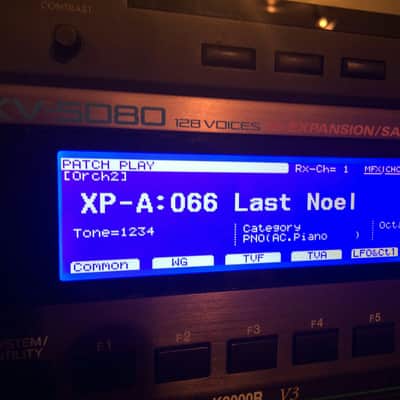

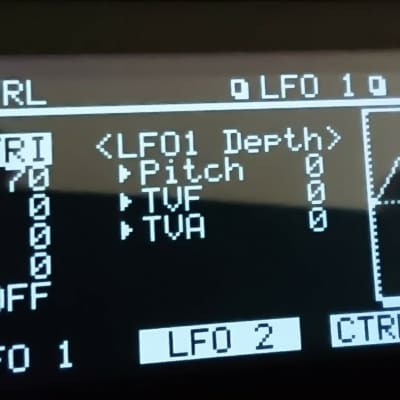

Roland XV-5080 (NEW) LED Graphic Display ! ($179.77)

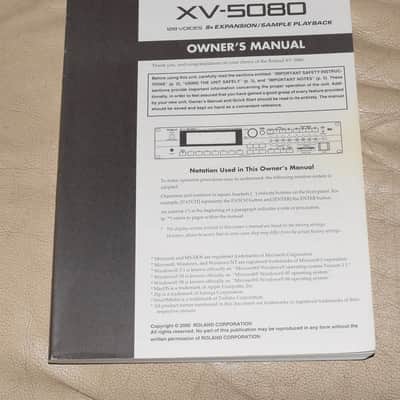

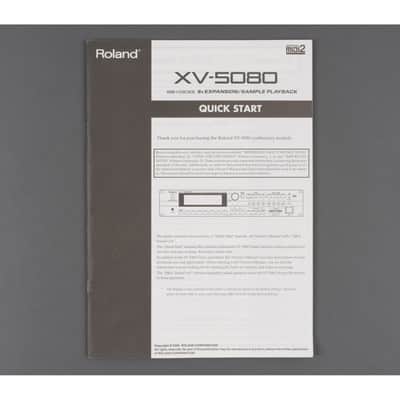

Roland XV-5080 original manual ($25)

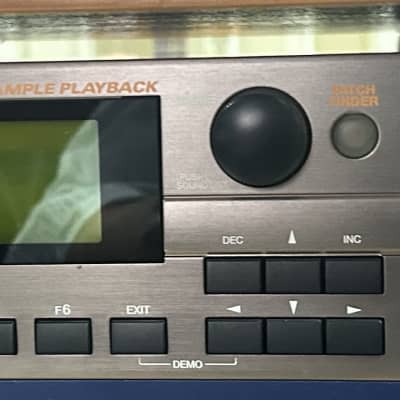

Graphic Display Upgrade - Roland XV-5080 Custom (Negative) Black LED Graphic Display ! ($179.77)

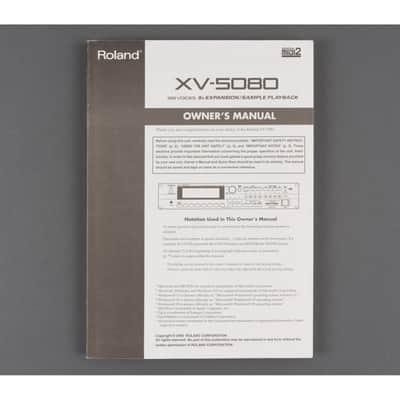

Roland XV-5080 owners manual guide instructional ($59)

Panel A Board For Roland XV5080 ASSY 71563912 ($28.76)

ROLAND SRX-98 ANALOG ESSENTIALS Special SRX Fantom X XR S Fa XV 5080 5050 ($161.89)

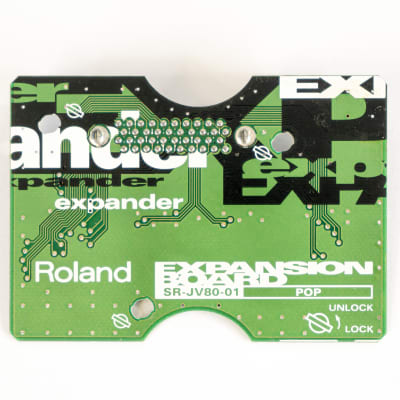

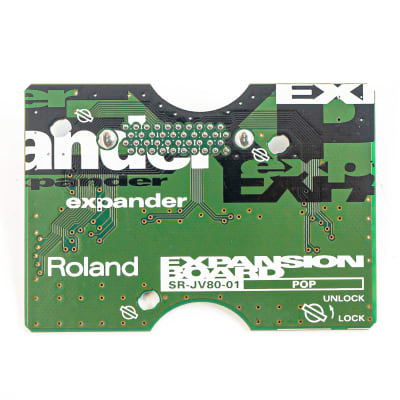

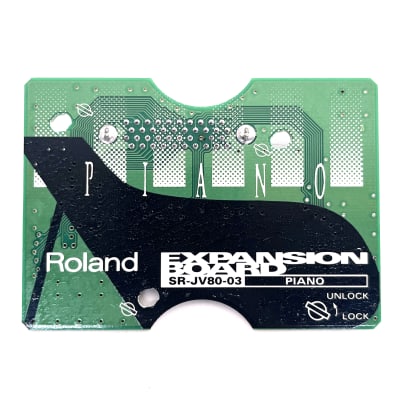

Roland SR-JV80-12 HIP HOP Expansion Board JV-1080 JV-2080 XV-5080 JD-990 ($137.42)

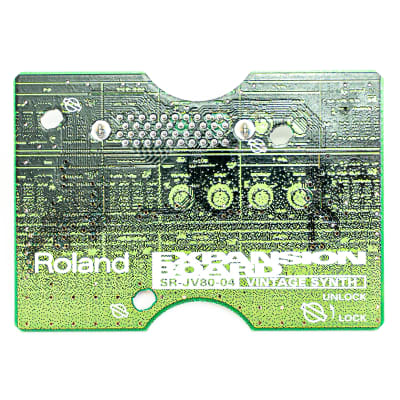

Roland SR-JV80-11 Techno Expansion Board JV/XV Series 1080/2080/3080/5080/990 SRJV ($211.11)

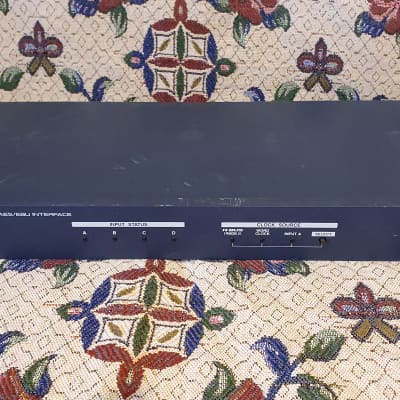

Rare Roland RBC-5 5m R-Bus RMDB2 Cable for VS recorders / VM Mixers / XV 5080 - 2000 Blue/White ($65)
