SynthsRoland ⇝ Roland D-20

Roland D-20Roland D-20 Front PanelRoland D-20 DiagramsRoland D-20 BackRoland D-20 Rear Connections

Along with the D-5, D-10, and D-110, the D-20 is a second-generation Linear Arithmetic (LA) synthesizer that uses attack transients coupled with single-cycle waveform samples to generate sound. It is patch-compatible with the other second-generation D-series synths but not the first-generation D-50.

Although the sound engine is identical to the D-10, the D-20 has an onboard 8-track sequencer with rhythm track and a 3.5" floppy drive that can store 35,000 notes of song data per disk.

The Roland D-20 is compatible with the PN-D10 series of expansion cards.

Specifications

Year Released: 1988

MSRP: 1795.00 USD

Keyboard: 61 keys with velocity

Polyphony: 32 notes

Multitimbral: 8 parts

Preset Patches: 128

User Patches: 64

User Performances: 128

ROM: 128 timbres, 128 tones, 63 drum sounds

Sequencer Memory: 16,000 notes

Effects: 8 Effects

Screen: 16x2 character backlit LCD

Power Consumption: 25 watts

Dimensions: 1014 mm x 301 mm x 106 mm

Weight: 10.1 kg

User Demo Videos

Rating


4
(11 votes)

Sound Samples

WAV samples are available on freewavesamples.com.

File Downloads

Roland D-20 Manual

Roland D-20 Service Notes

Items for Sale on Reverb

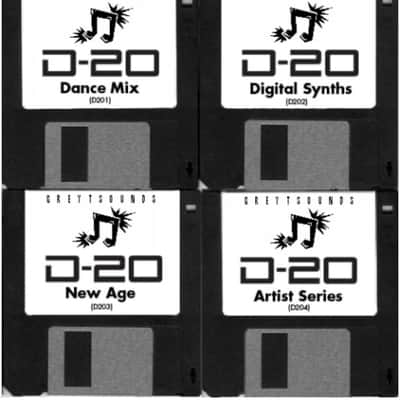

Roland D-20 / D20 4 • Disk Set of synth patches • Loads Directly into your D-20Roland D-20 / D20 4 • Disk Set of synth patches • Loads Directly into your D-20 ($32)

Roland D-20 / D20 •  4-Bank Set of synth patches • Digital Download • Also works with D-10 / D-5Roland D-20 / D20 • 4-Bank Set of synth patches • Digital Download • Also works with D-10 / D-5 ($20)

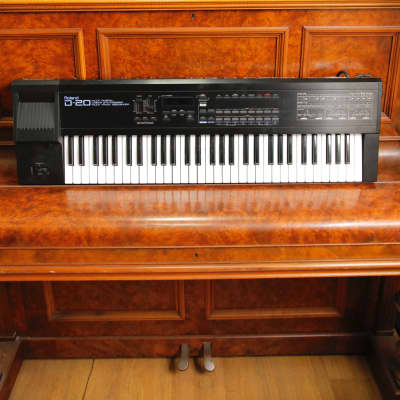

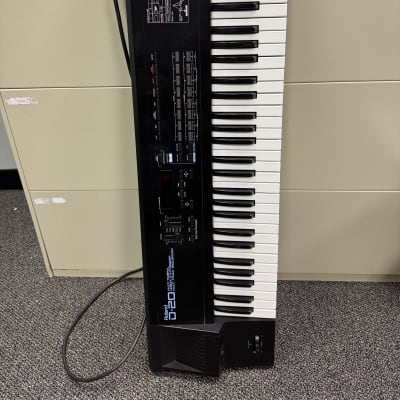

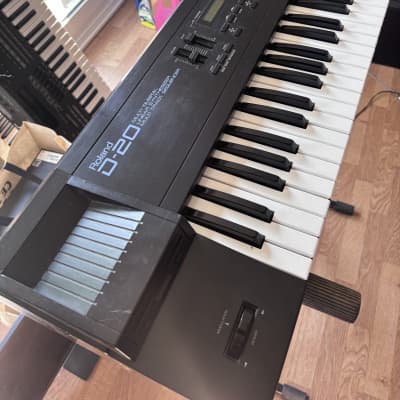

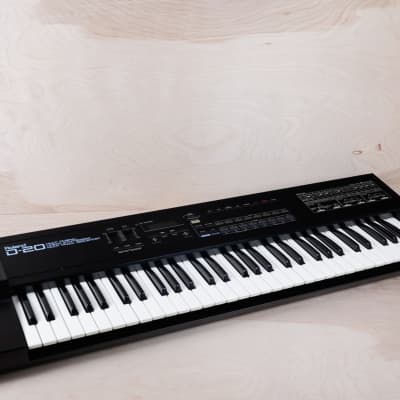

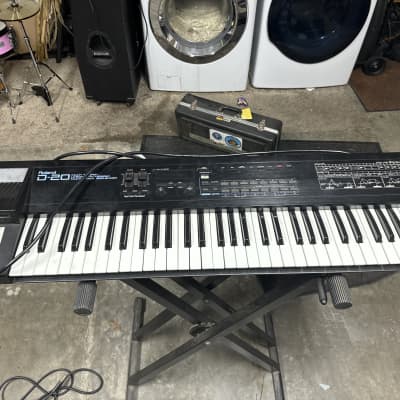

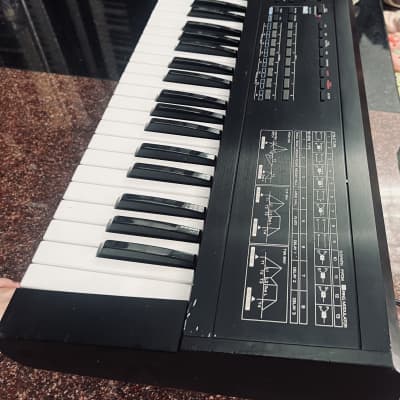

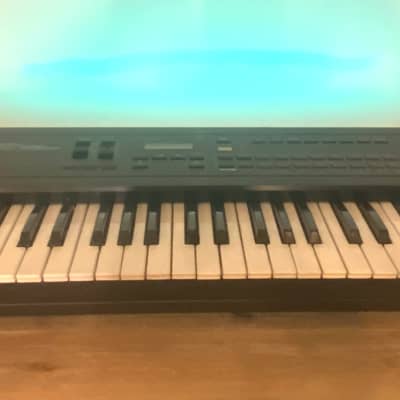

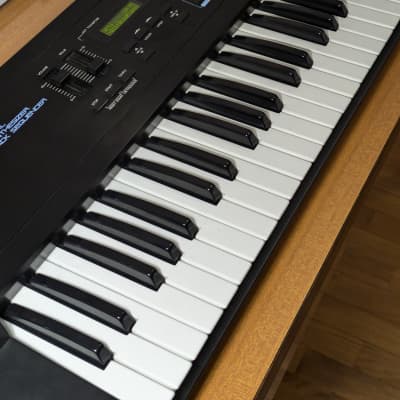

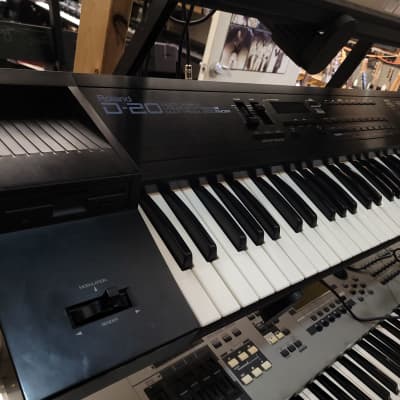

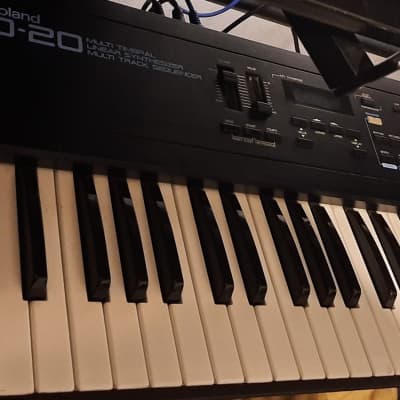

Roland D-20 61-Key Multi-Timbral Linear Synthesizer / Multitrack SequencerRoland D-20 61-Key Multi-Timbral Linear Synthesizer / Multitrack Sequencer ($383.75)

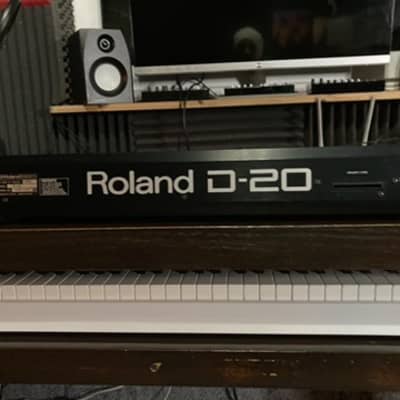

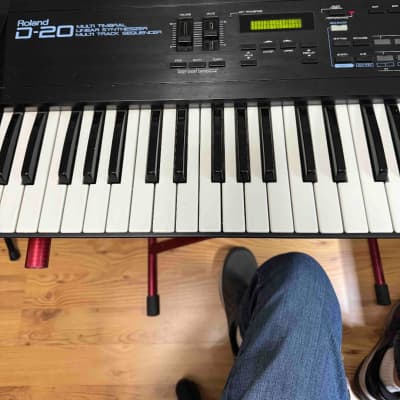

Roland D-20 61-Key Multi-Timbral Linear Synthesizer / Multitrack Sequencer 1988 - 1992 - Black – a great condition throughout, the best priced on ReverbRoland D-20 61-Key Multi-Timbral Linear Synthesizer / Multitrack Sequencer 1988 - 1992 - Black – a great condition throughout, the best priced on Reverb ($338.47)

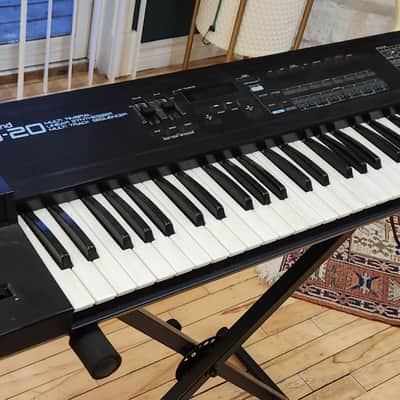

Roland D-20 Vintage Multi Timbral Linear Synthesiser W/ Sequencer - 240VRoland D-20 Vintage Multi Timbral Linear Synthesiser W/ Sequencer - 240V ($475.87)

Roland D-20 61-Key Multi-Timbral Linear Synthesizer / Multitrack SequencerRoland D-20 61-Key Multi-Timbral Linear Synthesizer / Multitrack Sequencer ($299.99)

Roland D-20 61-Key Multi-Timbral Linear Synthesizer / Sequencer with CaseRoland D-20 61-Key Multi-Timbral Linear Synthesizer / Sequencer with Case ($325)

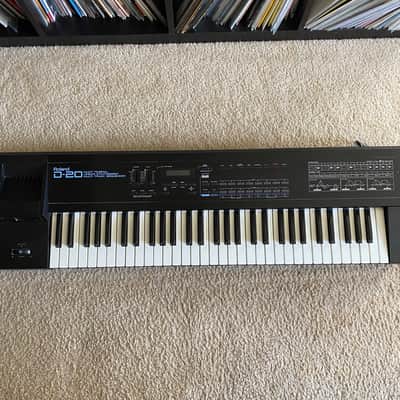

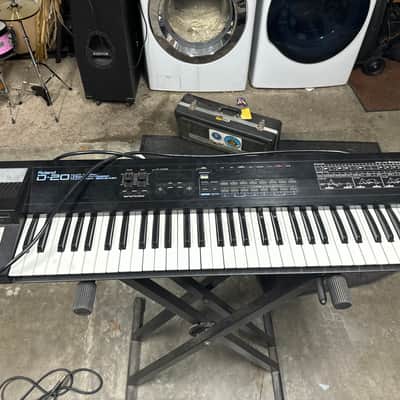

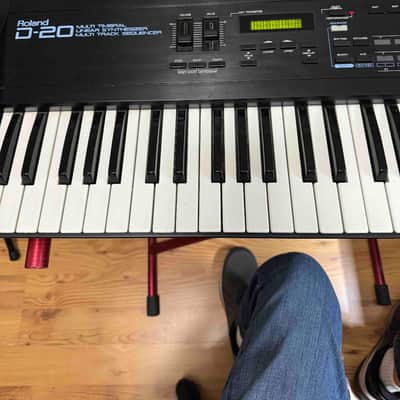

Roland D-20 61-Key Multi-Timbral Linear Synthesizer / Multitrack Sequencer 1988 - 1992 - BlackRoland D-20 61-Key Multi-Timbral Linear Synthesizer / Multitrack Sequencer 1988 - 1992 - Black ($264.72)

Roland D-20 61-Key Multi-Timbral Linear Synthesizer / Multitrack Sequencer 100V 1988 Made in Japan MIJRoland D-20 61-Key Multi-Timbral Linear Synthesizer / Multitrack Sequencer 100V 1988 Made in Japan MIJ ($395)

Roland D-20 61-Key Multi-Timbral Linear Synthesizer / Multitrack Sequencer 1988 - 1992 - BlackRoland D-20 61-Key Multi-Timbral Linear Synthesizer / Multitrack Sequencer 1988 - 1992 - Black ($250)

Roland D-20 61-Key Multi-Timbral Linear Synthesizer / Multitrack SequencerRoland D-20 61-Key Multi-Timbral Linear Synthesizer / Multitrack Sequencer ($379.99)

Roland D-20 61-Key Multi-Timbral Linear Synthesizer / Multitrack SequencerRoland D-20 61-Key Multi-Timbral Linear Synthesizer / Multitrack Sequencer ($303.82)

Roland D-20 Multi Timbral Linear Synthesizer in Very Good ConditionRoland D-20 Multi Timbral Linear Synthesizer in Very Good Condition ($499)

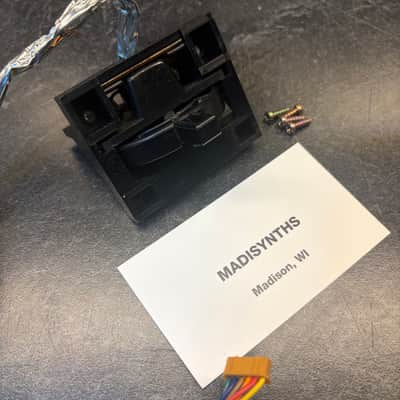

Roland RD-500 W-30 D-20 Pro-E JX-1 Original Pitch Bender Assembly. Works Great !...Roland RD-500 W-30 D-20 Pro-E JX-1 Original Pitch Bender Assembly. Works Great !... ($49)

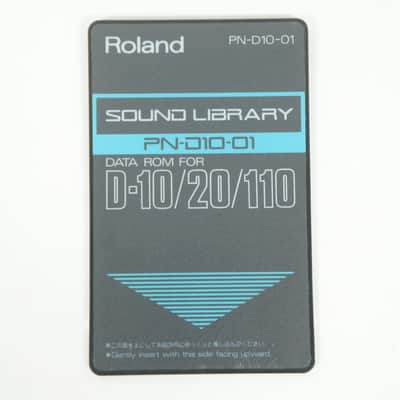

Roland PN-D10-01 ROM voice card (D-10 / D-20 / D-110)Roland PN-D10-01 ROM voice card (D-10 / D-20 / D-110) ($141.50)

Roland D20  Sequencing & Recording HandbookRoland D20 Sequencing & Recording Handbook ($25)

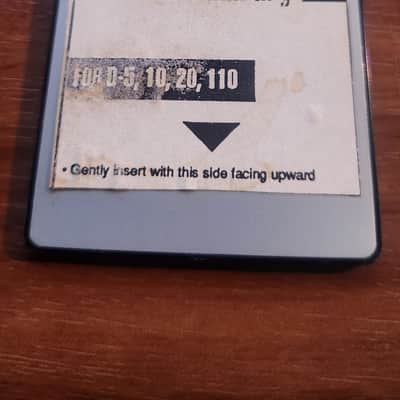

Roland Voice Crystal 1 D-10 D-20 D-110 Memory CardRoland Voice Crystal 1 D-10 D-20 D-110 Memory Card ($72)

Replacement Backup Battery for Roland D-10 D-20 D-50 D-550 [ Button Coin Cell ]Replacement Backup Battery for Roland D-10 D-20 D-50 D-550 [ Button Coin Cell ] ($9.49)

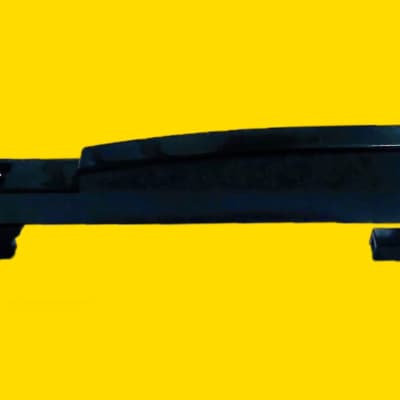

Parts Keyboard ROLAND plastic Corner D-20 pictured good right side coté droitParts Keyboard ROLAND plastic Corner D-20 pictured good right side coté droit ($21.51)

Roland D-20 Multi Timbral Linear Synthesizer and Multitrack Sequencer Service NotesRoland D-20 Multi Timbral Linear Synthesizer and Multitrack Sequencer Service Notes ($15)

Roland D-20 Owner's Manual [Three Wave Music]Roland D-20 Owner's Manual [Three Wave Music] ($25)

DUST COVER for ROLAND D-20 - Waterproof, easy to use, elastic edgesDUST COVER for ROLAND D-20 - Waterproof, easy to use, elastic edges ($34.24)

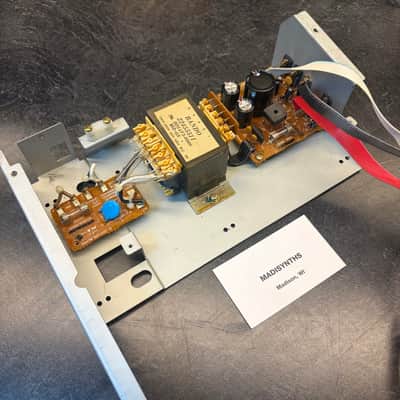

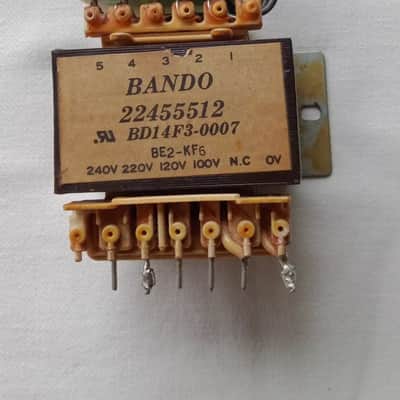

Roland D-20 D-10 D-70 Original Power Transformer BANDO 22455511. Works Great !Roland D-20 D-10 D-70 Original Power Transformer BANDO 22455511. Works Great ! ($29)

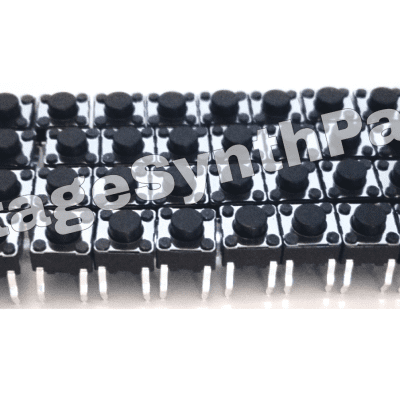

ROLAND D-10 D-20 Full set of 39 Pushbuttons Tact Switches Micro Switch D10 D20ROLAND D-10 D-20 Full set of 39 Pushbuttons Tact Switches Micro Switch D10 D20 ($15.79)

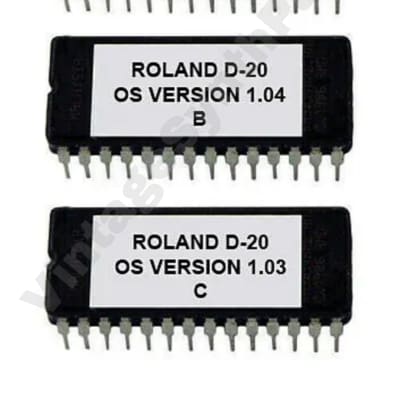

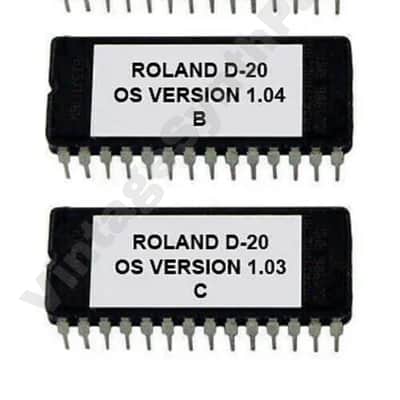

Roland D-20 - Version 1.04 Latest Firmware OS Upgrade Update eprom rom D20Roland D-20 - Version 1.04 Latest Firmware OS Upgrade Update eprom rom D20 ($33.90)

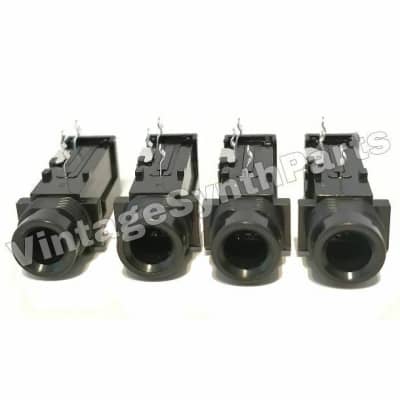

4 x Roland D20 D-20 Replacement 1/4 Phone Output Jack4 x Roland D20 D-20 Replacement 1/4 Phone Output Jack ($12.40)

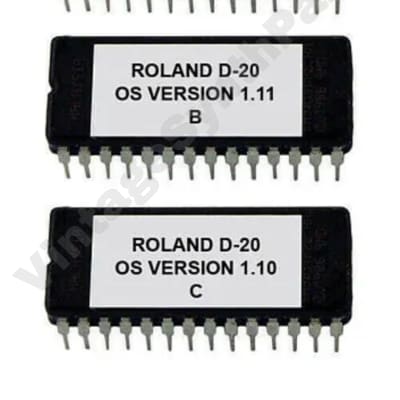

Roland D-20 - Version 1.11 Latest Firmware OS Upgrade Update eprom rom D20Roland D-20 - Version 1.11 Latest Firmware OS Upgrade Update eprom rom D20 ($33.90)

Roland D20 80s 90s synthesizerRoland D20 80s 90s synthesizer ($399)

Roland - D-110 U-110 MT-32 JV-880 MC-303 U20 U220 R-70 E-20 - BatteryRoland - D-110 U-110 MT-32 JV-880 MC-303 U20 U220 R-70 E-20 - Battery ($3.20)

Roland - D-110 U-110 MT-32 JV-880 MC-303 U20 U220 R-70 E-20 - BatteryRoland - D-110 U-110 MT-32 JV-880 MC-303 U20 U220 R-70 E-20 - Battery ($5.60)

Original Power Switch for Roland Synthesizers Synth Part Number 13149108 NewOriginal Power Switch for Roland Synthesizers Synth Part Number 13149108 New ($10.13)

ROLAND Sound Library Electric Grand & Clavi SN-U110-04 D-70, U-110, U-20, U-220ROLAND Sound Library Electric Grand & Clavi SN-U110-04 D-70, U-110, U-20, U-220 ($107.54)

Touche Clavier KEYS Parts Keyboard ROLAND U-20 D-70 KR-55 KR-500 Rhodes 660 670Touche Clavier KEYS Parts Keyboard ROLAND U-20 D-70 KR-55 KR-500 Rhodes 660 670 ($6.68)

ROLAND Sound Library Guitar & Keyboards SN-U110-09 D-70, U-110, U-20, U-220ROLAND Sound Library Guitar & Keyboards SN-U110-09 D-70, U-110, U-20, U-220 ($107.54)

Roland PN-D10-01 - Unique D Sounds for D10/20/110Roland PN-D10-01 - Unique D Sounds for D10/20/110 ($123.16)

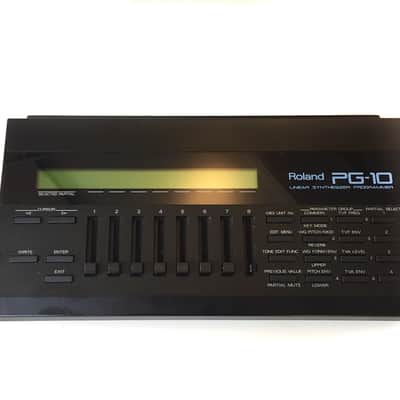

Roland Programmer PG-10 for D-10, D-20, D-110 // RARE!!Roland Programmer PG-10 for D-10, D-20, D-110 // RARE!! ($537.70)

Parts Keyboard ROLAND Corner BOARD ** D-5 D5 D10 D20 pictured goodParts Keyboard ROLAND Corner BOARD ** D-5 D5 D10 D20 pictured good ($10.19)

Power Cable 2 Pins 2 Meters for Roland  D10, D20, D50, MKS 10, 20, 30, 70, 80Power Cable 2 Pins 2 Meters for Roland D10, D20, D50, MKS 10, 20, 30, 70, 80 ($18.62)

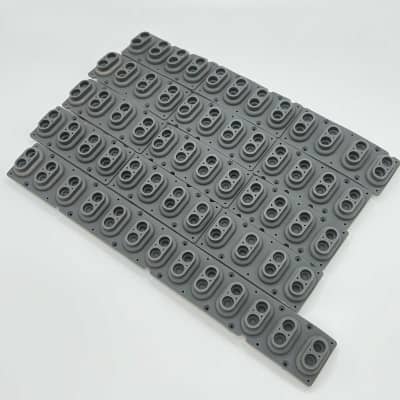

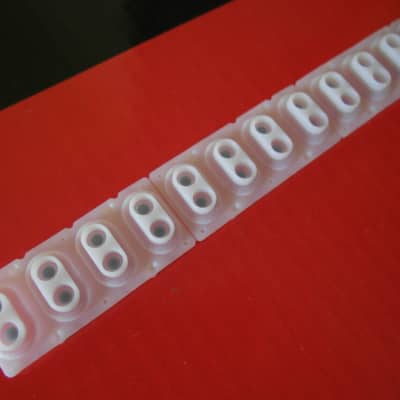

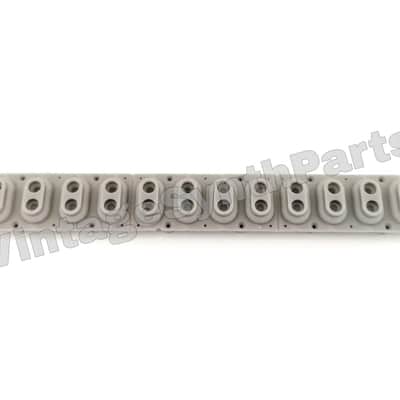

Parts Keyboard ROLAND d50 S-50 D10 D20 E 86 VA Solton Rubber contact Repair keyParts Keyboard ROLAND d50 S-50 D10 D20 E 86 VA Solton Rubber contact Repair key ($10.19)
