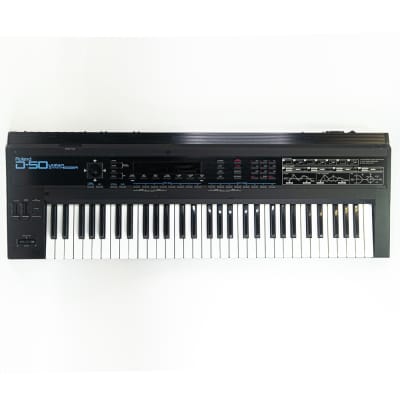

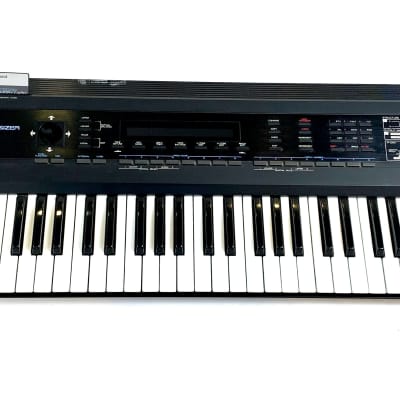

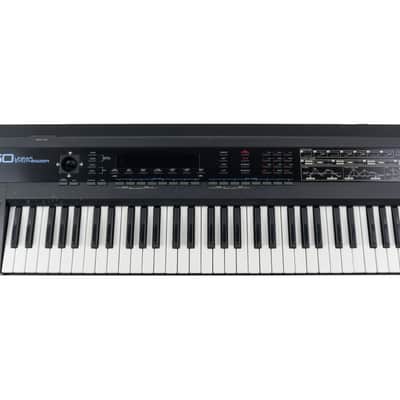

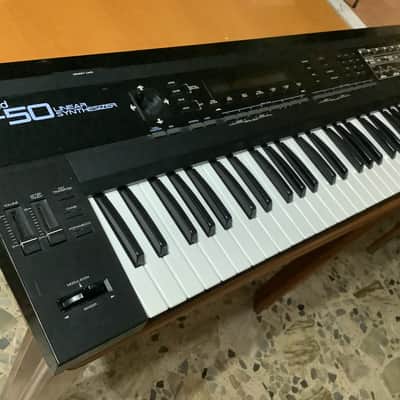

The D-50 introduced LA Synthesis (linear arithmetic), which is a method of synthesis that combines ROM samples of attack and sustain waveforms in order to build instrument sounds. Sounds are built using four tones, two "upper tones" and two "lower tones".

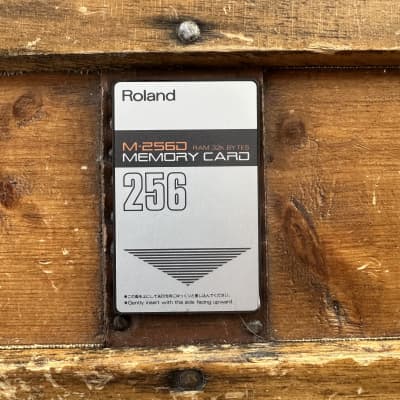

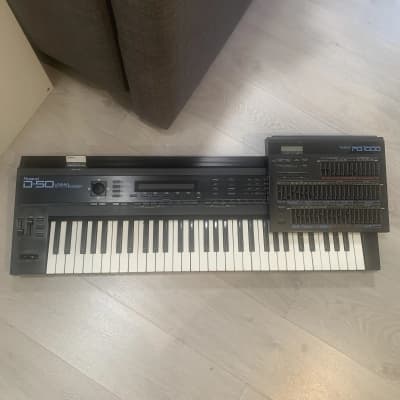

The PG-1000 editor can be used to make patch editing easier. Patches can be saved to an M-256D or M-256E RAM card and its patch memories are maintained with a standard CR2032 lithium battery.

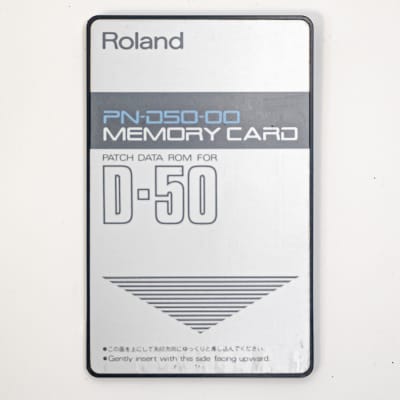

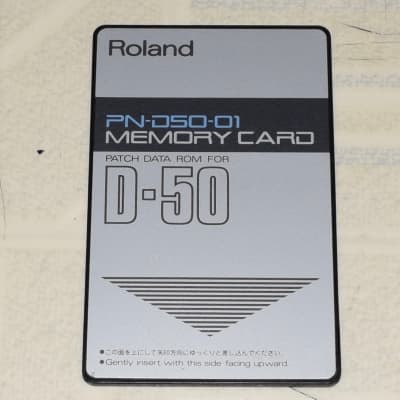

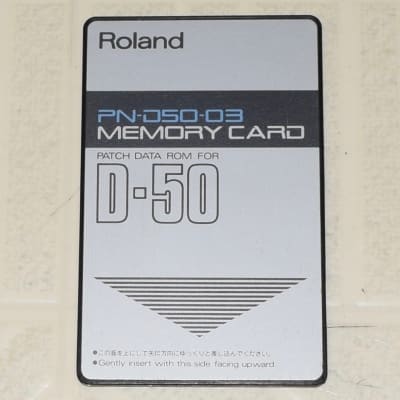

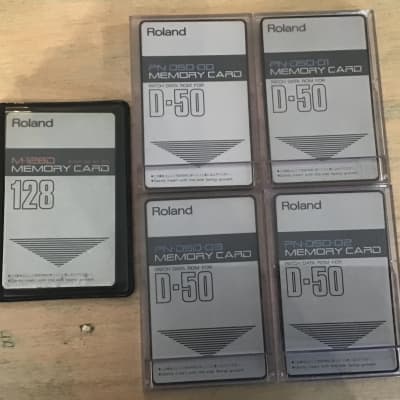

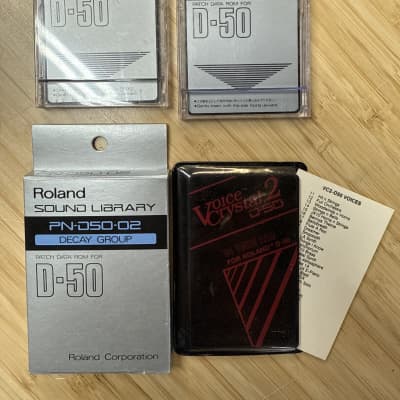

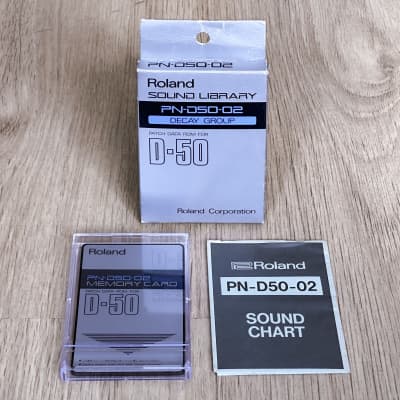

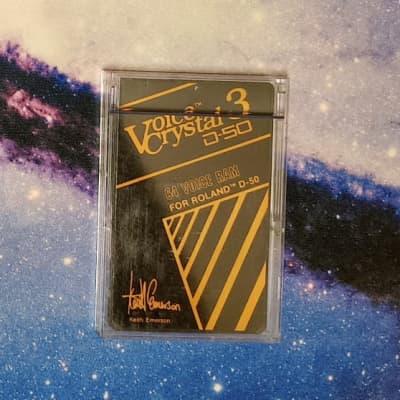

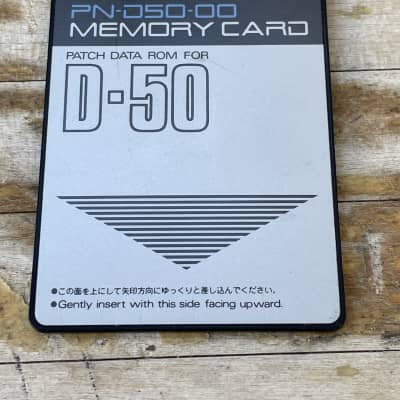

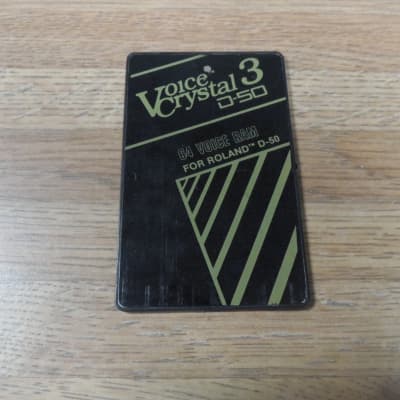

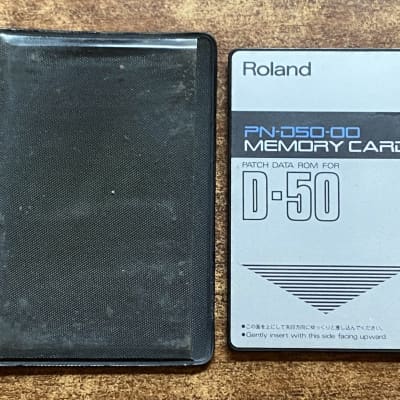

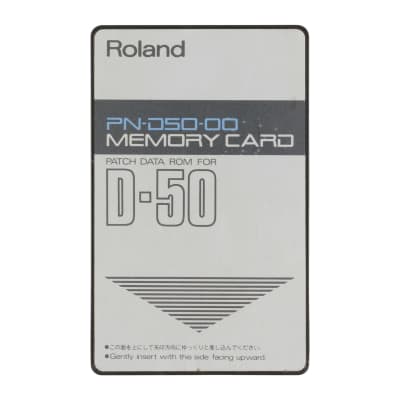

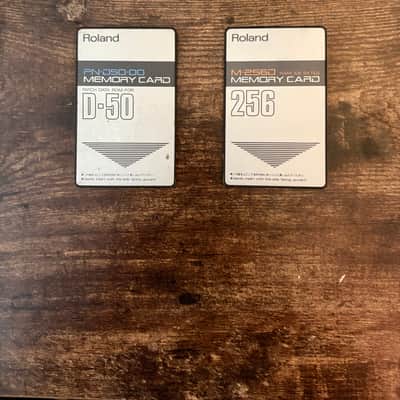

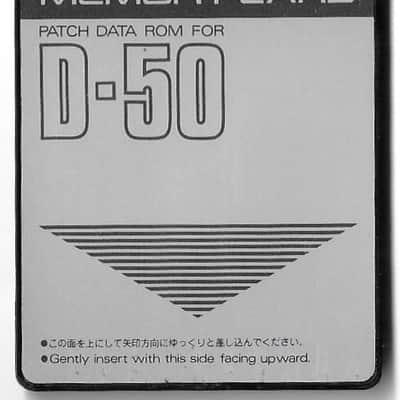

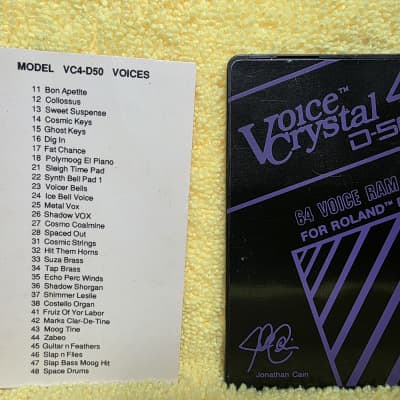

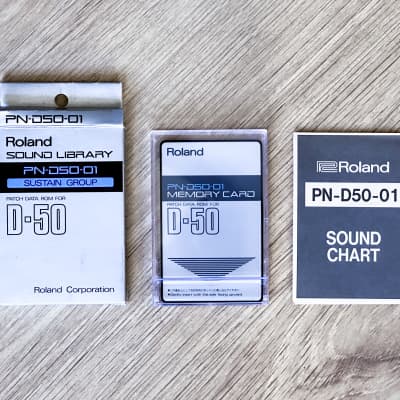

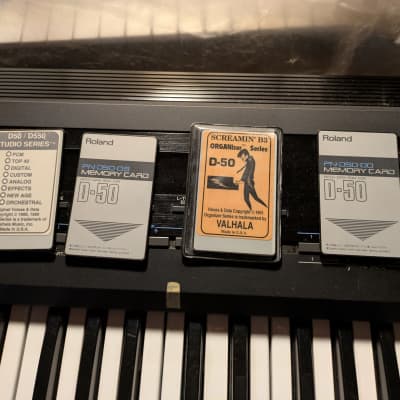

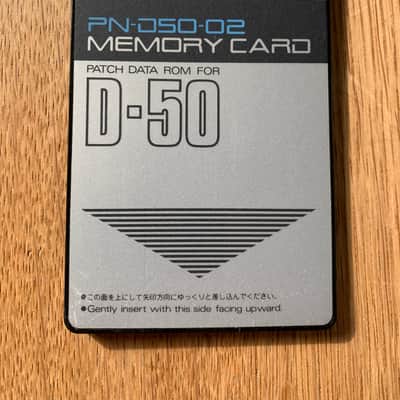

The D-50 is monotimbral but can be expanded to 8-part multitimbral with the M.EX multimode expansion (which also adds 192 patch memories). Roland also released a series of 4 memory cards (PN-D50-01 through PN-D50-04) containing patches but no additional sound waveforms. Eye and I Productions has also produced six Voice Crystal expansion cards for the Roland D-50.

The rackmount version of the Roland D-50 is the Roland D-550. It was followed by the Roland D-5, D-10, D-20, and D-110.

The D-50 was also implemented as a plugin card for the Roland VariOS.

Specifications

Year Released: 1987

MSRP: $1995

Keyboard: 61 keys with velocity and aftertouch

Polyphony: 16 notes

Multitimbral: 1 parts

User Patches: 64

ROM: 128 kb (100 waveforms)

Effects: reverb, delay, chorus, flanger, and 2-band EQ

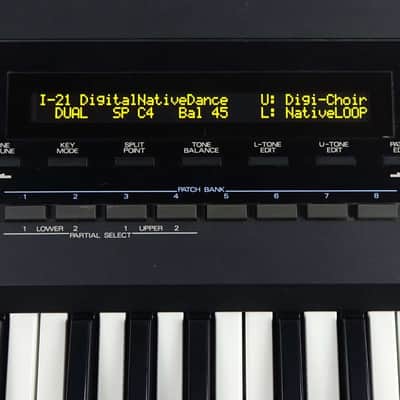

Screen: 40 x 2 character backlit LCD

Dimensions: 974 mm x 332.5 mm x 94 mm

Weight: 10.7 kg

User Demo Videos

Rating


4.5
(2 votes)

File Downloads

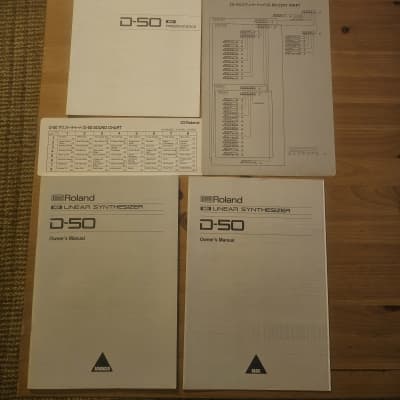

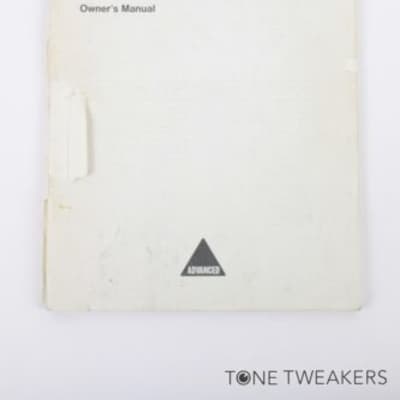

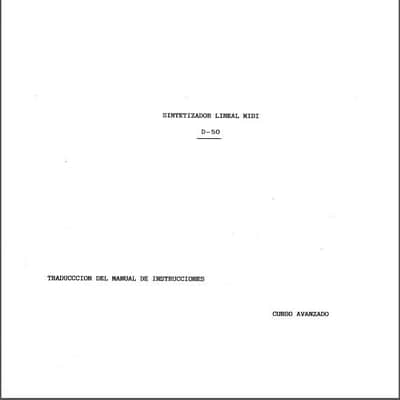

Roland D-50 Manual

Roland D-50 Service Notes

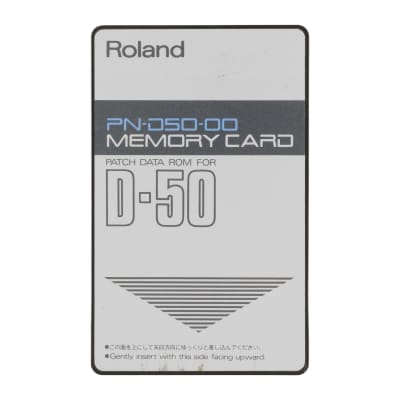

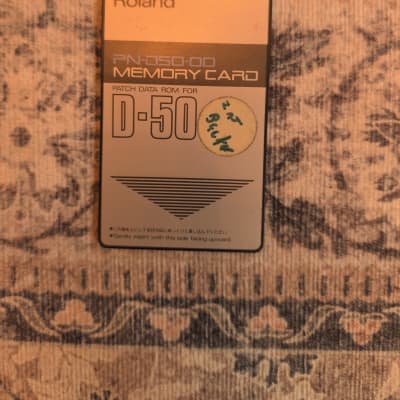

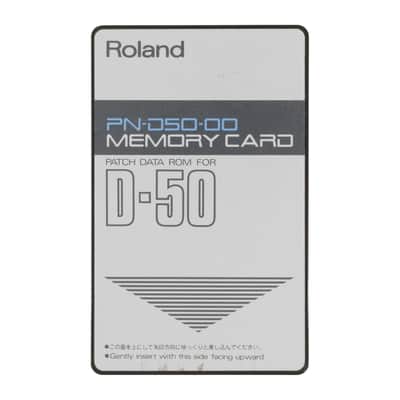

Roland PN-D50-00 SysEx Patch Data

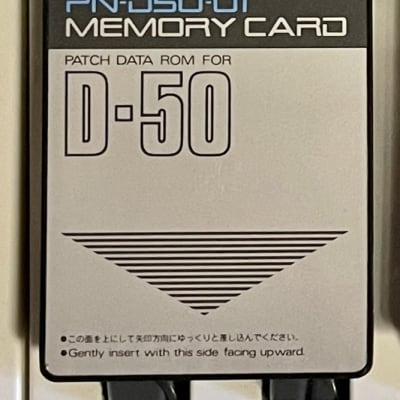

Roland PN-D50-01 SysEx Patch Data

Roland PN-D50-02 SysEx Patch Data

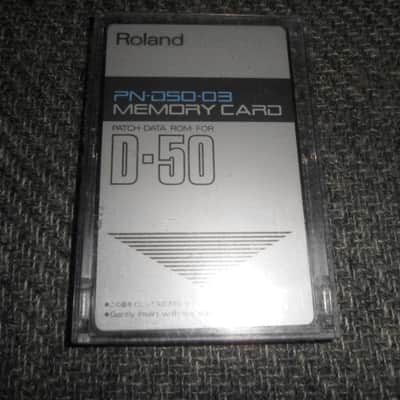

Roland PN-D50-03 SysEx Patch Data

Roland PN-D50-04 SysEx Patch Data

Items for Sale on Reverb

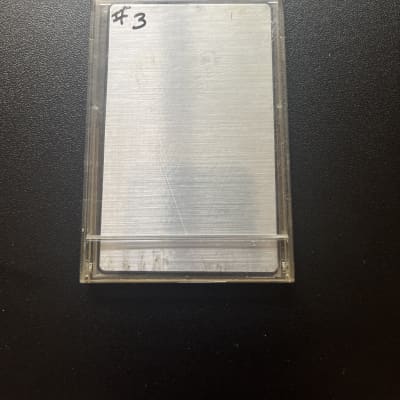

Roland Roland M-256E RAM Memory Card D-110 D-550 JV 880 1080 JD-990 JD D-50 M256E 256Roland Roland M-256E RAM Memory Card D-110 D-550 JV 880 1080 JD-990 JD D-50 M256E 256 ($99)

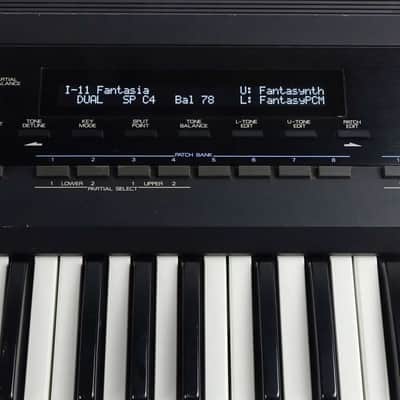

VFDisplay Upgrade - Roland D-50 D-550 JD800 JV-80 JV-90VFDisplay Upgrade - Roland D-50 D-550 JD800 JV-80 JV-90 ($195)

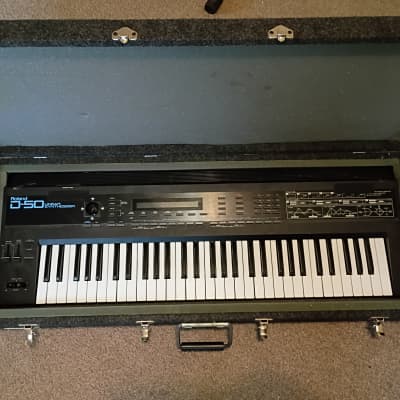

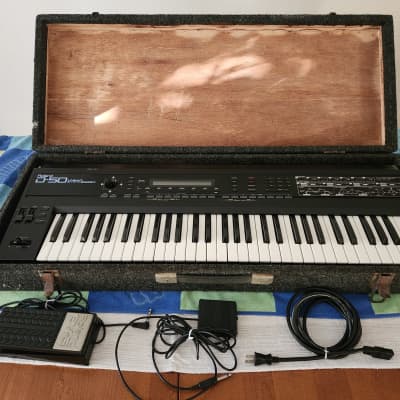

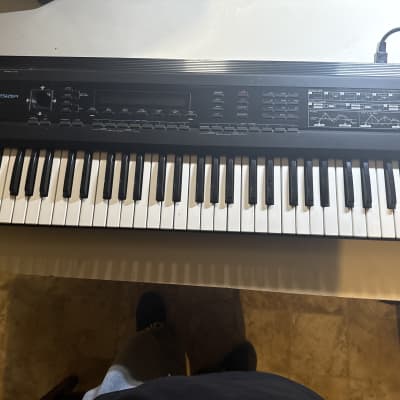

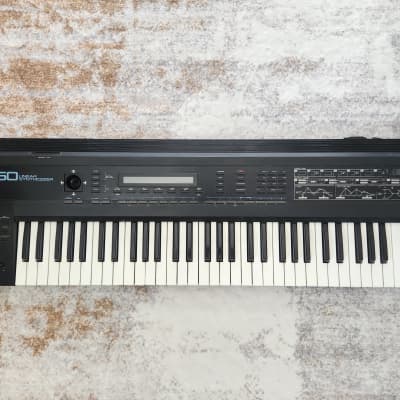

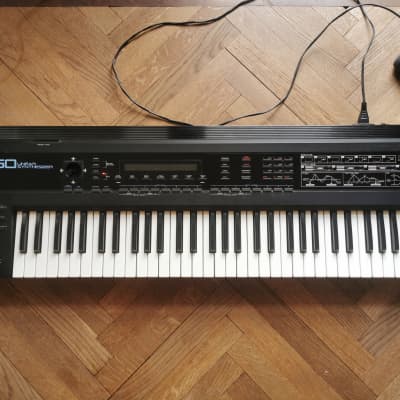

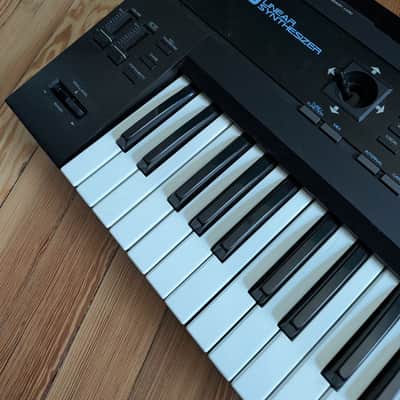

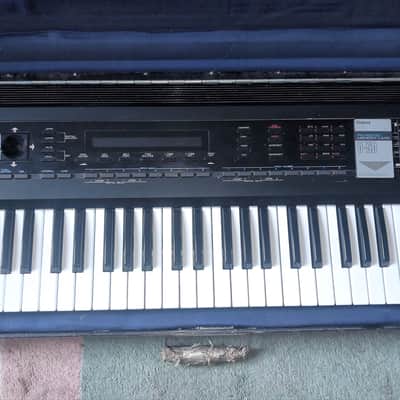

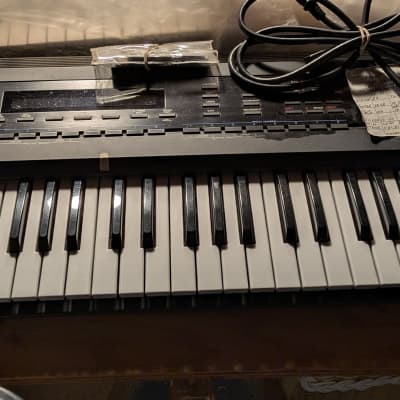

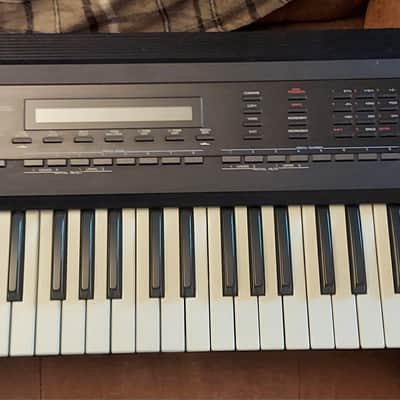

Roland D-50 61-Key Digital Linear Synthesizer Keyboard Needs Repair #27154Roland D-50 61-Key Digital Linear Synthesizer Keyboard Needs Repair #27154 ($275)

Reverb Roland D-50 Ableton Instrument RackReverb Roland D-50 Ableton Instrument Rack (FREE)

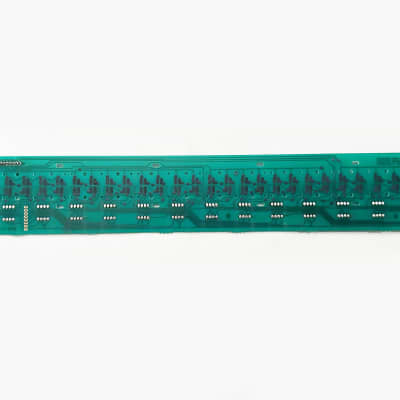

Panel Board for Roland D-50Panel Board for Roland D-50 ($59.95)

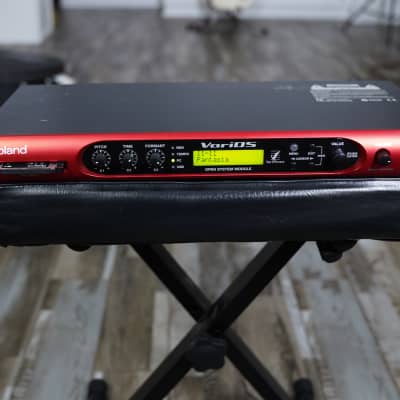

Roland VariOS Variphrase + VC-1 D-50 CardRoland VariOS Variphrase + VC-1 D-50 Card ($450)

Roland V-Drums TD-50 Electronic Drum Module (TD50)Roland V-Drums TD-50 Electronic Drum Module (TD50) ($2,853.31)

Roland V-Drums TD-50KV Electronic Drum Kit + KDA22 Kick Trigger (TD50KV + KDA22)Roland V-Drums TD-50KV Electronic Drum Kit + KDA22 Kick Trigger (TD50KV + KDA22) ($9,909.29)

Roland TD-50K-S Electronic Drum Kit - USEDRoland TD-50K-S Electronic Drum Kit - USED ($4,319.99)

Roland TD-50KV-S Electronic Drum Set - USEDRoland TD-50KV-S Electronic Drum Set - USED ($6,749.99)

Roland V-Drums TD-50KV Electronic Drum Kit (TD50KV)Roland V-Drums TD-50KV Electronic Drum Kit (TD50KV) ($7,483.30)

Roland V-Drums TD-50KVS-A Big Kick w/ 22" Bass Drum and KDA22 Kick TriggerRoland V-Drums TD-50KVS-A Big Kick w/ 22" Bass Drum and KDA22 Kick Trigger ($8,402.96)

Roland D-50 Komplettset 54 TasterRoland D-50 Komplettset 54 Taster ($21.11)

Graphic Display Upgrade - Roland W-30 A-50 A-80 D-70 JW-50 E-96 G-600 G-800 RA-800Graphic Display Upgrade - Roland W-30 A-50 A-80 D-70 JW-50 E-96 G-600 G-800 RA-800 ($100)

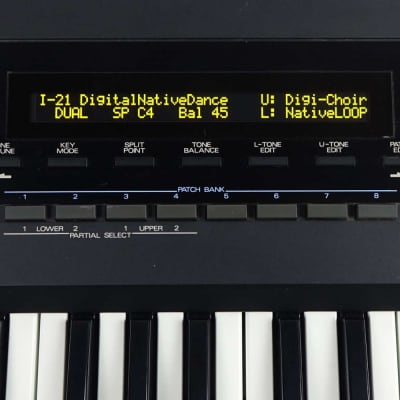

OLED Display Upgrade - Roland D-110 / S-330 / GR-50OLED Display Upgrade - Roland D-110 / S-330 / GR-50 ($70)

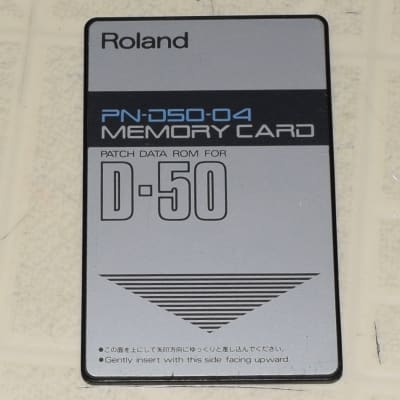

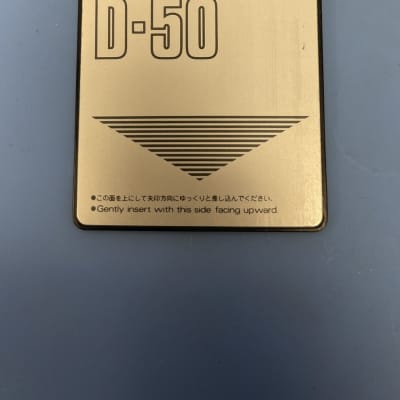

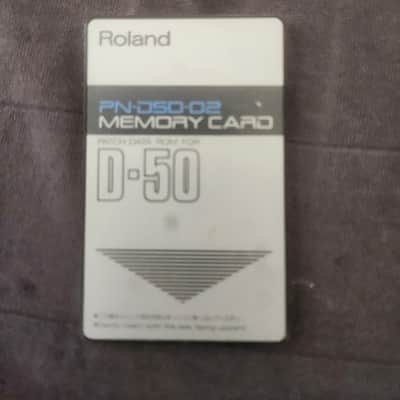

Roland PN-D50-04 ROM Patch Data Memory Card for D-50 / D-550Roland PN-D50-04 ROM Patch Data Memory Card for D-50 / D-550 ($71.97)
