Roland U-110Roland U-110 Back

The U-110 is an early ROMpler in the same family as the U-20 and U-220 and it completed Roland's transition from synthesized instrument sounds (or "sample and synthesis") to sampled instrument sounds. It can be expanded with the SN-U110 series of expansion cards. It should not be confused with the D-110, which is an LA (linear arithmetic) synthesizer from the same era. Both were commonly found together in studios.

The sounds of the U-110 are focused mainly on sampled representations of acoustic instruments, which had previously been lacking in the world of analog and FM synthesizers. While it was fairly groundbreaking and sold well, used units sell very inexpensively. The U-110 was surpassed by modules with larger sample ROMs over the next few years and doesn't have much of that "collectible charm", being a simple black box.

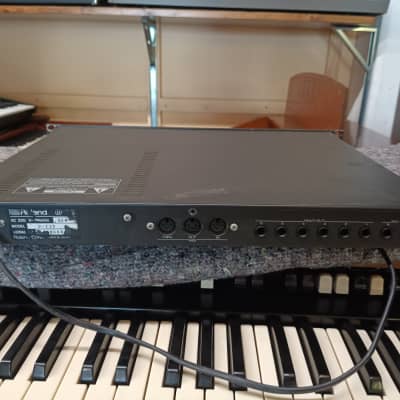

The MIDI implementation is thorough and the unit can be configured via Sysex commands. It has IN, OUT, and THRU connections. It also has four built-in factory demo songs.

It uses a standard CR2032 lithium battery for its patch memories.

Specifications

Year Released: 1988

MSRP: 1095.00 USD

Polyphony: 31 notes

Multitimbral: 7 parts

Preset Patches: 64

User Patches: 64

ROM: 2MB (99 PCM waveforms)

Effects: Chorus and tremolo

Screen: 16x2 character backlit LCD

Outputs: 1 stereo 1/4" pair plus 6 1/4" individual outputs

Power Consumption: 21 watts

Dimensions: 482 mm x 358 mm x 45 mm

Weight: 4.5 kg

This is a 1-space rack unit.

User Demo Videos

Rating


4
(2 votes)

Sound Samples

WAV samples are available on freewavesamples.com.

File Downloads

Roland U-110 Manual

Items for Sale on Reverb

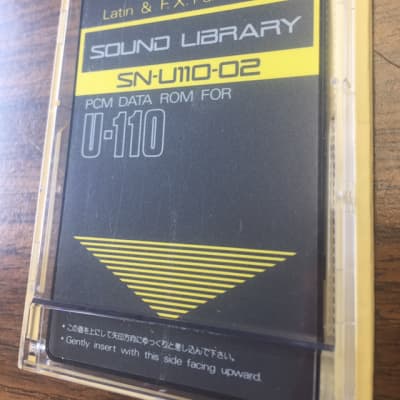

Roland U-110 Card SN-U110-02 Latin & FX PercussionRoland U-110 Card SN-U110-02 Latin & FX Percussion ($46.26)

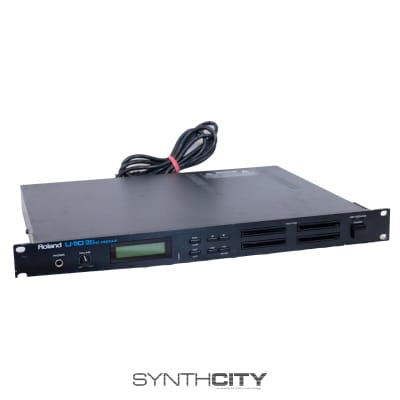

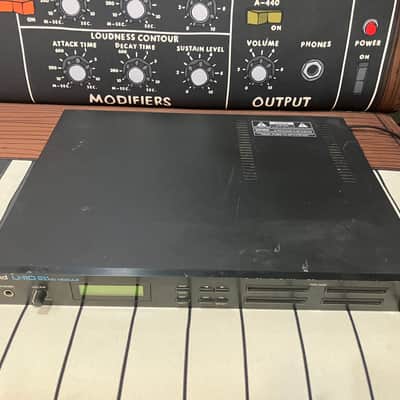

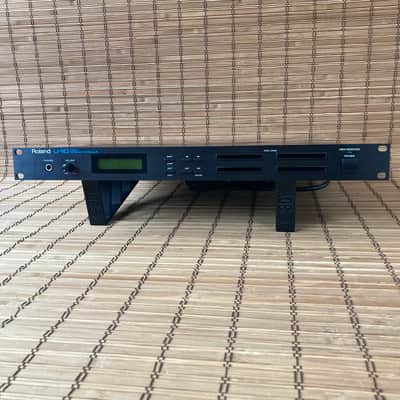

Roland U-110 PCM Sound Module Rackmount & SynthesizerRoland U-110 PCM Sound Module Rackmount & Synthesizer ($139.99)

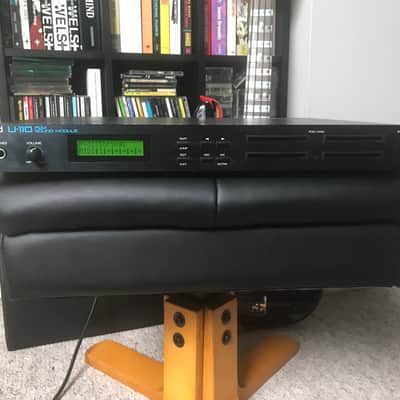

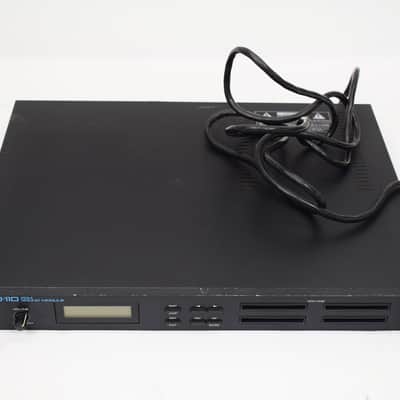

Roland U-110 PCM Sound ModuleRoland U-110 PCM Sound Module ($149.99)

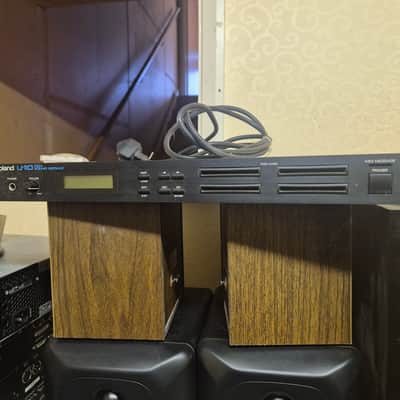

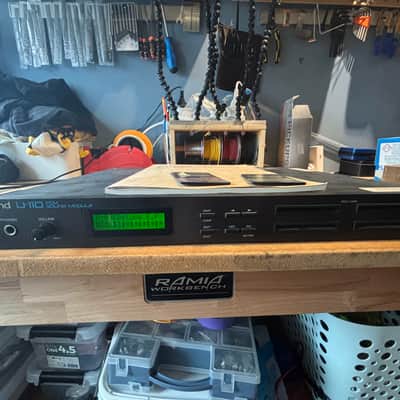

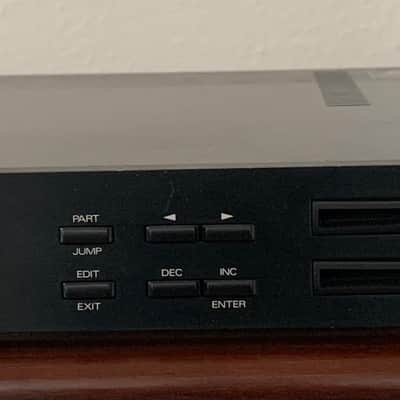

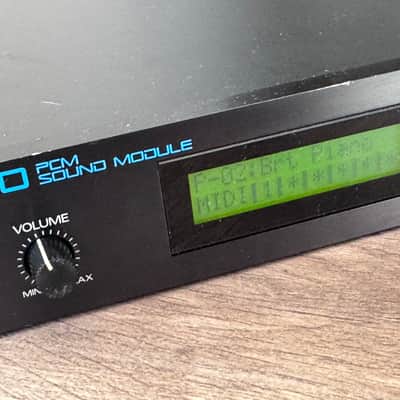

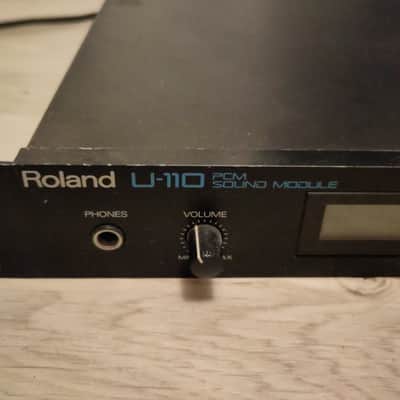

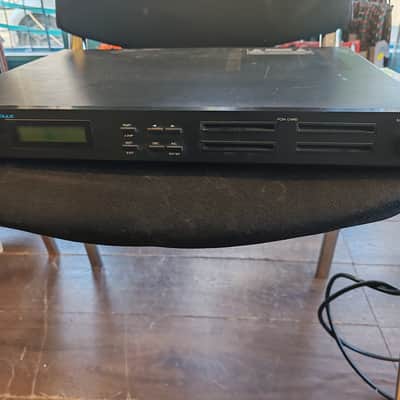

Roland U-110 PCM Sound Module 1988 - 1990 - BlackRoland U-110 PCM Sound Module 1988 - 1990 - Black ($75.95)

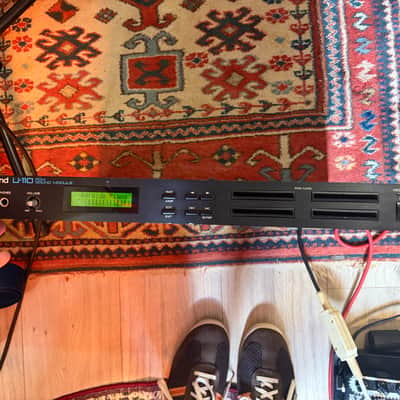

Roland U-110 PCM Sound Module 1988 - 1990 - BlackRoland U-110 PCM Sound Module 1988 - 1990 - Black ($100)

Roland U-110 PCM Sound Module Rackmount & SynthesizerRoland U-110 PCM Sound Module Rackmount & Synthesizer ($129.99)

Roland U-110 PCM Sound ModuleRoland U-110 PCM Sound Module ($229.99)

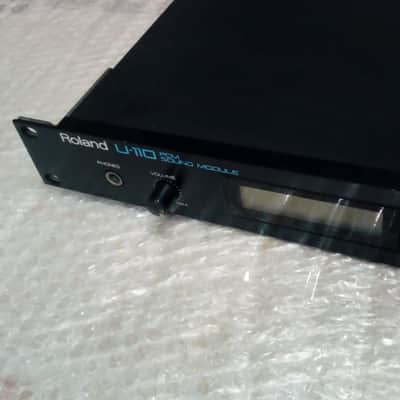

Roland  U-110 Vintage Sound ModuleRoland U-110 Vintage Sound Module ($134.46)

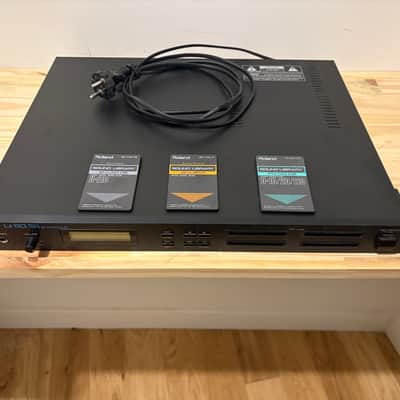

Roland U-110 PCM Sound Module w/3 pcm cardsRoland U-110 PCM Sound Module w/3 pcm cards ($250)

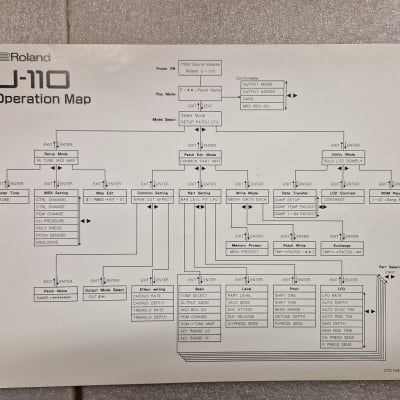

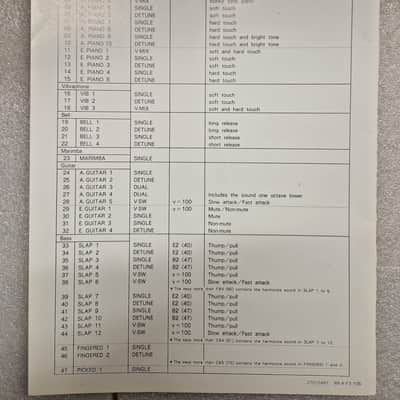

Roland U-110 PCM Sound Module with original Owner's Manual, Preset Tones Chart, and MIDI cableRoland U-110 PCM Sound Module with original Owner's Manual, Preset Tones Chart, and MIDI cable ($150)

Roland U-110 PCM Sound Module 1988 - 1990 - BlackRoland U-110 PCM Sound Module 1988 - 1990 - Black ($89.26)

Roland - U-110 - PCM Sound Module - with Manuals - 1988 - 1990 - Japan - from the collection of Paul HoffertRoland - U-110 - PCM Sound Module - with Manuals - 1988 - 1990 - Japan - from the collection of Paul Hoffert ($108.62)

Roland U-110 PCM Sound Module 1988 - 1990 - BlackRoland U-110 PCM Sound Module 1988 - 1990 - Black ($120)

Roland U-110 PCM Sound Module 1988 - 1990 - BlackRoland U-110 PCM Sound Module 1988 - 1990 - Black ($145.76)

Roland U-110 PCM Sound Module 1988 - 1990 - BlackRoland U-110 PCM Sound Module 1988 - 1990 - Black ($89.26)

Roland U-110 PCM Sound Module 1988 - 1990 - BlackRoland U-110 PCM Sound Module 1988 - 1990 - Black ($310)

Roland U-110 PCM Sound Module MIDI Rackmount Synthesizer  Leon Russell studioRoland U-110 PCM Sound Module MIDI Rackmount Synthesizer Leon Russell studio ($115)

Roland Roland U110 U-110. MIDI Expander PCM precursor JV 1989 - PCMRoland Roland U110 U-110. MIDI Expander PCM precursor JV 1989 - PCM ($90.39)

Roland U-110 PCM Sound Module + Sound Library Data ROM Card +  Alesis Midiverb 3Roland U-110 PCM Sound Module + Sound Library Data ROM Card + Alesis Midiverb 3 ($282.48)

Roland  U-110 PCM Sound ModuleRoland U-110 PCM Sound Module ($101.69)

Roland U-110 PCM Sound Module 1988 - 1990 - BlackRoland U-110 PCM Sound Module 1988 - 1990 - Black ($90)

Roland U-110 PCM Sound ModuleRoland U-110 PCM Sound Module ($111.86)

Roland U-110 PCM Sound Module 1988 - 1990 - BlackRoland U-110 PCM Sound Module 1988 - 1990 - Black ($134.46)

Roland - D-110 U-110 MT-32 JV-880 MC-303 U20 U220 R-70 E-20 - BatteryRoland - D-110 U-110 MT-32 JV-880 MC-303 U20 U220 R-70 E-20 - Battery ($3.20)

Roland - D-110 U-110 MT-32 JV-880 MC-303 U20 U220 R-70 E-20 - BatteryRoland - D-110 U-110 MT-32 JV-880 MC-303 U20 U220 R-70 E-20 - Battery ($5.59)

Roland D-110 U-110 MT-32 JV-880 MC-303 U20 - Battery Replacement FixRoland D-110 U-110 MT-32 JV-880 MC-303 U20 - Battery Replacement Fix ($8.98)

Roland SN-U110-03 Ethnic Data Card for U-110Roland SN-U110-03 Ethnic Data Card for U-110 ($29.99)

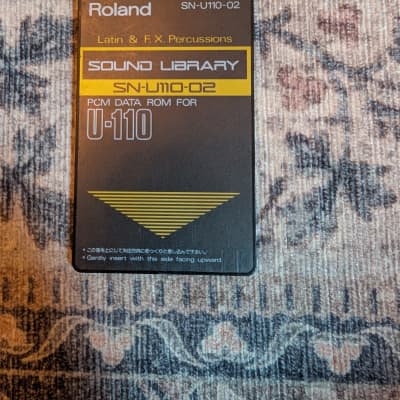

Roland U-110 - SN-U110-02 sound card - Latin & F.X. Percussions 1988 - In original boxRoland U-110 - SN-U110-02 sound card - Latin & F.X. Percussions 1988 - In original box ($46.26)

Roland U-110 - SN-U110-03 sound card -  Ethnic instruments  1988 - In original boxRoland U-110 - SN-U110-03 sound card - Ethnic instruments 1988 - In original box ($46.26)

Roland SN-U110-02 Latin & F.X. Percussions ROM Card for U-110 synthRoland SN-U110-02 Latin & F.X. Percussions ROM Card for U-110 synth ($49)

Roland U-110 Owner's Manual [Three Wave Music]Roland U-110 Owner's Manual [Three Wave Music] ($25)

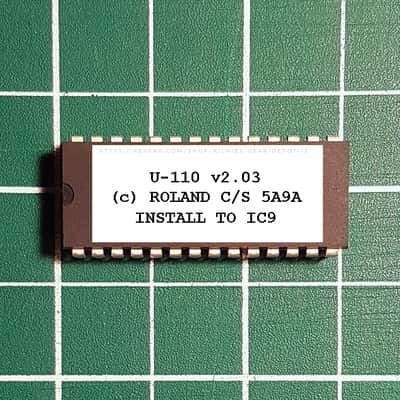

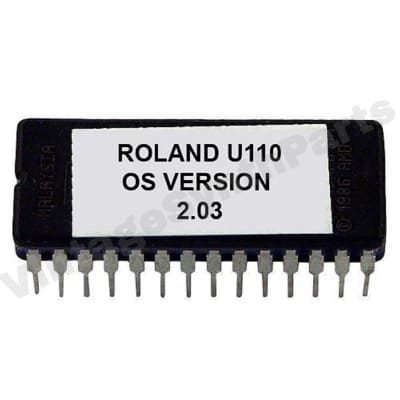

Roland U-110 OS v2.03 EPROM Firmware Upgrade KIT / New ROM Final Update ChipRoland U-110 OS v2.03 EPROM Firmware Upgrade KIT / New ROM Final Update Chip ($19.99)

Roland U-110 PCM Sound Module Service NotesRoland U-110 PCM Sound Module Service Notes ($15)

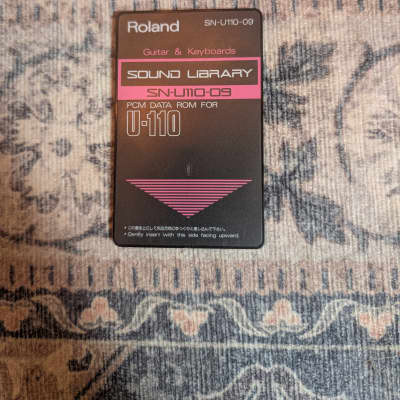

Roland U-110 SN-U110-09 Guitars Keyboards PCM Data ROM Card VINTAGE GEAR DEALERRoland U-110 SN-U110-09 Guitars Keyboards PCM Data ROM Card VINTAGE GEAR DEALER ($49.99)

Roland U-110 Grand Clav Sound LibraryRoland U-110 Grand Clav Sound Library ($59)

Roland SN-LMO-02 Rom for U-110Roland SN-LMO-02 Rom for U-110 ($50.07)

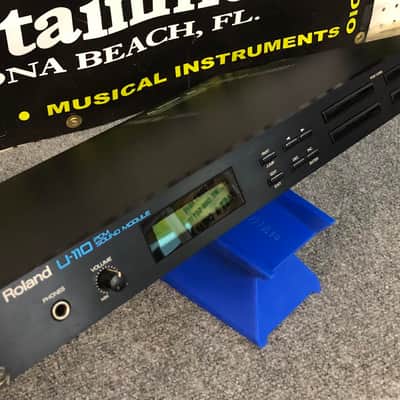

Roland U-110 PCM Sound Module - Pre OwnedRoland U-110 PCM Sound Module - Pre Owned ($145)

Roland U-110 Eprom with Latest OS version 2.03 firmware U110 RomRoland U-110 Eprom with Latest OS version 2.03 firmware U110 Rom ($13.56)

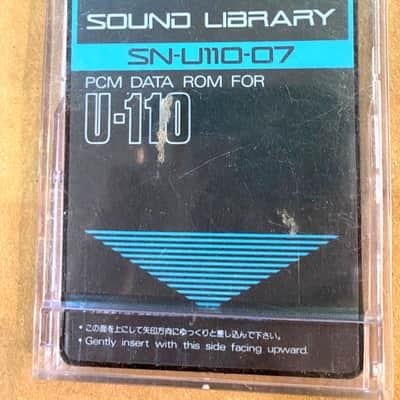

Roland SN-U110-07 Electric GuitarRoland SN-U110-07 Electric Guitar ($44.07)

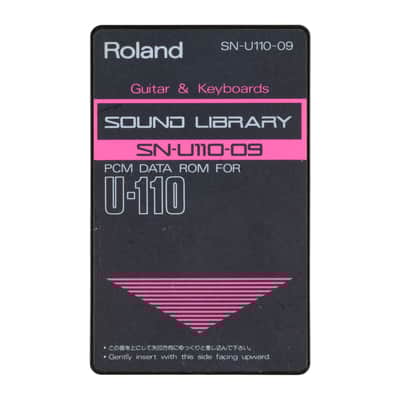

Roland SN-U110-09 Guitar & KeyboardsRoland SN-U110-09 Guitar & Keyboards ($55.37)

ROLAND Sound Library Electric Grand & Clavi SN-U110-04 D-70, U-110, U-20, U-220ROLAND Sound Library Electric Grand & Clavi SN-U110-04 D-70, U-110, U-20, U-220 ($107.34)

ROLAND Sound Library Guitar & Keyboards SN-U110-09 D-70, U-110, U-20, U-220ROLAND Sound Library Guitar & Keyboards SN-U110-09 D-70, U-110, U-20, U-220 ($107.34)

Replacement Backup Battery-Roland Modules D-110 U-110 MT-32 JV-880 MC-303Replacement Backup Battery-Roland Modules D-110 U-110 MT-32 JV-880 MC-303 ($9.49)

Roland Sound Library L-110 #056 - #060 Orchestra Hits VolRoland Sound Library L-110 #056 - #060 Orchestra Hits Vol ($125)

Roland SN-U110-13 Super Strings PCM Expansion Card - Very Rare!Roland SN-U110-13 Super Strings PCM Expansion Card - Very Rare! ($79.99)

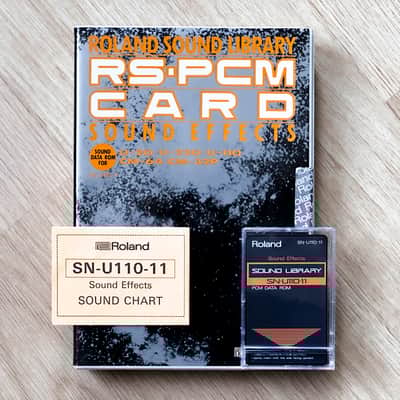

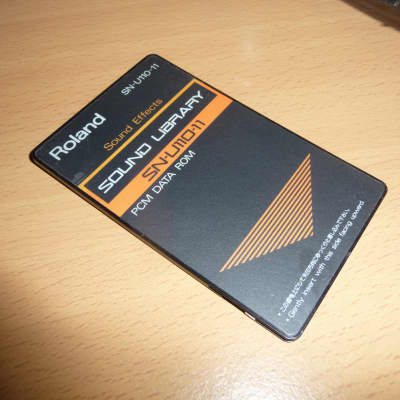

Roland SN-U110-11 Sound Effects PCM Expansion CardRoland SN-U110-11 Sound Effects PCM Expansion Card ($39.99)
