SynthsRoland ⇝ Roland U-220

Roland U-220Roland U-220 Front Panel ControlsRoland U-220 Back

The U-220 is a ROMpler. It can be expanded with the SN-U110 series of expansion cards, although the Guitar and Keyboards and Synthesizer card data is already included. It was released as a follow-up to the Roland U-110 and is the rackmount version of the Roland U-20.

The U-220 takes a standard CR2032 battery for patch memory. This battery is not optional and the device will behave strangely if it is low or not present. Replacing the battery will require a patch restore afterward.

In order to restore the factory patches on the Roland U-220, you will need to load them via a SysEx dump. The factory patch SysEx file is available for download below.

Specifications

Year Released: 1989

MSRP: 1295.00 USD

Polyphony: 30 notes

Multitimbral: 7 parts

User Patches: 128

User Performances: 64

User Drum Kits: 4

ROM: 4MB (128 waveforms at 16-bit resolution)

Effects: chorus, reverb

Screen: 24 x 2 character backlit LCD

Outputs: 1/4" stereo pair plus 4 individual 1/4" outputs

Power Consumption: 20 watts

Dimensions: 482 mm x 358 mm x 45 mm

Weight: 4.4 kg

This is a 1-space rack unit.

User Demo Videos

Rating


4.1
(8 votes)

Sound Samples

WAV samples are available on freewavesamples.com.

File Downloads

Roland U-220 Manual

Roland U-220 Factory Patches SysEx

Ruland U-220 Demo #1: Highlander by Marvin Sanders (192 kbit mp3)

Roland U-220 Demo #2: U Might Be The 1 by Eric Persing (192 kbit mp3)

Items for Sale on Reverb

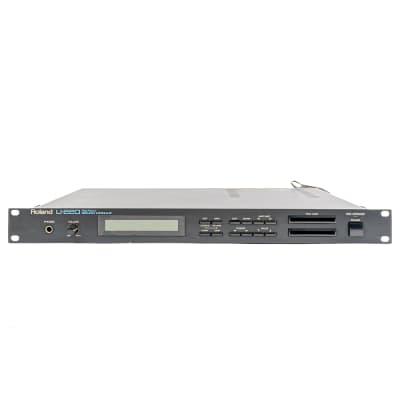

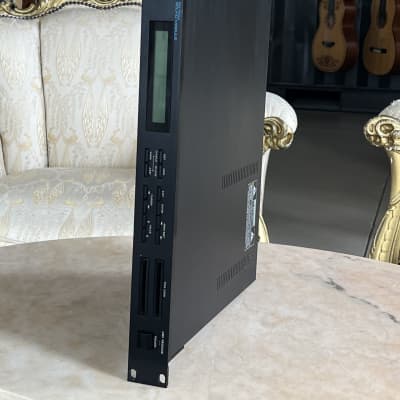

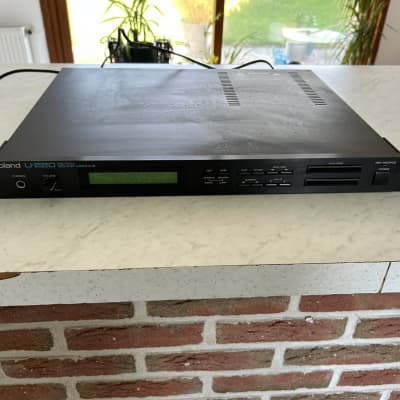

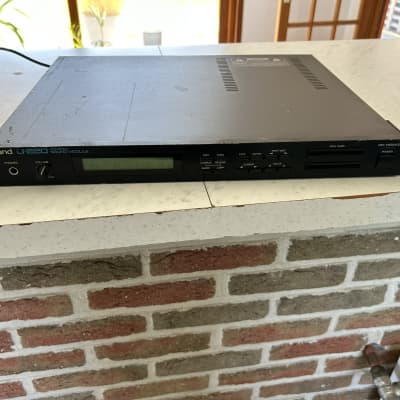

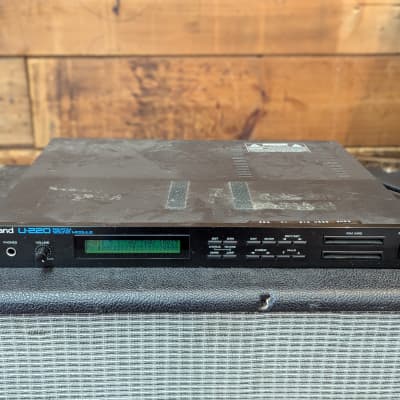

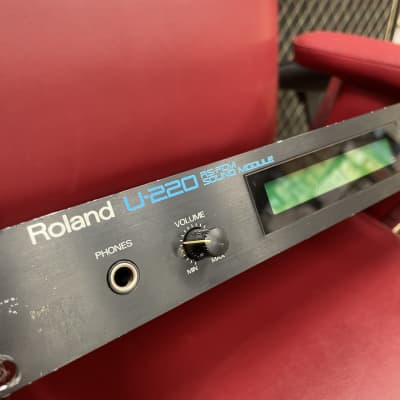

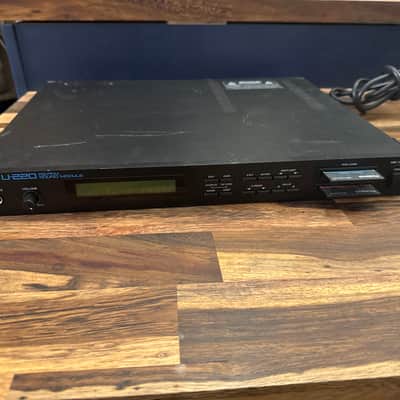

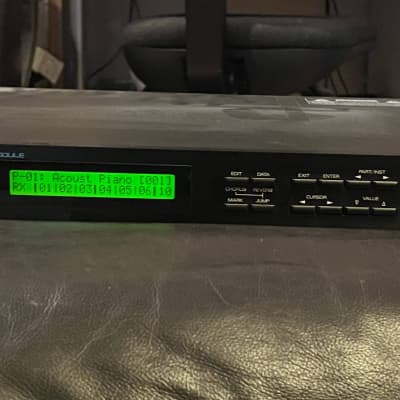

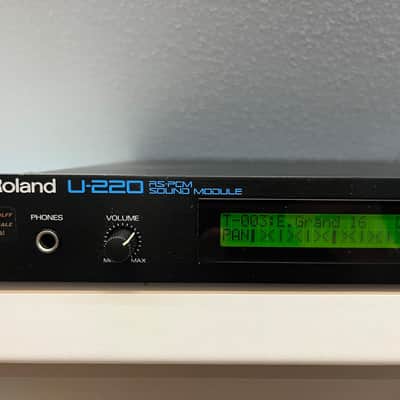

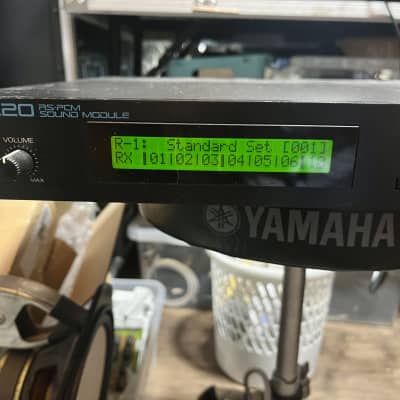

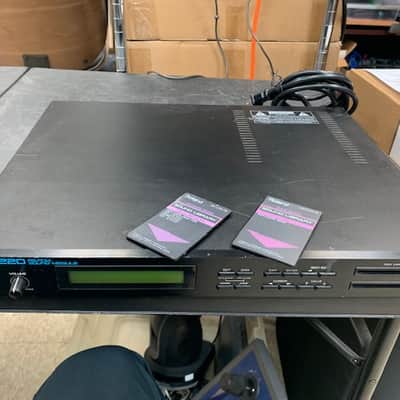

Roland U-220 RS-PCM Sound Module 1989 - 1992 - BlackRoland U-220 RS-PCM Sound Module 1989 - 1992 - Black ($198.10)

Roland U-220 RS-PCM Sound Module SERVICEDRoland U-220 RS-PCM Sound Module SERVICED ($225)

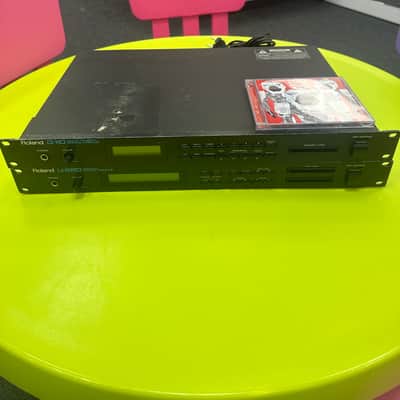

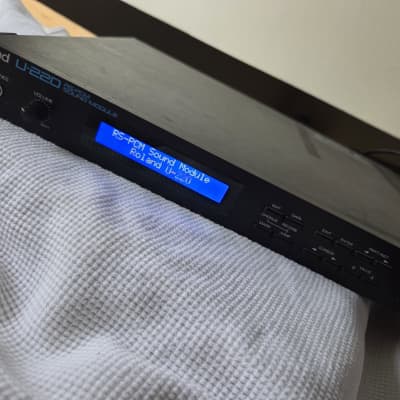

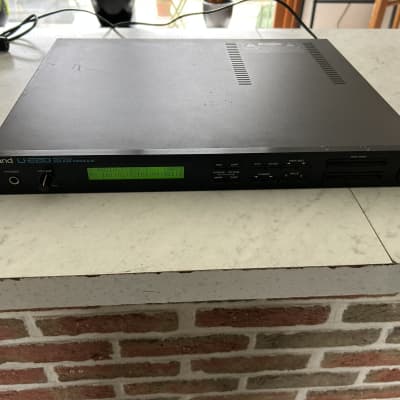

Roland U-220 RS-PCM Sound Module 1989 - 1992 - BlackRoland U-220 RS-PCM Sound Module 1989 - 1992 - Black ($203.76)

Roland U-220 RS-PCM Sound Module 1989 - 1992 - BlackRoland U-220 RS-PCM Sound Module 1989 - 1992 - Black ($140)

Roland U-220 RS-PCM Sound Module 1989 - 1992 - BlackRoland U-220 RS-PCM Sound Module 1989 - 1992 - Black ($149.99)

Roland U-220 RS-PCM Synthesizer Synth Sound Module RackmountRoland U-220 RS-PCM Synthesizer Synth Sound Module Rackmount ($175)

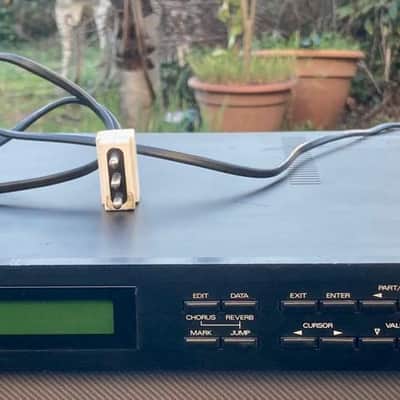

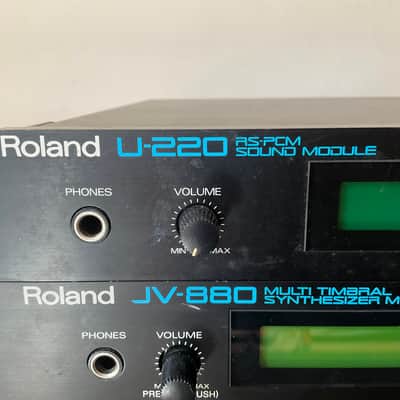

Roland U-220 RS-PCM Sound ModuleRoland U-220 RS-PCM Sound Module ($149.14)

Roland U-220 Sound ModuleRoland U-220 Sound Module ($199.99)

Roland U-220 RS-PCM Sound Module 1989 - 1992 - BlackRoland U-220 RS-PCM Sound Module 1989 - 1992 - Black ($110)

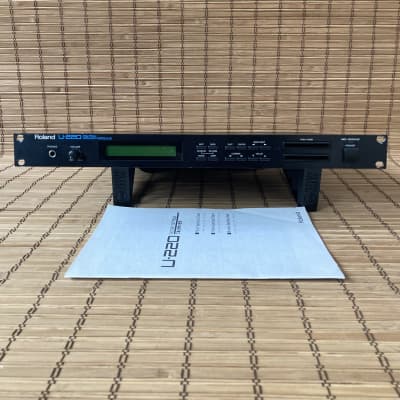

Roland U-220 RS-PCM - 1980s Multi-Timbral Synthesizer ModuleRoland U-220 RS-PCM - 1980s Multi-Timbral Synthesizer Module ($159.99)

Roland U-220 Rack Synthesizer ModuleRoland U-220 Rack Synthesizer Module ($149.99)

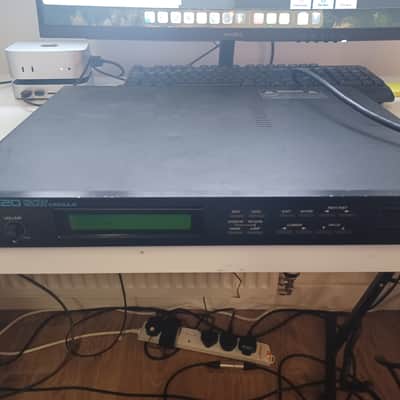

Roland U-220 RS-PCM Sound Module 1989 - 1992 - BlackRoland U-220 RS-PCM Sound Module 1989 - 1992 - Black ($198.10)

Roland U-220 RS-PCM Sound Module 1989 - 1992 AS-IS, DISPLAY MALFUNCTIONALRoland U-220 RS-PCM Sound Module 1989 - 1992 AS-IS, DISPLAY MALFUNCTIONAL ($99)

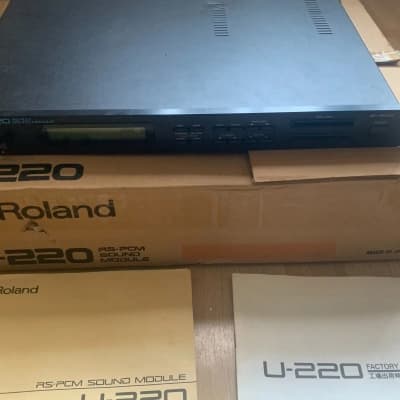

Roland U-220 RS-PCM Sound Module, Original BoxRoland U-220 RS-PCM Sound Module, Original Box ($210)

Roland U-220 RS-PCM Sound ModuleRoland U-220 RS-PCM Sound Module ($149)

Roland U-220 RS-PCM Sound Module - Pre OwnedRoland U-220 RS-PCM Sound Module - Pre Owned ($165)

Roland U-220 RS-PCM Sound ModuleRoland U-220 RS-PCM Sound Module ($140)

Roland U-220Roland U-220 ($316.96)

ROLAND Sound Library Guitar & Keyboards SN-U110-09 D-70, U-110, U-20, U-220ROLAND Sound Library Guitar & Keyboards SN-U110-09 D-70, U-110, U-20, U-220 ($107.54)

ROLAND Sound Library Electric Grand & Clavi SN-U110-04 D-70, U-110, U-20, U-220ROLAND Sound Library Electric Grand & Clavi SN-U110-04 D-70, U-110, U-20, U-220 ($107.54)

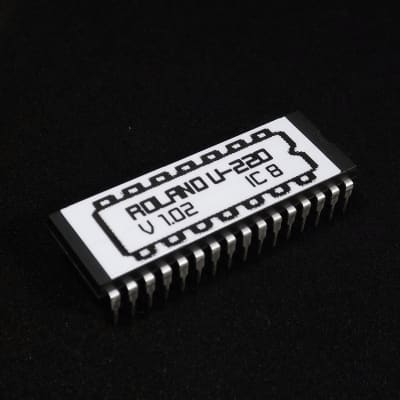

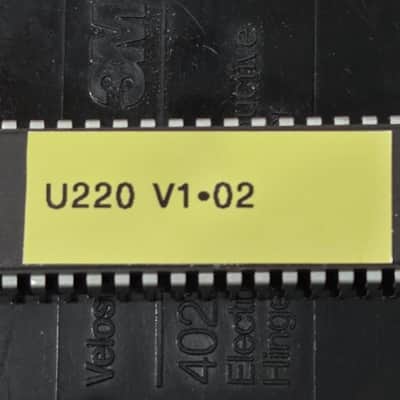

Roland U-220 v1.02 EPROM Firmware Upgrade KIT / Brand New ROM Update Chip with Service Manual U220Roland U-220 v1.02 EPROM Firmware Upgrade KIT / Brand New ROM Update Chip with Service Manual U220 ($20)

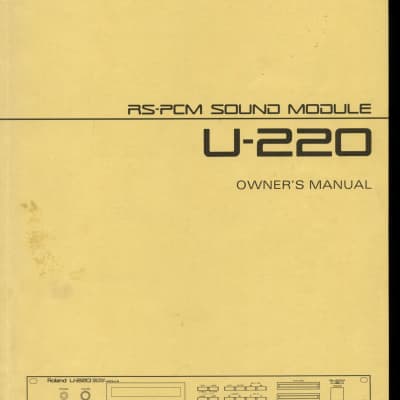

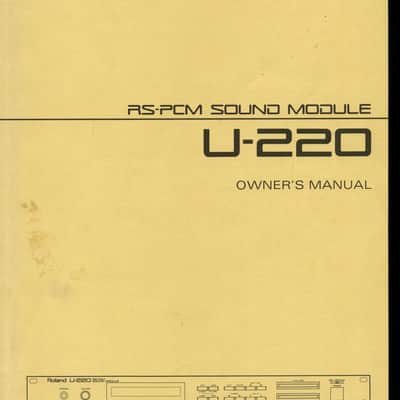

Roland U-220 Vintage Synth Module - Original Owner's ManualRoland U-220 Vintage Synth Module - Original Owner's Manual ($25)

Roland U-220 parts - Firmware Eprom chip V1.02Roland U-220 parts - Firmware Eprom chip V1.02 ($14.99)

Roland 1992 Catalog - JD-800, D-70, R-8/5/8m, S-770/750, U-220 - etcRoland 1992 Catalog - JD-800, D-70, R-8/5/8m, S-770/750, U-220 - etc ($12)

Roland U-220 Rack Case (Edison, NJ)Roland U-220 Rack Case (Edison, NJ) ($149.99)

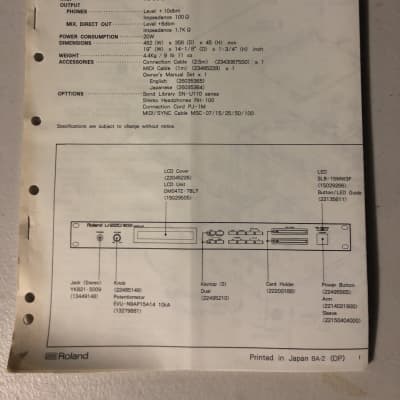

Roland  U-220 RS-PCM Sound Module Service NotesRoland U-220 RS-PCM Sound Module Service Notes ($15)

Roland U-220 Vintage User ManualRoland U-220 Vintage User Manual ($9.50)

LED Display Upgrade - Roland JV-880 - U-220 (white on blue)LED Display Upgrade - Roland JV-880 - U-220 (white on blue) ($165.45)

Replacement Backup Battery for Roland JD-800 U-20 U-220 [ Button Coin Cell ]Replacement Backup Battery for Roland JD-800 U-20 U-220 [ Button Coin Cell ] ($9.49)

Roland U220 Rack Synthesizer Module UsedRoland U220 Rack Synthesizer Module Used ($125)

Roland U220 90's - NoirRoland U220 90's - Noir ($158.48)

Roland Users Group Magazine - Vol 7 no 4 - Adrian Belew, D-50/550, U-220, S-550 - 1989Roland Users Group Magazine - Vol 7 no 4 - Adrian Belew, D-50/550, U-220, S-550 - 1989 ($10)

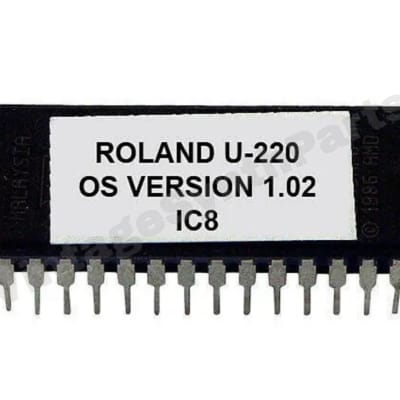

Roland U-220 OS v1.02 EPROM Firmware Upgrade Update for U220 RomRoland U-220 OS v1.02 EPROM Firmware Upgrade Update for U220 Rom ($16.92)

Roland SN-U110-02 Latin & FX Percussions - PCM Data ROM Card for U-20 and U-220Roland SN-U110-02 Latin & FX Percussions - PCM Data ROM Card for U-20 and U-220 ($29.99)

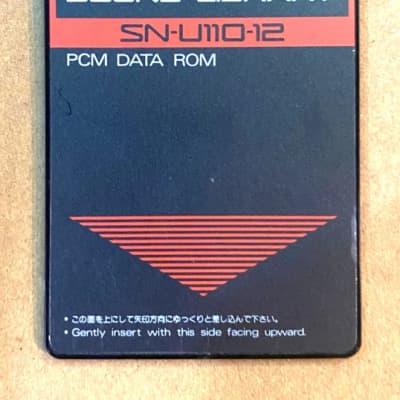

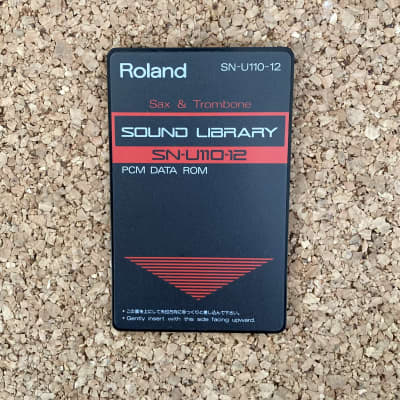

Roland SN-U110-12 Sax & Trombone - PCM Data ROM Card for U-20 and U-220Roland SN-U110-12 Sax & Trombone - PCM Data ROM Card for U-20 and U-220 ($29.99)

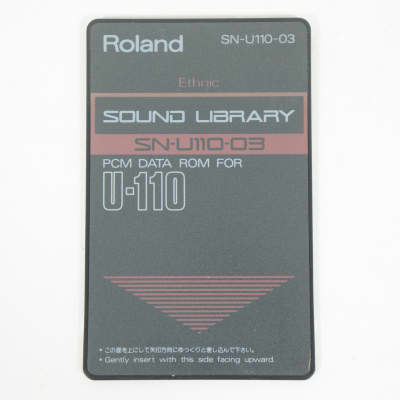

Roland SN-U110-03 Ethnic PCM Data Card for U20 / U220 / U110Roland SN-U110-03 Ethnic PCM Data Card for U20 / U220 / U110 ($46.33)

Roland - D-110 U-110 MT-32 JV-880 MC-303 U20 U220 R-70 E-20 - BatteryRoland - D-110 U-110 MT-32 JV-880 MC-303 U20 U220 R-70 E-20 - Battery ($5.60)

Roland - D-110 U-110 MT-32 JV-880 MC-303 U20 U220 R-70 E-20 - BatteryRoland - D-110 U-110 MT-32 JV-880 MC-303 U20 U220 R-70 E-20 - Battery ($3.20)

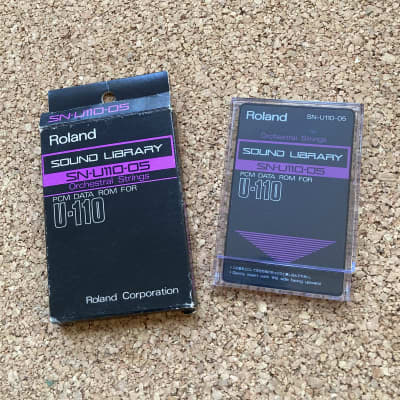

Roland SN-U110-05 Orchestra Strings Sound Card for U110/U220/U20Roland SN-U110-05 Orchestra Strings Sound Card for U110/U220/U20 ($72.80)
