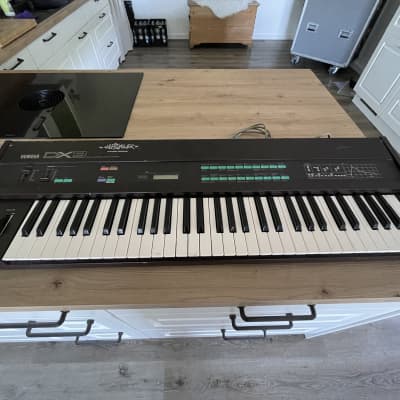

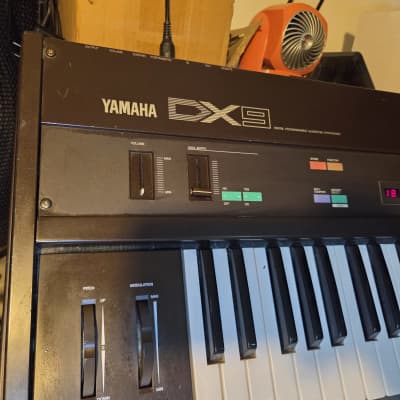

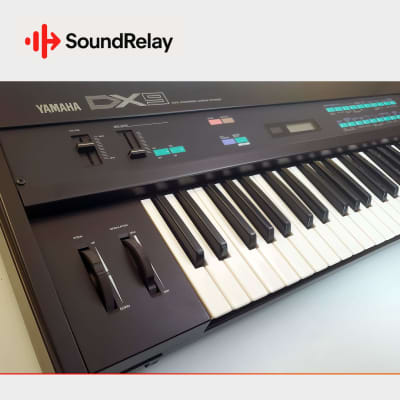

Yamaha DX9

The DX9 is a 4-operator 8-algorithm FM synthesizer issued as a less expensive alternative to the DX7 which was released at about the same time. It has no filters of any kind and relies entirely on FM sound generation.

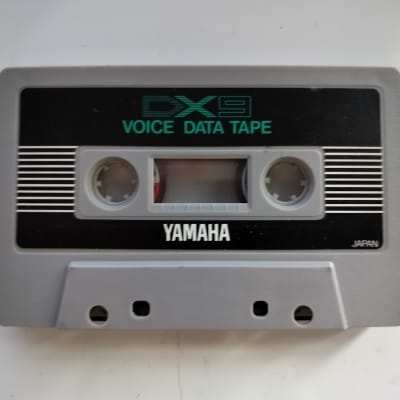

This synthesizer could load patches from cassette. It has separate pitch and modulation wheels and has a breath controller input.

It was released before the second generation of 4-operator FM synthesizers, the DX21, DX27, and DX100 and is not patch-compatible with any of them.

Specifications

Year Released: 1983

MSRP: 1395.00 USD

Keyboard: 61 keys

Polyphony: 16 notes

User Patches: 20

Power Consumption: 35 watts

Dimensions: 1018 mm x 329 mm x 102 mm

Weight: 12.4 kg

This keyboard is MIDI-enabled.

MIDI Connections: Standard 5-Pin MIDI in, out, and thru connections.

User Demo Videos

Rating


4.5
(4 votes)

File Downloads

Yamaha DX9 Manual

Yamaha DX7 and DX9 Service Manual

Items for Sale on Reverb

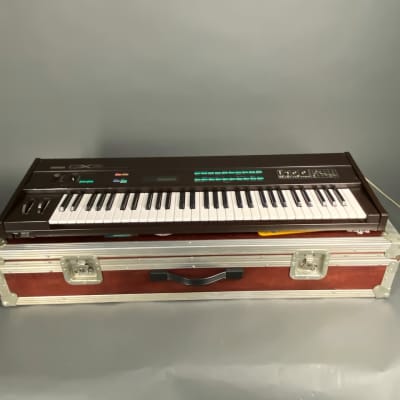

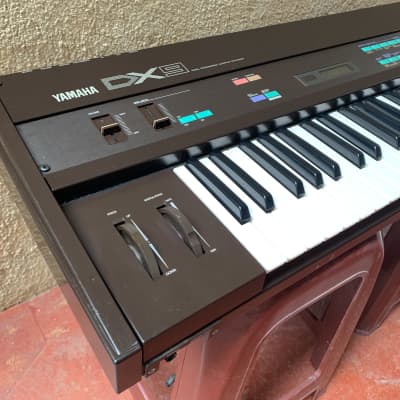

Yamaha  dx-9 dx9 synth synthesizer KeyboardYamaha dx-9 dx9 synth synthesizer Keyboard ($350)

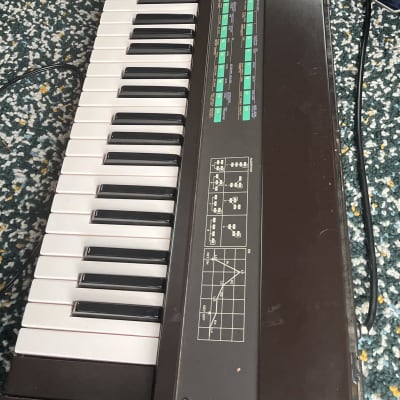

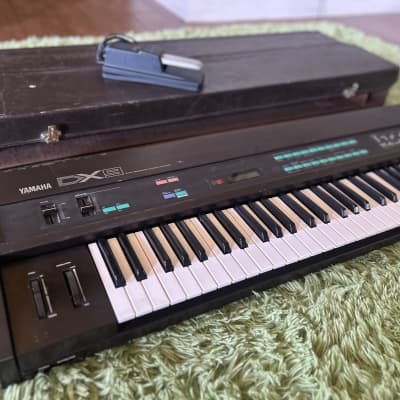

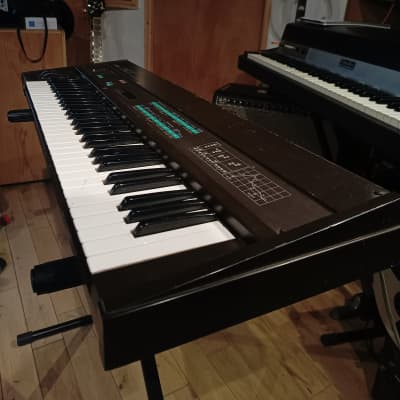

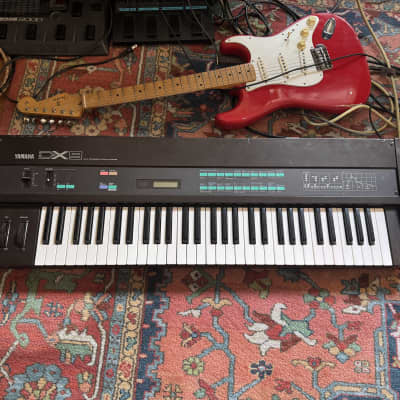

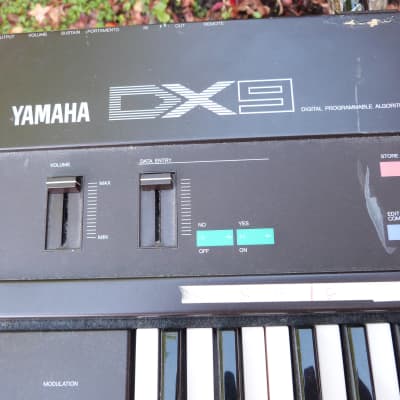

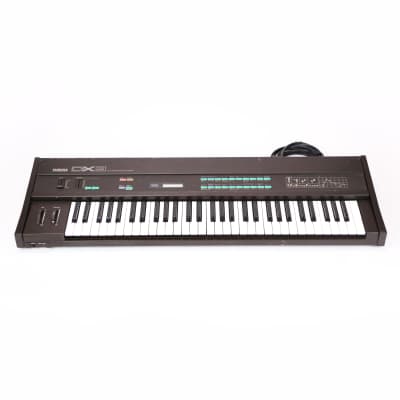

Yamaha DX9Yamaha DX9 ($750)

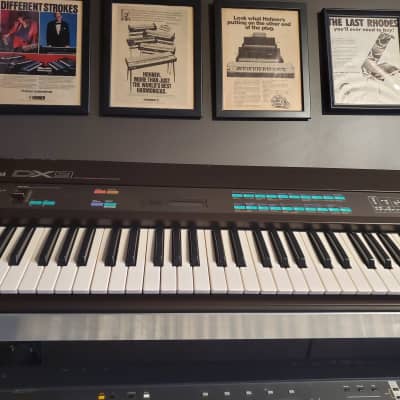

Yamaha  DX9Yamaha DX9 ($550)

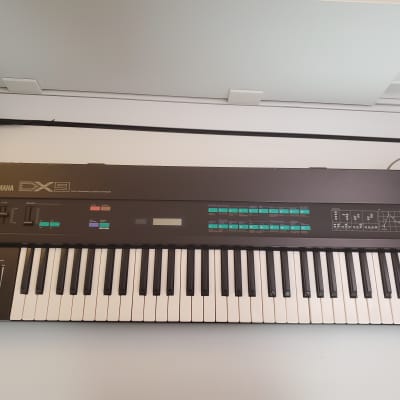

Yamaha DX9Yamaha DX9 ($386)

(16421) Yamaha DX9 Keyboard(16421) Yamaha DX9 Keyboard ($450)

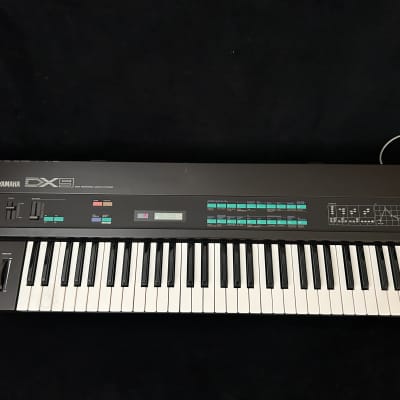

Yamaha DX9Yamaha DX9 ($430.76)

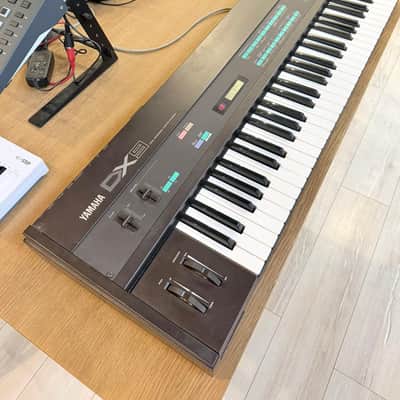

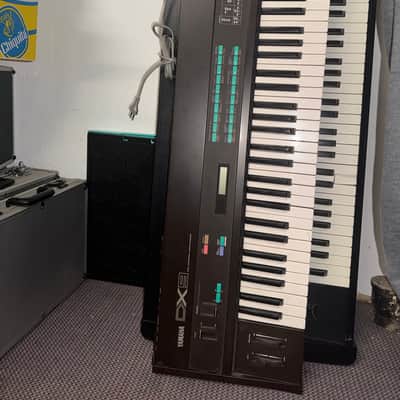

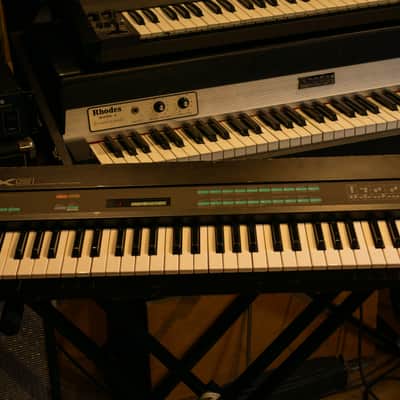

Yamaha DX9 Programmable Algorithm Synthesizer 1983 - BlackYamaha DX9 Programmable Algorithm Synthesizer 1983 - Black ($363.70)

1983 Yamaha DX9 Programmable Digital FM Synthesizer Keyboard Vintage Synth1983 Yamaha DX9 Programmable Digital FM Synthesizer Keyboard Vintage Synth ($369)

Yamaha DX9 Programmable Algorithm Synthesizer 61-Key Vintage Digital Keyboard 1980s Pro ServicedYamaha DX9 Programmable Algorithm Synthesizer 61-Key Vintage Digital Keyboard 1980s Pro Serviced ($629)

Yamaha DX9 Programmable Algorithm Synthesizer 1983 - For repair or partsYamaha DX9 Programmable Algorithm Synthesizer 1983 - For repair or parts ($125)

Yamaha DX9 Programmable Algorithm Synthesizer 1983 - BlackYamaha DX9 Programmable Algorithm Synthesizer 1983 - Black ($130)

Yamaha DX9 Programmable Algorithm Synthesizer 1983 - BlackYamaha DX9 Programmable Algorithm Synthesizer 1983 - Black ($403.48)

Yamaha  DX9Yamaha DX9 ($430.76)

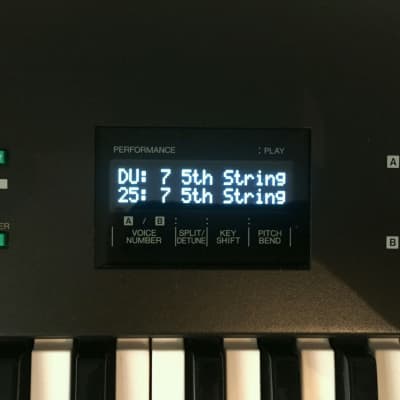

OLED Display Upgrade - Yamaha TX7 - DX7 - DX9 - DX11 - DX21 - FB-01OLED Display Upgrade - Yamaha TX7 - DX7 - DX9 - DX11 - DX21 - FB-01 ($101.51)

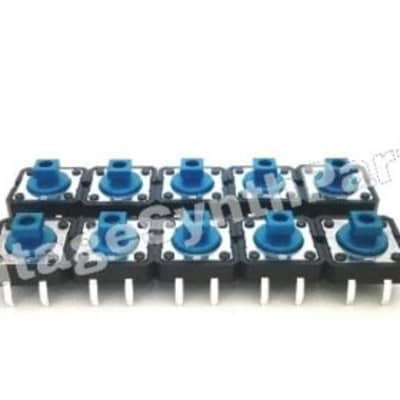

Kit of 26 ALPS ultra reliable switches for Yamaha DX9Kit of 26 ALPS ultra reliable switches for Yamaha DX9 ($25.49)

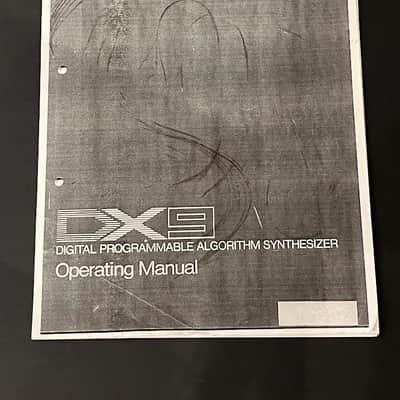

Yamaha DX9 Digital Programmable Algorithm Synthesizer Operating ManualYamaha DX9 Digital Programmable Algorithm Synthesizer Operating Manual ($29.95)

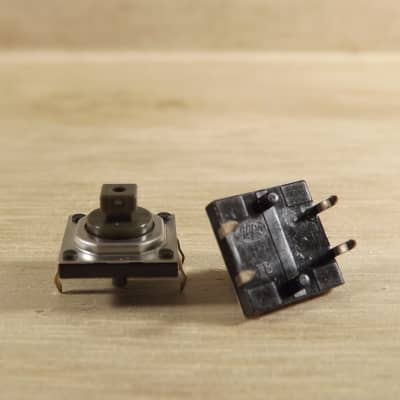

Yamaha DX9 Komplettset 26 TasterYamaha DX9 Komplettset 26 Taster ($20.46)

YAMAHA DX9 Operating Manual + Performance Notes | High quality 2020 ReprintYAMAHA DX9 Operating Manual + Performance Notes | High quality 2020 Reprint ($28.40)

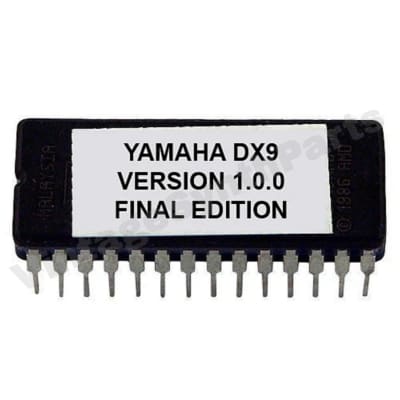

Yamaha DX9 V. 1.0.0 OS Upgrade Firmware Update Convert To DX-7 From DX-9 EpromYamaha DX9 V. 1.0.0 OS Upgrade Firmware Update Convert To DX-7 From DX-9 Eprom ($22.67)

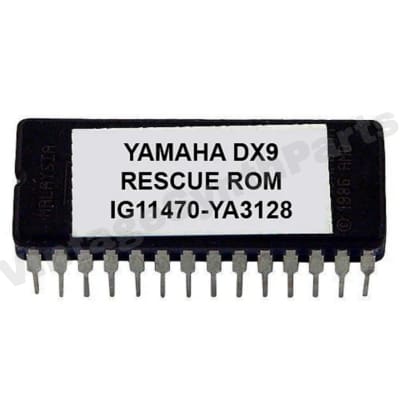

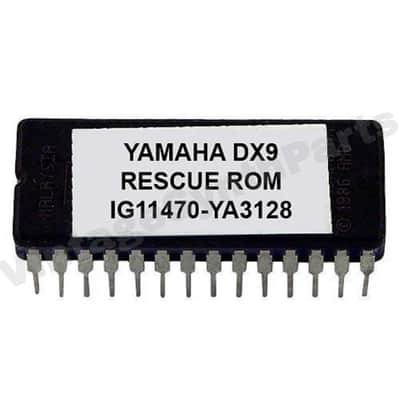

Yamaha DX9 Factory Firmware OS Eprom Rom Rescue repair Rom DX-9Yamaha DX9 Factory Firmware OS Eprom Rom Rescue repair Rom DX-9 ($20.40)

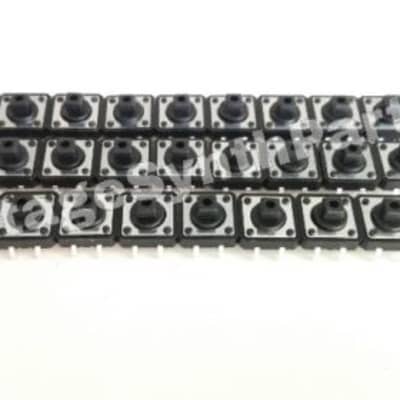

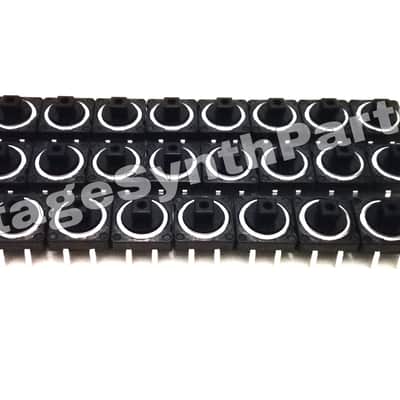

Pushbutton Tact Switches Full Set Of 26 for Yamaha Dx-9 Micro Switch Dx9Pushbutton Tact Switches Full Set Of 26 for Yamaha Dx-9 Micro Switch Dx9 ($16.99)

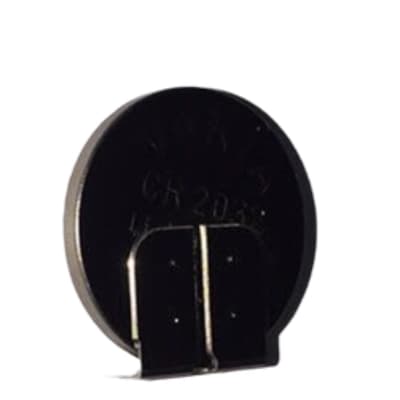

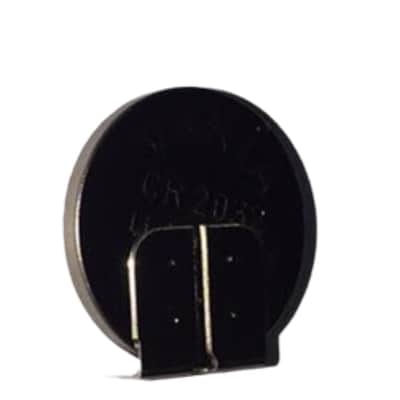

QN130227 Bateria de litio para Yamaha DX7 (dx7), DX9 (dx9) (ref:1209)QN130227 Bateria de litio para Yamaha DX7 (dx7), DX9 (dx9) (ref:1209) ($5.94)

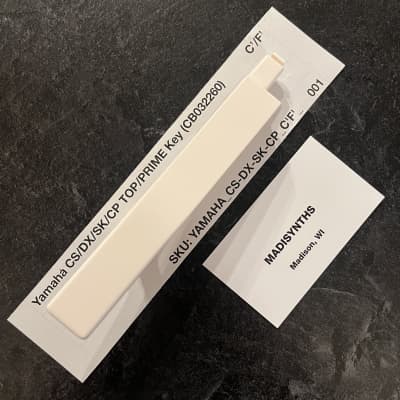

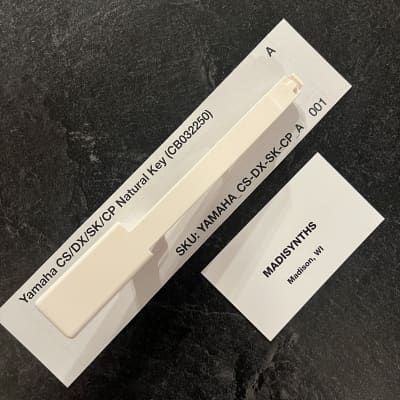

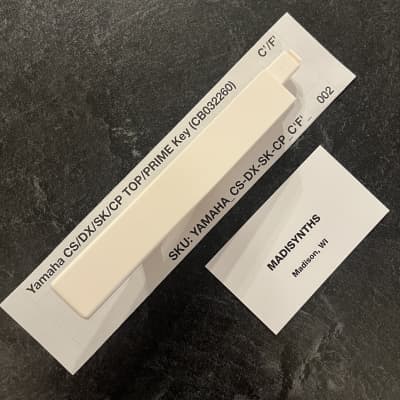

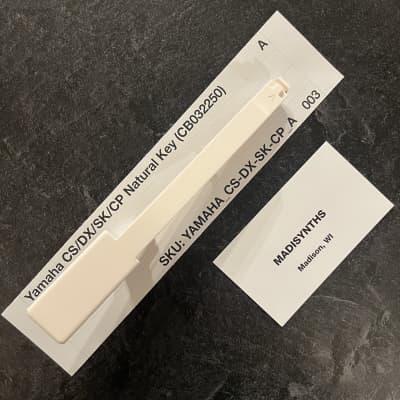

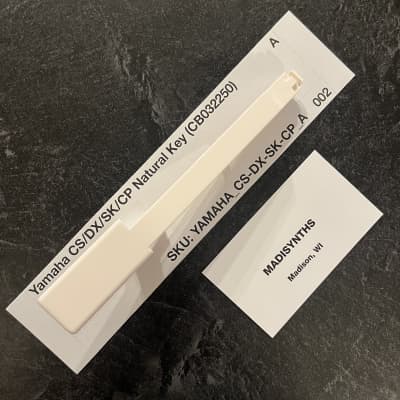

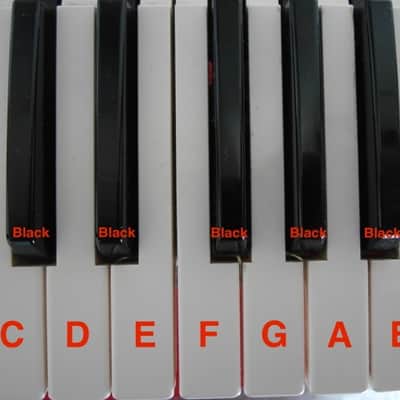

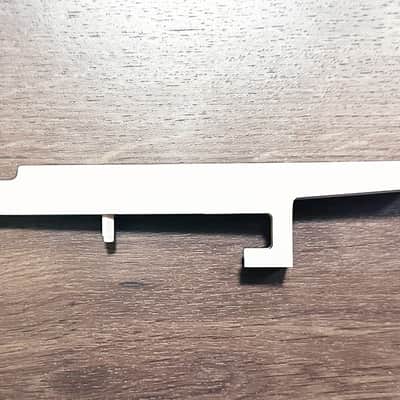

Yamaha Touche Clé DX27 DX 21 CS CE Series DX9 SK20 CS5 Replacement original KeyYamaha Touche Clé DX27 DX 21 CS CE Series DX9 SK20 CS5 Replacement original Key ($6.71)

KORG DW6000 - KPR-77 - POLY-61 - YAMAHA DX7 - DX9 - KX8 10 tact switches OMRON8KORG DW6000 - KPR-77 - POLY-61 - YAMAHA DX7 - DX9 - KX8 10 tact switches OMRON8 ($11.20)

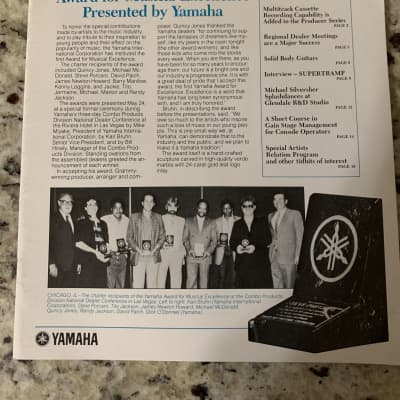

Yamaha Sample & Hold Magazine DX7 DX9 SBG200 SC300T 1984Yamaha Sample & Hold Magazine DX7 DX9 SBG200 SC300T 1984 ($16)

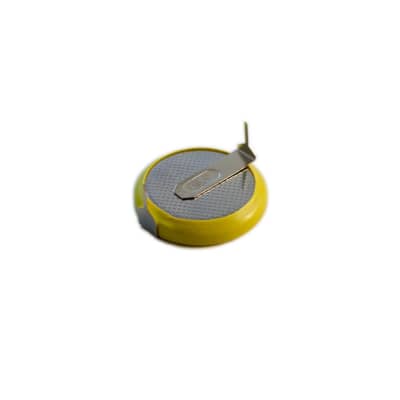

Yamaha - YS Series , DX9 , MCS2 - BatteryYamaha - YS Series , DX9 , MCS2 - Battery ($4.99)

YAMAHA dx7, dx7 II, dx9, dx27, dx100 tg77 sy77 tx802 tx7 - Battery Replacement fixYAMAHA dx7, dx7 II, dx9, dx27, dx100 tg77 sy77 tx802 tx7 - Battery Replacement fix ($9.04)

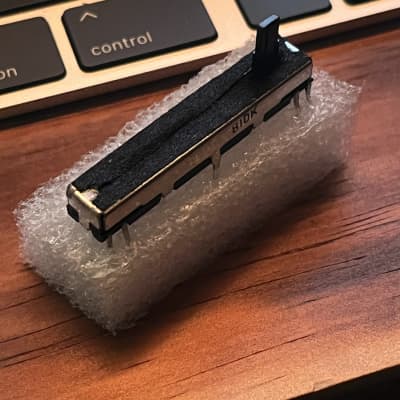

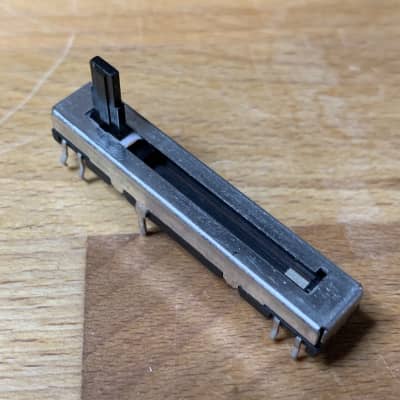

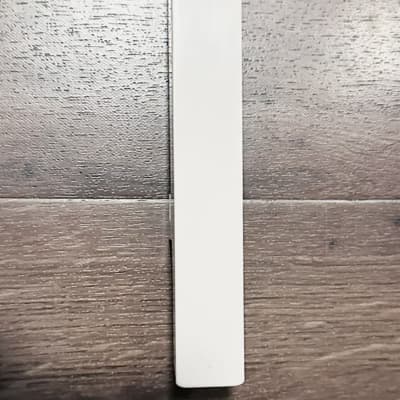

NEW Yamaha Replacement Data Slider for DX7, DX9, DX11, DX21, DX27, DX100NEW Yamaha Replacement Data Slider for DX7, DX9, DX11, DX21, DX27, DX100 ($17.95)
