Synths ⇝ Korg ⇝ Korg M3

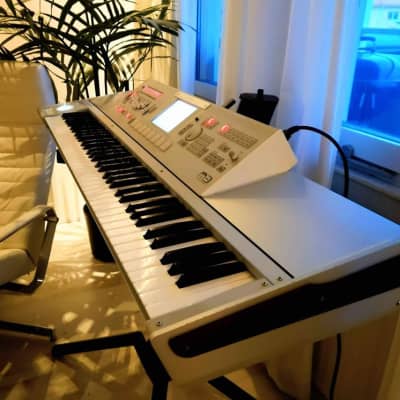

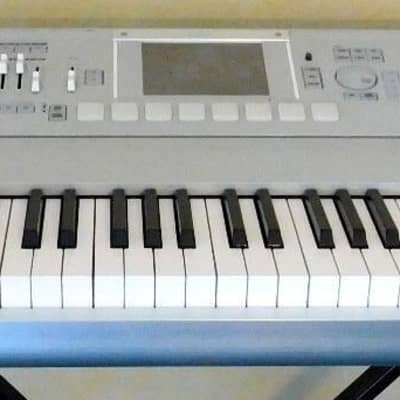

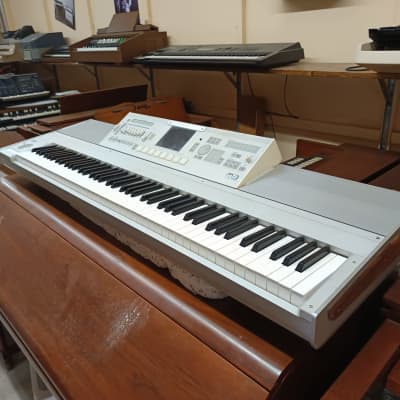

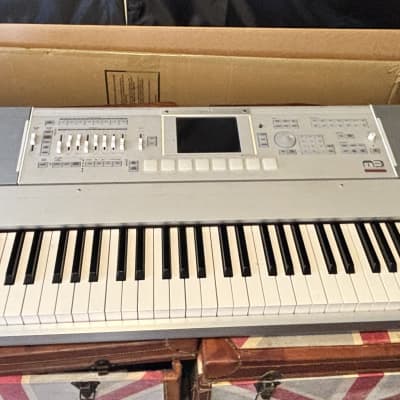

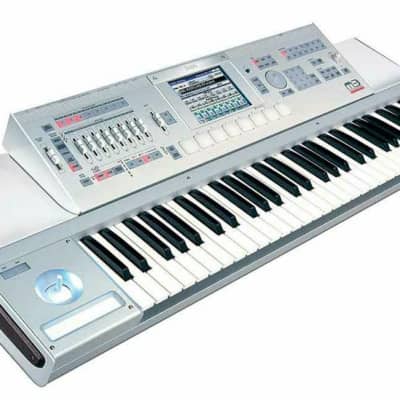

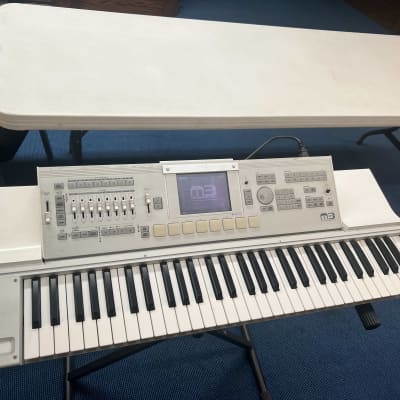

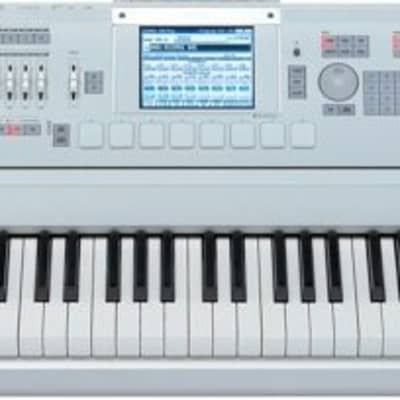

The M3 is a synthesizer workstation that is the successor to the Korg Triton and incorporates elements of the OASYS engine. It also includes the next generation of the Korg KARMA engine. It was followed by the Korg M50, which is a stripped-down lower-end version of the M3.

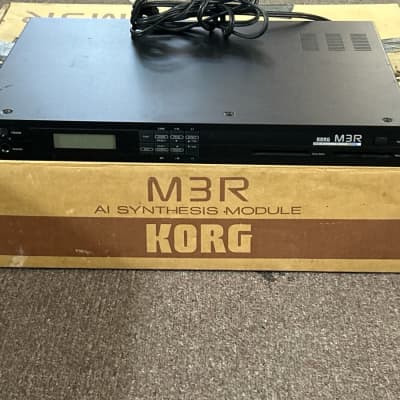

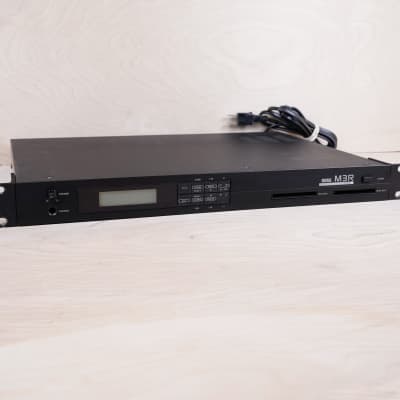

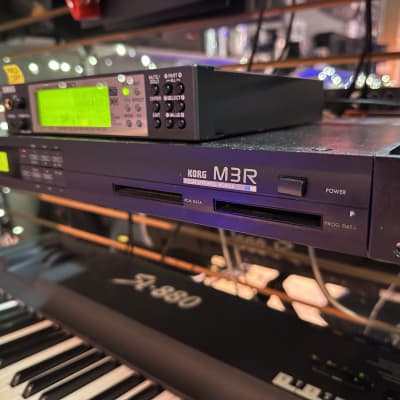

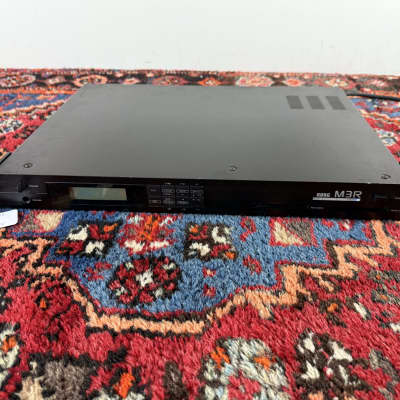

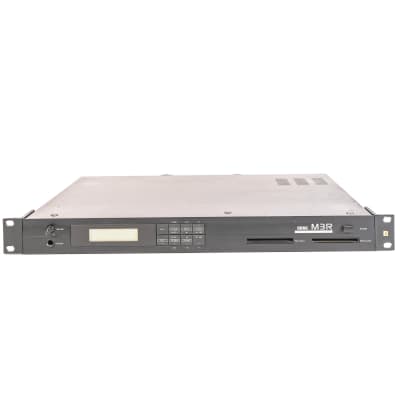

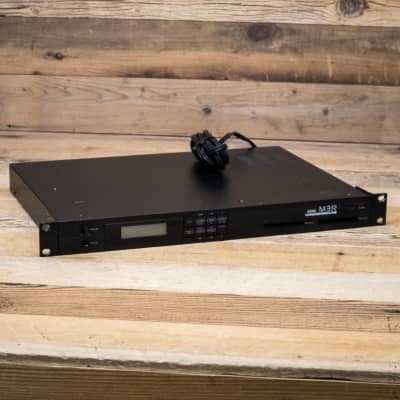

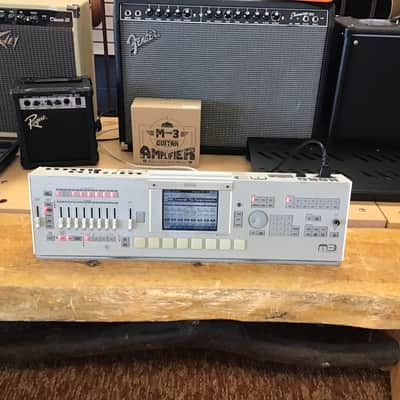

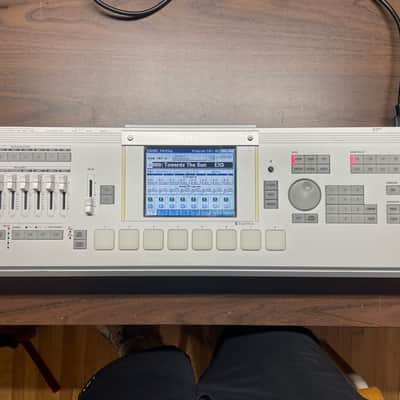

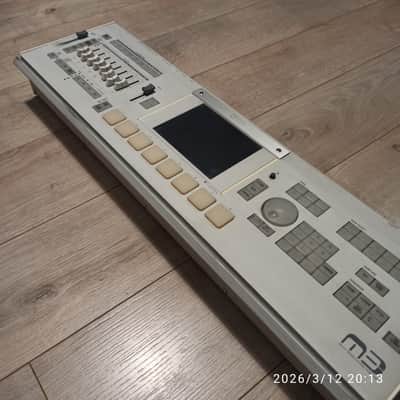

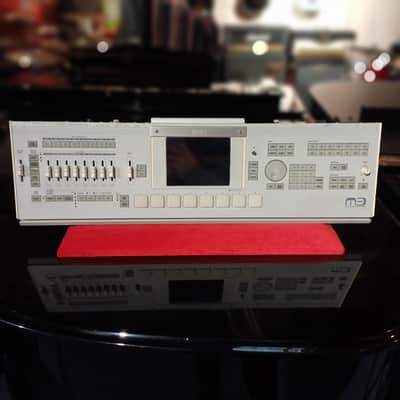

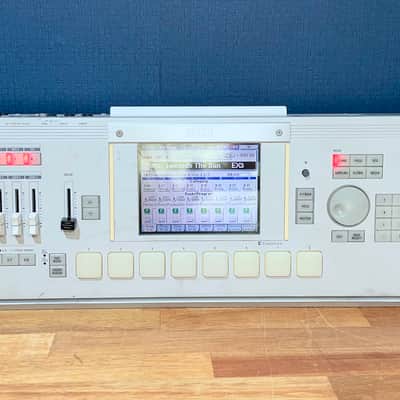

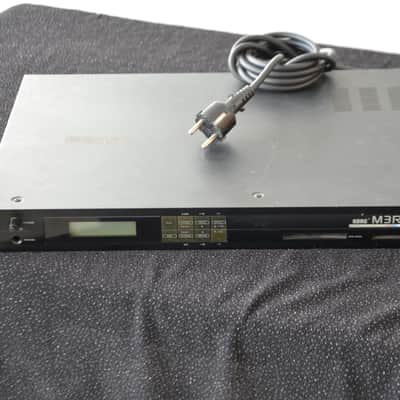

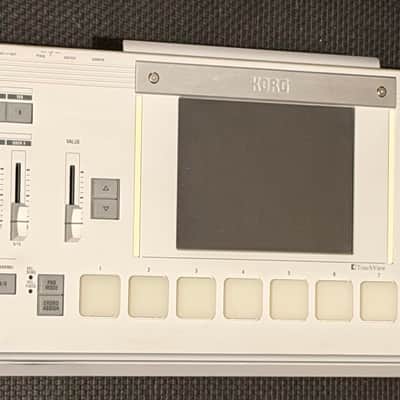

It should not be confused with the Korg M3R, which is a rackmount synth module from the late 1980's. This is not made less confusing by the fact that the M3's synth module is referred to as the M3M. It is the next generation of workstation after the Triton series.

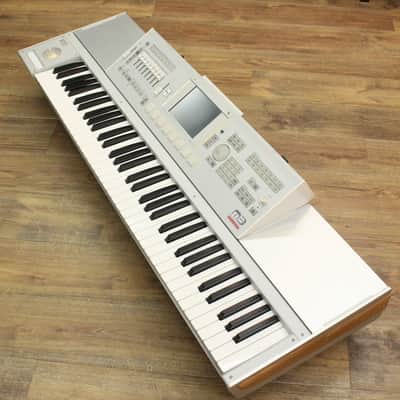

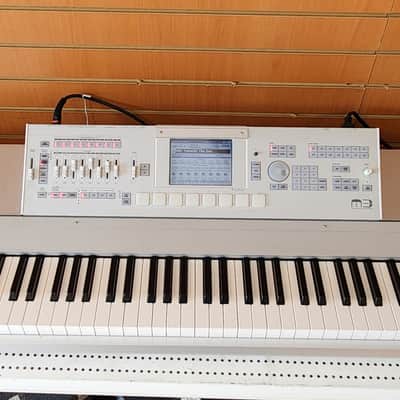

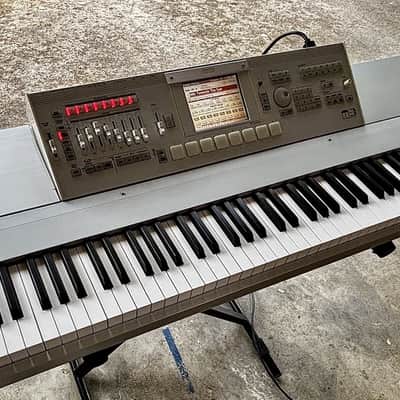

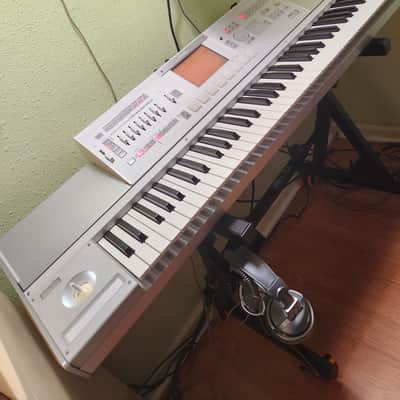

The M3 was produced with 3 keyboard variations: The M3M61 (61 keys), M3M73 (73 keys), and the M3M88 (88 keys). The keyboard module (KYBD) can be separated from the synth module and the only differences in the variations is the number and weighting of the keys.

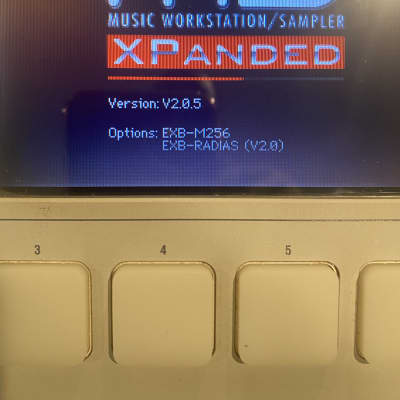

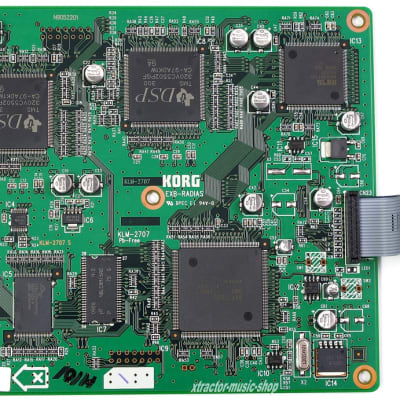

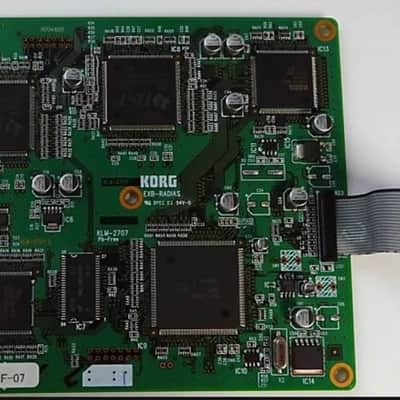

Tone generation is based on sampled waveforms and includes a built-in sampler. It ships with 64MB of sampler RAM and can be expanded to 320MB via an EXB-M256 module. The addition of Korg's Multi-Modeling Technology (MMT) is possible via an EXB-Radias expansion board.

Specifications

Year Released: 2007

MSRP: 3000.00 USD

Keyboard: 61 keys with velocity and aftertouch

Polyphony: 120 notes

Preset Patches: 512

Preset Performances: 384

Preset Drum Kits: 32

ROM: 256MB (1028 instrument multisamples, 1606 percussion waveforms)

Effects: 170 algorithms - 5 insert effects, 2 master effects and, 1 "total" effect.

Screen: 320 x 240 pixel touchscreen

User Demo Videos

Rating

File Downloads

Korg M3 Operations Guide

Korg M3 Easy Start Guide

Korg M3 Parameter Guide

Korg M3-XP Supplementary Guide

Korg M3 KARMA Introduction

Korg M3 Editor Manual

Korg M3 Voice Name List

Korg M3 External Setups Guide

Korg M3 61 Key Keyboard Assembly Manual

Korg M3 76 and 88 Key Keyboard Assembly Manual

Korg M3 Tips (Feb 2008)

Korg M3 Tips (May 2008)

Items for Sale on Reverb

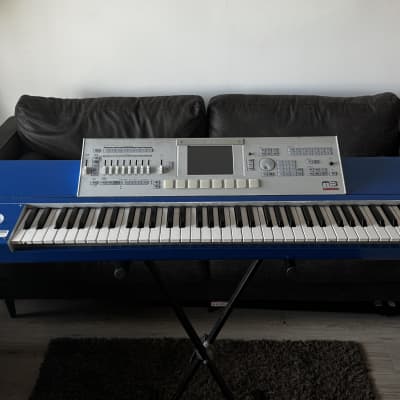

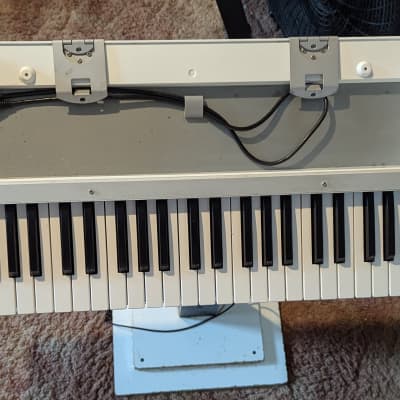

KORG M3 88er Tastatur Keyboard only ohne/without Synth + Top Zustand + Garantie ($1,125.23)

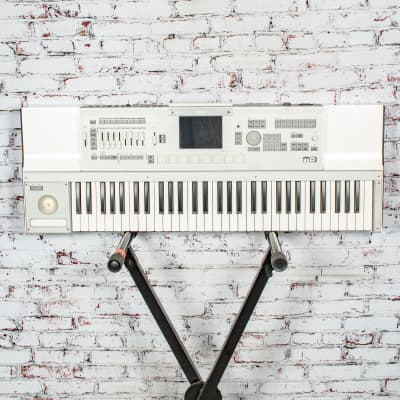

KORG M3 Synthesizer 61er TASTATUR Keyboard Only + Sehr Gut + 1.5J Garantie ($921.73)

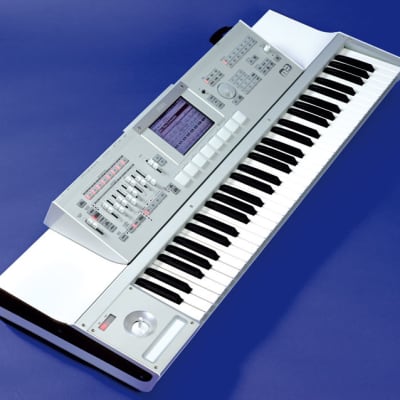

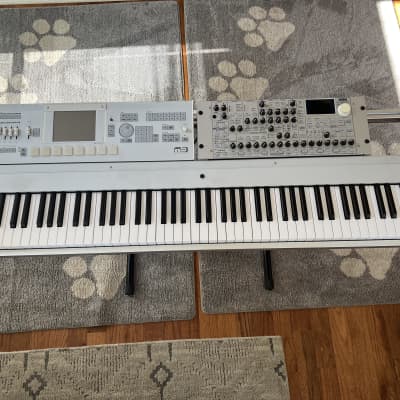

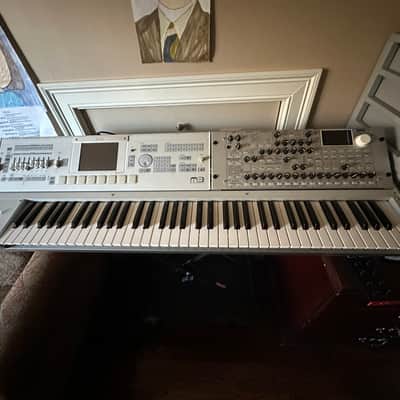

Korg Korg M3 73 and Radias Rack COMPLETE setup 2008 - Aluminum with wood trim ($2,499)

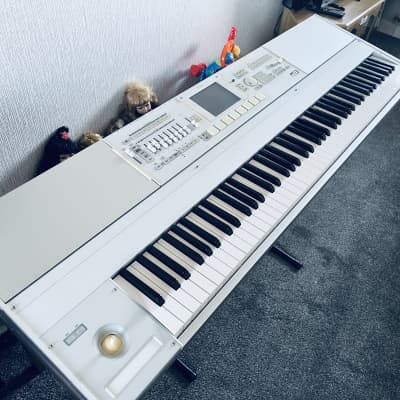

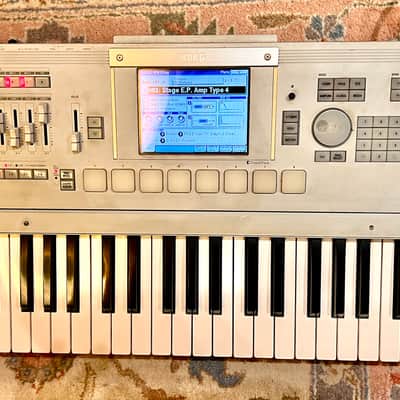

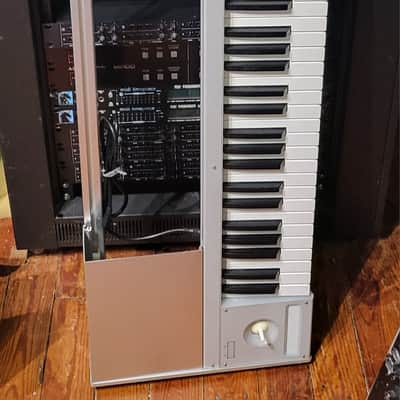

Korg M3 73 Expanded ($931.89)

Korg M3 Korg M3 set sound samples oriendal ($106.66)

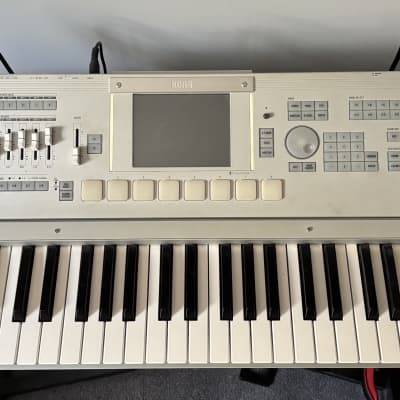

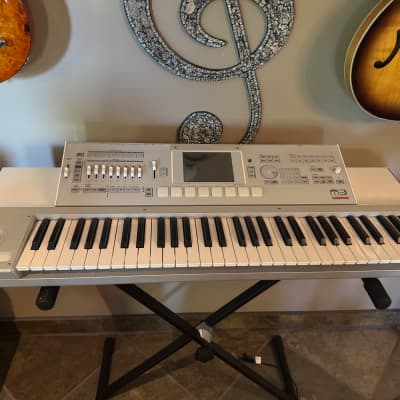

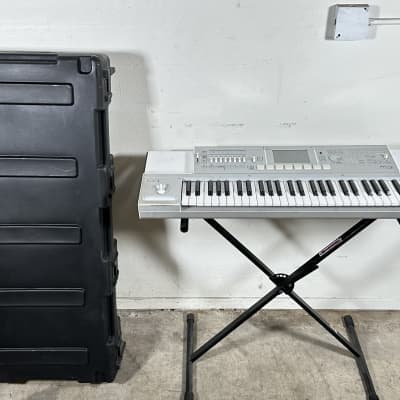

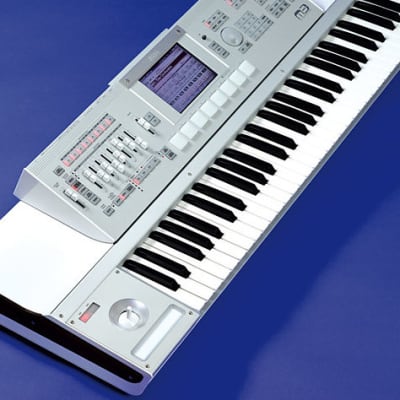

Korg M3 61 2010s ($1,579.73)

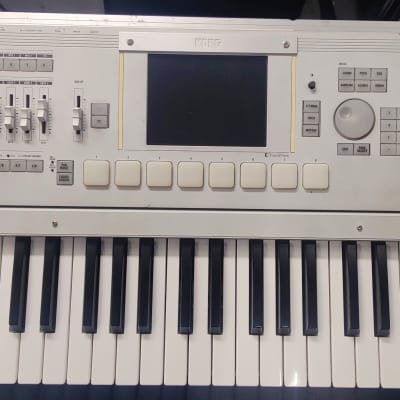

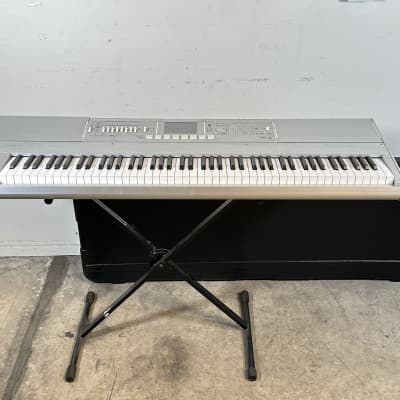

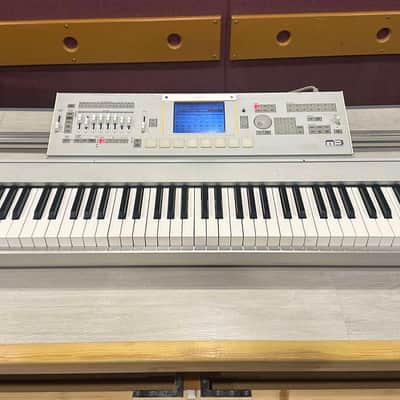

Korg M3 88 2010s - Gray ($1,263.70)

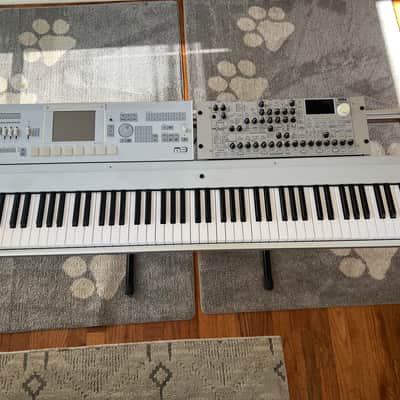

Korg M3 88 Key Workstation Sampler W/ Radius Vocorder ($1,599.99)

Korg M3 88 2010s - Gray ($1,225)

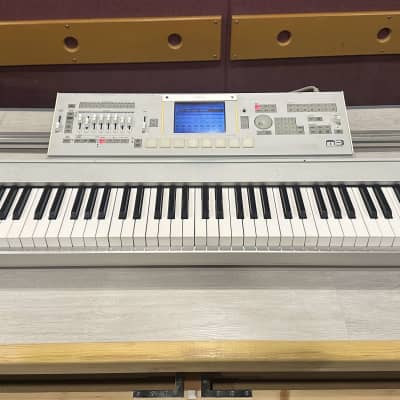

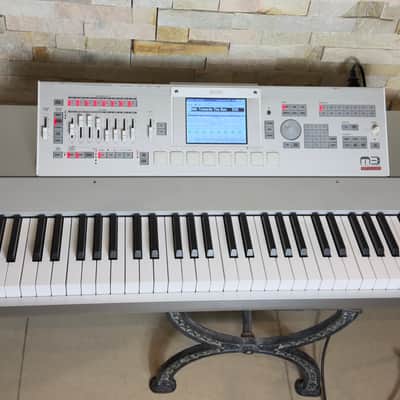

Korg M3 88 Weighted keys keyboard , Touch Screen LCD ,Clean //ARMENS// ($1,499)

Korg M3 61 EXPANDED ($849)

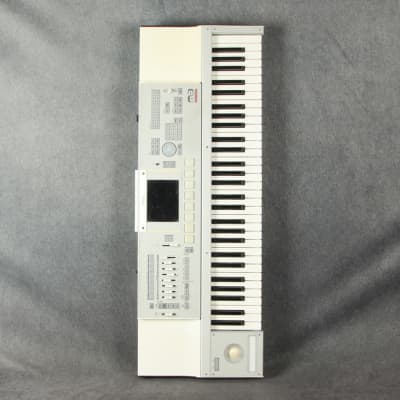

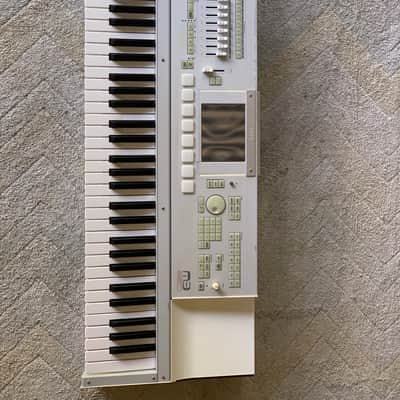

Korg M3 61 2010s Gray / white ($678.43)

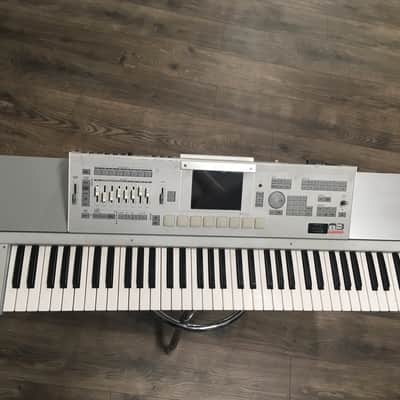

Korg M3 - 73 s/n D1573 ($1,094.27)

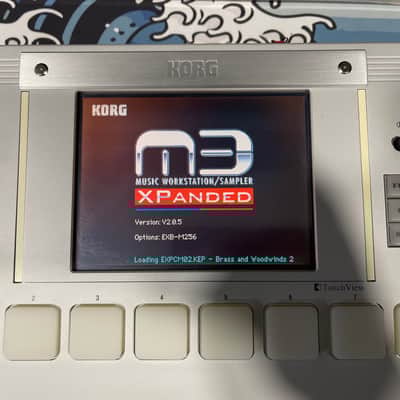

KORG M3 Xpanded 61 + Memory Board ($1,097.18)

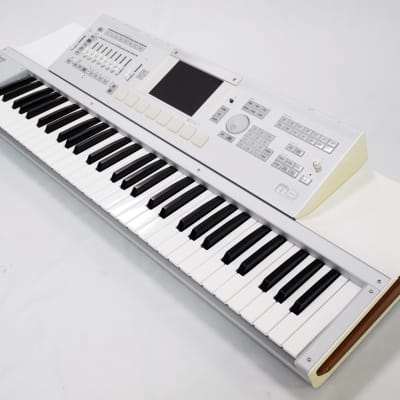

Korg M3 61 2010s - White ($1,100)

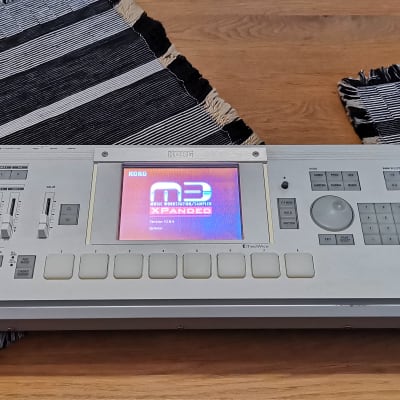

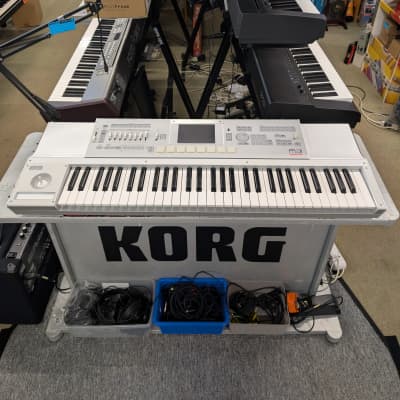

Korg M3 61 key Xpanded workstation / sampler ($917.77)

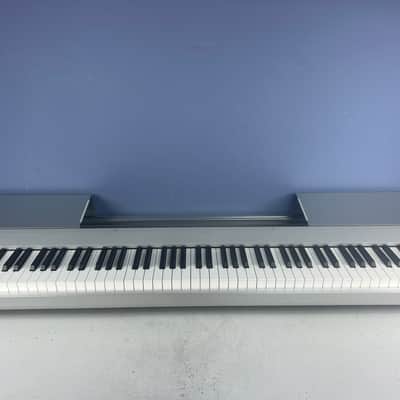

Korg M3 88 2010s - Gray “housing & keyboard assembly” ($290)

Korg M3 Music Workstation Keyboard x8165 (USED) ($999)

Korg M3 73 ($1,303.60)

Korg M3 Music Workstation Keyboard x8165 (USED) ($999)

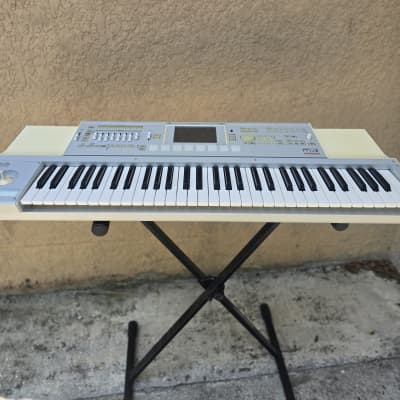

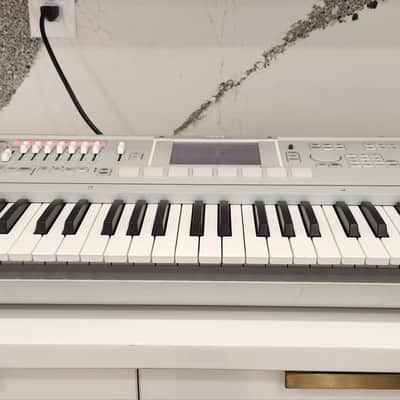

Korg M3 61 2010s - Gray ($1,456.11)

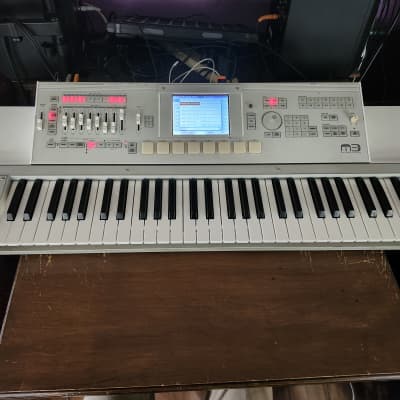

Korg M3 61 2010s - Gray ($887.63)

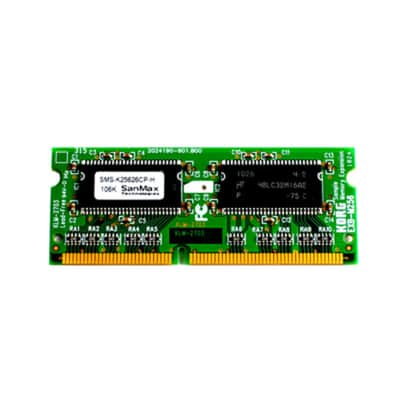

Korg EXB-M256/ M3 & Pa2Xpro, Pa3x RAM Extension 256 MB - Accessory for Keyboards ($133.44)

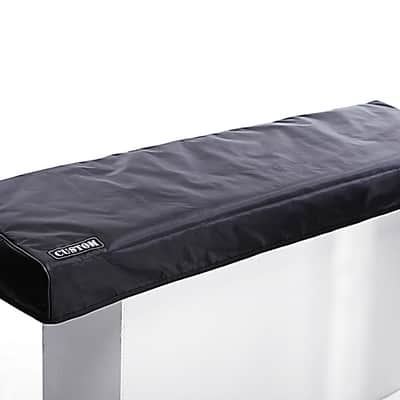

Custom padded cover for KORG M3 88-key Keyboard M3 M 3 ($56.53)

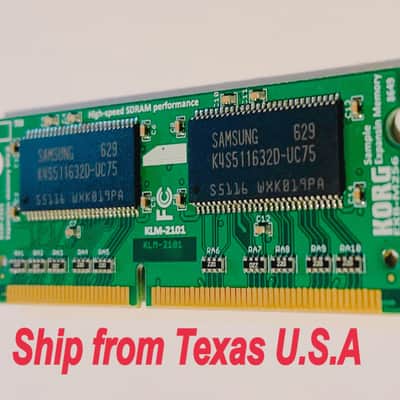

KORG 256MB SAMPLE MEMORY EXPANSION for PA2X PA3X M3 ($38.99)

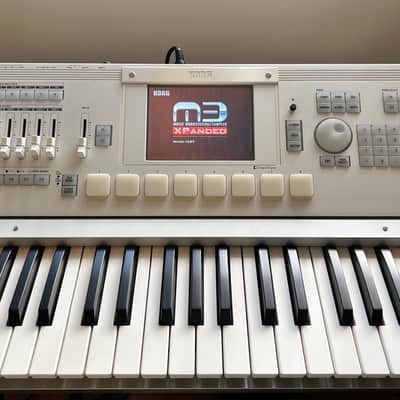

Korg M3-73 s/n LS0227 ($967.19)

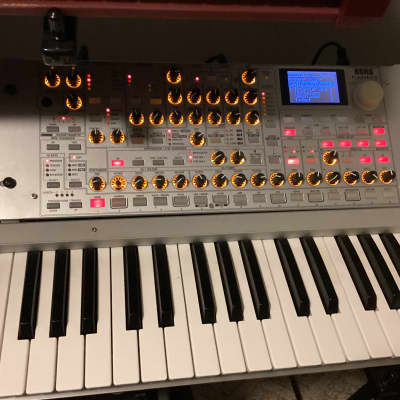

Korg M3-73 Music Workstation/Sampler Xpanded and Radias Synthesizer/Vocoder ($2,000)

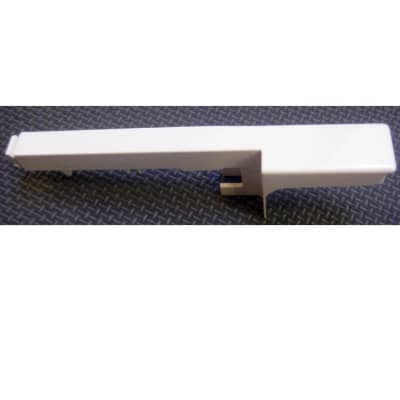

Korg Replacment E Key for Korg M3 88, M50 88, LP350, SV1, SP250 Keyboards Ivory With Weight ($6.99)

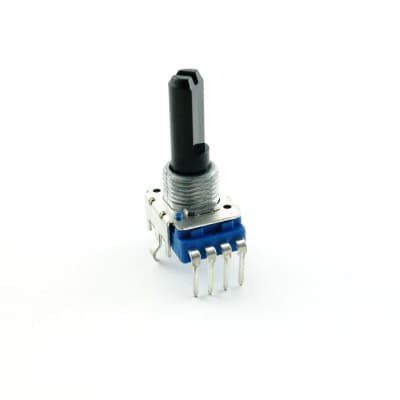

Korg - M3 , M5 , N264 , N364 - 10KB Potentiometer No Center Detent ($5.90)

Korg - M3 , M5 , N264 , N364 - Rotary Potentiometer No Center Detent ($8.24)

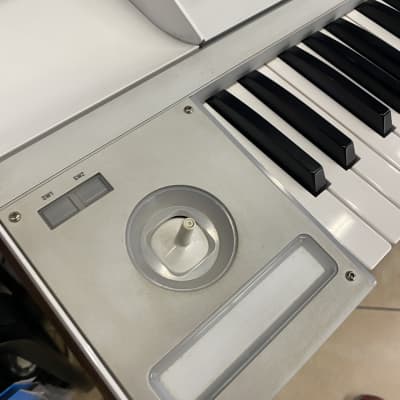

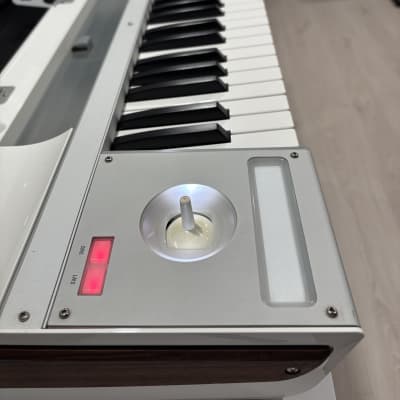

Korg - M3 , Pa600 , MicroStation , Kronos , Krome , PA3X76, PA4X - Joystick Assembly ($65.90)

Korg M3 Touch Screen Panel Digitale Bedienfront für LCD Display + 1.5 Jahre Garantie ($71.09)

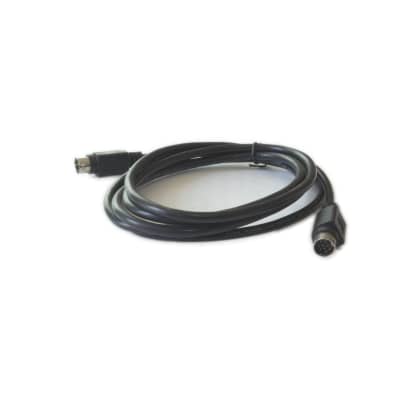

Korg - M3 - Nine pin interface cable ($24.99)

Korg - MS-2000R , MS-2000, M3 , D8 , M3M - Replacement Slide switch 2-position for mic/line input ($7.99)

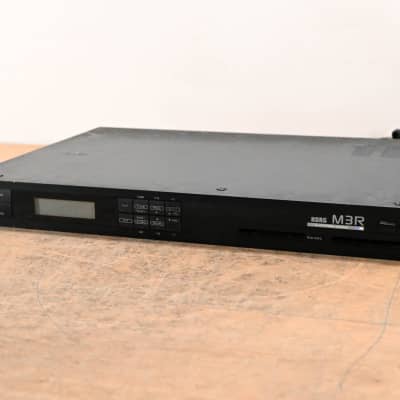

RARE 90' KORG POWER SUPPLY 110V tone generator M3R M3 R M1 Sound Module AI2 PCM ($41.48)

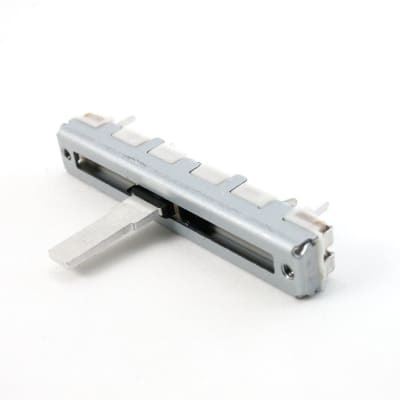

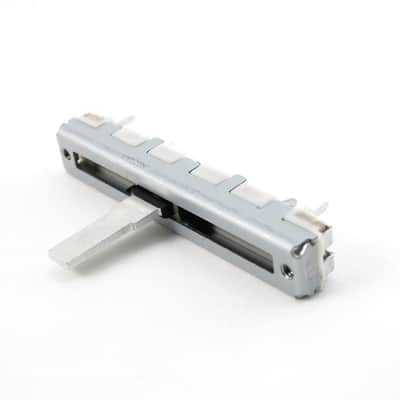

Korg - M3- Slide potentiometer 10kb - all except Master Volume ($16.99)

Korg - O1W , M1 , M1R , M3 , POLY 800 , T1 , T2 , T3 , X3 , Wavestation ($5.87)

Korg - O1W , M1 , M1R , M3 , POLY 800 , T1 , T2 , T3 , X3 , Wavestation - New Battery ($4.90)

Korg - iS40 , M1 , M3 ,X3 , X2 , X3R , Kronos 2 , SG Pro/X - AC power socket ($3.99)

Korg - M3- Slide potentiometer replace all sliders except Master Volume ($10.49)

KORG CX3 C6500 Ci8600-9600 KARMA MS2000 M3 M50 KROME N1 OASYS Set of 20 Pushbuttons front panel Tact Switches Micro Switch ($14.04)

Korg - O1W - M1 - M1R - M3 - POLY 800 - T1 T2 - Battery Replacement Fix ($9.42)

20 x TACT SWITCH KORG CX3 C6500 Ci8600-9600 KARMA MS2000 M3 M50 KROME N1 OASYS ($14.04)

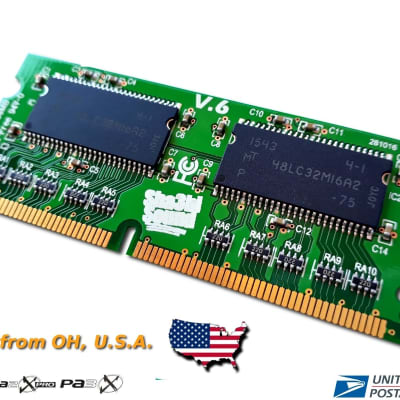

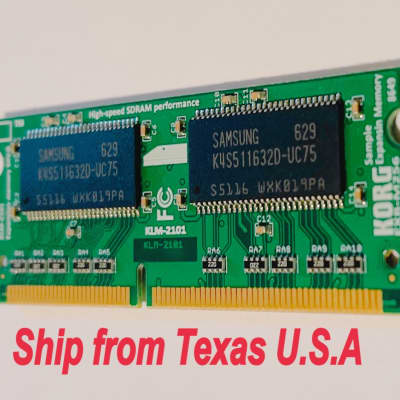

256MB Sample Memory Expansion for KORG M3 PA3x PA2x OEM EXB-M256 ($38)

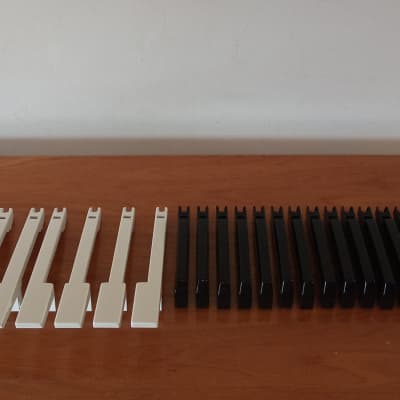

6 unit bundle keys for Korg Prophecy / M3 or Radias KB / Triton Le 61/76 - Keys (for international shipments contact me) ($26.07)

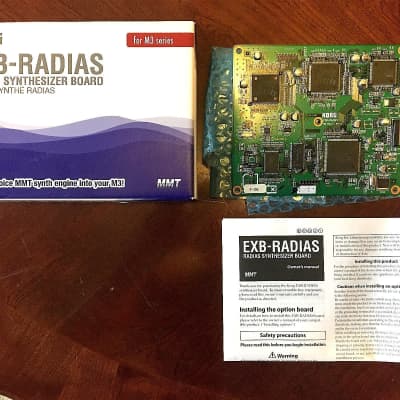

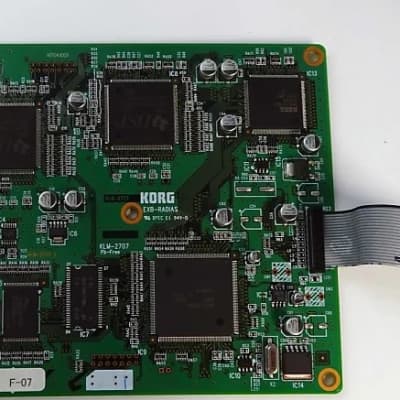

Korg M3 EXB-Radias Expansion board ($525)

NEW Roland Replacement Volume Slider for Juno-1, Juno-2, JV-80/90, RD-250s/300s, Korg M3 ($24.95)

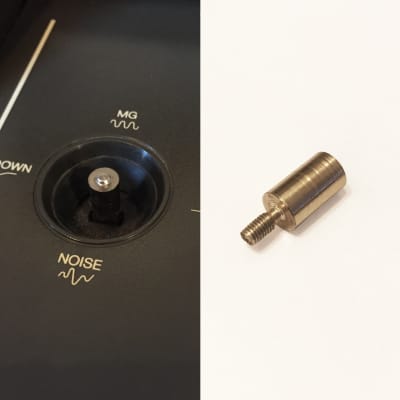

New joystick Shaft M3 thread for Bender Korg Delta, Sigma, Trident, Lambda ($23.49)

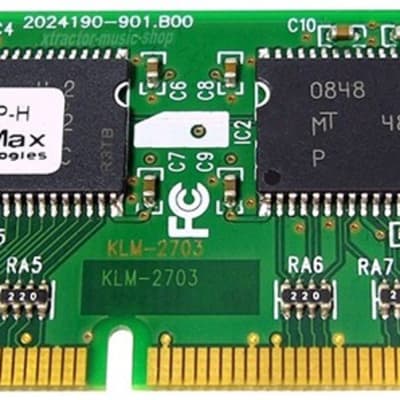

KORG EXB-M256 Sample-RAM Board for M3-Serie PA2xPro, Pa3X-Serie + Garantie ($210.67)

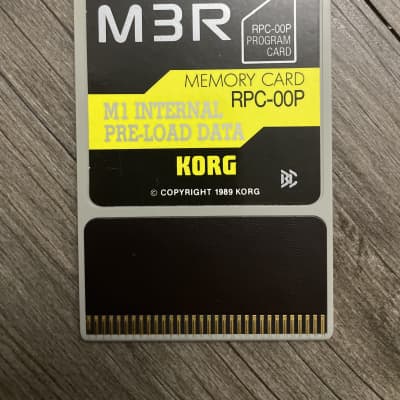

Korg M3R Program Card M1 Internal Pre-load Data RPC-OOP 1989 ($135)
