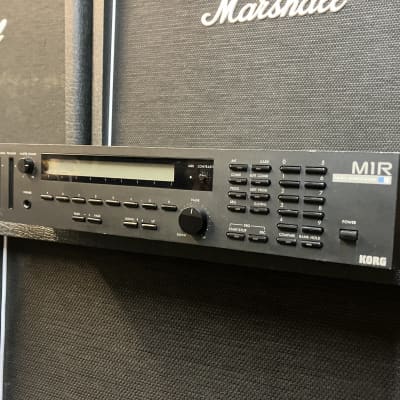

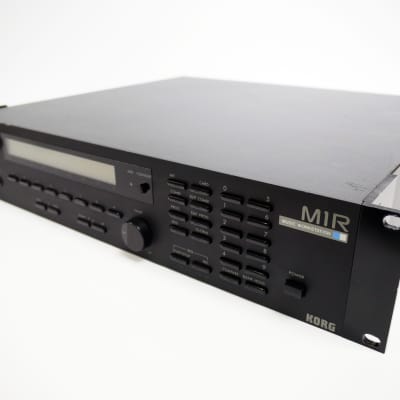

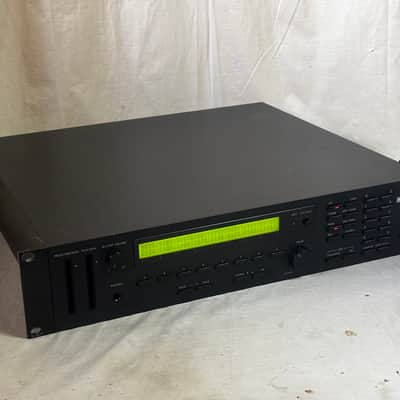

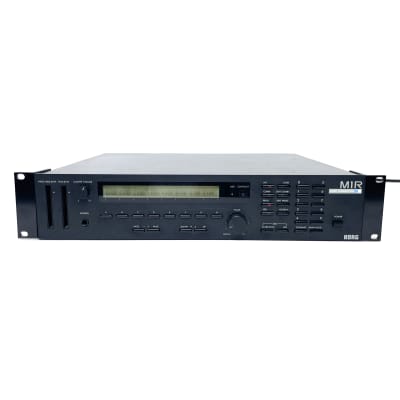

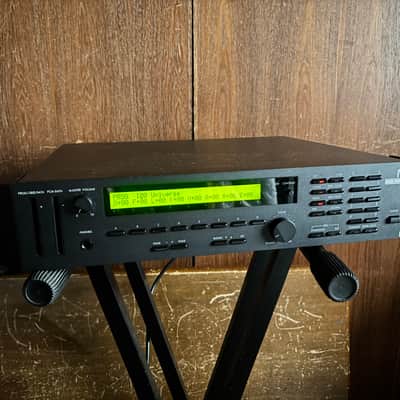

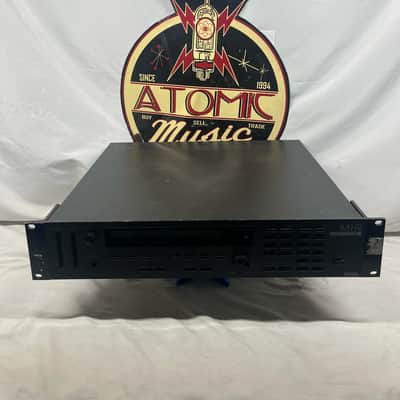

The Korg M1R is the rack-mount version of the popular M1 synthesizer workstation. It has 4 MB of sampled waveform ROM and uses what Korg's first generation of ROMpler technology, called "AI synthesis".

The 8-track sequencer can store up to 10 songs and 100 patterns. Default patch and combination memory is 50 each, but it can be doubled to 100 of each by allocating some sequencer memory to patch storage, and that will reduce sequencer memory to 4400 notes.

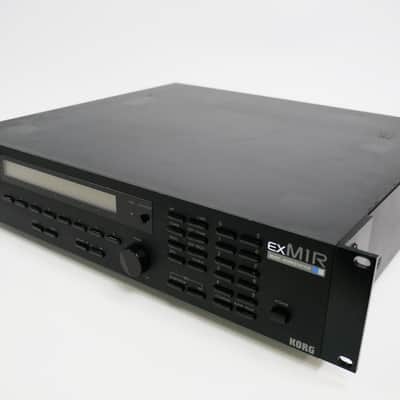

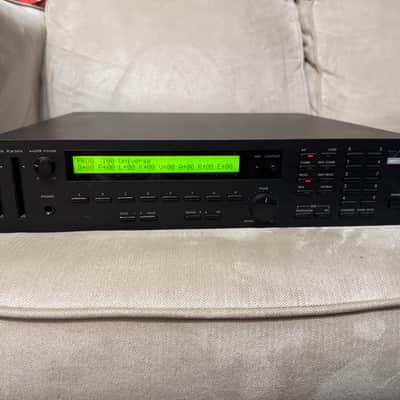

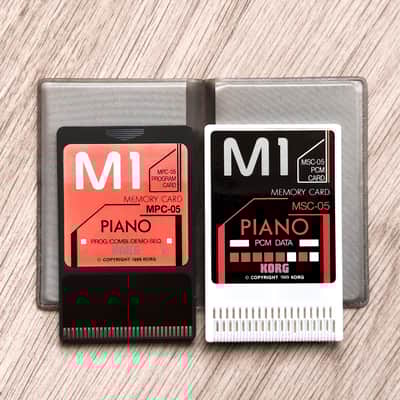

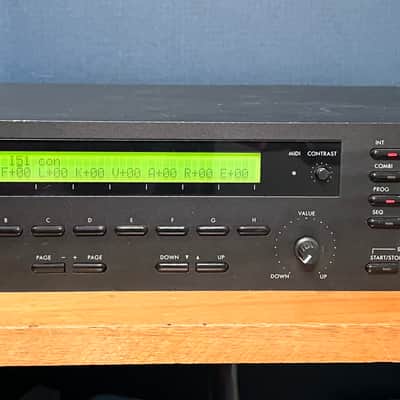

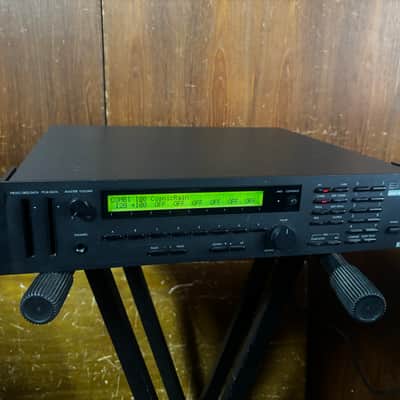

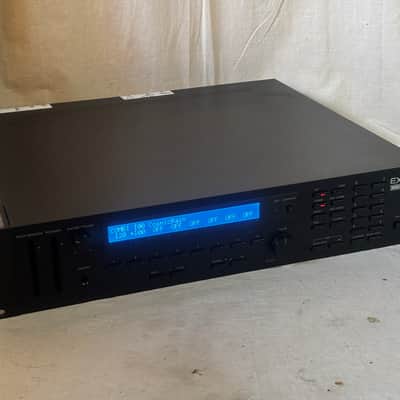

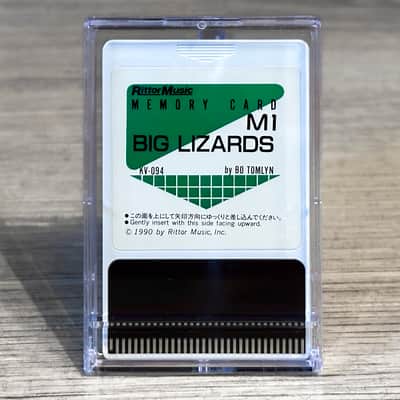

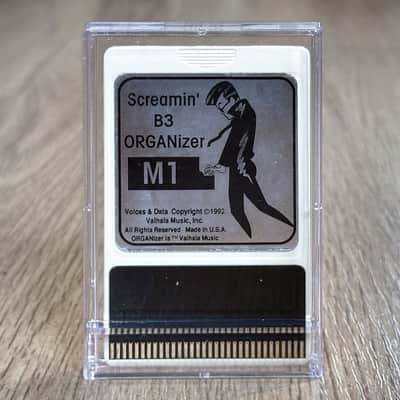

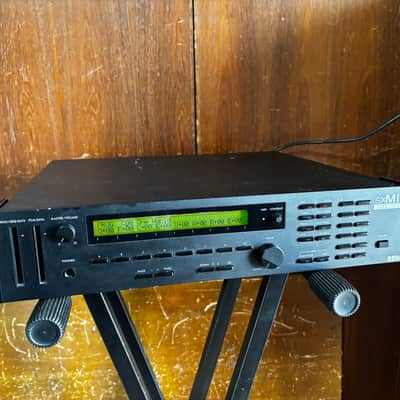

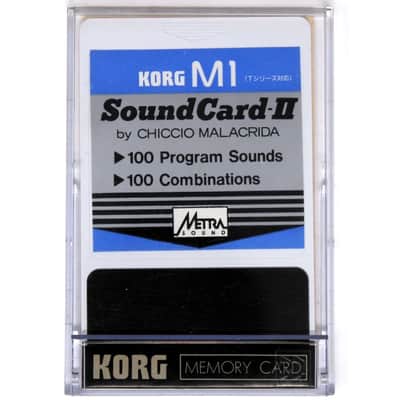

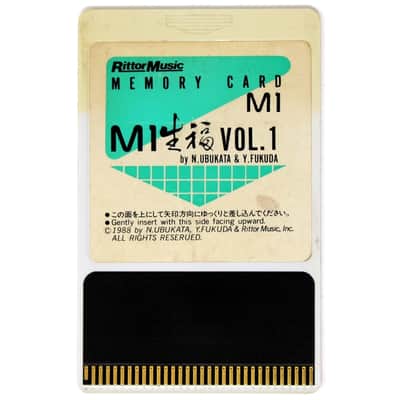

The internal sample ROM can also be expanded with the EX-M1R ROM expansion kit, doubling the wave memory to 8MB with 275 PCM samples. It also has two card slots - one for a waveform card and one for a patch memory card. A large library of expansion cards was released by Korg and other third-party manufacturers. An MCR-03 RAM card can be used for storing additional patches.

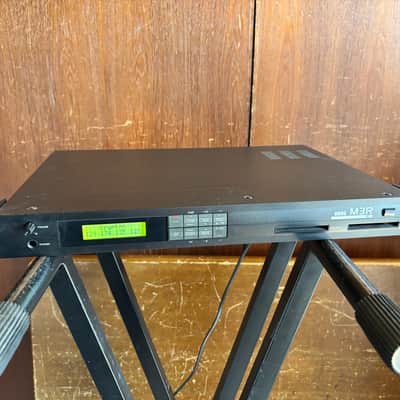

The Korg M3R is a lower-end 1U version of the M1R with fewer samples and its own line of expansion cards.

Specifications

Year Released: 1988

MSRP: 2166.00 USD

Polyphony: 16 notes

Multitimbral: 8 parts

User Patches: 100

User Performances: 100

ROM: 4MB at 16-bit resolution (100 multisamples, 44 drum samples)

Sequencer Memory: 7,700 notes

Effects: 2 effects processors with reverb, delay, chorus, EQ, overdrive, flanger, and rotary speaker

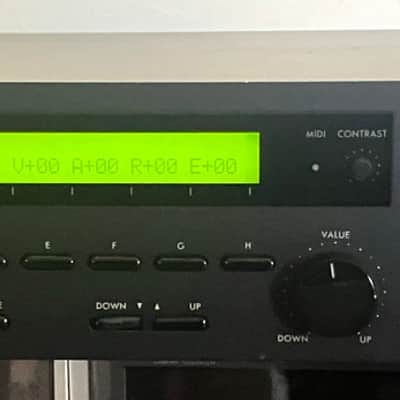

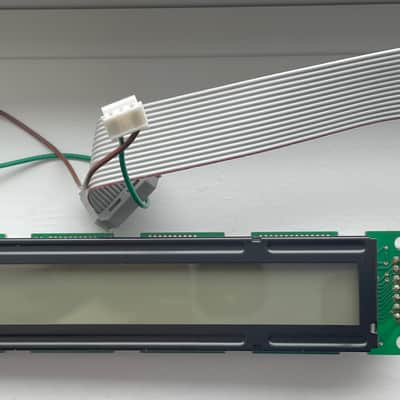

Screen: 40 x 2 character backlit LCD

Power Consumption: 11 watts

Dimensions: 430 mm x 405 mm x 88 mm

Weight: 5.9 kg

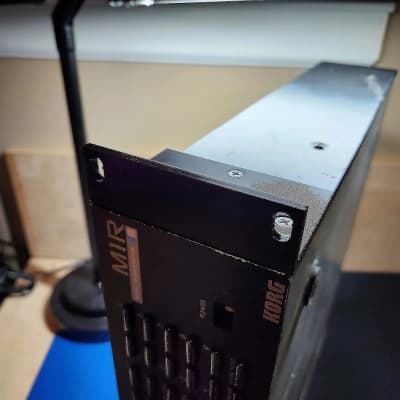

This is a 2-space rack unit.

Sequencer: 8 Tracks, 10 Songs, 100 Patterns, 4400 notes. Memory mode can be switched to expand the sequencer to 7700 notes as the cost of 50 patch and 50 combination memories.

User Demo Videos

Rating

Sound Samples

WAV samples are available on freewavesamples.com.

File Downloads

Korg M1R Manual

Items for Sale on Reverb

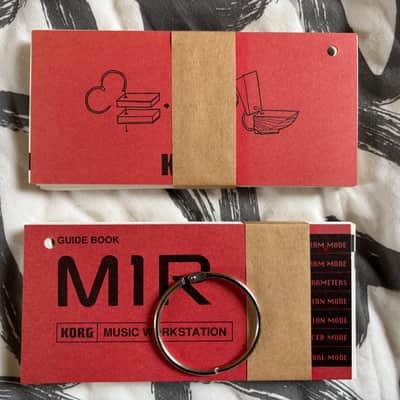

Korg M1R Guide Book NEW and Sealed ($346.70)

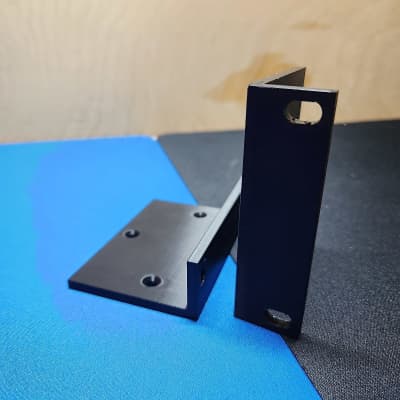

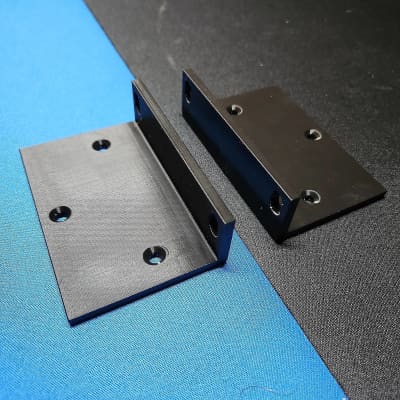

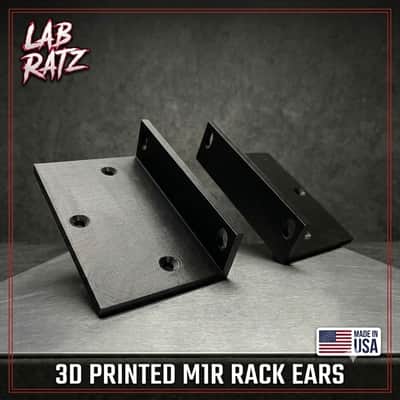

Rack Ears - Korg M1R ($35)

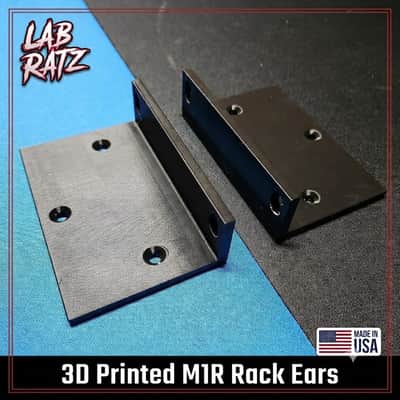

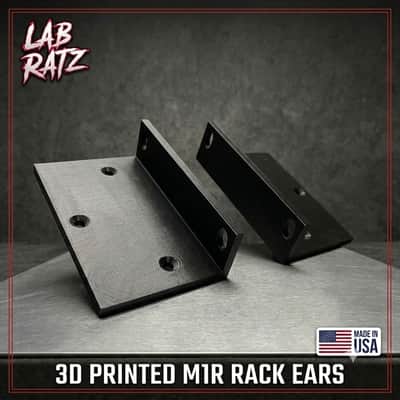

*B-STOCK* Rack Ears - Korg EX M1R ($30)

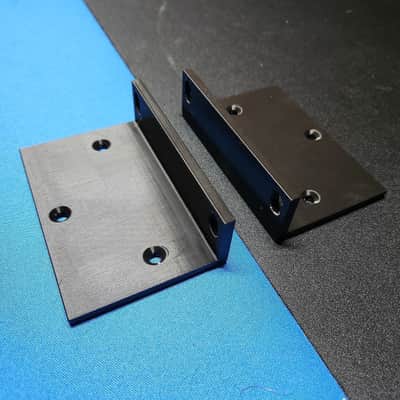

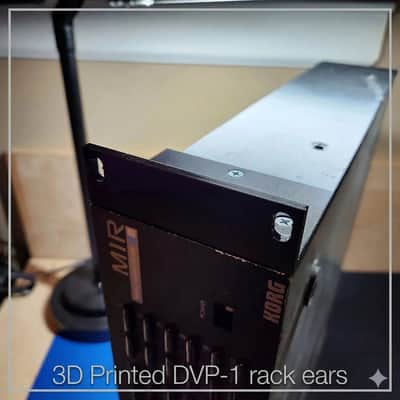

Rack Ears - Korg DVP-1 ($35)

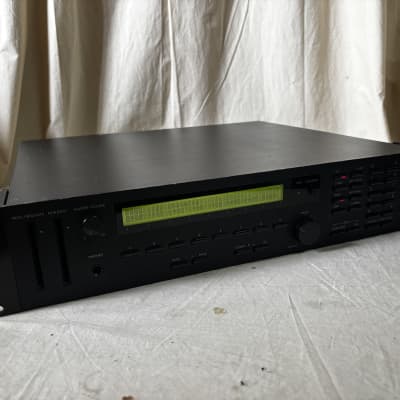

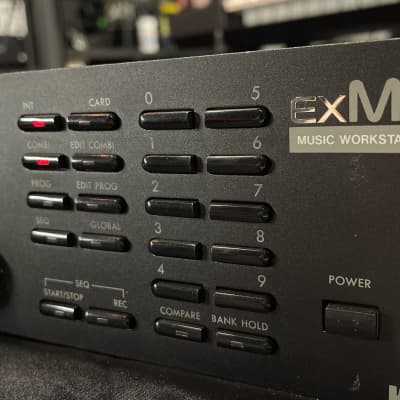

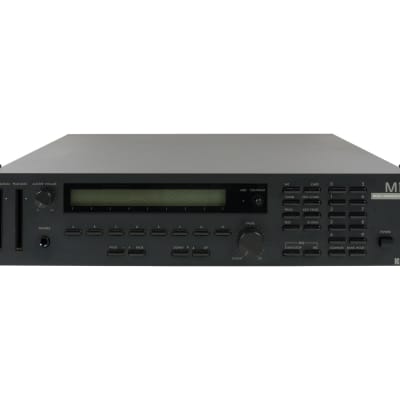

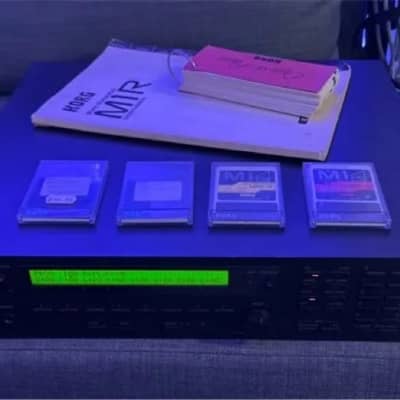

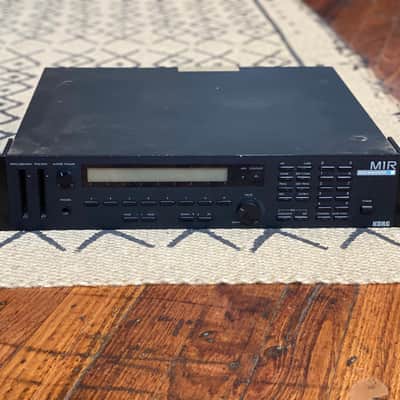

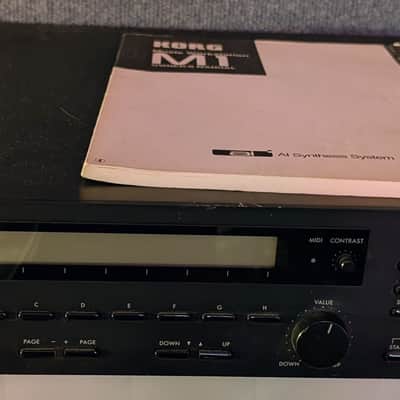

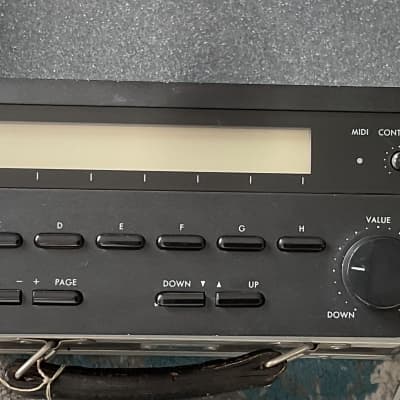

Korg M1R, M1R EX 1990 ($125.14)

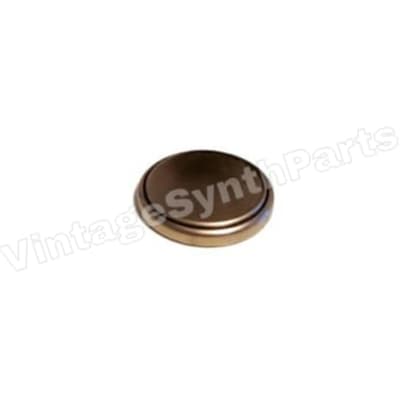

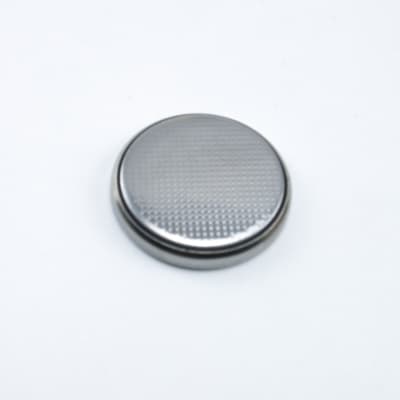

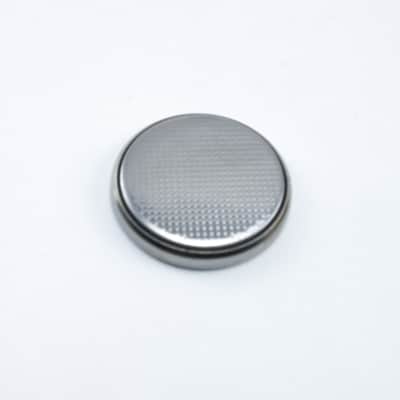

Korg - M1R , M1R-EX , Wavestation , Triton and more - Battery ($7.37)

Korg - M1R , M1R-EX , Wavestation , Triton and more - Battery ($3.90)

Korg - M1R , M1R-EX , Wavestation , Triton and more - Battery ($7.37)

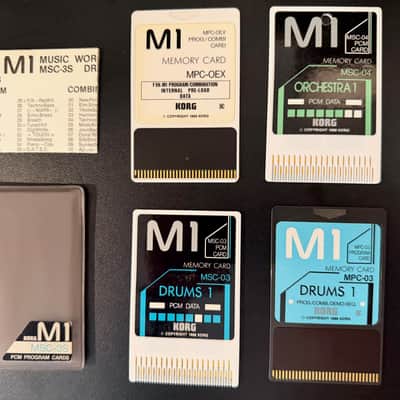

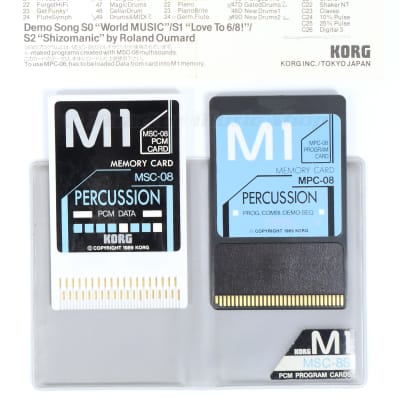

KORG M1 M1R Original PCM Memory Cards MPC-08 + MSC-08 PERCUSSION / + 1J GEWÄHR✅ ($134.97)

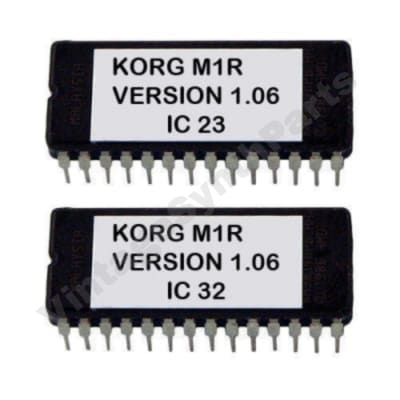

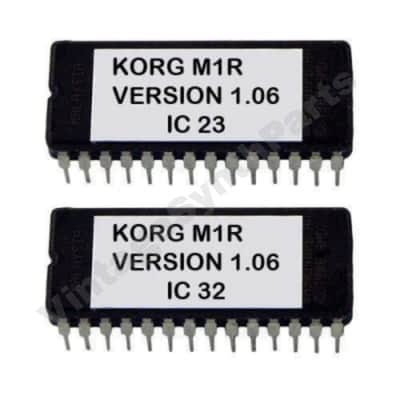

Korg M1R OS Final OS Firmware revision v1.06 Eprom M1R Rom ($23.46)

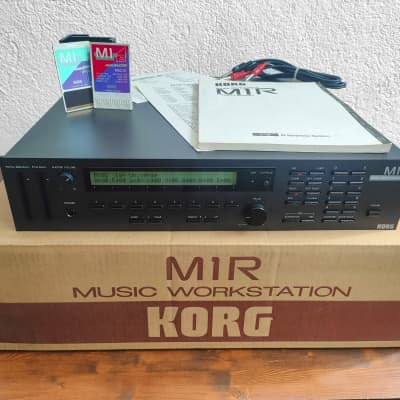

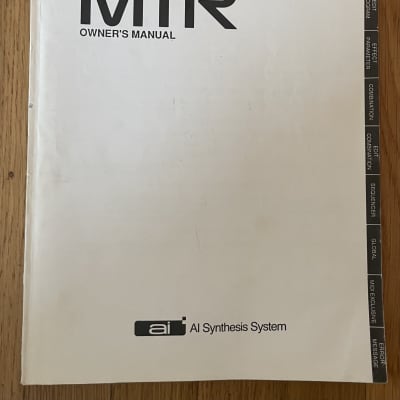

KORG M1R OWNERS MANUAL synthesizer book rack mount module VINTAGE SYNTH DEALER ($49.99)

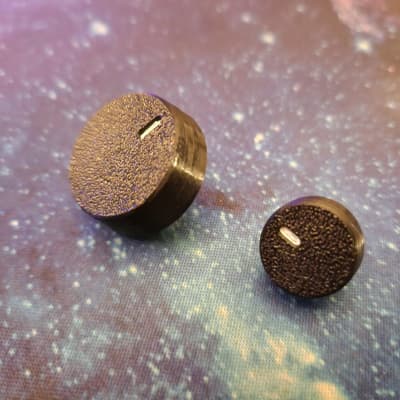

Dials - Korg M1R ($22.50)

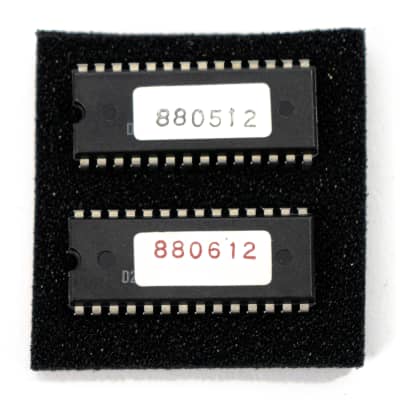

Korg M1R Workstation EPROM Chips 880512 / 800612 ($4)

Korg M1R Workstation EPROM Chips 880512 / 800612 ($4)

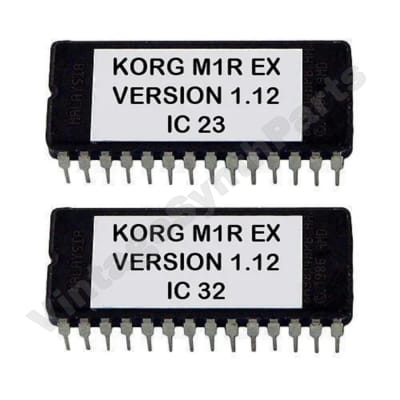

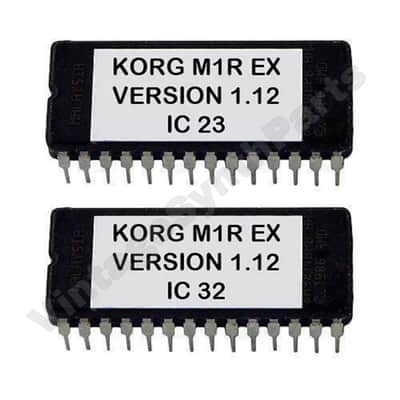

Korg M1REX OS Final OS revision v1.12 Eprom M1R EX Update Upgrade Firmware ($23.46)

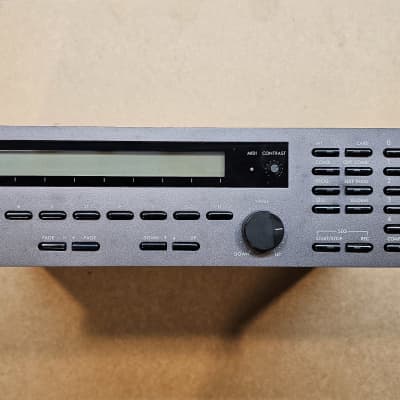

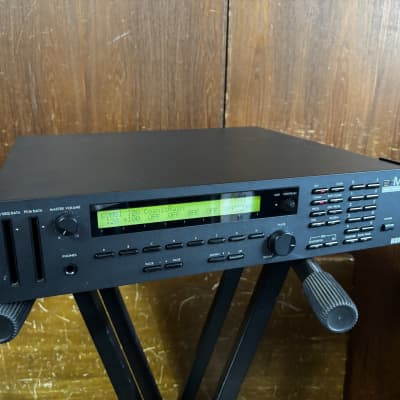

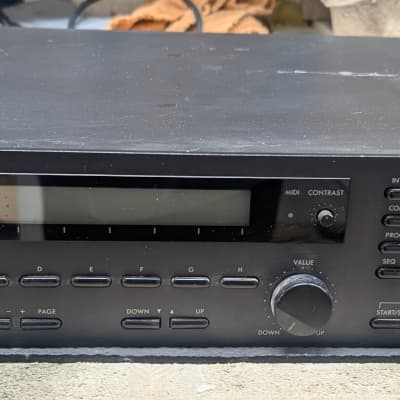

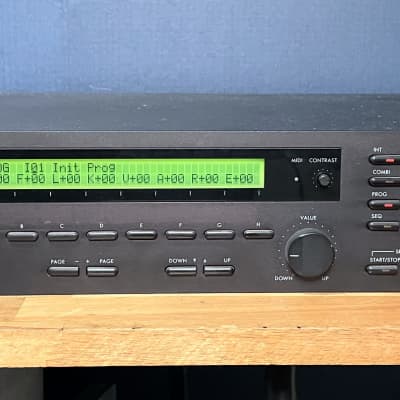

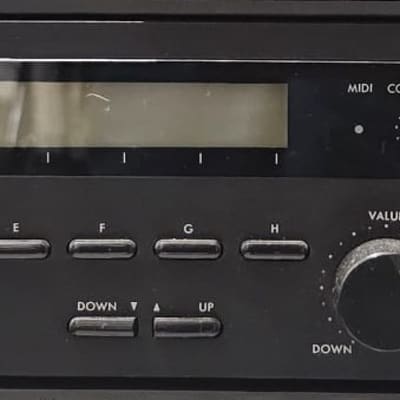

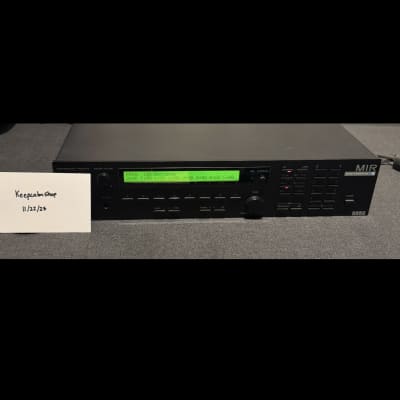

Korg M1R 1988 ($50)

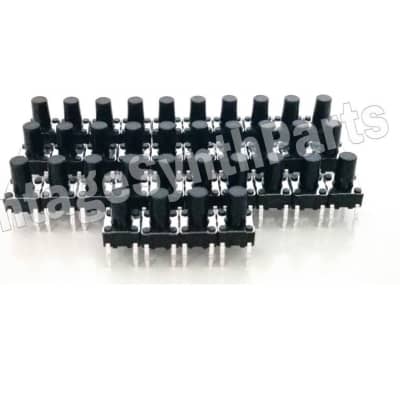

Korg M1 and M1R Full set of 34 Pushbuttons Tact Switches Micro Switch Workstation ($17.27)

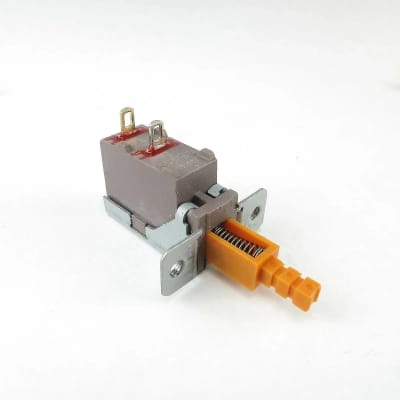

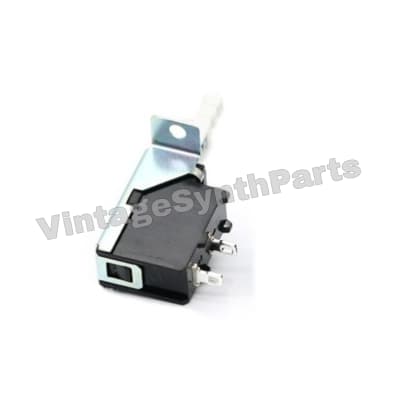

Korg - C303, C505 , DRV2000 , M1 , M1R , M3R , SDD1000 - Power Switch ($12.90)

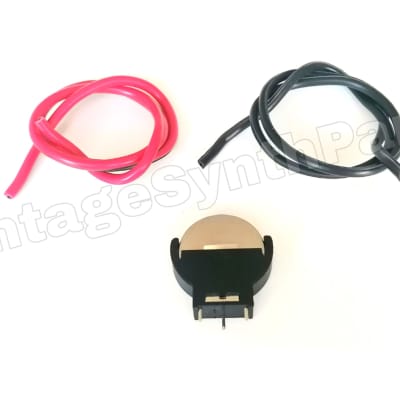

Korg - X2/3 , M1, M1R , 707 , 01/W , 01R/W , Prophecy , C15, C15S - New Battery holder ($3.90)

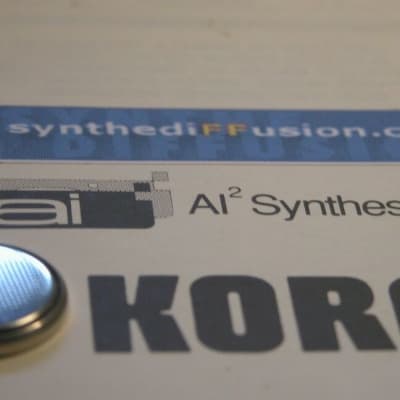

Korg - O1W , M1 , M1R , M3 , POLY 800 , T1 , T2 , T3 , X3 , Wavestation - New Battery ($4.90)

Tested Working RARE Korg MPC-12 World Omnibus Program Expansion ROM Memory Card OMNI BUS MPC12 for Vintage M1 Keyboard Synthesizer / M1R Rack-mount Synth module (Might also work with Korg T1 / T2 / T3??) ($187.87)

Korg - O1W , M1 , M1R , M3 , POLY 800 , T1 , T2 , T3 , X3 , Wavestation ($6.13)

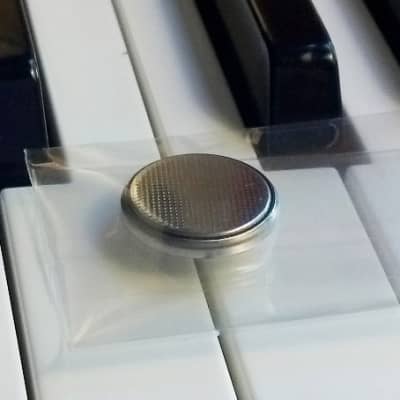

Korg - O1W - M1 - M1R - M3 - POLY 800 - T1 T2 - Battery Replacement Fix ($9.84)

Dials - Korg EX M1R ($22.50)

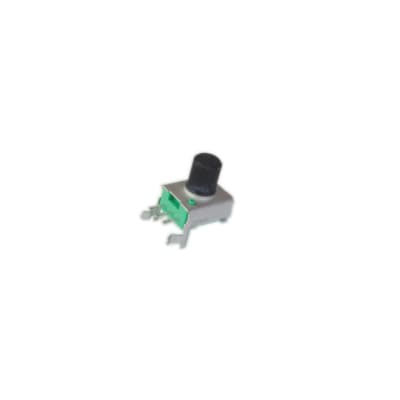

Korg - 707, M1, M1R, M3R, T2, T3, WAVESTATION, WAVESTATION EX - Rotary potentiometer 10KB. ($9.90)

KORG M1, M1R, T1, T2, T3 power switch ($11.08)

KORG Legacy Manuals/Brochures (M1Rex/SDD-2000/VC-10) Mac/PC DVD ($25)

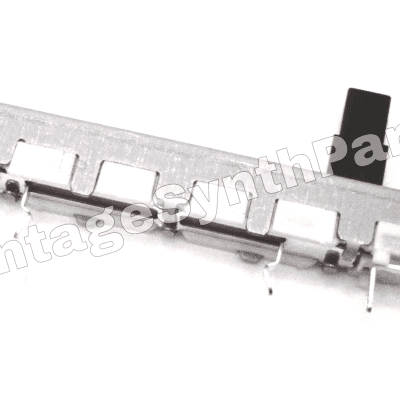

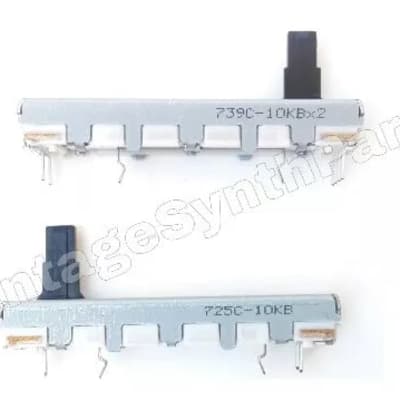

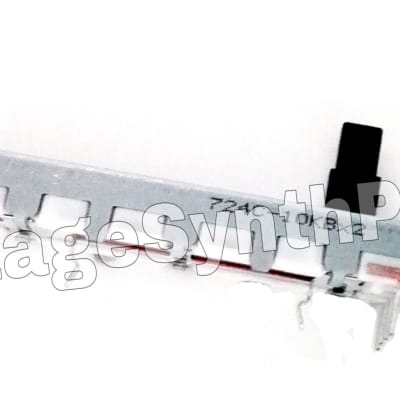

KORG - M1/M1R , n264/364 , n5/ex , t2/3 , ws/ex , x2/3/5 - Slide Potentiometer ($14.90)

Greytsounds Korg M1/M1R - 9 Bank Set of synth patches - Digital Download ($35)

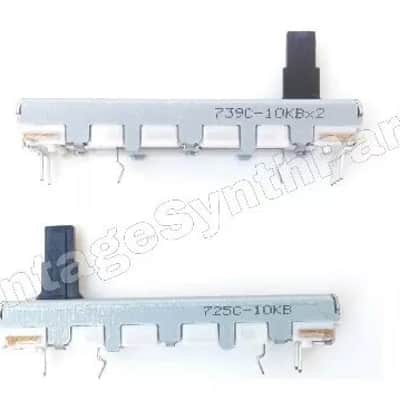

KORG - M1/M1R slide potentiometer sliders Volume and Value ($13.56)

KORG - M1/M1R , n264/364 , n5/ex , t2/3 , ws/ex , x2/3/5 - Slide Potentiometer ($8.61)

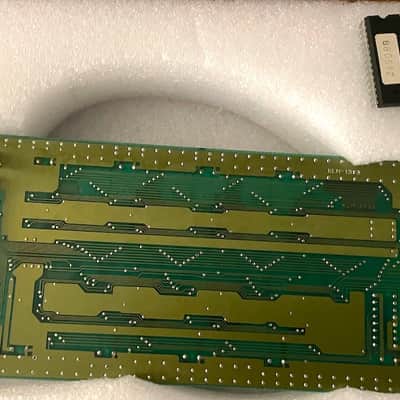

Korg M1Rex Expansion Board for M1R KLM-1393 ($249.99)

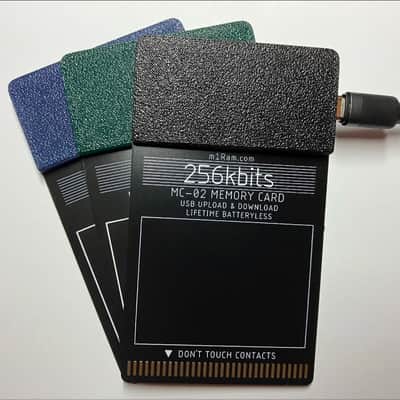

KORG M1 - USB Rewritable Lifetime BatteryLess Memory Card - KORG M1R EX ($122.58)

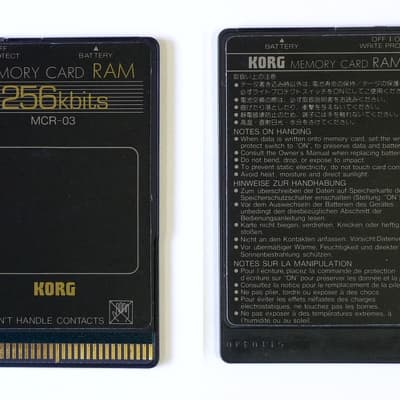

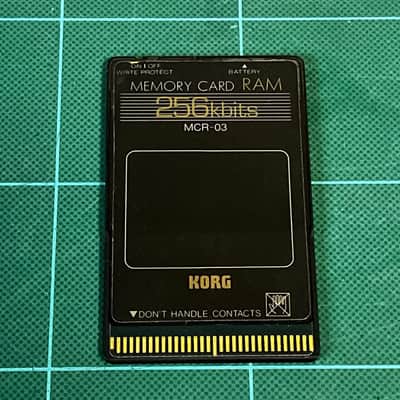

KORG MCR-03 256kbits RAM Memory Card M1 / M1r / Wavestation ($90)

Korg M1 M1R M3r Volume Slide Potentiometer Slider Pot Vintage Synthesizer Parts ($8.61)

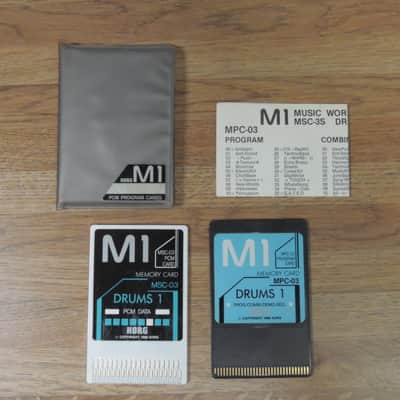

Korg M1 / M1R Drums 1 Memory Card Pack ($129.95)

Value Slide Potentiometer for Korg M1 M1R M3r Vintage Synthesizer Parts Slider ($8.61)

Voice Crystal Korg M1 / M1R Voice Crystal 1 RAM Card ($99.95)

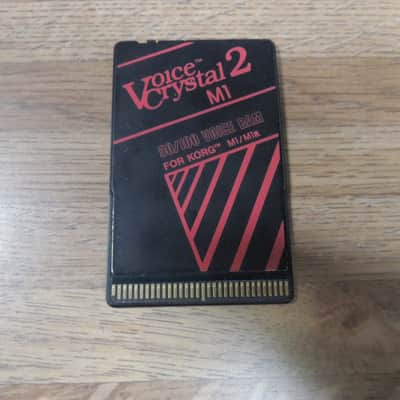

Voice Crystal Korg M1 / M1R Voice Crystal 2 RAM Card ($99.95)

Korg MPC-04 & MSC-04 M1 Orchestra 1 Expansion PMC Card Set for Korg M1/M1R 1988 Japan ($130.29)

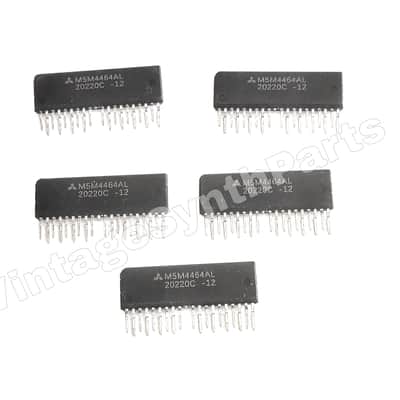

M5M4464AL-12 (MB81464) DRAM for Korg 01 / W series, M1, M1R, Wavestation - set of 5 ($33.37)

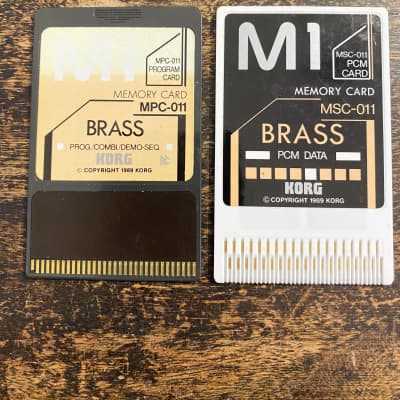

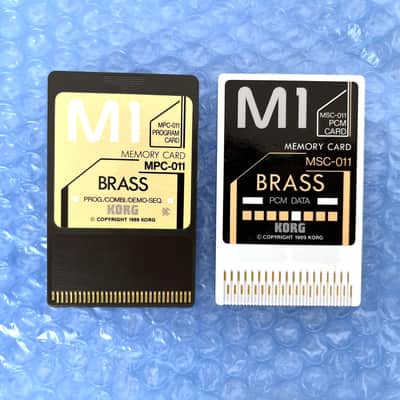

Korg RPC-011 “BRASS” Program Card (1989) for M1/M3R/M1R – Patch/Combi/Demo ROM ($90)

KORG MCR-03 Memory RAM Card 256kb USED 707 WAVESTATION AD SR EX M1 M1R M1RES M1 PLUS T1 T2 T3 A1 A2 A3 DS-08 ($88.22)

Korg M1REX V1.12 OS EPROM! NEW! ($18.99)

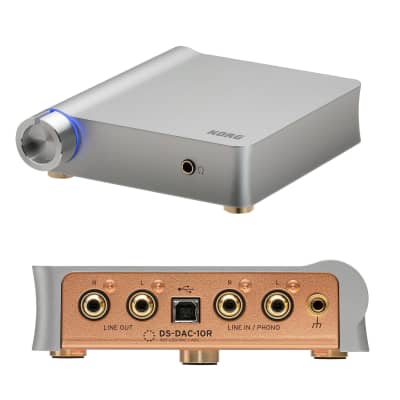

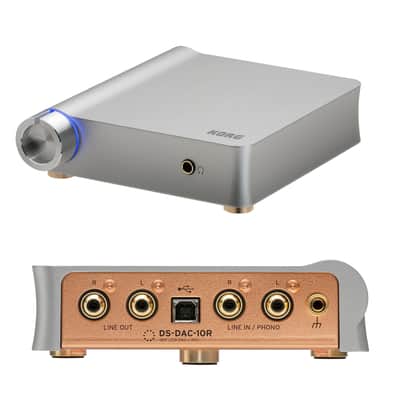

Korg DSDAC10R DS-DAC-100m Mobile Digital to Analog Converter ($1,049.99)

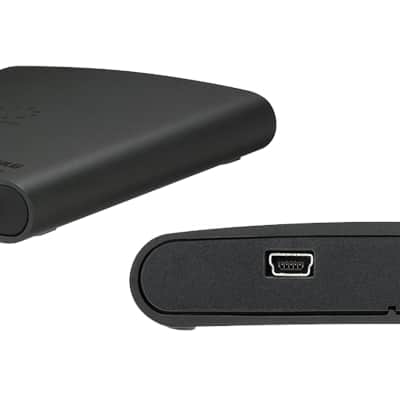

KORG DS-DAC 100M USB Audio Playback System - Certified B-Stock ($215.99)
