Synths ⇝ Yamaha ⇝ Yamaha WT11

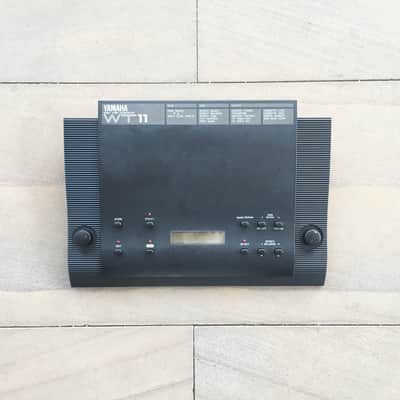

The WT11 is a 4-operator, 8-algorithm FM tone generator designed to be used with a WX series wind controller. It uses the same YM2414-based synth engine as the Yamaha TX81Z. It uses a PA-1505 power adapter (15V, 500ma, positive tip).

Specifications

Year Released: 1989

Polyphony: 8 notes

Preset Patches: 112

User Patches: 32

Preset Performances: 96

User Performances: 32

Effects: reverb, distortion, delay, echo

Screen: 16 character backlit LCD

Power Consumption: 7.5 watts

Dimensions: 310 mm x 221 mm x 43.2 mm

Weight: 1.2 kg

This is a tabletop module.
