SynthsYamaha ⇝ Yamaha W7

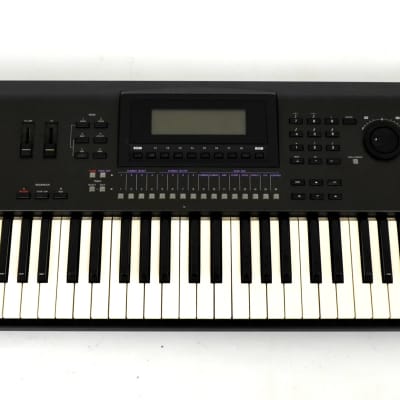

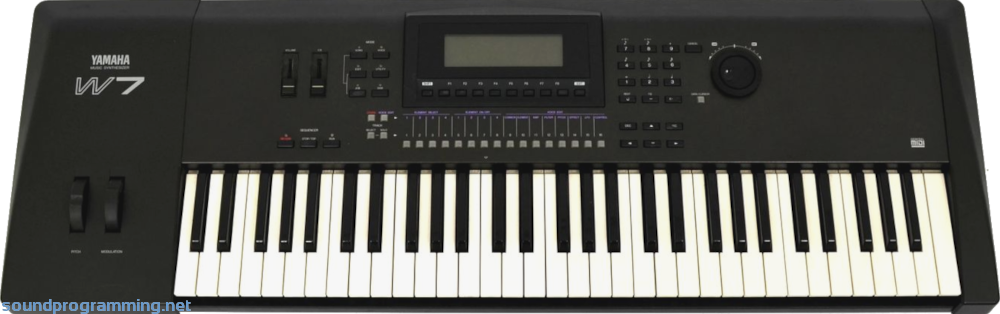

The Yamaha W7 is an AWM2-based synthesizer workstation. It is also available in a 76-key version with otherwise identical capabilities as the W5. A version 2 was released with sequencer improvements and more presets.

There were four expansion boards available for the W5 and W7:

Specifications

Year Released: 1994

Keyboard: 61 keys with velocity and aftertouch

Polyphony: 32 notes

Multitimbral: 16 parts

Preset Patches: 256

User Patches: 128

Preset Performances: 128

Preset Drum Kits: 10

User Drum Kits: 2

ROM: 8MB (384 voices at 16-bit, 48kHz resolution)

Sequencer Resolution: 96 PPQN

Effects: 35 insertion effects, 40 system-wide effects including delay, reverb, and chorus.

Screen: 240 x 64 pixel LCD

Power Consumption: 20 watts

Dimensions: 1067 mm × 371 mm × 121 mm

Weight: 14 kg

Sequencer: 16 tracks, 16 songs (100,000 note memory)

User Demo Videos

Rating


4
(4 votes)

File Downloads

Yamaha W5 and W7 Manual - Owner's Manual (1 of 2)

Yamaha W5 and W7 Manual - Technical Information (2 of 2)

Items for Sale on Reverb

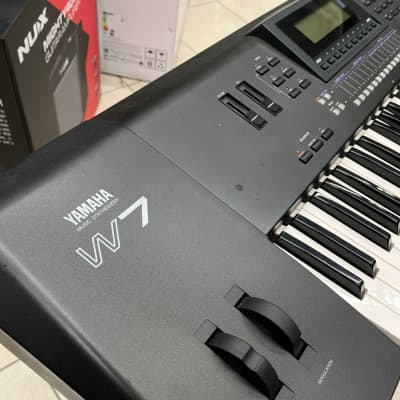

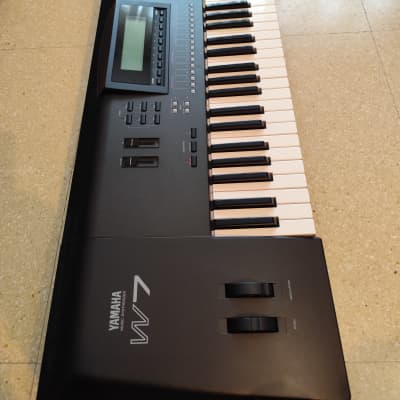

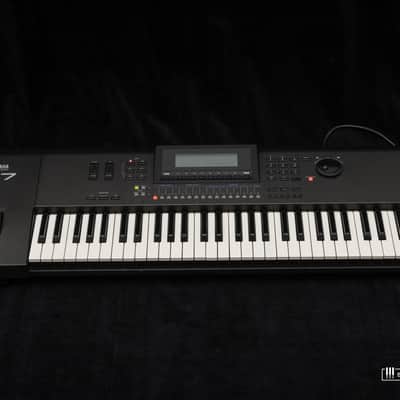

Vintage Yamaha W7 Synthesizer workstation 1994Vintage Yamaha W7 Synthesizer workstation 1994 ($416.60)

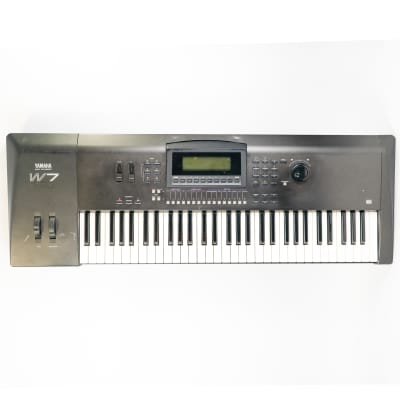

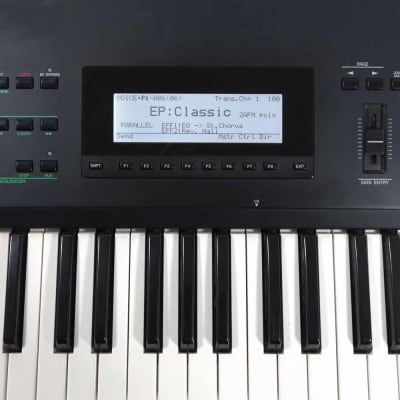

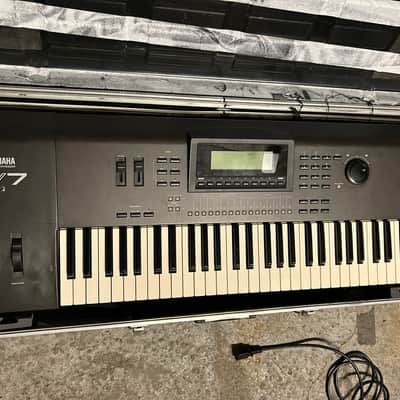

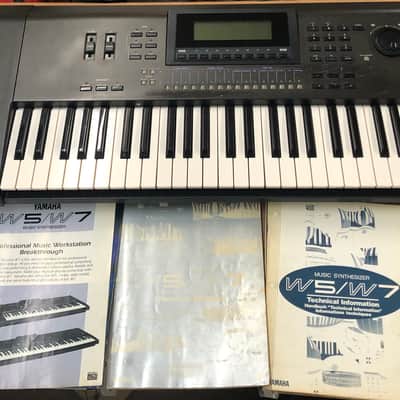

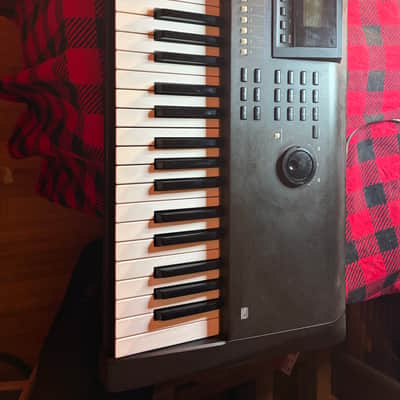

Yamaha W7 Synthesizer 1994 - Black - Made in JapanYamaha W7 Synthesizer 1994 - Black - Made in Japan ($549.50)

Yamaha W7 - Digital Keyboard Synthesizer - MIJ - W 7 - Synth - 1990'SYamaha W7 - Digital Keyboard Synthesizer - MIJ - W 7 - Synth - 1990'S ($245)

Yamaha W7 - Digital Keyboard Synthesizer - MIJ - W 7 - Synth - 1990'SYamaha W7 - Digital Keyboard Synthesizer - MIJ - W 7 - Synth - 1990'S ($245)

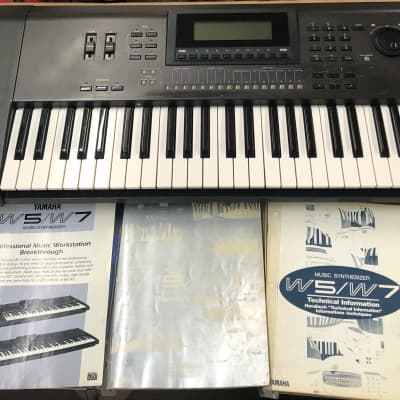

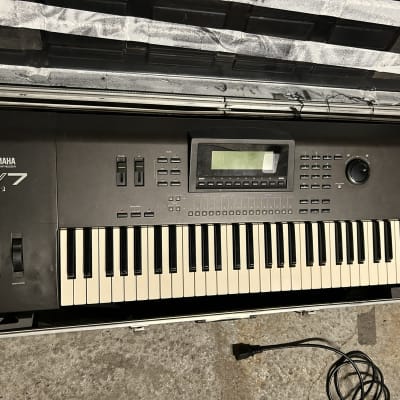

Yamaha W7 Synthesizer 1994Yamaha W7 Synthesizer 1994 ($300)

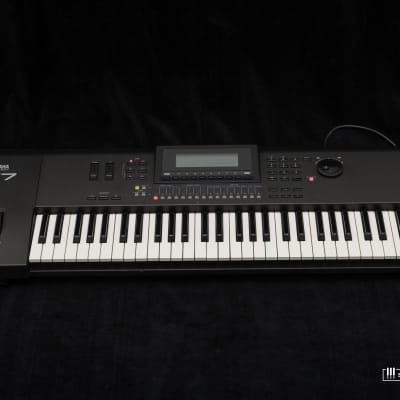

Yamaha W7  61 keys workstationYamaha W7 61 keys workstation ($366.36)

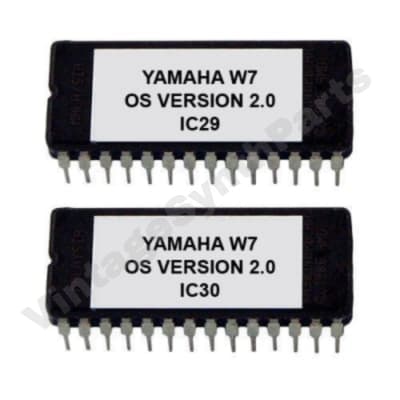

Yamaha W7 - Version 2 Firmware OS Upgrade Update Eprom for W-7Yamaha W7 - Version 2 Firmware OS Upgrade Update Eprom for W-7 ($24.44)

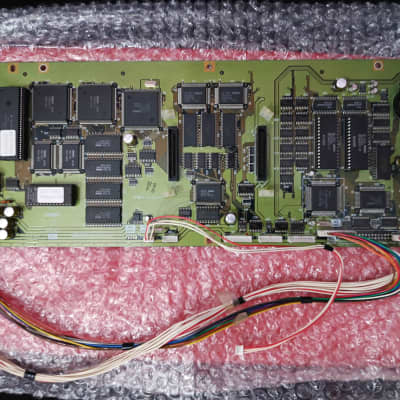

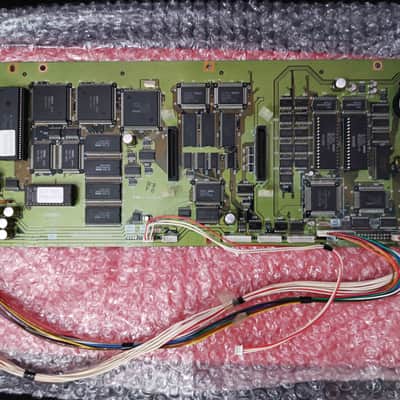

PART SYNTH YAMAHA W7 Motherboard DM XP066 Tested WORKING VERSION 1 ROM 1994-1995PART SYNTH YAMAHA W7 Motherboard DM XP066 Tested WORKING VERSION 1 ROM 1994-1995 ($82.94)

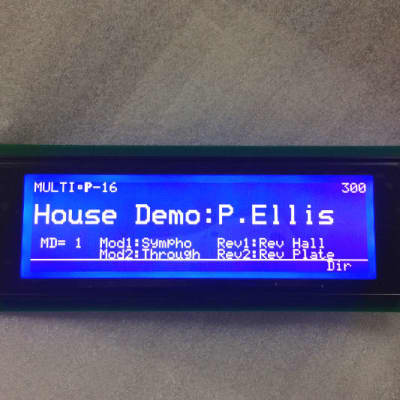

Graphic Display Upgrade - Yamaha VL1  VL1M  VL7  VP1  W5  W7  Alesis Andromeda A6Graphic Display Upgrade - Yamaha VL1 VL1M VL7 VP1 W5 W7 Alesis Andromeda A6 ($183.65)

Yamaha - CS6X , VL1 , Motif XS6 , Tyros 4 , MO8 , DX7S , HD-200 , SY55 , W7 - Stereo phone jackYamaha - CS6X , VL1 , Motif XS6 , Tyros 4 , MO8 , DX7S , HD-200 , SY55 , W7 - Stereo phone jack ($7.99)

Yamaha - CS6X , VL1 , Motif XS6 , Tyros 4 , MO8 , DX7S , HD-200 , SY55 , W7 - Stereo phone jackYamaha - CS6X , VL1 , Motif XS6 , Tyros 4 , MO8 , DX7S , HD-200 , SY55 , W7 - Stereo phone jack ($7.05)

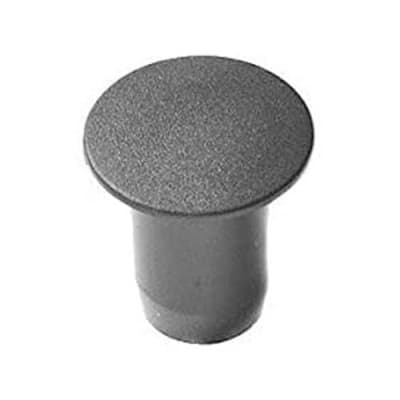

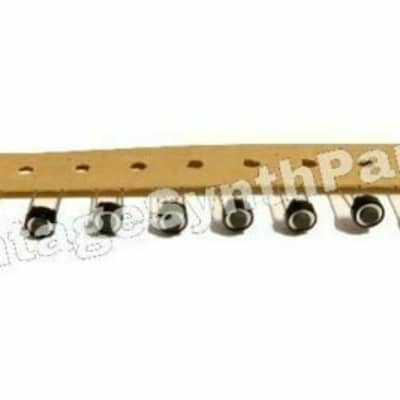

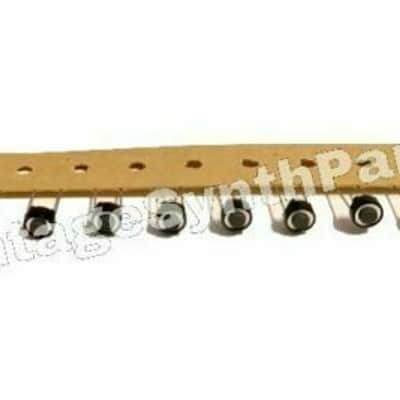

10 x  front panel pushbutton tact switch for Yamaha W5 and W7 ( W-5 and W-7 )10 x front panel pushbutton tact switch for Yamaha W5 and W7 ( W-5 and W-7 ) ($10.17)

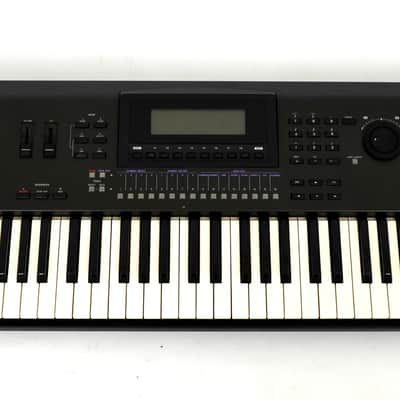

Yamaha W 7 SynthesizerYamaha W 7 Synthesizer ($549.54)

NEW Yamaha Replacement E/B Key (Yamaha C61K6 Keybeds) (VL57020R/VA850200) for SY22/35/55, DX11, DS55, S30, AN1X & CS6X, V50, W7, YS200, Korg 707NEW Yamaha Replacement E/B Key (Yamaha C61K6 Keybeds) (VL57020R/VA850200) for SY22/35/55, DX11, DS55, S30, AN1X & CS6X, V50, W7, YS200, Korg 707 ($13.95)

NEW Yamaha Replacement A Key (Yamaha C61K6 Keybeds) (VL57040R/VA850400) for SY22/35/55, DX11, DS55, S30, AN1X & CS6X, V50, W7, YS200, Korg 707NEW Yamaha Replacement A Key (Yamaha C61K6 Keybeds) (VL57040R/VA850400) for SY22/35/55, DX11, DS55, S30, AN1X & CS6X, V50, W7, YS200, Korg 707 ($13.95)

NEW Yamaha Replacement Sharp/Black Key (Yamaha C61K6 Keybeds) (VL57060R/VA850500) for SY22/35/55, DX11, DS55, S30, AN1X & CS6X, V50, W7, YS200, Korg 707NEW Yamaha Replacement Sharp/Black Key (Yamaha C61K6 Keybeds) (VL57060R/VA850500) for SY22/35/55, DX11, DS55, S30, AN1X & CS6X, V50, W7, YS200, Korg 707 ($9.95)

NEW Yamaha Replacement TOP C’ Key (Yamaha C61K6 Keybeds) (VL7080J0/VA853800) for SY22/35/55, DX11, DS55, S30, AN1X & CS6X, V50, W7, YS200, Korg 707NEW Yamaha Replacement TOP C’ Key (Yamaha C61K6 Keybeds) (VL7080J0/VA853800) for SY22/35/55, DX11, DS55, S30, AN1X & CS6X, V50, W7, YS200, Korg 707 ($24.95)

NEW Yamaha Replacement G Key (Yamaha C61K6 Keybeds) (VL57030R/VA850300) for SY22/35/55, DX11, DS55, S30, AN1X & CS6X, V50, W7, YS200, Korg 707NEW Yamaha Replacement G Key (Yamaha C61K6 Keybeds) (VL57030R/VA850300) for SY22/35/55, DX11, DS55, S30, AN1X & CS6X, V50, W7, YS200, Korg 707 ($13.95)

NEW Yamaha Replacement C/F Key (Yamaha C61K6 Keybeds) (VL57000R/VA850000) for SY22/35/55, DX11, DS55, S30, AN1X & CS6X, V50, W7, YS200, Korg 707NEW Yamaha Replacement C/F Key (Yamaha C61K6 Keybeds) (VL57000R/VA850000) for SY22/35/55, DX11, DS55, S30, AN1X & CS6X, V50, W7, YS200, Korg 707 ($13.95)

NEW Yamaha Replacement D Key (Yamaha C61K6 Keybeds) (VL57010R/VA850100) for SY22/35/55, DX11, DS55, S30, AN1X & CS6X, V50, W7, YS200, Korg 707NEW Yamaha Replacement D Key (Yamaha C61K6 Keybeds) (VL57010R/VA850100) for SY22/35/55, DX11, DS55, S30, AN1X & CS6X, V50, W7, YS200, Korg 707 ($13.95)

Yamaha W7 Años 80sYamaha W7 Años 80s ($551.38)

Yamaha W5 W7 LCD Display weiß mit Kabel neuYamaha W5 W7 LCD Display weiß mit Kabel neu ($97.30)

LCD Display Blau mit Kabel für Yamaha W5,W7LCD Display Blau mit Kabel für Yamaha W5,W7 ($97.30)

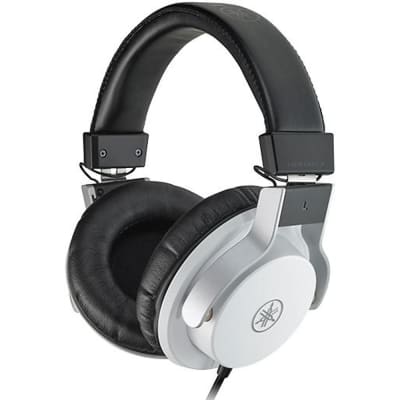

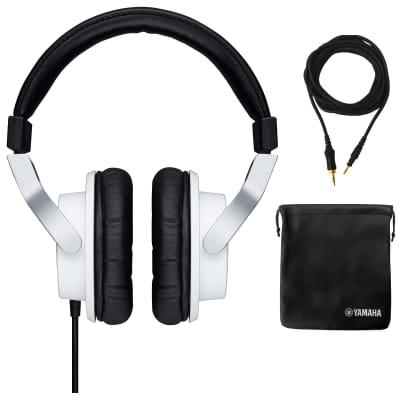

Yamaha HPH-MT7W Over Ear Studio Mixing Monitoring Headphones in WhiteYamaha HPH-MT7W Over Ear Studio Mixing Monitoring Headphones in White ($179.99)

Yamaha HPH-MT7 Closed-Back Headphones, WhiteYamaha HPH-MT7 Closed-Back Headphones, White ($165.59)

Yamaha HPH-MT7W Studio Monitoring HeadphonesYamaha HPH-MT7W Studio Monitoring Headphones ($136.30)

Yamaha HPH-MT7W Monitor Headphone, WhiteYamaha HPH-MT7W Monitor Headphone, White ($179.99)

Yamaha HPH-MT7w Studio Monitor Headphones (white)Yamaha HPH-MT7w Studio Monitor Headphones (white) ($179.99)

Yamaha HPH-MT7W White HeadphonesYamaha HPH-MT7W White Headphones ($179.99)

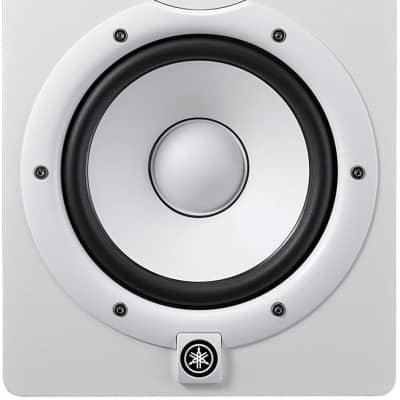

YAMAHA HS7 MONITOR DA STUDIO ATTIVO 95W 7"YAMAHA HS7 MONITOR DA STUDIO ATTIVO 95W 7" ($208.90)

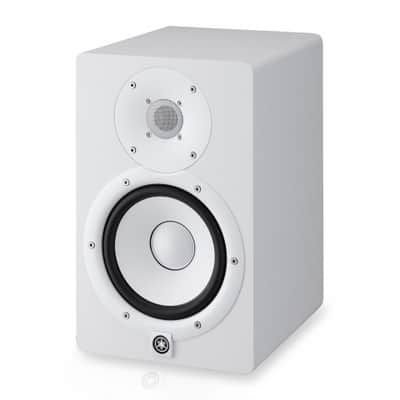

YAMAHA HS7-W MONITOR DA STUDIO ATTIVO HS7 BIANCO WOOFER 6.5" TWEETER 1"YAMAHA HS7-W MONITOR DA STUDIO ATTIVO HS7 BIANCO WOOFER 6.5" TWEETER 1" ($229)

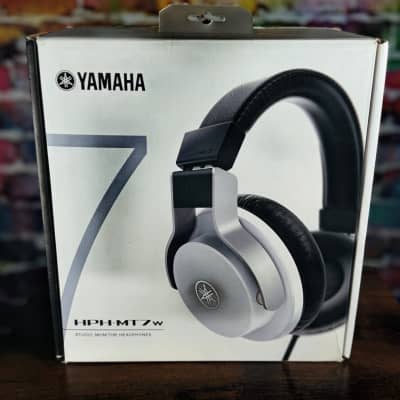

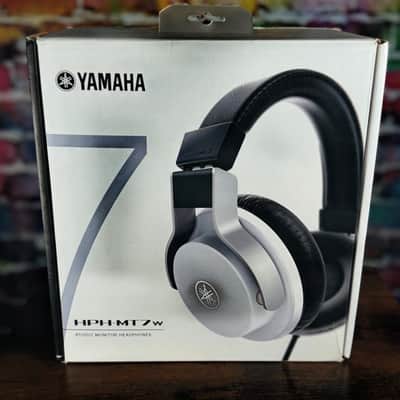

Yamaha HPH-MT7W Studio Monitor Headphones - WhiteYamaha HPH-MT7W Studio Monitor Headphones - White ($149)

Yamaha HPH-MT7 Closed-Back Headphones, WhiteYamaha HPH-MT7 Closed-Back Headphones, White ($179.99)

Yamaha HPH-MT7 Monitor Headphones, WhiteYamaha HPH-MT7 Monitor Headphones, White ($179.99)

Yamaha HPH-MT7W Studio Monitor Headphone WhiteYamaha HPH-MT7W Studio Monitor Headphone White ($179.99)

Yamaha PAC HPH-MT7W Monitor Headphones, WhiteYamaha PAC HPH-MT7W Monitor Headphones, White ($179.99)

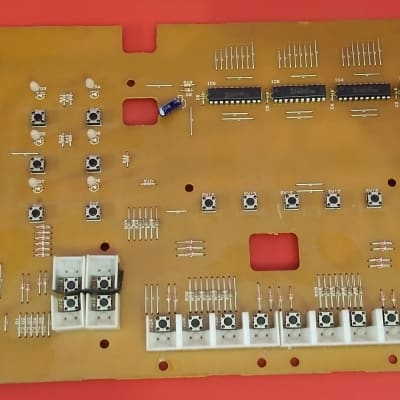

YAMAHA XP 224 B CMK-P3X PNAB BUTTONS BOARD YAMAHA W7 AWM E41447 105C VW-1 POWERYAMAHA XP 224 B CMK-P3X PNAB BUTTONS BOARD YAMAHA W7 AWM E41447 105C VW-1 POWER ($42.89)

Yamaha HS7 6.5 inch 95w Powered Studio Monitor - Black (Single)Yamaha HS7 6.5 inch 95w Powered Studio Monitor - Black (Single) ($349.99)

Yamaha HPH-MT7W Over Ear Studio Mixing Monitoring Headphones in BlackYamaha HPH-MT7W Over Ear Studio Mixing Monitoring Headphones in Black ($179.99)

Yamaha HS7W 6.5" 2-Way Bass-Reflex Bi-Amp Nearfield Active Studio Monitor WhiteYamaha HS7W 6.5" 2-Way Bass-Reflex Bi-Amp Nearfield Active Studio Monitor White ($297.49)

Yamaha HS7W 7-Inch Powered Studio Monitor Speaker, WhiteYamaha HS7W 7-Inch Powered Studio Monitor Speaker, White ($349.99)

Mint Yamaha HS7W 7-Inch Powered Studio Monitor Speaker, WhiteMint Yamaha HS7W 7-Inch Powered Studio Monitor Speaker, White ($349.99)

Yamaha Hs7/Hs7 W Pair [Sn Jfdz01011/Jfel01080] [09/01]Yamaha Hs7/Hs7 W Pair [Sn Jfdz01011/Jfel01080] [09/01] ($560.57)

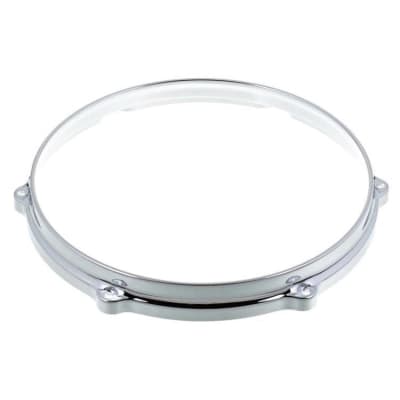

Yamaha W7691601 Aluminum Die Cast Tom Hoop 10" 6-LugYamaha W7691601 Aluminum Die Cast Tom Hoop 10" 6-Lug ($119)

Yamaha HPH-MT7 White Over-Ear Studio Monitor HeadphonesYamaha HPH-MT7 White Over-Ear Studio Monitor Headphones ($151.44)

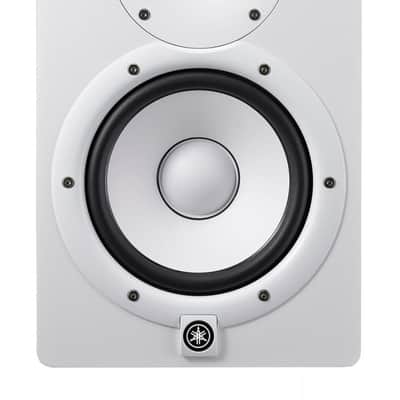

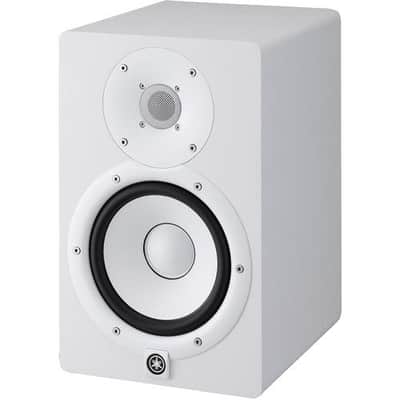

Yamaha HS7W 6.5" Powered Studio MonitorYamaha HS7W 6.5" Powered Studio Monitor ($349.99)
