SynthsYamaha ⇝ Yamaha W5

The Yamaha W5 is an AWM2-based synthesizer workstation. It is also available in a 61-key version with otherwise identical capabilities as the W7. A version 2 was released with sequencer improvements and more presets.

There were four expansion boards available for the W5 and W7:

Specifications

Year Released: 1994

Keyboard: 76 keys with velocity and aftertouch

Polyphony: 32 notes

Multitimbral: 16 parts

Preset Patches: 256

User Patches: 128

Preset Drum Kits: 10

User Drum Kits: 2

ROM: 8MB (384 voices at 16-bit, 48kHz resolution)

Sequencer Resolution: 96 PPQN

Effects: 35 insertion effects, 40 system-wide effects including delay, reverb, and chorus.

Screen: 240 x 64 pixel LCD

Power Consumption: 20 watts

Dimensions: 1288 mm × 371 mm × 121 mm

Weight: 18 kg

Sequencer: 16 tracks, 16 songs (100,000 note memory)

User Demo Videos

Rating


3.7
(3 votes)

File Downloads

Yamaha W5 and W7 Manual - Owner's Manual (1 of 2)

Yamaha W5 and W7 Manual - Technical Information (2 of 2)

Items for Sale on Reverb

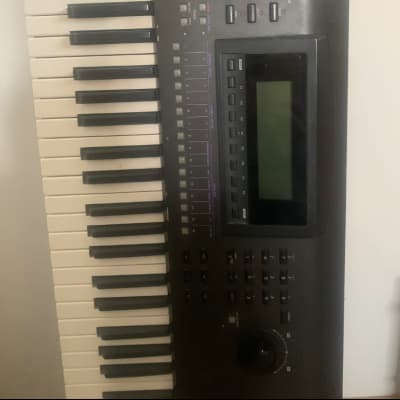

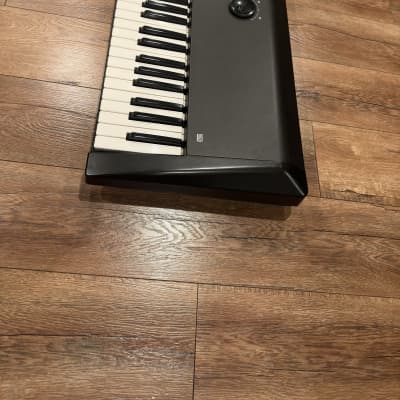

Yamaha W5 BlackYamaha W5 Black ($600)

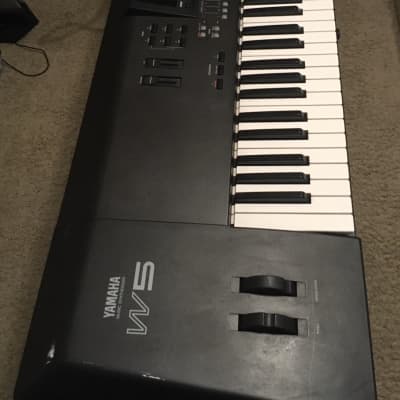

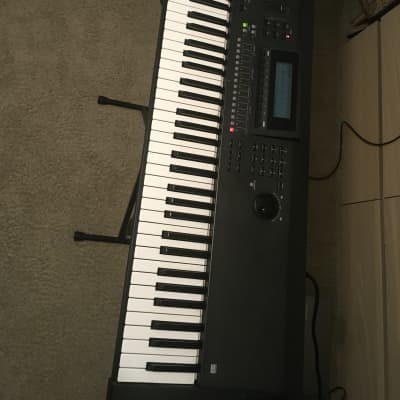

Yamaha W5 synthesizer with stand in excellent condition with M audio sustain pedalYamaha W5 synthesizer with stand in excellent condition with M audio sustain pedal ($650)

Yamaha W5 W7 TECHNO Kit 1996 disk floppy repro manual english dance legends vintage analog ambientYamaha W5 W7 TECHNO Kit 1996 disk floppy repro manual english dance legends vintage analog ambient ($21.52)

YAMAHA 90' Rétro éclairage partie LCD Ecran TG77 SY 77 SY99 QS300 W5 W7 DEQ5YAMAHA 90' Rétro éclairage partie LCD Ecran TG77 SY 77 SY99 QS300 W5 W7 DEQ5 ($27.97)

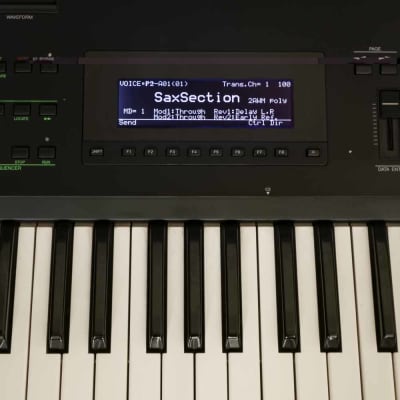

Graphic Display Upgrade - Yamaha VL1  VL1M  VL7  VP1  W5  W7  Alesis Andromeda A6Graphic Display Upgrade - Yamaha VL1 VL1M VL7 VP1 W5 W7 Alesis Andromeda A6 ($159.06)

VS246300 CR2450 battery holder Yamaha W5 W7VS246300 CR2450 battery holder Yamaha W5 W7 ($5.03)

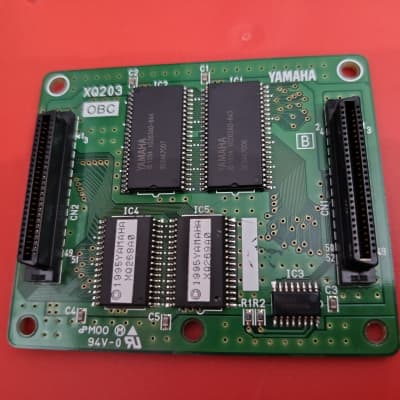

Yamaha  WEMB03 Expansion Wave for W5 / W7Yamaha WEMB03 Expansion Wave for W5 / W7 ($100)

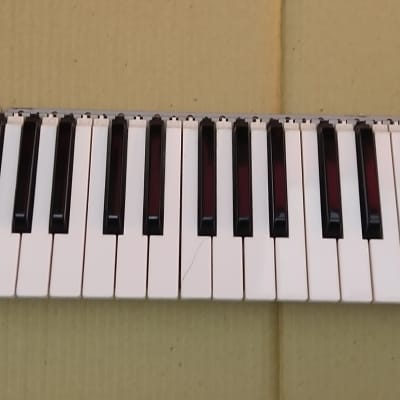

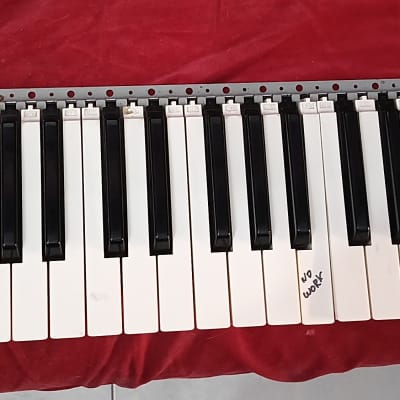

YAMAHA NB107570 G KEY FOR SY77 SY99 W5 KX76 Motif ES6 ES7 Pf10YAMAHA NB107570 G KEY FOR SY77 SY99 W5 KX76 Motif ES6 ES7 Pf10 ($12.71)

YAMAHA HS5-W MONITOR STUDIO ATTIVO BIANCO 2 VIE 5"/1" 70W AMPLIFICATOYAMAHA HS5-W MONITOR STUDIO ATTIVO BIANCO 2 VIE 5"/1" 70W AMPLIFICATO ($131.38)

Yamaha HS5W 5" 2-Way Bass-Reflex Bi-Amped Nearfield Powered Studio Monitor WhiteYamaha HS5W 5" 2-Way Bass-Reflex Bi-Amped Nearfield Powered Studio Monitor White ($199.99)

Yamaha EMX5 12-channel 1260W Powered MixerYamaha EMX5 12-channel 1260W Powered Mixer ($699.99)

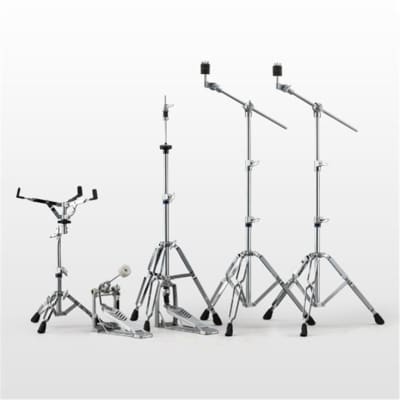

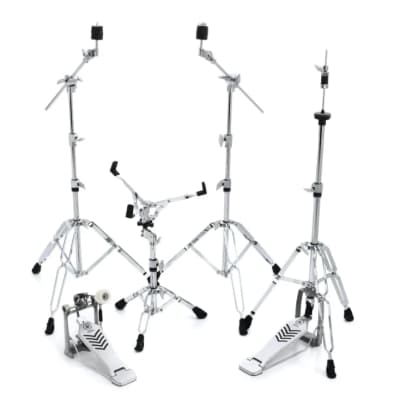

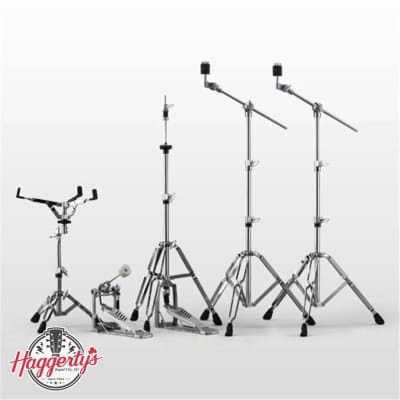

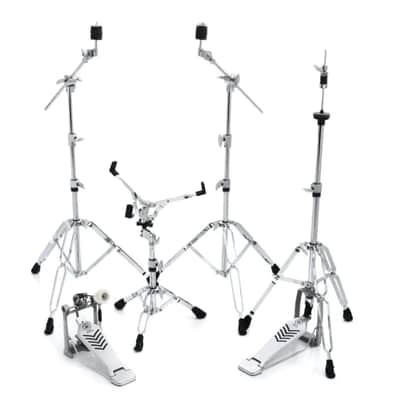

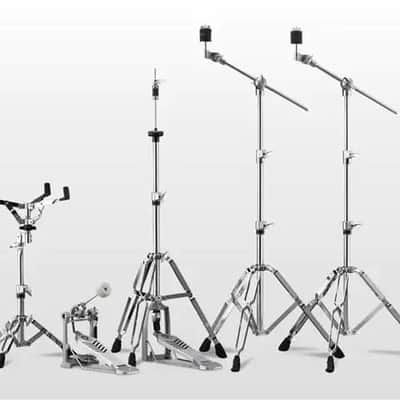

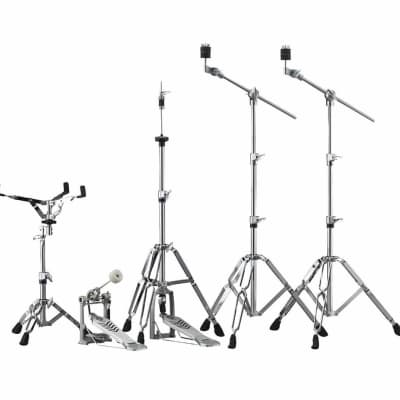

Yamaha HW-680W 5pc Double Braced Hardware PackYamaha HW-680W 5pc Double Braced Hardware Pack ($289.99)

Yamaha EMX5 Portable PA With Built In-MixerYamaha EMX5 Portable PA With Built In-Mixer ($699.99)

Yamaha EMX5 12-channel 1260W Powered MixerYamaha EMX5 12-channel 1260W Powered Mixer ($699.99)

Yamaha EMX5 12-Channel Powered Mixer with Dual 630-Watt AmpYamaha EMX5 12-Channel Powered Mixer with Dual 630-Watt Amp ($699.99)

Yamaha EMX5 12 Channel 1260 Watt Powered Analog Mixer Dual 630w Effects Sounds Great Amplifier HeadYamaha EMX5 12 Channel 1260 Watt Powered Analog Mixer Dual 630w Effects Sounds Great Amplifier Head ($595)

Yamaha EMX5 12-Input Dual 630w Powered Analog MixerYamaha EMX5 12-Input Dual 630w Powered Analog Mixer ($699.99)

Yamaha Hs7 W Monitor Da Studio Attivo Hs7 Bianco Woofer 6.5" Tweeter 1" Ex DemoYamaha Hs7 W Monitor Da Studio Attivo Hs7 Bianco Woofer 6.5" Tweeter 1" Ex Demo ($166.66)

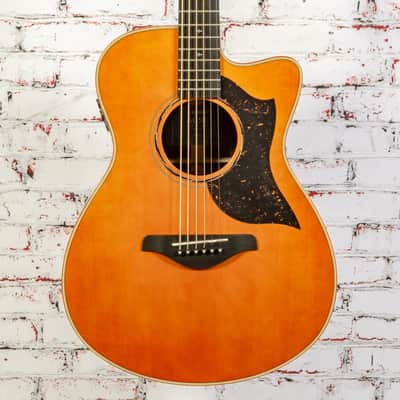

Yamaha AC5R All Solid Concert Acoustic Electric Guitar w/Hard Case - Vintage NaturalYamaha AC5R All Solid Concert Acoustic Electric Guitar w/Hard Case - Vintage Natural ($1,599.99)

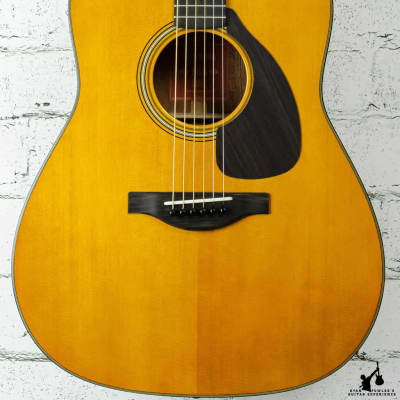

Yamaha Red Label FS5 Acoustic w/Case- Vintage NaturalYamaha Red Label FS5 Acoustic w/Case- Vintage Natural ($1,399.99)

YAMAHA HS7-W MONITOR DA STUDIO ATTIVO HS7 BIANCO WOOFER 6.5" TWEETER 1"YAMAHA HS7-W MONITOR DA STUDIO ATTIVO HS7 BIANCO WOOFER 6.5" TWEETER 1" ($178.06)

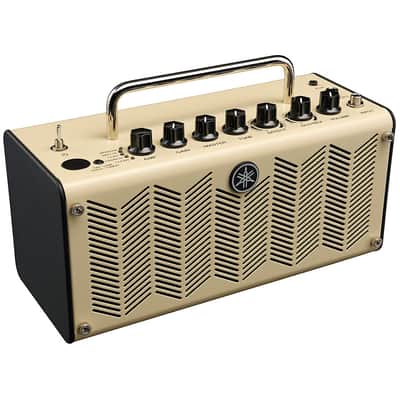

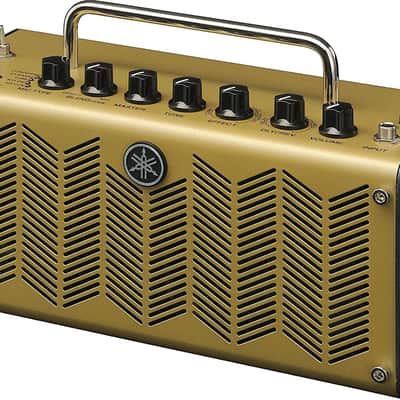

Yamaha THR5A 10W Portable Acoustic Guitar AmplifierYamaha THR5A 10W Portable Acoustic Guitar Amplifier ($229)

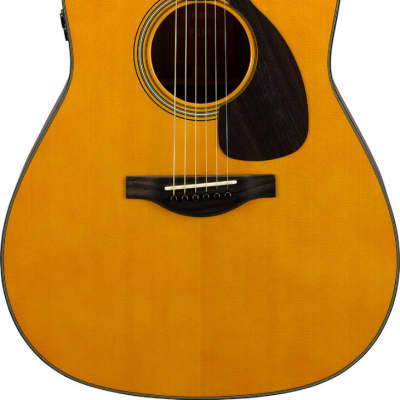

Yamaha FGX5 Red Label All Solid Acoustic Electric Guitar w/Hardshell CaseYamaha FGX5 Red Label All Solid Acoustic Electric Guitar w/Hardshell Case ($1,599.99)

Yamaha AC5R ARE Concert Cutaway Acoustic Electric Vintage Natural (W Professional Yamaha Hardcase)   2019 Gloss Vintage NaturalYamaha AC5R ARE Concert Cutaway Acoustic Electric Vintage Natural (W Professional Yamaha Hardcase) 2019 Gloss Vintage Natural ($1,400)

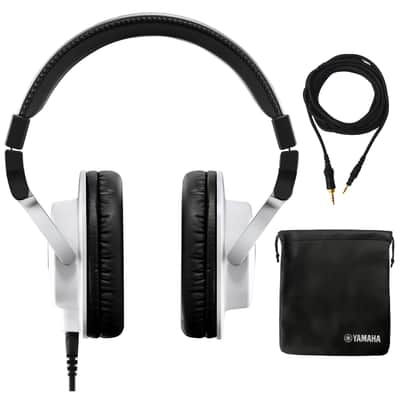

Yamaha HPH-MT5W Over-Ear Studio Monitoring Headphones in WhiteYamaha HPH-MT5W Over-Ear Studio Monitoring Headphones in White ($99.99)

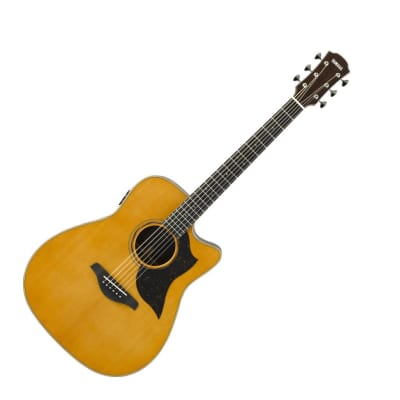

Yamaha A5R All Solid Dreadnought Acoustic Electric Guitar w/Hard Case - Vintage NaturalYamaha A5R All Solid Dreadnought Acoustic Electric Guitar w/Hard Case - Vintage Natural ($1,599.99)

Yamaha HS7W 6.5" 2-Way Bass-Reflex Bi-Amp Nearfield Active Studio Monitor WhiteYamaha HS7W 6.5" 2-Way Bass-Reflex Bi-Amp Nearfield Active Studio Monitor White ($329.99)

Yamaha HPH-MT5W Studio Monitor Headphones - WhiteYamaha HPH-MT5W Studio Monitor Headphones - White ($106.32)

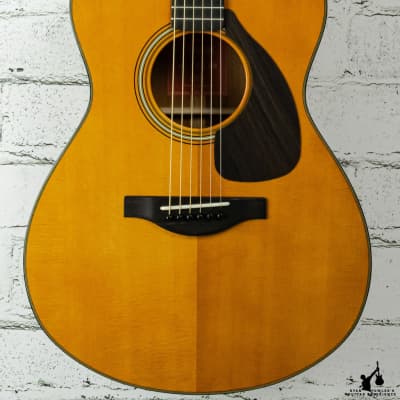

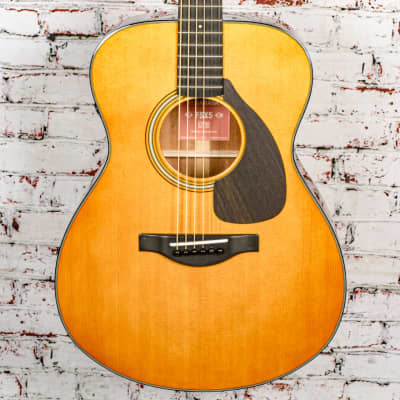

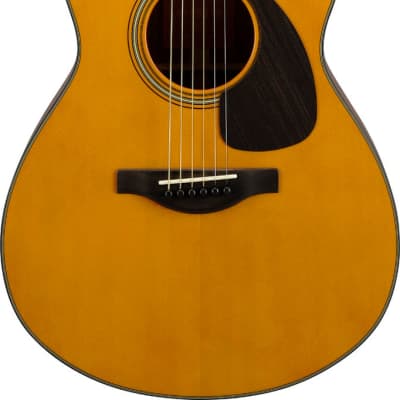

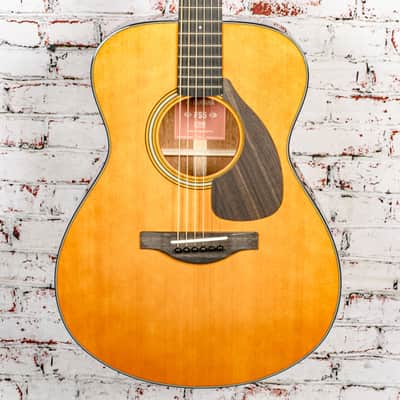

Yamaha FS5 Concert Spruce/Mahogany Acoustic Guitar w/ Hardshell CaseYamaha FS5 Concert Spruce/Mahogany Acoustic Guitar w/ Hardshell Case ($1,399.99)

Yamaha Sy/TG55 waveform and data cardsYamaha Sy/TG55 waveform and data cards ($75)

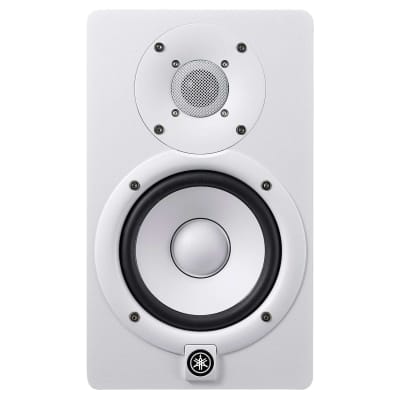

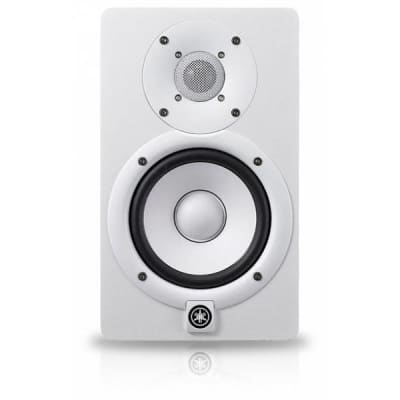

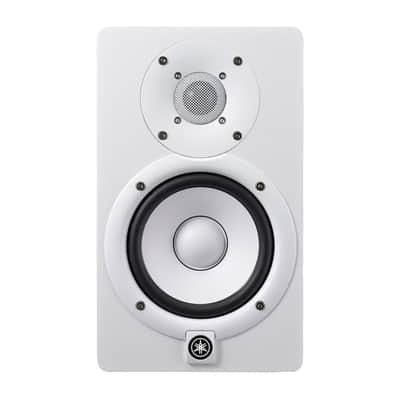

Yamaha HS5 W 5-Inch Powered Studio Monitor Speaker, WhiteYamaha HS5 W 5-Inch Powered Studio Monitor Speaker, White ($199.99)

Yamaha HS5 W 5-Inch Powered Studio Monitor, WhiteYamaha HS5 W 5-Inch Powered Studio Monitor, White ($199.99)

Yamaha HS5 5" Powered Studio Monitor - WhiteYamaha HS5 5" Powered Studio Monitor - White ($199.99)

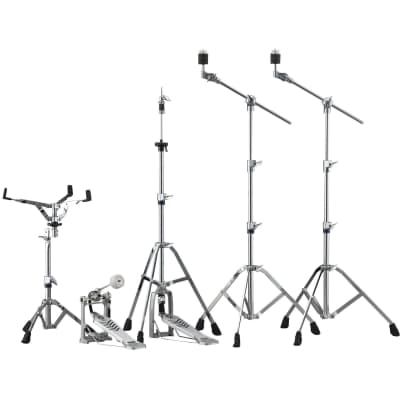

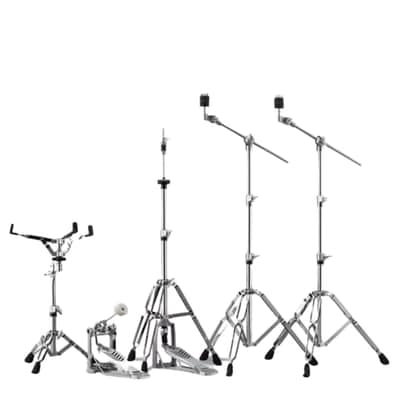

Yamaha HW-680W 5-piece Drum Hardware PackYamaha HW-680W 5-piece Drum Hardware Pack ($289.99)

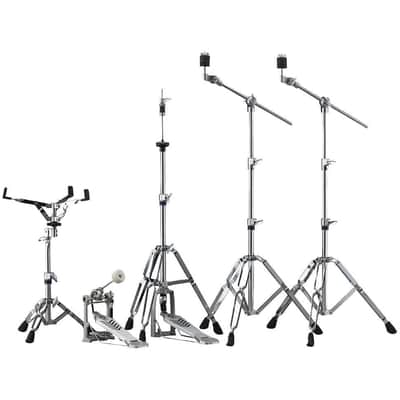

Yamaha HW-680W Double-braced 600 Series Hardware SetYamaha HW-680W Double-braced 600 Series Hardware Set ($289.99)

Yamaha HS5 Two-Way Bass-Reflex Powered Studio Monitor - WhiteYamaha HS5 Two-Way Bass-Reflex Powered Studio Monitor - White ($199.99)

Yamaha HS5W 5" Powered Studio Monitor - WHITEYamaha HS5W 5" Powered Studio Monitor - WHITE ($199.99)

HS5 Yamaha HS Series 5" Powered Studio Monitor Speaker - WhiteHS5 Yamaha HS Series 5" Powered Studio Monitor Speaker - White ($212.64)

Yamaha HS5W 2 Way Bi-Amped 5” Powered Studio Monitor – WhiteYamaha HS5W 2 Way Bi-Amped 5” Powered Studio Monitor – White ($199.99)

Yamaha HS5W 5" Active Studio Monitor Speakers White w Scarlett Solo InterfaceYamaha HS5W 5" Active Studio Monitor Speakers White w Scarlett Solo Interface ($633.40)

Yamaha HS5W 5" Active Studio Monitor Speakers w Scarlett Solo Interface & StandsYamaha HS5W 5" Active Studio Monitor Speakers w Scarlett Solo Interface & Stands ($689.40)

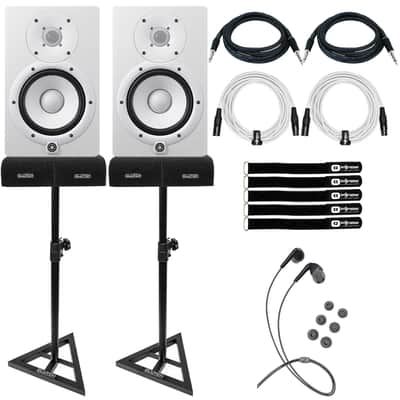

Yamaha HS5W 5" Powered Studio Reference Monitor Speakers White Pair w StandsYamaha HS5W 5" Powered Studio Reference Monitor Speakers White Pair w Stands ($532.40)
