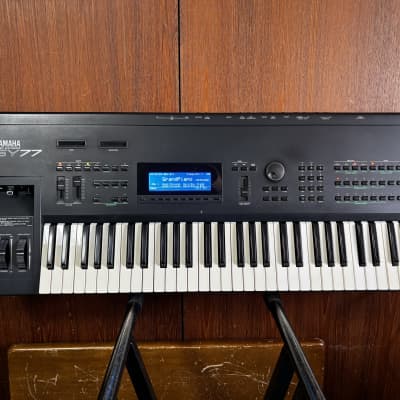

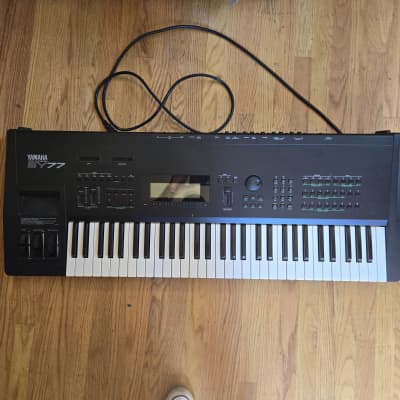

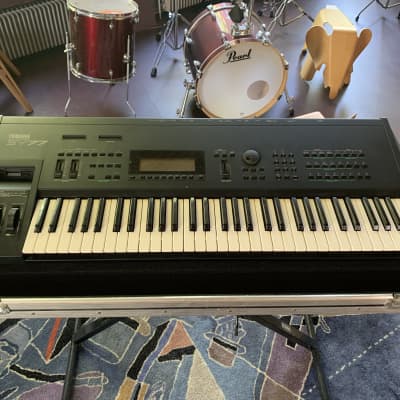

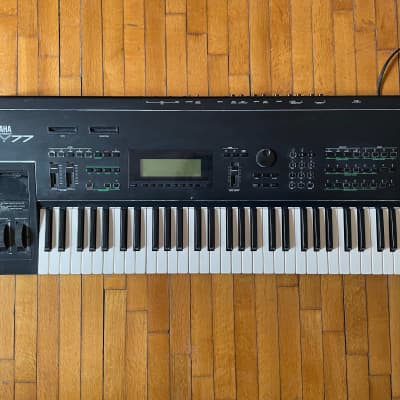

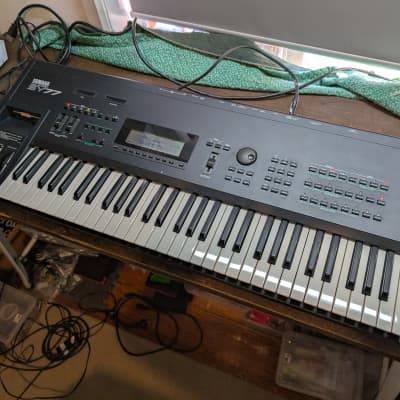

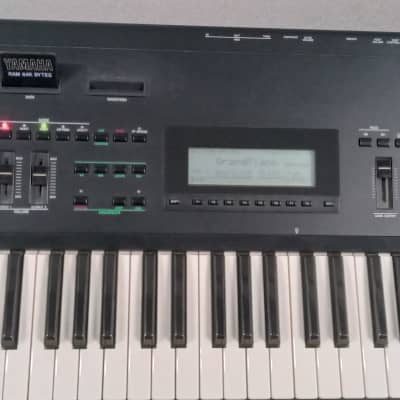

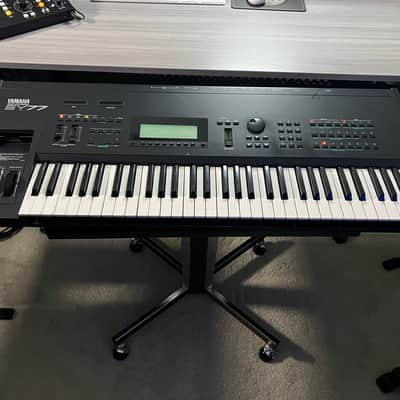

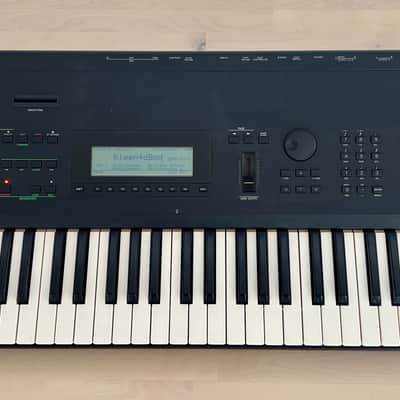

The SY77 is a hybrid synthesizer that combines AWM and FM synthesis for vast sound scupting capabilities. Yamaha refers to the 6-operator FM synthesis as AFM, meaning Advanced Frequency Modulation. The "advanced" part comes from the availability of 16 extra oscillator waveforms and 45 different algorithms. These FM and AWM sounds can combined into a single patch to build complex sounds and layers.

It has a 16-track, 1-song sequencer.

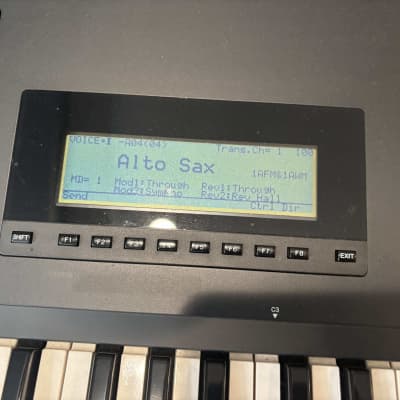

The screen's backlight will commonly burn out, making the screen harder to read in dim light (but still functional). It is fairly easy to find an aftermarket replacement.

The SY77 is available in rackmount form without a sequencer as the Yamaha TG77. The SY99 is an upgraded version with a 76-key keyboard.

Specifications

Year Released: 1989

MSRP: 2995.00 USD

Keyboard: 61 keys with velocity and aftertouch

Polyphony: 32 notes

Multitimbral: 16 parts

Preset Patches: 128

User Patches: 64

Preset Performances: 16

User Performances: 16

ROM: 4MB (112 waveforms at 16-bit, 48 kHz)

Sequencer Memory: 16,000 notes

Sequencer Resolution: 96 PPQN

Effects: 2 DPSs with 40 different reverbs and 4 different modulation effects

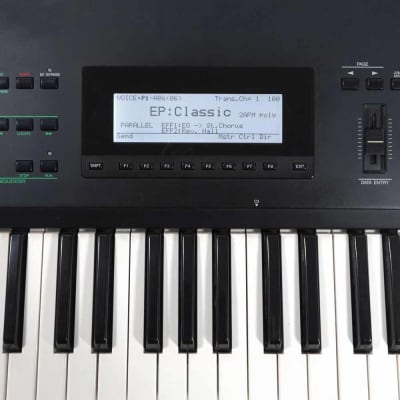

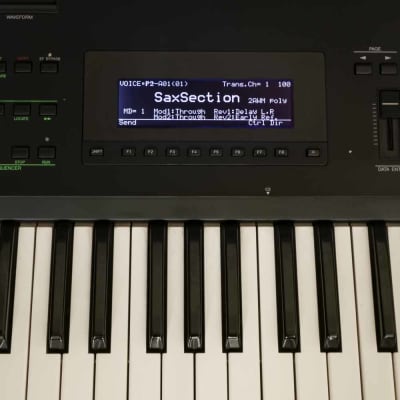

Screen: 240 x 64 pixel backlit LCD

Outputs: 12x 1/4 inch (2x stereo pair, 8x individual)

Power Consumption: 28 watts

Dimensions: 1046 mm x 407 mm x 119 mm

Weight: 17 kg

Maximum Polyphony: 16 PCM + 16 AWM

PCM Wave Memory: 4MB (112 waveforms)

Effects Processors: 2

User Demo Videos

Rating

File Downloads

Yamaha SY77 Manual

Yamaha SY77 MIDI Data Format

Yamaha SY77 Service Manual

Items for Sale on Reverb

YAMAHA SY77 Synth Vintage ($497.86)

Yamaha SY77 ***Fully Serviced*** ($599)

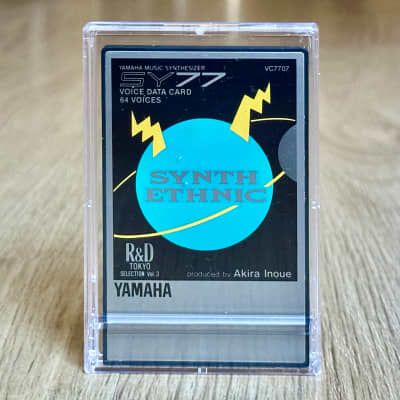

Yamaha SY77 / TG77 voice ROM card JSPA vol. 1 BOXED complete ($259.95)

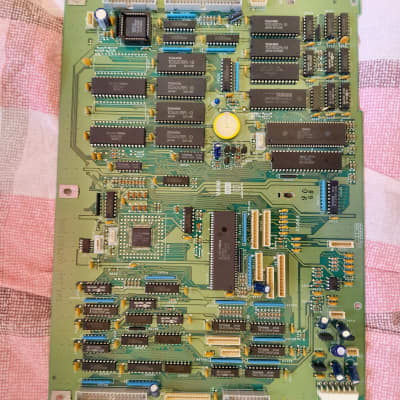

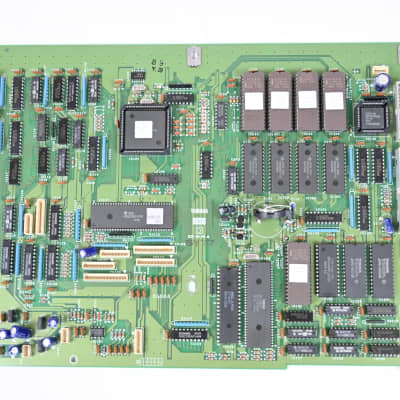

Yamaha SY77 Main Board [Free Shipping] ($199)

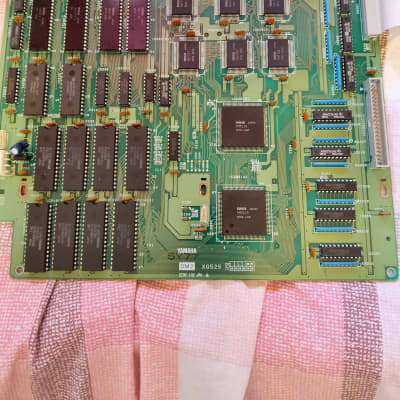

Yamaha SY77 DM2 XG525 Board [Free Shipping] ($149)

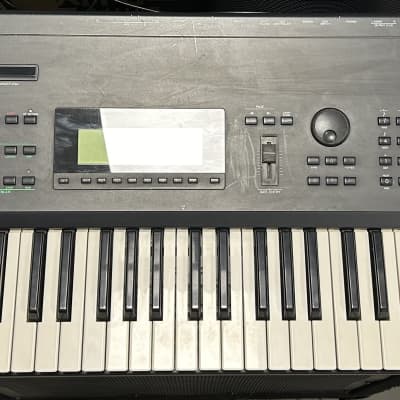

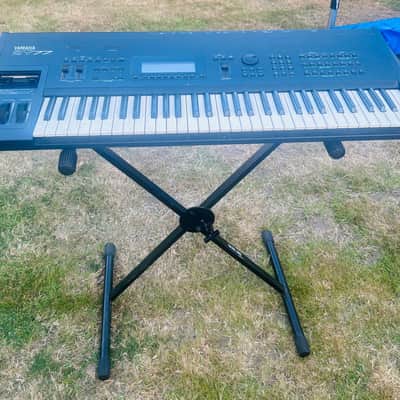

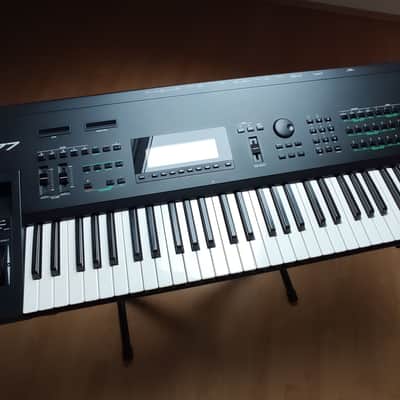

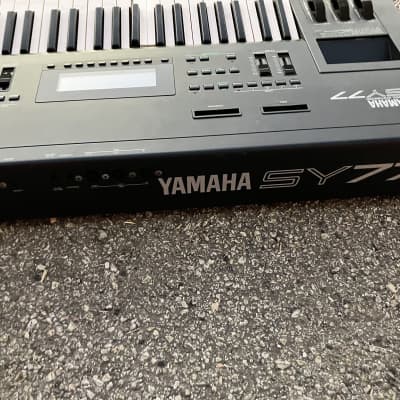

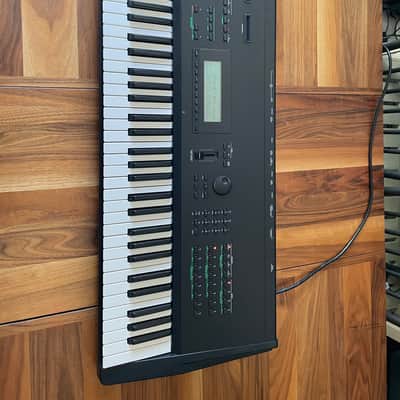

Yamaha SY77 Synthesizer 1989 - Black ($348.38)

Yamaha SY77 Synthesizer 1989 - Black ($577.68)

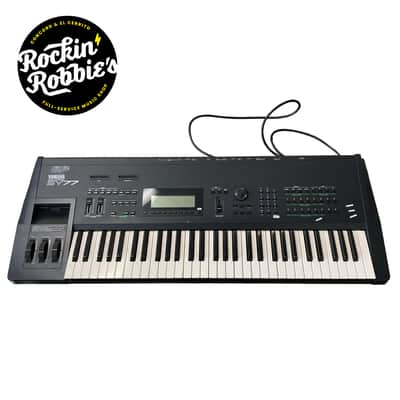

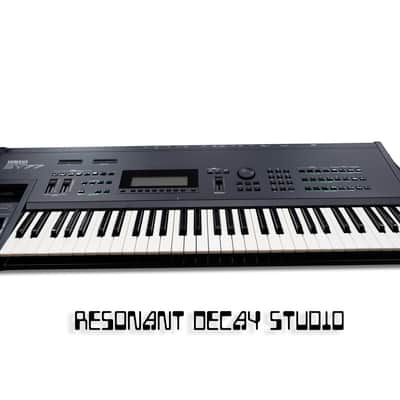

Yamaha SY77 Synthesizer ($545)

Yamaha SY77 Synthesizer 1989 - Black ($404)

Yamaha SY77 Synthesizer 1989 - Black ($399)

Yamaha SY77 Synthesizer 1989 - Black ($600)

Yamaha SY77 6 Operator 80's AFM Digital Synthesiser Sequencer Workstation - 100V ($556.72)

Yamaha SY77 Synthesizer w/ Custom Case, Patch Disks, and Pedals ($800)

Yamaha SY77 Synthesizer 1989 - Black ($692.06)

Yamaha SY77 Synthesizer 1989 - Black ($999)

Yamaha SY77 with Gotek floppy emulator ($807.59)

Yamaha SY77 Synthesizer 1989 - Black ($749.82)

Yamaha SY77 Cheater's Guide and Cookbook book Sy77 1991 ($29.99)

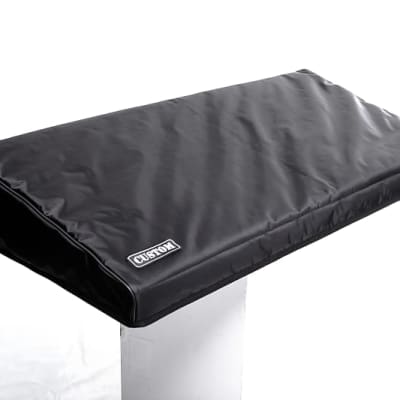

Custom padded cover for YAMAHA SY-77 Keyboard SY77 SY 77 ($49.99)

Yamaha SY 77 TG77 SAX1 cards for sale ($196.41)

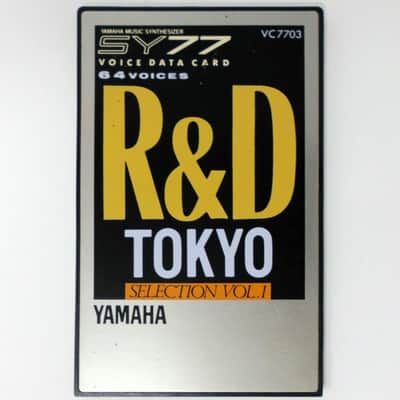

Yamaha SY77 TG77 R&D Tokyo PCM Data Rom Card For Yamaha SY77 and Yamaha TG77 1990 ($124.99)

Yamaha SY77 TG77 Shofuku Act 1 PCM Data Rom Card For Yamaha SY77 and Yamaha TG77 1990 ($124.99)

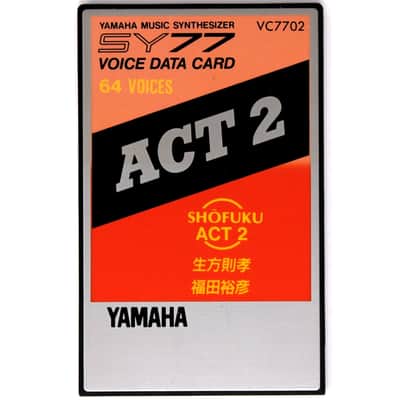

Yamaha SY77 TG77 Shofuku Act 2 PCM Data Rom Card For Yamaha SY77 and Yamaha TG77 1990 ($124.99)

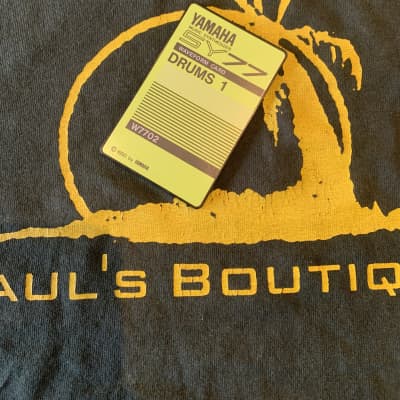

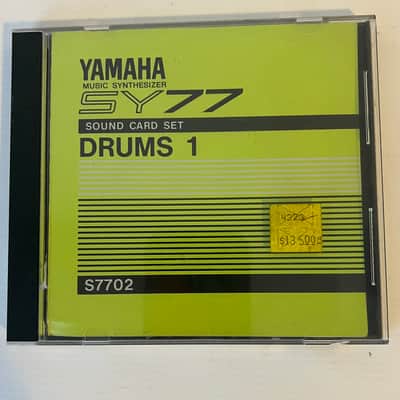

Yamaha SY77 TG77 Drums 1 Sound Card Set Rom For Yamaha SY77 and Yamaha TG77 1990 ($149.99)

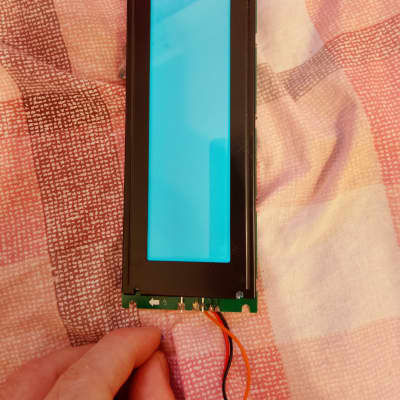

LCD Display black with cable Kit for Yamaha SY99 SY77 ($89.81)

Yamaha SY 77 Synth Patches - 13 Disk Set - Ready to load into your SY77 ($60)

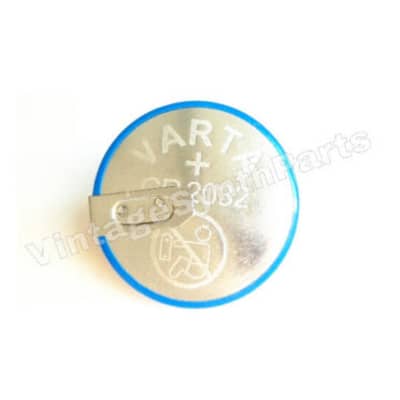

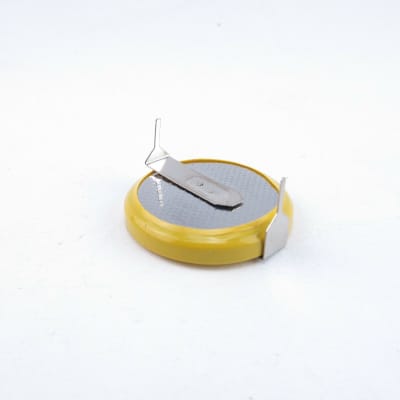

Yamaha SY77, SY55, SY99, TG55, TG77, V50 Battery ($4.99)

LCD Display white with cable Kit for Yamaha SY99 SY77 ($89.81)

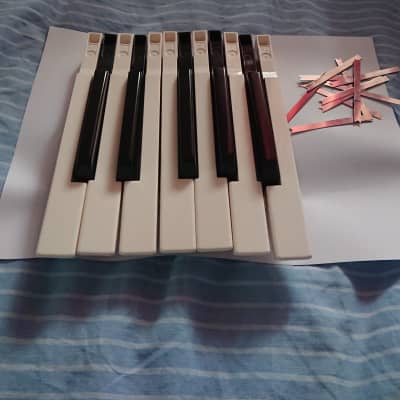

Yamaha SY77 brand new Keyboard Assembly 36 k254 ($275)

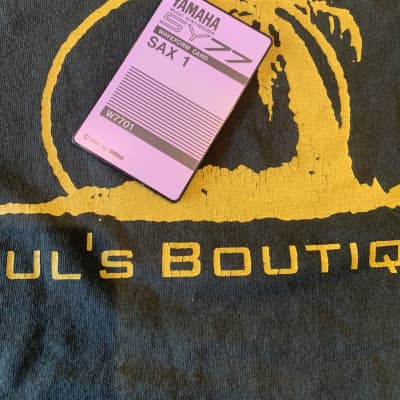

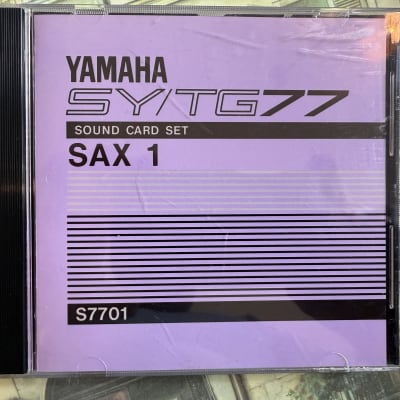

Yamaha SY77 Sound Card Set Sax 1 ($70)

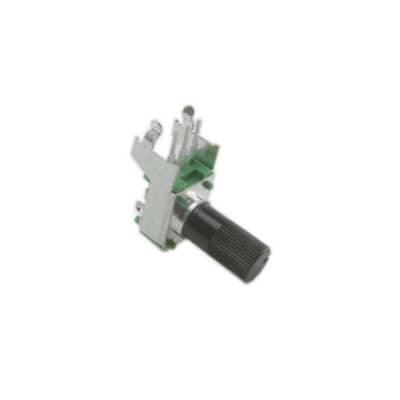

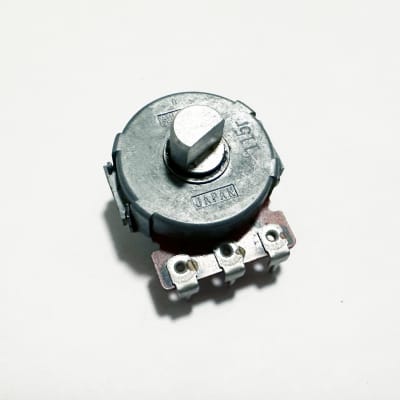

Yamaha - SY77 - New Rotary Potentiometer ($9.90)

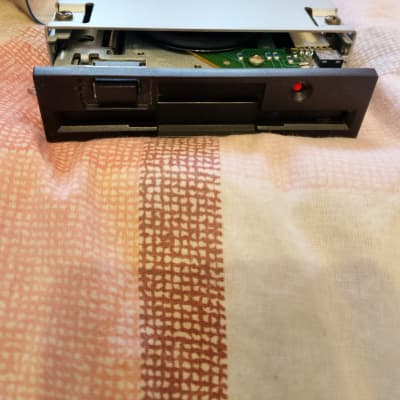

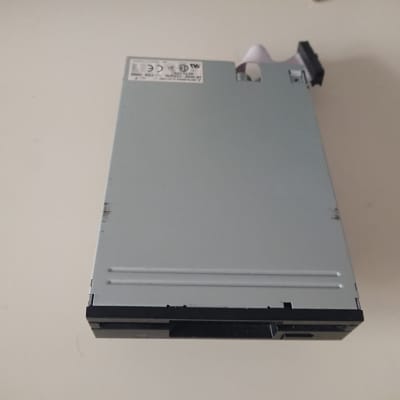

YAMAHA SY77 FLOPPY DRIVE ($53.15)

YAMAHA tg33 sy35 sy55 sy77 sy99 - Battery Replacement fix ($9.19)

YAMAHA dx7, dx7 II, dx9, dx27, dx100 tg77 sy77 tx802 tx7 - Battery Replacement fix ($9.19)

Yamaha SY77 SY99 Complete Pitch Bend Mod 3 Wheels Assembly PART FULL WORK WIRED 1989 ($34.66)

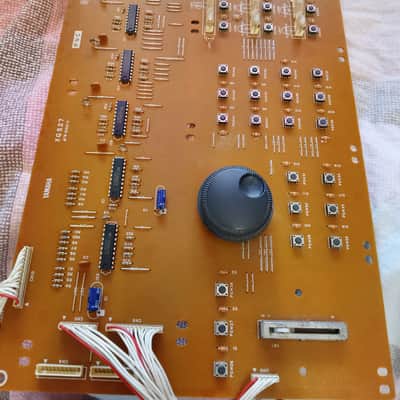

Yamaha SY77 XG527 PNC BOARD RIGHT VH799400 DATA ENTRY WHEEL PUSH BUTTON WORK ALL ($40.44)

Yamaha SY77 PART XG526 PNAB JACK INPUT OUTPUT VOLUME SLIDER LEFT BOARD VH799200 ($40.44)

Yamaha SY77 1989 ORIGINAL FRONT METAL PANEL & SET ALL BUTTONS WORKING ALL NO BROKENS FULL PUSH BUTTONS and CRYSTAL NO SCREEN very good state ($63.54)

Yamaha SY 77 / TG 77 Synth Patches • 13 Bank Set • Digital Download ($35)

Yamaha SY77, SY55, SY99, TG55, TG77, V50 Battery ($5.72)

KORG 01W 01RW WAVESTATION DISPLAY SCREEN LCD EW1 DMF5005N OPTREX JAPAN FULL WORKING WIRED MDK52V-0 PART ALSO FOR YAMAHA SY77 SY99 ($64.70)

Yamaha SY85 synth 61 keys vintage - sy 85 sy-85 ($607.81)

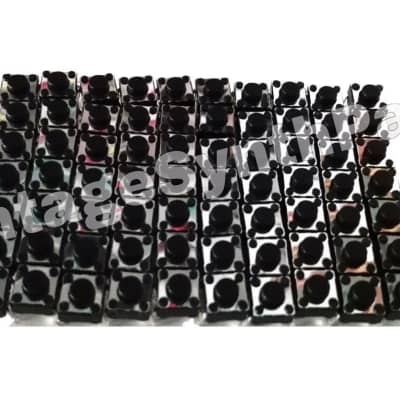

YAMAHA SY-77 / SY-99 - Set of 70 Pushbutton Panel Tact Switches NEW SY77 SY99 Micro Switch ($20.74)

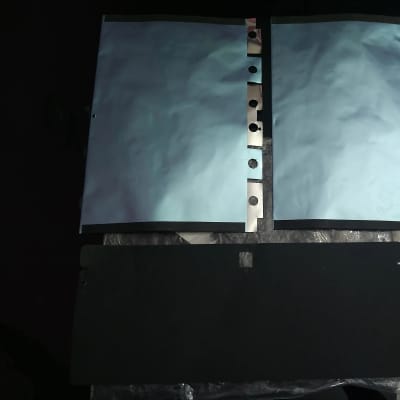

Korg Korg 01W, 01W FD, T1, T2, T3, i2, i3, Yamaha SY77, SY99, W5, W7 LCD Backlight. ($31.99)
