Synths ⇝ Yamaha ⇝ Yamaha SY35

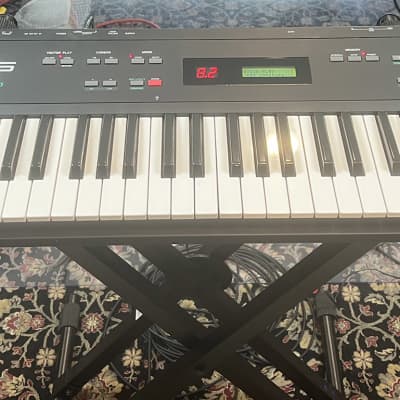

The SY35 is a hybrid FM/PCM synthesizer released by Yamaha in the early 1990's. It has a 2-operator FM engine, 2MB of waveform sample ROM, 16 performance memories, and can also use expansion cards to increase its sound palette.

The key feature of the SY35 is a joystick that allows morphing from one sound to another. It can be set up to morph between two or four different sounds depending on the patch settings.

It is very similar to the Yamaha SY22, but contains higher-quality waveform data. The sound sets have a lot of overlap, but are not the same. The TG33 is a tabletop module in the same series.

The SY35 uses a PA-3 external power adapter and uses a standard CR2032 lithium battery to maintain its patch memories.

Specifications

Year Released: 1992

Keyboard: 61 keys with velocity and aftertouch

Polyphony: 16 notes

Multitimbral: 8 parts

Preset Patches: 64

User Patches: 64

ROM: 2MB (128 16-bit AWM waveforms and 256 FM waveforms)

Effects: 16 digital effects including distortion, delay, and reverb.

Oscillator: 2 FM, 2 PCM

Screen: 16 x 2 character backlit LCD and 2-digit 7-segment LED

Power Consumption: 7 watts

Dimensions: 976 mm x 285 mm x 93 mm

Weight: 6.8 kg

User Demo Videos

Rating

Sound Samples

WAV samples are available on freewavesamples.com.

File Downloads

Yamaha SY35 Feature Reference

Yamaha SY35 Getting Started Guide
