SynthsYamaha ⇝ Yamaha SY22

Yamaha SY22Yamaha SY22 Left Side ControlsYamaha SY22 DisplayYamaha SY22 Right Side ControlsYamaha SY22 Back

The SY22 is a vector synth that uses an engine that combines 2-operator FM and PCM synthesis. The joystick is used for morphing between sounds and this unit is particularly well-suited to creating pad sounds.

It is similar to the Korg Wavestation, but the Wavestation does not do FM synthesis. The SY35 is a version with higher-resolution waveforms and a slightly different sound set and the TG33 is a tabletop module in the same series.

It has been mistakenly reported that the SY22 has a thin, metallic sound. While it is capable of producing those sounds with its FM engine, it is one of the richest, most beautiful-sounding digital synthesizers ever produced. To take full advantage, you will need to program your own sounds. This is made much easier by its built-in random patch generation functions. It's also a good idea to pair it with an external effects processor.

Patches can be saved on an MCD32 or MCD64 memory card. There are also expansion cards available. They contain patch data but not waveform data.

Specifications

Year Released: 1990

MSRP: 1095.00 USD

Keyboard: 61 keys with velocity and aftertouch

Polyphony: 16 notes

Multitimbral: 8 parts

Preset Patches: 64

User Patches: 64

ROM: 128 AWM waveforms, 256 FM sounds

Screen: 16 x 2 character backlit LCD and 2-digit 7-segment LED display

Power Consumption: 6 watts

Dimensions: 976 mm x 285 mm x 93 mm

Weight: 6.8 kg

User Demo Videos

Rating


4.5
(6 votes)

Sound Samples

WAV samples are available on freewavesamples.com.

File Downloads

Yamaha SY-22 Manual

Items for Sale on Reverb

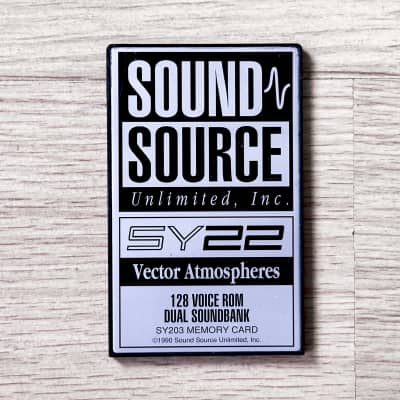

Yamaha SY22 / TG33 Voice Rom Card // Sound Source Unlimited // SY203 Vector AthmospheresYamaha SY22 / TG33 Voice Rom Card // Sound Source Unlimited // SY203 Vector Athmospheres ($198.50)

Yamaha SY22 Dynamic Vector Synthesizer 1990 - BlackYamaha SY22 Dynamic Vector Synthesizer 1990 - Black ($175)

YAMAHA SY22 Dynamic Vector SynthesiserYAMAHA SY22 Dynamic Vector Synthesiser ($340.89)

Yamaha SY22 Dynamic Vector Synthesizer 1990 - BlackYamaha SY22 Dynamic Vector Synthesizer 1990 - Black ($275)

Yamaha sy22Yamaha sy22 ($421.05)

Yamaha SY22 / TG33 Voice ROM Card VC2201 Band Evolution Theory // Ultra Rare Japan Only!Yamaha SY22 / TG33 Voice ROM Card VC2201 Band Evolution Theory // Ultra Rare Japan Only! ($294.74)

Yamaha SY22 Dynamic Vector Synthesizer 1990 - BlackYamaha SY22 Dynamic Vector Synthesizer 1990 - Black ($265.76)

DUST COVER for YAMAHA SY22DUST COVER for YAMAHA SY22 ($32.32)

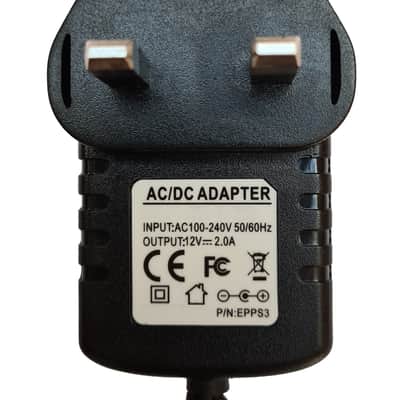

Power Supply Replacement for YAMAHA SY22 KEYBOARD ADAPTER UK 12VPower Supply Replacement for YAMAHA SY22 KEYBOARD ADAPTER UK 12V ($11.64)

YAMAHA Top-C Key for N1X, CS6X, EX7, SY55, SY22, SY35, S30, MO6, DX11, V50YAMAHA Top-C Key for N1X, CS6X, EX7, SY55, SY22, SY35, S30, MO6, DX11, V50 ($19.99)

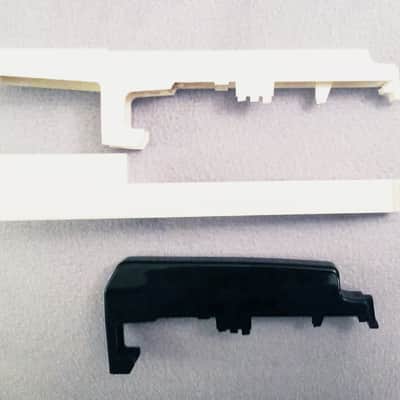

YAMAHA AN1X, CS6X, EX7, SY55, SY22, SY35, S30, MO6, DX11, V50 Replacement KeyYAMAHA AN1X, CS6X, EX7, SY55, SY22, SY35, S30, MO6, DX11, V50 Replacement Key ($7.95)

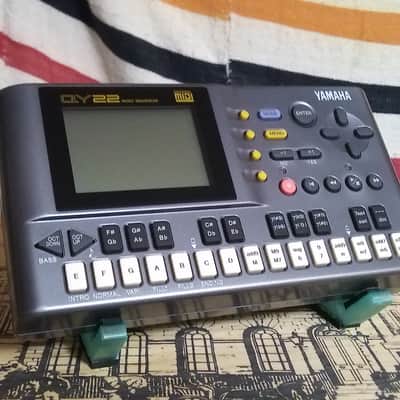

Yamaha Qy22 90s - BlackYamaha Qy22 90s - Black ($328.42)

Yamaha SY-22 SY22 Boot Rescue Firmware Rom EPROMYamaha SY-22 SY22 Boot Rescue Firmware Rom EPROM ($27.61)

NEW Yamaha Replacement D Key (Yamaha C61K6 Keybeds) (VL57010R/VA850100) for SY22/35/55, DX11, DS55, S30, AN1X & CS6X, V50, W7, YS200, Korg 707NEW Yamaha Replacement D Key (Yamaha C61K6 Keybeds) (VL57010R/VA850100) for SY22/35/55, DX11, DS55, S30, AN1X & CS6X, V50, W7, YS200, Korg 707 ($13.95)

NEW Yamaha Replacement C/F Key (Yamaha C61K6 Keybeds) (VL57000R/VA850000) for SY22/35/55, DX11, DS55, S30, AN1X & CS6X, V50, W7, YS200, Korg 707NEW Yamaha Replacement C/F Key (Yamaha C61K6 Keybeds) (VL57000R/VA850000) for SY22/35/55, DX11, DS55, S30, AN1X & CS6X, V50, W7, YS200, Korg 707 ($13.95)

ORIGINAL Yamaha Replacement G Key (Yamaha C61K6 Keybeds) (VA850300) for SY22/35/55, DX11ORIGINAL Yamaha Replacement G Key (Yamaha C61K6 Keybeds) (VA850300) for SY22/35/55, DX11 ($10.95)

ORIGINAL Yamaha Replacement A Key (Yamaha C61K6 Keybeds) (VA850400) for SY22/35/55, DX11ORIGINAL Yamaha Replacement A Key (Yamaha C61K6 Keybeds) (VA850400) for SY22/35/55, DX11 ($10.95)

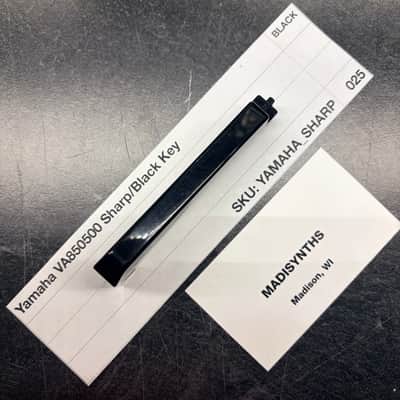

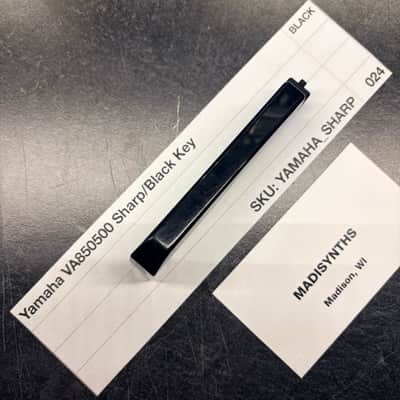

ORIGINAL Yamaha Replacement SHARP/BLACK Key (Yamaha C61K6 Keybeds) (VA850500) for SY22/35/55, DX11ORIGINAL Yamaha Replacement SHARP/BLACK Key (Yamaha C61K6 Keybeds) (VA850500) for SY22/35/55, DX11 ($8.95)
