The EX5 is one of the most powerful synthesizers Yamaha has ever released. In addition to its built-in AWM2 ROM and sampler capability, it also has virtual analog, virtual acoustic, and FDSP (Formulated Digital Signal Processing) synthesis engines.

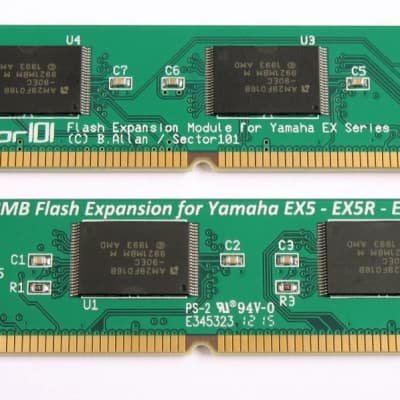

Any samples loaded will be forgotten when the unit is switched off. An EXFLM2 flash board that adds 16MB of non-volatile sample memory can be installed to make the keyboard remember samples across power cycles. Sector101 makes an aftermarket version.

It has "Sondius-XG" printed on the right side of the control panel. That refers to the virtual acoustic technology that Yamaha developed jointly with Stanford University.

The Yamaha EX7 is a less-powerful 61-key version of the EX5. It is also available in rackmount form as the EX5R

Specifications

Year Released: 1998

Keyboard: 76 keys with velocity and aftertouch

Polyphony: 128 notes

Multitimbral: 16 parts

Preset Patches: 256

User Patches: 256

User Performances: 128

ROM: 16MB

Sequencer Memory: 30,000 notes

Sequencer Resolution: 480 PPQN

Effects: 108 effects - 79 insertion, 17 chorus, 12 reverb

Arpeggiator: 50 preset patterns, 50 user patterns

Screen: 240 x 64 pixel backlit LCD

Power Consumption: 32 watts

Dimensions: 1268 mm x 407 mm x 129 mm

Weight: 20 kg

User Demo Videos

Rating


4.6
(5 votes)

Sound Samples

WAV samples are available on freewavesamples.com.

File Downloads

Yamaha EX5 and EX7 Manual

Yamaha EX5 Data List

Items for Sale on Reverb

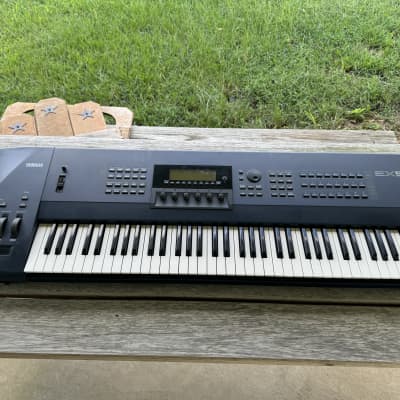

Yamaha EX5 / EX5S Extended Synthesis Rare Millennium Edition Synthesiser - 100VYamaha EX5 / EX5S Extended Synthesis Rare Millennium Edition Synthesiser - 100V ($1,289.14)

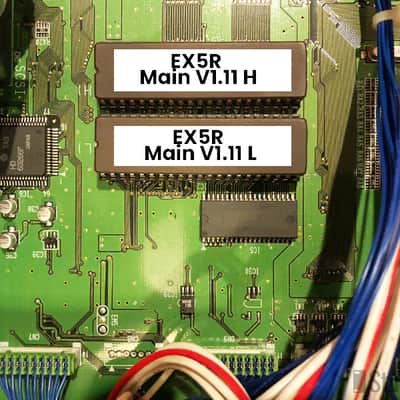

Yamaha EX5 EX5S EX5R EX7 Main V1.11 OS EPROM! NEW!Yamaha EX5 EX5S EX5R EX7 Main V1.11 OS EPROM! NEW! ($28.99)

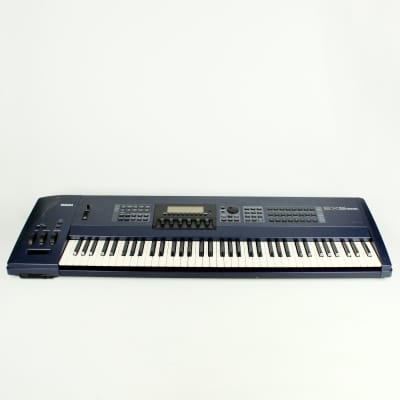

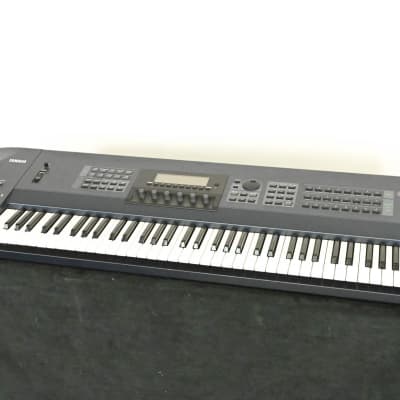

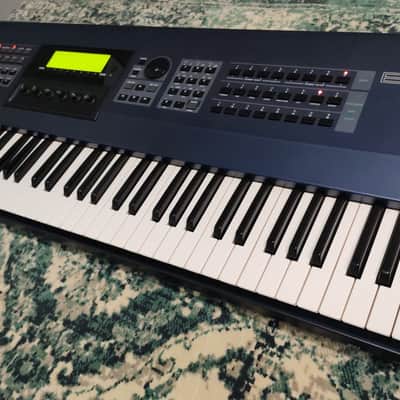

Yamaha EX5 Synthesizer WorkstationYamaha EX5 Synthesizer Workstation ($947.14)

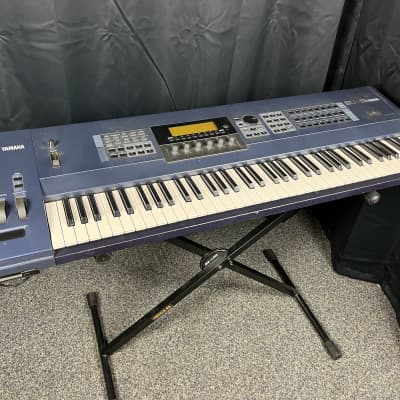

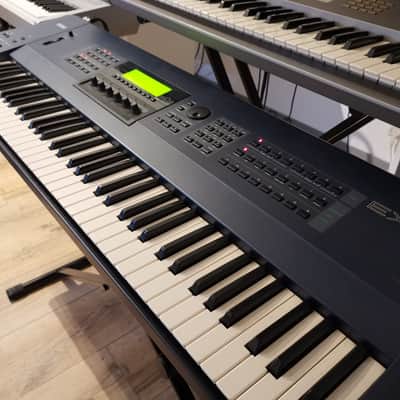

Yamaha EX5 2000 - BlueYamaha EX5 2000 - Blue ($850)

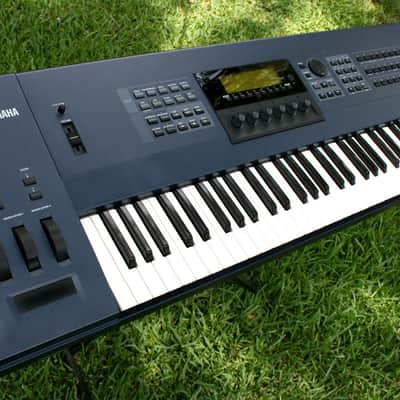

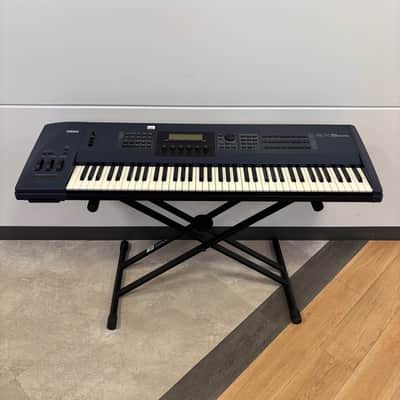

Yamaha EX5Yamaha EX5 ($1,896.65)

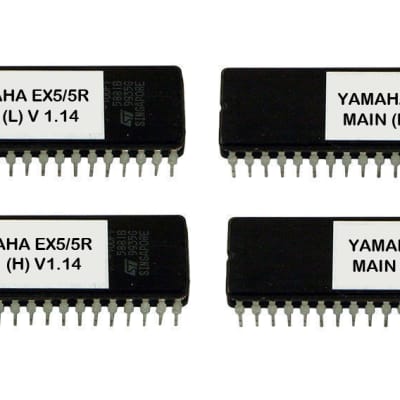

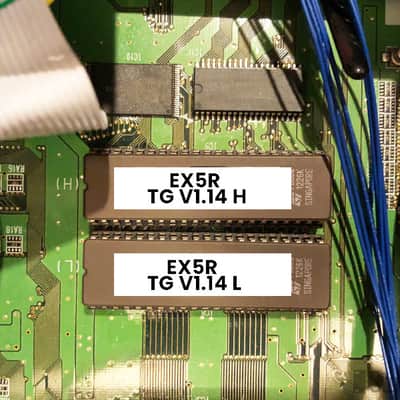

Yamaha EX5 EX5S EX5R TG V1.14 OS EPROM! NEW!Yamaha EX5 EX5S EX5R TG V1.14 OS EPROM! NEW! ($28.99)

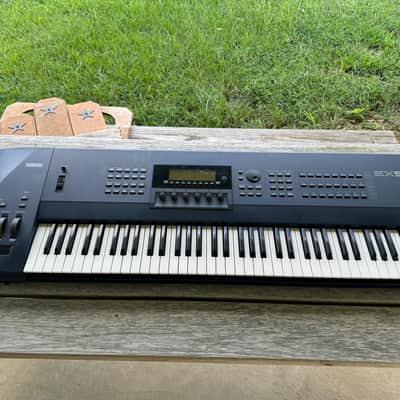

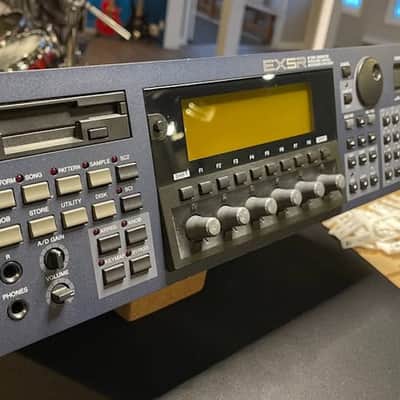

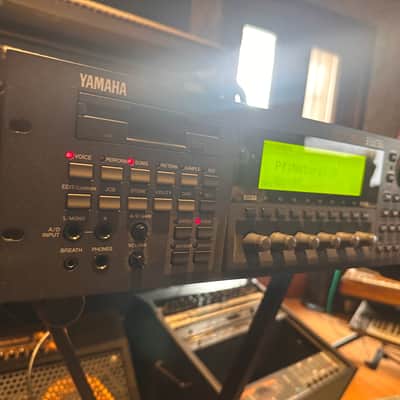

Yamaha EX5 Realtime Control Synthesizer 1998 - BlueYamaha EX5 Realtime Control Synthesizer 1998 - Blue ($1,250)

Yamaha EX5 Synthesizer Workstation (USED)Yamaha EX5 Synthesizer Workstation (USED) ($799.99)

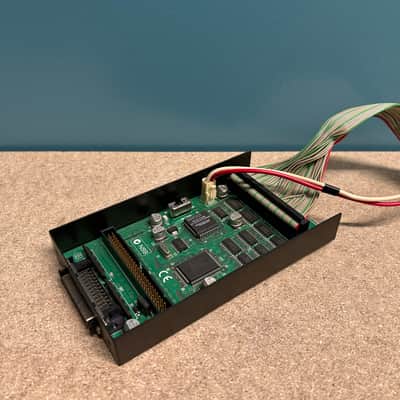

Yamaha ASIB1 SCSI Board XS532 for Yamaha A3000 SU700 EX5 EX5R EX7Yamaha ASIB1 SCSI Board XS532 for Yamaha A3000 SU700 EX5 EX5R EX7 ($339)

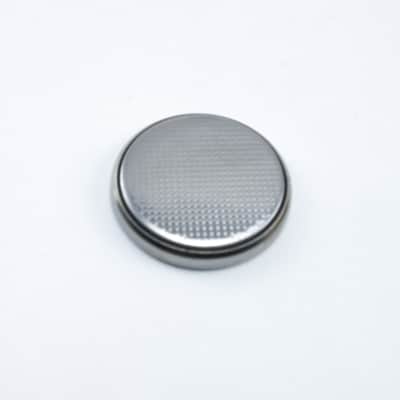

Yamaha - EX5 EX5R EX7 - New Memory BatteryYamaha - EX5 EX5R EX7 - New Memory Battery ($3.20)

Yamaha EX5R EX5 EX7 Quick Guide in German with One Floppy DiskYamaha EX5R EX5 EX7 Quick Guide in German with One Floppy Disk ($19)

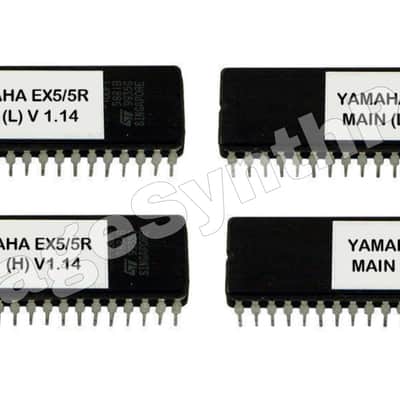

Yamaha EX5 EX5r firmware OS upgrade update version 1.11 / 1.14 (main+voice) Eprom RomYamaha EX5 EX5r firmware OS upgrade update version 1.11 / 1.14 (main+voice) Eprom Rom ($35.50)

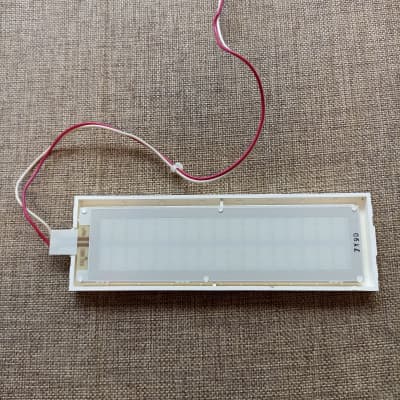

Yamaha EX5R & EX5 Green Display Backlight VT210200Yamaha EX5R & EX5 Green Display Backlight VT210200 ($29)

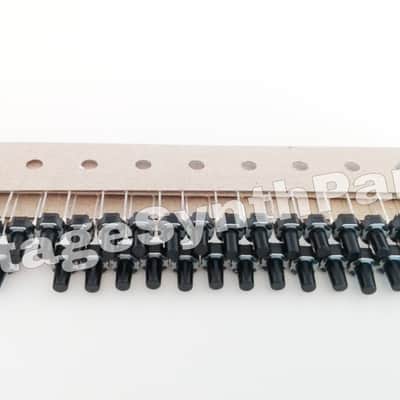

YAMAHA EX5 EX7 Full Set of 78 Pushbuttons Tact Switches Micro SwitchYAMAHA EX5 EX7 Full Set of 78 Pushbuttons Tact Switches Micro Switch ($24.72)

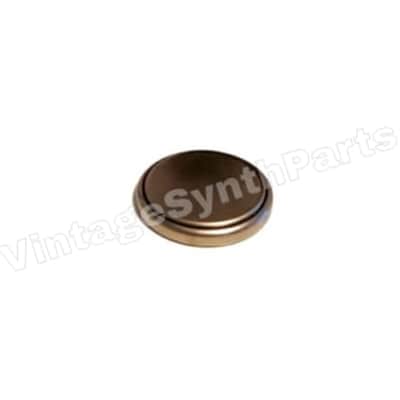

Yamaha - EX5 EX5R EX7 - New BatteryYamaha - EX5 EX5R EX7 - New Battery ($7.05)

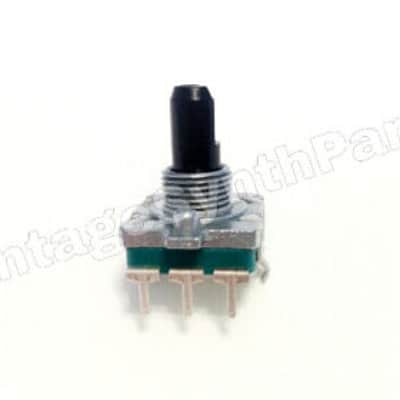

Yamaha - CVP-92/94/96/98 , DX200 , EX5 , EX7 - New Encoder Brand NewYamaha - CVP-92/94/96/98 , DX200 , EX5 , EX7 - New Encoder Brand New ($7.82)

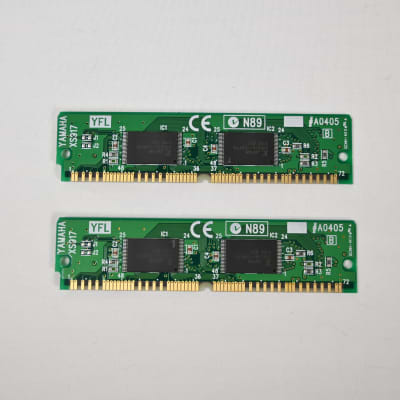

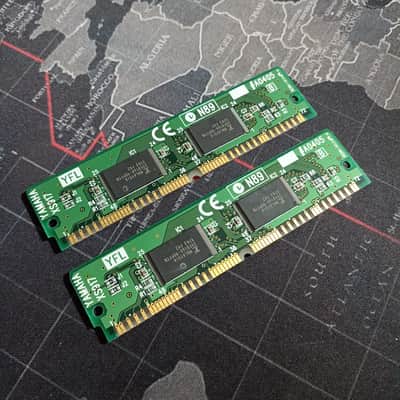

Yamaha Original EXFLM1 Flash Memory 8 MB (2x4 MB) EX5 EX5R EX7 Memory BoardsYamaha Original EXFLM1 Flash Memory 8 MB (2x4 MB) EX5 EX5R EX7 Memory Boards ($269)

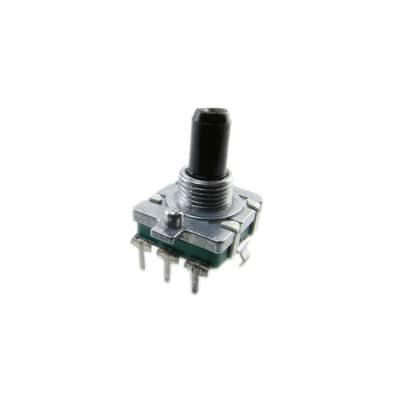

Yamaha - CVP-92/94/96/98 , DX200 , EX5 , EX7 - New EncoderYamaha - CVP-92/94/96/98 , DX200 , EX5 , EX7 - New Encoder ($10.90)

YAMAHA E/S AIEB1 AIEB2 Rare Power câble EX5 SU700 A5000 4000 A3000YAMAHA E/S AIEB1 AIEB2 Rare Power câble EX5 SU700 A5000 4000 A3000 ($34.38)

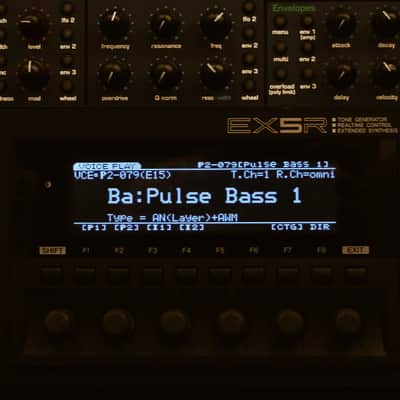

LED Display Upgrade -  Yamaha EX5 / EX5R / EX7 Custom (Negative) LED Display !LED Display Upgrade - Yamaha EX5 / EX5R / EX7 Custom (Negative) LED Display ! ($181.44)

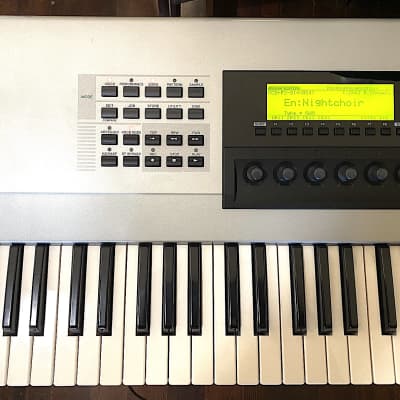

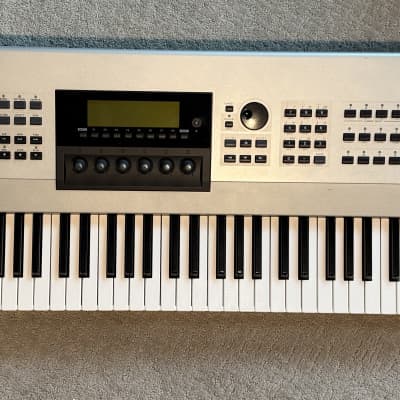

Yamaha EX5S Silver Millennium Edition • Final OS Version & Further Upgrades !Yamaha EX5S Silver Millennium Edition • Final OS Version & Further Upgrades ! ($950)

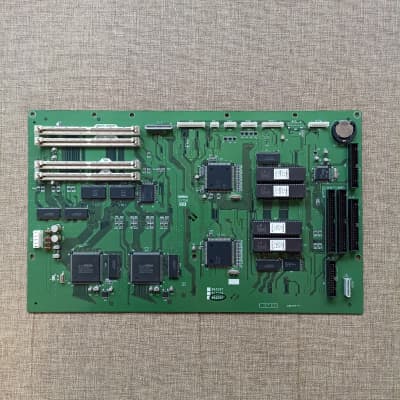

Yamaha EX5R Mainboard XS758 A0320 Motherboard Firmware Ver 1.14 / 1.11Yamaha EX5R Mainboard XS758 A0320 Motherboard Firmware Ver 1.14 / 1.11 ($489)

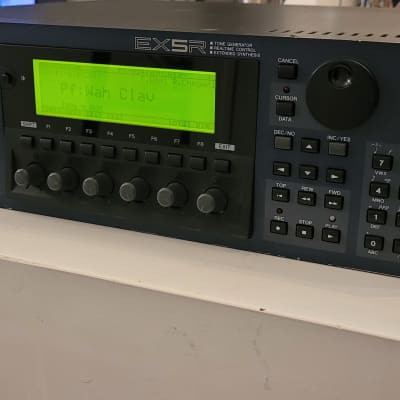

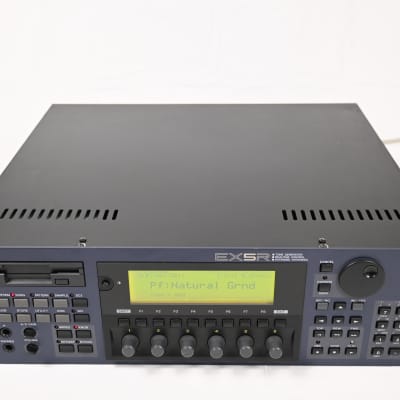

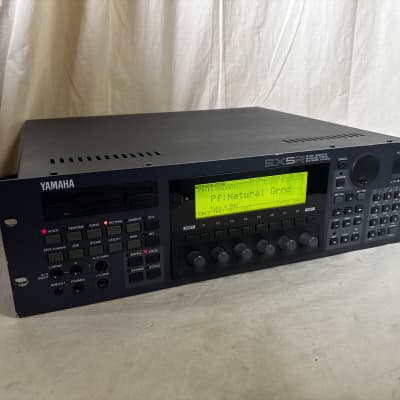

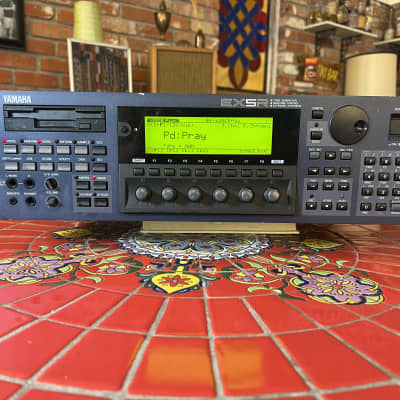

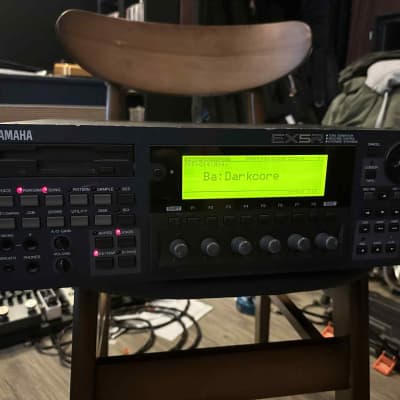

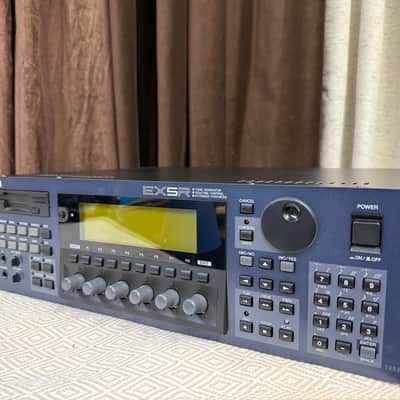

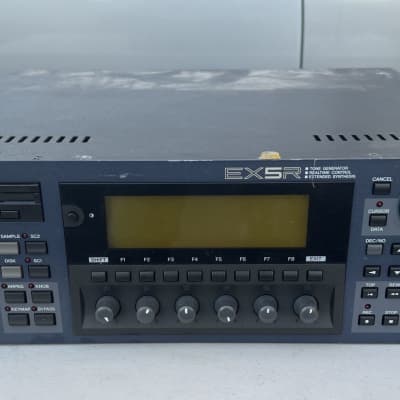

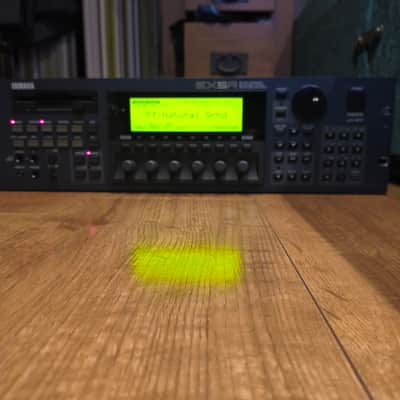

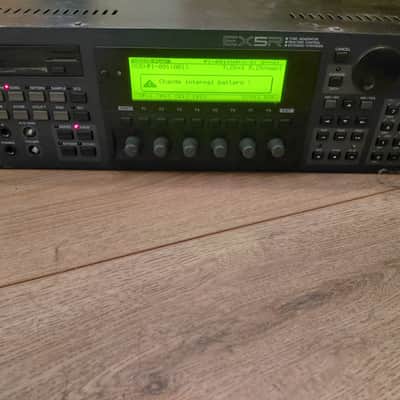

Yamaha EX5R Realtime Control Synthesizer 1998 - BlueYamaha EX5R Realtime Control Synthesizer 1998 - Blue ($1,022.13)

Yamaha - AN1X , CS1X/2X/6X , EX5/7 , Motif XF6/XS6 ,S08/70XS/90XS - Power switchYamaha - AN1X , CS1X/2X/6X , EX5/7 , Motif XF6/XS6 ,S08/70XS/90XS - Power switch ($9.90)

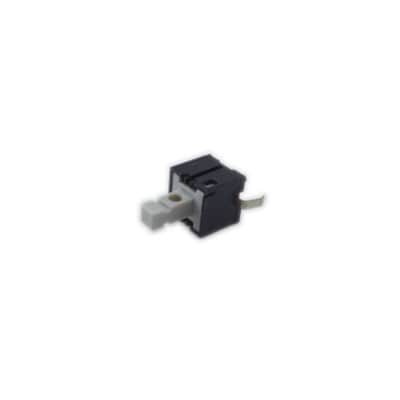

Yamaha - CLP , P150/200 , EX5/7 , CVP - New Push Button Tact SwitchYamaha - CLP , P150/200 , EX5/7 , CVP - New Push Button Tact Switch ($7.99)

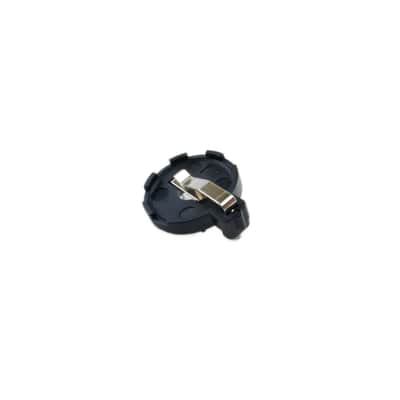

Yamaha - EX-5 , EX-7 - New Battery holderYamaha - EX-5 , EX-7 - New Battery holder ($3.90)

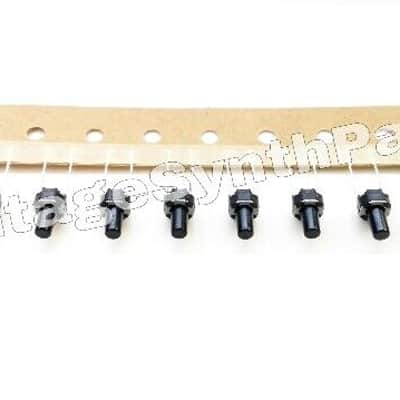

Set of 10 X front panel pushbutton tact switch for Yamaha EX-5 and EX-7Set of 10 X front panel pushbutton tact switch for Yamaha EX-5 and EX-7 ($8)

Yamaha PF-10 Replacement White B and E Key Assembly For Yamaha Motif, DX-7,SY77, EX5 KeyboardsYamaha PF-10 Replacement White B and E Key Assembly For Yamaha Motif, DX-7,SY77, EX5 Keyboards ($7.99)

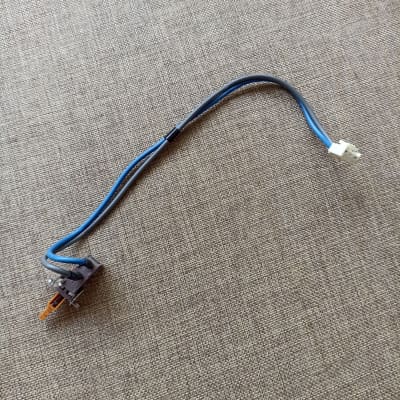

Yamaha EX5R Power SwitchYamaha EX5R Power Switch ($13.99)

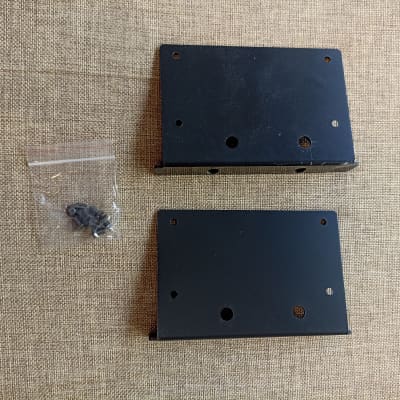

Yamaha EX5R Metal Rack EarsYamaha EX5R Metal Rack Ears ($19)

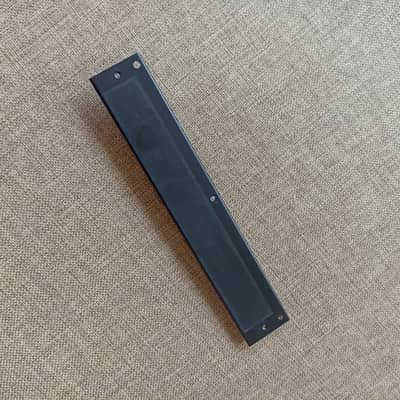

Yamaha EX5R Back Metal CoversYamaha EX5R Back Metal Covers ($19)

Yamaha EX5R Power Button Plastic PartYamaha EX5R Power Button Plastic Part ($19)

Yamaha EX5R A/D Input L/ R Jack Board XT436 A0320 PN3Yamaha EX5R A/D Input L/ R Jack Board XT436 A0320 PN3 ($29)

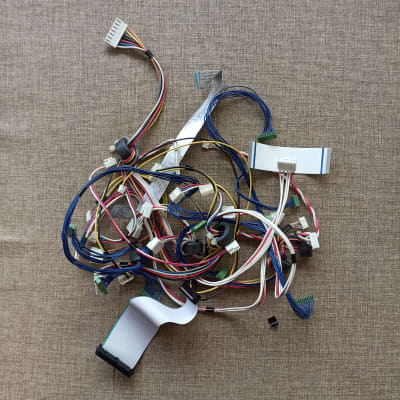

Yamaha EX5R Internal Ribbons and CablesYamaha EX5R Internal Ribbons and Cables ($49)

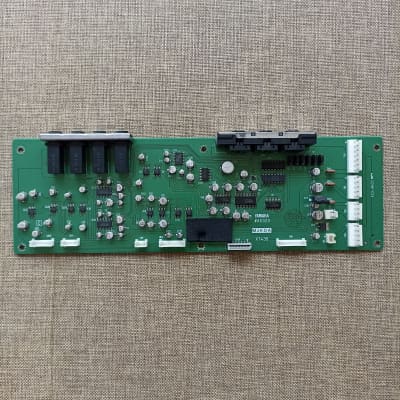

Yamaha EX5R Jack Board - Audio & Midi Port Board XT435 A0320Yamaha EX5R Jack Board - Audio & Midi Port Board XT435 A0320 ($189)

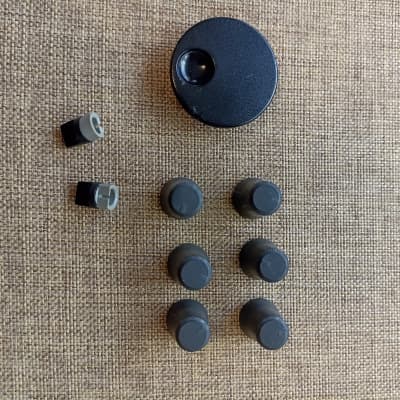

Yamaha EX5R All Knobs Encoder & Pots Plastic KnobsYamaha EX5R All Knobs Encoder & Pots Plastic Knobs ($39)

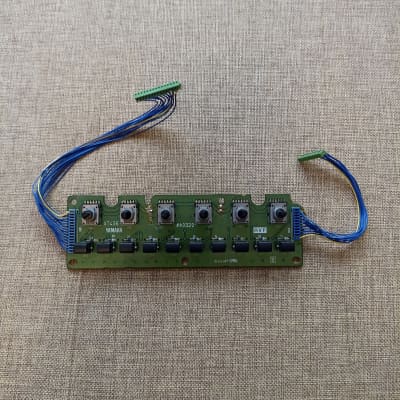

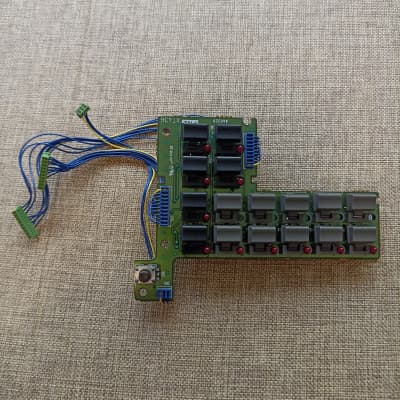

Yamaha EX5R Center Panel Button Switch Board XT436 RVFYamaha EX5R Center Panel Button Switch Board XT436 RVF ($39)

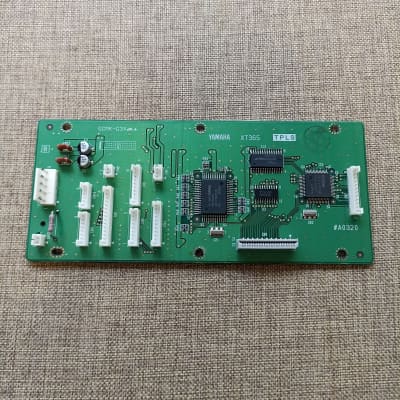

Yamaha EX5R Panel & Display Board XT365 TPLS A0320Yamaha EX5R Panel & Display Board XT365 TPLS A0320 ($189)

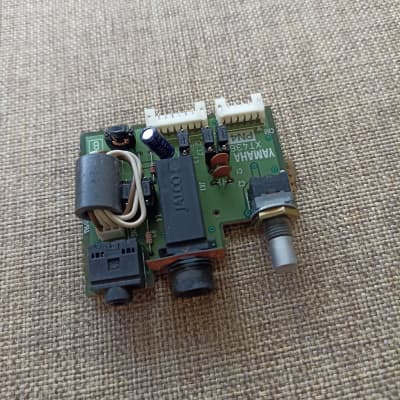

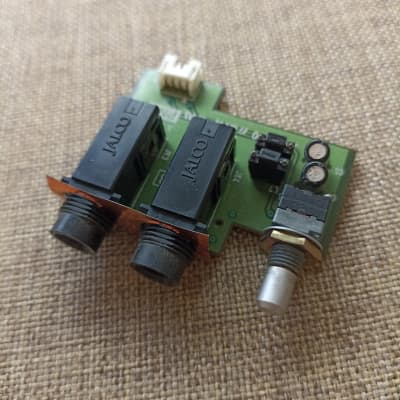

Yamaha EX5R Jack Board Phones & Breath XT436 PN4Yamaha EX5R Jack Board Phones & Breath XT436 PN4 ($49)

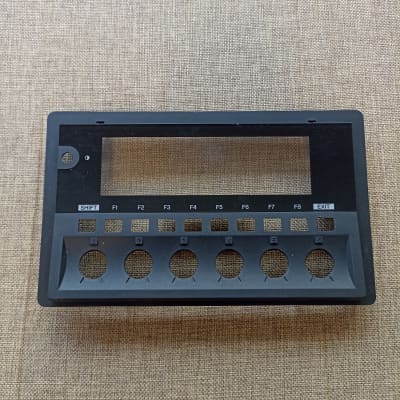

Yamaha EX5R Center Panel Cover & Display Holder PartYamaha EX5R Center Panel Cover & Display Holder Part ($29)

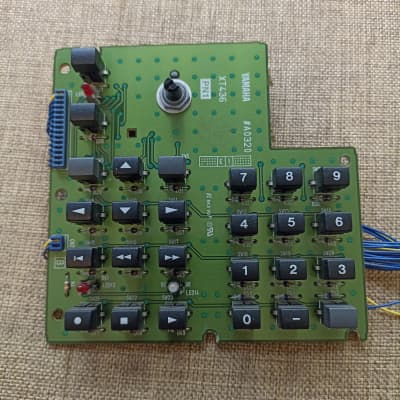

Yamaha EX5R Right Panel Button Switch Board XT436 A0320 PN1Yamaha EX5R Right Panel Button Switch Board XT436 A0320 PN1 ($89)

Yamaha EX5R Left Panel Button Switch Board XT436 A0320 PN2Yamaha EX5R Left Panel Button Switch Board XT436 A0320 PN2 ($89)

Yamaha SCSI expansion board (ASIB1) for EX5, EX5R, EX7, A3000, SU700Yamaha SCSI expansion board (ASIB1) for EX5, EX5R, EX7, A3000, SU700 ($214.95)

12V AC/DC Adapter Compatible with Yamaha PA-150B MX88 MX61 MX-61 MX49 Keyboard Synthesizer TG300 MU2000 MU2000EX MU500 MU1000 MU90 MU90R MU100 MU100R Tone Generator EMP100 1.5A Power Supply12V AC/DC Adapter Compatible with Yamaha PA-150B MX88 MX61 MX-61 MX49 Keyboard Synthesizer TG300 MU2000 MU2000EX MU500 MU1000 MU90 MU90R MU100 MU100R Tone Generator EMP100 1.5A Power Supply ($24.14)

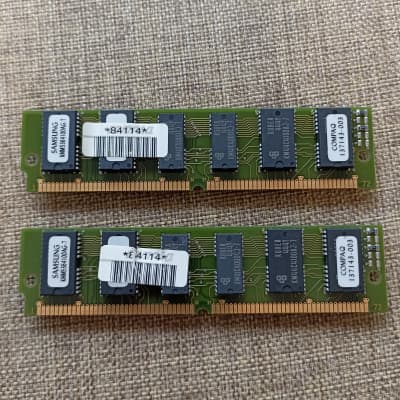

Samsung 32 MB Ram for Yamaha EX5R etc. 16 MB x 2 RAM 72-Pin SIMM Memory Module - KMM5364100AG-7Samsung 32 MB Ram for Yamaha EX5R etc. 16 MB x 2 RAM 72-Pin SIMM Memory Module - KMM5364100AG-7 ($149)

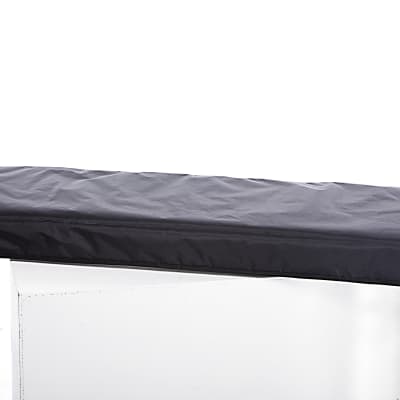

Custom padded cover for Yamaha EX5 61-key keyboardCustom padded cover for Yamaha EX5 61-key keyboard ($54.36)

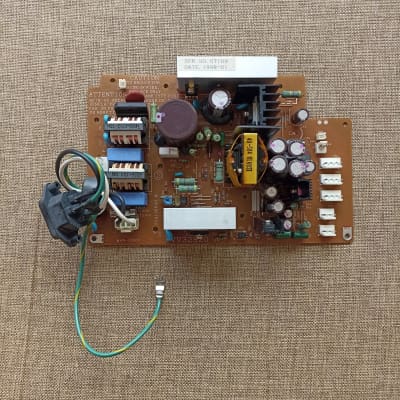

Yamaha Original EX5R etc. Power Supply Unit PSA10664H 200-240vYamaha Original EX5R etc. Power Supply Unit PSA10664H 200-240v ($119)
