SynthsYamaha ⇝ Yamaha CS1x

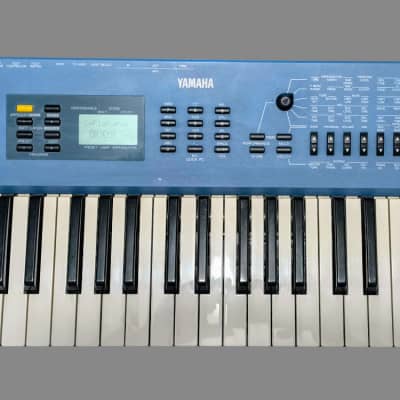

The CS1x Control Syntheizer is a ROMpler that has the same case style as the Yamaha AN1x VA synthesizer, but they sound very different. XG and TG300B sound sets are included.

It has a good arpeggiator and a set of knobs for realtime control and was marketed to DJs.

The CS1x uses an external Yamaha PA-3B power adapter.

Specifications

Year Released: 1996

Keyboard: 61 keys with velocity

Polyphony: 32 notes

Multitimbral: 16 parts

Preset Patches: 128

User Patches: 128

Preset Drum Kits: 21

ROM: 4.5 MB

Effects: variation (43 types), reverb (11 types), chorus (11 types)

Arpeggiator: 30 patterns

Screen: backlit LCD

Dimensions: 976 mm x 285 mm x 103 mm

Weight: 5.7 kg

User Demo Videos

Rating


4
(5 votes)

File Downloads

Yamaha CS1x Manual

Yamaha CS1x Data List

Items for Sale on Reverb

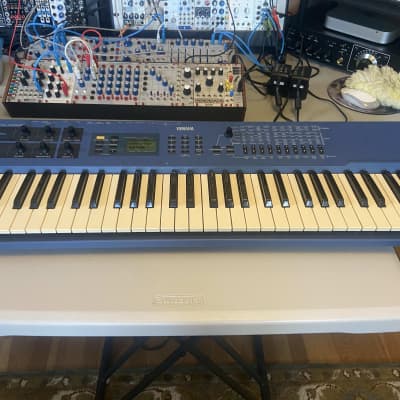

Yamaha CS1X Analog Modeling SynthesizerYamaha CS1X Analog Modeling Synthesizer ($315)

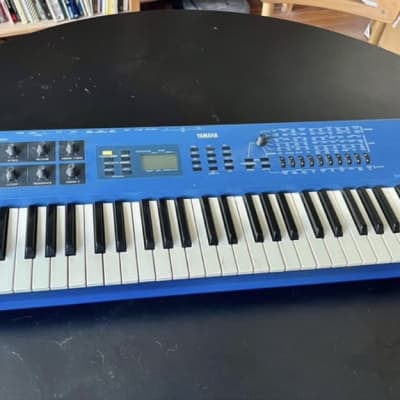

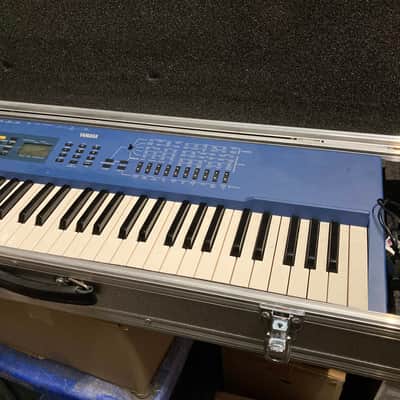

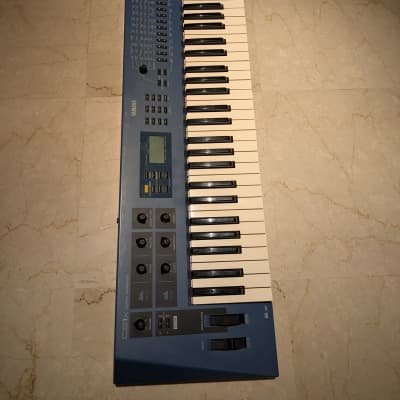

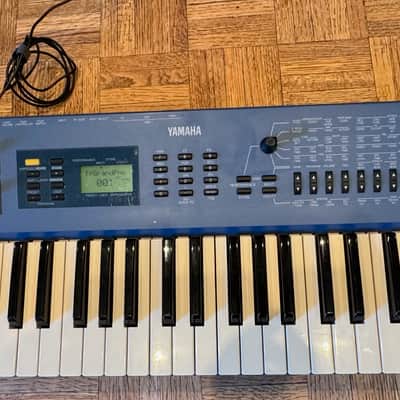

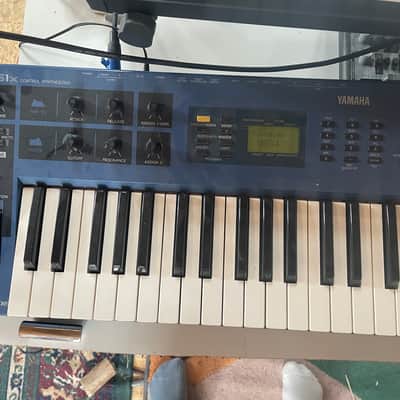

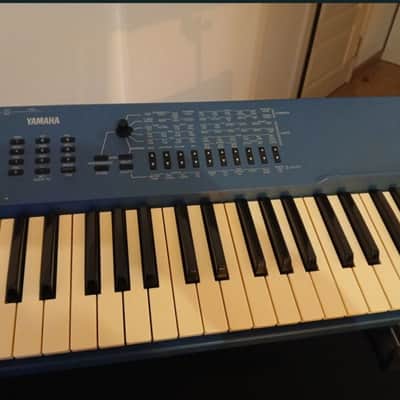

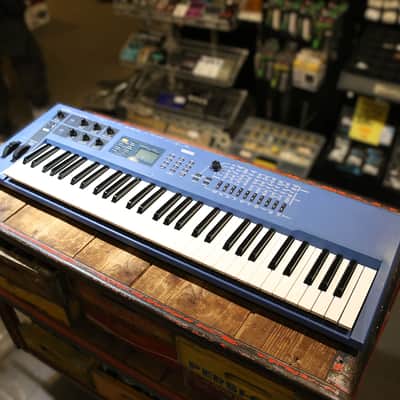

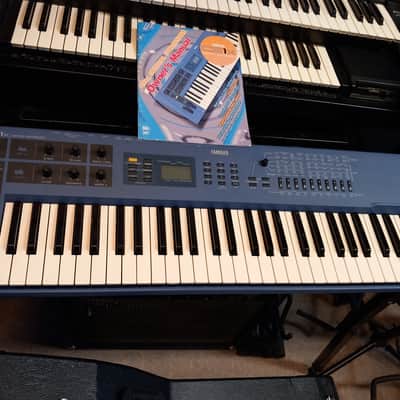

Yamaha CS1x Control Synthesizer 1996 - BlueYamaha CS1x Control Synthesizer 1996 - Blue ($275)

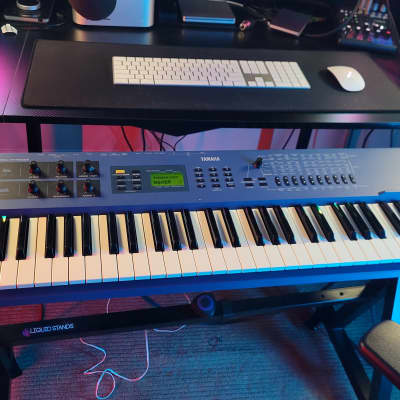

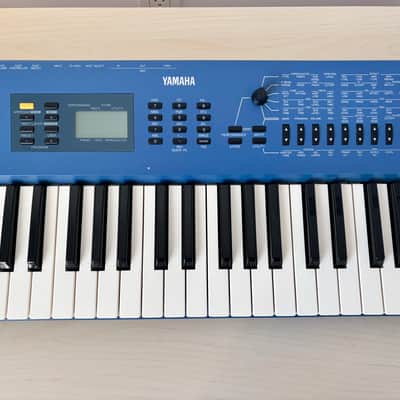

Yamaha CS1x Control Synthesizer 1996Yamaha CS1x Control Synthesizer 1996 ($717.63)

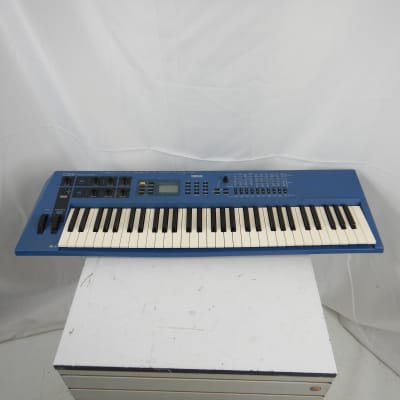

Yamaha CS1x Control SynthesizerYamaha CS1x Control Synthesizer ($419.54)

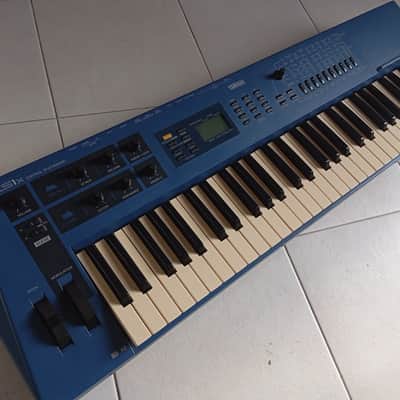

Yamaha CS1x Control Synthesizer 1996 - BlueYamaha CS1x Control Synthesizer 1996 - Blue ($375.38)

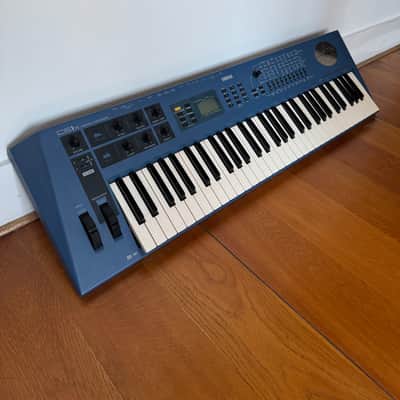

Yamaha CS1x Control Synthesizer 1996 - BlueYamaha CS1x Control Synthesizer 1996 - Blue ($414.02)

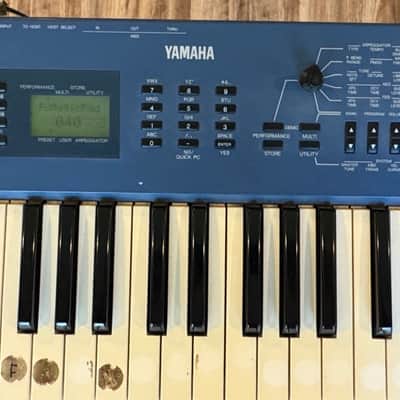

Yamaha CS1x Control Synthesizer 1996 - BlueYamaha CS1x Control Synthesizer 1996 - Blue ($400)

Yamaha CS1x Control SynthesizerYamaha CS1x Control Synthesizer ($462.60)

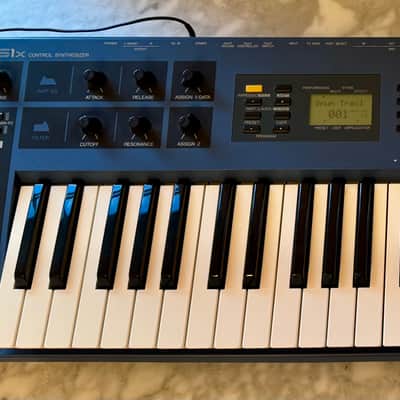

Yamaha CS1x Control Synthesizer 1996 - BlueYamaha CS1x Control Synthesizer 1996 - Blue ($250)

Yamaha - CS1X , CS2X - Rotary Switch 6 positionYamaha - CS1X , CS2X - Rotary Switch 6 position ($9.88)

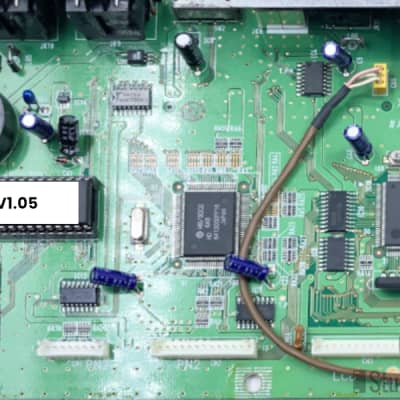

Yamaha CS1X V1.05 OS EPROM! NEW!Yamaha CS1X V1.05 OS EPROM! NEW! ($18.99)

Yamaha CS1X LCD Board XR661Yamaha CS1X LCD Board XR661 ($98.99)

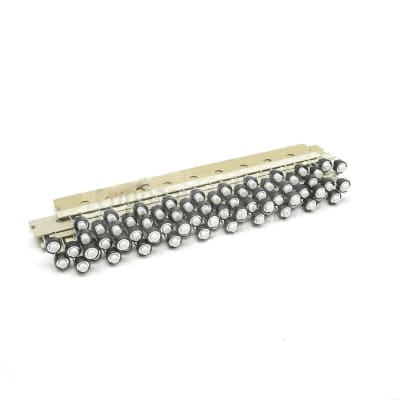

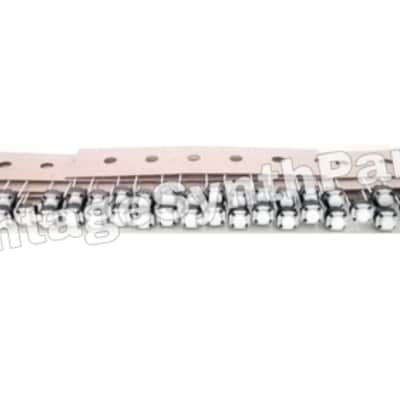

YAMAHA CS1X - Full Set of 42 pushbuttons tact switches - New SKQNAE025AYAMAHA CS1X - Full Set of 42 pushbuttons tact switches - New SKQNAE025A ($20.09)

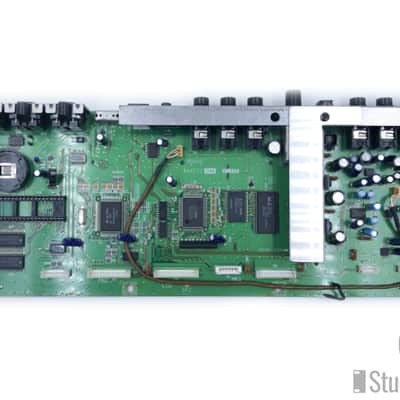

Yamaha CS1X Main Board XR669Yamaha CS1X Main Board XR669 ($138.99)

Yamaha Cs1X / Cs2X / Psr 225 / Psr 530 - Contact strip (full set) -  (for international shipments contact me)Yamaha Cs1X / Cs2X / Psr 225 / Psr 530 - Contact strip (full set) - (for international shipments contact me) ($38.64)

Style 59U - Black keys group for various model: Yamaha CS1x / Cs2x / Psr225 / Psr 530 (for international shipments contact me)Style 59U - Black keys group for various model: Yamaha CS1x / Cs2x / Psr225 / Psr 530 (for international shipments contact me) ($12.14)

Style 59U keys - Complete octave for Yamaha CS1x / Cs2x / Psr225 / Psr 530 (for international shipments contact me)Style 59U keys - Complete octave for Yamaha CS1x / Cs2x / Psr225 / Psr 530 (for international shipments contact me) ($33.12)

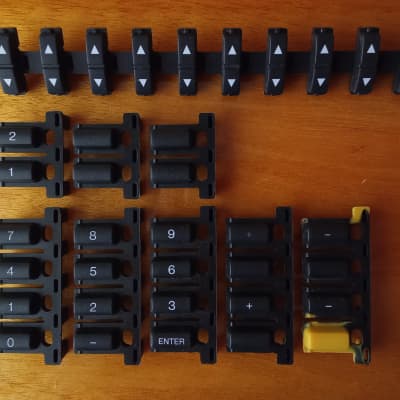

Yamaha Cs1x - Button set + Button assembly with arrows (for international shipments contact me)Yamaha Cs1x - Button set + Button assembly with arrows (for international shipments contact me) ($41.95)

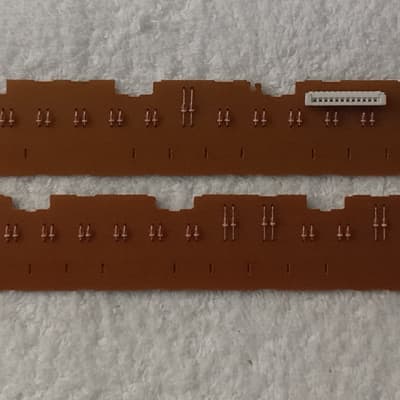

Yamaha Cs1x - Key contact boards (for international shipments contact me)Yamaha Cs1x - Key contact boards (for international shipments contact me) ($49.68)

Yamaha Cs1x - Pitch bend / Mod wheel assembly (for international shipments contact me)Yamaha Cs1x - Pitch bend / Mod wheel assembly (for international shipments contact me) ($33.12)

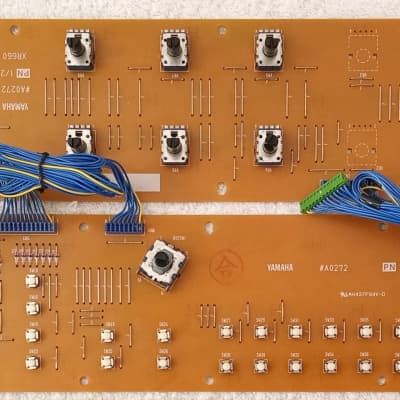

Yamaha Cs1X - Front panel board (for international shipments contact me)Yamaha Cs1X - Front panel board (for international shipments contact me) ($66.24)

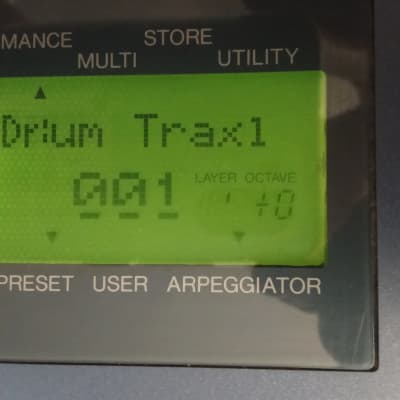

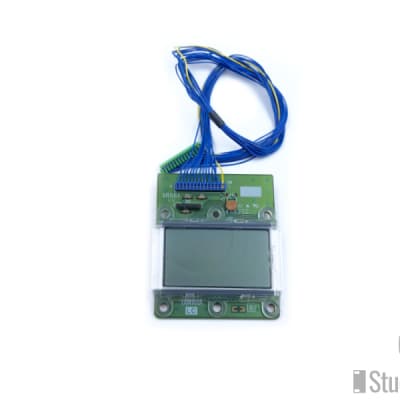

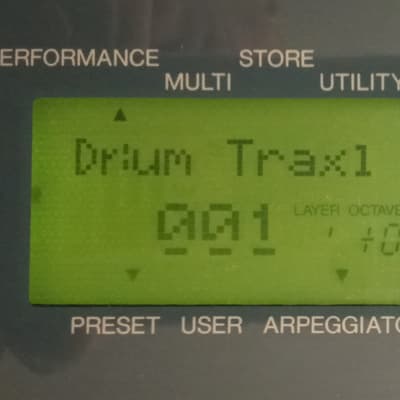

Yamaha  Cs1x - Display assembly (for international shipments contact me)Yamaha Cs1x - Display assembly (for international shipments contact me) ($38.64)

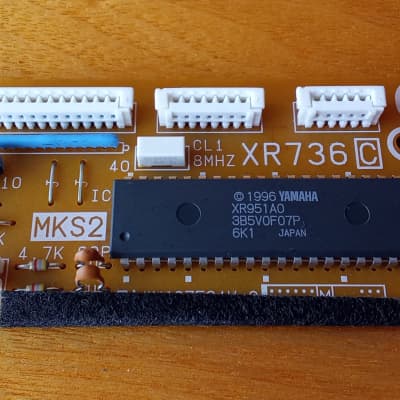

Yamaha Cs1X - Keyboard controller board (for international shipments contact me)Yamaha Cs1X - Keyboard controller board (for international shipments contact me) ($38.64)

5x Rotary knob for Yamaha An1x / Cs1x  (maybe they can be compatible with the Cs2x) -  (for international shipments contact me)5x Rotary knob for Yamaha An1x / Cs1x (maybe they can be compatible with the Cs2x) - (for international shipments contact me) ($52.99)

Goma de contacto 1p Yamaha para  CS1x, CS2x, EZ30, PSROR700 etc ( ver modelos en descripción) (ref:1603)Goma de contacto 1p Yamaha para CS1x, CS2x, EZ30, PSROR700 etc ( ver modelos en descripción) (ref:1603) ($3.31)

Goma de contacto 12p Yamaha para  CS1x, CS2x, EZ30, PSROR700 etc ( ver modelos en descripción) (ref:228)Goma de contacto 12p Yamaha para CS1x, CS2x, EZ30, PSROR700 etc ( ver modelos en descripción) (ref:228) ($6.61)

Tecla negra Yamaha para CS1X, CS2X, DJX2 (ver modelos en descripción)(ref:106)Tecla negra Yamaha para CS1X, CS2X, DJX2 (ver modelos en descripción)(ref:106) ($5.94)

Style 59U keys C-E-G-B group for various model: Yamaha CS1x / Cs2x / Psr225 / Psr 530 (for international shipments contact me)Style 59U keys C-E-G-B group for various model: Yamaha CS1x / Cs2x / Psr225 / Psr 530 (for international shipments contact me) ($14.35)

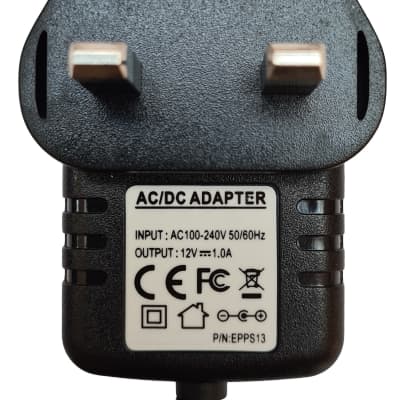

Power Supply Replacement for YAMAHA CS-1x SYNTH KEYBOARD ADAPTER UK 12VPower Supply Replacement for YAMAHA CS-1x SYNTH KEYBOARD ADAPTER UK 12V ($14.39)

NEW Yamaha Replacement D Key (Yamaha C61K6 Keybeds) (VL57010R/VA850100) for SY22/35/55, DX11, DS55, S30, AN1X & CS6X, V50, W7, YS200, Korg 707NEW Yamaha Replacement D Key (Yamaha C61K6 Keybeds) (VL57010R/VA850100) for SY22/35/55, DX11, DS55, S30, AN1X & CS6X, V50, W7, YS200, Korg 707 ($13.95)

NEW Yamaha Replacement C/F Key (Yamaha C61K6 Keybeds) (VL57000R/VA850000) for SY22/35/55, DX11, DS55, S30, AN1X & CS6X, V50, W7, YS200, Korg 707NEW Yamaha Replacement C/F Key (Yamaha C61K6 Keybeds) (VL57000R/VA850000) for SY22/35/55, DX11, DS55, S30, AN1X & CS6X, V50, W7, YS200, Korg 707 ($13.95)

NEW Yamaha Replacement TOP C’ Key (Yamaha C61K6 Keybeds) (VL7080J0/VA853800) for SY22/35/55, DX11, DS55, S30, AN1X & CS6X, V50, W7, YS200, Korg 707NEW Yamaha Replacement TOP C’ Key (Yamaha C61K6 Keybeds) (VL7080J0/VA853800) for SY22/35/55, DX11, DS55, S30, AN1X & CS6X, V50, W7, YS200, Korg 707 ($24.95)

NEW Yamaha Replacement E/B Key (Yamaha C61K6 Keybeds) (VL57020R/VA850200) for SY22/35/55, DX11, DS55, S30, AN1X & CS6X, V50, W7, YS200, Korg 707NEW Yamaha Replacement E/B Key (Yamaha C61K6 Keybeds) (VL57020R/VA850200) for SY22/35/55, DX11, DS55, S30, AN1X & CS6X, V50, W7, YS200, Korg 707 ($13.95)

YAMAHA Top-C Key for N1X, CS6X, EX7, SY55, SY22, SY35, S30, MO6, DX11, V50YAMAHA Top-C Key for N1X, CS6X, EX7, SY55, SY22, SY35, S30, MO6, DX11, V50 ($19.99)

NEW Yamaha Replacement A Key (Yamaha C61K6 Keybeds) (VL57040R/VA850400) for SY22/35/55, DX11, DS55, S30, AN1X & CS6X, V50, W7, YS200, Korg 707NEW Yamaha Replacement A Key (Yamaha C61K6 Keybeds) (VL57040R/VA850400) for SY22/35/55, DX11, DS55, S30, AN1X & CS6X, V50, W7, YS200, Korg 707 ($13.95)

NEW Yamaha Replacement G Key (Yamaha C61K6 Keybeds) (VL57030R/VA850300) for SY22/35/55, DX11, DS55, S30, AN1X & CS6X, V50, W7, YS200, Korg 707NEW Yamaha Replacement G Key (Yamaha C61K6 Keybeds) (VL57030R/VA850300) for SY22/35/55, DX11, DS55, S30, AN1X & CS6X, V50, W7, YS200, Korg 707 ($13.95)

NEW Yamaha Replacement Sharp/Black Key (Yamaha C61K6 Keybeds) (VL57060R/VA850500) for SY22/35/55, DX11, DS55, S30, AN1X & CS6X, V50, W7, YS200, Korg 707NEW Yamaha Replacement Sharp/Black Key (Yamaha C61K6 Keybeds) (VL57060R/VA850500) for SY22/35/55, DX11, DS55, S30, AN1X & CS6X, V50, W7, YS200, Korg 707 ($9.95)

YAMAHA AN1X, CS6X, EX7, SY55, SY22, SY35, S30, MO6, DX11, V50 Replacement KeyYAMAHA AN1X, CS6X, EX7, SY55, SY22, SY35, S30, MO6, DX11, V50 Replacement Key ($7.95)

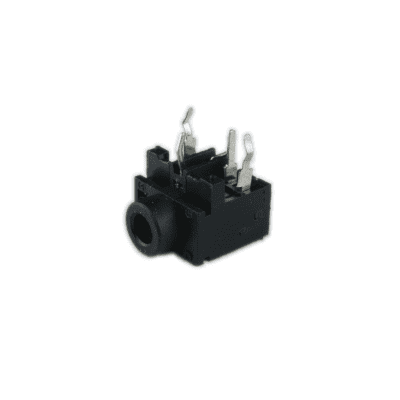

Yamaha - CS6X , VL1 , Motif XS6 , Tyros 4 , MO8 , DX7S , HD-200 , SY55 , W7 - Stereo phone jackYamaha - CS6X , VL1 , Motif XS6 , Tyros 4 , MO8 , DX7S , HD-200 , SY55 , W7 - Stereo phone jack ($6.35)
