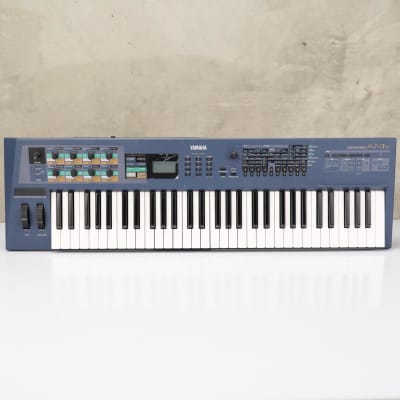

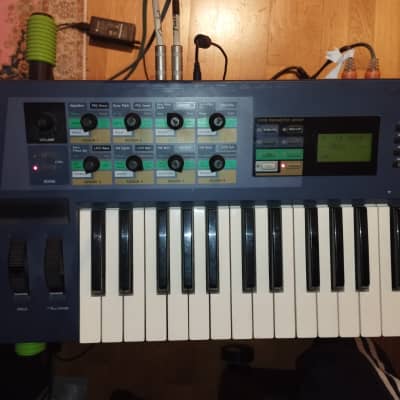

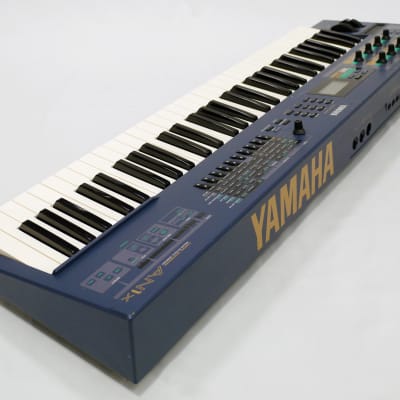

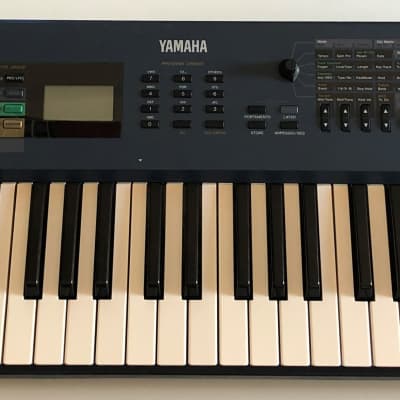

The AN1x was one of the earliest virtual analog modelling synthesizers, and certainly one of the most popular.

While the AN1x may share its case style with the Yamaha CS1x, it is a completely different machine. Its eight multi-function knobs and large array of function buttons can be daunting at first but they give an excellent level of control over a vast number of parameters. It has onboard effects, scene memories, an excellent arpeggiator, and a ribbon controller. Add this to the pulse width modulation, ring modulation, and oscillator syncing capabilities and you have a very expressive and tweakable machine.

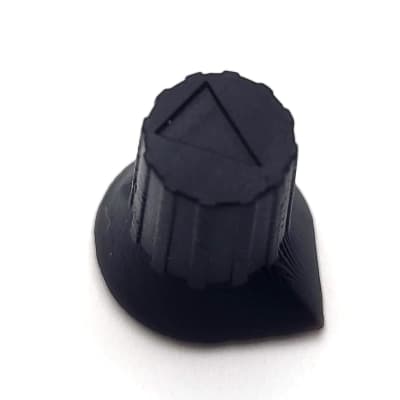

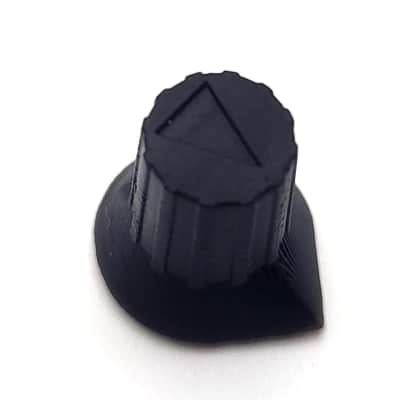

One common complaint with the AN1x is that it takes a long time to change patches. Waiting a second or two might not be much, but it can be annoying. The knob caps also tend to fall off, so it's not uncommon to find an AN1x with aftermarket replacement knobs (or no knobs at all).

It uses an external PA-3B power adapter.

Like its siblings, the AN1x does not have a built-in sequencer. It features a blank space with a tiny shelf that is meant to be paired with one of the Yamaha sequencers, such as the QY70 or QY100.

Specifications

Year Released: 1997

Keyboard: 61 keys with velocity and aftertouch

Polyphony: 10 notes

Multitimbral: 2 parts

User Patches: 128

Effects: variation x 14, delay x 5, reverb x 8, stereo 3-band EQ

Arpeggiator: 30 preset patterns

Screen: 15-character custom backlit LCD

Outputs: 2 x 1/4 inch outputs

Dimensions: 986 mm x 285 mm x 103 mm

Weight: 7.5 kg

Connections: MIDI in/out/thru, foot switch, foot controller, foot volume, 1/4 inch headphone jack.

User Demo Videos

Rating


4.7
(15 votes)

Sound Samples

WAV samples are available on freewavesamples.com.

File Downloads

Yamaha AN1x Data List

Yamaha AN1x Manual

Items for Sale on Reverb

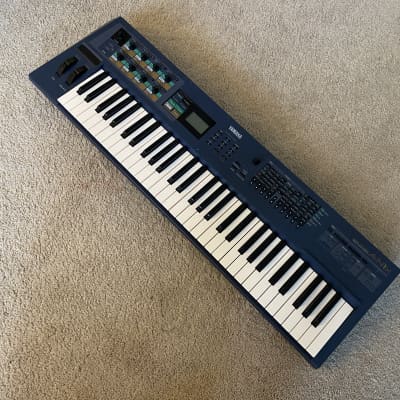

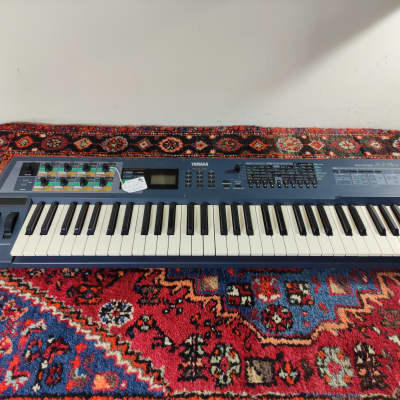

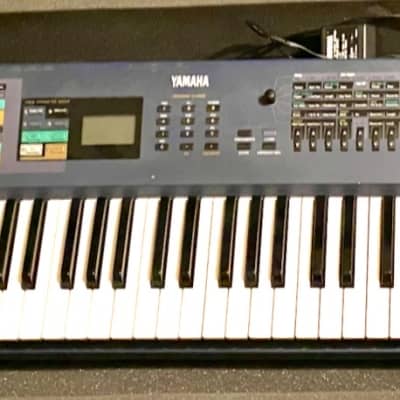

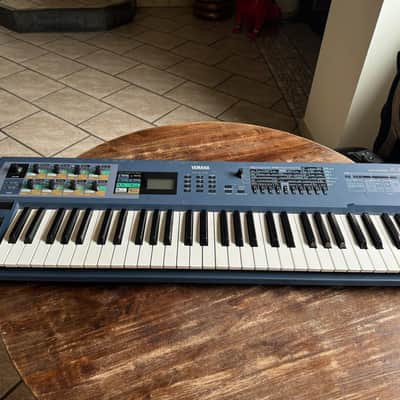

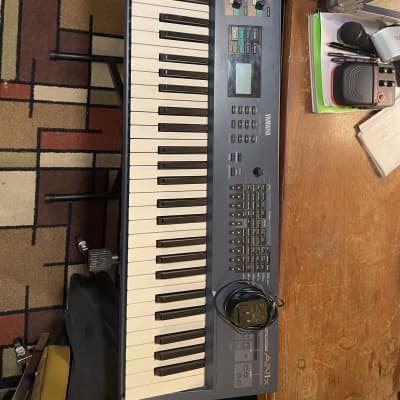

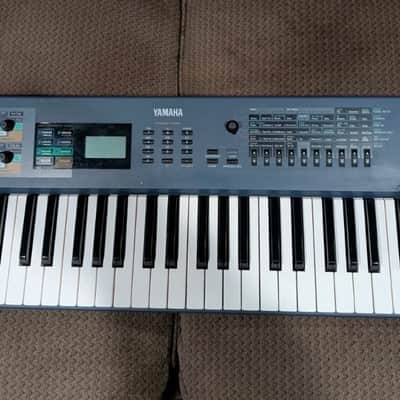

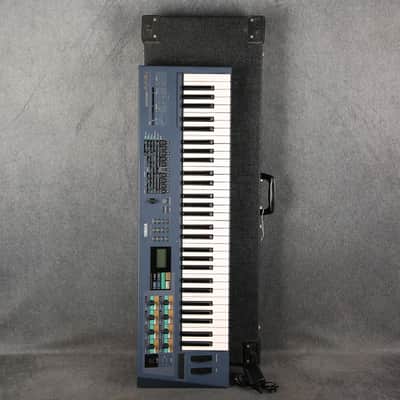

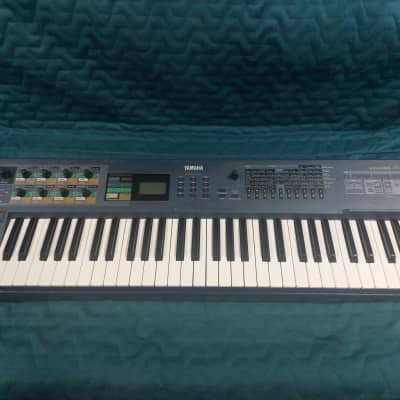

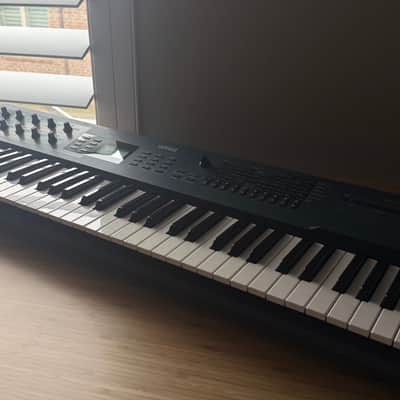

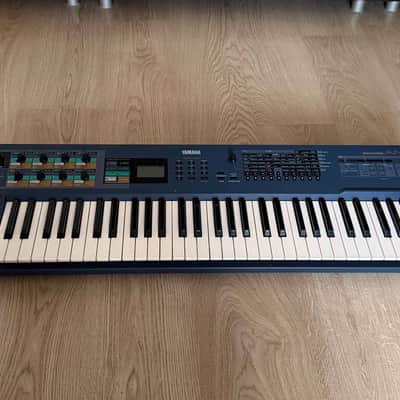

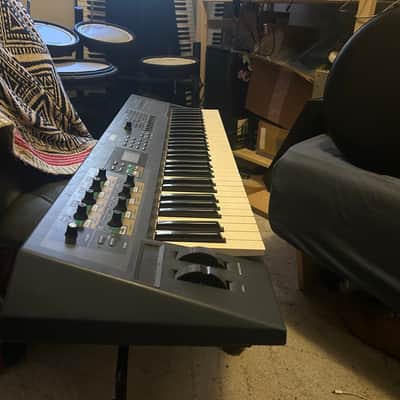

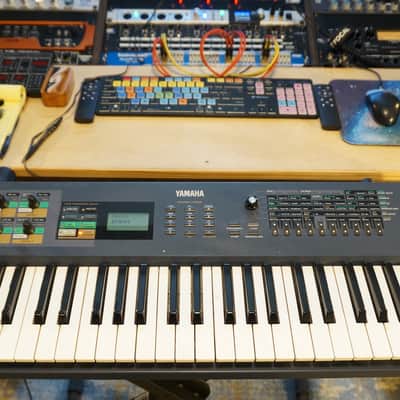

Yamaha AN1x Virtual Analog Synthesizer 1997 - BlueYamaha AN1x Virtual Analog Synthesizer 1997 - Blue ($900)

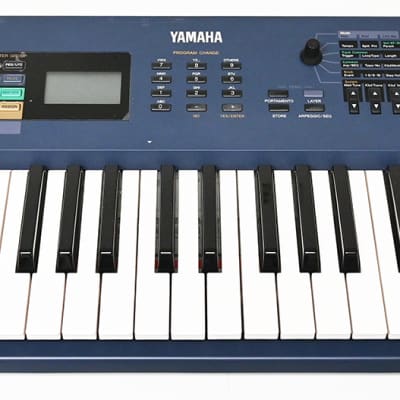

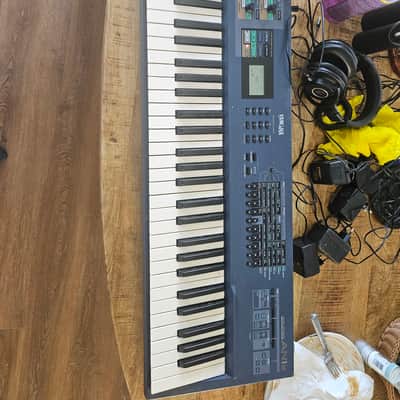

Yamaha AN1x Virtual Analog Synthesizer 1997 - BlueYamaha AN1x Virtual Analog Synthesizer 1997 - Blue ($667.15)

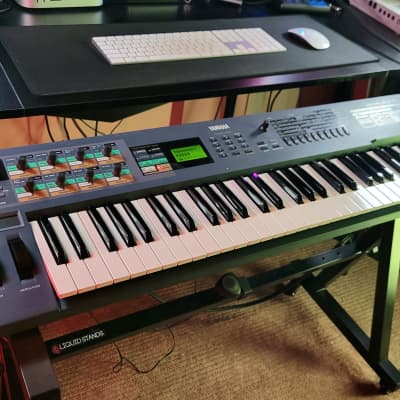

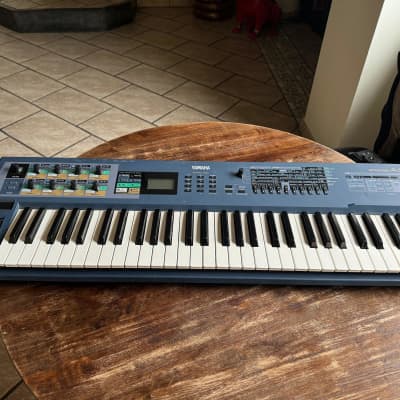

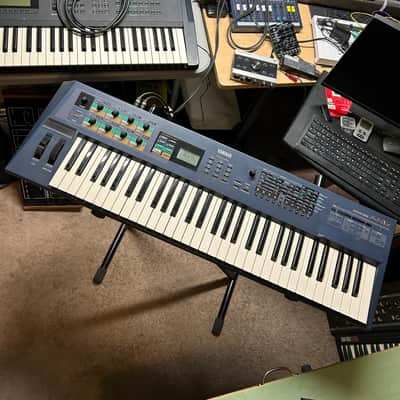

Yamaha AN1x Virtual Analog Synthesizer ✅ Original Manuals, Software and over 700 PRESETS!!✅ RARE from ´90s✅ Professional Synthesizer/ Keyboard ✅ Cleaned & Full CheckedYamaha AN1x Virtual Analog Synthesizer ✅ Original Manuals, Software and over 700 PRESETS!!✅ RARE from ´90s✅ Professional Synthesizer/ Keyboard ✅ Cleaned & Full Checked ($1,229.43)

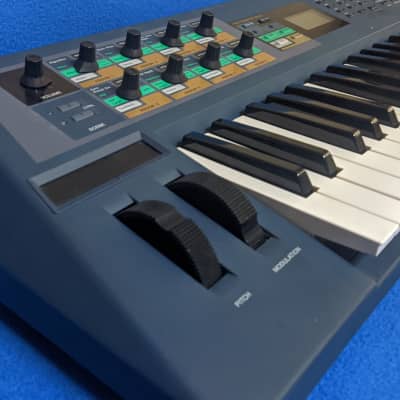

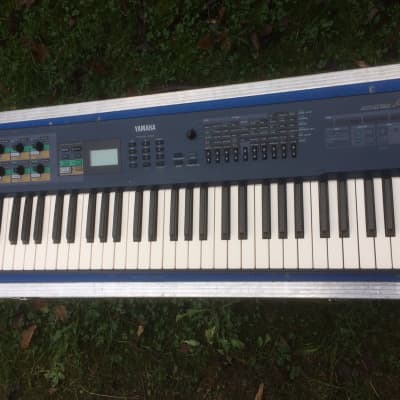

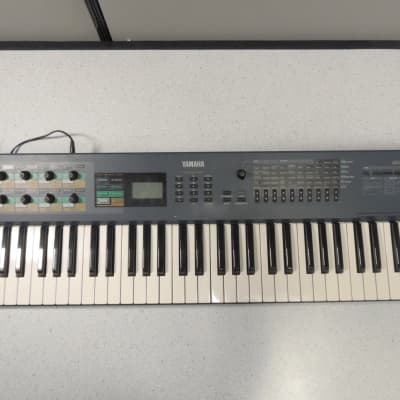

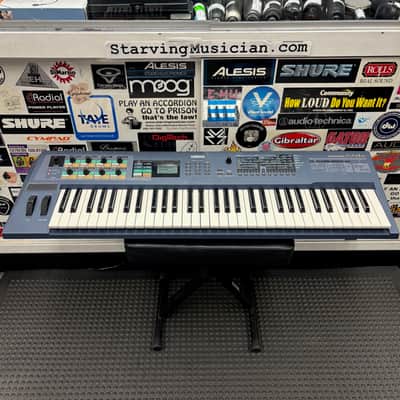

Yamaha AN1xYamaha AN1x ($989.14)

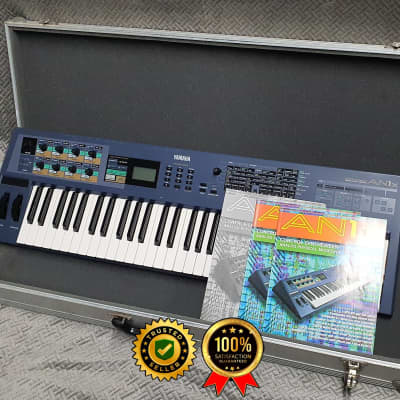

Yamaha AN1x ✅ RARE Vintage Synthesizer ✅ CHECKED✅ OVER 700 SOUNDS and Software ✅ Secure PackagingYamaha AN1x ✅ RARE Vintage Synthesizer ✅ CHECKED✅ OVER 700 SOUNDS and Software ✅ Secure Packaging ($1,441.79)

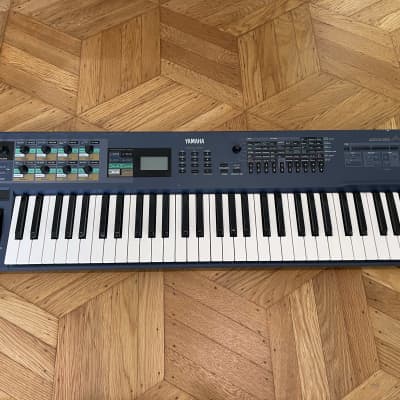

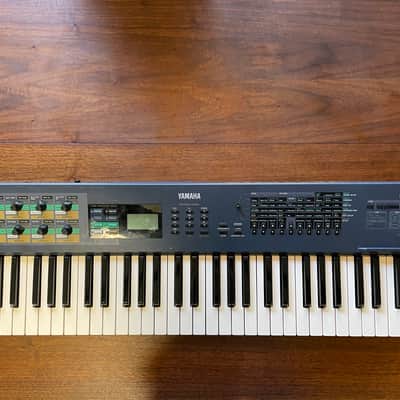

Yamaha AN1x Virtual Analog Synthesizer 1997 - BlueYamaha AN1x Virtual Analog Synthesizer 1997 - Blue ($700)

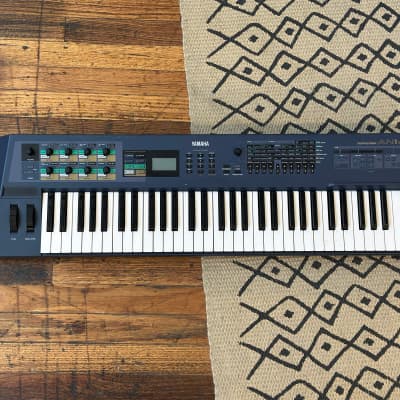

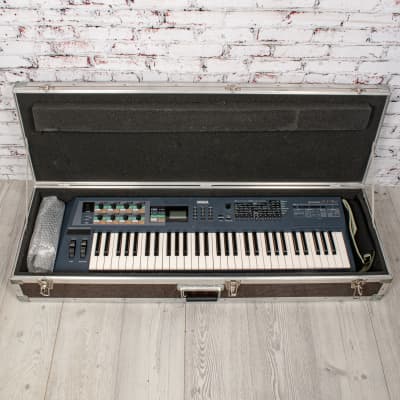

Yamaha AN1x Virtual Analog Synthesizer 1997 - Blue (Warranty / Boxed)Yamaha AN1x Virtual Analog Synthesizer 1997 - Blue (Warranty / Boxed) ($1,004.78)

Yamaha AN1x Virtual Analog Synthesizer 1997 - BlueYamaha AN1x Virtual Analog Synthesizer 1997 - Blue ($850.29)

Yamaha AN1x Virtual Analog Synthesizer 1997 - BlueYamaha AN1x Virtual Analog Synthesizer 1997 - Blue ($650)

Yamaha - AN1X , CS1X/2X/6X , EX5/7 , Motif XF6/XS6 ,S08/70XS/90XS - Power switchYamaha - AN1X , CS1X/2X/6X , EX5/7 , Motif XF6/XS6 ,S08/70XS/90XS - Power switch ($9.90)

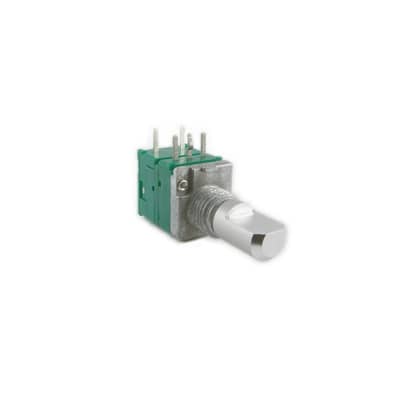

Yamaha - AN1X - Rotary potentiometerYamaha - AN1X - Rotary potentiometer ($16.99)

Yamaha - AN1x , Motif 6/7/8 , QY300 , QY700 sequencer - Memory BatteryYamaha - AN1x , Motif 6/7/8 , QY300 , QY700 sequencer - Memory Battery ($4.20)

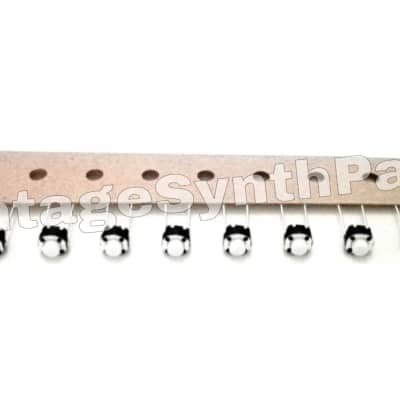

10 x  Front panel pushbutton tact switch for Yamaha An1x10 x Front panel pushbutton tact switch for Yamaha An1x ($6.99)

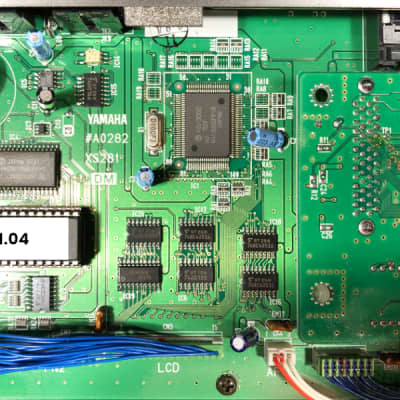

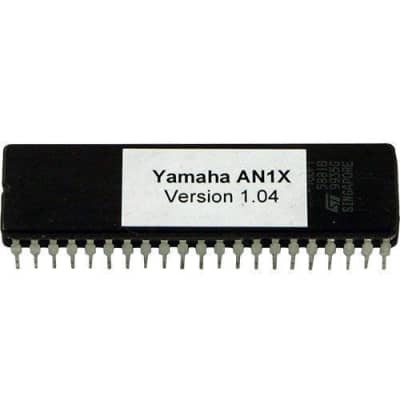

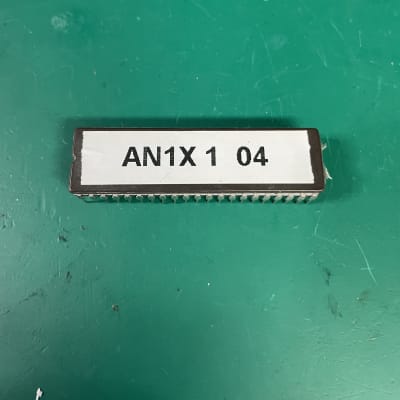

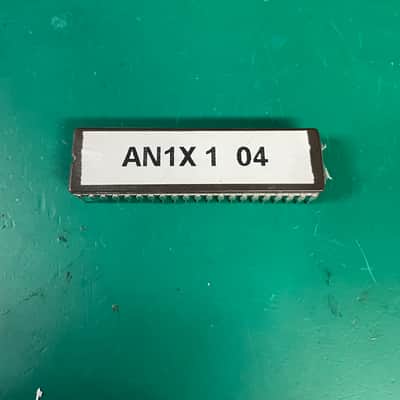

Yamaha AN1X V1.04 OS EPROM! NEW!Yamaha AN1X V1.04 OS EPROM! NEW! ($18.99)

Yamaha AN1x EPROM with latest OS Firmware 1.04 Update Upgrade AN-1x RomYamaha AN1x EPROM with latest OS Firmware 1.04 Update Upgrade AN-1x Rom ($16.77)

ORIGINAL Yamaha Replacement Keyspring (VC077600) for SY22/35/55, DX11, AN1xORIGINAL Yamaha Replacement Keyspring (VC077600) for SY22/35/55, DX11, AN1x ($1.50)

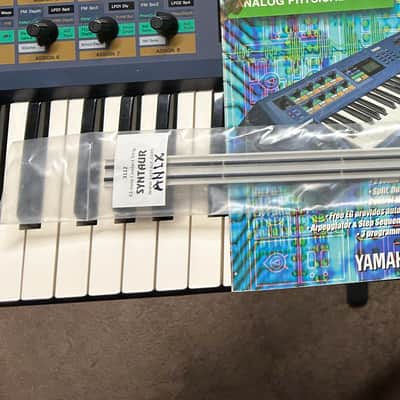

YAMAHA Rubber 61-Key Contact Strip for AN1X, CS6X, EX7, SY55, S30, MO6, DX-11...YAMAHA Rubber 61-Key Contact Strip for AN1X, CS6X, EX7, SY55, S30, MO6, DX-11... ($24.95)

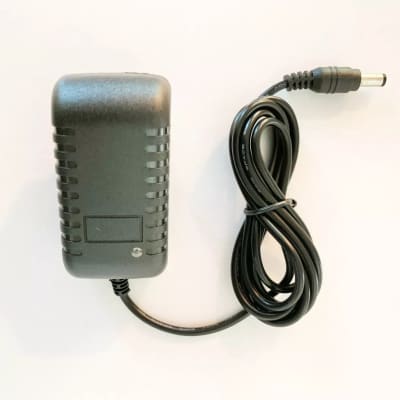

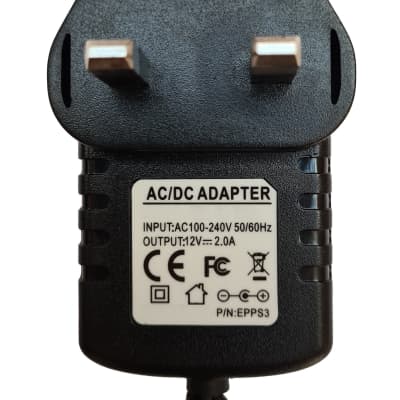

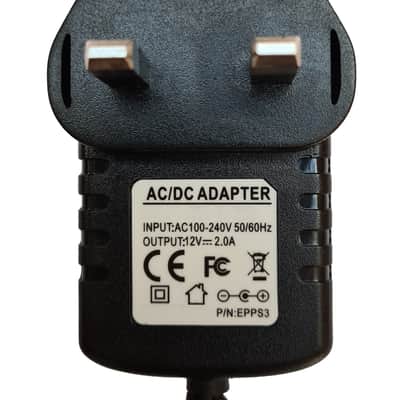

Power Supply Replacement for YAMAHA AN-1X SYNTH ADAPTER UK 12V KEYBOARDPower Supply Replacement for YAMAHA AN-1X SYNTH ADAPTER UK 12V KEYBOARD ($14.17)

Yamaha PLG 150-AN | ANALOG PHYSICAL MODELLING - AN1X | RARE !Yamaha PLG 150-AN | ANALOG PHYSICAL MODELLING - AN1X | RARE ! ($557.72)

YAMAHA PLG150-AN Modular Synthesis Plug-In System Board AN1x AN200YAMAHA PLG150-AN Modular Synthesis Plug-In System Board AN1x AN200 ($329.99)

Yamaha PLG150-AN AN1X Expansion Board // for Motif/Rack, MotifES, RackES, S90, S80, S30 CS6X/R, MU-modelsYamaha PLG150-AN AN1X Expansion Board // for Motif/Rack, MotifES, RackES, S90, S80, S30 CS6X/R, MU-models ($502.95)

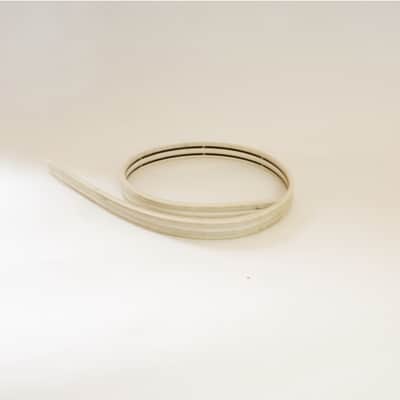

Yamaha- V50 , MO6 ,  AN1X , YPR-9 , S30 , CS6X - Rubber contact stripYamaha- V50 , MO6 , AN1X , YPR-9 , S30 , CS6X - Rubber contact strip ($29)

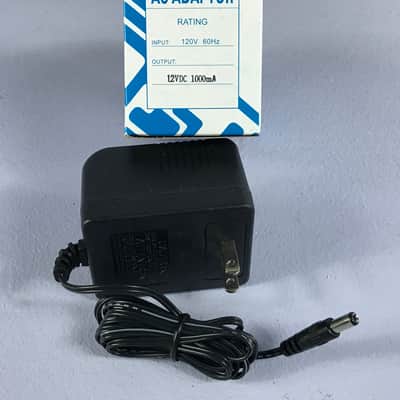

12 Volt Yamaha AN1x MOFX6 MOXF 8  AN1X 1000mA 1Amp  AC Adapter Power Supply12 Volt Yamaha AN1x MOFX6 MOXF 8 AN1X 1000mA 1Amp AC Adapter Power Supply ($32.95)
