The DW-8000 is a hybrid synthesizer that uses digital single-cycle waveforms along with analog amplifier and filter circuitry. Korg called this the Digital Waveform Generator System (or DWGS). It was released during the years of transition from analog to digital synthesizers and sits firmly in the space between. Other hybrid synthesizers of the era are the Kawai K3 and the Ensoniq ESQ-1.

The DW-8000 is also available in rackmount form as the Korg EX-8000. The DW-6000 is a lower-end version with less polyphony. An optional MEX8000 expansion was available and it provided extra four banks of 64 patch memories.

The arpeggiator can be synchronized to an external MIDI clock, but doing so will disable it when no clock signal is present. If the arpeggiator is not working, check parameter 87 and make sure it's set to 1, 2, or 3.

To check your firmware revision, hold down the 1 and 2 buttons while turning on the power. The last value section of the display will indicate the firmware version. Version 12 is the most recent and fixes a problem with stuck notes. However, an old DW-8000 may also suffer stuck note and mistriggering problems if it has dirty contacts and a good internal cleaning should help with that.

The DW-8000 uses a 3v CR2032 lithium battery for its memory backup. This battery is soldered to one of the circuit boards and is difficult to replace. When replacing the battery, it's a good idea to replace it with a battery holder to make future changes easier.

Unlike most synthesizers of the era, it uses a 2-prong C9-type electrical cord instead of a standard 3-prong IEC computer power cord.

Patches can be loaded and saved via tape. You can also play .wav files on your computer and connect your headphone output to the tape input of the DW-8000 to load patches. The factory preload patch banks are available below. Do not listen to them directly, they are not intended for Human ears.

Specifications

Year Released: 1985

MSRP: 1295.00 USD

Keyboard: 61 keys with velocity and aftertouch

Polyphony: 8 notes

Multitimbral: 1 parts

User Patches: 64

Effects: digital delay with 2-512 millisecond range

Arpeggiator: 64-note arpeggiator

Oscillator: 16 DWGS oscillator waveforms

Power Consumption: 31 watts

Dimensions: 998 mm x 338 mm x 101 mm

Weight: 10.9 kg

MIDI Connections: in, out, thru

User Demo Videos

Rating

Sound Samples

WAV samples are available on freewavesamples.com.

File Downloads

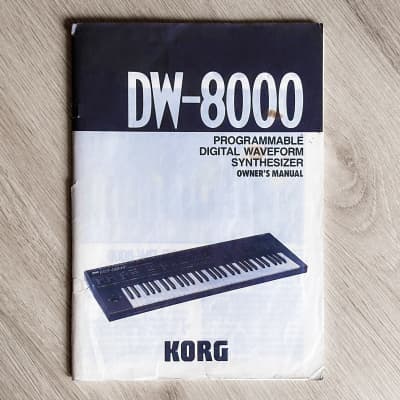

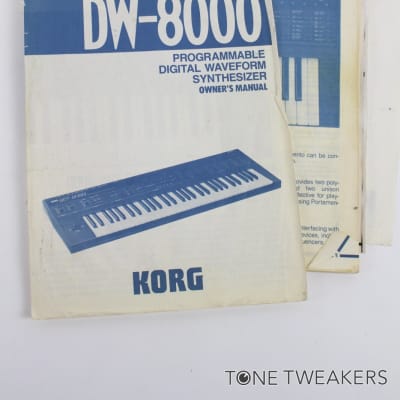

Korg DW-8000 Manual

Korg DW-8000 Service Manual

Korg DW-8000 Preload A Tape Dump

Korg DW-8000 Preload B Tape Dump

Items for Sale on Reverb

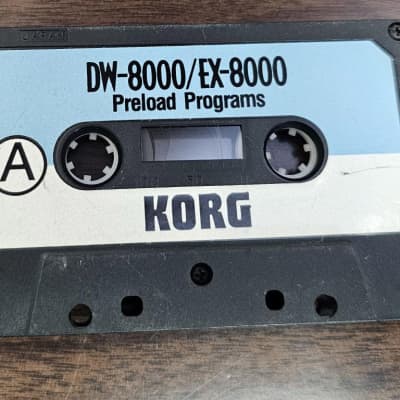

Korg KORG DW-8000 EX-8000 PreLoad Programs Cassette Tape ($49.95)

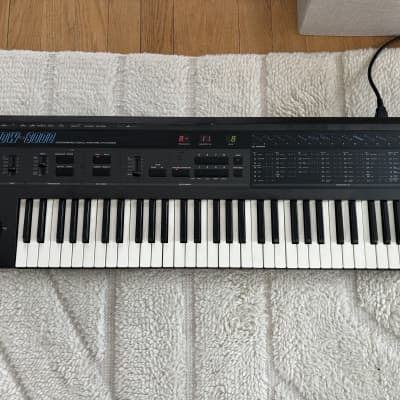

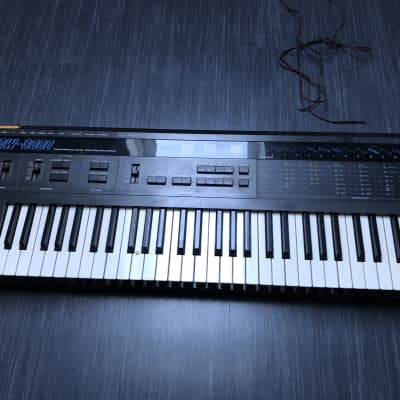

Korg DW-8000 1985 ($775)

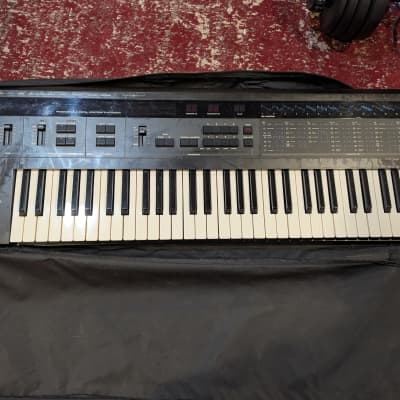

KORG DW-8000 Programmable Digital/Analog Waveform Synthesizer w/ ARPEGGIATOR and Soft Case Studio Use Only! ($450)

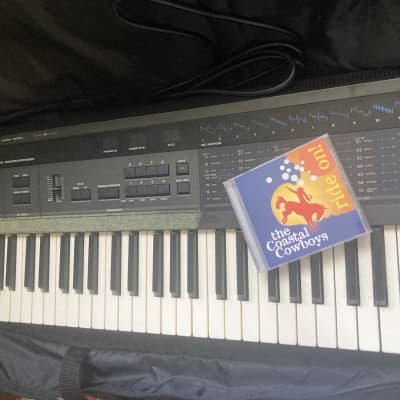

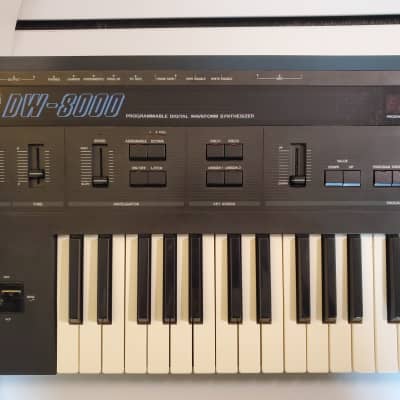

Korg DW-8000 Synthesizer ($550)

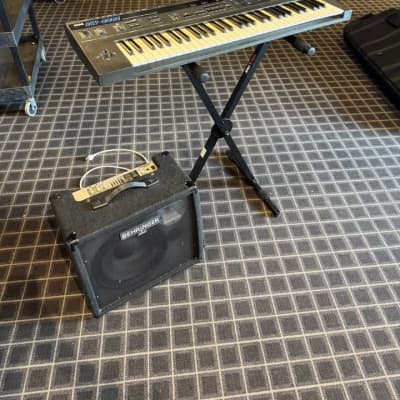

Korg DW-8000 1980s Digital Analog Synthesizer Keyboard midi VINTAGE SYNTH DEALER ($951.98)

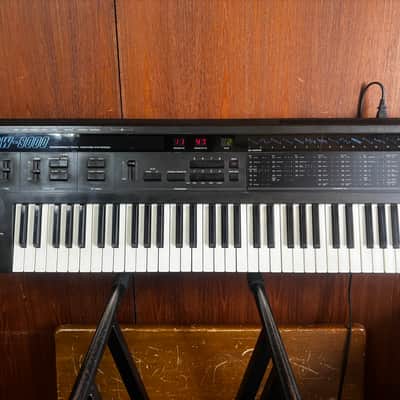

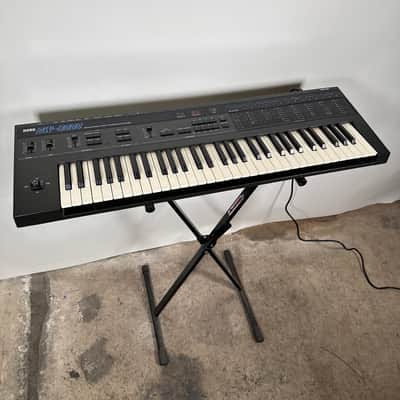

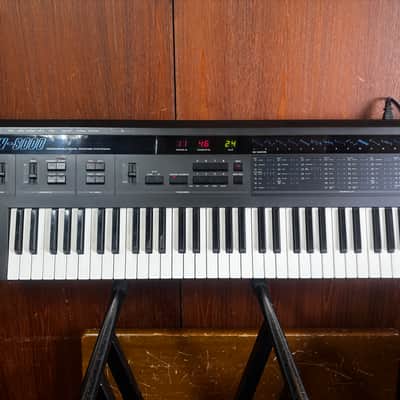

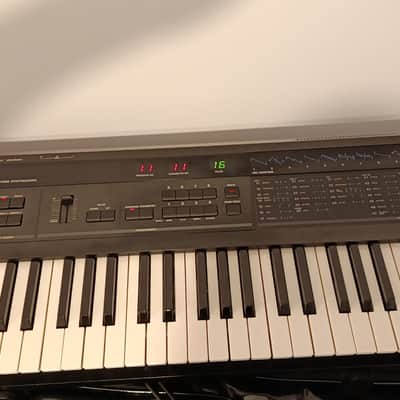

Korg DW-8000 Programmable Digital Waveform Synthesizer DWGS w/ bag New battery! ($750)

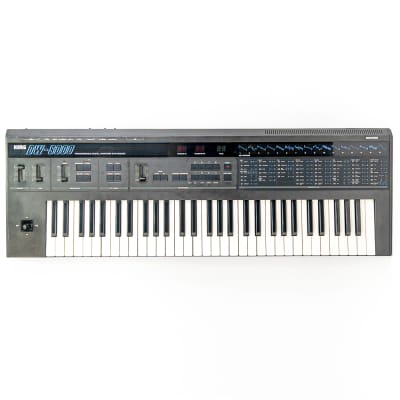

KORG DW-8000 SYNTHESIZER 1985 WITH EXTRAS (#2) ($660)

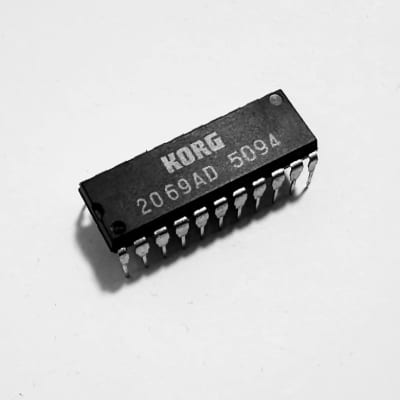

KORG 2069AD VCF / VCA Chip for Poly-800, DW-6000, DW-8000, DSS-1. Works Great ! ($9.95)

Korg - DW-6000 , DW-8000 , EX-8000 - Replacement Power Switc ($4.50)

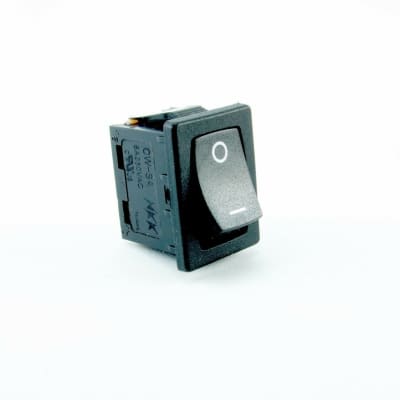

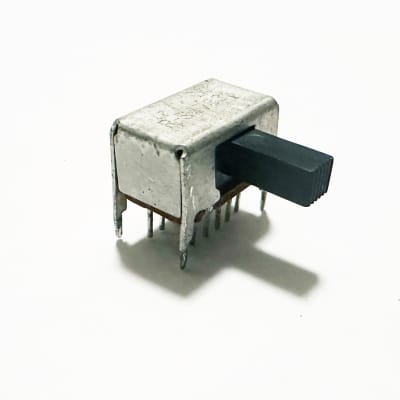

Original 2-Way On/Off Switch for KORG Poly-61, Poly-800, DW-8000, DW-6000, DSS-1 Works Great !... ($19.95)

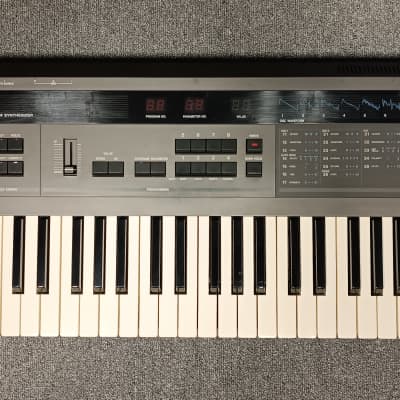

Korg DW 8000 61 Key Synthesizer ($449.99)

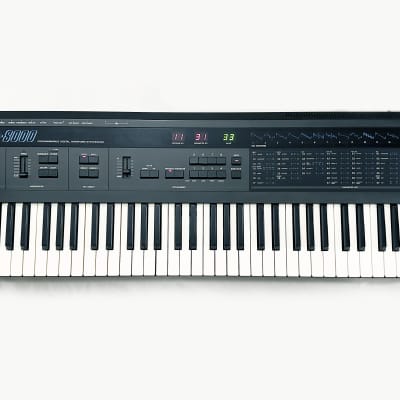

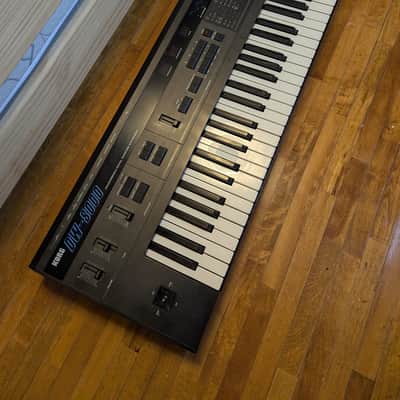

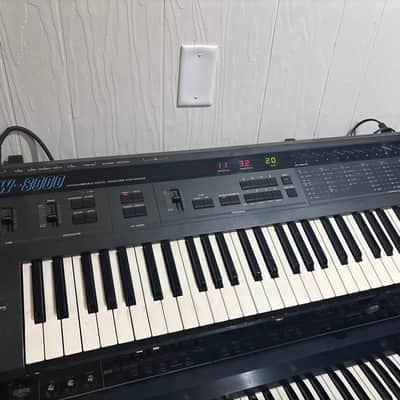

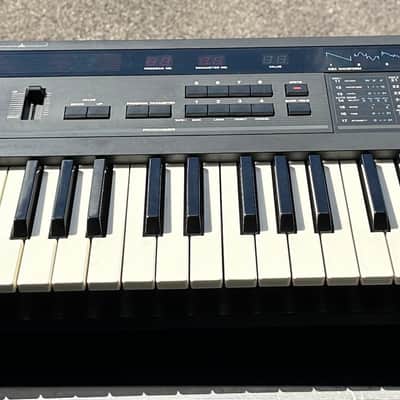

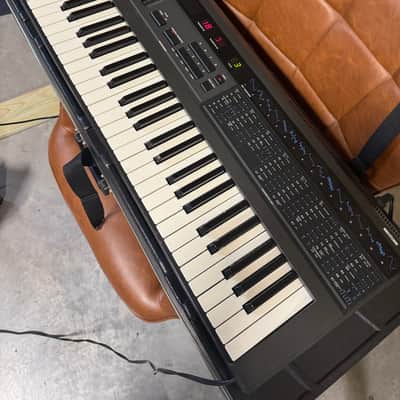

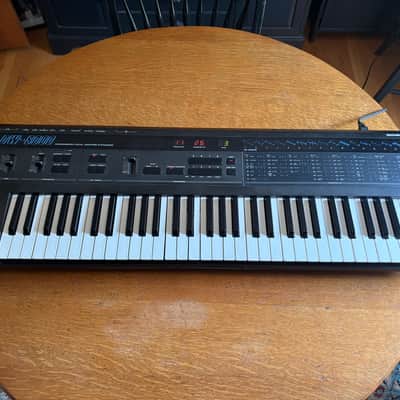

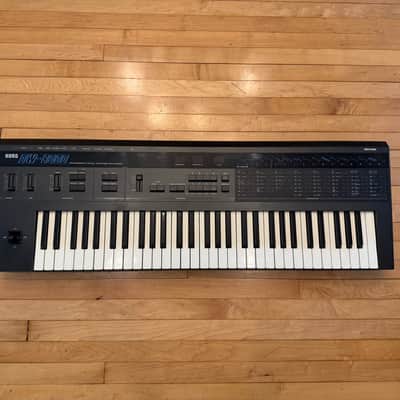

Korg DW 8000 1985 - 1987 - Black ($362.88)

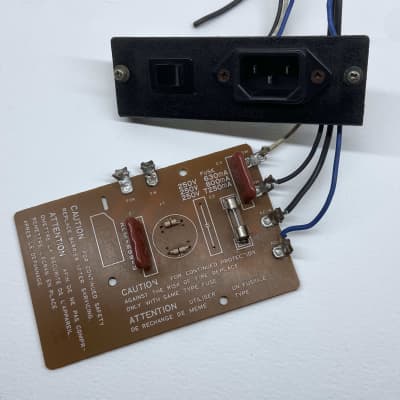

Korg DW 8000 - KLM-659 C - Fuse Board w/ IEC Inlet Power Connector & Switch ($87)

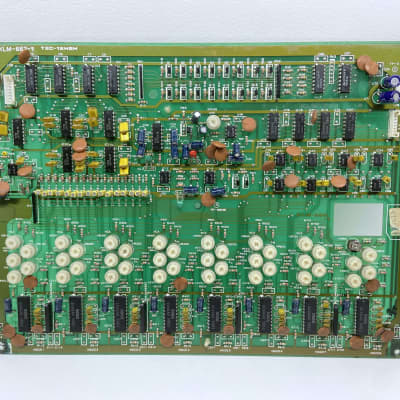

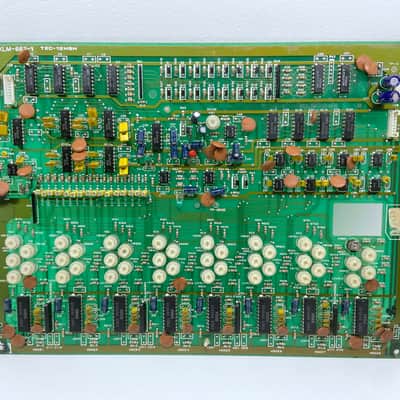

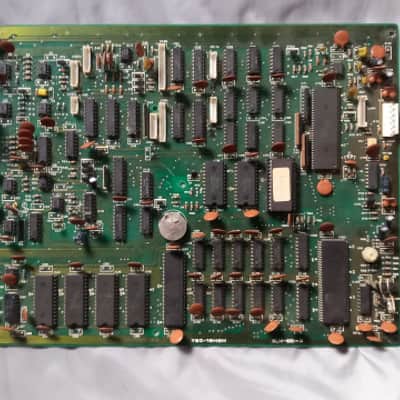

Korg DW 8000 - Main Board - KLM-662-1 ($195)

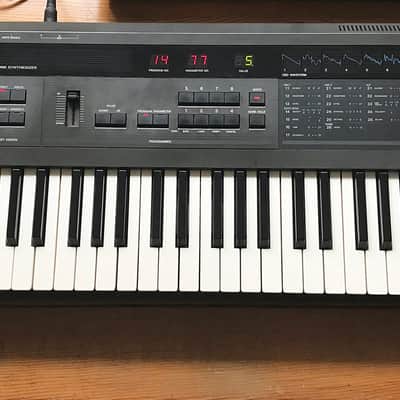

Korg DW 8000 1985 - 1987 - Black 80s ($611.17)

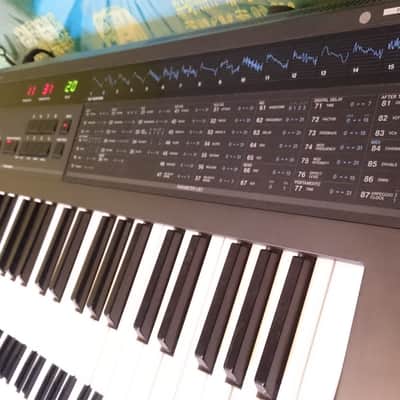

Korg DW 8000 ($650)

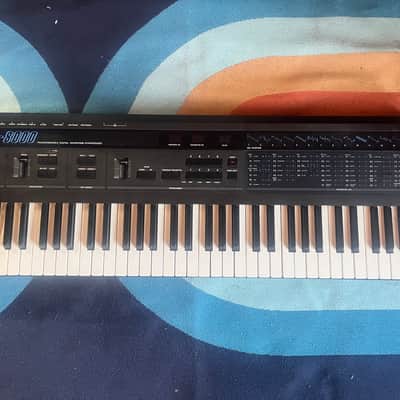

Korg DW 8000 1985 - 1987 - Black ($616.90)

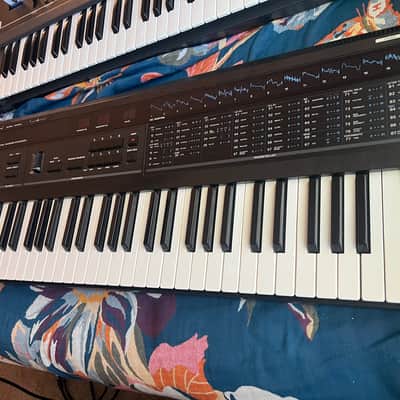

Korg DW 8000 1985 - 1987 - Black ($1,090.79)

Korg DW 8000 Vintage Synth — Serviced ($857.93)

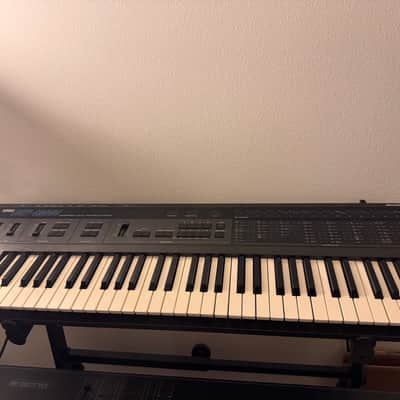

Korg DW 8000 1985 - 1987 - Black ($500)

Korg DW 8000 ($400)

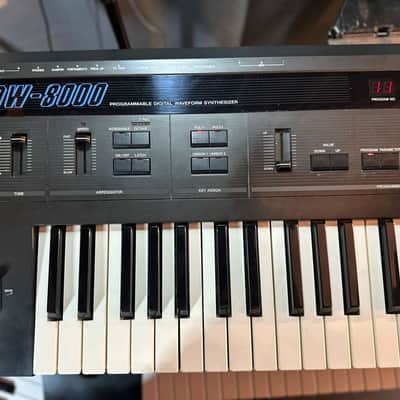

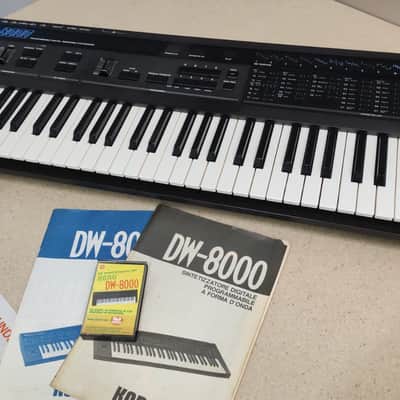

Korg DW 8000 1985 - 1987 - Black | Flight Case | Full SERVICED ($1,212.01)

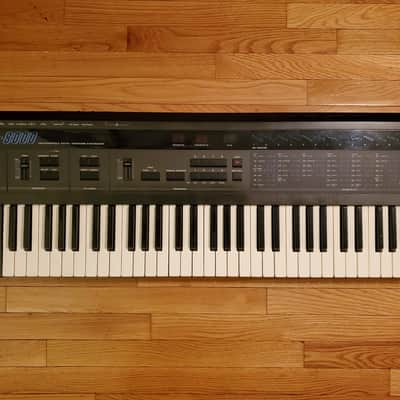

Korg DW 8000 Digital Analog Hybrid Synthesizer ($499)

Korg DW 8000 1985 - 1987 - Black ($300)

Korg DW 8000 1985 ($600)

Korg DW 8000 Synthesizer ($1,000)

Korg DW 8000 1985 - 1987 - Black ($1,066.39)

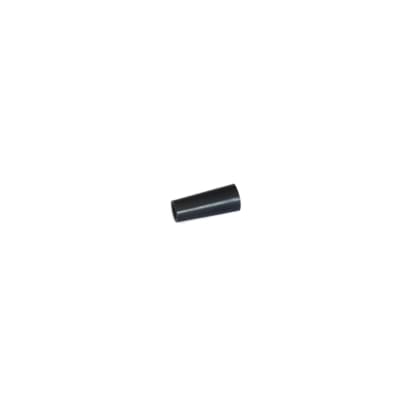

Korg - DSS-1 , Poly-800 , DS-8 , DW-6000 , DW-8000 - Replacement joystick knob ($3.99)

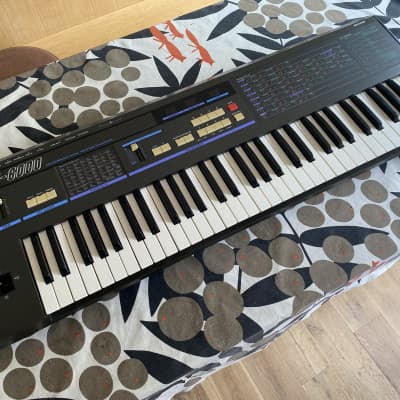

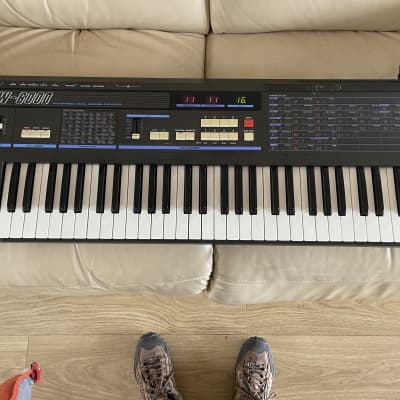

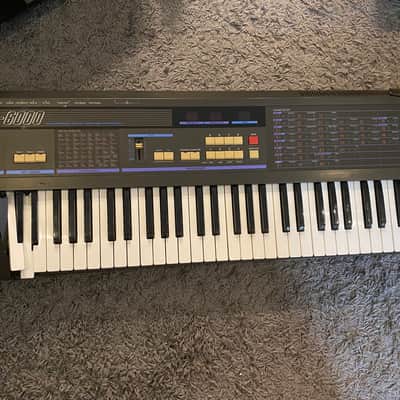

Korg DW-6000 synth 1985 - 1987 ($561.63)

Korg DW 8000 ($735.37)

Korg DW 8000 1985 - Black ($845.67)

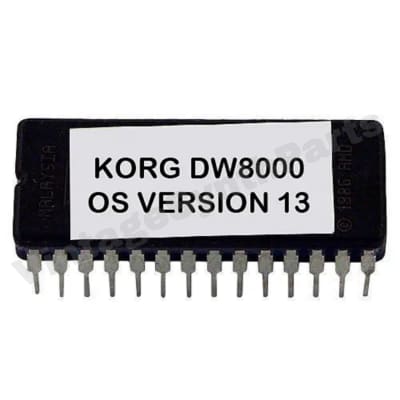

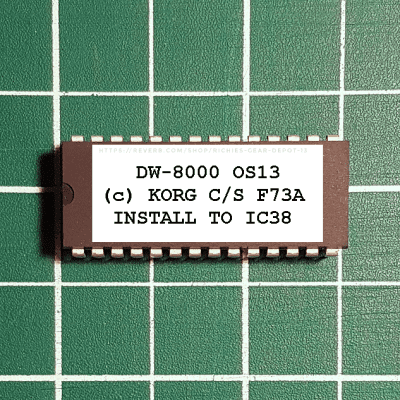

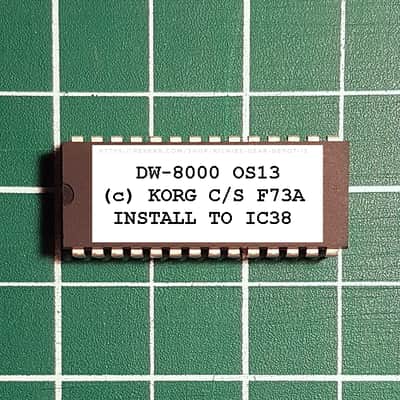

Korg DW-8000 OS 13 Final EPROM Firmware Upgrade Kit ($19.95)

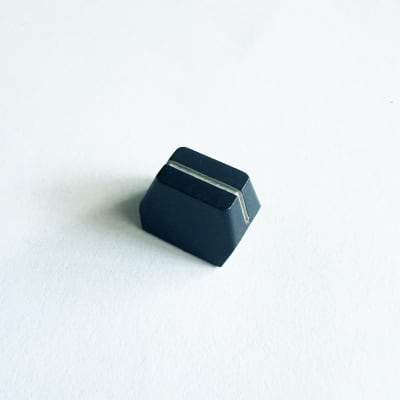

Korg DW-8000 Original Slider Knob/Cap ($9.99)

Korg - DW-8000 - Complete set of 22 panel switches - NEW ($17.90)

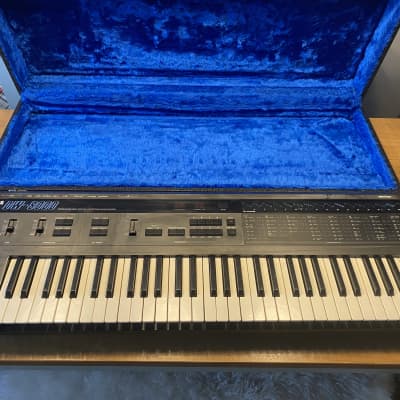

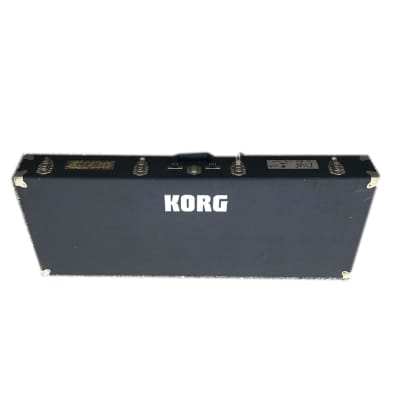

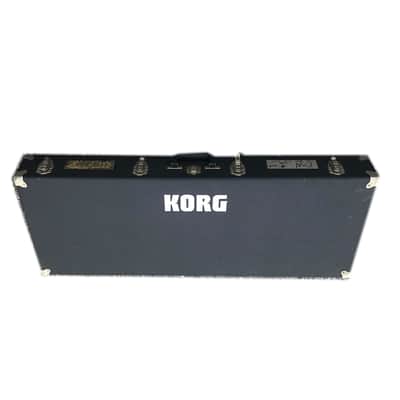

Vintage '80s Korg DW-8000 Hard Shell Synth Case ($299)

Korg DW8000 with EMW Patch Synthesizer and extended User Manual/Tutorial ($590)

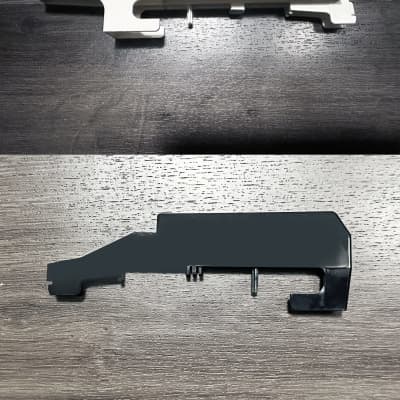

KORG DW-8000, DSS-1 Synthesizer Original Keyboard Key ($6.95)

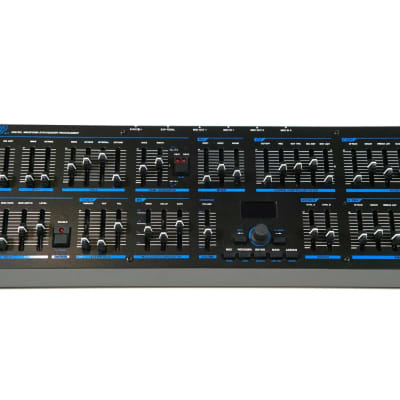

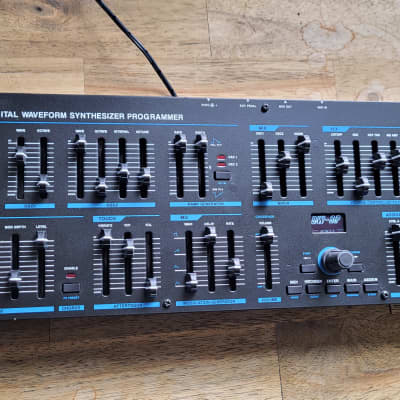

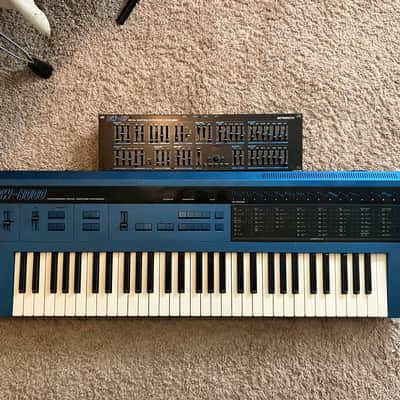

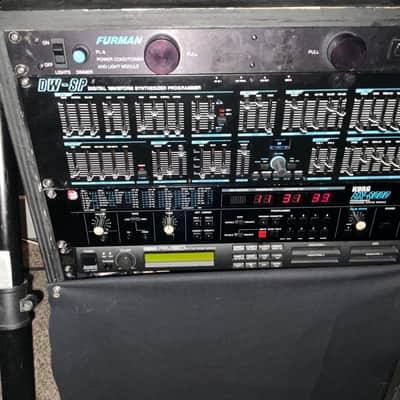

Korg EX-8000 with DW-8P programmer ($1,190)

Roland/Korg 2-Prong Power Cord for Juno-106, HS-60, MKS-30/50/70, JX-8P/10, Korg DW-6000/8000, EX-8000, and more ($9.95)

Korg DW 8000 + Korg Mex 8000 memory Expansion For Dw 8000 ($800)

Korg - DW Series , EX-8000 - New Slide potentiometer for Volume ($8.52)

Korg - DW Series , EX-8000 - New Slide potentiometer for Volume ($15.90)

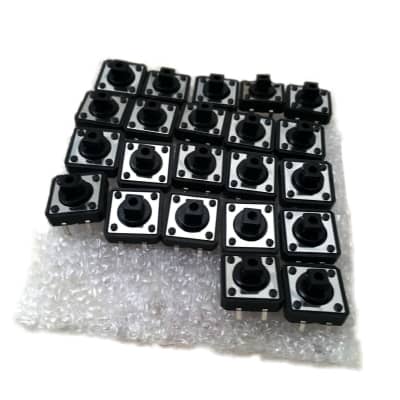

Korg Dw8000 Tact Switches Full Set of 22 for Dw-8000 Panel Buttons Switch Parts Repair ($21.45)

Korg DW-8000 Version 13 firmware latest OS update upgrade EPROM - DW8000 Rom ($17.10)

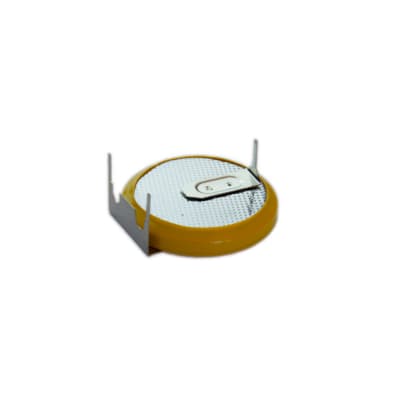

Korg - DS-8, N264, DW-6000/8000 , Trinity, DVP-1, DDD-1 - Battery ($9.90)

Korg DW8000 ($790)

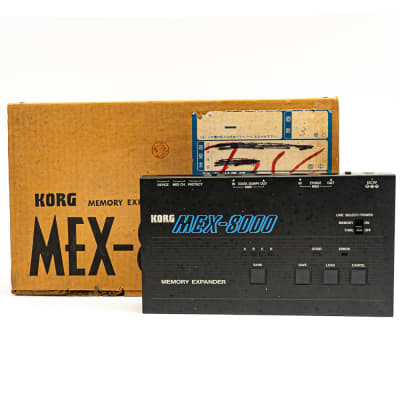

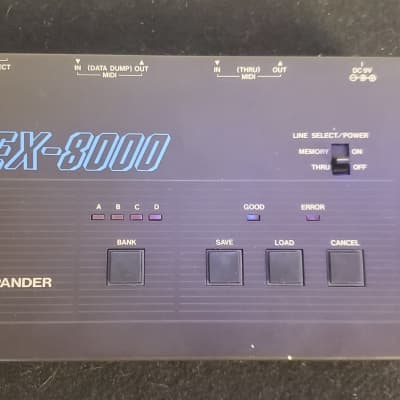

Korg MEX-8000 ($250)

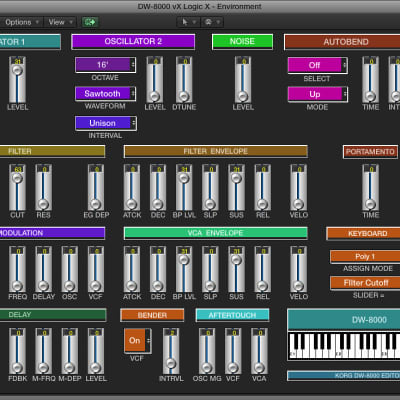

Virtual editor / programmer - KORG DW-8000 / EX-8000 - LOGIC v4 - X ($24.99)

Korg MEX-8000 Memory Expander – DW-8000, EX-8000, Poly-800 MkII Compatible ($299.99)

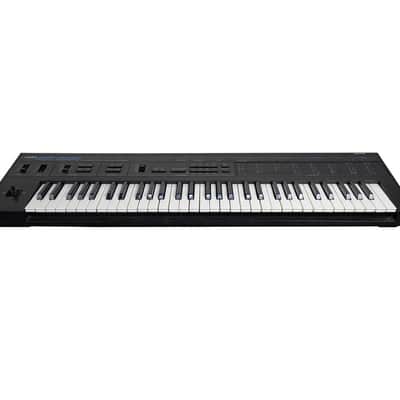

Pre-Owned Korg Vintage DW8000 Synthesizer | Used ($1,020)
