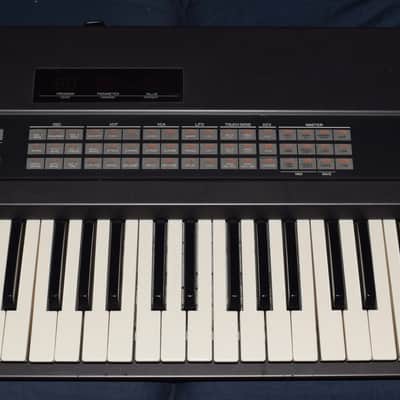

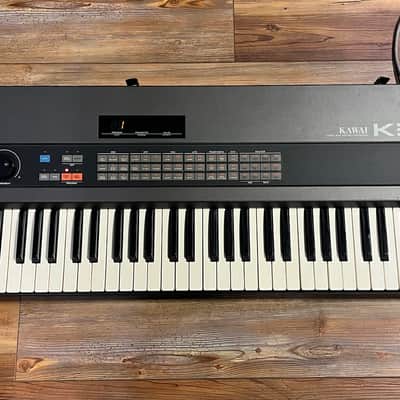

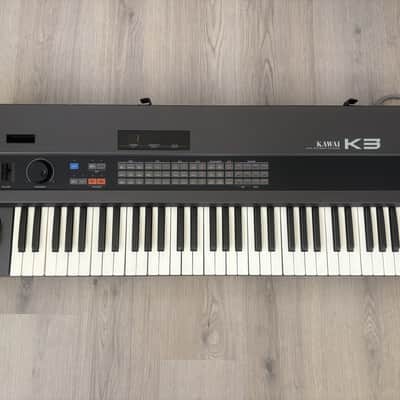

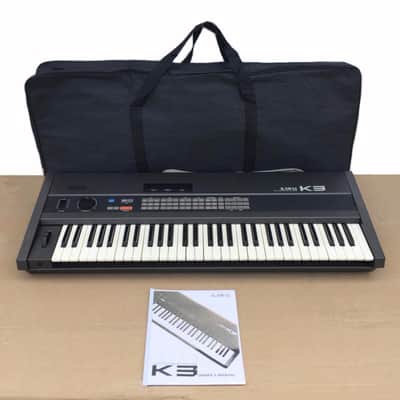

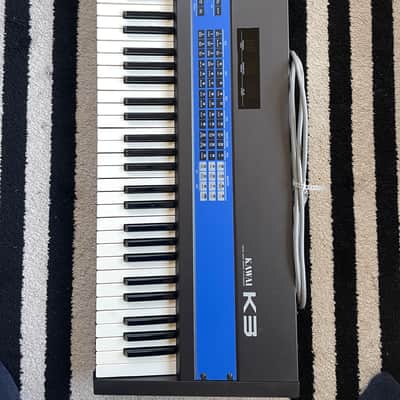

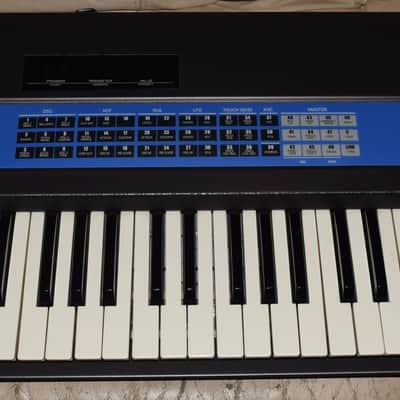

The Kawai K3 is a hybrid synthesizer with two digital oscillators and analog filters. Its architecture and sound is similar to other hybrid synthesizers that it competed with, the Ensoniq ESQ-1 and the Korg DW-8000.

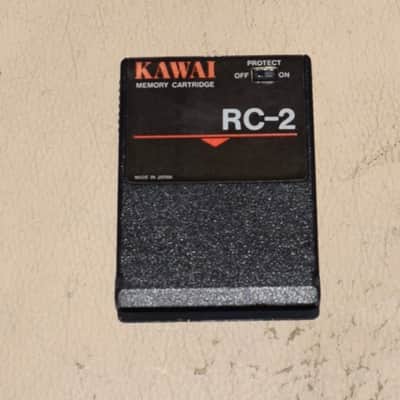

The K3 has a selection of 31 waveforms available plus one user-defined waveform that is built using additive synthesis with 32 harmonics that can be set at a level from 0 to 31. A second user-defined waveform can be stored on a memory cartridge. Kawai later created the K5, a synthesizer based entirely on additive synthesis.

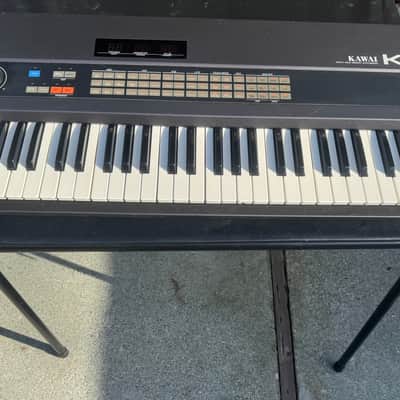

It uses SSM2044 chips for its filters.

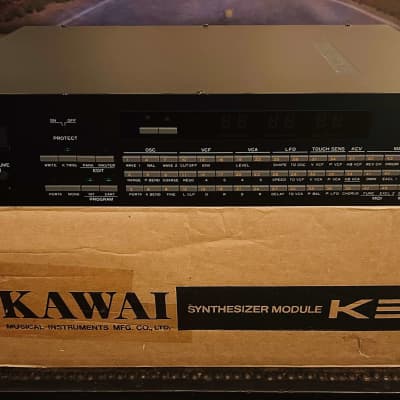

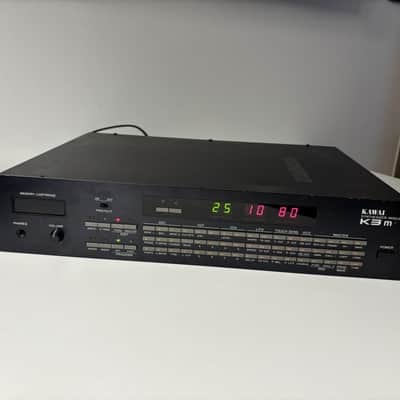

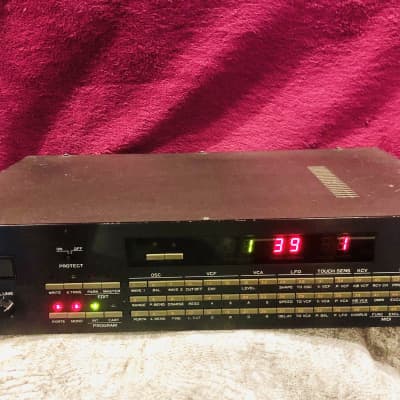

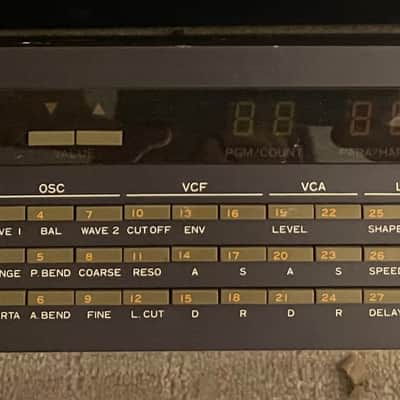

The K3 is available in rackmount form as the Kawai K3m.

Specifications

Year Released: 1986

MSRP: 1095.00 USD

Keyboard: 61 keys with velocity and aftertouch

Polyphony: 6 notes

User Patches: 50

ROM: 32 KB (31 8-bit waveforms)

Effects: chorus

Screen: 6-digit LED display

Power Consumption: 38 watts

Dimensions: 964 mm x 373 mm x 118 mm

Weight: 15 kg

Oscillator Waveforms: 32 plus one user-defined additive waveform.

User Demo Videos

Rating


3
(5 votes)

Sound Samples

WAV samples are available on freewavesamples.com.

File Downloads

Kawai K3 Manual

Kawai K3 Service Manual

Items for Sale on Reverb

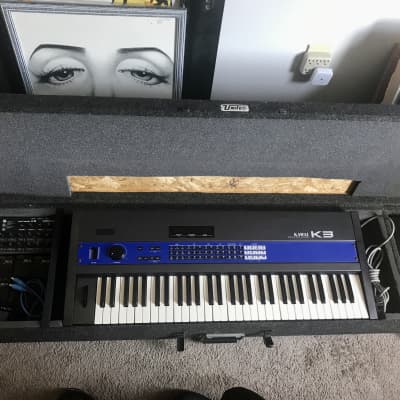

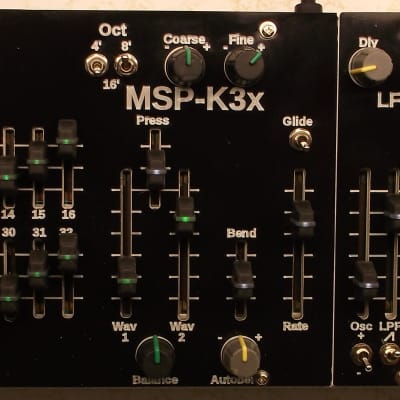

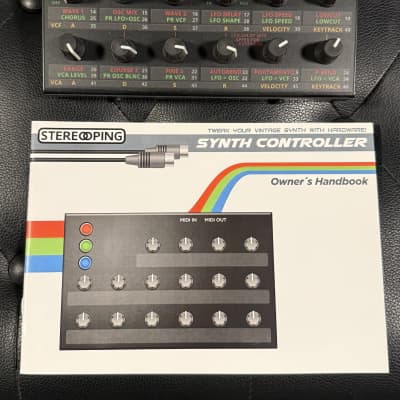

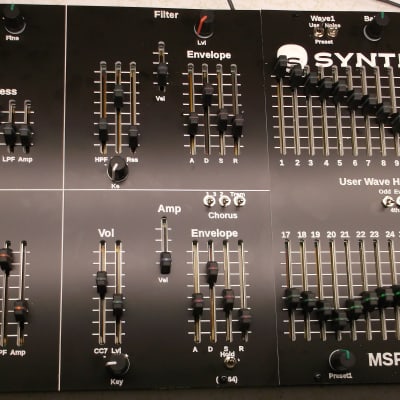

Kawai K3 Wavetable synth w/ Stereoping K3 controller, 4 voice cards with sounds, case, sustain & cablesKawai K3 Wavetable synth w/ Stereoping K3 controller, 4 voice cards with sounds, case, sustain & cables ($749.95)

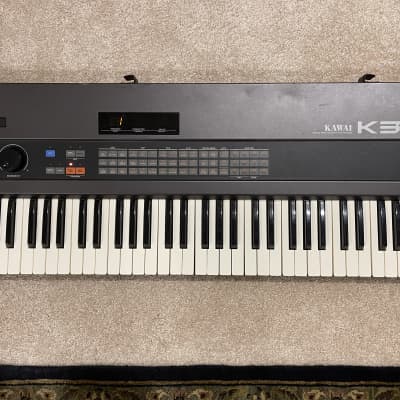

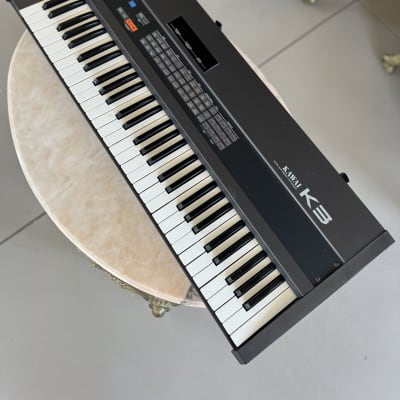

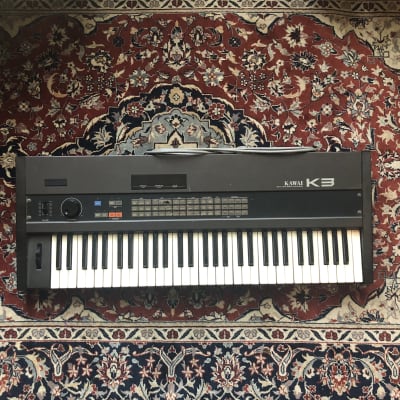

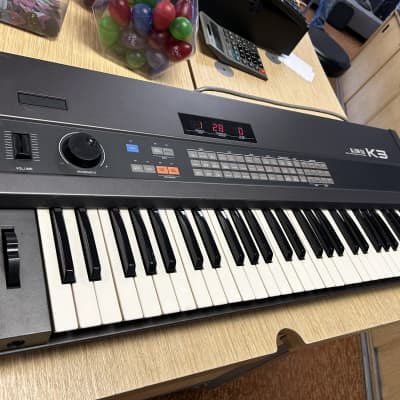

Kawai K3 61-Key Digital Synthesizer 1987 - BlackKawai K3 61-Key Digital Synthesizer 1987 - Black ($500)

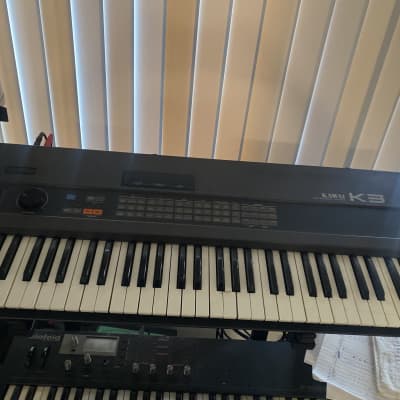

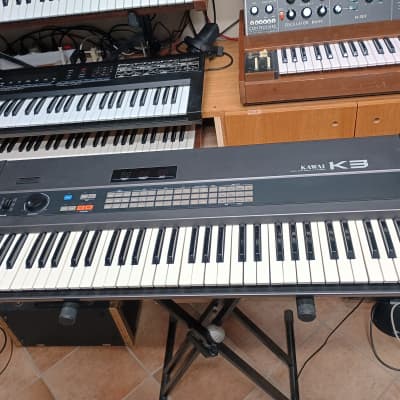

Kawai K3Kawai K3 ($300)

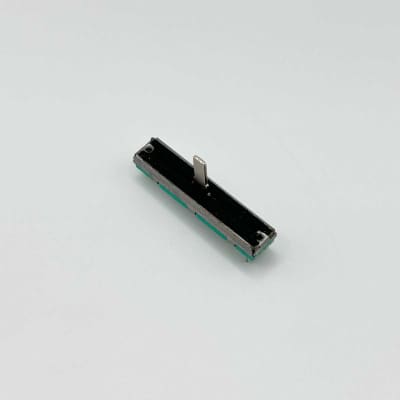

Kawai K3 - Oberheim Matrix 6 6R volume fader / slide potentiometer sliderKawai K3 - Oberheim Matrix 6 6R volume fader / slide potentiometer slider ($15.96)

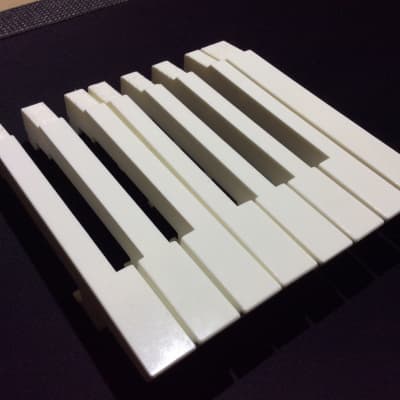

KAWAI K3 replacement keys 3D printed - Sequential Circuit Prophet VS / 2000 Replacement Weighted KeysKAWAI K3 replacement keys 3D printed - Sequential Circuit Prophet VS / 2000 Replacement Weighted Keys ($24.65)

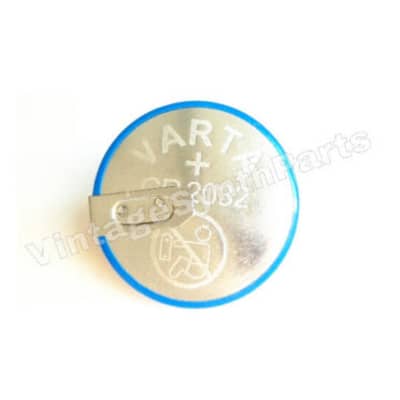

Kawai -K1 , K1 ii , K1R , K3 , K3m -  New batteryKawai -K1 , K1 ii , K1R , K3 , K3m - New battery ($5.90)

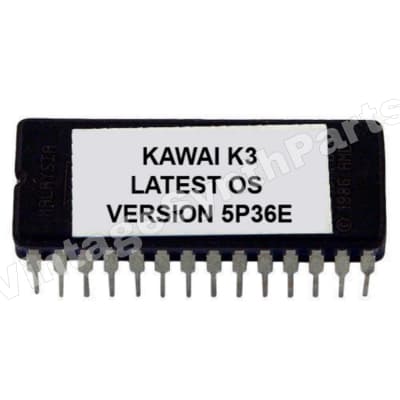

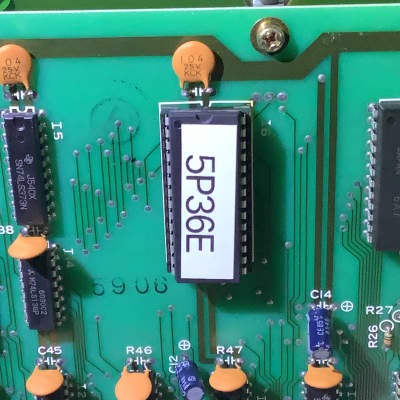

Kawai K3 latest version E upgrade ROM EPROM 5p36 firmware OS update 5p36eKawai K3 latest version E upgrade ROM EPROM 5p36 firmware OS update 5p36e ($30.75)

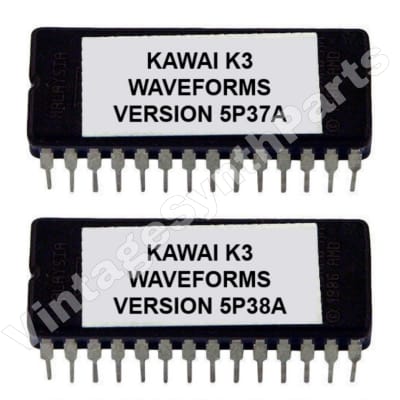

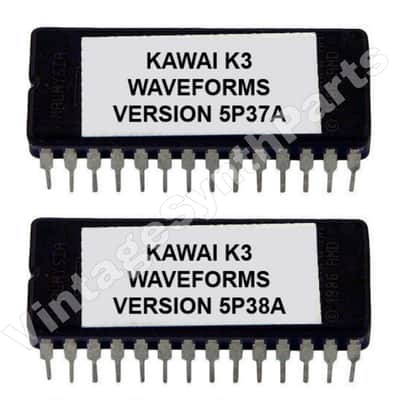

Kawai K3 Keybord version Eproms with Waveforms Waveroms Rom EpromKawai K3 Keybord version Eproms with Waveforms Waveroms Rom Eprom ($30.75)

Kawai K3 latest version E upgrade ROM EPROM 5p36 for firmware OS updateKawai K3 latest version E upgrade ROM EPROM 5p36 for firmware OS update ($45.14)

Kawai K3Kawai K3 ($824.95)

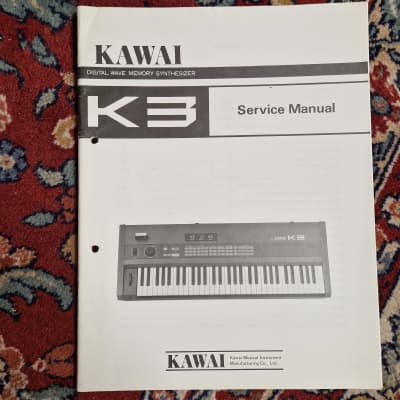

Kawai K3 Schematics /Service Manual/ Service Notes OriginalKawai K3 Schematics /Service Manual/ Service Notes Original ($27.73)

Kawai K3 OS UpdateKawai K3 OS Update ($19.17)

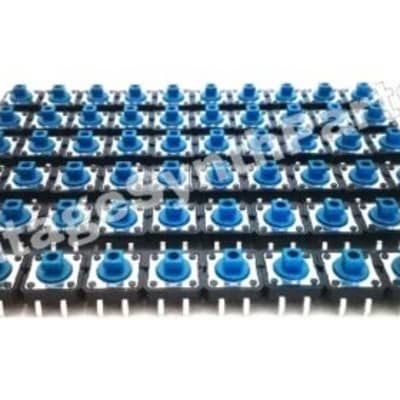

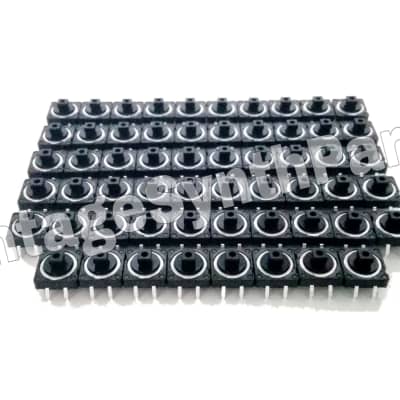

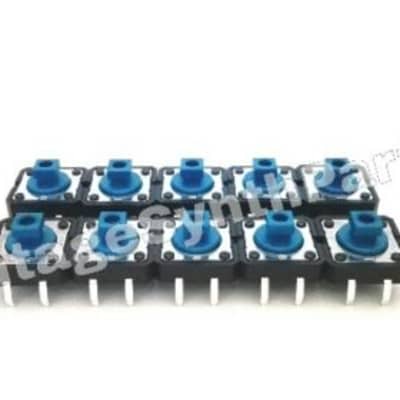

Pushbuttons Tact Switches Full Set Of 58 for Kawai K3 K-3 Micro Switch TactilePushbuttons Tact Switches Full Set Of 58 for Kawai K3 K-3 Micro Switch Tactile ($43.08)

Kawai K3 Digital Wave Memory SynthesizerKawai K3 Digital Wave Memory Synthesizer ($649.95)

Kawai K3 Vintage SynthesizerKawai K3 Vintage Synthesizer ($799)

Pushbuttons Tact Switches Full Set Of 58 for Kawai K3 K-3 OmronPushbuttons Tact Switches Full Set Of 58 for Kawai K3 K-3 Omron ($52.69)

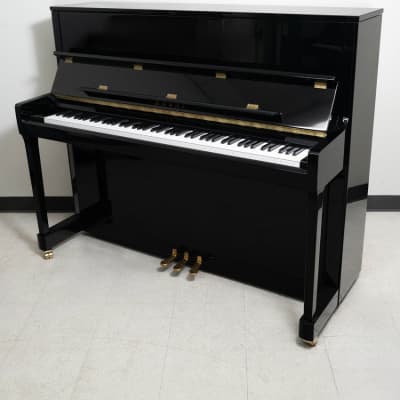

Kawai K3 Professional Upright Piano 2011 - BlackKawai K3 Professional Upright Piano 2011 - Black ($5,750)

Kawai K3 1986-1987Kawai K3 1986-1987 ($799)

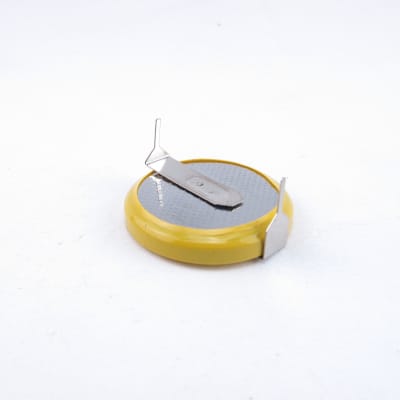

Kawai -K1 , K1 ii , K1R , K3 , K3m - New batteryKawai -K1 , K1 ii , K1R , K3 , K3m - New battery ($7.33)

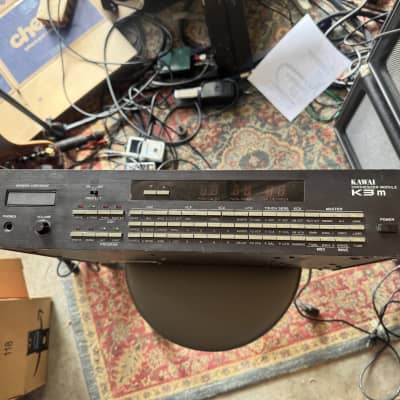

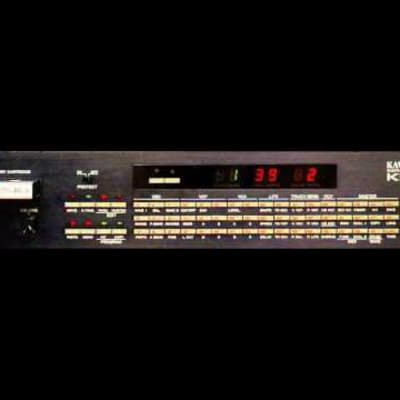

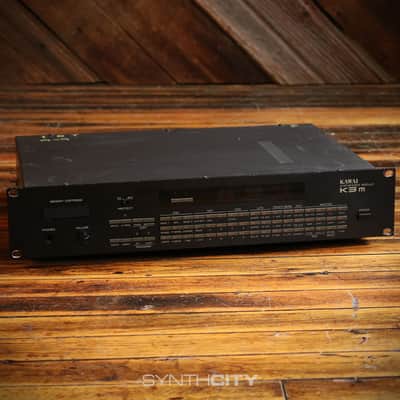

1980s Kawai K3M Rackmount Wavetable Hybrid Synthesizer K31980s Kawai K3M Rackmount Wavetable Hybrid Synthesizer K3 ($995)

Kawai K3Kawai K3 ($936.69)

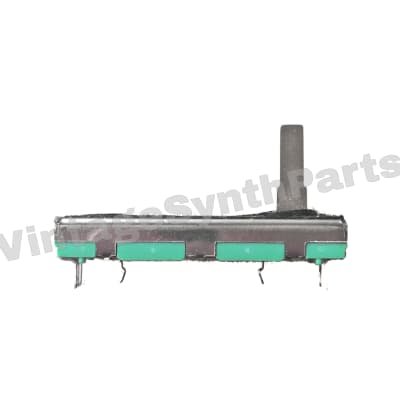

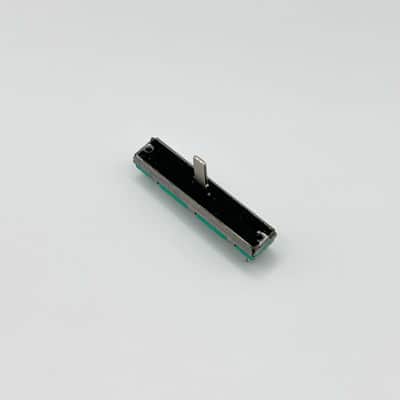

Slide potentiometer (Slider) - Oberheim Matrix-6 / 6R - Kawai K3 / B50KX2 / VOLUMESlide potentiometer (Slider) - Oberheim Matrix-6 / 6R - Kawai K3 / B50KX2 / VOLUME ($16.02)

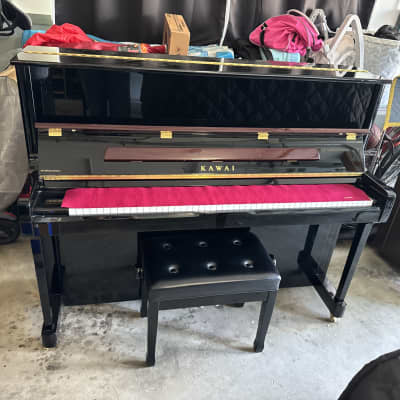

Kawai K3 Professional Upright PianoKawai K3 Professional Upright Piano ($1,716.92)

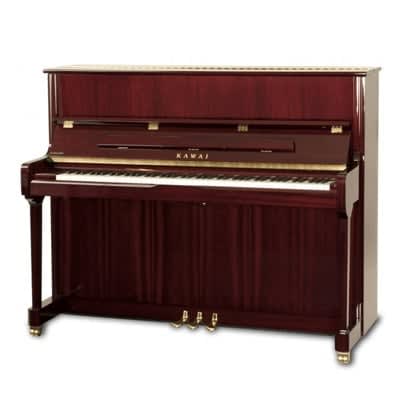

Kawai K3 Mahogany Polish.Kawai K3 Mahogany Polish. ($8,164.28)

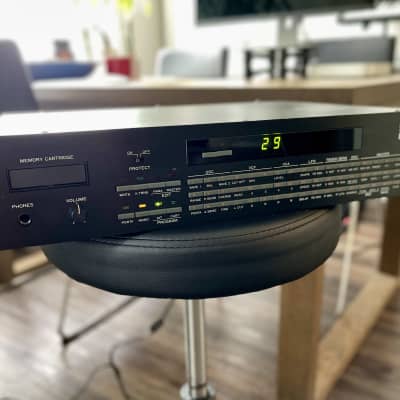

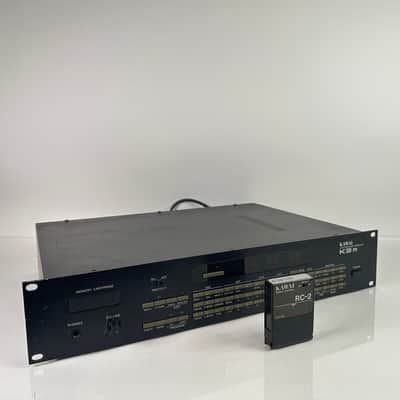

Kawai K3M Rackmount SynthesizerKawai K3M Rackmount Synthesizer ($650)

Kawai K3m Classic Hybrid Synthesizer Analog Filters and Envelopes - 1986Kawai K3m Classic Hybrid Synthesizer Analog Filters and Envelopes - 1986 ($900)

Kawai K3m transformer TSE-246UKawai K3m transformer TSE-246U ($55.46)

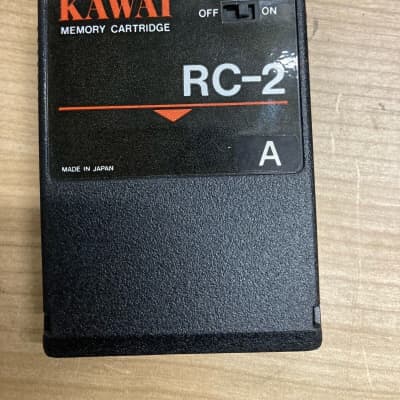

Kawai RC-2 Memory Cartridge for For Kawai K3 synthesizerKawai RC-2 Memory Cartridge for For Kawai K3 synthesizer ($123.25)

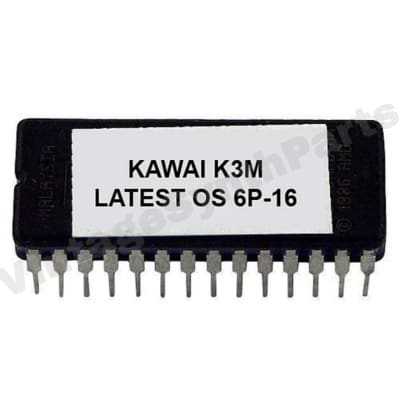

KAWAI K3M Firmware OS 6P-16 Upgrade ROM Latest version EPROM Rom Firmware K3-MKAWAI K3M Firmware OS 6P-16 Upgrade ROM Latest version EPROM Rom Firmware K3-M ($22.12)

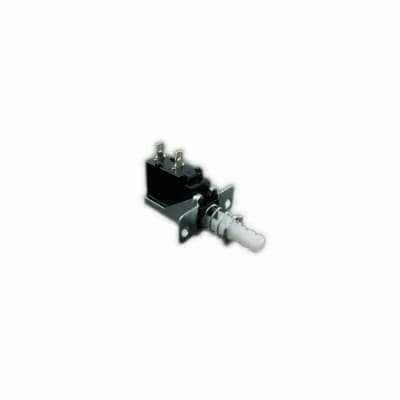

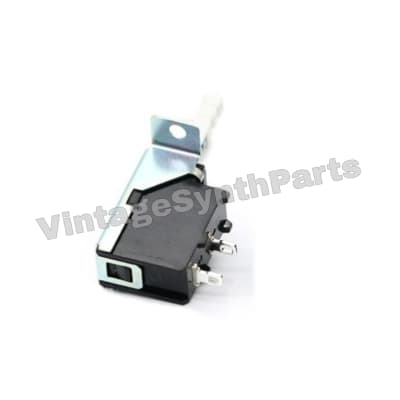

Kawai K3m - Power SwitchKawai K3m - Power Switch ($11.03)

Kawai K3_FULL replacement membrane_PPG Style inspired 2022 BlueKawai K3_FULL replacement membrane_PPG Style inspired 2022 Blue ($70.40)

KAWAI K3mKAWAI K3m ($1,355.73)

Kawai - K3m - New Power switchKawai - K3m - New Power switch ($9.90)

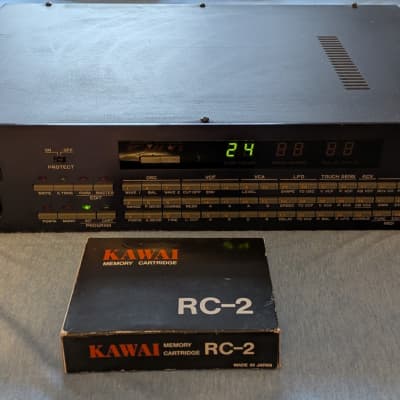

Kawai K3m + RC-2 Memory Cartridge + presets cardKawai K3m + RC-2 Memory Cartridge + presets card ($1,847.50)
