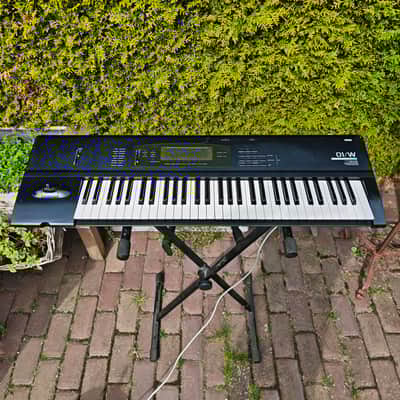

Synths ⇝ Korg ⇝ Korg 01/W

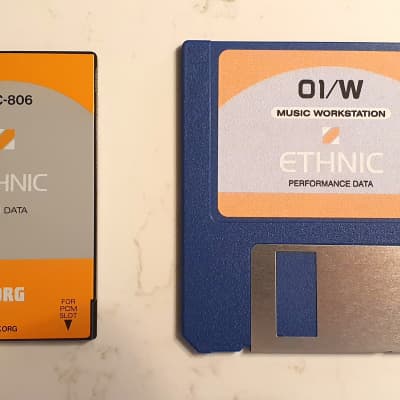

The 01/W can be expanded with XSC/XPC expansion card pairs containing a PCM waveform data card and a performance data card.

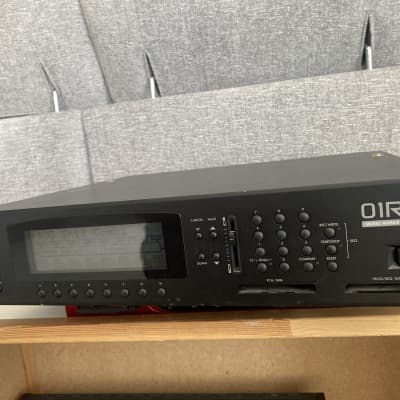

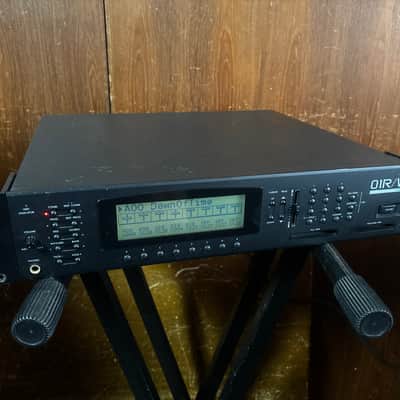

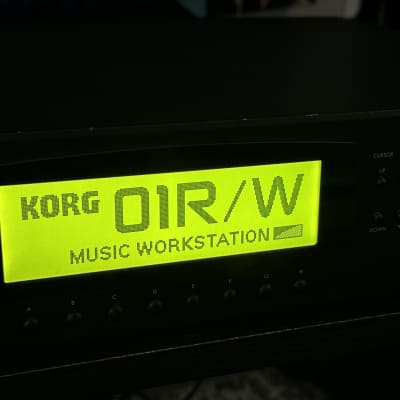

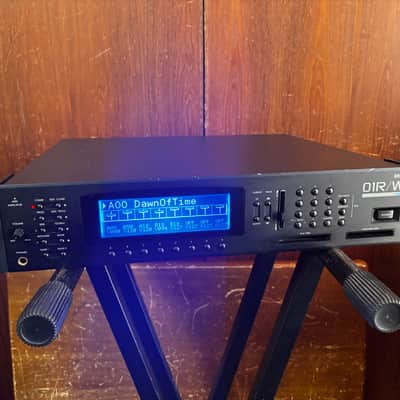

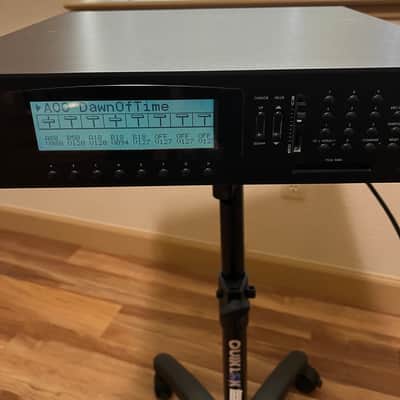

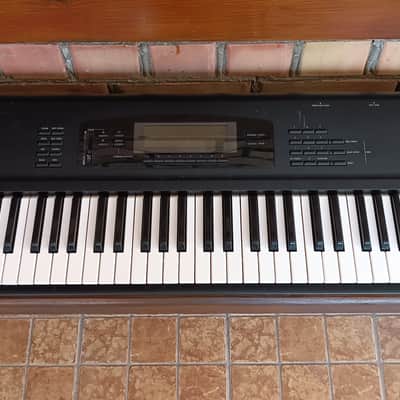

The 01/WFD is an otherwise identical version with more sequencer memory and a floppy drive. It is also available in rackmount form as the 01R/W. The 01W/Pro is a 76-key version and the 01W/ProX is an 88-weighted-key version.

Specifications

Year Released: 1991

Keyboard: 61 keys with velocity and aftertouch

Polyphony: 32 notes

Multitimbral: 16 parts

User Patches: 200

User Performances: 200

ROM: 6MB (254 waveforms at 16-bit resolution)

Sequencer Memory: 7,000 notes

Screen: 240 x 64 pixel backlit LCD

Power Consumption: 20 watts

Dimensions: 1059.5 mm x 344 mm x 115.5 mm

Weight: 13.4 kg

User Demo Videos

Rating

Sound Samples

WAV samples are available on freewavesamples.com.

File Downloads

Korg 01/W Manual

Korg 01/W and 01/WFD Service Manual

Items for Sale on Reverb

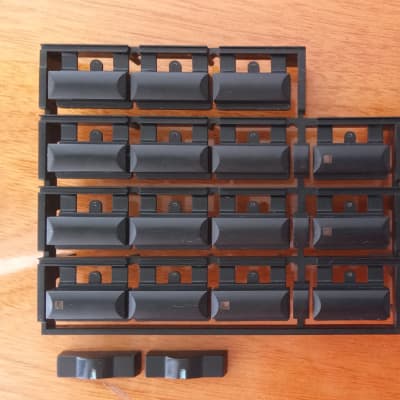

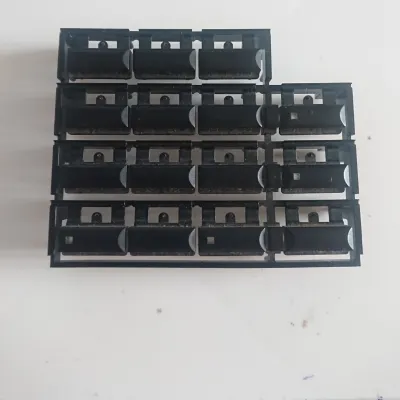

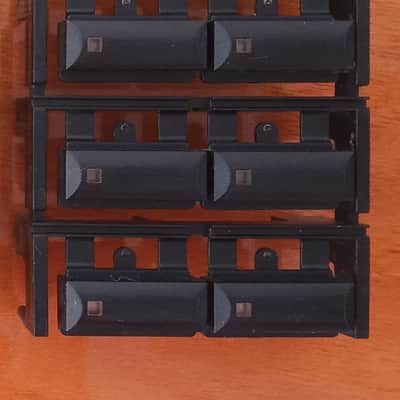

KORG 01/W Original Plastic Left panel Buttons Block Assembly. Great Condition ! ($29)

Korg 01/W - Sound Making Book Level 1 ($25)

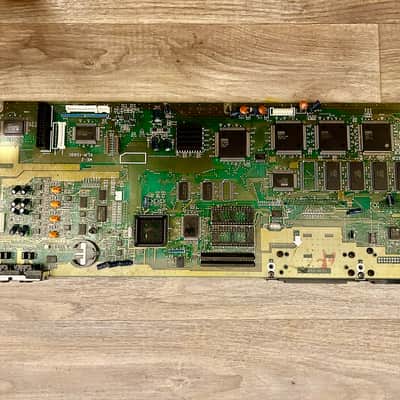

Korg 01/W Main Board ($69.74)

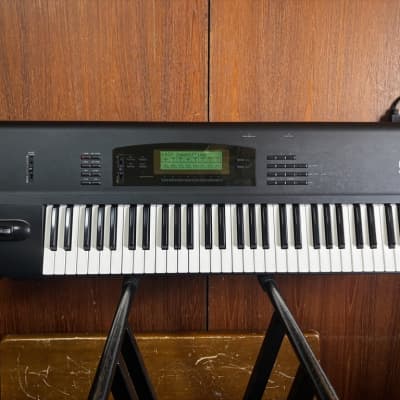

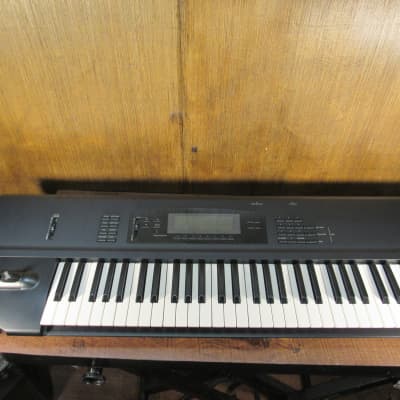

Korg 01/W O1/W - 90's Digital Synthesiser Workstation - 240V ($611.58)

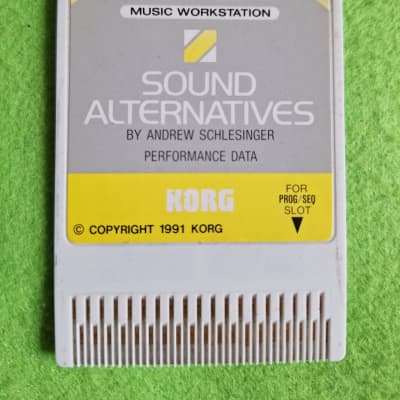

Korg 01/W XPC-11 Performance Card Sound Alternatives by Andrew Schlesinger ($117.01)

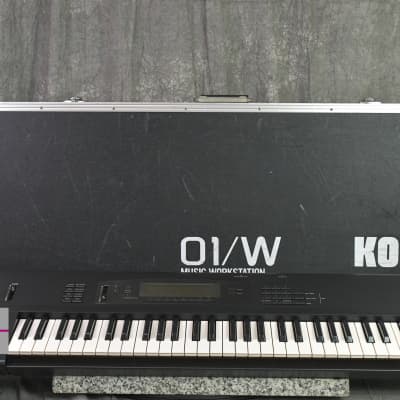

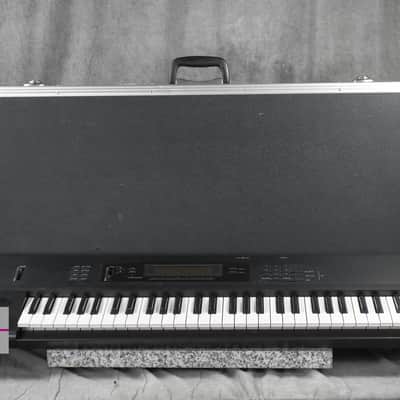

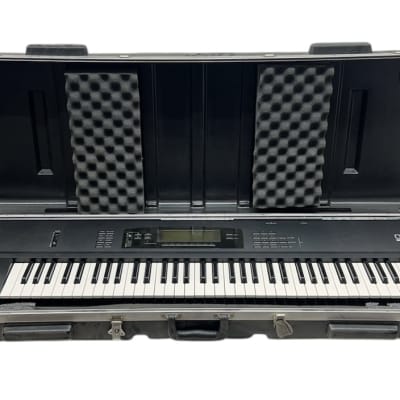

Korg 01/W incl. flightcase ($613.44)

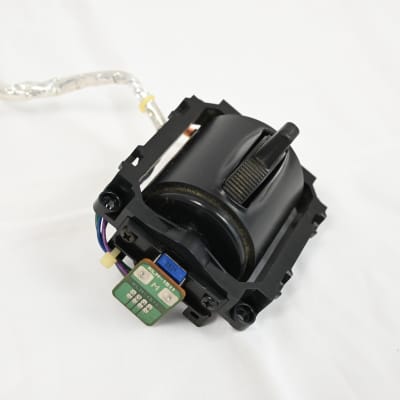

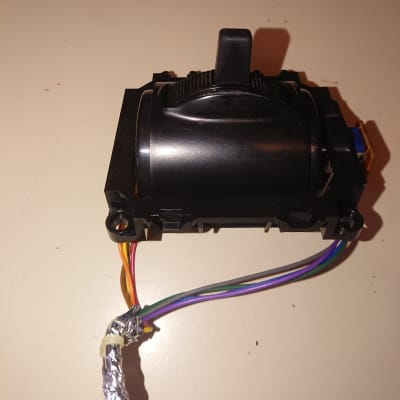

Korg 01/W *Complete pitch bender assembly* ($45)

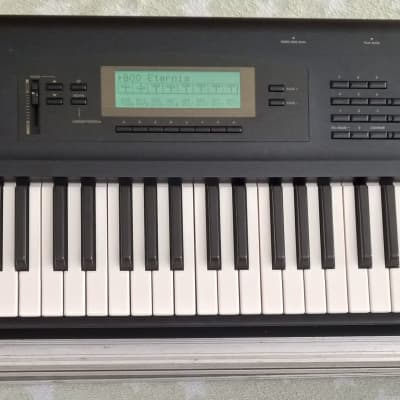

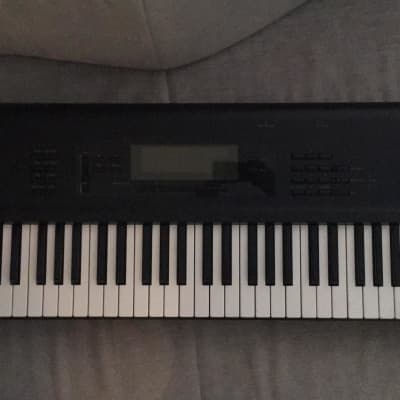

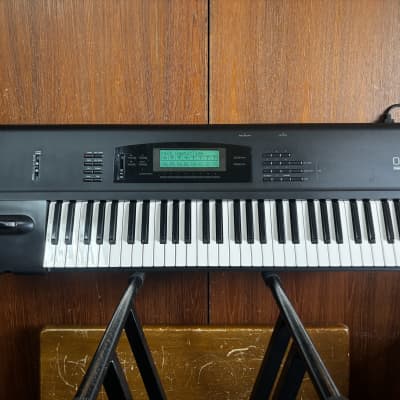

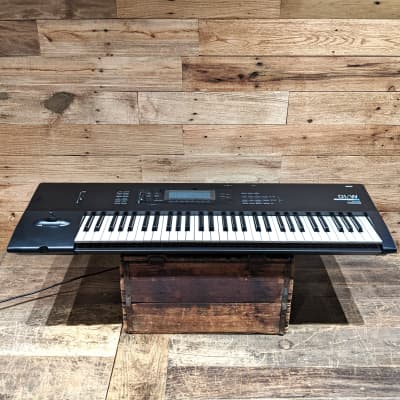

Korg 01/W Music Workstation 61 Key Synth ($525)

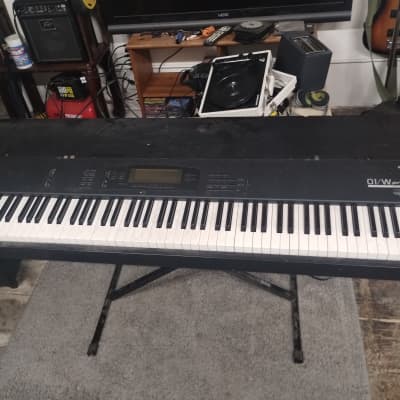

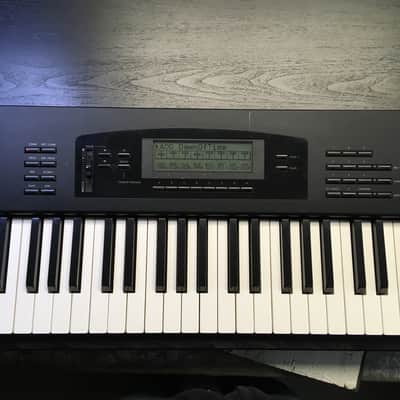

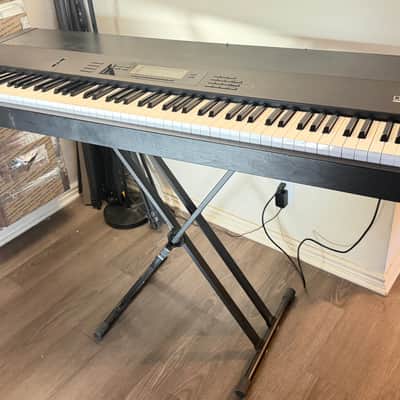

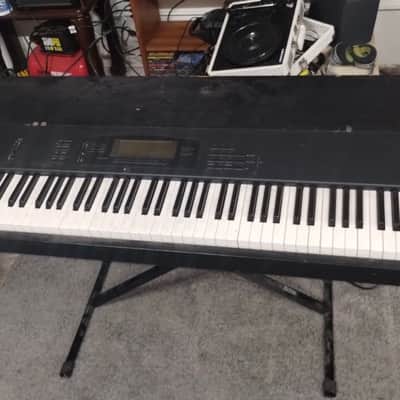

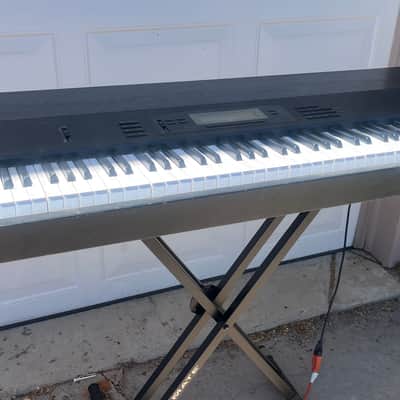

Korg 01/W PRO X 90's ($850)

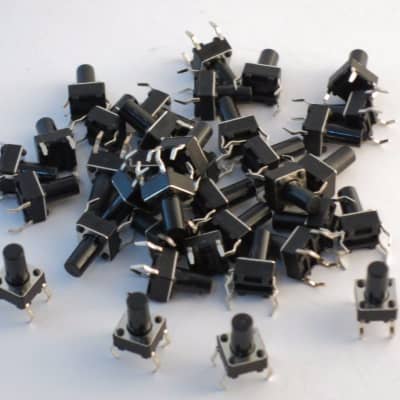

Korg 01/W - 01/W PRO - 01/W PROX Full set of 37 Panel Switches Pushbutton Tact Switch ($16.84)

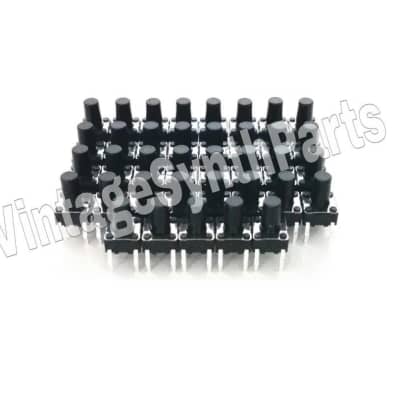

Korg - 01/W, 01/W Pro, 01/W ProX - Full set of 37 Panel Switches ($13.90)

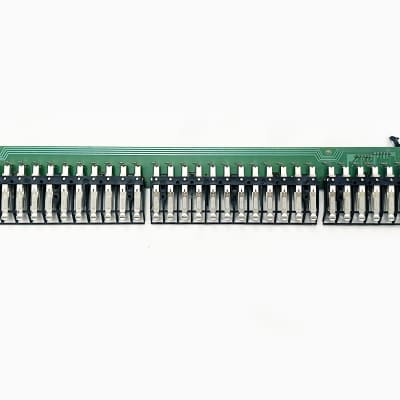

KORG T1, 01/W Pro/X Original 40-Note Key Contact Board(Low). Works Perfect ! ($64.95)

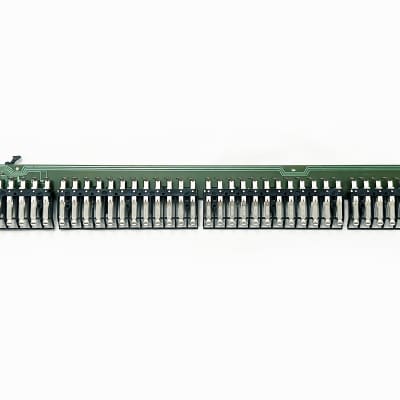

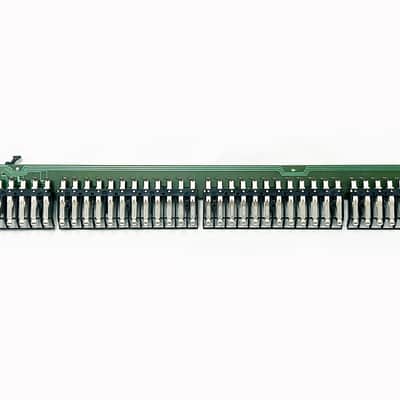

KORG T1, 01/W Pro/X Original 48-Note Contact Board(High). Works Perfect ! ($74.95)

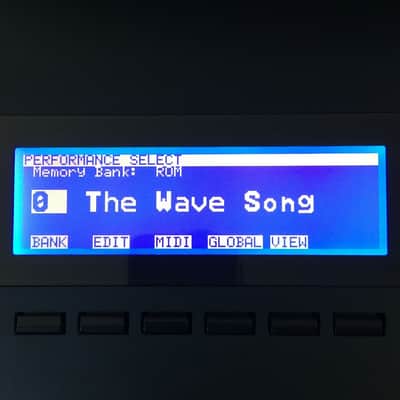

Graphic Display Upgrade - Korg 01/W T1 T2 T3 i2 i3 Wavestation EX A/D Oberheim OB-12 ($183.16)

KORG 01/W 01/W Pro 01/W Pro X Komplettset 37 Taster ($18.12)

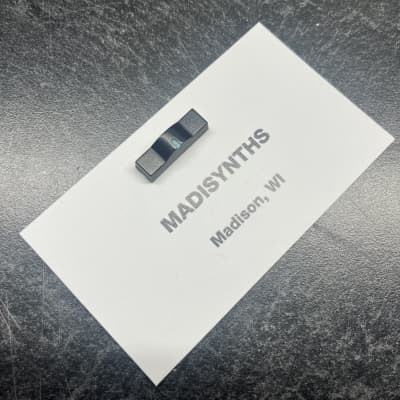

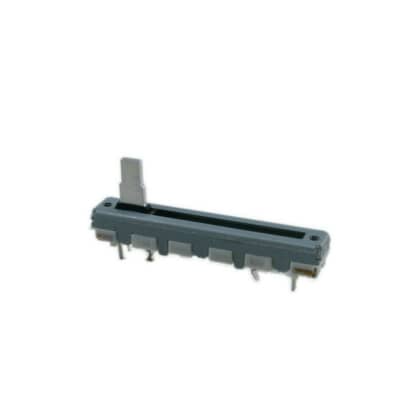

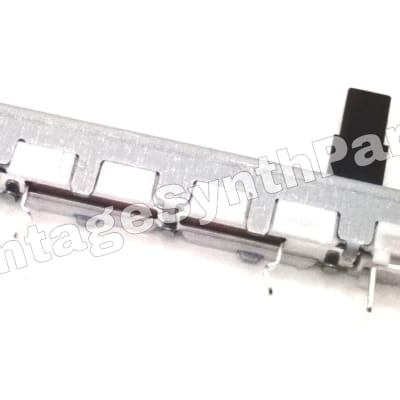

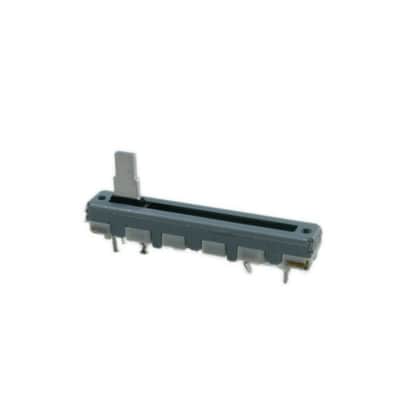

Korg - Oasys , 01/W , 01R/W , Karma , EC-120 - New Slide Potentiometer ($8.21)

Korg - X2/3 , M1, M1R , 707 , 01/W , 01R/W , Prophecy , C15, C15S - New Battery holder ($3.90)

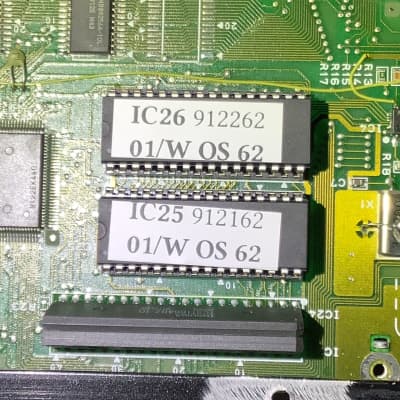

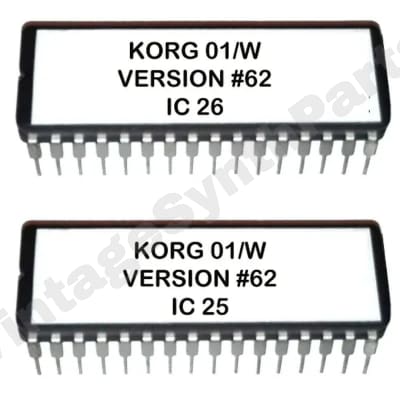

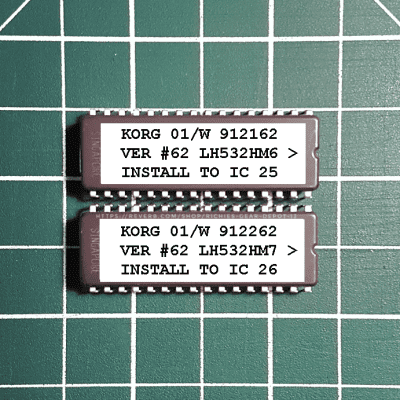

Latest OS #62 ROMs FOR Korg 01/wfd Workstation EPROM ROM upgrade kit set 01wfd 01/w FD ($36.74)

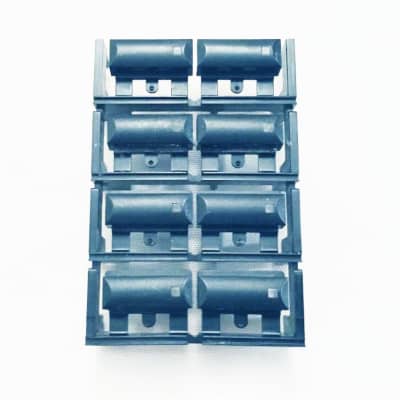

KORG 01/W Original Plastic Right panel button Block Assembly. Great Condition ! ($39)

Korg - Oasys , 01/W , 01R/W , Karma , EC-120 - New Slide Potentiometer ($16.90)

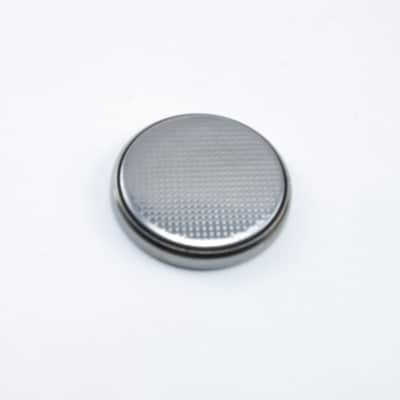

Korg - 01/W - New Memory Battery ($4.90)

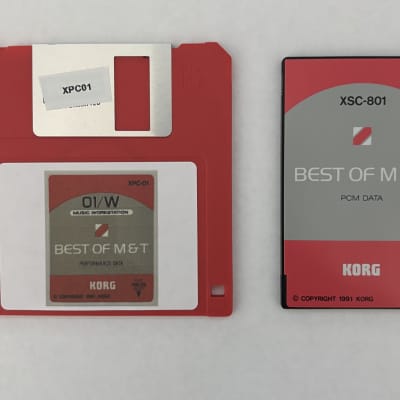

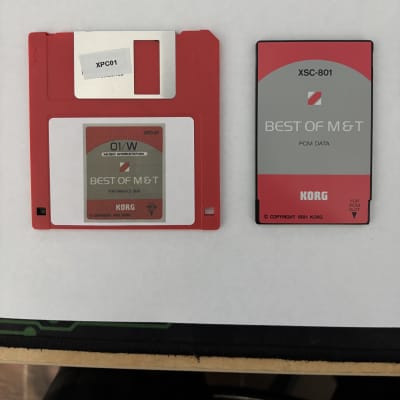

Korg 01/W PCM Data Card Best of M&T ($220)

Korg 01/w / 01r/W | XSC-2S Orchestral | PCM Wavefrom + Data Card set BOXED ($265.94)

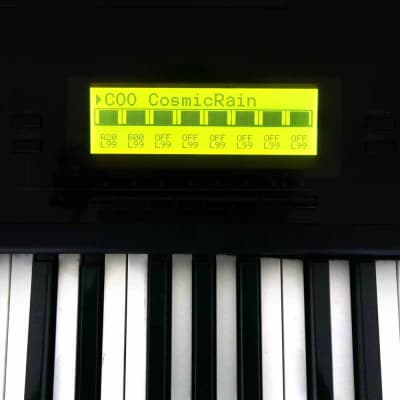

LCD Display Gelb mit Kabel für Korg 01/W ($93.86)

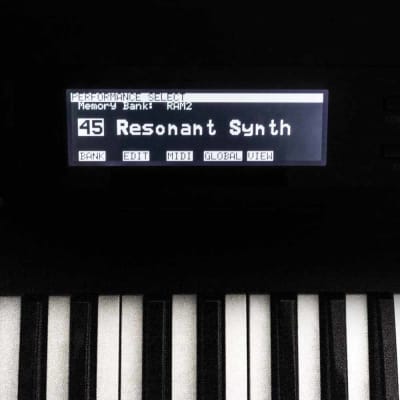

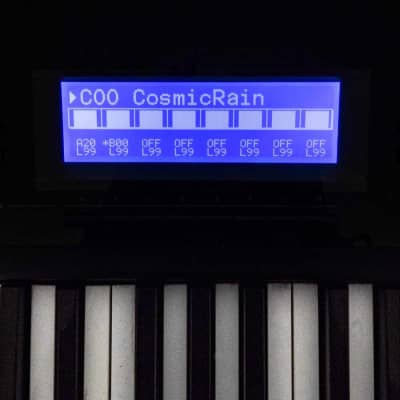

LCD Display black with cable Kit for Korg 01/W ($88.90)

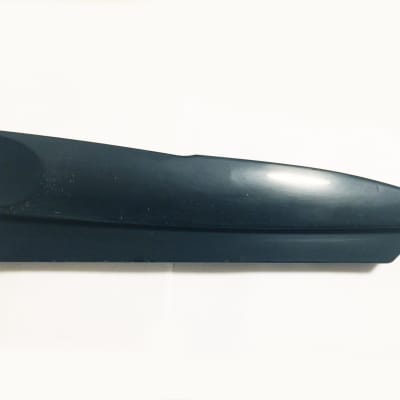

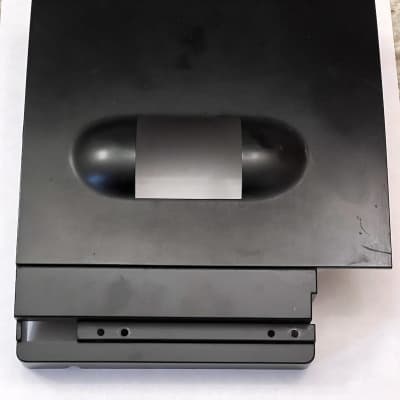

KORG 01/W Left Side Plastic Panel/End. ($39)

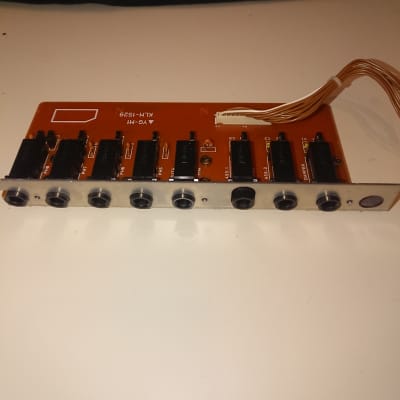

Korg 01/w fd jack board ($47.28)

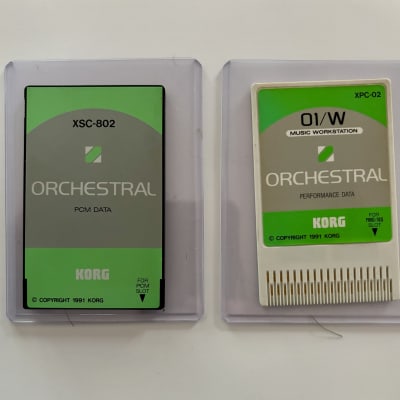

Korg 01/W XSC-801/XPC-02 Orchestral PCM/Performance Data Card Set ($229)

KORG 01/W XSC-802 PCM DATA - ORCHESTRAL Card ($187.81)

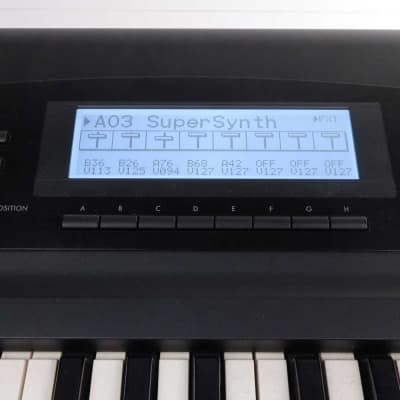

LCD Display white with cable Kit for Korg 01/W ($88.90)

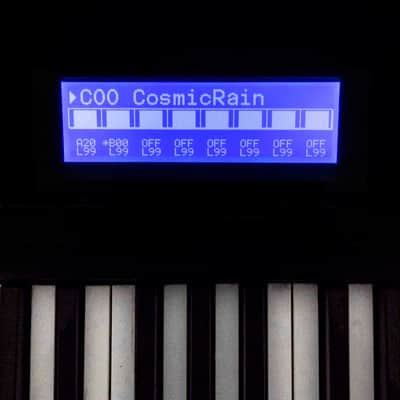

LCD Display blue with cable Kit for Korg 01/W ($88.90)

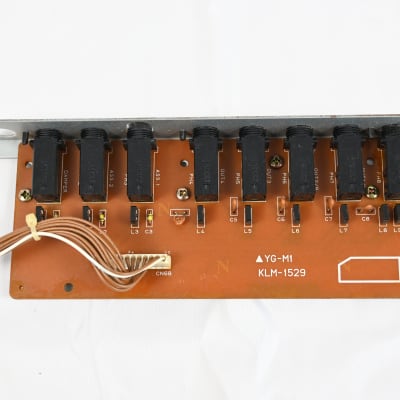

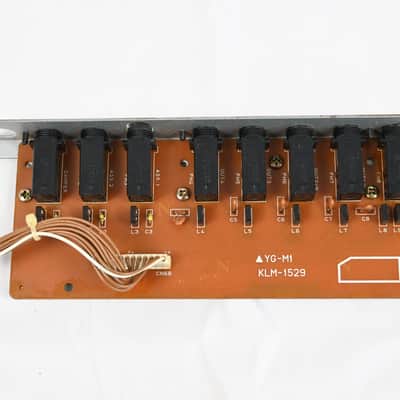

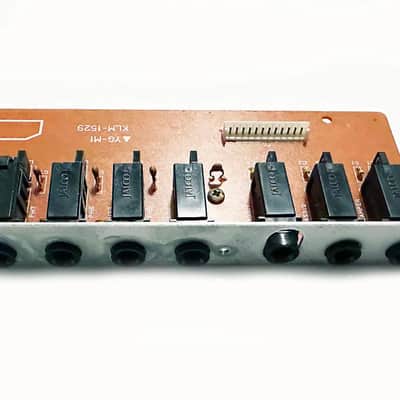

Korg 01/W *KLM-1529 Board* ($35)

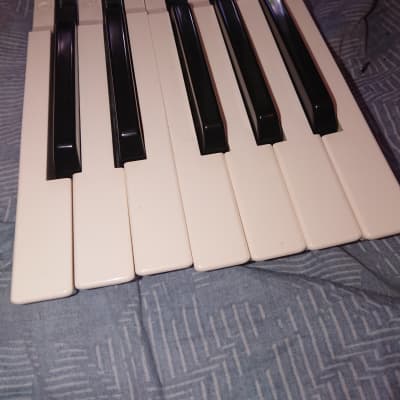

Korg 01/w fd full octave keys ($61.46)

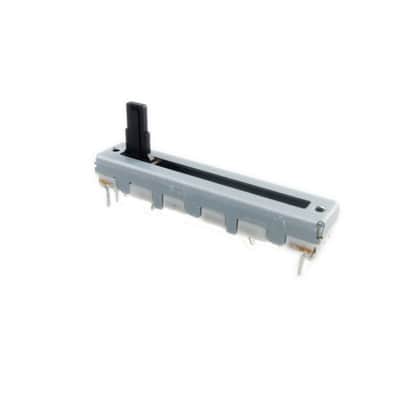

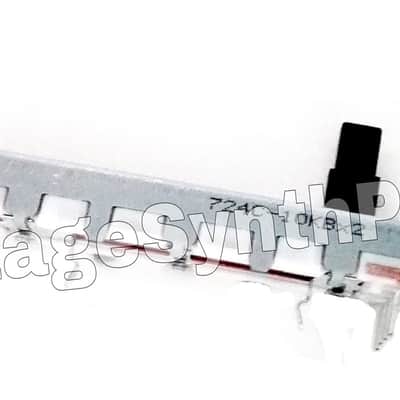

Korg - Wavestation , 01/W , PA1X/50/80 - New Slide potentiometer ($8.21)

Korg - Wavestation , 01/W , PA1X/50/80 - New Slide potentiometer ($16.90)

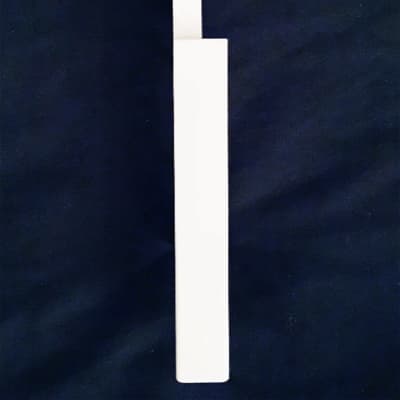

KORG M1 Wavestation TRITON TRINITY 01/W Synthesizer Original Top-C Key. ($14.99)

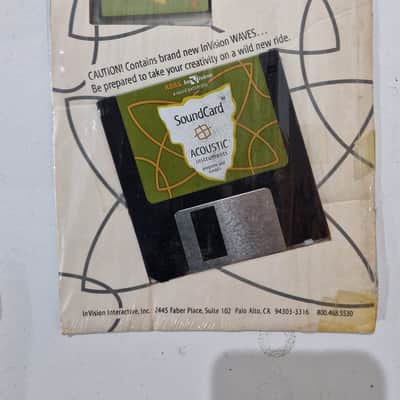

Korg/Invision SoundCard "Acoustic Instruments" set: 2.5" disk with program and combi + PCM (PCMCIA) card for 01/W series, X series, Wavestation SR ($147.75)

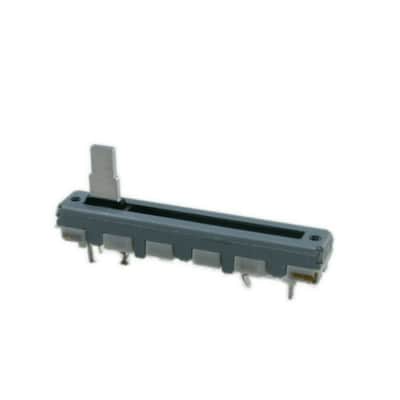

Korg - T Series , DS-8 , M1 , Triton Series , C3200 - New Slide potentiometer ($14.90)

Korg 01W 01W/FD 01W/Pro Left Pitch Bend Joystic Panel ($45)

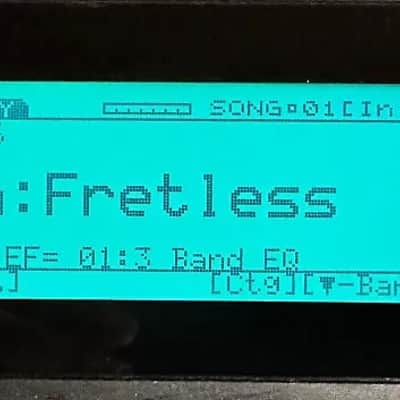

Korg Korg 01W, 01W FD, T1, T2, T3, i2, i3, Yamaha SY77, SY99, W5, W7 LCD Backlight. ($31.99)

YAMAHA DX7 II KORG M1 01/W TRITON Synthesizer 61-Note Key Contact Board. Made in JAPAN. Works Great! ($89)

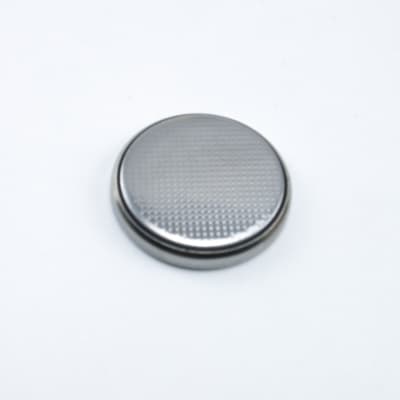

Replacement Backup Battery for Korg T3 , 01/W & M1 M1R M1REX [ coin cell ] ($9.49)

Korg X5D MUSIC SYNTHESIZER 01/w series w/ power supply New internal battery! ($450)

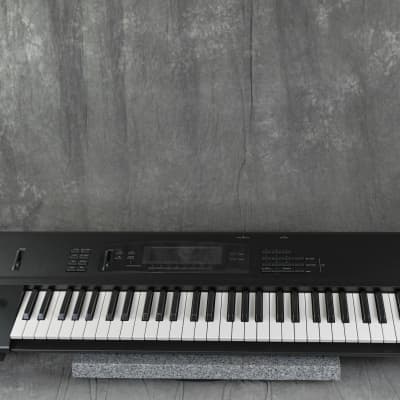

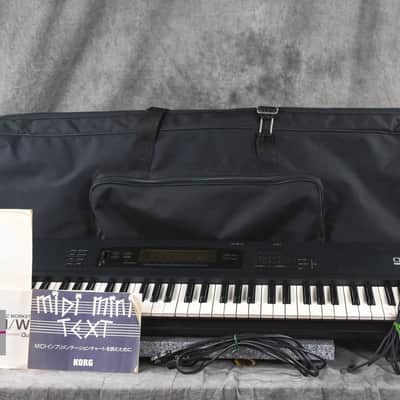

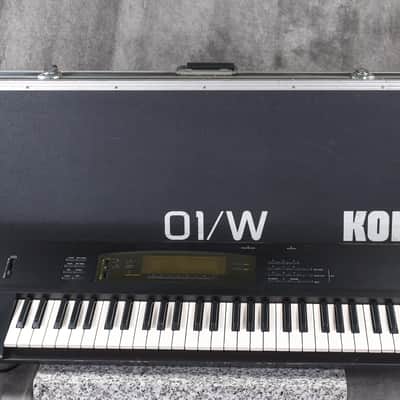

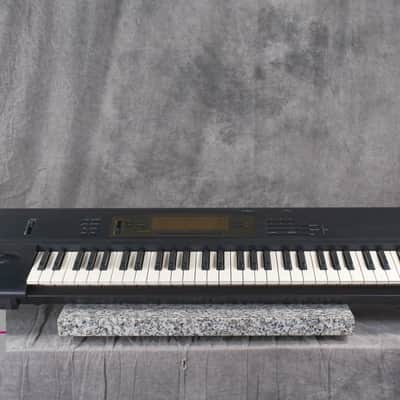

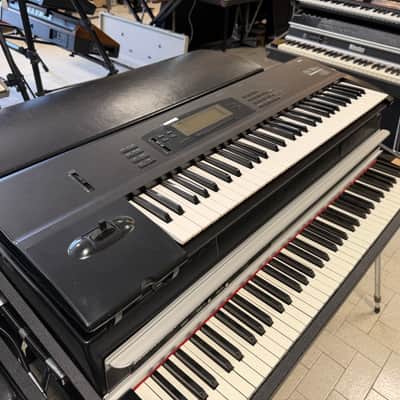

Korg 01/W FD ($590.98)

Korg 01/W, 01W/Fd Push Buttons ($46.10)

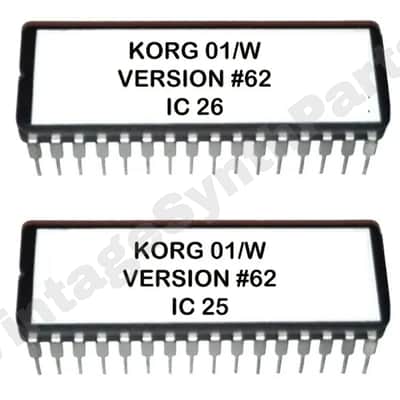

Korg 01/w - Version 62 OS EPROM Firmware Upgrade Update for 01W FD Pro Pro X ($22.40)

Korg 01/w OS Version 62 EPROM Firmware Upgrade SET ($27.95)

Korg 01W ($590.98)

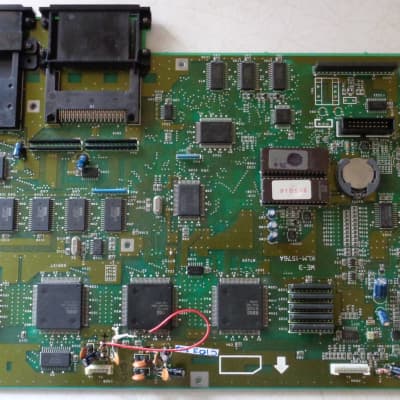

KORG 01R/W rack synthesizer mainboard KLM-1576-1, Repaired & Tested ($74.01)

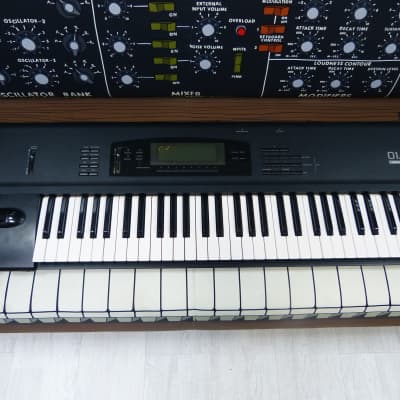

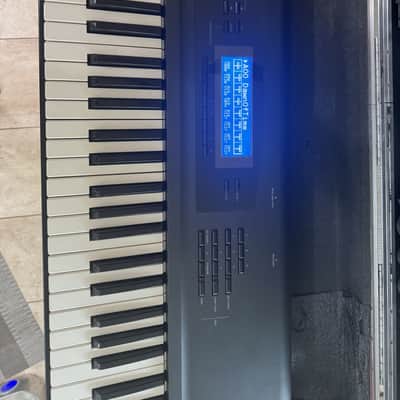

Korg 01/WFD 61key Music Workstation New battery & LCD Backlight w/ case ($650)
