SynthsEnsoniq ⇝ Ensoniq VFX-SD

Ensoniq VFX-SDEnsoniq VFX-SD LCD PanelEnsoniq VFX-SD Panel Right Side

The VFX-SD is an enhanced version of the Ensoniq VFX. It still has the same cartridge slot and is compatible with VFX patches. Like the original VFX, it can combine up to 6 waveforms in a single patch, resulting in some complex layered sounds. It was followed by the Ensoniq SD-1.

The VFX-SD contains a set of 17 transwaves that can be used for wave sequencing. Here is the transwave list:

Differences between the VFX models

The VFX-SD adds a 3.5" floppy drive, an enhanced sequencer, aux outputs, and additional drum waveforms.

The waveforms in the VFX-SD that are not contained in the VFX are the two wave classes, DRUM-SOUND and MULTI-DRUM. Here's what's missing:

	DRUM-SOUND       MULTI-DRUM

	gate-kick        all-perc

	room-kick        all-drums

	gate-snare       kick-drms

	rim-snare        snar-drms

	close-hat        hi-hats

	open-hat         cymbals

	ride-cymb        tom-toms

	dry-tom-l        percusson

	dry-tom-h        dry-toms

	gat-tom-l        room-toms

	gat-tom-h        gate-toms

	rm-tom-l         congas

	rm-tom-h         std-kit

	timbale          gated-kit

	conga-lo         room-kit

	conga-hi

	tamborine

Manual

The VFX-SD manual was impossible to find on the web in digital form. We tracked down and bought a copy (for $25) and spent a while scanning it, creating a PDF you can download for free below.

Specifications

Year Released: 1989

MSRP: 1995.00 USD

Keyboard: 61 keys with velocity and aftertouch

Polyphony: 21 notes

Multitimbral: 12 parts

Preset Patches: 60

User Patches: 60

User Drum Kits: 24

ROM: 141 waveforms

Sequencer Resolution: 96 PPQN

Effects: reverb, chorus, flanger, phaser, delay, distortion, rotary speaker, compressor, wah

Sequencer: 24 (12+12) Tracks

Sequencer Memory: 25,000 Notes (Expandable to 75,000 Notes), 60 songs.

Latest OS Version: 2.1/2.00

User Demo Videos

Rating


5
(4 votes)

Sound Samples

WAV samples are available on freewavesamples.com.

File Downloads

Ensoniq VFX-SD Manual

Items for Sale on Reverb

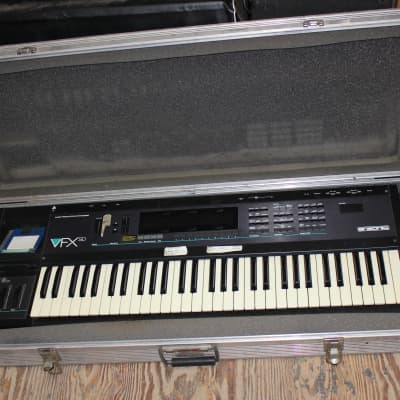

Ensoniq VFX-SDEnsoniq VFX-SD ($590)

Ensoniq VFX-SD/SD-1 Synth Patches • 2 Disk Set • Ready to Load into your Ensoniq KeyboardEnsoniq VFX-SD/SD-1 Synth Patches • 2 Disk Set • Ready to Load into your Ensoniq Keyboard ($24)

Greytsounds Ensoniq VFX-SD/SD-1 Synth Patches - 2 Bank Set - Digital DownloadGreytsounds Ensoniq VFX-SD/SD-1 Synth Patches - 2 Bank Set - Digital Download ($20)

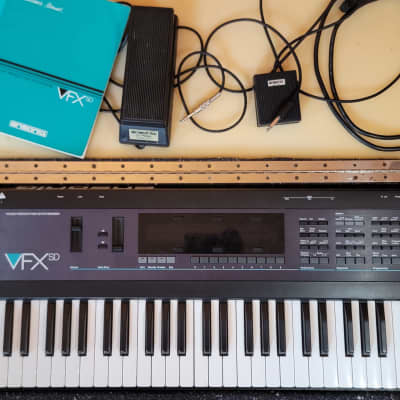

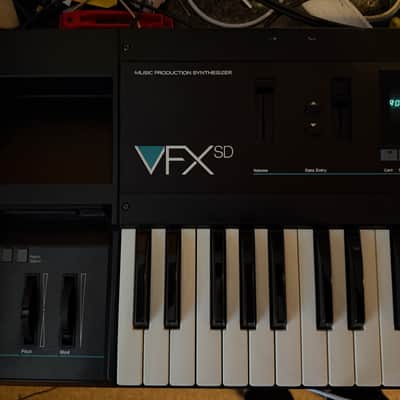

Ensoniq VFX-SD Synthesizer with Sequencer OS 2.10 DiskEnsoniq VFX-SD Synthesizer with Sequencer OS 2.10 Disk ($375)

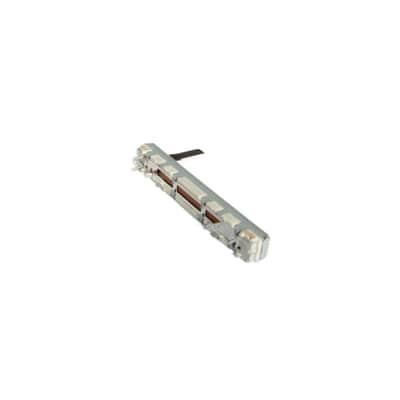

Ensoniq - MR-76 , ZR-76 , EPS , SD-1 , ASR-10 rack , VFX-sd , VFX , EPS-M -  Slide potentiometerEnsoniq - MR-76 , ZR-76 , EPS , SD-1 , ASR-10 rack , VFX-sd , VFX , EPS-M - Slide potentiometer ($16.99)

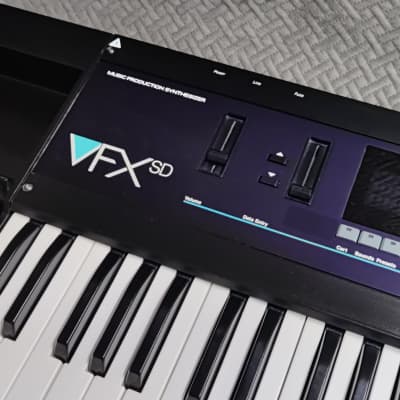

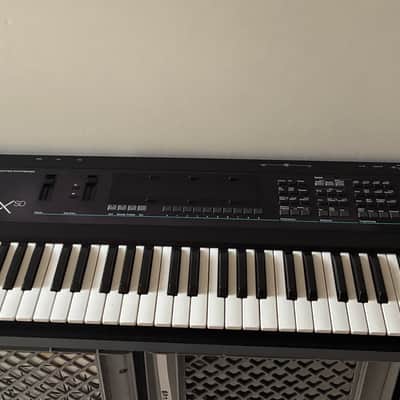

Ensoniq VFX SD Music Production SynthesizerEnsoniq VFX SD Music Production Synthesizer ($599)

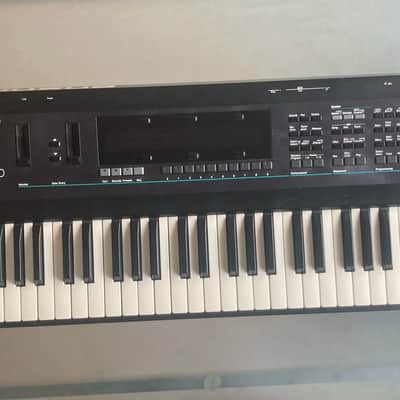

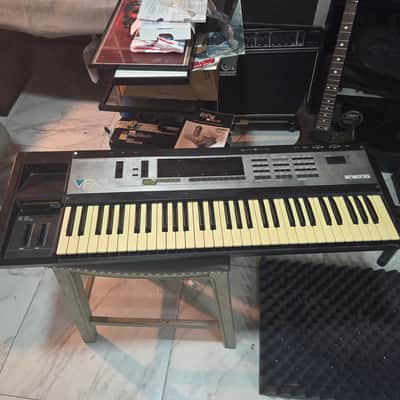

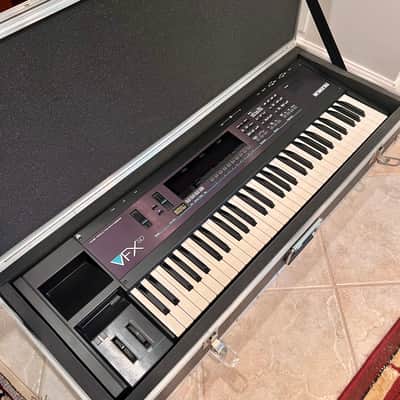

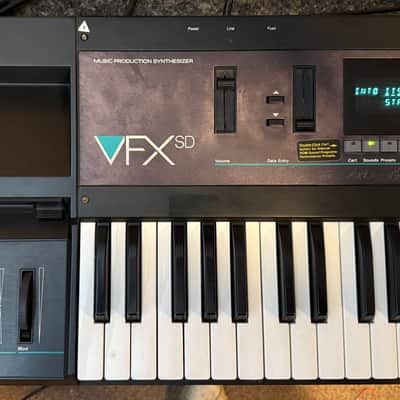

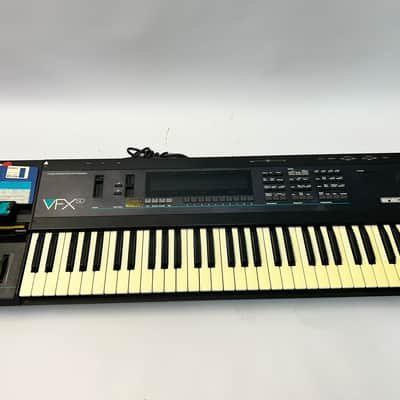

Ensoniq VFX SD Music Production Synthesizer 1989 - BlackEnsoniq VFX SD Music Production Synthesizer 1989 - Black ($549)

Ensoniq VFX-SD /  SD-1  3.5" Floppy Disk Replacement Drive REFURB #2Ensoniq VFX-SD / SD-1 3.5" Floppy Disk Replacement Drive REFURB #2 ($47.99)

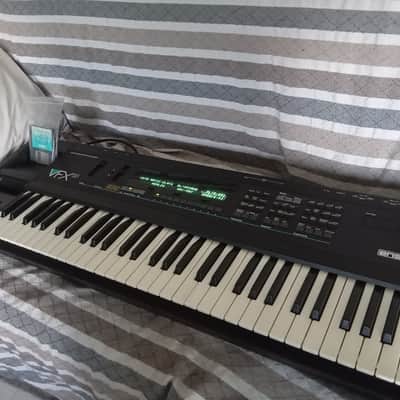

Ensoniq VFX SD Music Production Synthesizer 1989 - BlackEnsoniq VFX SD Music Production Synthesizer 1989 - Black ($749)

1989 Ensoniq VFX SD Music Production Synthesizer1989 Ensoniq VFX SD Music Production Synthesizer ($595)

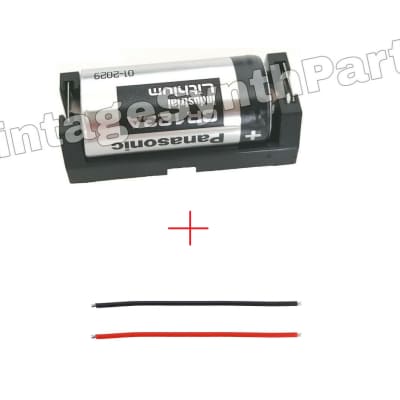

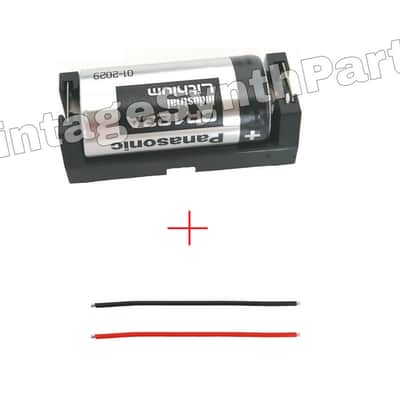

Ensoniq - ESQ1, Esqm , SQ80, SD-1, Vfx-Sd - Battery Holder replacement FixEnsoniq - ESQ1, Esqm , SQ80, SD-1, Vfx-Sd - Battery Holder replacement Fix ($14.61)

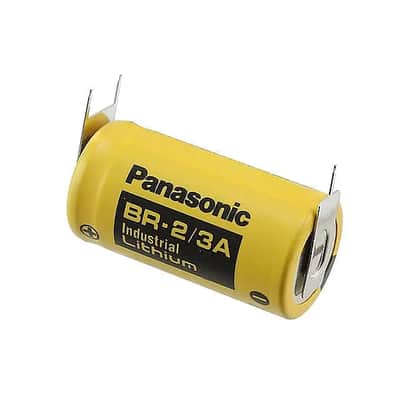

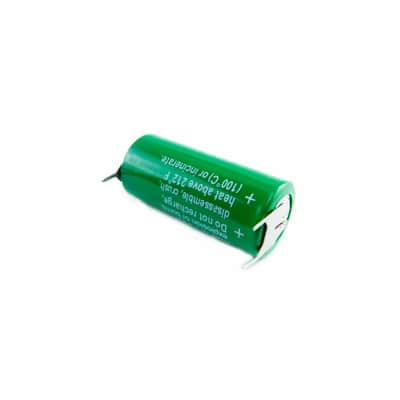

Ensoniq - SQ-80 , VFX-sd , SD-1 - New BatteryEnsoniq - SQ-80 , VFX-sd , SD-1 - New Battery ($22.90)

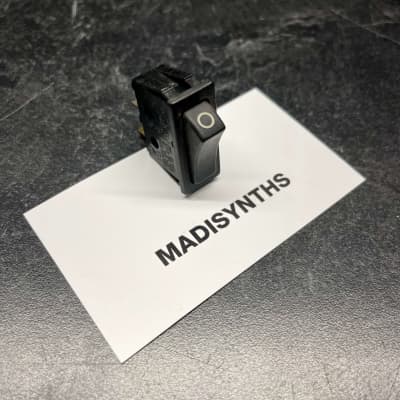

Ensoniq Power Switch for Ensoniq ESQ-1 (both), ESQ-M, SQ-80, Mirage (all), VFX, VFX-SD, SD-1, SQ-2, SQ-REnsoniq Power Switch for Ensoniq ESQ-1 (both), ESQ-M, SQ-80, Mirage (all), VFX, VFX-SD, SD-1, SQ-2, SQ-R ($5.95)

ENSONIQ VFX, VFX-SD, SD-1, EPS-16 Plus Original 61-Note Keyboard Key Contact Coil Boards.ENSONIQ VFX, VFX-SD, SD-1, EPS-16 Plus Original 61-Note Keyboard Key Contact Coil Boards. ($99)

Ensoniq VFX, VFX-SD, SD-1, EPS Keyboard KPC circuit Board.Ensoniq VFX, VFX-SD, SD-1, EPS Keyboard KPC circuit Board. ($39)

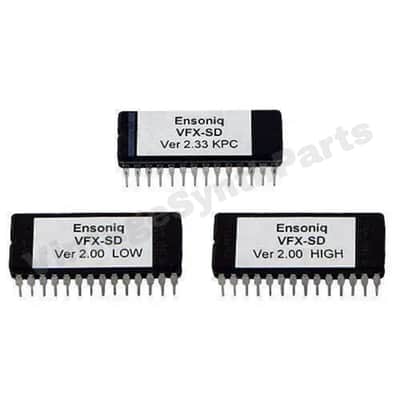

Ensoniq VFX-SD Version 2.00 and KPC 2.33 firmware OS update EPROM set RomEnsoniq VFX-SD Version 2.00 and KPC 2.33 firmware OS update EPROM set Rom ($20.25)

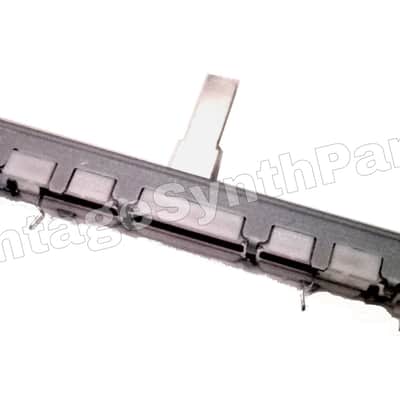

Ensoniq MR-76, ZR-76, EPS, SD-1, ASR-10, VFX-SD, VFX, EPS-M Slide Potentiometer SliderEnsoniq MR-76, ZR-76, EPS, SD-1, ASR-10, VFX-SD, VFX, EPS-M Slide Potentiometer Slider ($11.22)

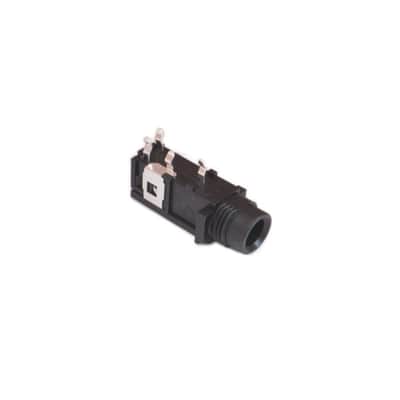

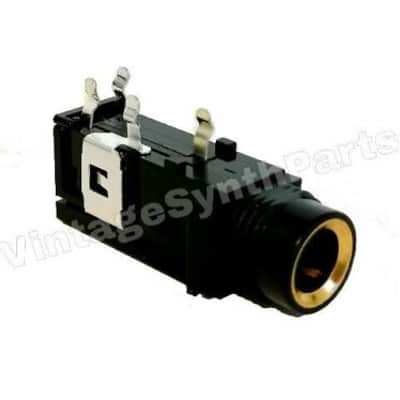

Ensoniq - SD-1 , MR Rack , VFX , EPS - Stereo phone jackEnsoniq - SD-1 , MR Rack , VFX , EPS - Stereo phone jack ($10.90)

Ensoniq - SD-1 , MR Rack , VFX , EPS - Stereo phone jackEnsoniq - SD-1 , MR Rack , VFX , EPS - Stereo phone jack ($6.49)

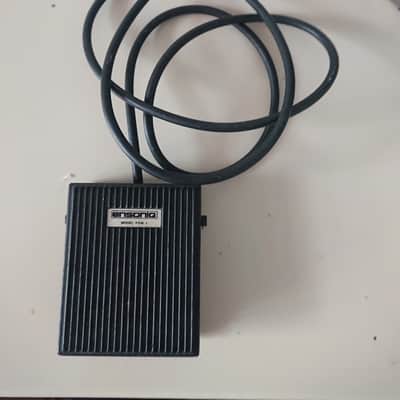

Ensoniq  vfx sd1 FSW 1 sustain pedalEnsoniq vfx sd1 FSW 1 sustain pedal ($84.60)

ENSONIQ SD-1, VFX, VFX-SD, (EPS16PLUS+,TS-10, ASR10?) original rare keyboard parts: 61 keys+ALL springsENSONIQ SD-1, VFX, VFX-SD, (EPS16PLUS+,TS-10, ASR10?) original rare keyboard parts: 61 keys+ALL springs ($123.26)

Ensoniq VFXsd Music Production SynthesizerEnsoniq VFXsd Music Production Synthesizer ($721.56)

Synthark VFXy massive programmer for Ensoniq SD1 & VFX RARE!Synthark VFXy massive programmer for Ensoniq SD1 & VFX RARE! ($600)

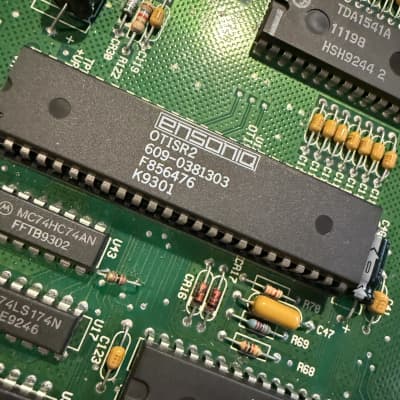

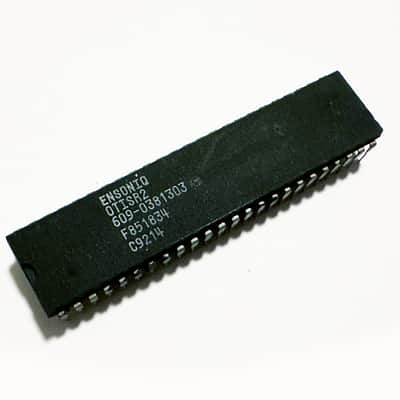

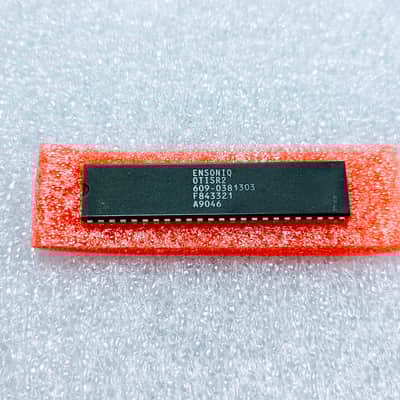

Ensoniq OTIS DSP IC,  Nos Repair Part for VFX-SD, EPS16+, ASR-10, ASR-88Ensoniq OTIS DSP IC, Nos Repair Part for VFX-SD, EPS16+, ASR-10, ASR-88 ($32)

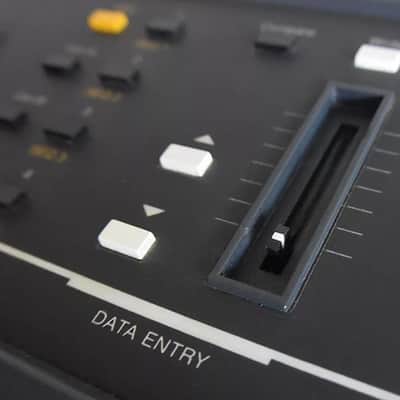

Ensoniq SQ-80 / ESQ-1 / VFX SD / SQ2  Volume & Data Slider Replacement Kit by BassmobileEnsoniq SQ-80 / ESQ-1 / VFX SD / SQ2 Volume & Data Slider Replacement Kit by Bassmobile ($24.95)

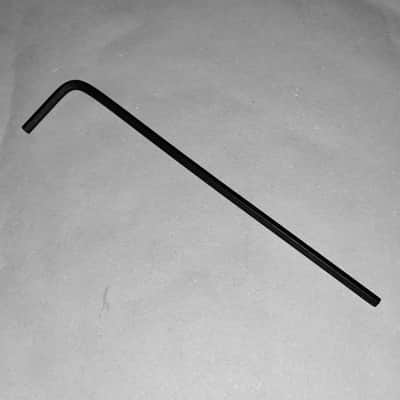

Ensoniq Hex Wrench for Mirage, ESQ-1, ESQ-M, SQ-80, ASR-X, ASR-X Pro, VFX, VFX-SD, SD-1, more!Ensoniq Hex Wrench for Mirage, ESQ-1, ESQ-M, SQ-80, ASR-X, ASR-X Pro, VFX, VFX-SD, SD-1, more! ($4)
