Synths ⇝ E-Mu ⇝ E-Mu Expansion ROMs

These ROMs can be used to expand the various E-Mu rack modules. Modules that support ROM expansion include the MK-6, PK-6, XK-6, Vintage Keys, Ensoniq Halo, MP-7, PX-7, XL-7, Proteus 1000, Proteus 2000, Proteus 2500, Xtreme Lead-1, Turbo Lead, Mo'Phatt, Turbo Phatt, Virtuoso 2000, Orbit 3, Vintage Pro, Planet Earth, and B3.

Each ROM has two associated numbers - the product number, which is in the 9000's, and an assembly number, which is a one-or-two-digit number. Some products have more than one assembly variant depending on which hardware they shipped with.

Some ROMs require an updated OS in order to be recognized. For instance, version 2 of the XROM will not be recognized in a Proteus 2000 with OS version 1.05, but it will be recognized with OS version 2.26.

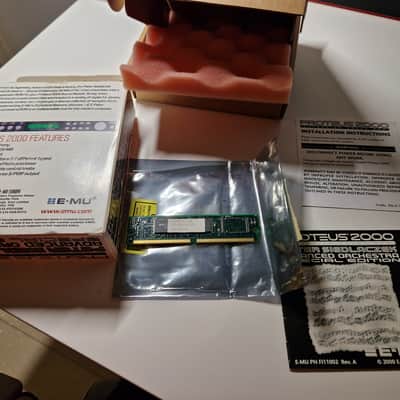

9061: Siedlaczek Advanced Orchestra special Edition 32MB

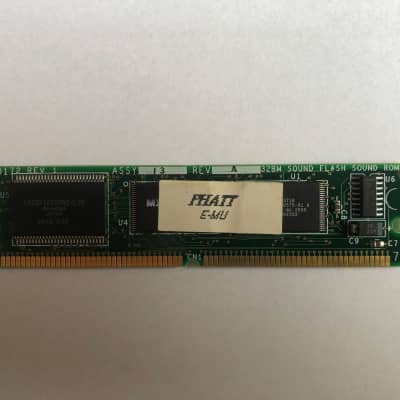

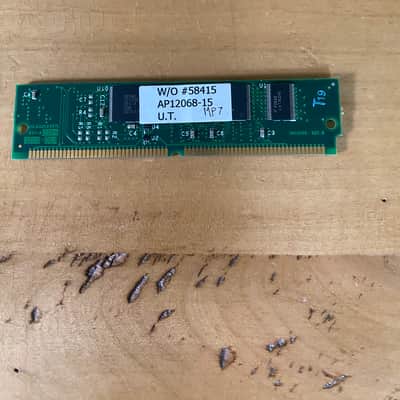

9062: Pure Phatt 32MB (ships in Mo' Phatt, Turbo Phatt, MP-7 and MK-6) There are slight variations -- the PHATT ROM (#13) has more beats, while the MP-7 ROM (#15) has more kits.

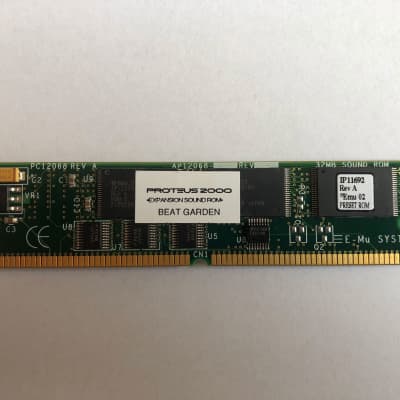

9063: Beat Garden 32MB (ships in Orbit 3)

9064: ENSONIQ Project ROM (#13) 32MB

9065: Vintage Collection 32MB (ships in Vintage Keys and Vintage Pro)

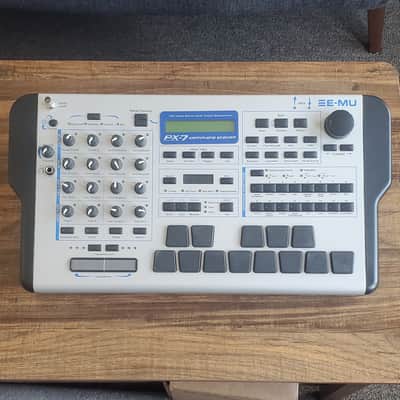

9066: Protean Drum 32MB (ships in PX-7)

9081: Holy Grail Piano 16MB

9082: Protozoa 16MB (uses sounds from Proteus 1, 2, and 3)

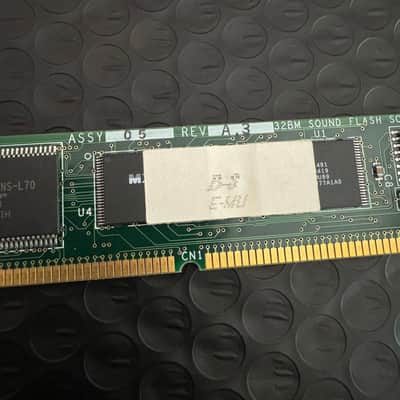

9083: Definitive B-3 32MB (ships in B-3)

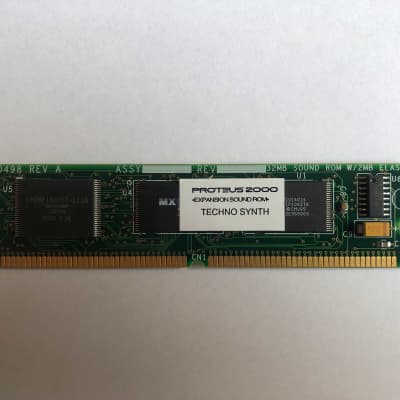

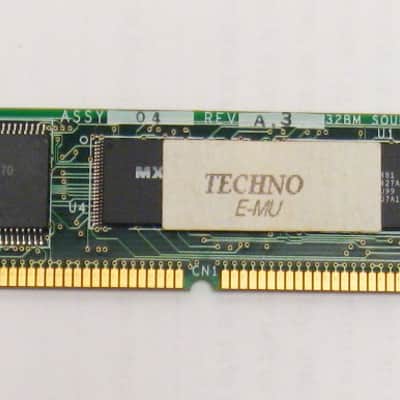

9084: Techno Synth Construction Yard 32MB (ships in Orbit 3)

9085: Orchestral Sessions Vol. 1 Section Strings 32MB (ships in Virtuoso 2000)

9086: Orchestral Sessions Vol. 2 Woodwind, Brass, Percussion, Solo Strings 32MB (ships in Virtuoso 2000)

9087: World Expedition 32MB (ships in Planet Earth)

9088: Sounds of the ZR featuring the Perfect Piano 32MB (ships in Ensoniq Halo) There are slight variations -- the ZR ROM (#12) has 4 preset banks, while the QROM (#22) has 5 banks.

9089: X-Lead 32MB (ships in Xtreme Lead-1 and XL-7) The XL-1 ROM shows up as XLEAD (#06), while the XL-7 ROM shows up as XL-7 (#14)

9140: Pop Collection (ships in PK-6). This ROM is similar to the Composer ROM.

9141: X-Lead 32MB v2 (ships in XK-6) The v2 version of the XROM ROM (#18) has 5 preset banks, while the v1 versions have 4.

9904: Composer 32MB (ships in Proteus 2500 and Proteus 2000, and Proteus 1000) There are slight variations -- the Proteus 2000 CMPSR ROM (#01) has 8 preset banks, while the Proteus 2500 ROM (#20) has 4 banks.

Specifications

ROM: 16MB or 32MB

User Demo Videos

Rating

Items for Sale on Reverb

Tested Working E-MU Systems Emu Definitive B-3 Hammond B3 Tone Wheel Organ Expansion Board Sound ROM Card for Proteus 2000-class synths such as P2K P1K XL1 MoPhatt Orbit3 Planet Earth Virtuoso Vintage Pro/Keys PK6 XK6 MK6 Ensoniq Halo XL7 MP7 PX7 2500 ($490)

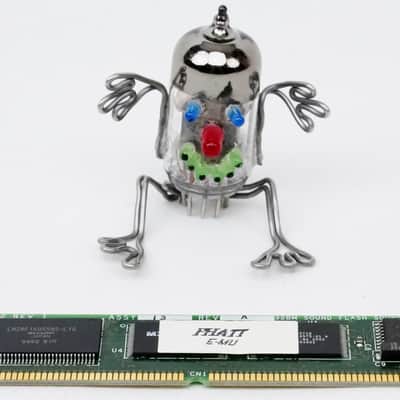

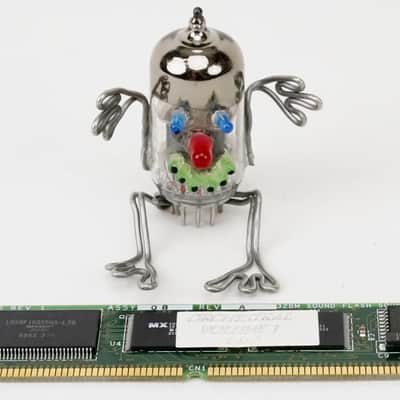

EMU E-MU Orchestral 1 Sound ROM + Neuwertig + 1,5 Jahre Garantie ($426.58)

E-MU Orchestral Sessions Vol. 1 & 2 – 64MB ROM Expansion Set – Virtuoso 2000 ($356.30)

E-MU #9211 Proteus 1,2,3 UltraProteus ROM Card ($264.03)

E-mu UltraProteus // #9211 Proteus 1,2,3 // Voice ROM Data Card // Rare Find ($263.95)

E-MU Systems MK-6 Mo'Phatt Keys — 61-Key Synth, 64-Voice Pure Phatt ROM ($258.08)

E-MU Systems PROM1, Pop Collection 32MB Expansion ROM – Proteus 2000 / 2500 / Command Station ($363.29)

E-MU Proteus 2000 Composer Rom Card Proteus2000 ($196.70)

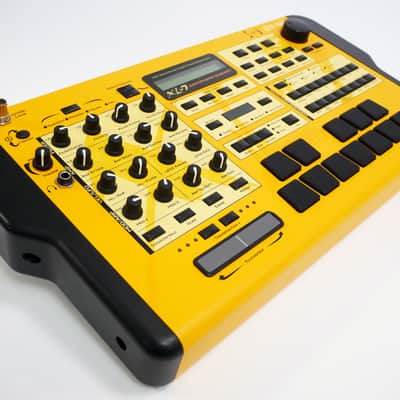

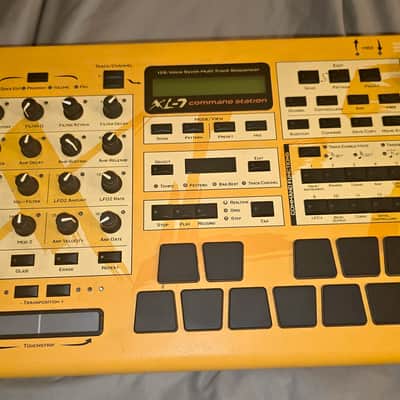

E-MU Systems XL-7 + Pure Phatt ROM ($990.11)

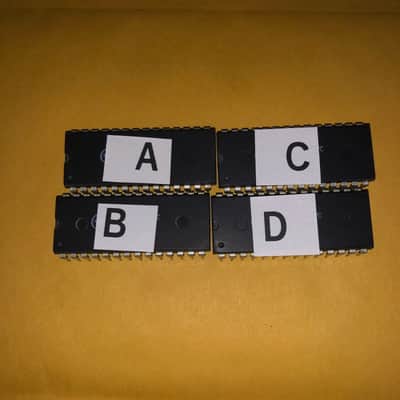

E-MU Systems Drumulator replacement Sound / Waveform ROMs EPROM rom set kit ($62)

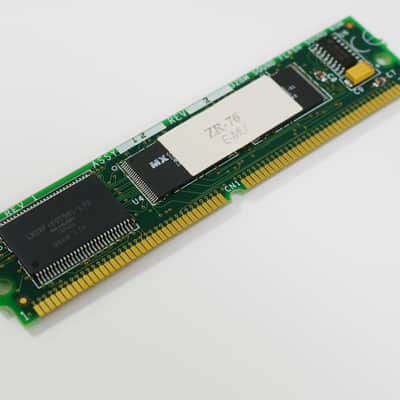

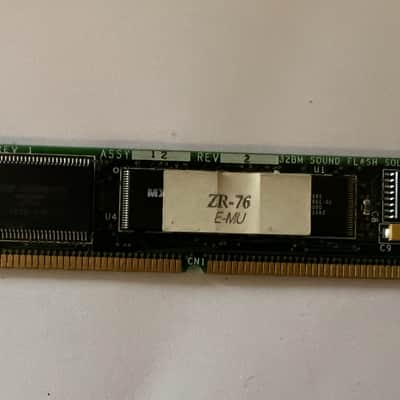

E-MU ZR-76 SOUNDS OF THE ZR SOUND ROM ($363.04)

Tested Working E-MU Systems Emu Orchestral Sessions Vol. 1 (Virtuoso Section Strings) Orchestra Volume 1 Expansion Board Sound ROM Card for Proteus 2000-class synths such as P2K P1K XL1 MoPhatt B3 Vintage Pro PK6 XK6 MK6 Ensoniq Halo XL7 MP7 PX7 2500 etc. ($218)

Tested Working E-MU Systems Emu COMPOSER 8-Bank Expansion Board Sound ROM Card for Proteus 2000-class synths such as P2K P1K XL1 MoPhatt Orbit3 Planet Earth B3 Virtuoso 2000 Vintage Pro/Keys PK6 XK6 MK6 Ensoniq Halo XL7 MP7 PX7 Proteus 2500 1000 etc. ($250)

E-mu Turbo Phatt - Fully Expanded with 4 ROMS (PROM, VROM, MROM, Turbo Phatt Rom) - MEGA RARE ($2,647.83)

E-MU Systems Ultra Proteus Rom Card ''Expressive Orchestral #9212'' 1994 - black ($132)

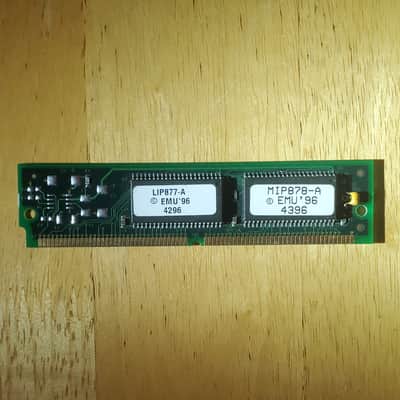

Emu 1MB Flash ROM with EOS 3.0b installed (for Classic Samplers) ($179.99)

Emu Proteus 2000 “Composer” ROM ($152.50)

E-MU EOS Emulator Production Set CD-ROM 101, EOS ($19.99)

E-MU System Sound Library Examples "RED" CD-ROM ,ESI,E4,e64,EIIIX ($22.50)

E-MU Formula 4000 Hip-Hop Nation, ESI 32,2000,4000, E4, emu CD ($27.50)

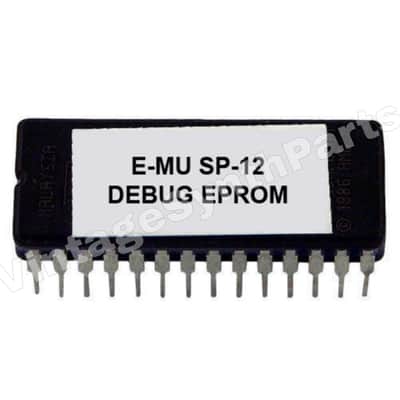

E-MU sp12 v1.8 debug Diagnostic Test firmware Sampler EPROM for e-mu sp-12 Rom E-mu Chip ($17.54)

E-mu Procussion OS v1.01 EPROM Firmware ROM Chips Ic EMU No Upgrade Update Rom ($21.06)

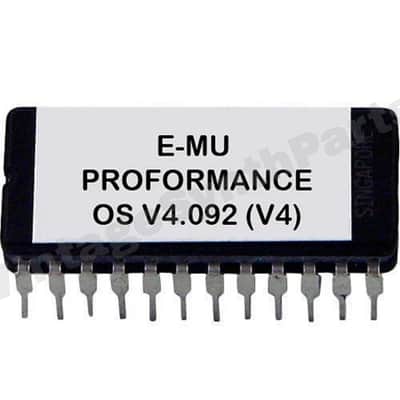

E-MU Proformance Version 4.092 (4.0) OS EPROM ROM upgrade kit Emu Rom ($17.54)

E-MU SP-12 SP12 Factory Sound Eproms Roms Repair Rom Eprom Chip Chips Ic Ics ($70.33)

E-mu Vintage Keys Version 1.03 firmware latest OS update Upgrade Rom Eprom Emu ($23.40)

E-MU Vintage Keys Plus Version 2.0 Firmware Update Upgrade OS Eprom Rom Emu ($22.23)

E-mu Drumulator - Version 3.0 Firmware OS Upgrade [ MIDI Implementation Update ] Emu Rom ($17.54)

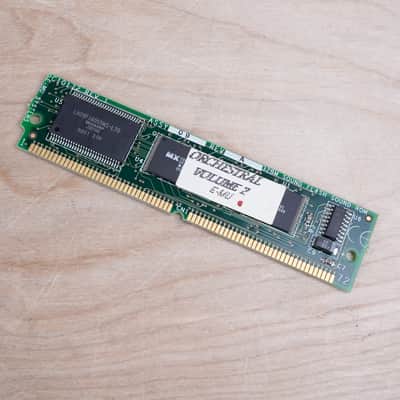

E-MU Systems Orchestral Volume 2 Expansion Expansion Sound ROM Card ($174.99)

Emu E-Mu Drumulator Factory Sounds EPROM sound expansion bank Rom Drum Vintage ($46.87)

E-Mu Proteus 1 Version 2.05 Firmware OS Update Upgrade Eprom Emu Rom ($22.23)

Emu E-mu Drumulator Digidrums Latin Percussion EPROM sound expansion bank Rom ($46.87)

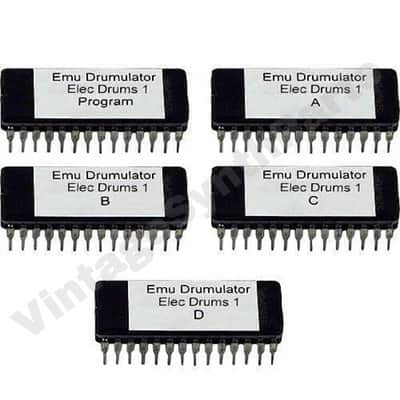

Emu E-Mu Drumulator Digidrums Electronic Drums 1 EPROM sound expansion bank Rom ($46.87)

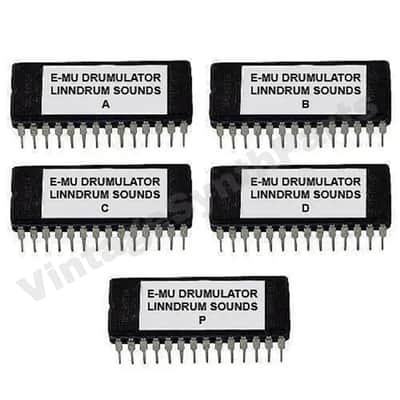

Emu E-Mu Drumulator Linndrum EPROMs sound expansion bank Rom Drum Vintage Eprom ($46.87)

E-MU #9214 Dance/Techno UltraProteus ROM Card ($330.04)

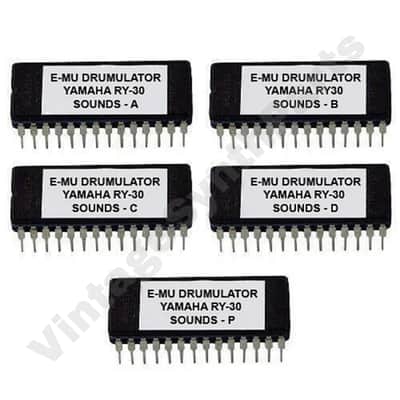

Emu E-Mu Drumulator Yamaha RY-30 EPROMs sound expansion bank Rom Drum Vintage Eprom ($46.87)

Emu E-Mu Drumulator Linndrum EPROMs sound expansion bank Rom Drum Vintage Eprom ($46.87)

E-MU Sound Library CD Rom Vol 12 & 13 ($40)

E-MU Emulator II OS 3.1 ROM Upgrade Kit w/Debug EPROM *Latest OS* ($29.27)

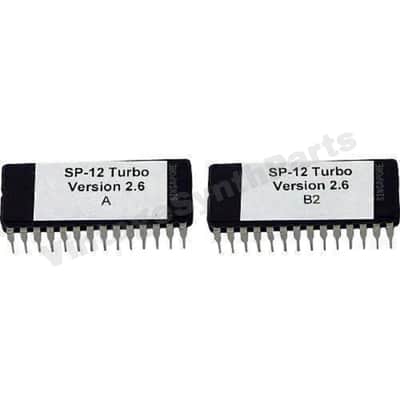

E-MU SP-12 Turbo OS 2.6 EPROM Firmware Upgrade KIT SP12 Rom Emu ($29.33)

E-MU Systems ESI-32 - 150MB Production Soundset - Volume 12 Sampler CD Rom ($29.99)

E-mu Drumulator OS 3.0 EPROM Firmware Upgrade KIT / Brand New ROM Final Update Chip Emu ($19.95)

E-MU Proteus SIEDLACZEK Rom Card ($376.24)

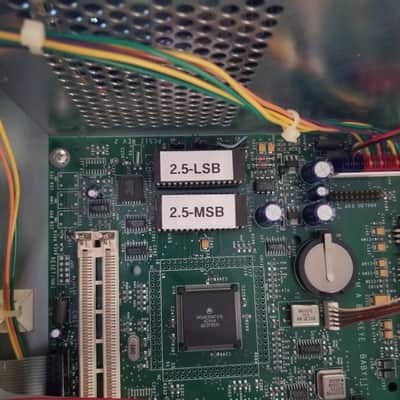

E-MU Systems Darwin OS 2.5 chips ROM version 2.50 eprom upgrade ($39.99)

E-MU Orchestral Sessions Vol. 2 Sound ROM — 32MB Expansion ($181.65)

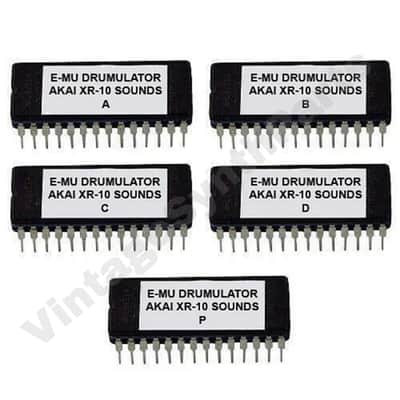

Emu E-Mu Drumulator Akai Xr-10 EPROM sound expansion bank Rom Drum Vintage ($46.87)
