Yamaha PSS-140Yamaha PSS-140 Voice List

The sounds of the PSS-140 are generated using 2-operator FM from the Yamaha YM2413 OPLL chip and it sounds similar to the OPL2 and OPL3 computer sound cards of the late 1980's and early 1990's (AdLib and Sound Blaster). If you want a selection of instruments with the "FM sound", but don't want to learn how to program an FM synthesizer (it's hard!), the PSS-140 has a great collection of sounds that can be considered representative of what FM is good at, including organ, bass, synth brass, electric piano, synth strings, and melodic percussion sounds.

The 11-step volume control can be thought of as a bitcrusher plugin -- reducing the volume steals bits of resolution from the audio output, so sounds are more grainy and lo-fi at lower volume. At any volume the output is pretty noisy.

Although it's made of plastic, the build quality is such that you'll be shopping for a new knee rather than a new keyboard if you try to snap it over your knee.

Specifications

Year Released: 1988

Keyboard: 37 mini keys

Polyphony: 6 notes

ROM: 100 instruments, 10 rhythms, 5 drum sounds

Dimensions: 565.5 mm x 195.8 mm x 62.4 mm

Weight: 1.5 kg

This keyboard has built-in 2-watt mono speaker(s).

Batteries: AA x 6

User Demo Videos

Rating


3.3
(4 votes)

Sound Samples

WAV samples available on freewavesamples.com.

File Downloads

Yamaha PSS-140 Manual

Items for Sale on Reverb

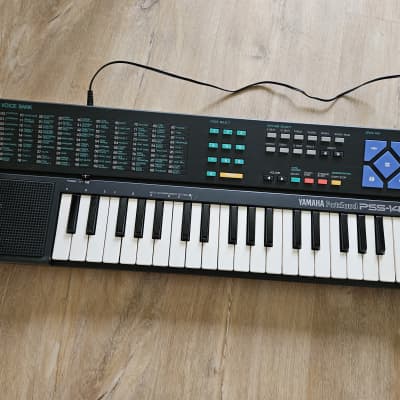

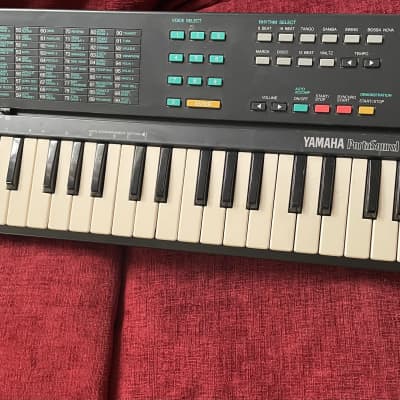

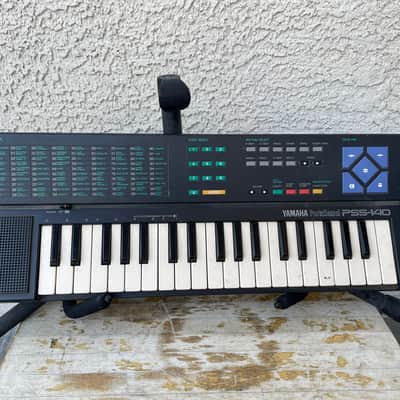

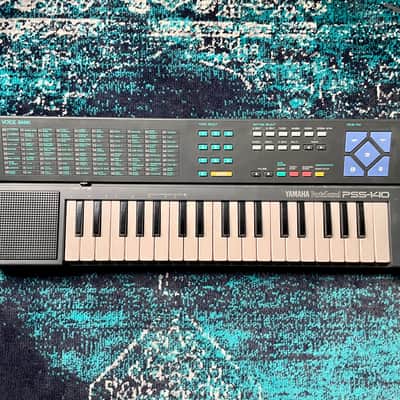

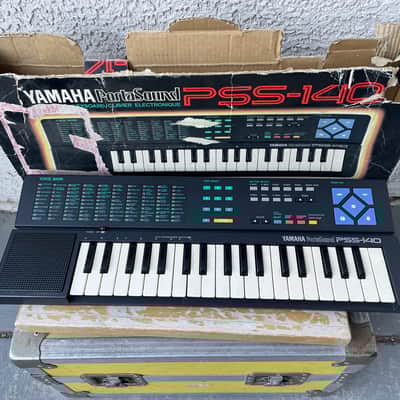

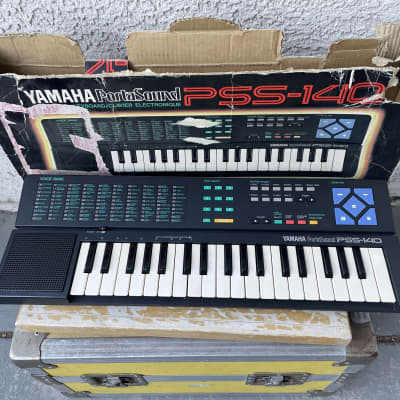

Yamaha PSS-140 Synthesizer 1988 - BlackYamaha PSS-140 Synthesizer 1988 - Black ($29.30)

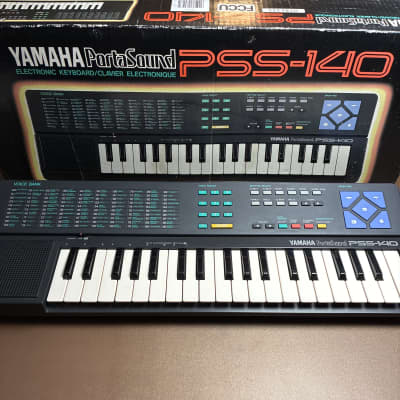

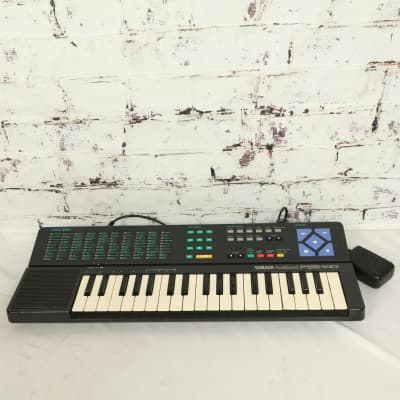

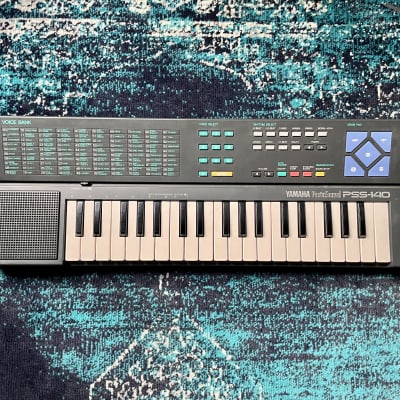

Yamaha PSS-140 SynthesizerYamaha PSS-140 Synthesizer ($75)

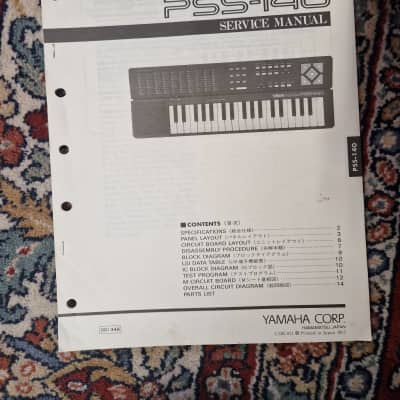

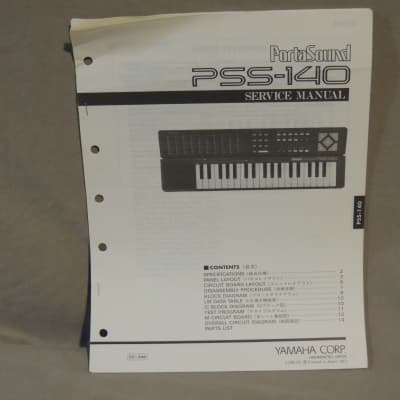

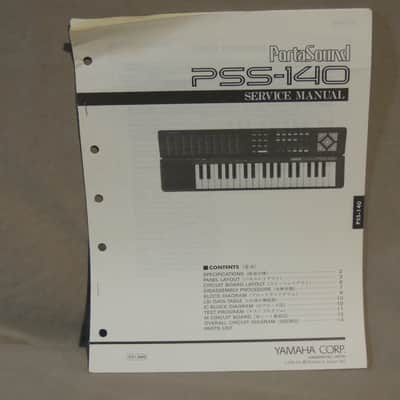

Yamaha PirtaSound PSS-140 Service Manual [Three Wave Music]Yamaha PirtaSound PSS-140 Service Manual [Three Wave Music] ($12)

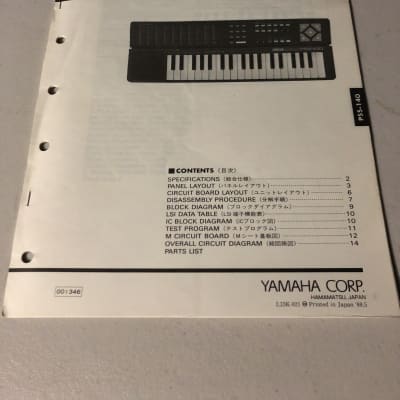

Yamaha  PSS-140 PortaSound Service Manual 1989Yamaha PSS-140 PortaSound Service Manual 1989 ($15)

Circuit Bent Yamaha PSS-140 - Modified 80s Keyboard w/ FM Synthesis Mod, Drum Machine Functionality, & Line Out - Built by Haunted HarmonicsCircuit Bent Yamaha PSS-140 - Modified 80s Keyboard w/ FM Synthesis Mod, Drum Machine Functionality, & Line Out - Built by Haunted Harmonics ($200)

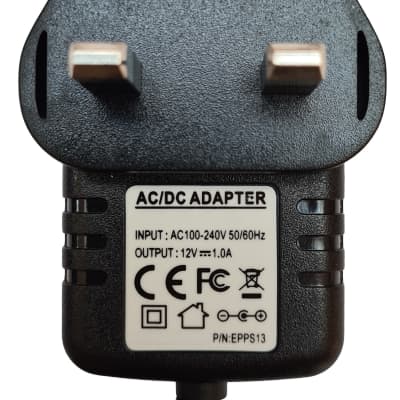

Power Supply Replacement for YAMAHA PSS-140 KEYBOARD ADAPTER UK 12VPower Supply Replacement for YAMAHA PSS-140 KEYBOARD ADAPTER UK 12V ($14.07)

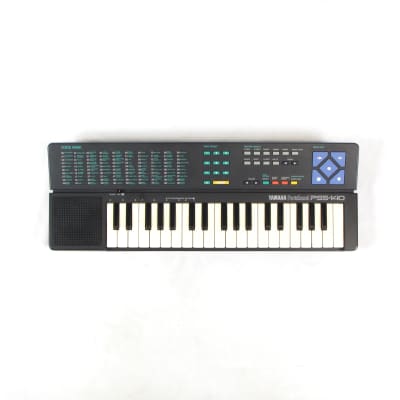

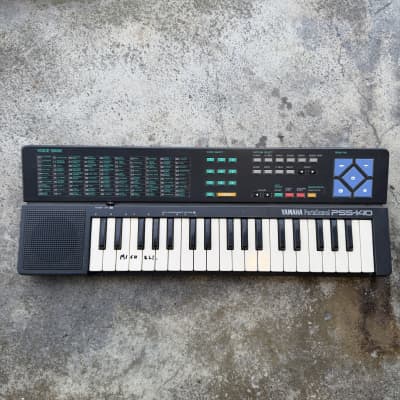

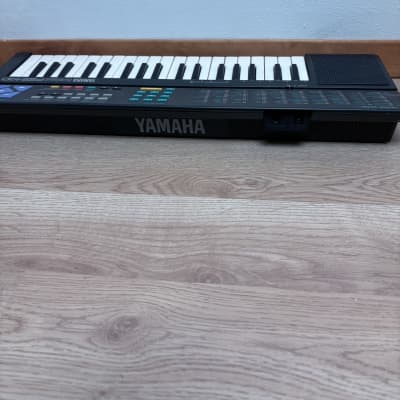

Yamaha  Pss140 80sYamaha Pss140 80s ($79)
