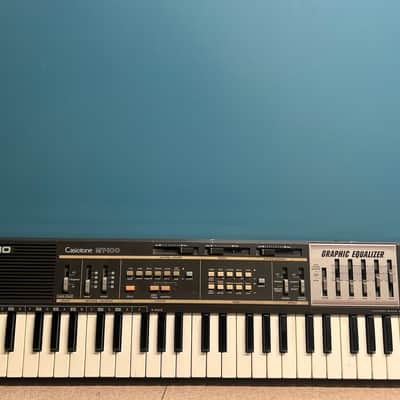

Home Keyboards ⇝ Casio ⇝ Casio Casiotone MT-100

The MT-100 can be powered with batteries or with an AD-1 power adapter (7.5 volt, negative tip). Its sound engine is very similar to the MT-68. It is powered by an NEC D931 chip.

Sound List

• Organ
• Pipe Organ
• Flute
• Clarinet
• Trumpet
• Horn
• Oboe
• Accordion
• Violin
• Cello
• Piano
• Electric Piano
• Harpsichord
• Vibraphone
• Celesta
• Harp
• Mandolin
• Electric Guitar
• Funny
• Cosmic tone

Rhythm List

• Rock
• Pops
• Disco
• 16Beat
• Swing
• Latin Swing
• Bossa Nova
• Samba
• Beguine
• Tango
• Waltz
• Slow Rock

Specifications

Keyboard: 49 mini keys

Polyphony: 8 notes

ROM: 20 instruments, 12 rhythms, 6 drum sounds

Outputs: headphone jack, mono RCA line out

Power Consumption: 3 watts

Dimensions: 633 mm x 188 mm x 62 mm

Weight: 2.6 kg (with batteries)

This keyboard has built-in 1-watt mono speaker(s).

Batteries: D x 5

User Demo Videos

Rating

File Downloads

Casio MT-100 Manual

Items for Sale on Reverb

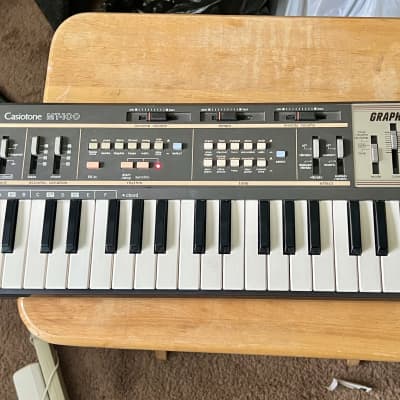

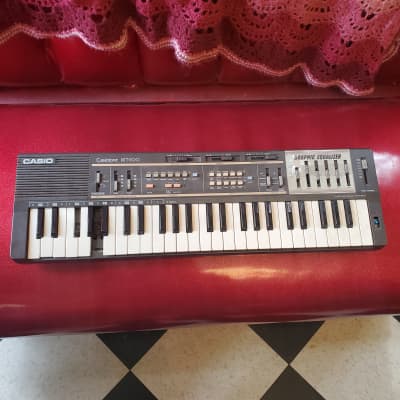

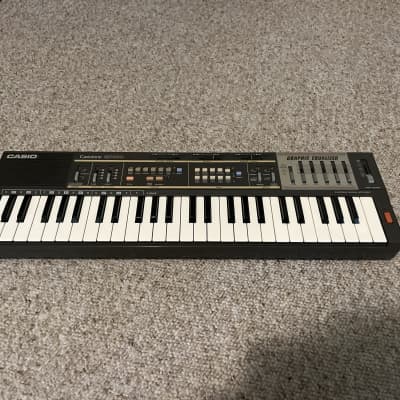

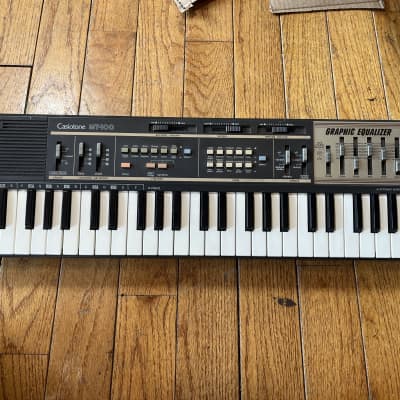

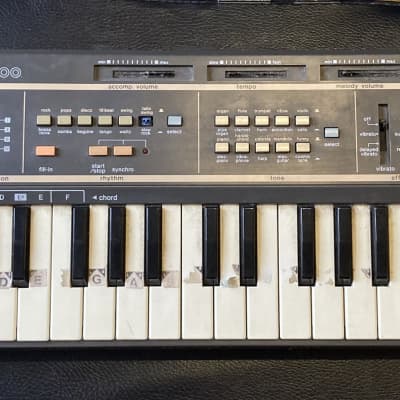

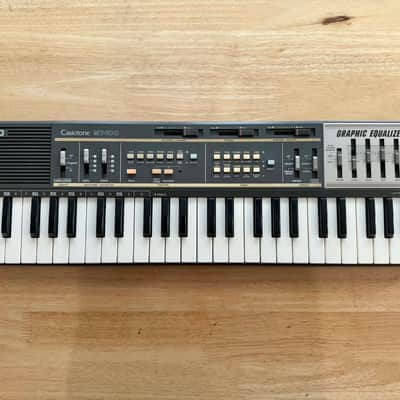

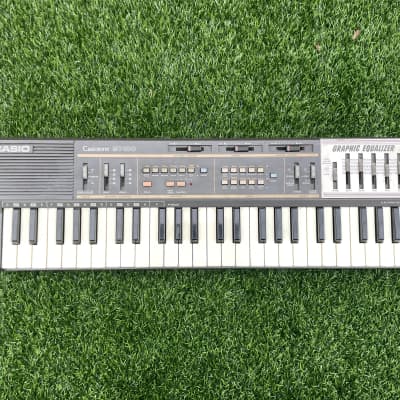

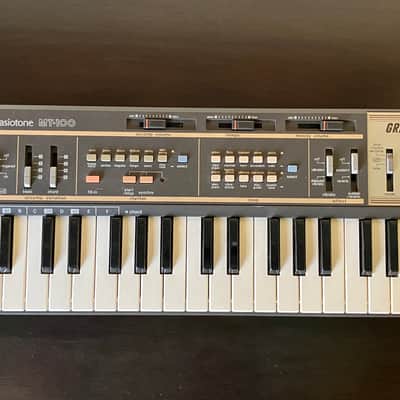

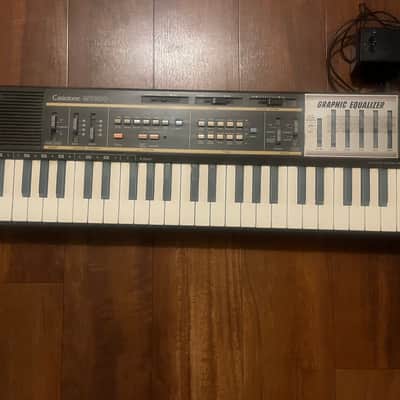

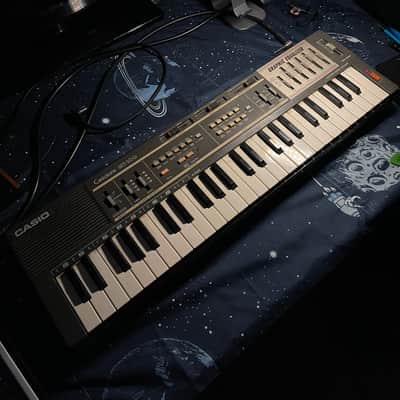

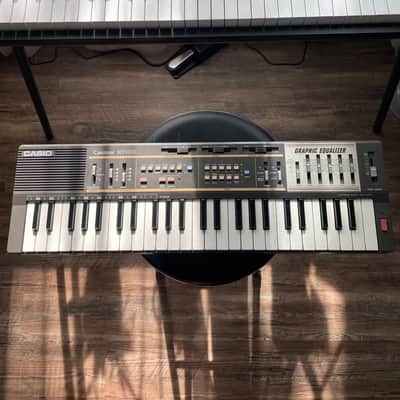

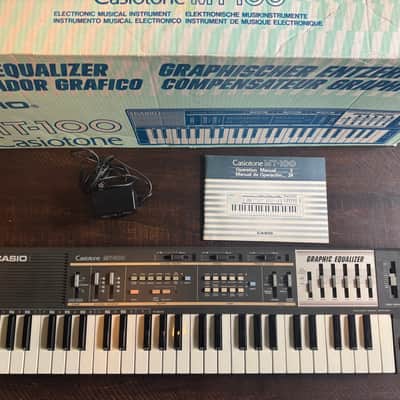

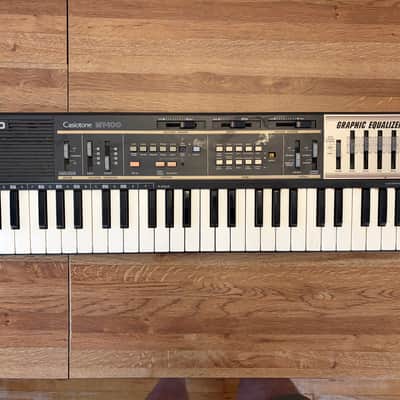

Casio MT-100 Casiotone 49-Key Synthesizer 1980s - Gray ($110)

CASIO MT-35 MT-100 Vintage Keyboard Replacement Part: White Key [E] ($7.61)

CASIO MT-35 MT-100 Vintage Keyboard Replacement Part: White Key [D] ($7.61)

CASIO MT-35 MT-100 Vintage Keyboard Replacement Part: White Key [B] ($7.61)

CASIO MT-35 MT-100 Vintage Keyboard Replacement Part: Single Black Key ($7.61)

CASIO MT-35 MT-100 Vintage Keyboard Replacement Part: White Key [G] ($7.61)

CASIO MT-35 MT-100 Vintage Keyboard Replacement Part: White Key [F] ($7.61)

CASIO MT-35 MT-100 Vintage Keyboard Replacement Part: White Key [C] ($7.61)

CASIO MT-35 MT-100 Vintage Keyboard Replacement Part: White Key [A] ($7.61)

CASIO MT-100 Vintage Keyboard Replacement Part: Battery Door Cover ($12.55)

CASIO MT-100 Vintage Keyboard Part: Power ON/OFF Switch PCB [M486-CN2B] ($11.50)

CASIO MT-100 Vintage Keyboard Part: Blue Orange Gray Push Button Cover Set ($7.61)

CASIO MT-100 Vintage Keyboard Part: Gray Equalizer Slider Cover Cap [2PCS] ($8.35)

CASIO MT-100 Keyboard Part: Control Panel Contact Board w/Pads [M486-CNIM] ($13.60)

CASIO MT-100 Vintage Keyboard Part: Key Contact Board PCB [M486-KYIM] ($13.60)

CASIO MT-100 Vintage Keyboard Part: Push Button Group Mechanism Rhythm Select ($11.50)

CASIO MT-100 Vintage Keyboard Part: Tempo Accomp Slider Pot PCB [M486-VR1B] ($11.50)

CASIO MT-100 Vintage Keyboard Part: EQ AC input Volume Fader PCB [M486-MA2M] ($16.75)

CASIO MT-100 Vintage Keyboard Part: Melody Slider Pot PCB Board [M486-VR2B] ($9.40)

CASIO MT-100 Vintage Keyboard Part: Tone Push Button Group Mechanism ($11.50)

CASIO MT-100 Vintage Keyboard Part: Black (w/Red Line) Melody Slider Cover Cap ($7.61)

CASIO MT-100 Vintage Keyboard Replacement Part: Gray Chord Slider Cover Cap ($7.61)

CASIO MT-100 Vintage Keyboard Part: 3" Speaker Woofer 4 Ohms [EAS-8P109SG] ($10.45)

CASIO MT-100 Vintage Keyboard Part: Main Processor Board PCB [M486-MAIM] ($16.75)

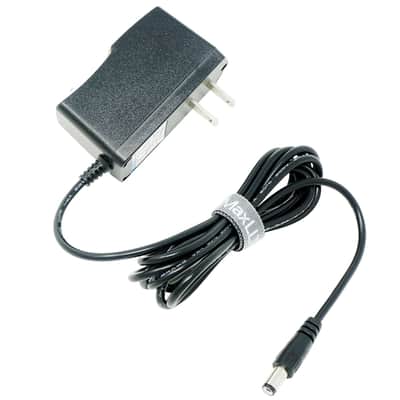

9V Ac/Dc Power Replacement Adapter For Casio Lk-100, Lk-200S, Lk-210, Lk-215, Lk-220, Lk-230, Lk-270, Lk-30, Lk-300Tv, Lk-33, Lk-35, Lk-40, Lk-42, Lk-43 Keyboard Power Supply Charger Cord ($22.99)

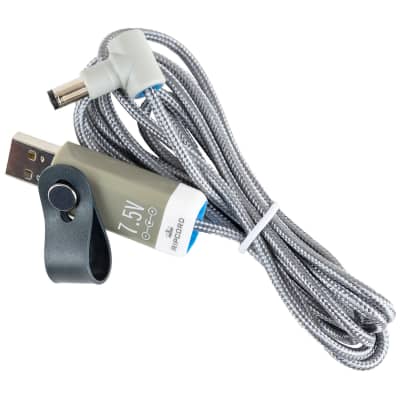

Ripcord USB to 7.5V Casio MT-100 Keyboard-compatible power cable by myVolts ($24.27)

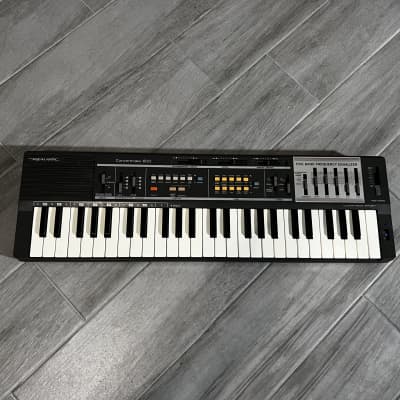

Realistic Concertmate-600 (Casio MT-100 Clone) ($102)
