Yamaha released two classes of plugin boards, the PLG100 and newer PLG150. PLG100 boards will work in newer synthesizers such as the Motif ES, but voice data and/or patch storage may not be right.

PLG150 Series

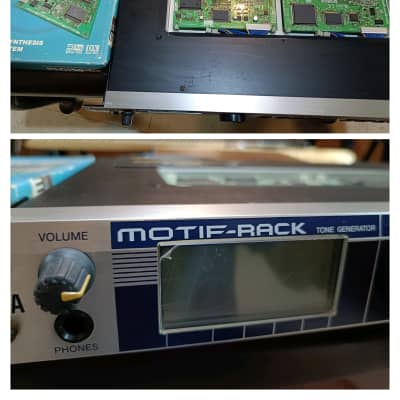

These expansion boards are designed to work with the Motif 6/7/8/Rack, Motif ES 6/7/8/Rack, CS6x, CS6r, S30, S80, S90, S90ES, AN200, DX200, and PSR9000 Pro.

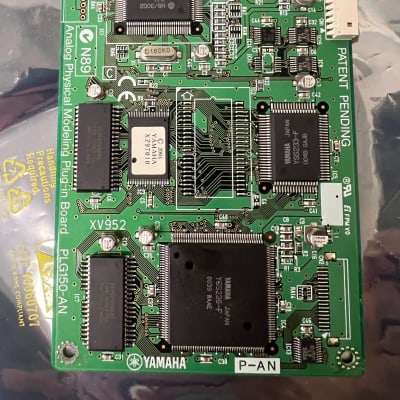

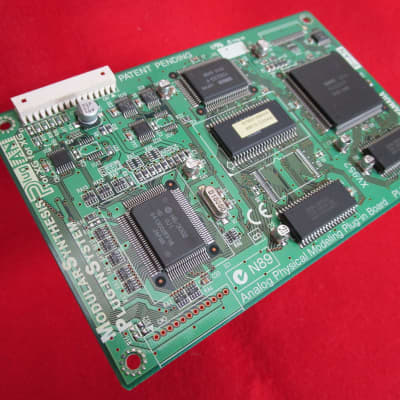

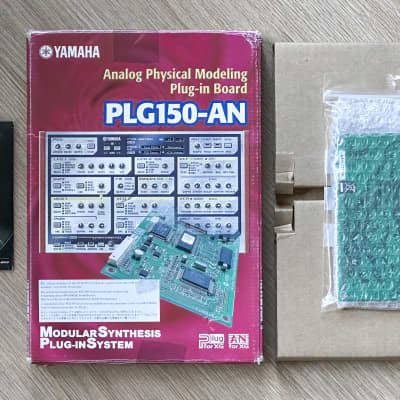

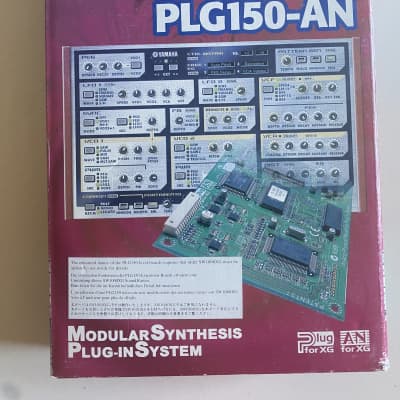

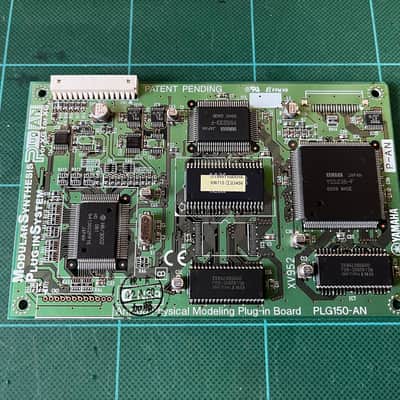

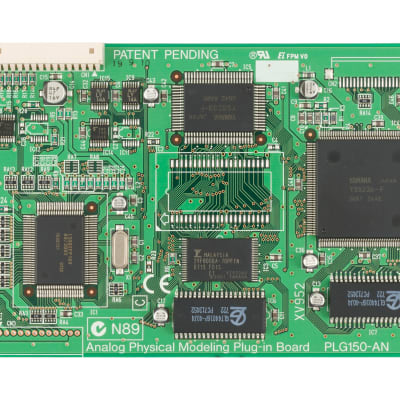

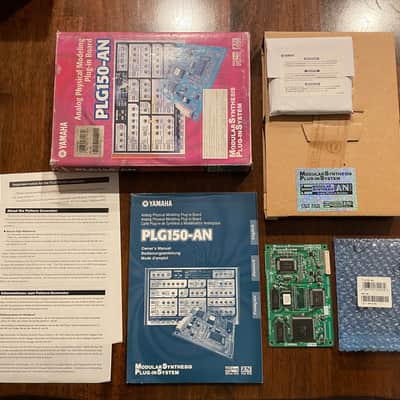

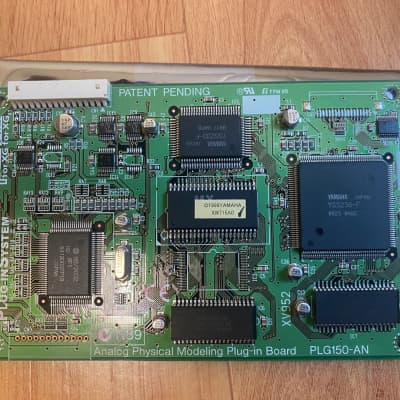

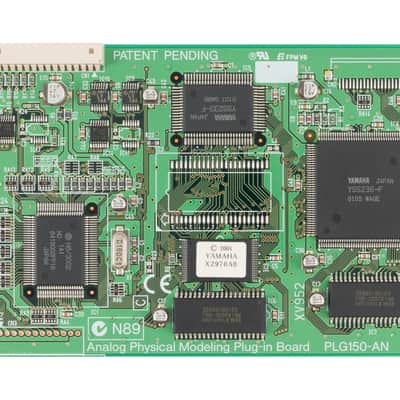

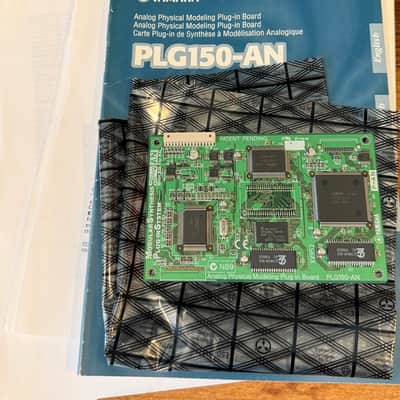

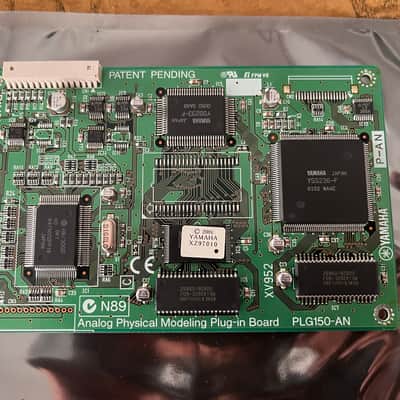

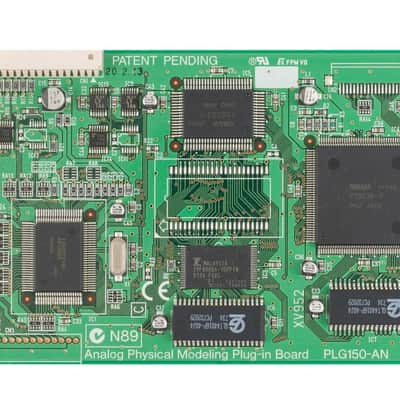

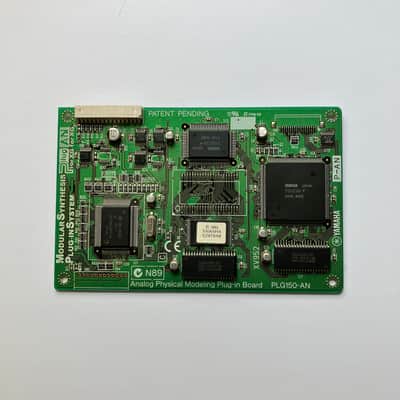

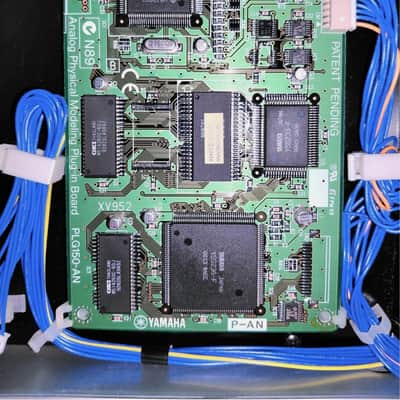

PLG150-AN: Analog physical modelling based on the AN1x synthesizer engine. Adds 5 notes of polyphony.

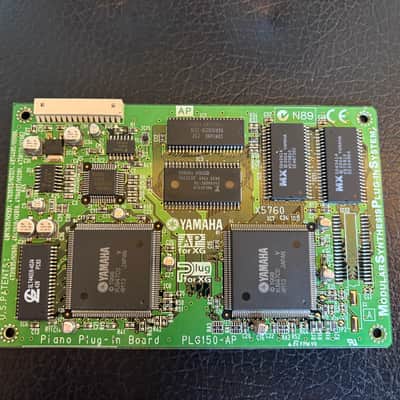

PLG150-AP: Acoustic piano with 29MB of waveform data and 32 patch presets. Adds an extra 64 notes of polyphony.

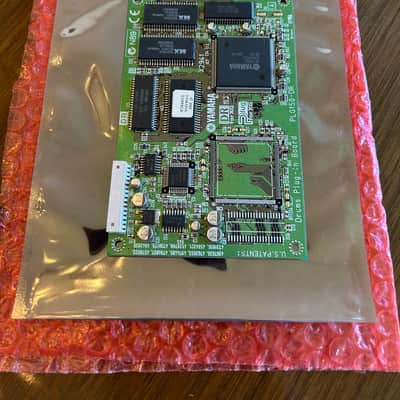

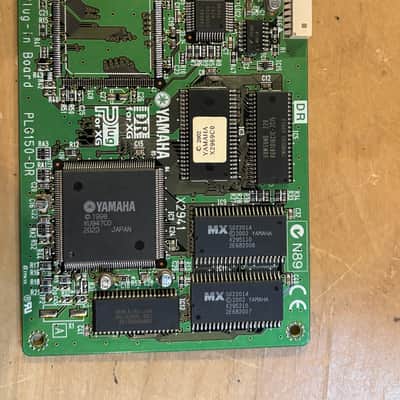

PLG150-DR: Drums with 22MB of waveform data. Adds 80 drum kits and 32 notes of polyphony.

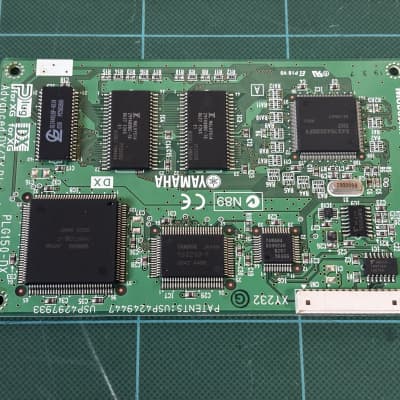

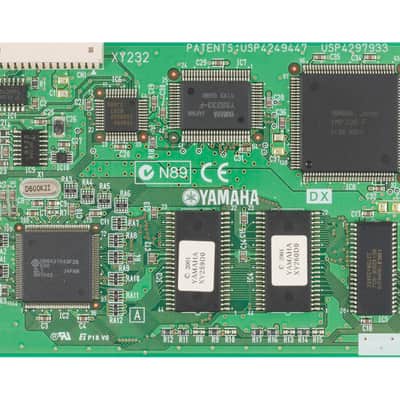

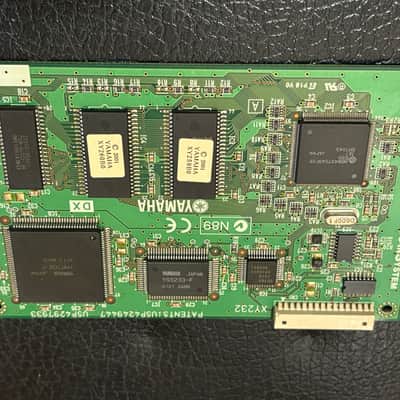

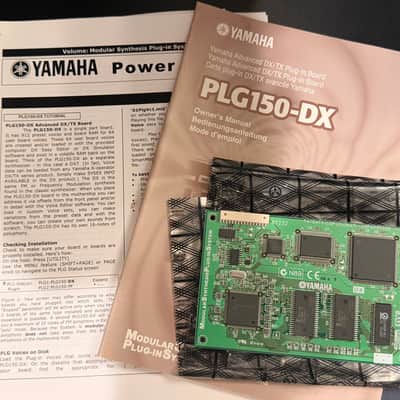

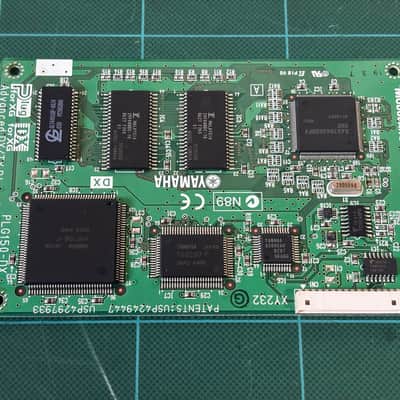

PLG150-DX: FM, adds 16 voices of 6-operator FM synthesis to polyphony. Updated version of the PLG100-DX.

PLG150-PC: Latin groove factory with 19MB of waveform data. Adds 80 Latin drum kits and 32 notes of polyphony.

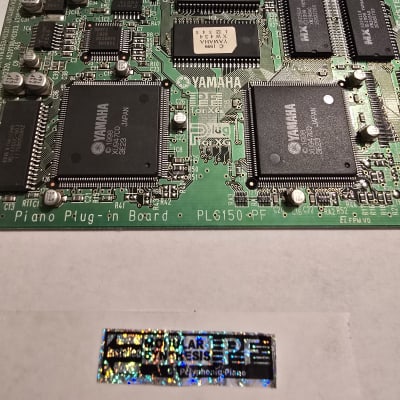

PLG150-PF: Piano, with 29MB of grand piano waveform data and 32 patch presets. Adds an extra 64 notes of polyphony plus effects.

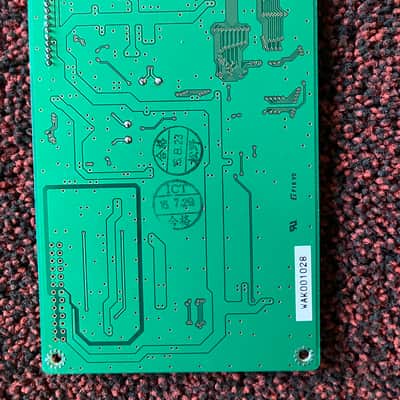

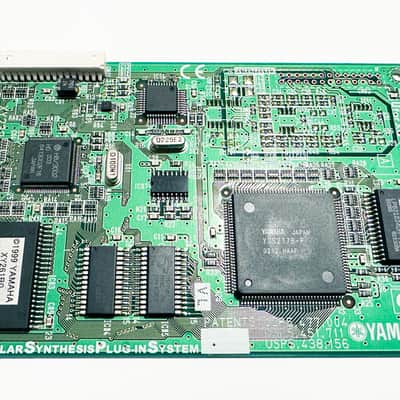

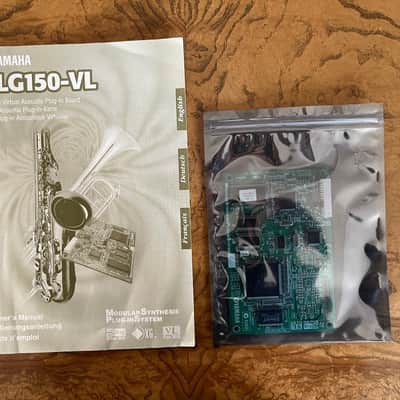

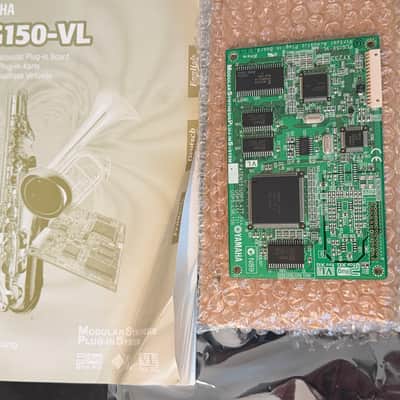

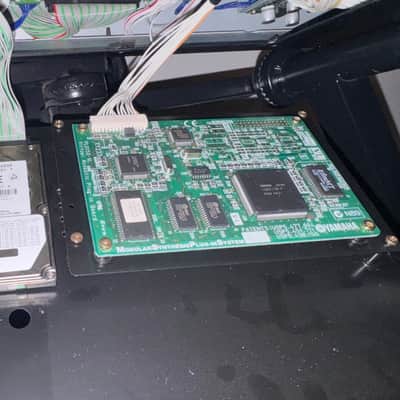

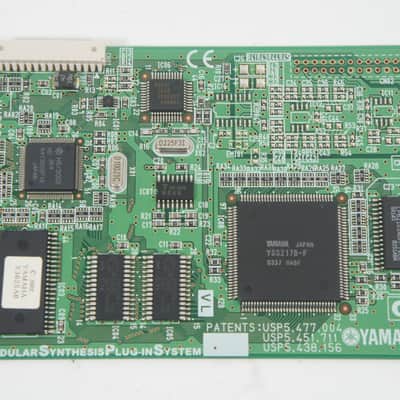

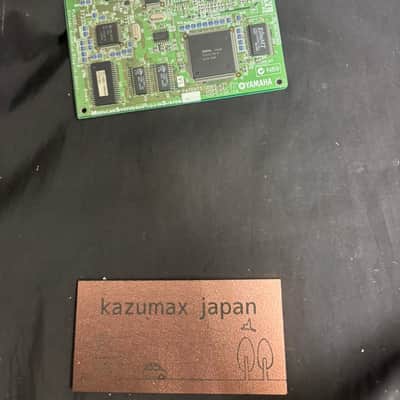

PLG150-VL: Virtual acoustic, adds one voice of physically modelled wind instrument sounds. Updated version of the PLG100-VL.

PLG100 Series

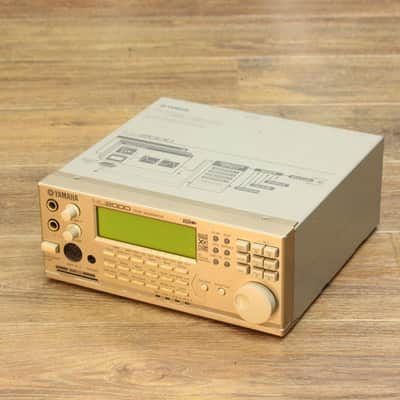

These expansion boards are designed to be used with the CS6x, CS6r, S30, S80, MU100, MU100R, MU128, MU1000, MU2000, and SW10000XG.

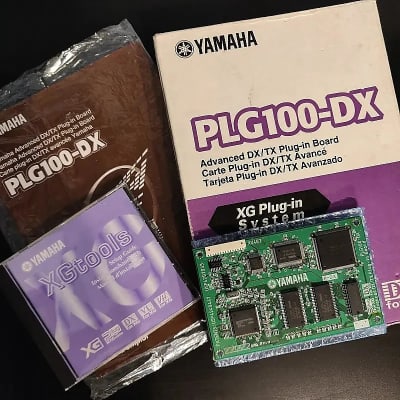

PLG100-DX: FM, adds 16 voices of 6-operator FM synthesis to polyphony.

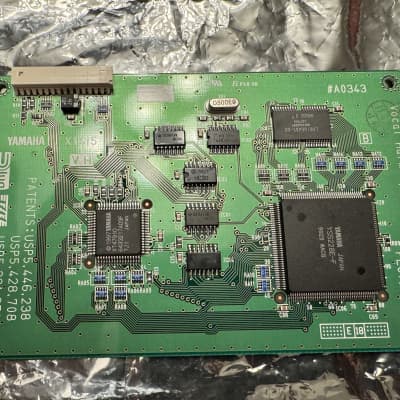

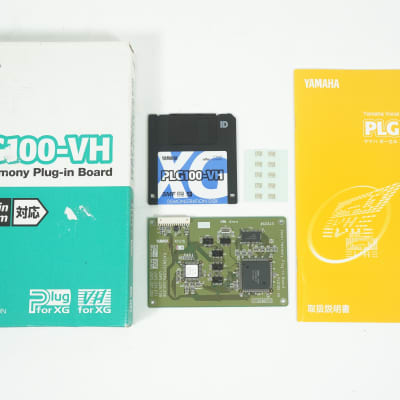

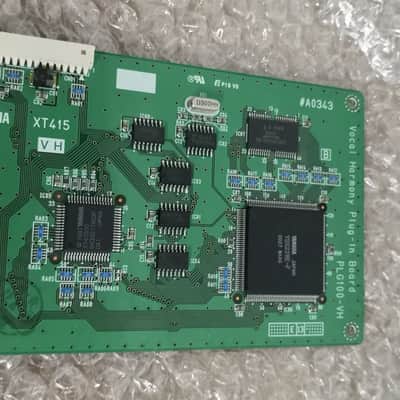

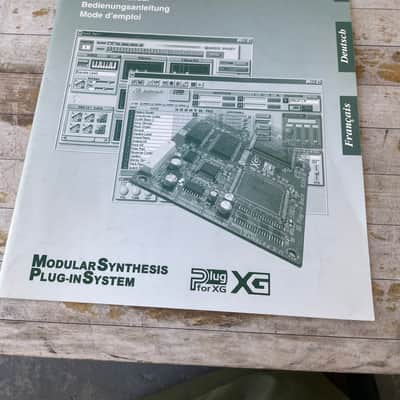

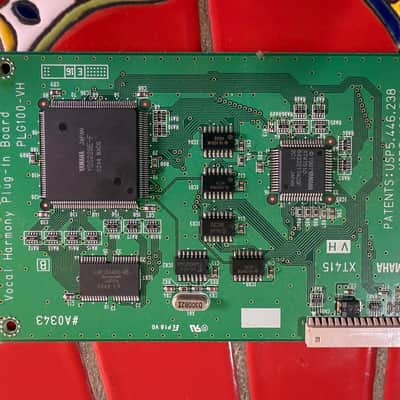

PLG100-VH: Vocal harmony with real-time voice effects including vocoding and gender-bending. This does not work in the S30.

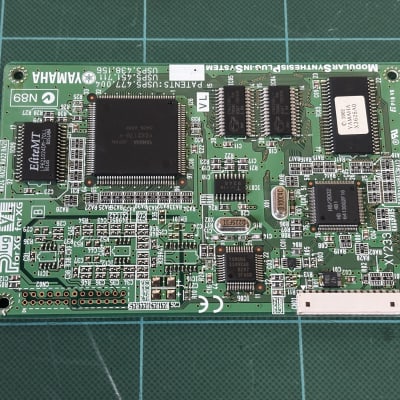

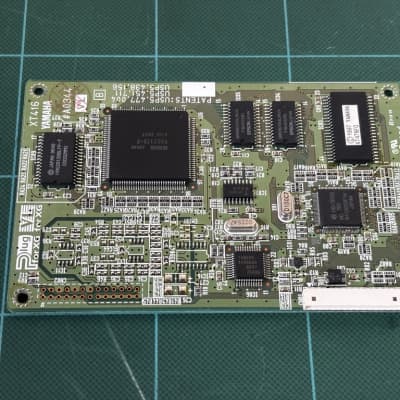

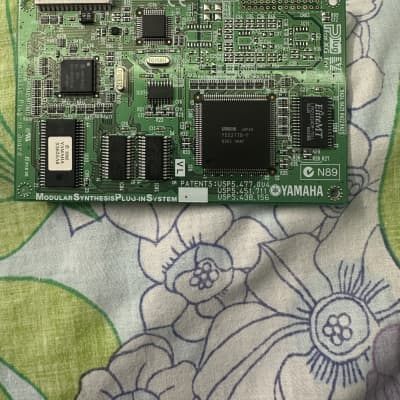

PLG100-VL: Virtual acoustic, adds one voice of physically modelled wind instrument sounds.

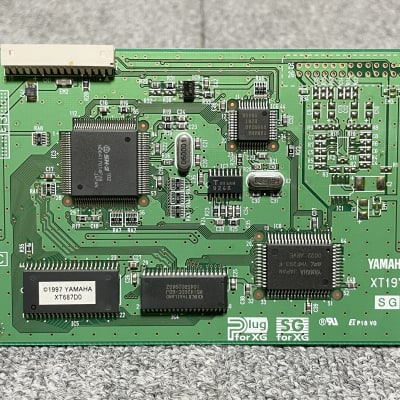

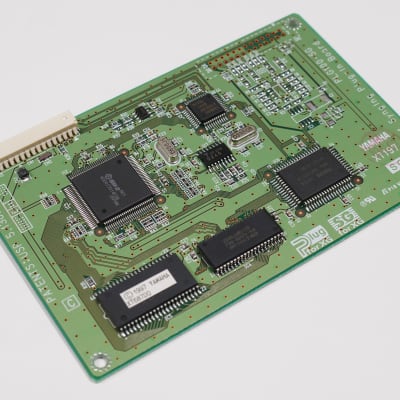

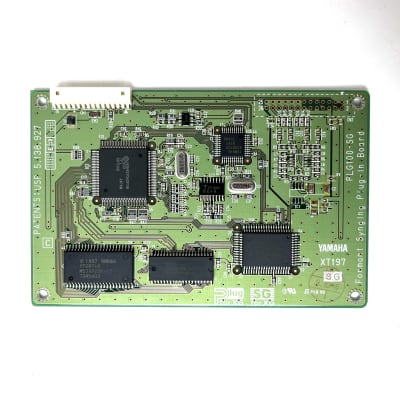

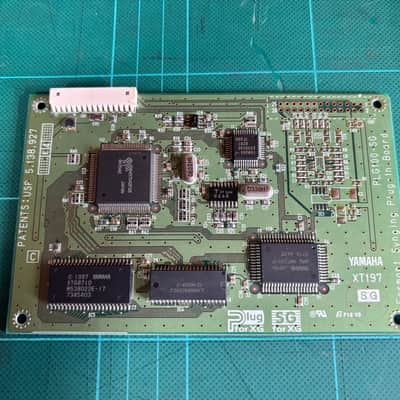

PLG100-SG: Formant singing (called "formant synging" in the documentation). This board was the predecessor to the Vocaloid software and was only available in Japan.

PLG100-XG: Contains an XG compatible sound set. Adds 16 parts of multitimbrality and 32 voices of polyphony. On some synthesizers, this must be installed in Slot 2 in order to function properly.
