SynthsYamaha ⇝ Yamaha FB-01

Yamaha FB-01 FrontYamaha FB-01 Back

The Yamaha FB-01 is a half-rack synthesizer module. It is a 4-operator synth with 8 available FM algorithms. As a budget FM unit, it is less capable than most Yamaha FM synthesizers. It is not designed for front-panel editing, so a computer editor should be used. It is known for its passable organ and bass sounds.

Other than that, many of the sounds of the FB-01 are lacking in character and this is one of the weaker-sounding modules available, even if you understand FM programming. If you pay more than about $30 for one, you've probably made a mistake. Given the limited usefulness of this entry-level unit, purchasing a sample CD might be a better idea. Consider the Yamaha TX81Z if you're looking for an FM synthesizer module.

Connections: MIDI in, out, thru, 2x 1/4-inch audio outs.

Frederic Meslin has created a freeware Windows-based editor for the FB-01. The latest version is available here:

http://sourceforge.net/projects/fb01editor/

Specifications

Year Released: 1986

MSRP: 350.00 USD

Polyphony: 8 notes

Multitimbral: 8 parts

User Patches: 20

This is a tabletop module.

User Demo Videos

Rating


3.5
(10 votes)

File Downloads

Yamaha FB-01 Manual

Yamaha FB-01 Service Manual

Items for Sale on Reverb

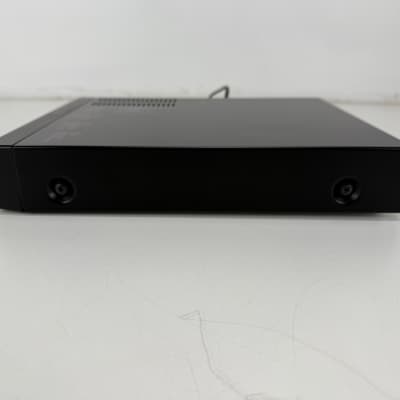

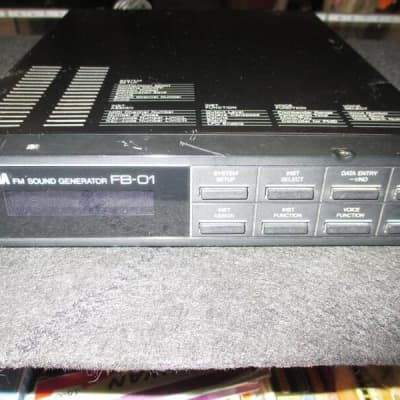

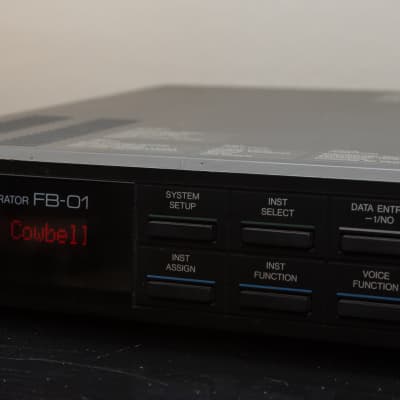

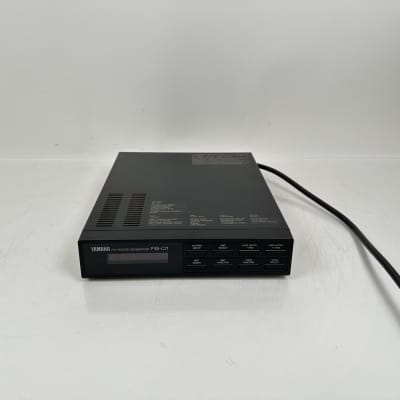

Vintage 1986 YAMAHA FB-01 FB01 Multi-Timbral Sound Module MIDI Synthesizer 4-OP FM DX Digital SynthVintage 1986 YAMAHA FB-01 FB01 Multi-Timbral Sound Module MIDI Synthesizer 4-OP FM DX Digital Synth ($195)

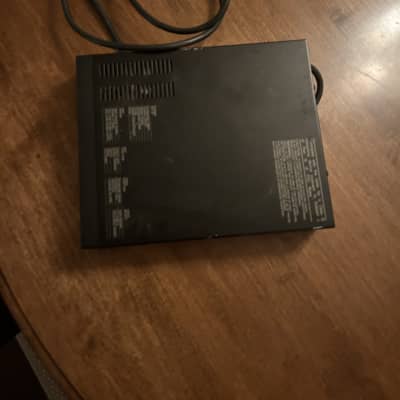

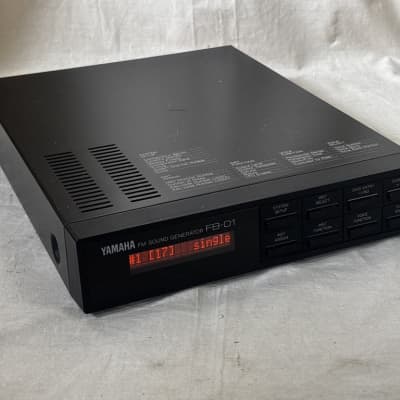

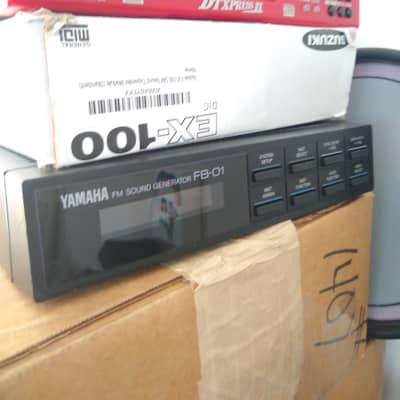

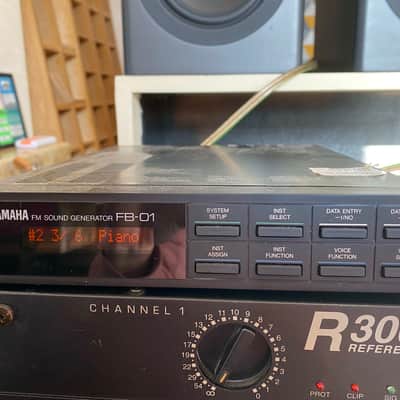

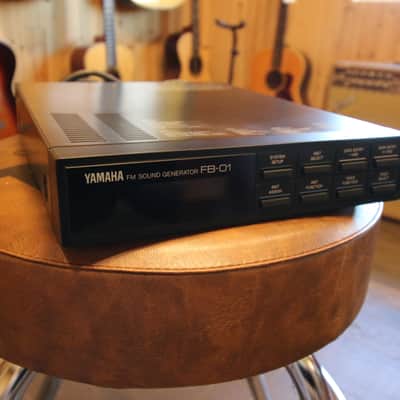

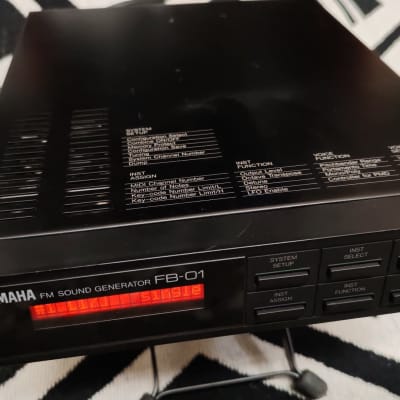

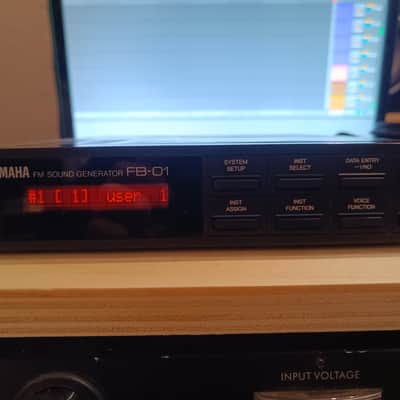

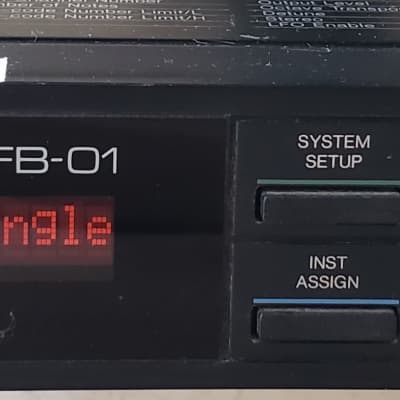

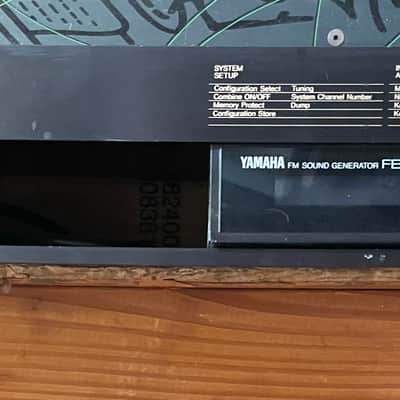

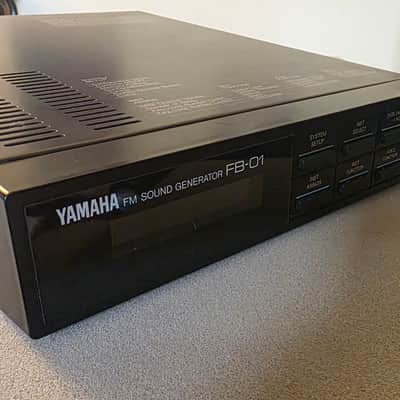

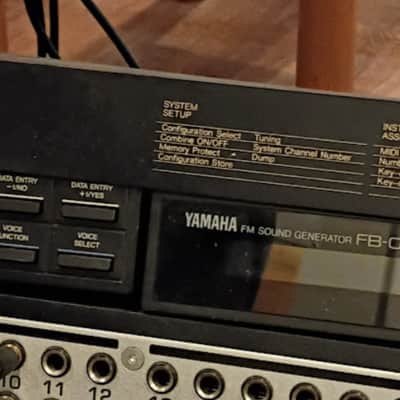

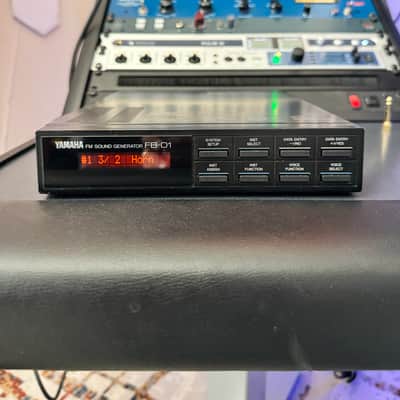

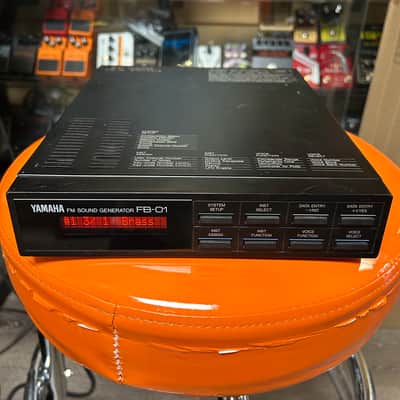

Yamaha FB-01 FM Sound Generator 1986 - 1987 - BlackYamaha FB-01 FM Sound Generator 1986 - 1987 - Black ($120)

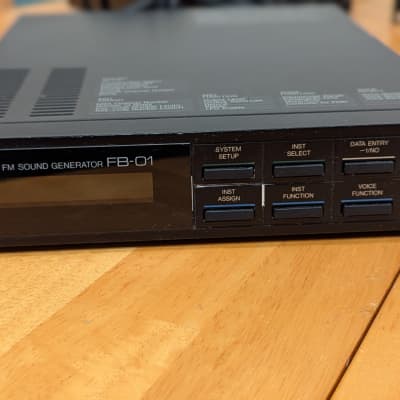

Yamaha FB-01 Sound Generator - BlackYamaha FB-01 Sound Generator - Black ($175)

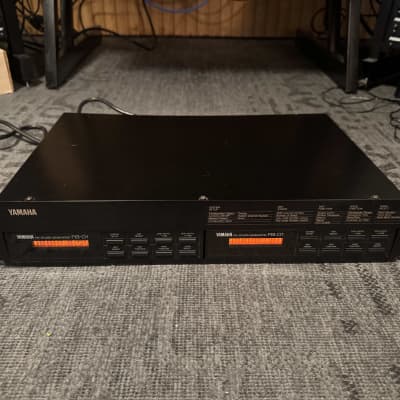

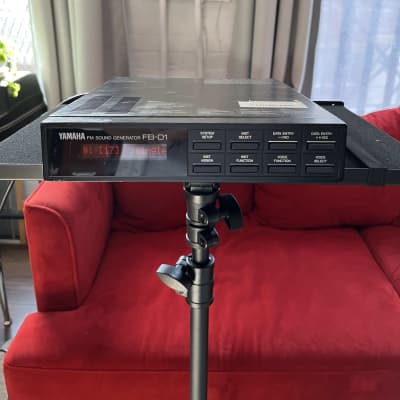

Yamaha FB-01 with rare Yamaha RFB01 2U shelfYamaha FB-01 with rare Yamaha RFB01 2U shelf ($169)

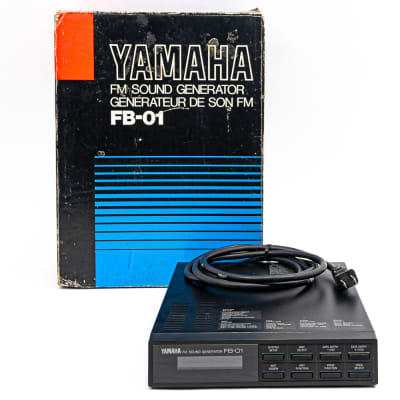

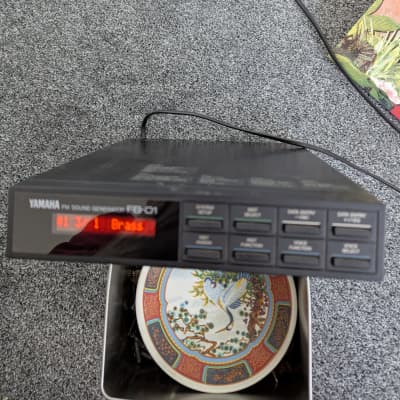

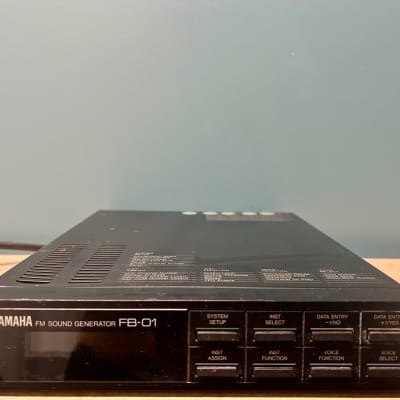

Yamaha FB-01 FM Sound GeneratorYamaha FB-01 FM Sound Generator ($144.99)

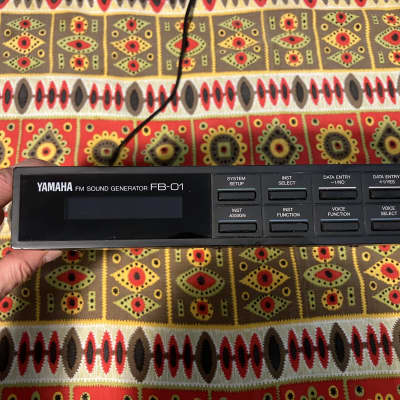

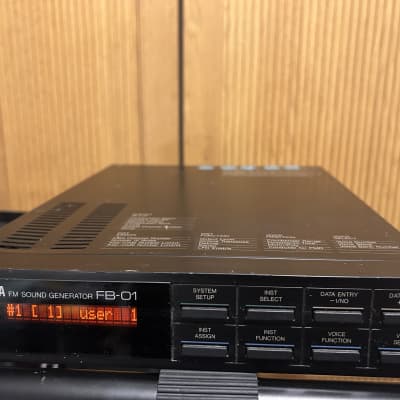

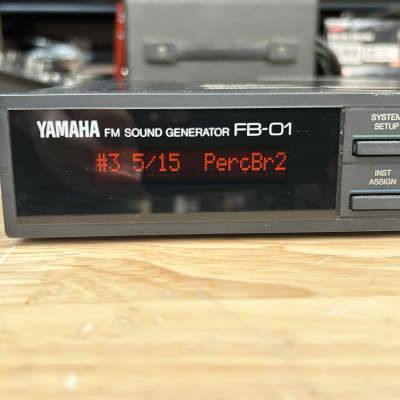

Yamaha FB-01 FM Sound Generator 4 op synthYamaha FB-01 FM Sound Generator 4 op synth ($185)

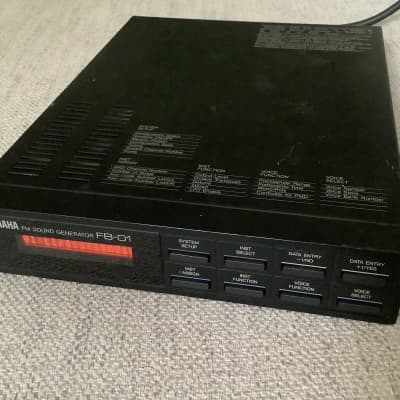

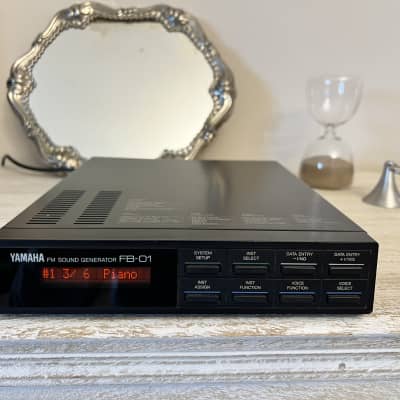

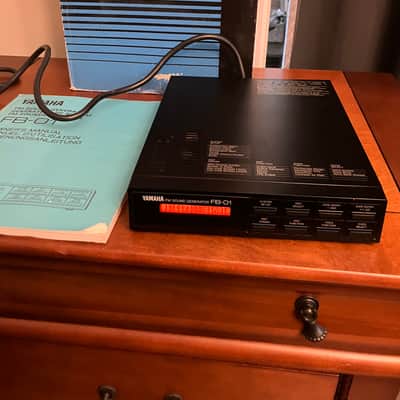

Yamaha FB-01 FM Sound Generator 1986 - 1987 - BlackYamaha FB-01 FM Sound Generator 1986 - 1987 - Black ($150)

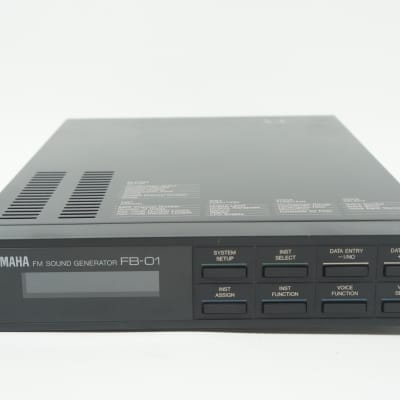

Yamaha FB-01 FM Sound GeneratorYamaha FB-01 FM Sound Generator ($162.16)

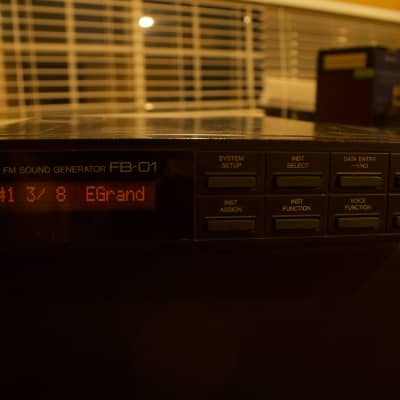

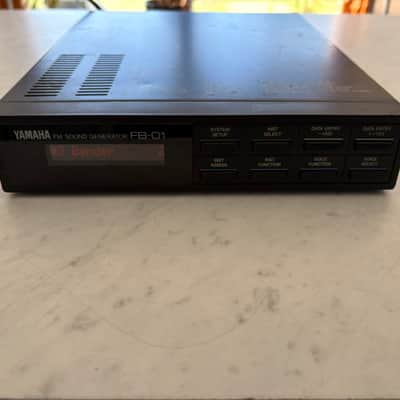

Yamaha FB-01 FM Sound Generator 1986 - 1987 - BlackYamaha FB-01 FM Sound Generator 1986 - 1987 - Black ($125)

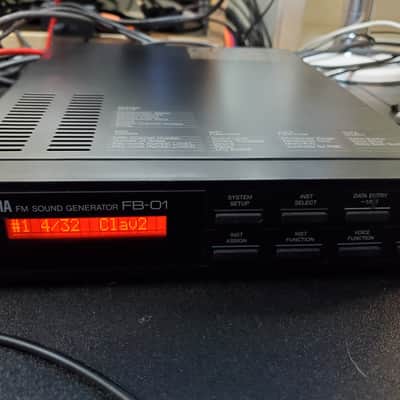

Yamaha FB-01 FM Sound Generator 1986 - 1987 - BlackYamaha FB-01 FM Sound Generator 1986 - 1987 - Black ($95)

Yamaha FB-01 FM Sound Generator 1986 - 1987 - BlackYamaha FB-01 FM Sound Generator 1986 - 1987 - Black ($110)

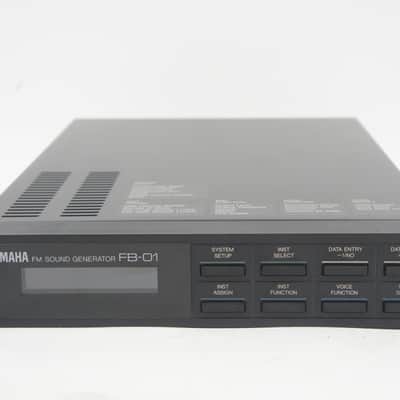

[SALE Ends Dec 23] YAMAHA FB-01 FM Sound Generator FM Synthesizer Module 120V[SALE Ends Dec 23] YAMAHA FB-01 FM Sound Generator FM Synthesizer Module 120V ($79.99)

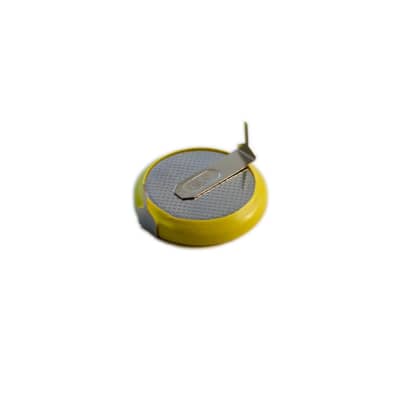

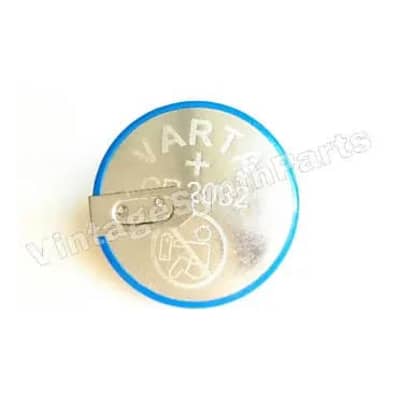

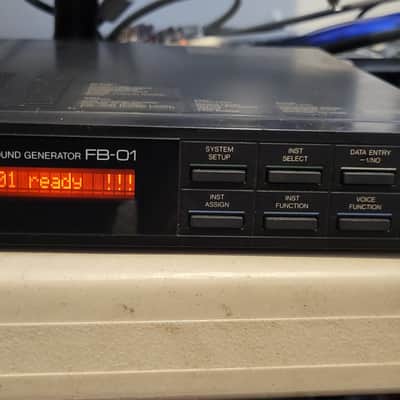

Yamaha FB-01 Digital Programmable Algorithm Synthesizer New internal Battery!!Yamaha FB-01 Digital Programmable Algorithm Synthesizer New internal Battery!! ($100)
