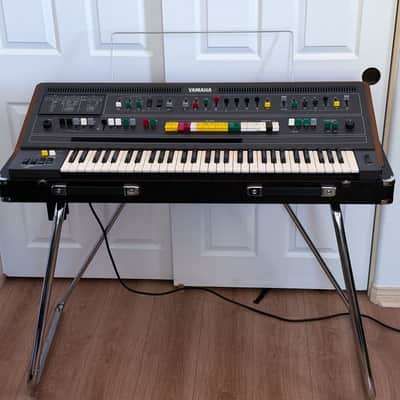

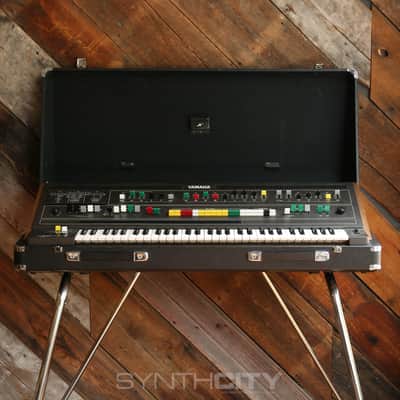

SynthsYamaha ⇝ Yamaha CS-60

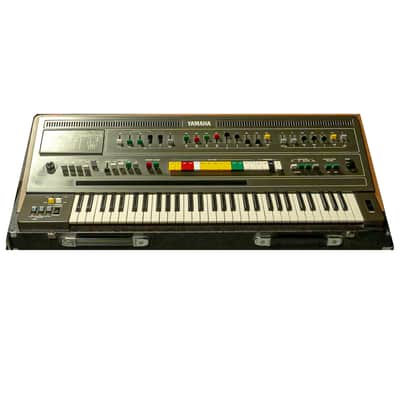

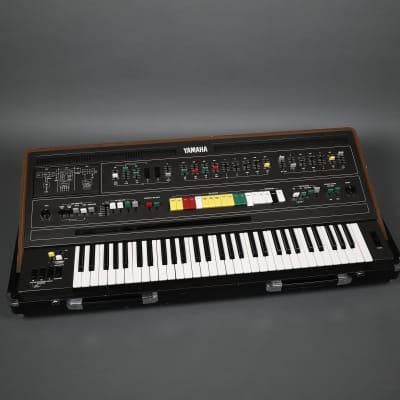

The CS-60 is an analog synthesizer and is a scaled down version of the CS-80.

Specifications

Year Released: 1977

MSRP: 3999.00 USD

Keyboard: 61 keys and aftertouch

Polyphony: 8 notes

Preset Patches: 12

User Patches: 1

ROM: 12 presets (String 1, String 2, Brass 1, Brass 2, Flute, Electric Piano, Clavicord, Harpsichord, Guitar 1, Guitar 2, Funky 1, Funky 2)

Effects: ring modulator

Envelope: 2 ADSR envelopes

Oscillator: 1

Filter: 2-pole high-pass, low-pass, resonance (12dB)

Number of LFOs: 1

LFO: noise, saw up, saw down, sine, square

Dimensions: 1108 mm x 527.5 mm x 255 mm

Weight: 46 kg

This synth has control voltage (CV) support.

User Demo Videos

Rating


4
(1 votes)

File Downloads

Yamaha CS-50 and CS-60 Manual (1 of 5)

Yamaha CS-50 and CS-60 Manual (2 of 5)

Yamaha CS-50 and CS-60 Manual (3 of 5)

Yamaha CS-50 and CS-60 Manual (4 of 5)

Yamaha CS-50 and CS-60 Manual (5 of 5)

Items for Sale on Reverb

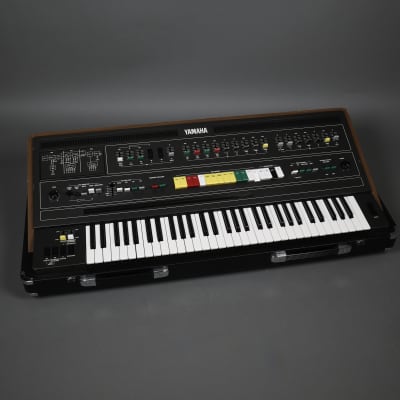

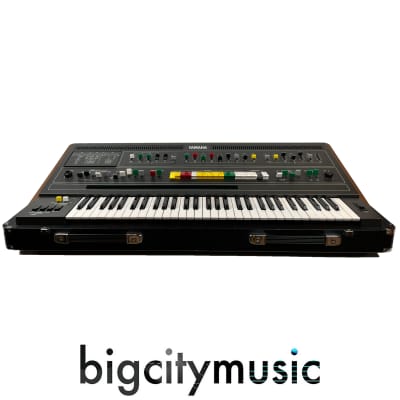

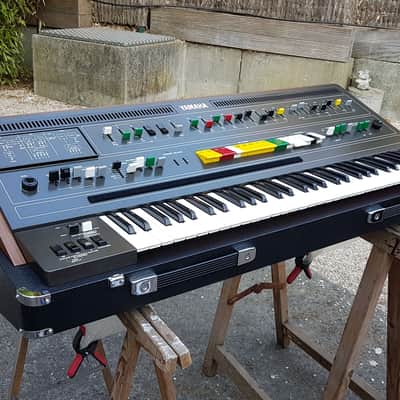

Yamaha CS-60Yamaha CS-60 ($40,186.83)

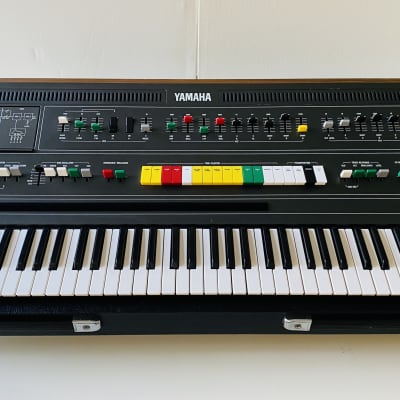

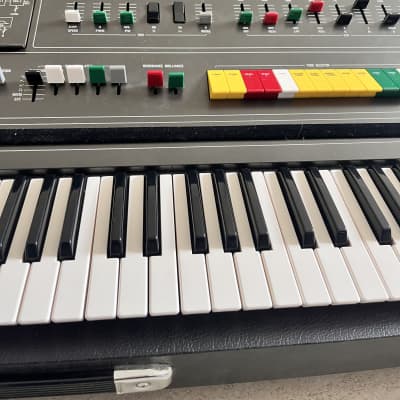

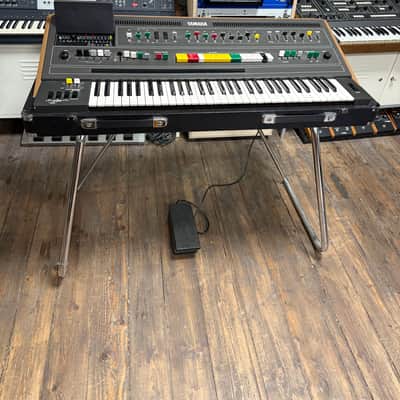

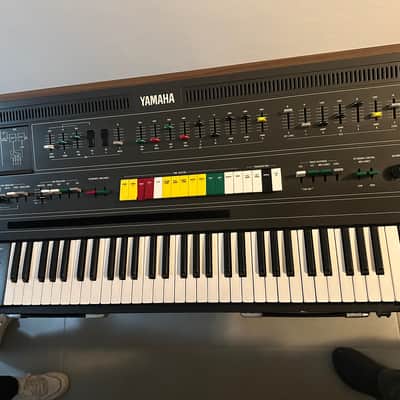

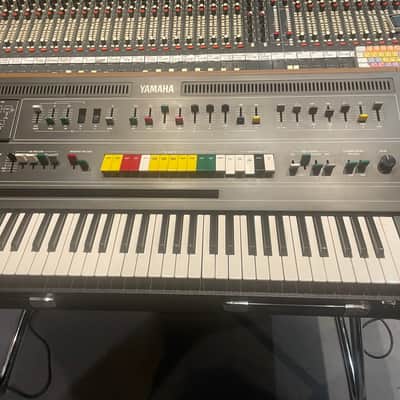

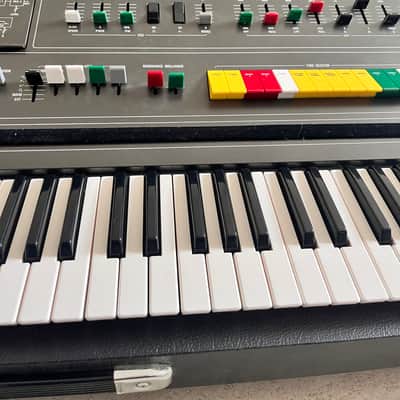

Yamaha CS-60 Polyphonic Synthesizer 1977 - BlackYamaha CS-60 Polyphonic Synthesizer 1977 - Black ($17,729.49)

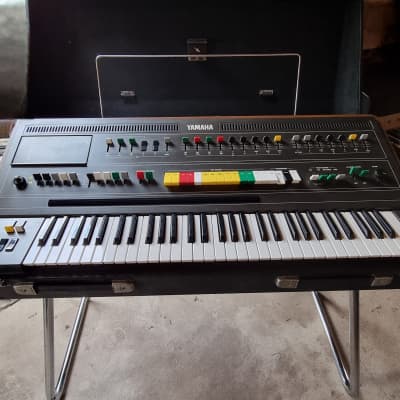

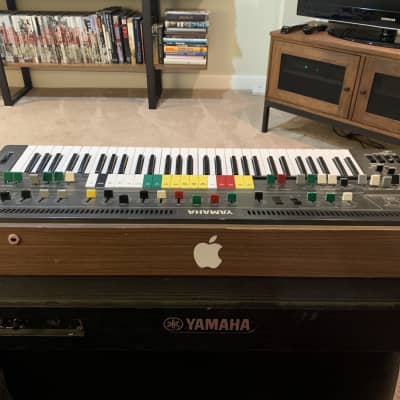

Yamaha CS-60 Polyphonic Synthesizer 1977 - BlackYamaha CS-60 Polyphonic Synthesizer 1977 - Black ($16,907.27)

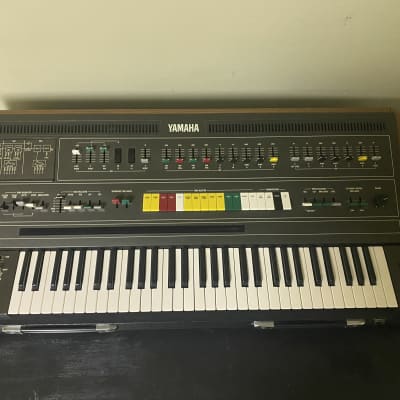

Yamaha CS-60 Polyphonic SynthesizerYamaha CS-60 Polyphonic Synthesizer ($15,495)

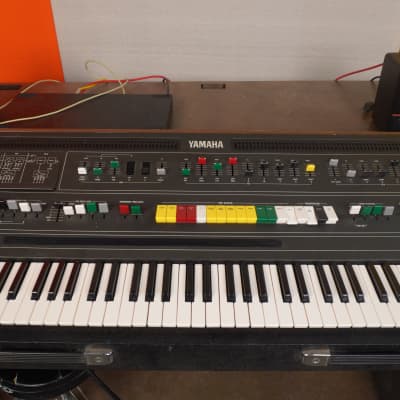

Yamaha CS-60 Polyphonic Synthesizer - BlackYamaha CS-60 Polyphonic Synthesizer - Black ($7,000)

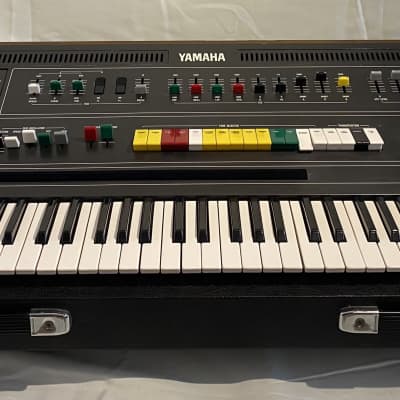

Yamaha CS-60 Polyphonic Synthesizer 1977 - BlackYamaha CS-60 Polyphonic Synthesizer 1977 - Black ($12,500)

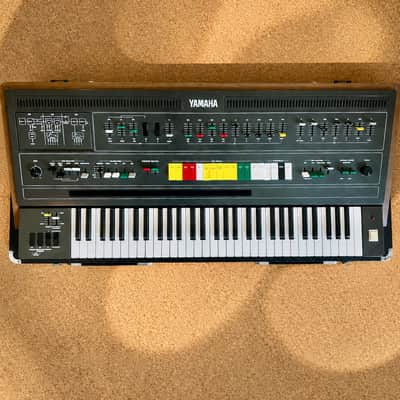

1977 Yamaha CS-60 Fully Serviced & Restored Analog Polyphonic Synthesizer1977 Yamaha CS-60 Fully Serviced & Restored Analog Polyphonic Synthesizer ($13,495)

Yamaha CS-60 Polyphonic Synthesizer 1977 - BlackYamaha CS-60 Polyphonic Synthesizer 1977 - Black ($354.59)

Yamaha CS-60 Polyphonic Synthesizer 1977 - BlackYamaha CS-60 Polyphonic Synthesizer 1977 - Black ($35,458.97)

Yamaha CS-60 Polyphonic Synthesizer 1977 - BlackYamaha CS-60 Polyphonic Synthesizer 1977 - Black ($17,138.50)

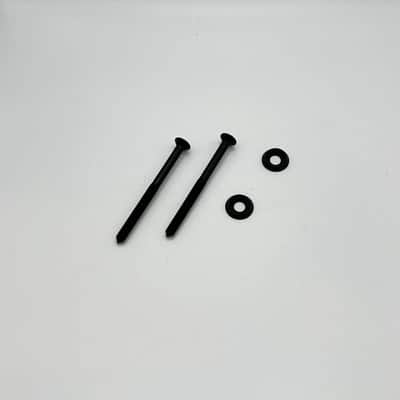

Set of 2 screws & cup washer - Yamaha CS-80 / CS-60 ( panel)Set of 2 screws & cup washer - Yamaha CS-80 / CS-60 ( panel) ($29.55)

Slide potentiometer (B10K C10K) - Yamaha CS-50 , CS-60 , CS-80Slide potentiometer (B10K C10K) - Yamaha CS-50 , CS-60 , CS-80 ($27.19)

Yamaha IG00152 IC for CS-50 CS-60 CS-80 ask for more Piece!Yamaha IG00152 IC for CS-50 CS-60 CS-80 ask for more Piece! ($130.02)

Yamaha IG00159 IC for CS-50 CS-60 CS-80 ask for more Piece!Yamaha IG00159 IC for CS-50 CS-60 CS-80 ask for more Piece! ($130.02)

Yamaha IG00158 IC for CS-50 CS-60 CS-80 ask for more Piece!Yamaha IG00158 IC for CS-50 CS-60 CS-80 ask for more Piece! ($768.28)

Yamaha IG00151 IC for CS-50 CS-60 CS-80 ask for more Piece!Yamaha IG00151 IC for CS-50 CS-60 CS-80 ask for more Piece! ($118.20)

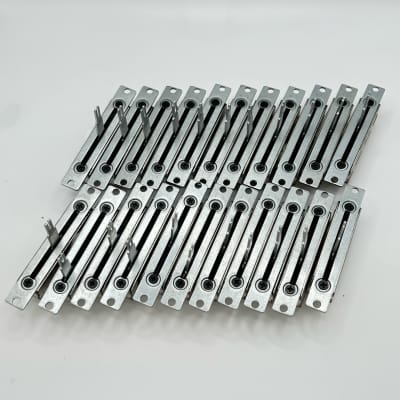

Yamaha CS-60 - Complete set of 22 brand new slide potentiometerYamaha CS-60 - Complete set of 22 brand new slide potentiometer ($413.69)

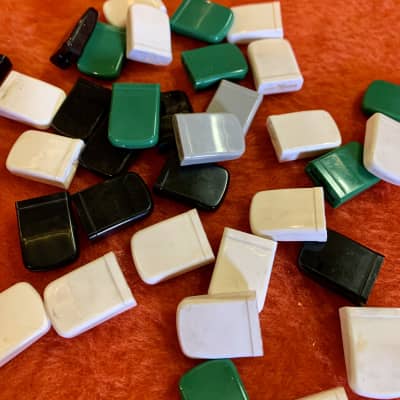

Yamaha  CS-80 paddle tips c 1980 fader caps slider tabs original vintage mij japan CS-60 CS-50Yamaha CS-80 paddle tips c 1980 fader caps slider tabs original vintage mij japan CS-60 CS-50 ($29)
