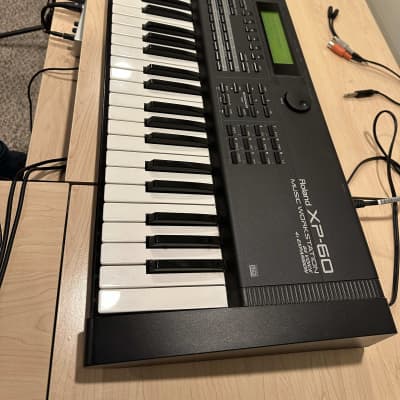

Roland XP-60

The XP-60 can be expanded with up to 4 SR-JV80 series expansion boards. It is also available in 76-key form as the XP-80.

Specifications

Year Released: 1998

Keyboard: 61 keys with velocity and aftertouch

Polyphony: 64 notes

Multitimbral: 16 parts

Preset Patches: 512

User Patches: 128

Preset Performances: 64

User Performances: 32

Preset Drum Kits: 8

User Drum Kits: 2

ROM: 8MB (448 16-bit PCM waveforms)

Sequencer Resolution: 96 PPQN

Effects: 40 multi-effects plus reverb and chorus

Arpeggiator: 33 styles

Screen: 320 x 80 pixel backlit LCD

Power Consumption: 20 watts

Dimensions: 1028 mm x 349 mm x 107 mm

Weight: 10.7 kg

Sequencer: 60,000 notes, 100 patterns, 1 song of up to 9998 measures.

User Demo Videos

Rating


3.4
(5 votes)

File Downloads

Roland XP-60 and XP-80 Manual

Roland XP-60 Service Notes

Items for Sale on Reverb

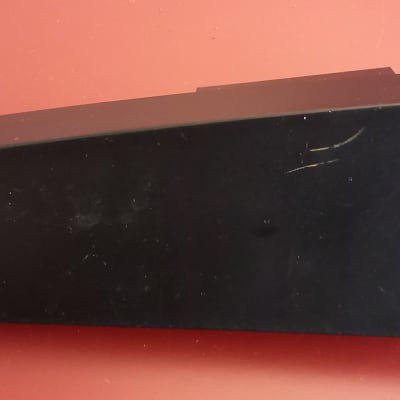

Roland XP-50 XP-60 XP-80 Left Side PanelRoland XP-50 XP-60 XP-80 Left Side Panel ($30.50)

Roland Roland XP-60 XP-80 right side end cap panelRoland Roland XP-60 XP-80 right side end cap panel ($79)

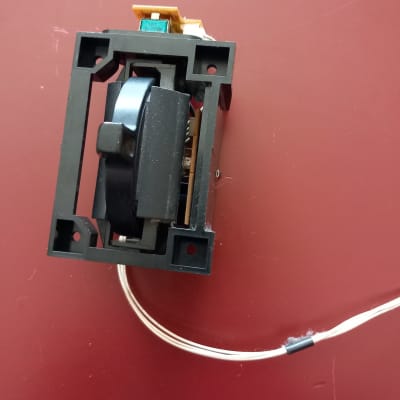

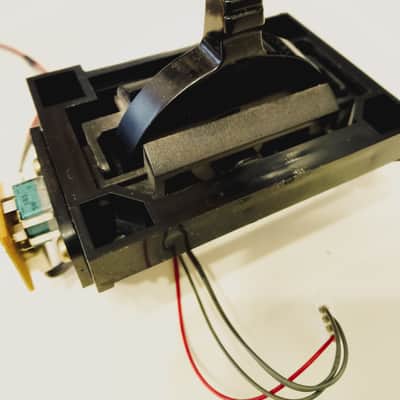

Pitch bender, joystick for Roland XP-50 XP-60 XP-80 XP-10 e Fantom FA-76Pitch bender, joystick for Roland XP-50 XP-60 XP-80 XP-10 e Fantom FA-76 ($26.84)

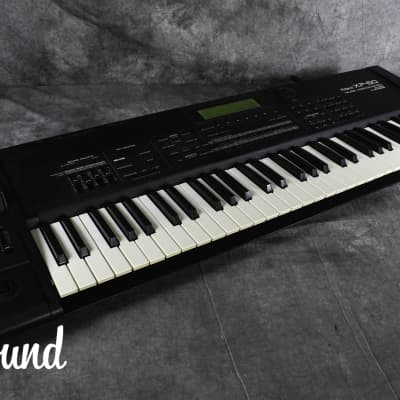

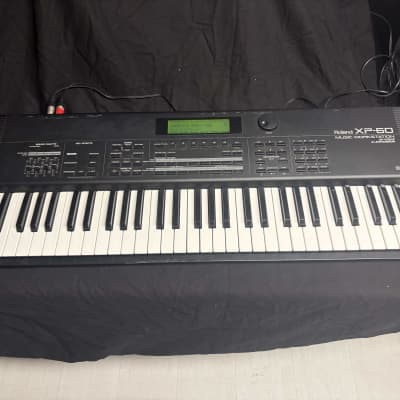

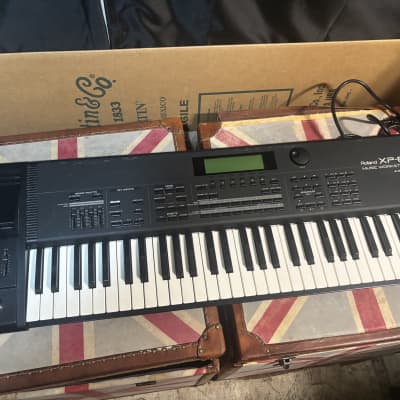

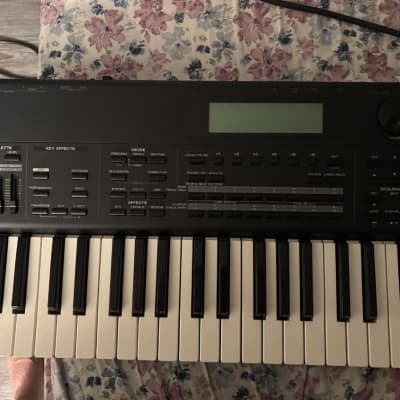

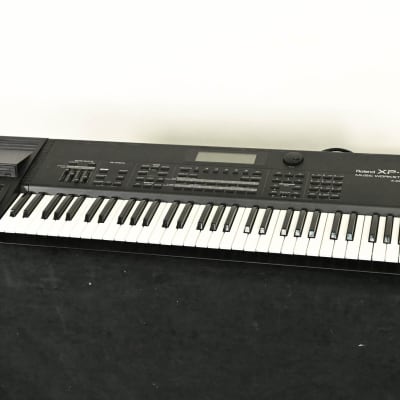

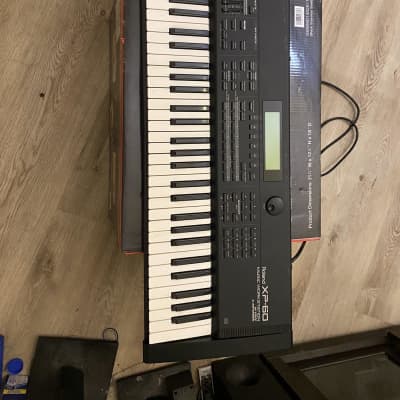

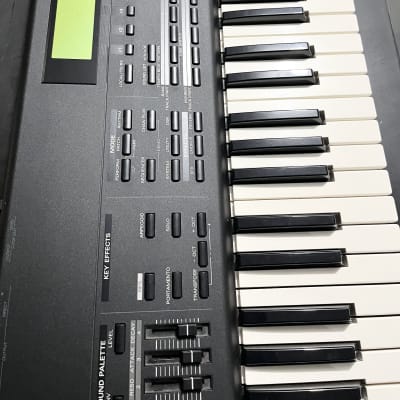

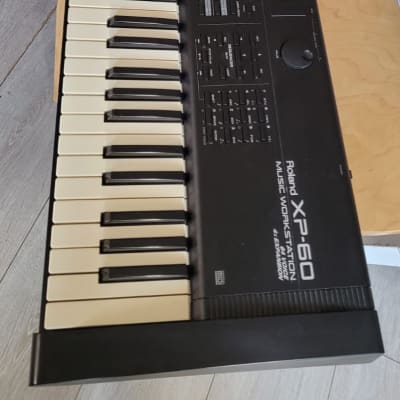

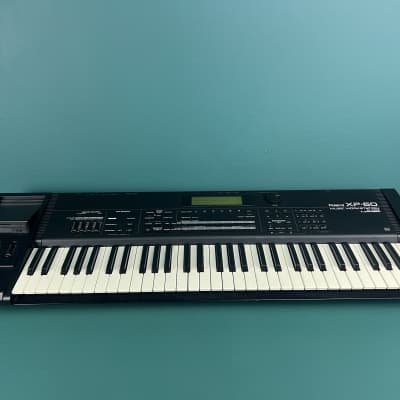

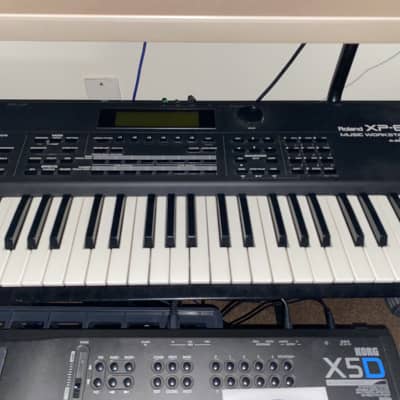

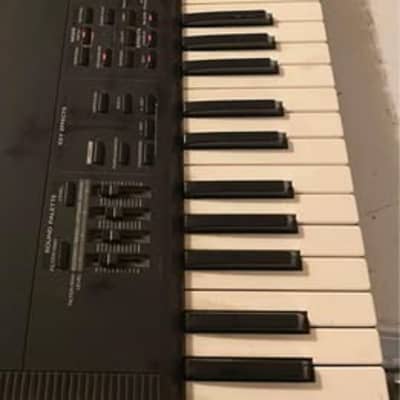

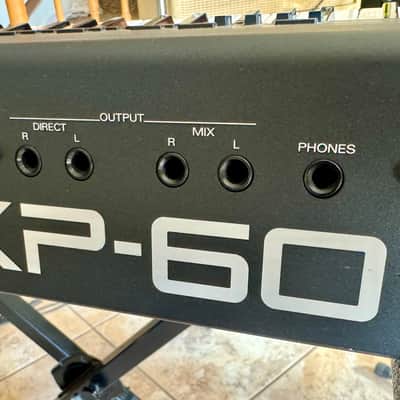

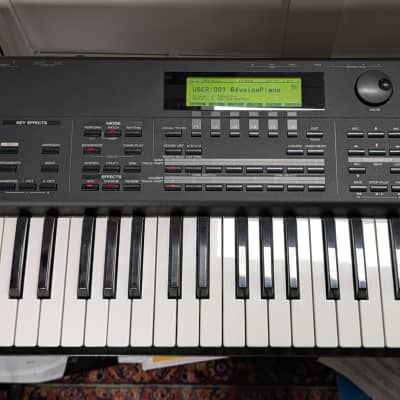

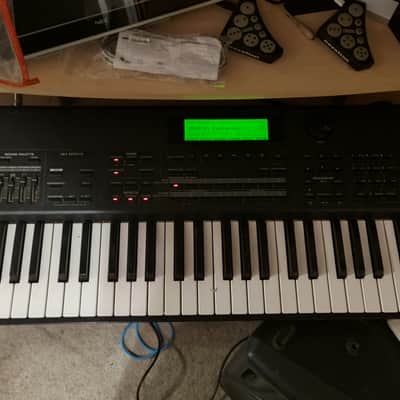

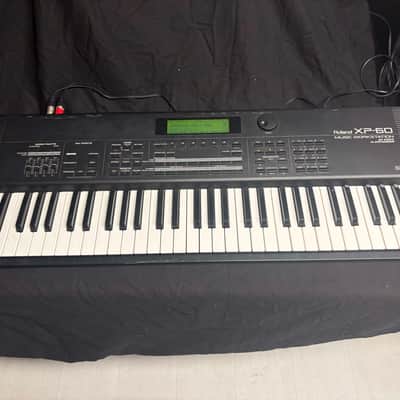

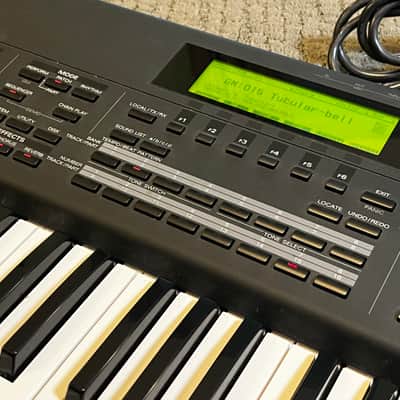

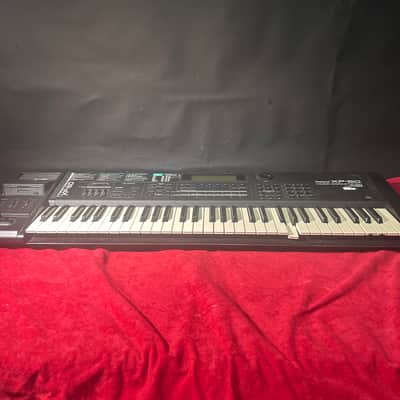

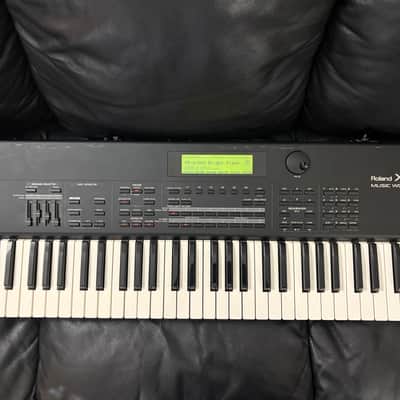

Roland XP-60 61-Key 64-Voice Music Workstation Keyboard 1998 - 2003 - BlackRoland XP-60 61-Key 64-Voice Music Workstation Keyboard 1998 - 2003 - Black ($531.30)

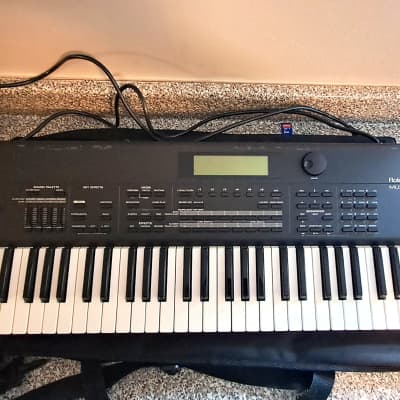

Roland XP-60 61-Key Music Workstation Keyboard Synth PianoRoland XP-60 61-Key Music Workstation Keyboard Synth Piano ($624.99)

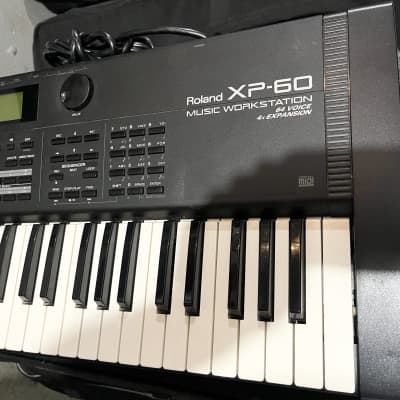

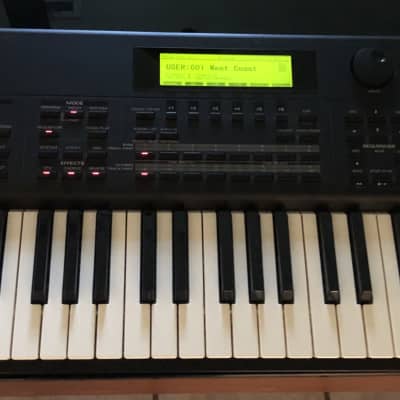

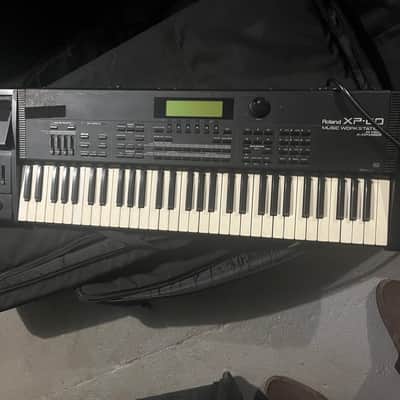

Roland XP-60 61-Key 64-Voice Music Workstation Keyboard 1998 - 2003 - BlackRoland XP-60 61-Key 64-Voice Music Workstation Keyboard 1998 - 2003 - Black ($600)

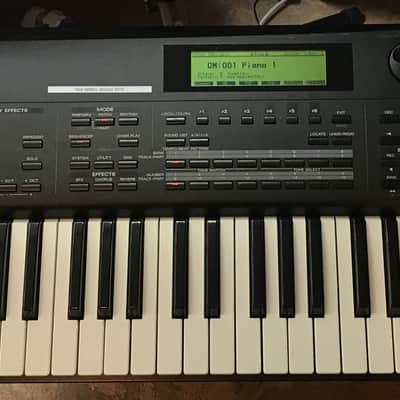

Roland XP-60 61-Key 64-Voice Music Workstation Keyboard 1998 - 2003 - BlackRoland XP-60 61-Key 64-Voice Music Workstation Keyboard 1998 - 2003 - Black ($1,299)

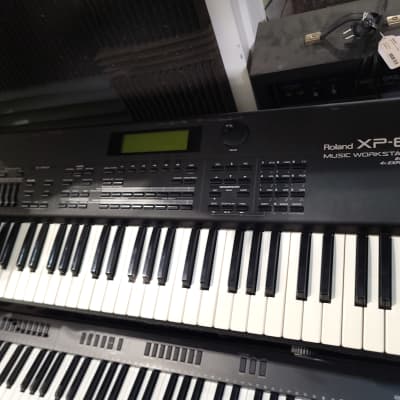

Roland XP-60 61-Key 64-Voice Music Workstation Keyboard 1998 - 2003 - BlackRoland XP-60 61-Key 64-Voice Music Workstation Keyboard 1998 - 2003 - Black ($750)

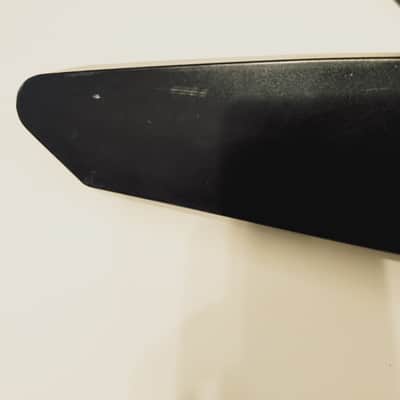

Right Panel for Roland XP-80, Roland XP-60, Roland XP-50 Roland XP-80, Roland XP-60, Roland XP-50Right Panel for Roland XP-80, Roland XP-60, Roland XP-50 Roland XP-80, Roland XP-60, Roland XP-50 ($26.84)

keyboard Roland  XP-60keyboard Roland XP-60 ($999.99)

Roland XP-60 61-Key 64-Voice Music Workstation Keyboard 1998 - 2003 - Local Pickup OnlyRoland XP-60 61-Key 64-Voice Music Workstation Keyboard 1998 - 2003 - Local Pickup Only ($749)

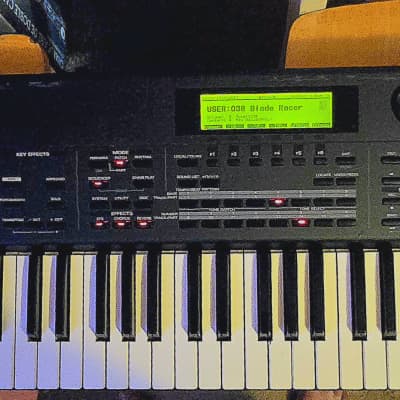

Roland XP-60 61-Key 64-Voice Music Workstation Keyboard 1998 - 2003 - BlackRoland XP-60 61-Key 64-Voice Music Workstation Keyboard 1998 - 2003 - Black ($900)

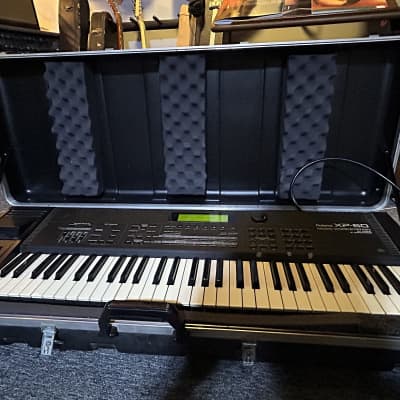

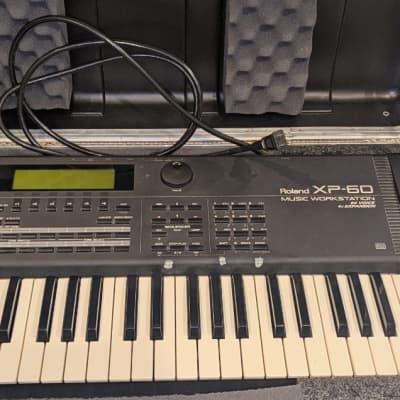

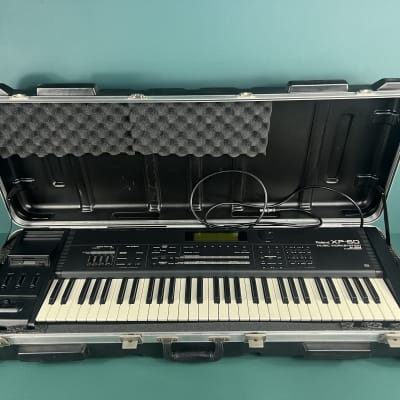

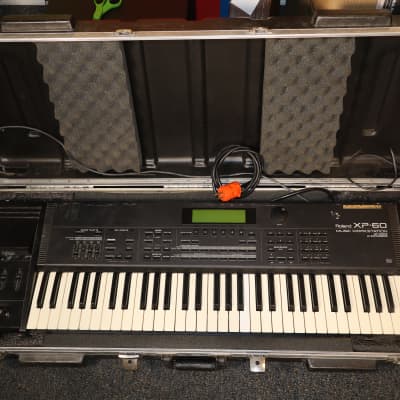

Roland XP-60 61-Key 64-Voice Music Workstation Keyboard + SKB Case with wheels 1998 - 2003 - BlackRoland XP-60 61-Key 64-Voice Music Workstation Keyboard + SKB Case with wheels 1998 - 2003 - Black ($1,145)

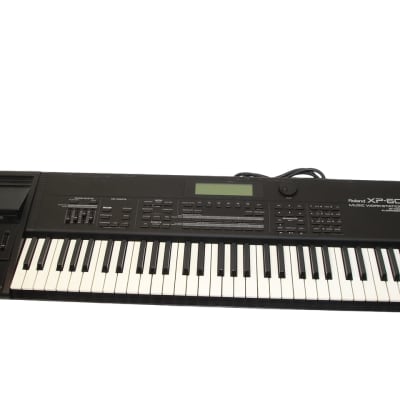

Roland XP-60 61-Key 64-Voice Music Workstation Keyboard 1998 - 2003 - BlackRoland XP-60 61-Key 64-Voice Music Workstation Keyboard 1998 - 2003 - Black ($750)

Roland XP-60 61-Key 64-Voice Music Workstation Keyboard 1998 - 2003 - BlackRoland XP-60 61-Key 64-Voice Music Workstation Keyboard 1998 - 2003 - Black ($1,049)

Roland XP-60 61-Key 64-Voice Music Workstation Keyboard 1998 - 2003 - BlackRoland XP-60 61-Key 64-Voice Music Workstation Keyboard 1998 - 2003 - Black ($817.32)

Roland XP-60 61-Key 64-Voice Music Workstation Keyboard 1998 - 2003 - BlackRoland XP-60 61-Key 64-Voice Music Workstation Keyboard 1998 - 2003 - Black ($365.96)

Expansion board for Roland XP-80, Roland XP-60, XP-50Expansion board for Roland XP-80, Roland XP-60, XP-50 ($26.84)

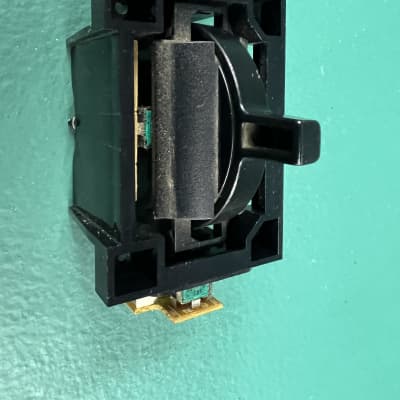

Roland Fantom FA-76 XP-10 XP-50 XP-60 XP-80 Original Pitch Bend Bender Assembly. Works Great !...Roland Fantom FA-76 XP-10 XP-50 XP-60 XP-80 Original Pitch Bend Bender Assembly. Works Great !... ($49)

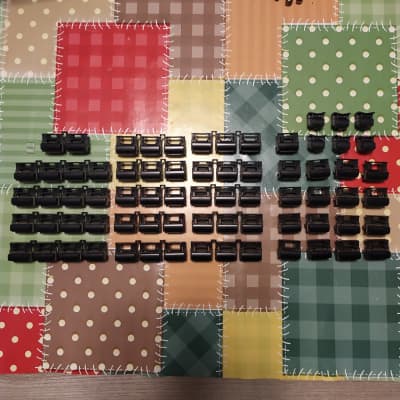

Roland XP-60 All Button Caps (65 Big and 6 Small) for XP-60 and More RolandsRoland XP-60 All Button Caps (65 Big and 6 Small) for XP-60 and More Rolands ($59)

Roland XP 60Roland XP 60 ($900)

Roland XP-60 XP-80 BRAND NEW replacement LED Screen Display!! XP60 XP80 !!LOW PRICE! ONLY FEW LEFT !!!Roland XP-60 XP-80 BRAND NEW replacement LED Screen Display!! XP60 XP80 !!LOW PRICE! ONLY FEW LEFT !!! ($125.37)

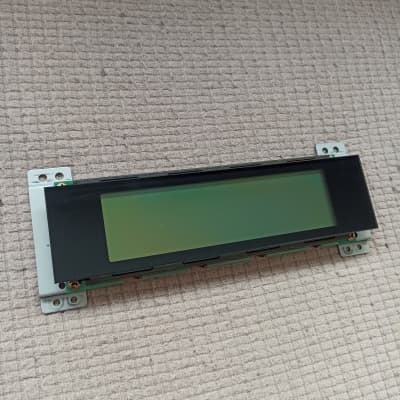

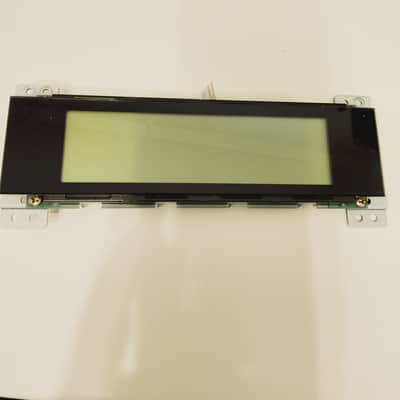

Roland XP-60 XP-80 Replacement Original Screen LCD Display XP60 XP80Roland XP-60 XP-80 Replacement Original Screen LCD Display XP60 XP80 ($109)

Roland XP-60 XP-80 XP-50 slider boardRoland XP-60 XP-80 XP-50 slider board ($45)

Roland  XP-50 XP-60 XP-80 left side end cap/bender panelRoland XP-50 XP-60 XP-80 left side end cap/bender panel ($79)

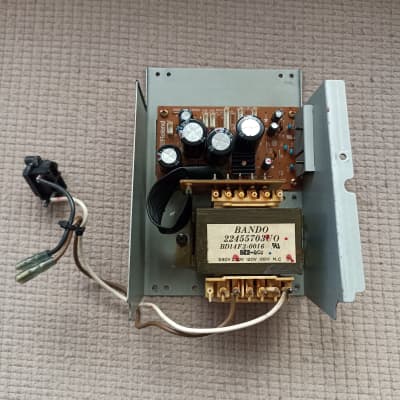

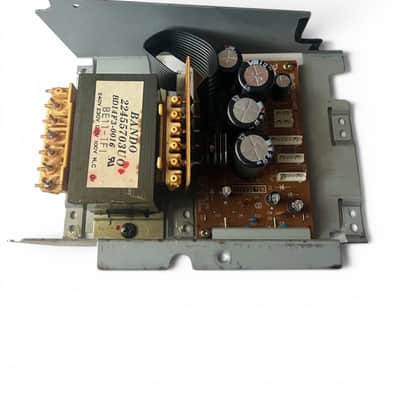

Roland XP-80 XP-60 XP-50 Original Power Supply Unit with ChasisRoland XP-80 XP-60 XP-50 Original Power Supply Unit with Chasis ($69)

Roland -  JV-1080/2080 , JP-8000 , XP-10 XP-30 XP-50 XP-60 XP-80 - batteryRoland - JV-1080/2080 , JP-8000 , XP-10 XP-30 XP-50 XP-60 XP-80 - battery ($3.20)

Roland - JV-1080/2080 , JP-8000 , XP-10 XP-30 XP-50 XP-60 XP-80 - batteryRoland - JV-1080/2080 , JP-8000 , XP-10 XP-30 XP-50 XP-60 XP-80 - battery ($7.26)

Roland XP-60 XP-80 Panel Switch board assembly BRoland XP-60 XP-80 Panel Switch board assembly B ($79.95)

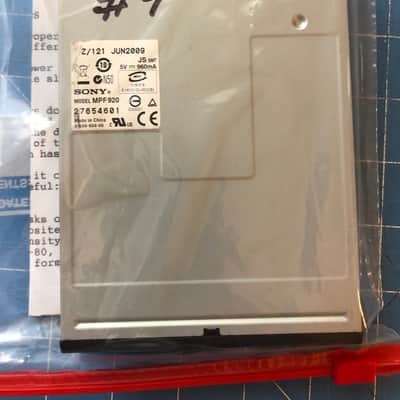

Roland XP-60 XP-80 Original Floopy Disk Drive 3.5 InchRoland XP-60 XP-80 Original Floopy Disk Drive 3.5 Inch ($99)

ROLAND XP-50 Synthesizer Original Black Keyboard Key.ROLAND XP-50 Synthesizer Original Black Keyboard Key. ($7.95)

Roland XP-60 XP-80 encoder assemblyRoland XP-60 XP-80 encoder assembly ($31.95)

Roland XP-60 XP-80 encoder knobRoland XP-60 XP-80 encoder knob ($23.95)

ROLAND XP-60 OR XP-80 - Full set of 71 tact switches - New XP60 XP80 panel switchROLAND XP-60 OR XP-80 - Full set of 71 tact switches - New XP60 XP80 panel switch ($27.39)

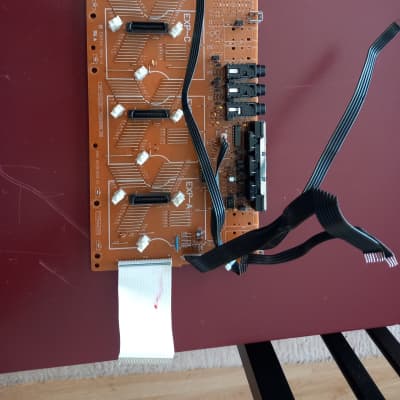

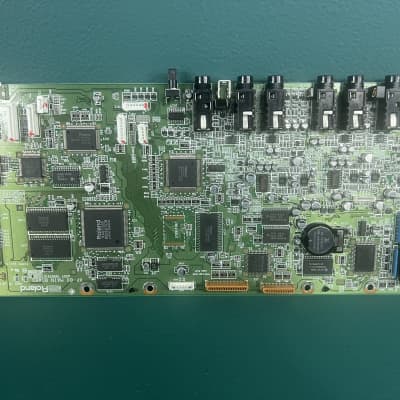

Roland Jack/expansion base board XP-60 XP-80 XP-50Roland Jack/expansion base board XP-60 XP-80 XP-50 ($70)

Roland Panel board A for XP-60 XP-80Roland Panel board A for XP-60 XP-80 ($85)

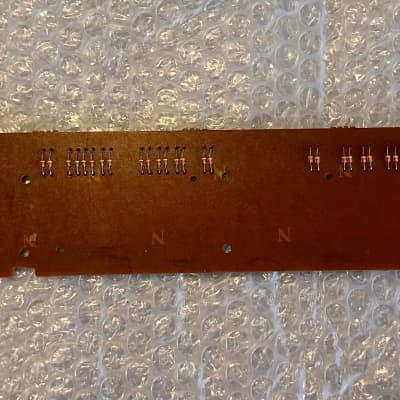

Roland XP-60, XP-50, Roland XP-30, Roland JX-305 Key Contact Board 29 PointsRoland XP-60, XP-50, Roland XP-30, Roland JX-305 Key Contact Board 29 Points ($42)

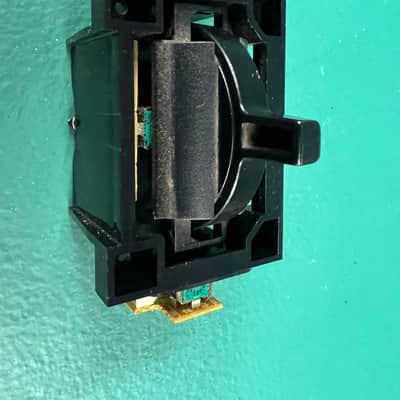

Roland XP-60 X0-80 bender assemblyRoland XP-60 X0-80 bender assembly ($70)

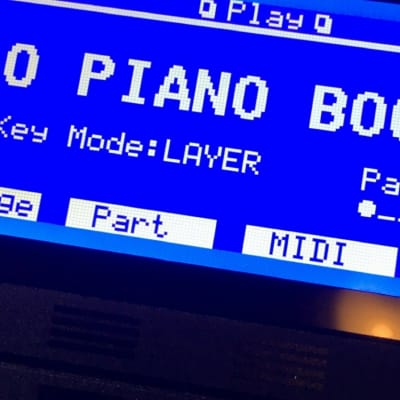

Roland XP-60 (NEW) LED Graphic Display !Roland XP-60 (NEW) LED Graphic Display ! ($183.12)
