Synths ⇝ Roland ⇝ Roland VK-7

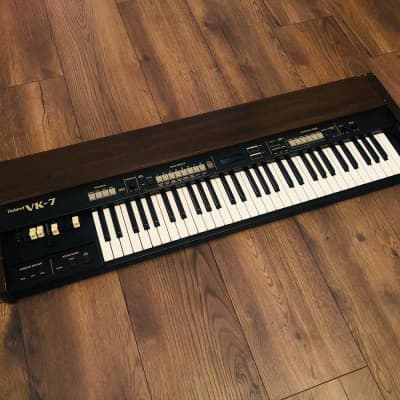

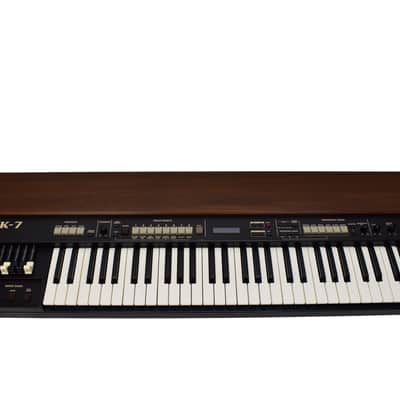

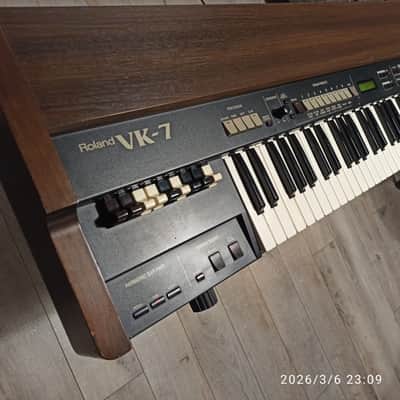

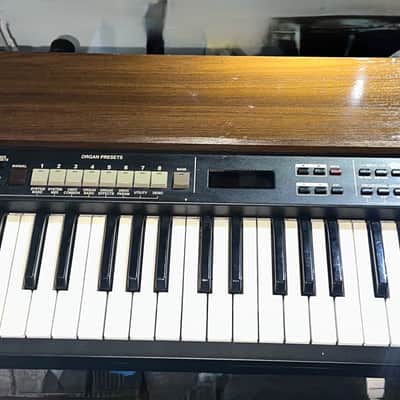

The VK-7 Combo Organ was designed to replicate the organ sounds of the 1960s and 1970s, including the Hammond B3. As a "clonewheel" organ, it has a set of 9 sliders that behave as drawbar controls for virtual tonewheels.

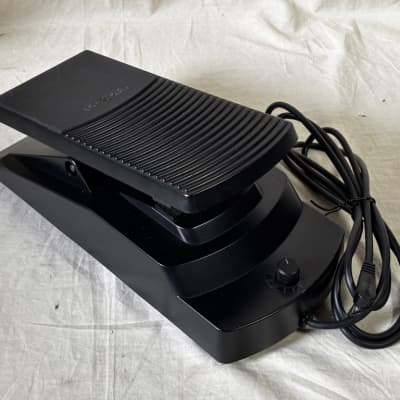

It also has an 11-pin connector for a real external Leslie speaker and is meant to be used with FV-300L or EV-5 expression pedal. The VK-7 has been known to have glue issues with the keybed.

Specifications

Year Released: 1997

Keyboard: 61 keys with velocity

Polyphony: 64 notes

Preset Patches: 64

User Patches: 16

Preset Performances: 39

Effects: vibrato, chorus, reverb, overdrive

Screen: 2 line, 16-character backlit LCD

Power Consumption: 18 watts

Dimensions: 1160 x 339 x 100 mm

Weight: 14.8 kg

This keyboard is MIDI-enabled.

MIDI Connections: Standard 5-Pin MIDI in, out, and thru connections.

User Demo Videos

Rating

File Downloads

Roland VK-7 Manual

Roland VK-7 Service Notes

Items for Sale on Reverb

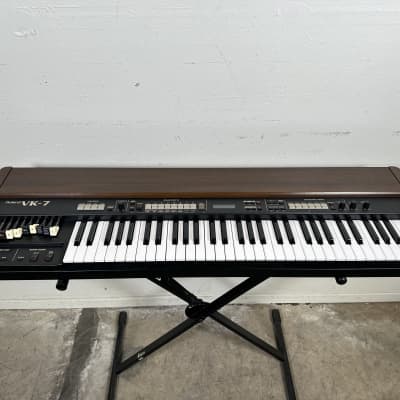

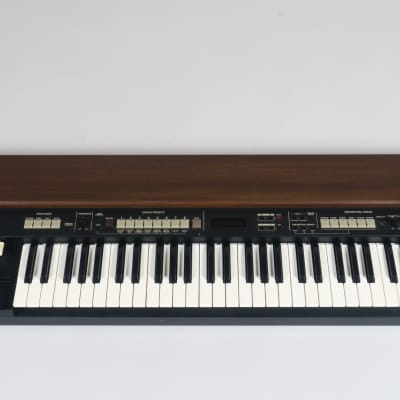

Roland VK-7 Combo Organ (red glue problem solved, serviced) ($830.73)

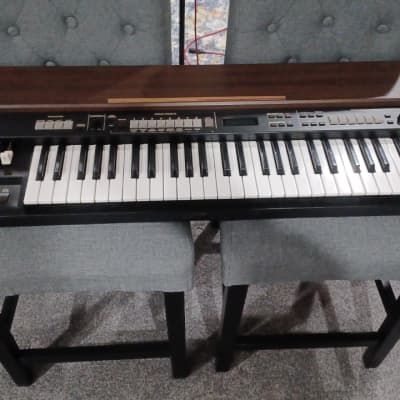

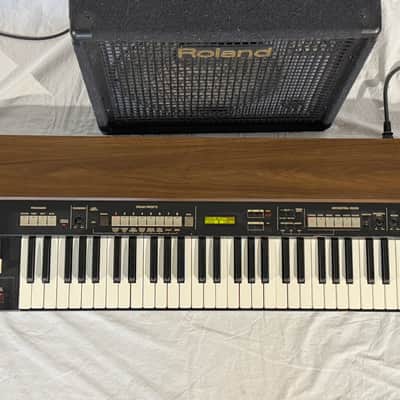

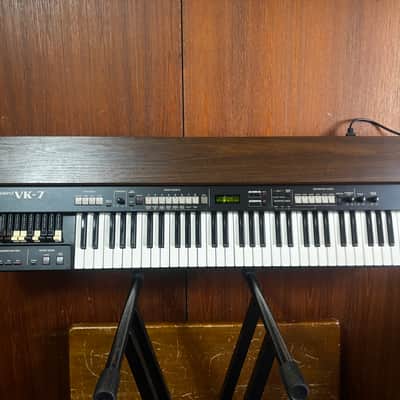

Roland VK-7 Combo Organ "Virtual ToneWheel" sound ($600)

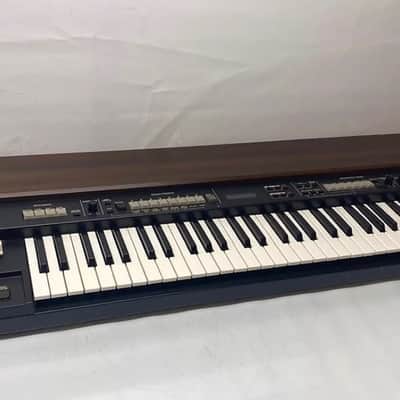

Roland VK-7 61-Key w/ 825 Leslie Speaker Combo Deal! ($1,599)

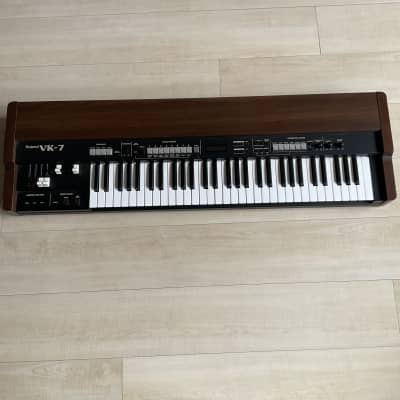

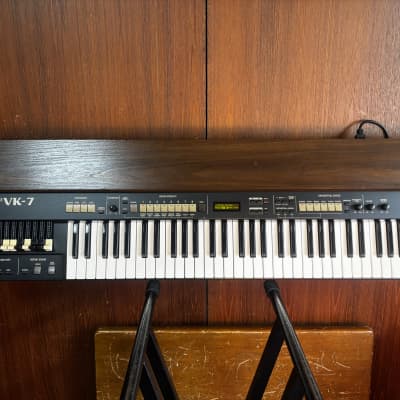

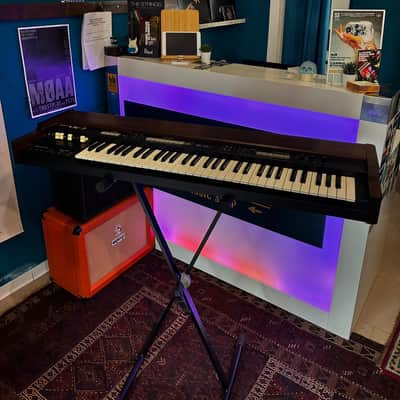

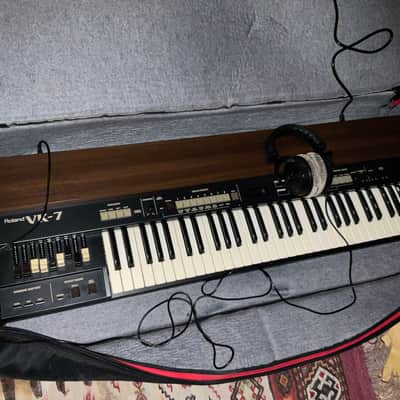

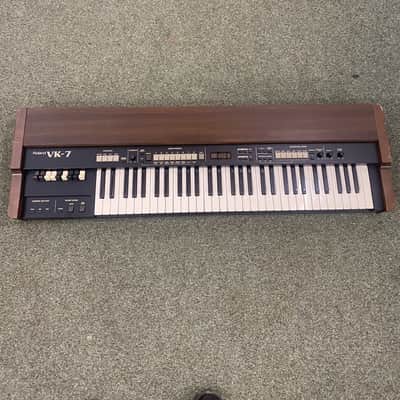

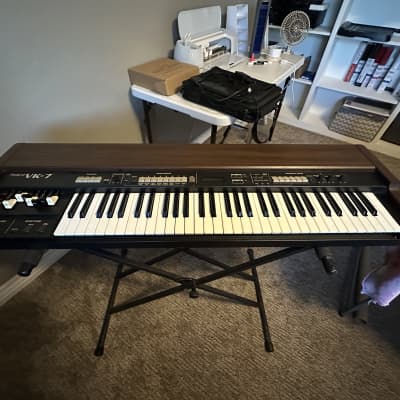

Roland VK-7 61-Key Organ 2000s - Natural / Black ($712.58)

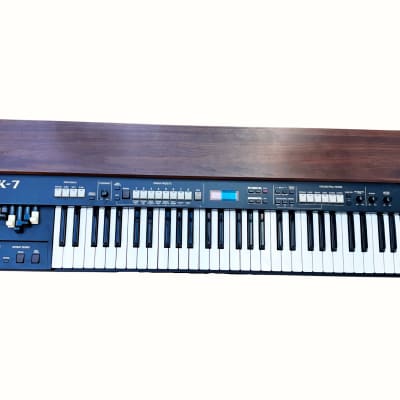

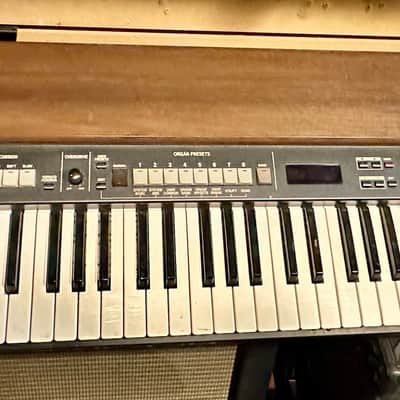

Roland VK-7 61-Key Organ 2000s - Natural / Black ($700)

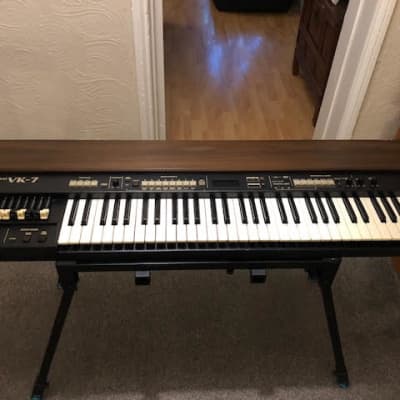

Roland Vk-7 clone wheel virtual organ rig 61 note serviced 90s - Wood lam ($750)

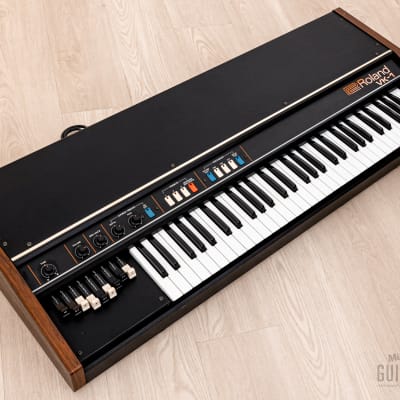

1970s Roland VK-1 Vintage Analog Drawbar Organ, Clean & Serviced w/ Case ($1,229.99)

1970s Roland VK-1 Vintage Analog Drawbar Organ, Clean & Serviced w/ Case ($1,229.99)

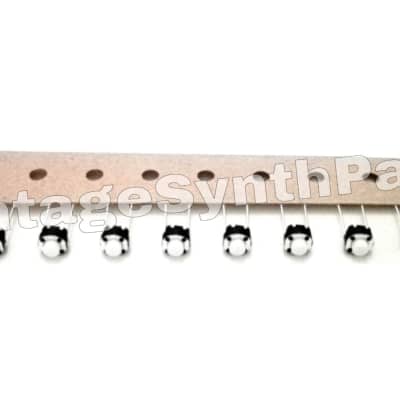

10 x Front panel pushbutton tact switch for Roland VK-7 VK-77 VK-88 smaller buttons ($7.69)

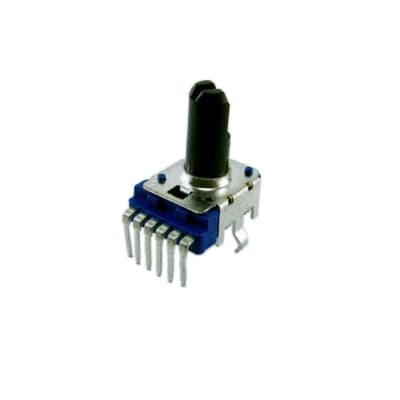

Roland - VK-7 , VK-8M - New Rotary Potentiometer ($6.90)

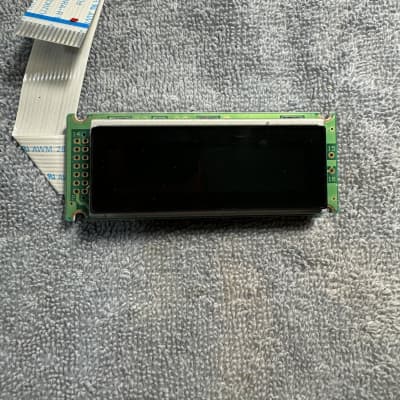

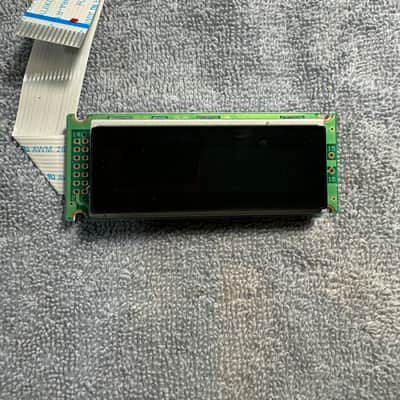

Roland VK-7 61 LCD ($50)

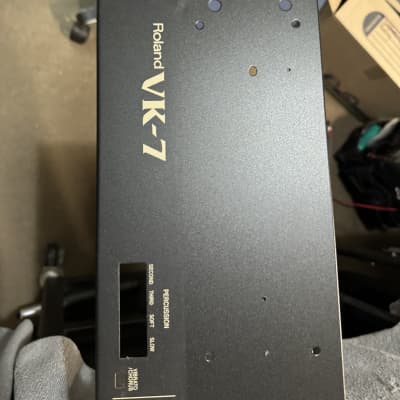

Roland VK-7 61 metal chassis ($50)

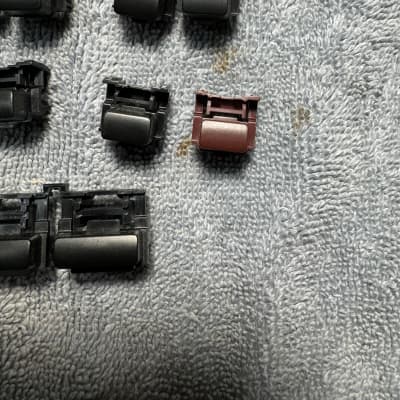

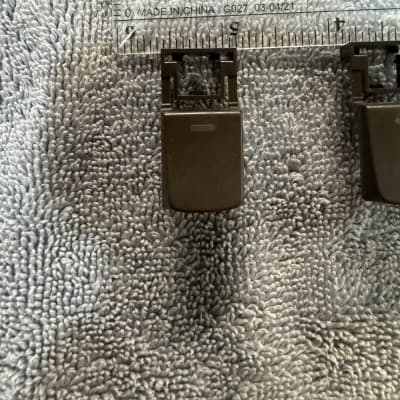

Roland VK-7 small keytop buttons ($30)

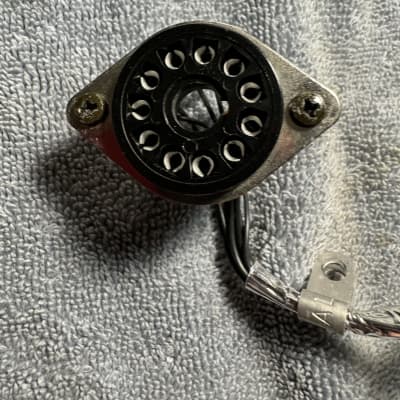

Roland VK-7 Leslie control jack assembly ($20)

Roland VK-7 Brown and Dark brown keytops ($20)

Roland VK-7 Draw bar control PCB ($20)

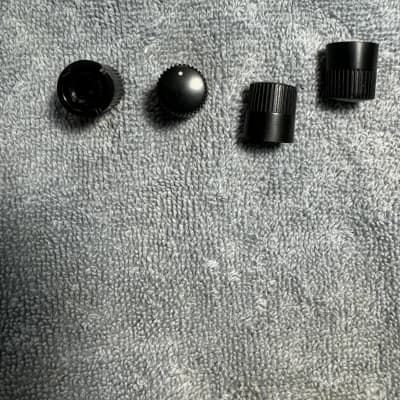

Roland VK-7 4 volume knobs ($20)

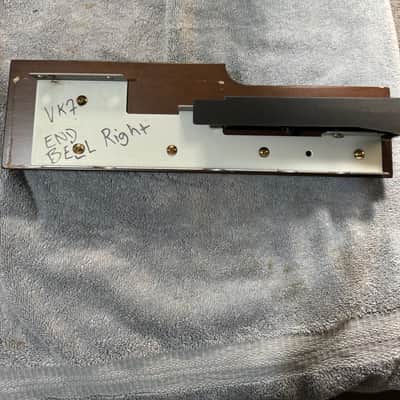

Roland VK-7 61 Right end bell ($30)

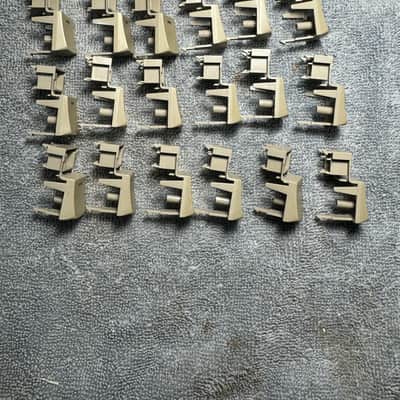

Roland VK-7 Tan keytops ($30)

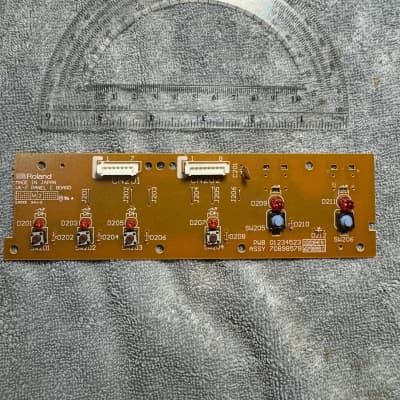

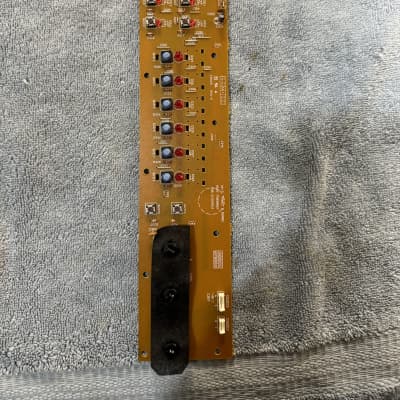

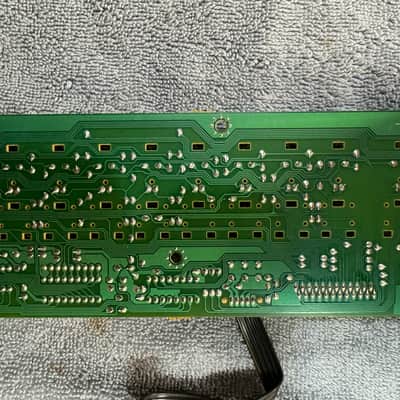

Roland VK-7 Left front panel PCB ($40)

Roland VK-7 61 Right front panel PCB ($40)

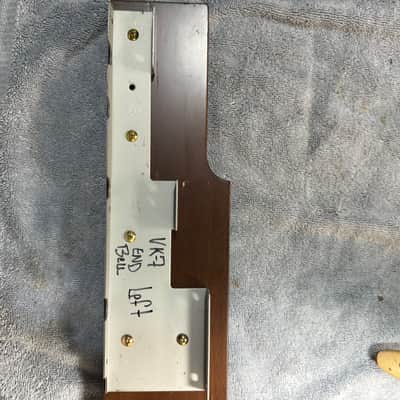

Roland VK-7 61-Key Left Endbell ($30)

Roland - VR-760 , VP-770 , VK-7 , RD-300NX, RD-700NX - Rotary potentiometer ($6.90)

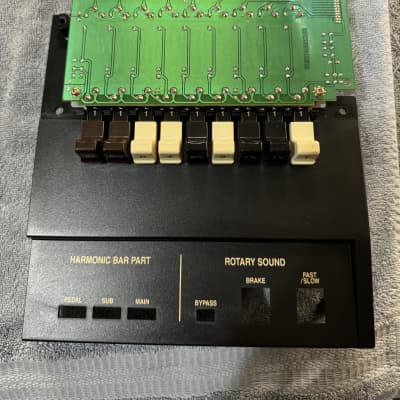

Roland VK7 Drawbar assembly. ($75)

Roland VK 8 Electric Organ w/ Leslie Connector 1990s Japan ($1,104.91)

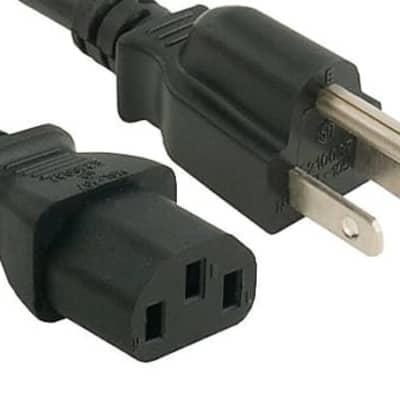

Power Supply Cable Cord for Roland VK-7 ($6.95)

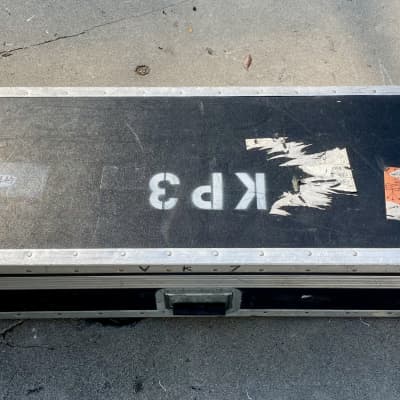

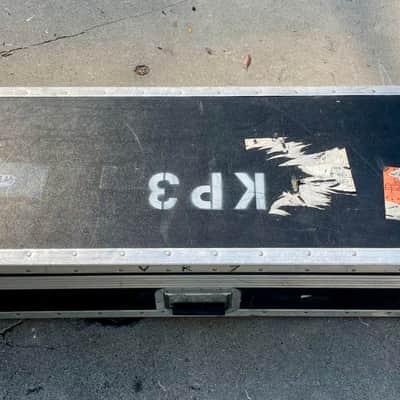

Anvil ATA Flight Case for Roland VK-7, or guitar, or....? ($89.95)
