SynthsRoland ⇝ Roland JX-8P

Roland JX-8P FrontRoland JX-8P Back

The JX-8P is an analog synthesizer that is edited via selecting and adjusting parameters rather than via front-panel knobs. For easier parameter control, it can be programmed using a Roland PG-800 programmer.

It has two digitally-controlled oscillators and built-in chorus.

It was released after the Roland JX-3P and has a similar sound. The Roland JX-10 is an upgraded version of the JX-8P with doubled polyphony.

Specifications

Year Released: 1985

MSRP: $1695

Keyboard: 61 keys with velocity and aftertouch

Polyphony: 6 notes

Multitimbral: 1 parts

Preset Patches: 64

User Patches: 32

Power Consumption: 25 watts

Dimensions: 977 mm x 375 mm x 92 mm

Weight: 11.5 kg

User Demo Videos

Rating


4.3
(3 votes)

Sound Samples

WAV samples are available on freewavesamples.com.

File Downloads

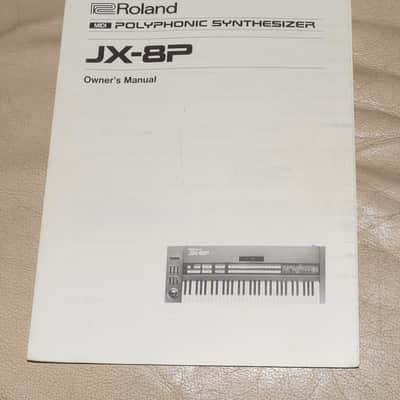

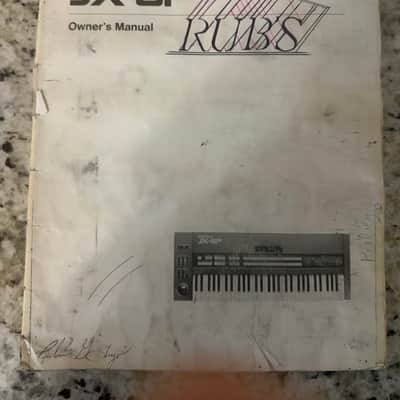

Roland JX-8P Manual

Roland PG-800 Manual

Roland JX-8P and PG-800 Service Manual

Items for Sale on Reverb

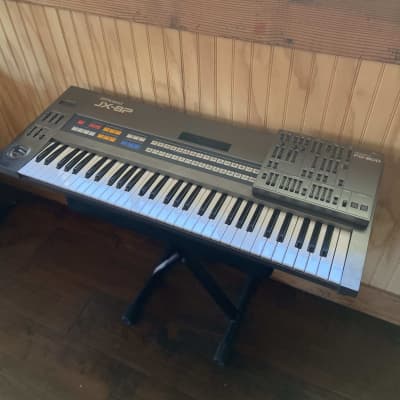

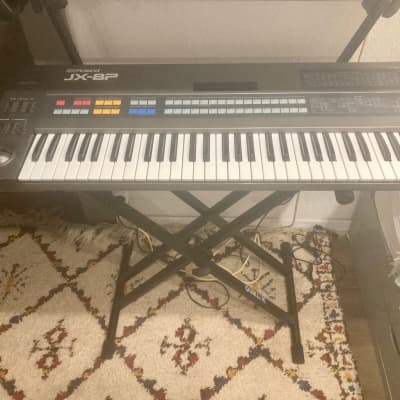

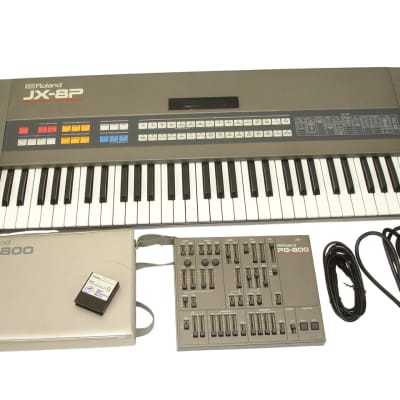

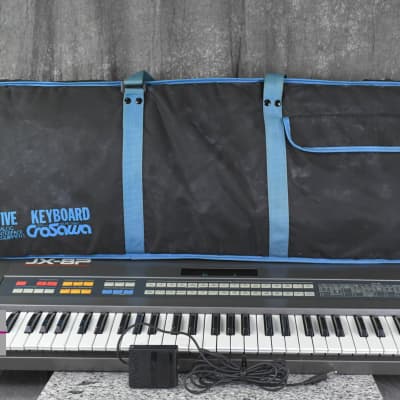

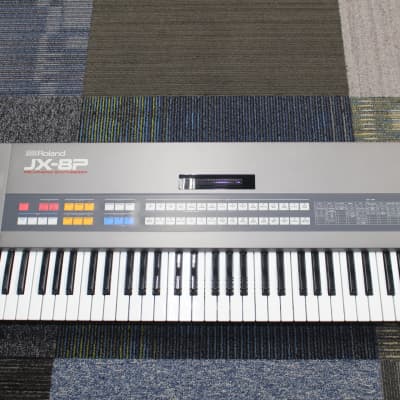

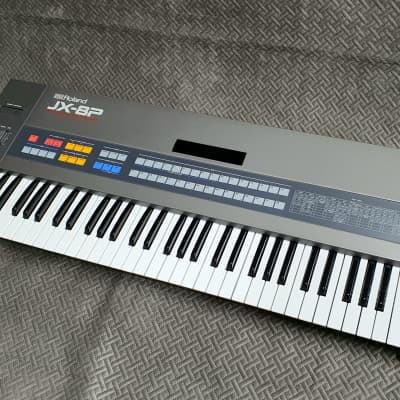

Roland JX-8P 1986 w/MSQ-100Roland JX-8P 1986 w/MSQ-100 ($799)

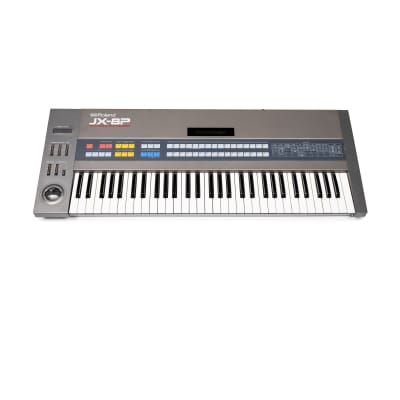

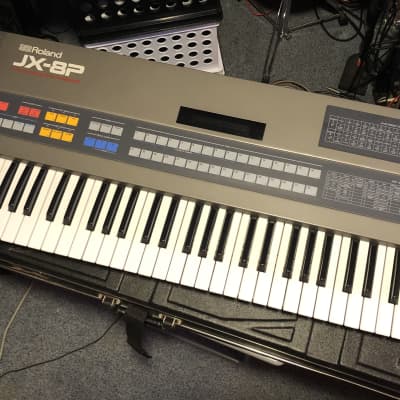

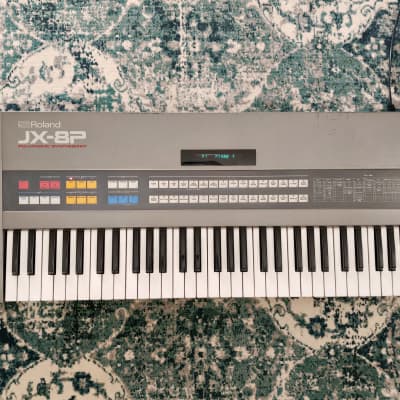

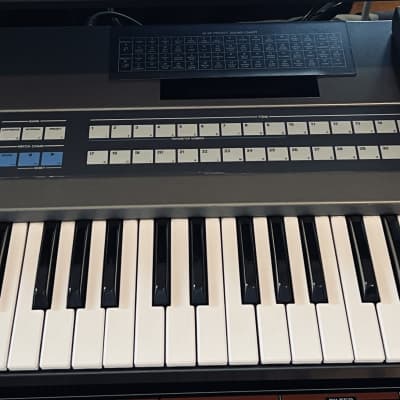

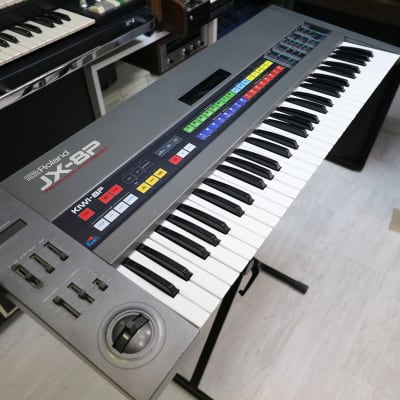

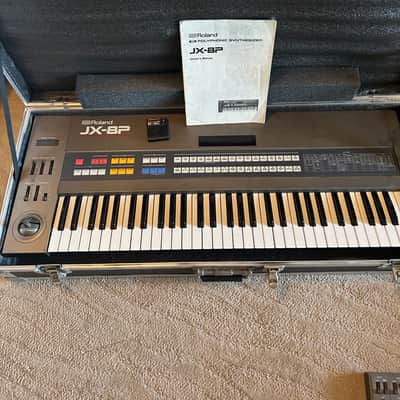

Roland JX-8P 1985 Basic body of it GrayRoland JX-8P 1985 Basic body of it Gray ($950)

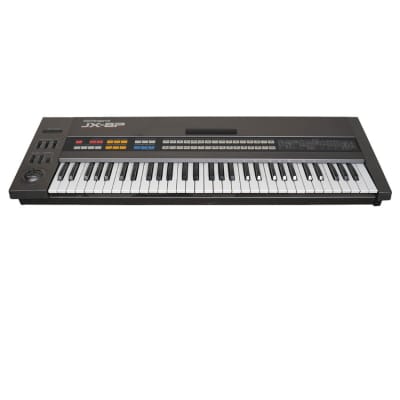

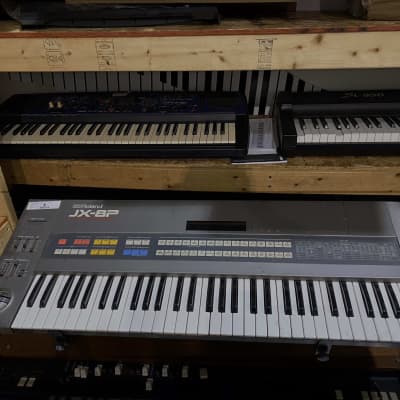

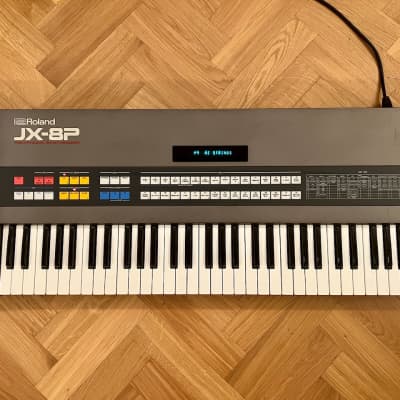

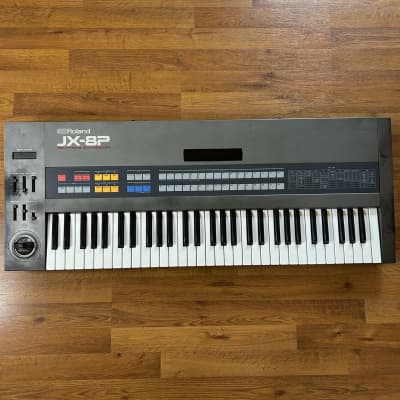

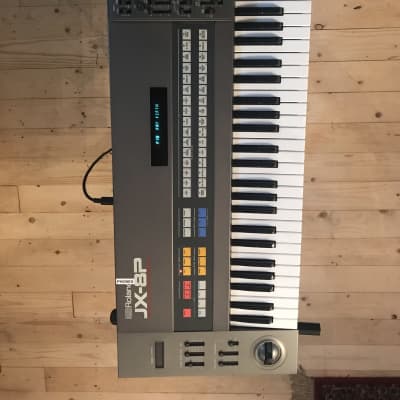

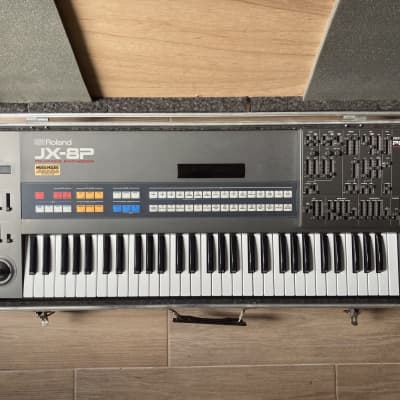

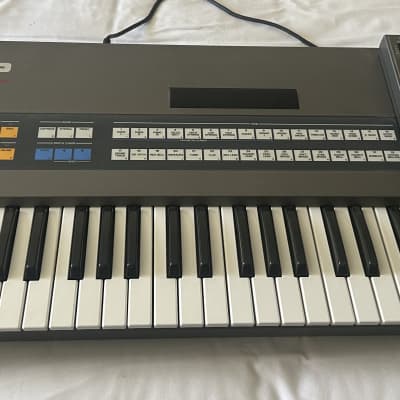

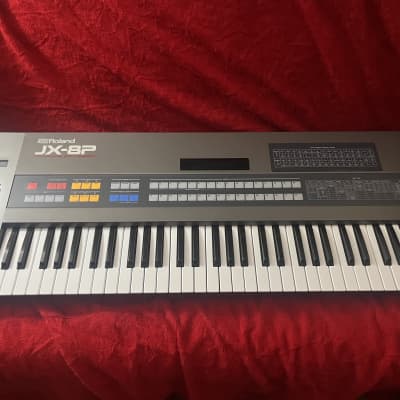

Roland JX-8P 1984 GreyRoland JX-8P 1984 Grey ($600)

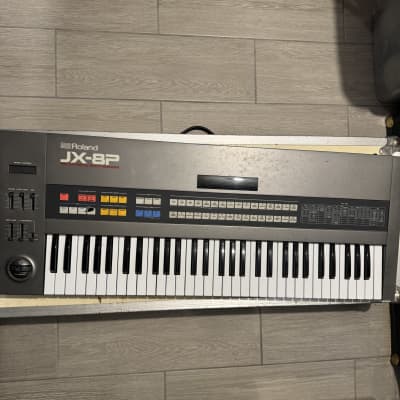

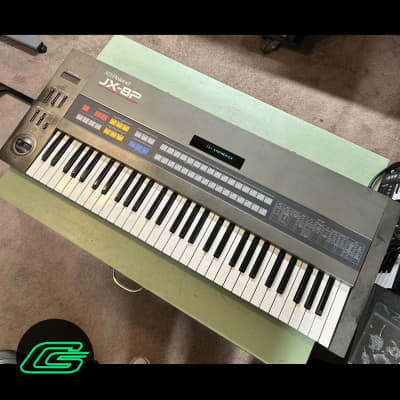

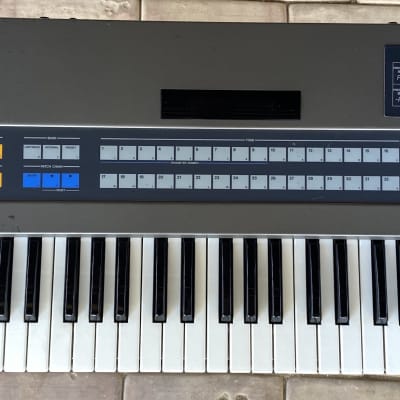

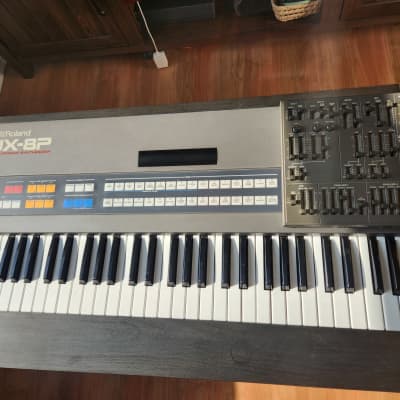

Roland JX-8P 61-Key Analog Polyphonic Synthesizer Keyboard - For PartsRoland JX-8P 61-Key Analog Polyphonic Synthesizer Keyboard - For Parts ($449.99)

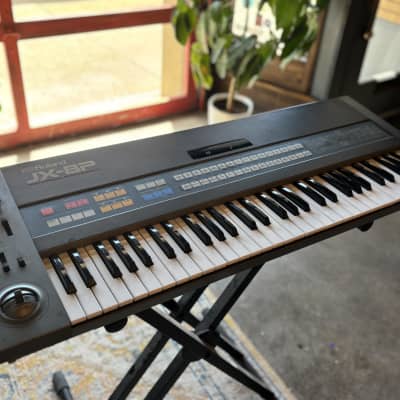

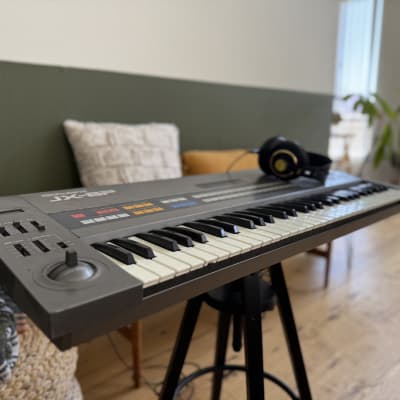

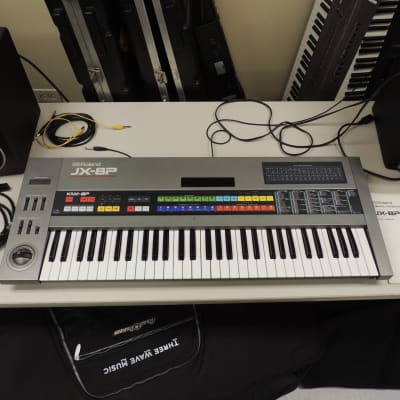

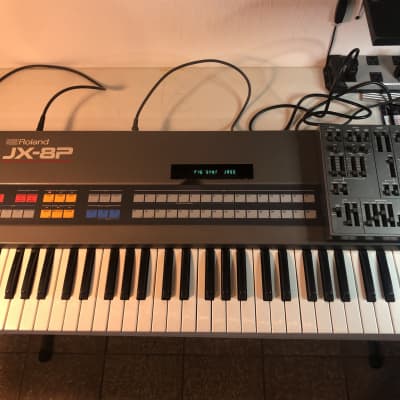

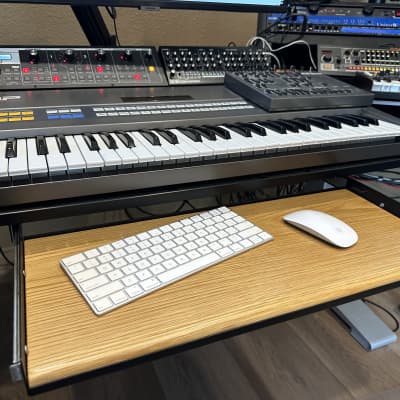

Roland  JX-8P synt keyboard 80's greyRoland JX-8P synt keyboard 80's grey ($750)

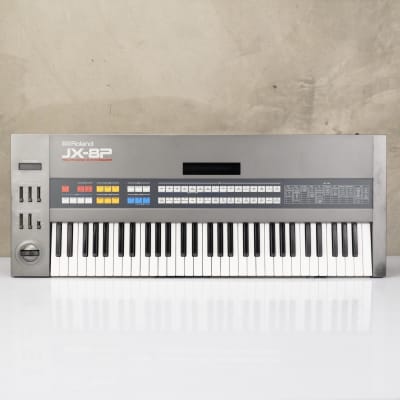

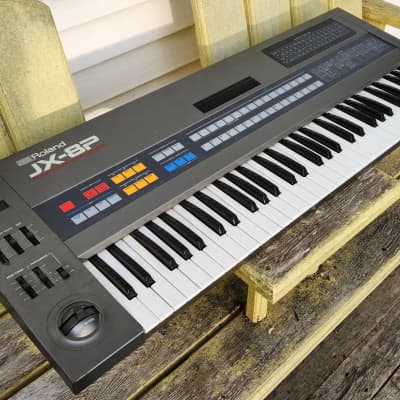

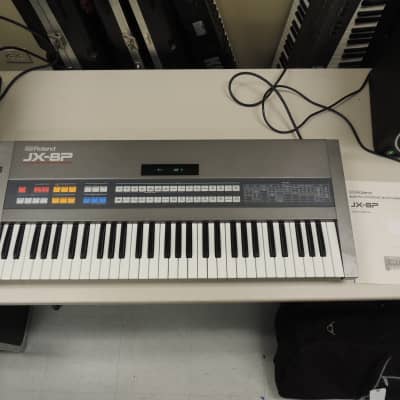

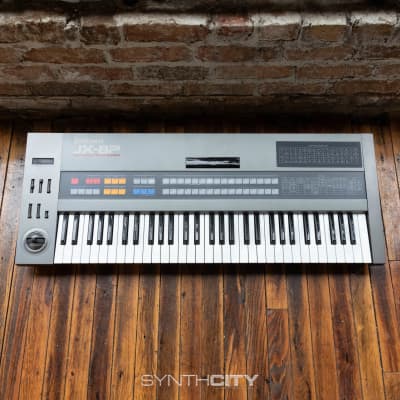

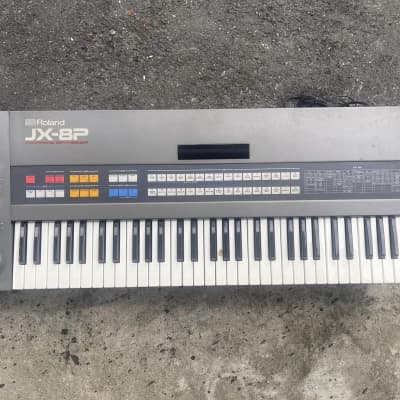

Roland JX-8PRoland JX-8P ($425)

Roland JX-8P Analog Synthesizer 21-Note Key Contact BoardRoland JX-8P Analog Synthesizer 21-Note Key Contact Board ($39)

Roland JX-8P Analog Synthesizer 40-Note Key Contact BoardRoland JX-8P Analog Synthesizer 40-Note Key Contact Board ($49)

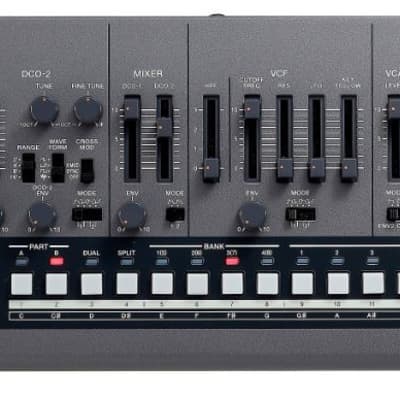

Stereoping CE-1 Midi Controller for Roland JX-8P JX8P Rare Vintage SynthStereoping CE-1 Midi Controller for Roland JX-8P JX8P Rare Vintage Synth ($425)

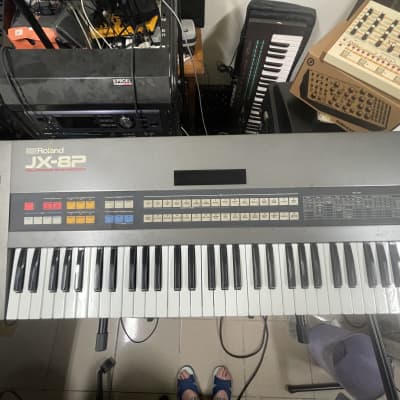

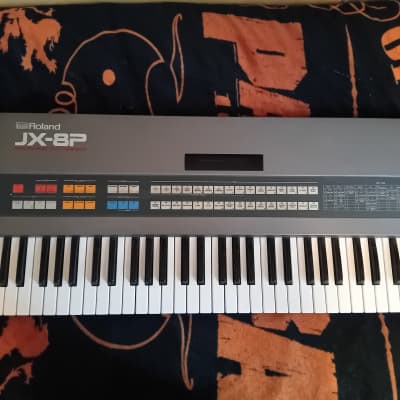

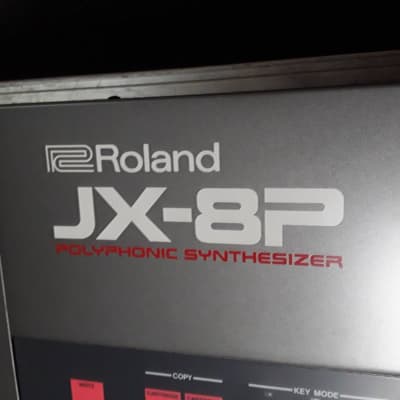

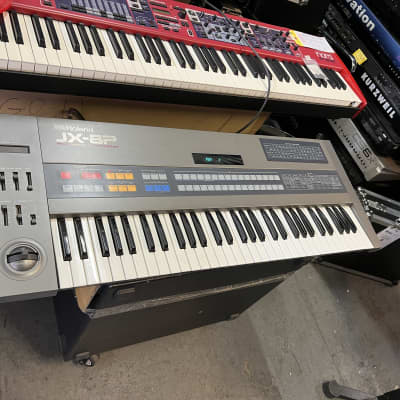

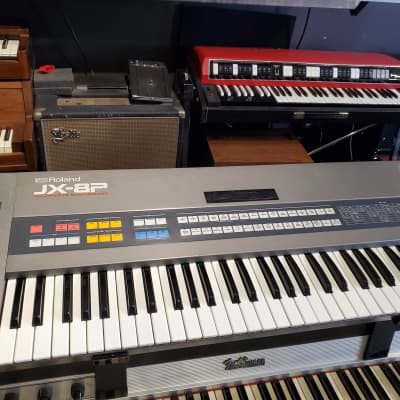

Roland Jx8pRoland Jx8p ($250)
