Synths ⇝ Korg ⇝ Korg Triton Rack

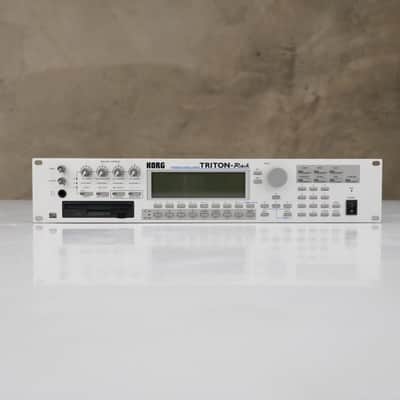

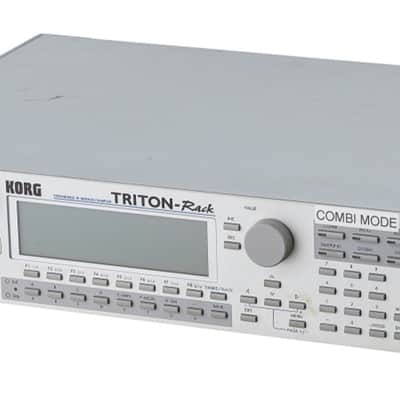

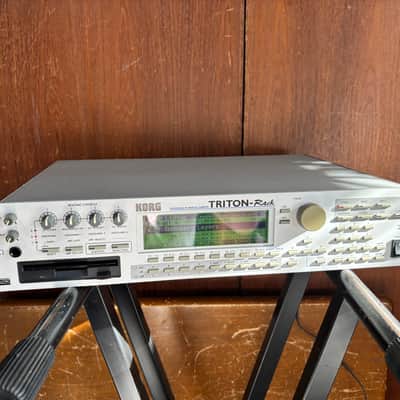

This is the rackmount version of the Korg Triton. Unlike the keyboard version, it does not have a touch screen.

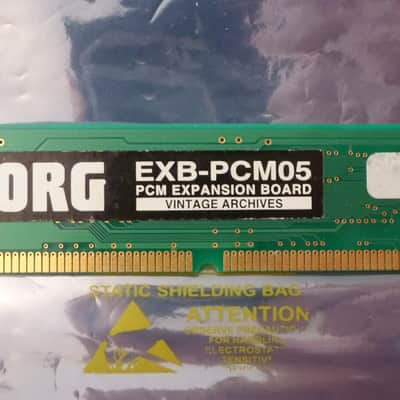

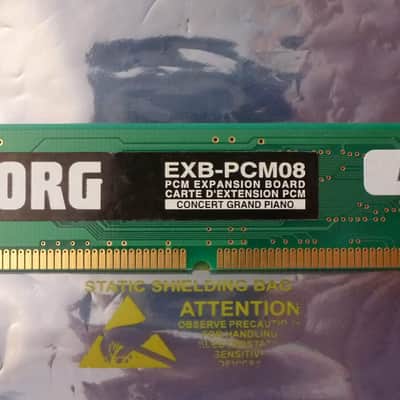

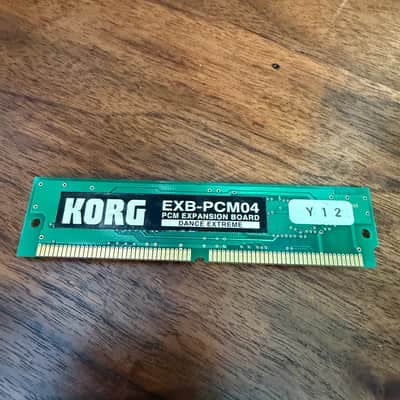

The Korg Triton Rack has 8 expansion slots for installing EXB-PCM modules. It can also be expanded with the EXB-MOSS multi-oscillator synthesis system board which adds 6 notes of polyphony and additional synthesis algorithms. It has 16MB of sample RAM and can be expanded to 96MB with up to three 32MB 72-pin SIMMs. The EXB-SCSI, EXB-DI, and EXB-mLAN boards let you add SCSI, digital I/O, and mLAN support.

Specifications

Year Released: 2000

MSRP: 2500.00 USD

Polyphony: 60 notes

Multitimbral: 16 parts

Preset Patches: 512

User Patches: 1152

Preset Performances: 512

User Performances: 1152

Preset Drum Kits: 25

User Drum Kits: 144

ROM: 32MB (425 instruments, 413 drums)

Sequencer Memory: 140,000 notes

Sequencer Resolution: 192 PPQN

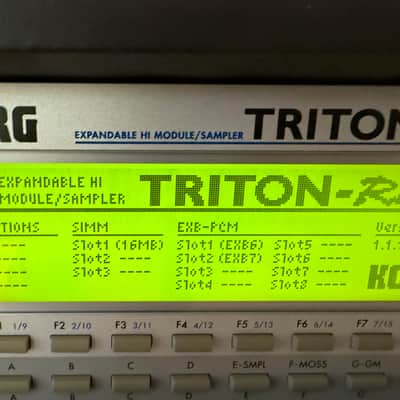

Screen: 240 x 64 pixel LCD

Power Consumption: 28 watts

Dimensions: 482 mm x 344.3 mm x 89.0 mm

Weight: 4.8 kg

This is a 2-space rack unit.

User Demo Videos

Rating

Sound Samples

WAV samples are available on freewavesamples.com.

File Downloads

Korg Triton Rack Basic Guide

Korg Triton Rack Parameter Guide

Korg Triton Rack Voice Name List

Items for Sale on Reverb

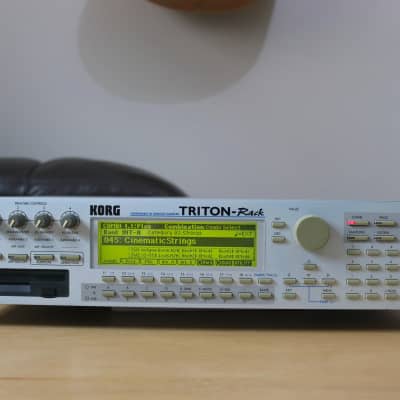

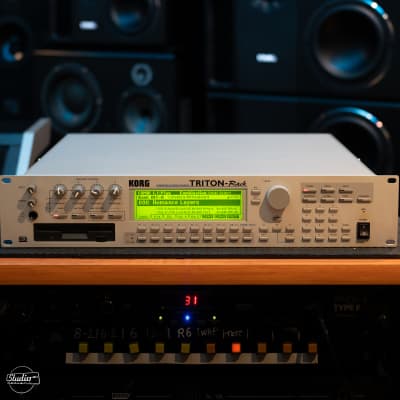

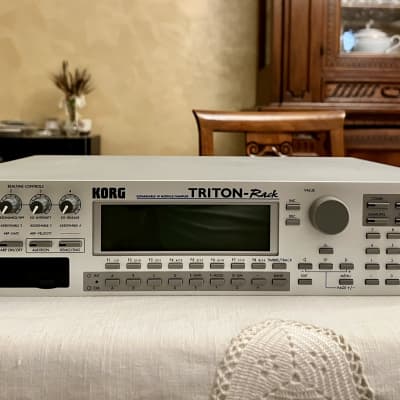

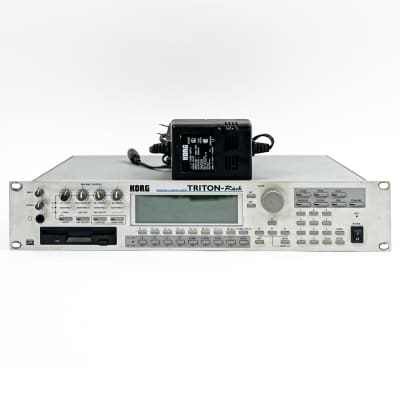

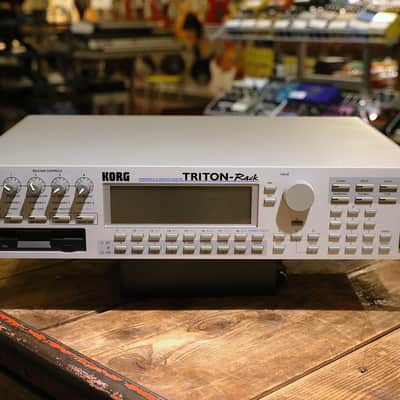

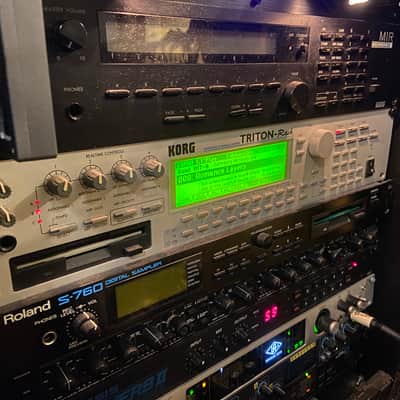

Korg Triton Rack Rackmount 60-Voice Polyphonic Workstation 2000 - 2005 - Silver ($799.95)

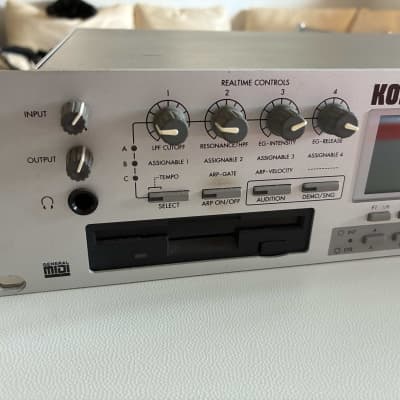

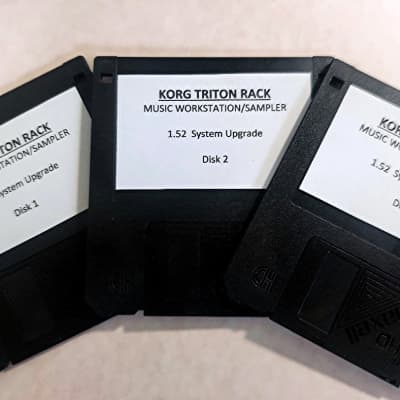

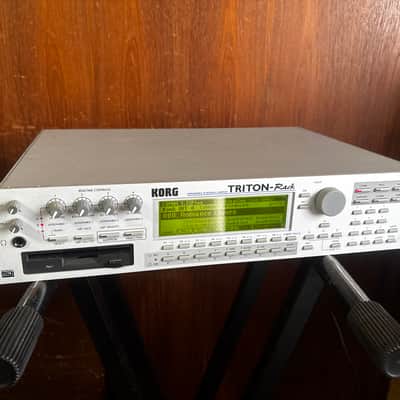

Korg Triton Rack Synthesizer/Sampler Workstation Ver 1.5.2 w/ power supply SIMM ($450)

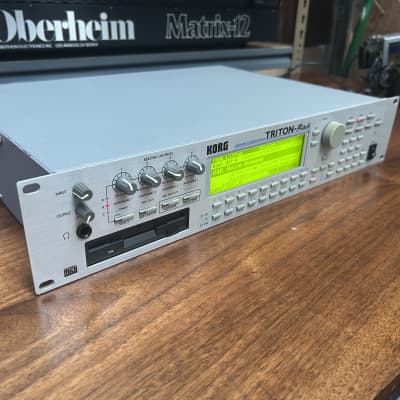

Korg Triton Rack Rackmount 60-Voice Polyphonic Workstation w/SCSI Option 2000 - 2005 - Silver ($920.14)

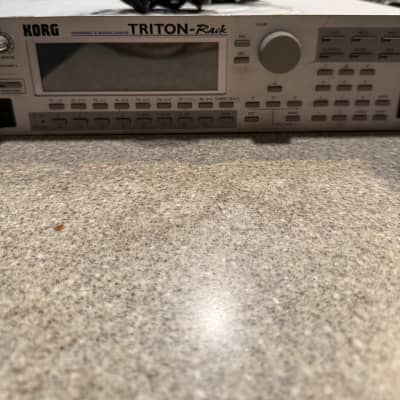

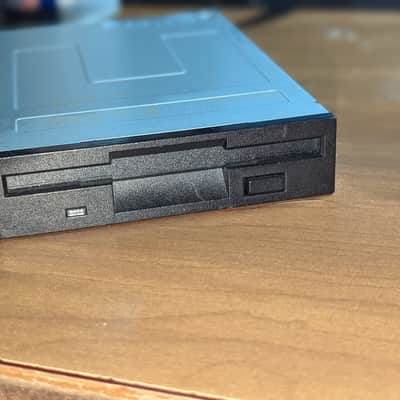

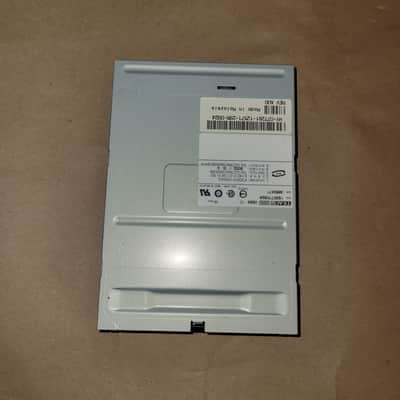

Korg Triton Rack - Floppy Drive ($100)

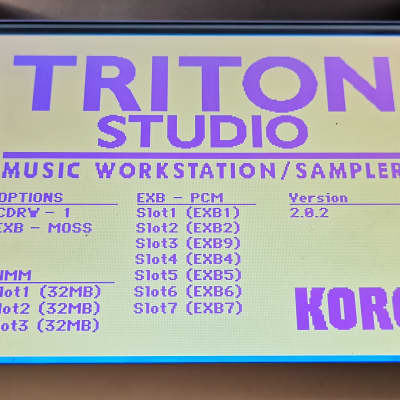

Korg Triton STUDIO EXTREME KARMA RACK MOSS board exb-moss ($629.15)

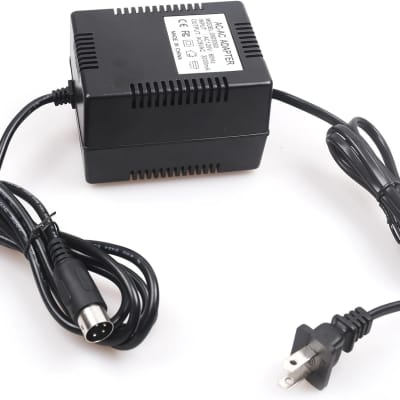

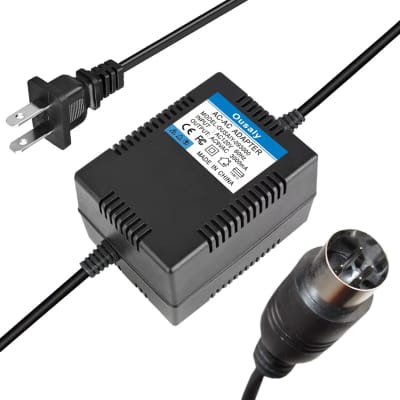

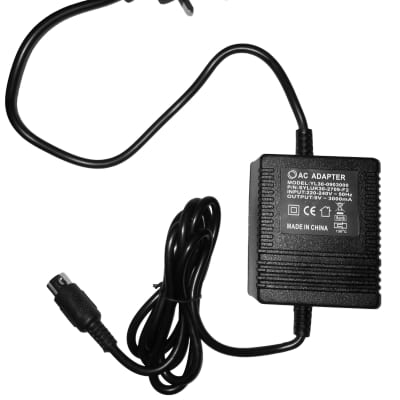

9V Ac Adapter Compatible With Digitech Rp6 Rp7Rp10 Tonelab Le Rp20 Rp21D Alesis P4 Ac09 25D Alesis P4 Ac09 25D Ps0920 Quad-V2 Studio Quad Korg Km2 Mixer Karma N1 N1R Tr88 Triton Le Triton Rack Sp500 ($66.69)

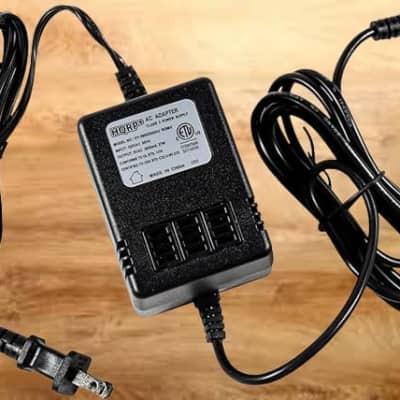

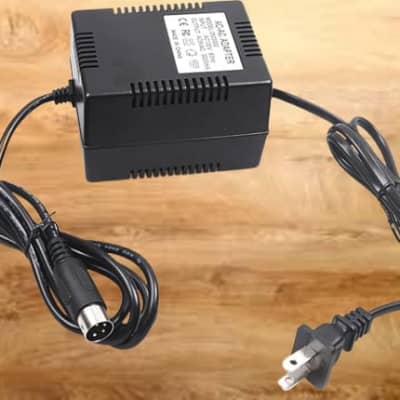

9VAC Adapterfor Korg KM2 Mixer Karma N1 N1R N5 N5EX TR TR88 Triton LE Synthesizer Triton Rack SP500 Digital Piano TP-2 Dual Tube Preamp ESX-1 Electribe MX EMX-1,Digitech PS0912 RP5 RP10 RP14D RP21D ($81.64)

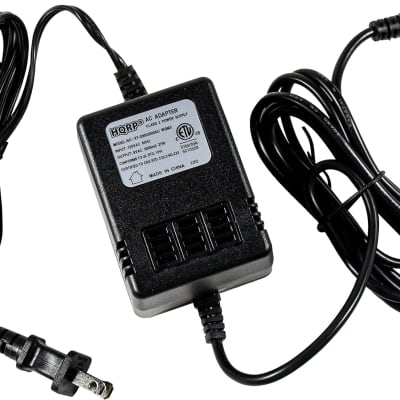

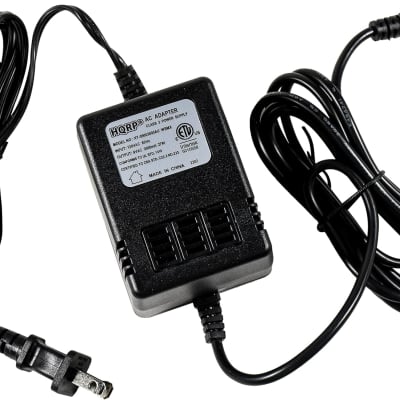

AC Adapter Compatible with Korg KM2 Mixer Karma N1 N1R N5 N5EX TR TR88 Triton LE Synthesizer Triton Rack SP500 Digital Piano TP-2 Dual Tube Preamp ESX-1 Electribe MX EMX-1 Power Supply ($60.94)

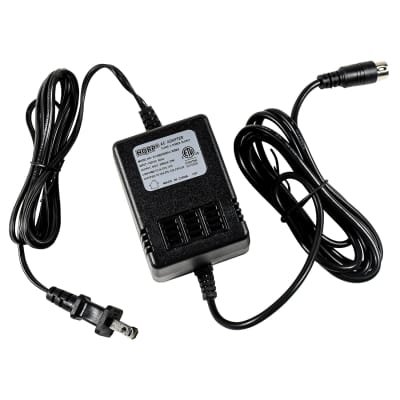

AC Adapter Compatible with Korg KM2 Mixer Karma N1 N1R N5 N5EX TR TR88 Triton LE Synthesizer Triton Rack SP500 Digital Piano TP-2 Dual Tube Preamp ESX-1 Electribe MX EMX-1 Power Supply ($58.50)

9V AC Adapter Compatible with Digitech RP6 RP7RP10 Tonelab LE RP20 RP21D Alesis P4 AC09 25D Alesis P4 AC09 25D PS0920 Quad-V2 Studio Quad Korg KM2 Mixer Karma N1 N1R TR88 Triton LE Triton Rack SP500 ($57.91)

Korg - D16 , D1600MKII , PA50 , PA50SD , Radias , MAR1 , Triton Rack - Encoder ($7.84)

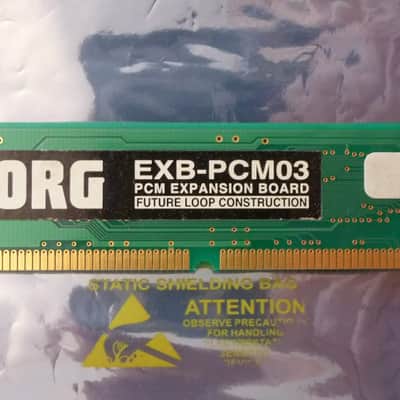

7 Korg EXB pcm cards expasnions + EXB Moss for Triton Studio Karma Rack ($1,782.64)

Korg - D16 , D1600MKII , PA50 , PA50SD , Radias , MAR1 , Triton Rack - Encoder ($10.90)

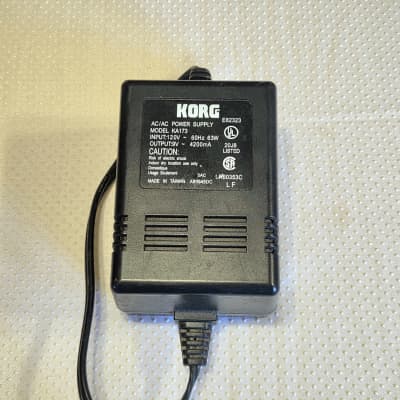

Power Supply Replacement for KORG TRITON RACK ADAPTER UK 9V 220V 230V 240V ($58.97)

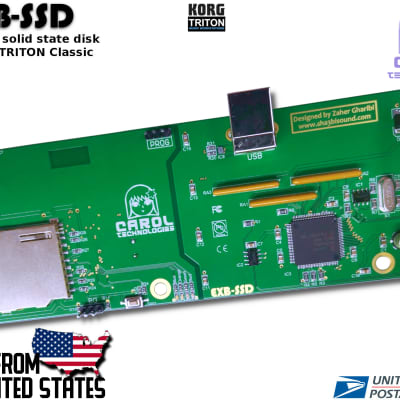

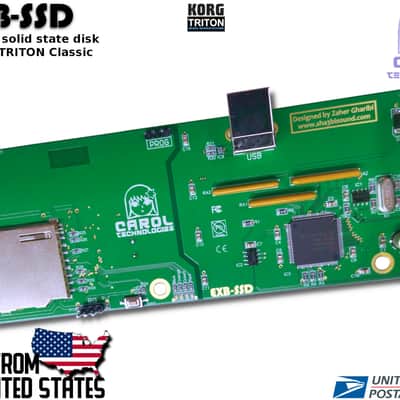

EXB-SSD All-in-one Solid State Disk for KORG TRITON Classic Keyboard & Rack ($268)

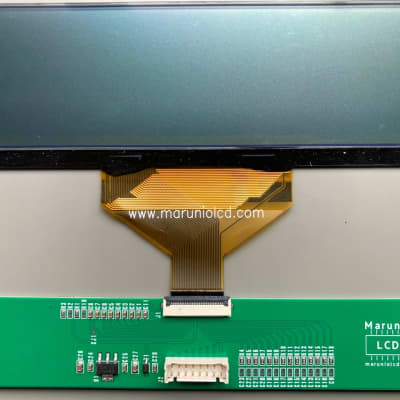

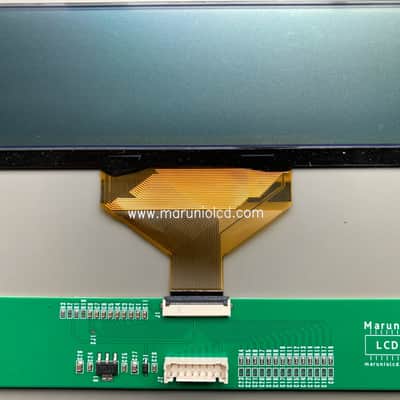

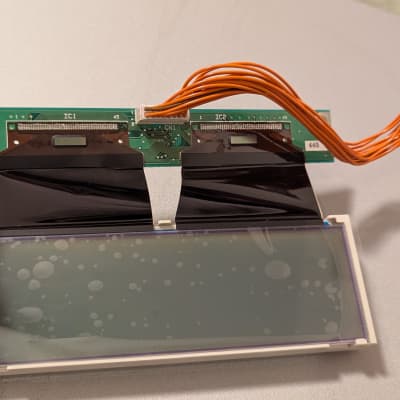

Replacement LCD GLASS for KORG Triton RACK , KARMA , LE61, LE76, LE88 ($162.79)

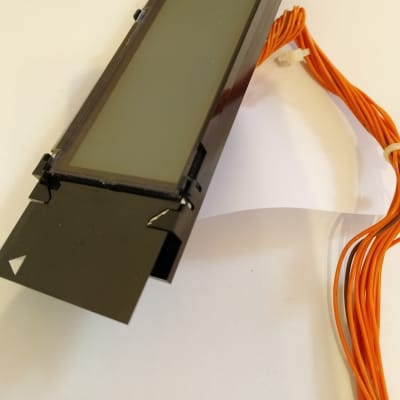

Backlight assembly + Display pcb for Korg Triton le / Karma / Triton rack (for international shipments contact me) ($35.65)

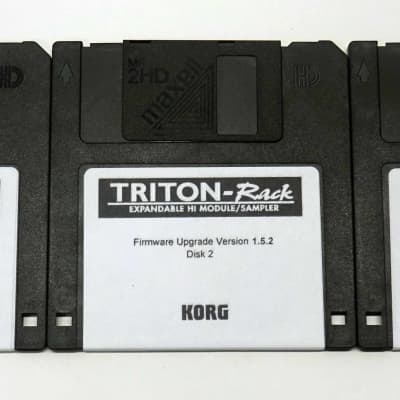

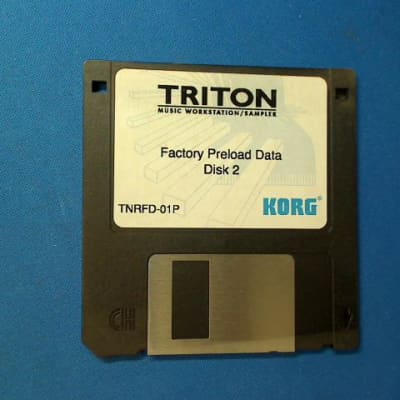

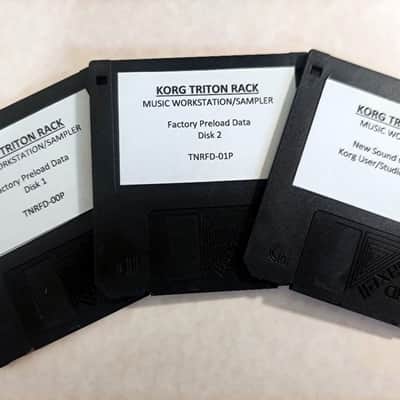

Korg - TNRFD01P, TRITON RACK P.LOAD DISK 2 ($5)
