Synths ⇝ Korg ⇝ Korg TR-Rack

The TR-Rack is the rack version of the Korg Trinity. It was released in 1998, the same year that the V3 version of the Trinity was released. It has a larger ROM than the original Trinity at 32MB, adding 40 multisamples and 200 drum saples. It is known and loved for its high-quality filters.

While it lacks the large touchscreen of the Trinity keyboard models, it does have a large display and text is shown in a large font, making this a much more eye-friendly rack unit than most.

Specifications

Year Released: 1998

Polyphony: 32 notes

Multitimbral: 16 parts

Preset Patches: 512

Preset Performances: 512

Preset Drum Kits: 22

ROM: 32MB (415 instruments and 458 drums) at 48 kHz

Effects: 100 insert effects, 14 master effects

Screen: 20 x 2 character backlit LCD

Power Consumption: 18 watts

Dimensions: 482 mm x 264 mm x 45 mm

Weight: 2.8 kg

This is a 1-space rack unit.

User Demo Videos

Rating

Sound Samples

WAV samples are available on freewavesamples.com.

File Downloads

Korg TR-Rrack User's Guide

Korg TR-Rack Effect Guide

Korg TR-Rack Service Manual

Items for Sale on Reverb

Korg TR-Rack Expanded Access Module 1U Rackmount Synthesizer Synth – Excellent Condition ($528.38)

KORG TR-Rack ($431.63)

Korg TR-RACK EXPANDED ACCESS MODULE 1U rack trinity tr rack ($350)

Korg TR-Rack Expanded Access Module 1U Rackmount Synthesizer Synth – Excellent Condition ($410)

OLED Display Upgrade - KORG TR / SG Rack OLED Display Upgrade ! ($177.29)

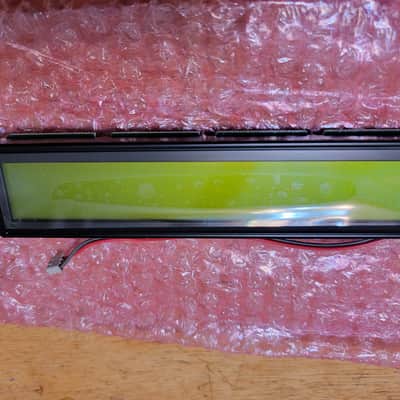

Korg Large LCD - TR Rack, SG Rack, SG Pro X - ORIGINAL DISPLAY ($55)

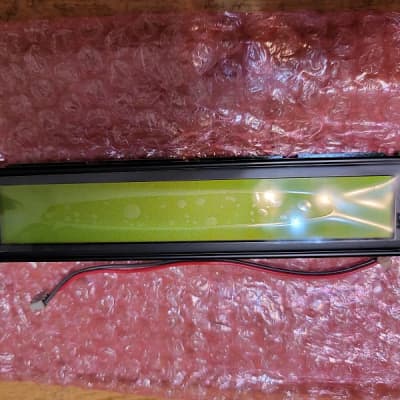

Korg TR Rack original LCD ($40)

Korg - 05RW , TR Rack , X5DR - Rotary potentiometer for volume control ($15.90)

Korg Trinity TR Rack #13 ($475.14)

Compatible with Korg KM2 Mixer Karma N1 N1R N5 N5EX TR TR88 Triton LE Synthesizer Triton Rack SP500 Digital Piano TP-2 Dual Tube Preamp ESX-1 Electribe MX EMX-1 ($63.50)

9VAC Adapterfor Korg KM2 Mixer Karma N1 N1R N5 N5EX TR TR88 Triton LE Synthesizer Triton Rack SP500 Digital Piano TP-2 Dual Tube Preamp ESX-1 Electribe MX EMX-1,Digitech PS0912 RP5 RP10 RP14D RP21D ($95.99)

AC Adapter Compatible with Korg KM2 Mixer Karma N1 N1R N5 N5EX TR TR88 Triton LE Synthesizer Triton Rack SP500 Digital Piano TP-2 Dual Tube Preamp ESX-1 Electribe MX EMX-1 Power Supply ($58.50)

AC Adapter Compatible with Korg KM2 Mixer Karma N1 N1R N5 N5EX TR TR88 Triton LE Synthesizer Triton Rack SP500 Digital Piano TP-2 Dual Tube Preamp ESX-1 Electribe MX EMX-1 Power Supply ($47.05)

AC Adapter Compatible with Korg KM2 Mixer Karma N1 N1R N5 N5EX TR TR88 Triton LE Synthesizer Triton Rack SP500 Digital Piano TP-2 Dual Tube Preamp ESX-1 Electribe MX EMX-1 Power Supply ($60.94)

for Digitech PS0912 RP5 RP10 RP14D RP21D 9VAC Adapter Korg KM2 Mixer Karma N1 N1R N5 N5EX TR TR88 Triton LE Synthesizer Triton Rack SP500 Digital Piano TP-2 Dual Tube Preamp ESX-1 Electribe MX EMX-1 ($53.99)

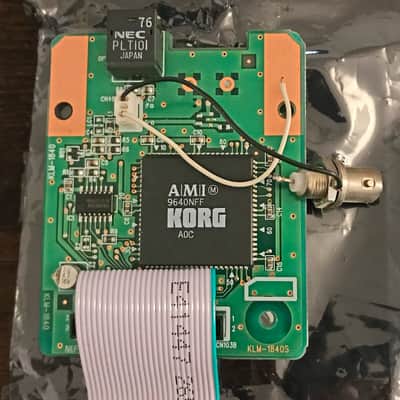

Korg DI-TRI — KLM-1840 — Expansion Board ADAT + Wordclock for TR-Rack and Trinity ($350)

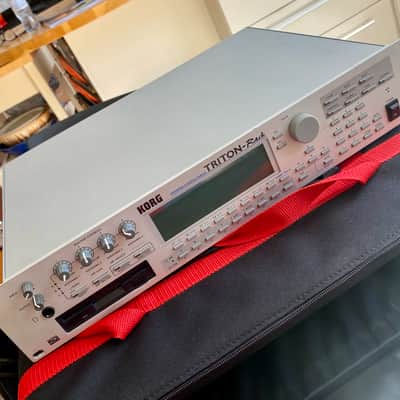

Korg Triton-Rack inc. 5 EXPANSION BOARDS & RACK BAG ($1,347.40)

Korg Triton Rack Rackmount 60-Voice Polyphonic Workstation Sound Module //ARMENS// ($899)

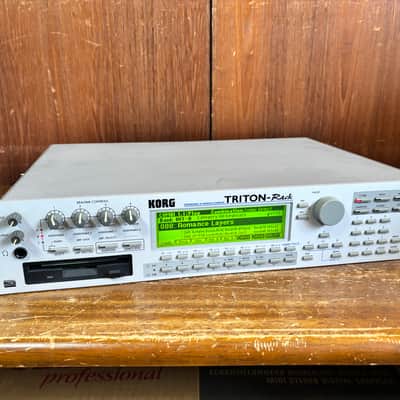

Korg Triton Rack Synthesizer/Sampler Workstation Ver 1.5.3 w/ FULL SIMM power supply ($650)

Korg Triton Rack Rackmount 60-Voice Polyphonic Workstation 2000 - 2005 - Silver - MAXED OUT + EXPANSION BOARDS ($1,420.07)

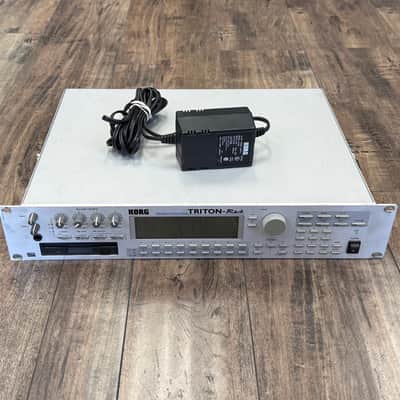

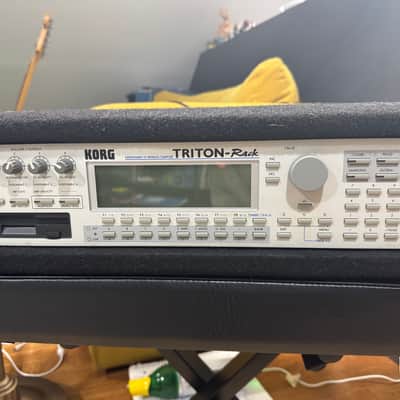

Korg Triton Rack Rackmount 60-Voice Polyphonic Workstation 2000 - 2005 - Silver ($557.54)

Replacement LCD GLASS for KORG Triton RACK , KARMA , LE61, LE76, LE88 ($148.92)

Vintage c.1998 KORG TRINITY TR Rack Model TRR ACCESS Synthesizer ULTIMATE AMBIENT Workstation Soundmodule ($695)

Korg TRITON Rack ($546.60)

Korg Triton Rack - Floppy Drive ($100)

9V AC Adapter Compatible with Digitech RP6 RP7RP10 Tonelab LE RP20 RP21D Alesis P4 AC09 25D Alesis P4 AC09 25D PS0920 Quad-V2 Studio Quad Korg KM2 Mixer Karma N1 N1R TR88 Triton LE Triton Rack SP500 ($57.91)

9V Ac Adapter Compatible With Digitech Rp6 Rp7Rp10 Tonelab Le Rp20 Rp21D Alesis P4 Ac09 25D Alesis P4 Ac09 25D Ps0920 Quad-V2 Studio Quad Korg Km2 Mixer Karma N1 N1R Tr88 Triton Le Triton Rack Sp500 ($66.69)

9V AC Adapter Compatible with Digitech RP6 RP7RP10 Tonelab LE RP20 RP21D Alesis P4 AC09 25D Alesis P4 AC09 25D PS0920 Quad-V2 Studio Quad Korg KM2 Mixer Karma N1 N1R TR88 Triton LE Triton Rack SP500 ($46.99)

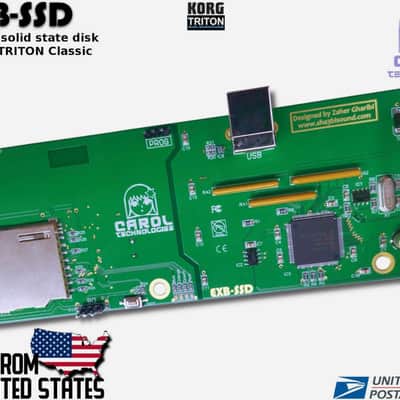

EXB-SSD KORG TRITON Classic Keyboard/Rack All-in-one Solid State Disk/SD Card Solution ($219)

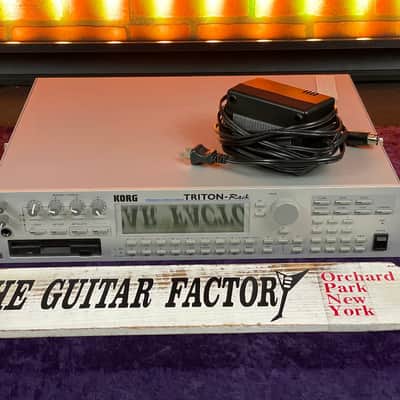

Korg Triton Rack Synthesizer/Sampler Workstation ($599.95)

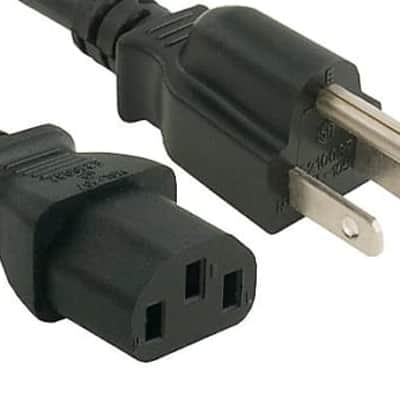

Power Supply Cable Cord for Korg TR-Rack ($6.99)
