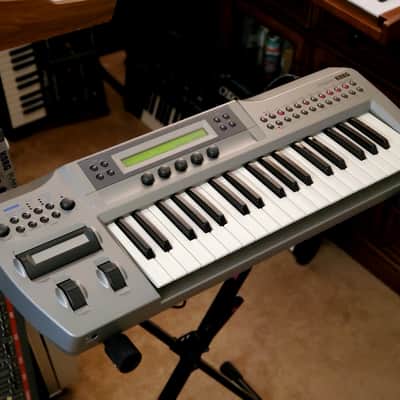

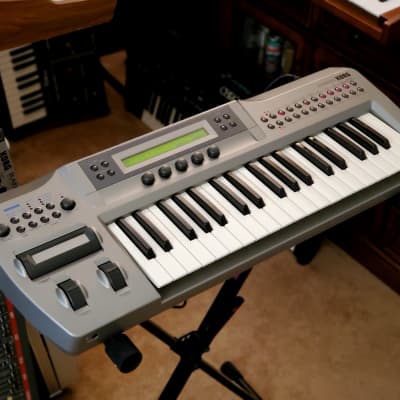

Korg Prophecy

The Korg Prophecy is an early virtual analog synthesizer powered by the Multi-Oscillator Synthesis System (MOSS), the same DSP technology that powered the Korg OASYS system that later came out as the OASYS PCI card. In addition to analog, it also includes FM and plucked string physical modeling with seven oscillator types in total.

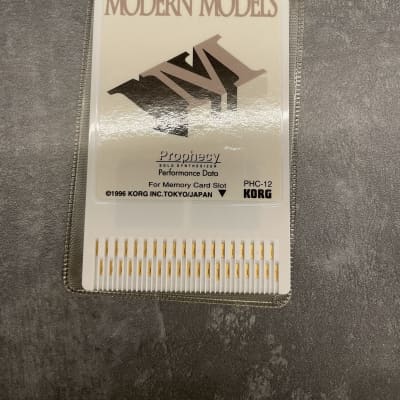

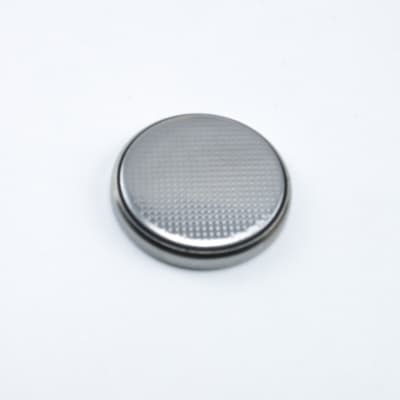

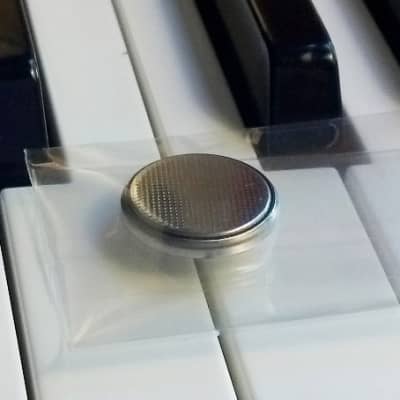

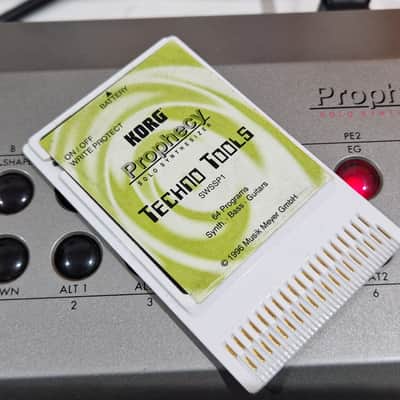

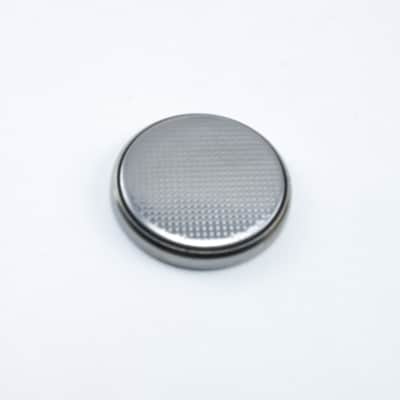

It uses a standard CR2032 lithium battery for its patch memory. Additional patches can be stored on a Korg SCR-512 RAM card.

Specifications

Year Released: 1995

MSRP: $1600

Keyboard: 37 keys with velocity and aftertouch

Polyphony: monophonic

User Patches: 128

Effects: distortion, wah, dual parametric EQ, chorus/flanger, delay, reverb

Arpeggiator: 5 preset patterns, 5 user patterns

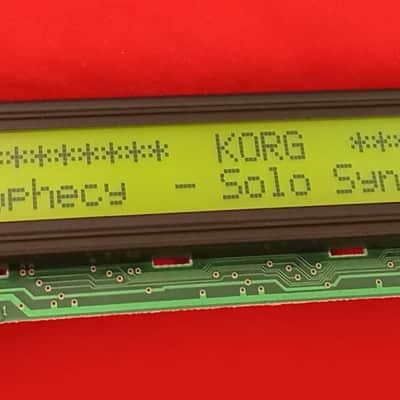

Screen: 40 x 2 character backlit LCD

Power Consumption: 10 watts

Dimensions: 740 mm x 286 mm x 100 mm

Weight: 5.7 kg

LFO: 4 LFOs with 30 waveforms

MIDI: In, Out, Thru

User Demo Videos

Rating


5
(3 votes)

File Downloads

Korg Prophecy Manual

Korg Prophecy Service Manual

Items for Sale on Reverb

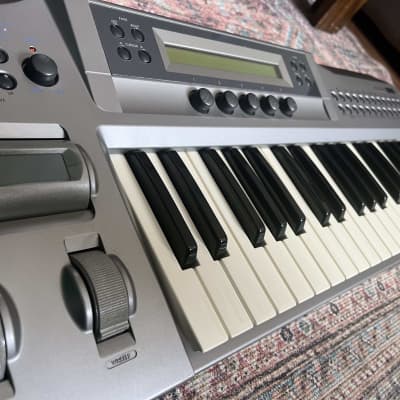

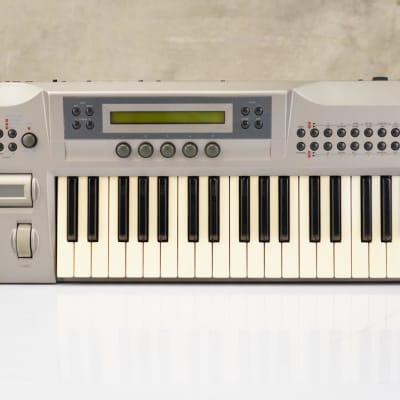

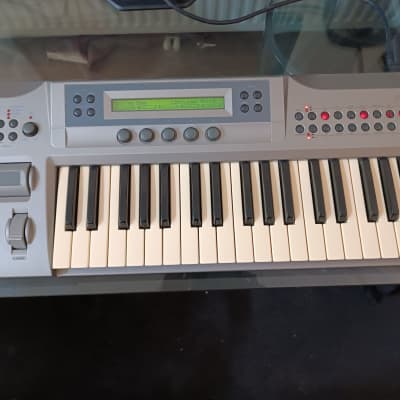

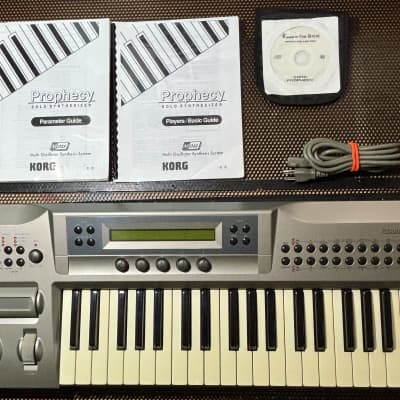

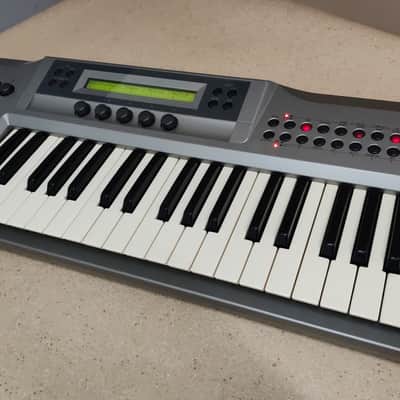

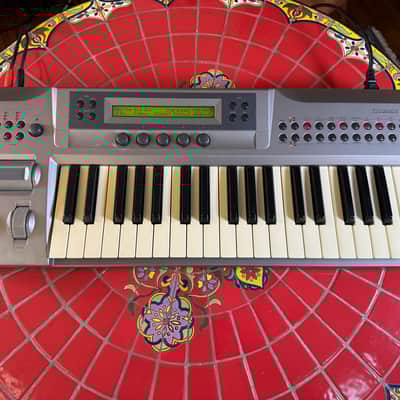

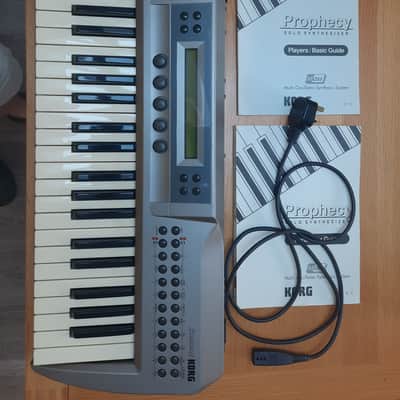

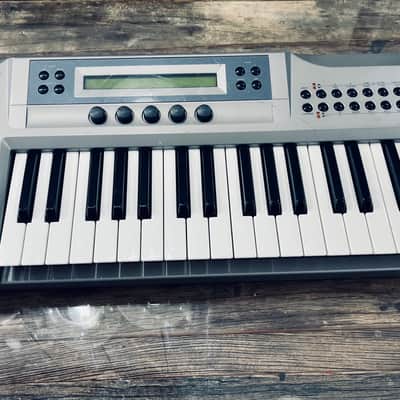

Korg  Prophecy 1995Korg Prophecy 1995 ($460.74)

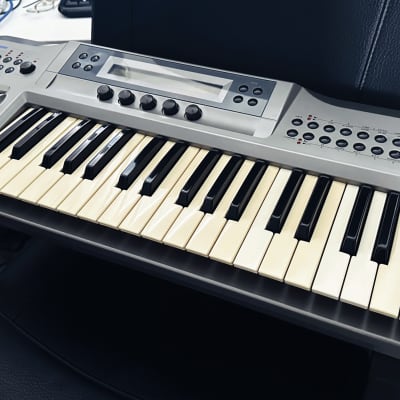

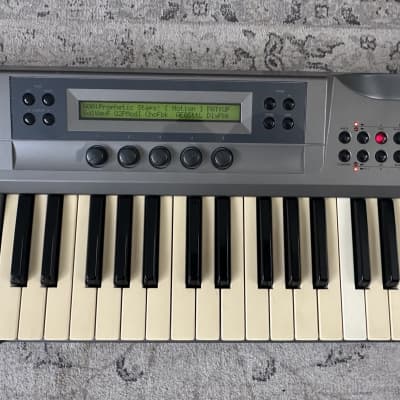

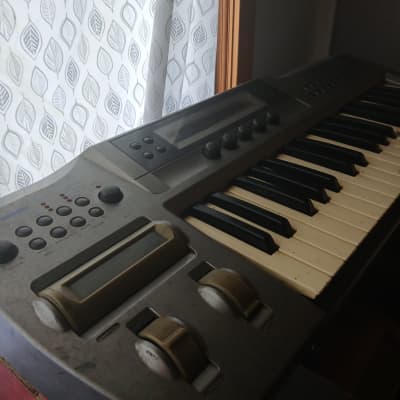

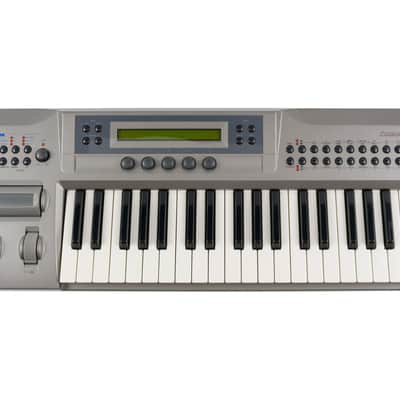

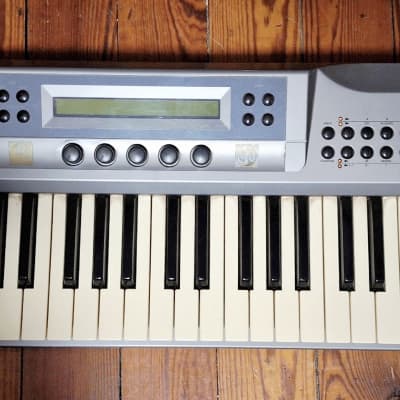

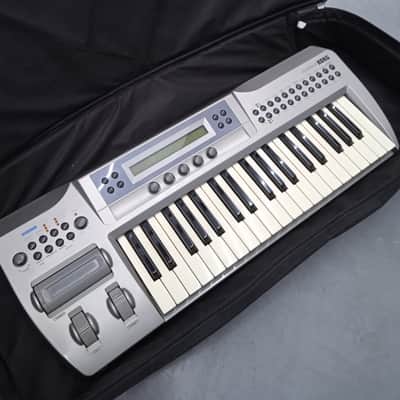

Korg ProphecyKorg Prophecy ($200)

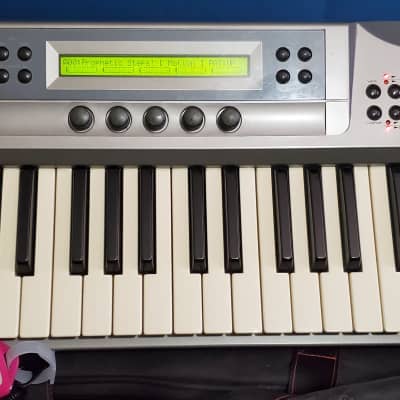

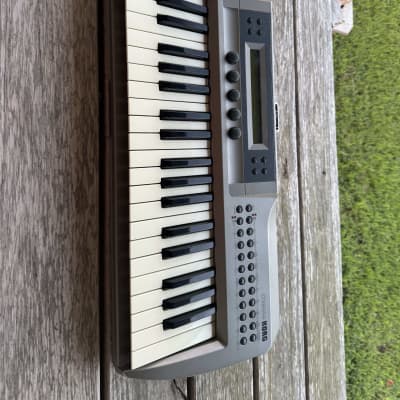

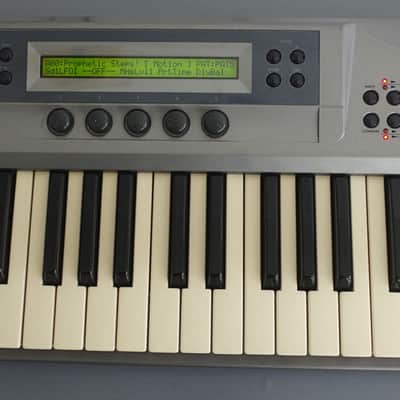

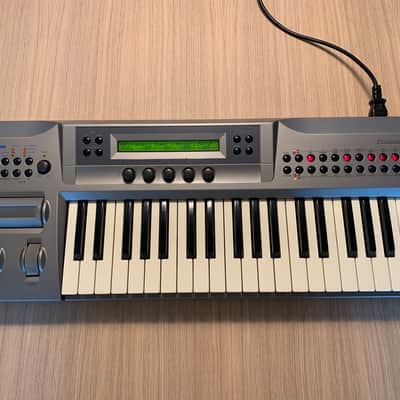

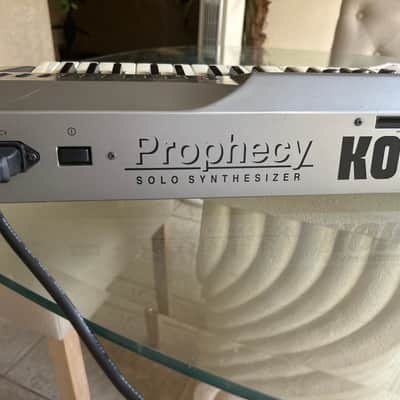

Korg ProphecyKorg Prophecy ($334.03)

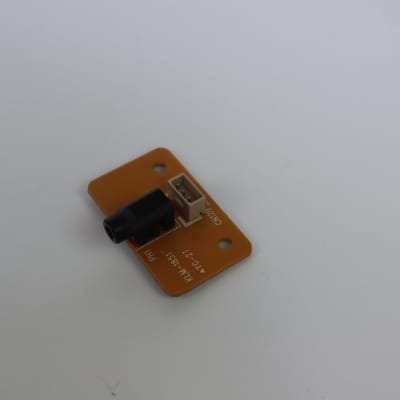

korg Prophecy   Jack board (KLM-1850)korg Prophecy Jack board (KLM-1850) ($35)

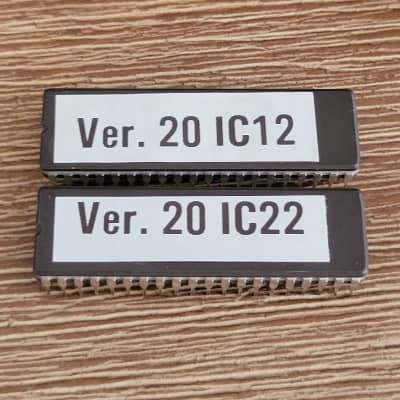

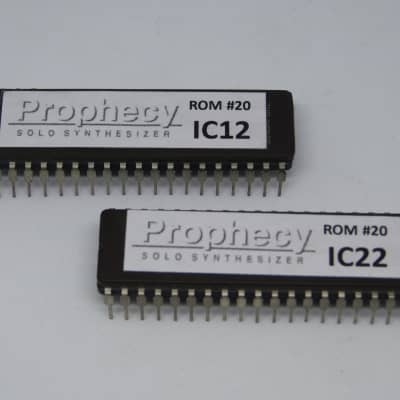

Korg Prophecy OS #20 upgrade ROM kit latest firmware set of 2 EPROMKorg Prophecy OS #20 upgrade ROM kit latest firmware set of 2 EPROM ($39.99)

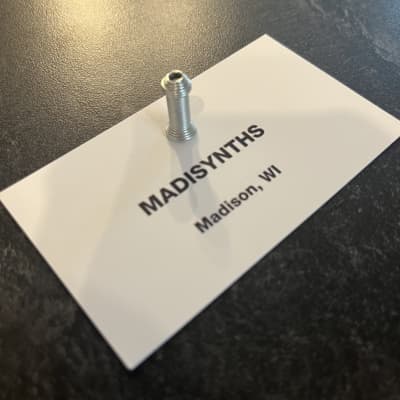

korg Prophecy  Knobkorg Prophecy Knob ($7)

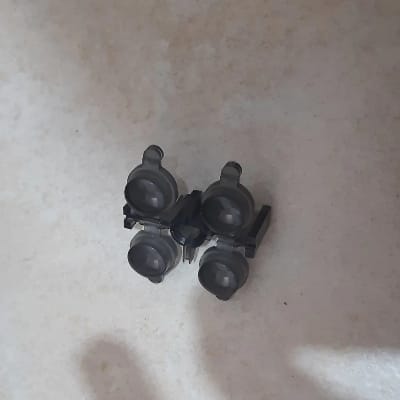

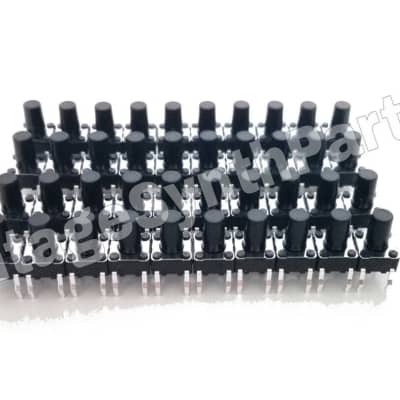

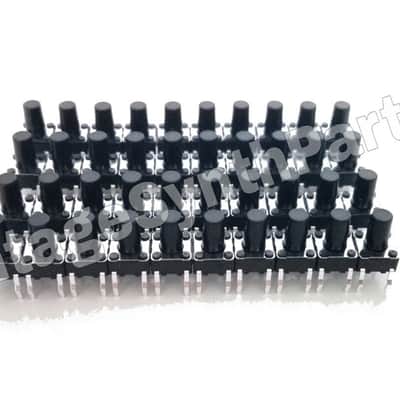

korg Prophecy Buttons 4-setkorg Prophecy Buttons 4-set ($20)

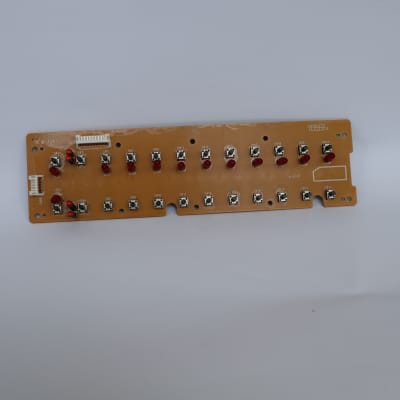

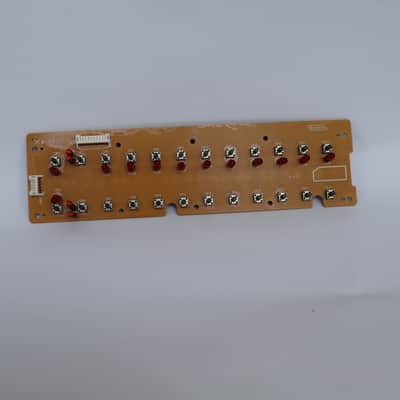

korg Prophecy  Panel board (KLM-1847)korg Prophecy Panel board (KLM-1847) ($50)

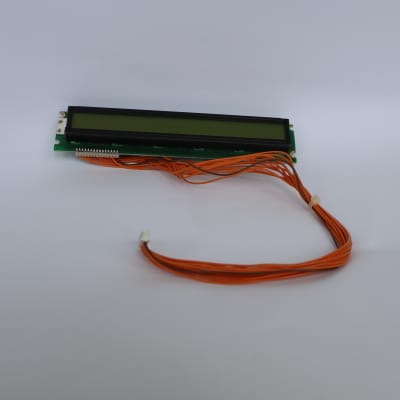

korg Prophecy Displaykorg Prophecy Display ($50)

korg Prophecy  Memory card board (KLM-1862)korg Prophecy Memory card board (KLM-1862) ($22)

korg Prophecy Left panel board (KLM-1849)korg Prophecy Left panel board (KLM-1849) ($50)

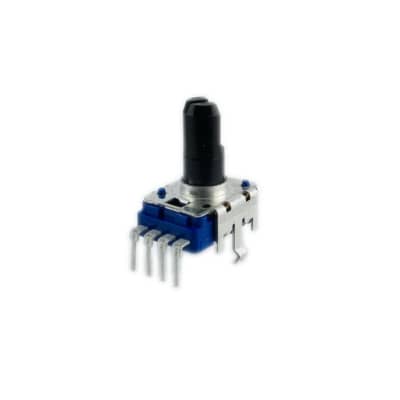

korg Prophecy  Knobkorg Prophecy Knob ($7)

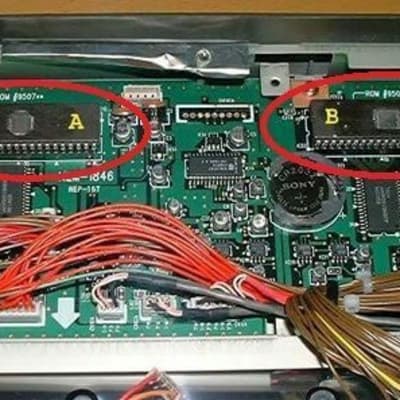

Korg Prophecy OS #20 upgrade ROM kit latest firmware set of 2 EPROMKorg Prophecy OS #20 upgrade ROM kit latest firmware set of 2 EPROM ($34.50)

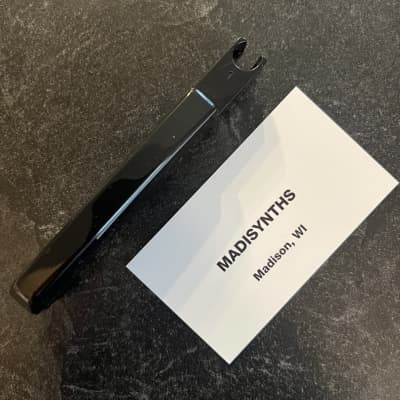

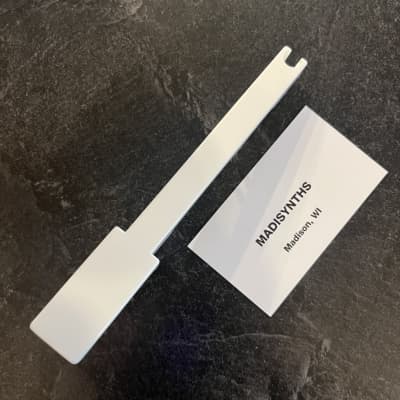

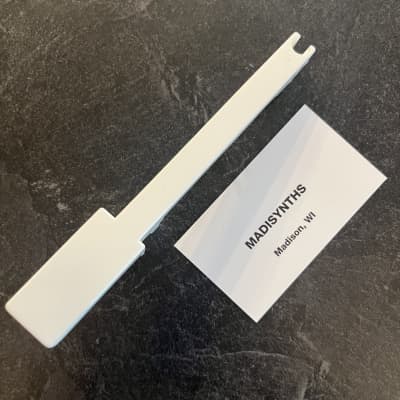

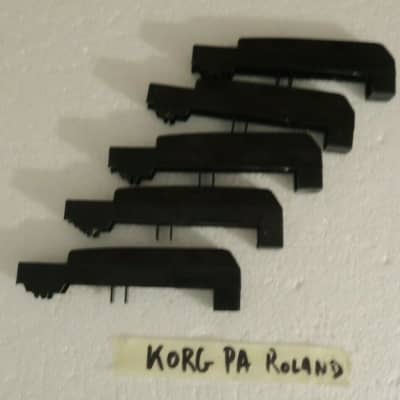

KORG Triton LE Karma Prophecy TR Radias N5 N5EX N264 N364 Original Keyboard KeyKORG Triton LE Karma Prophecy TR Radias N5 N5EX N264 N364 Original Keyboard Key ($4.99)

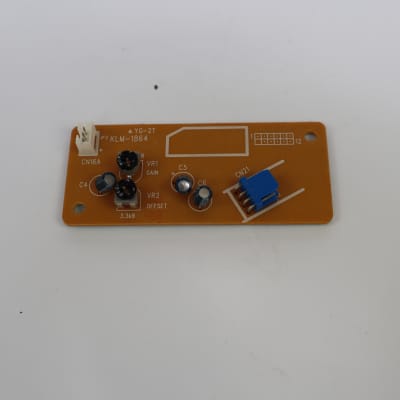

Korg Triton LE & Prophecy Original Aftertouch Sensor Board KLM-1864Korg Triton LE & Prophecy Original Aftertouch Sensor Board KLM-1864 ($14.99)

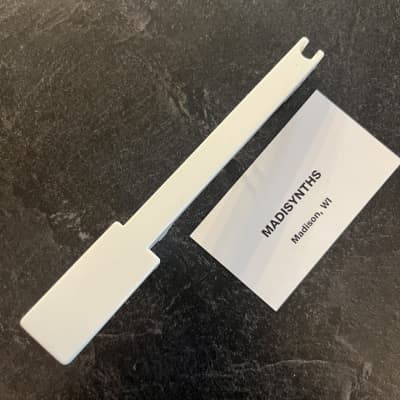

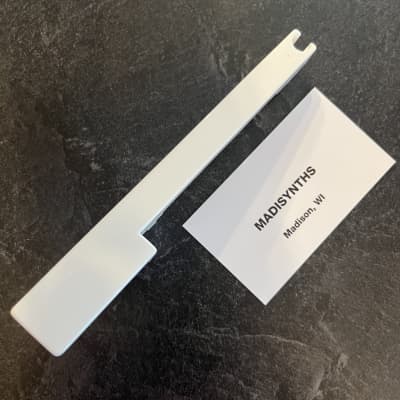

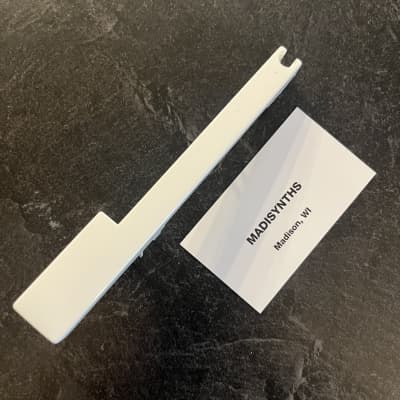

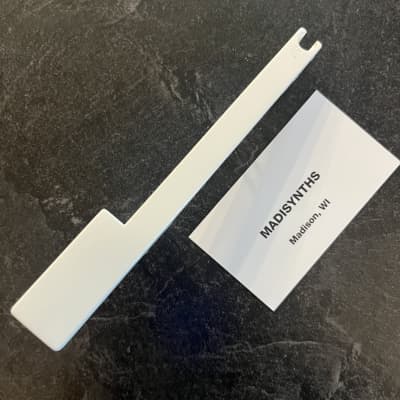

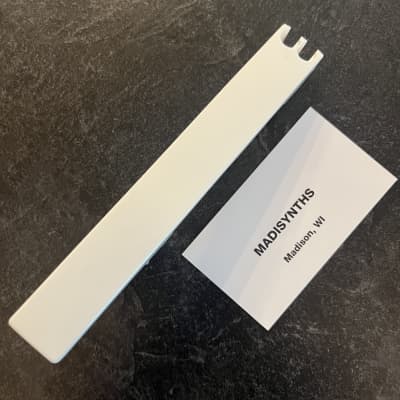

WHITE KEY CF YAMAHA DX7 FD SY-77 KORG M1 TRITON WAVESTATION PROPHECY MOTIFWHITE KEY CF YAMAHA DX7 FD SY-77 KORG M1 TRITON WAVESTATION PROPHECY MOTIF ($10.36)
