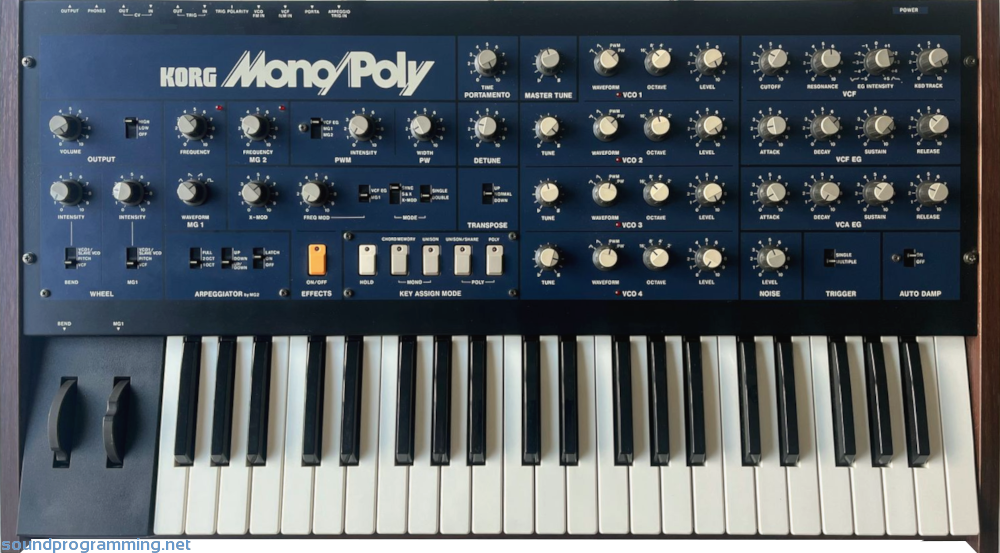

SynthsKorg ⇝ Korg Mono/Poly

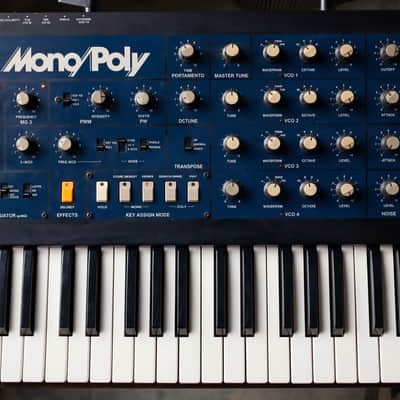

The Mono/Poly was first released in 1981 and was available at the same time as the Korg PolySix. It is a 4-voice polyphonic synthesizer with 4 independent voltage-controlled oscillators that can generate sine, sawtooth, pulse width, and pulse width modulation waveforms. These oscillators can also be used in unison for a monophonic lead tone - thus the name Mono/Poly. It also has separate envelope generators for the oscillators and the filter. It has two low-frequency oscillators that can be used to modulate the envelope, arpeggiator, and pulse width independently.

It uses SSM2033 chips for its VCOs and an SSM2044 chip for its filters.

The Mono/Poly is known to have been used by 808 State, Chemical Brothers, Hardfloor, Juno Reactor, Tangerine Dream, and The Orb.

Specifications

Year Released: 1981

MSRP: $995

Keyboard: 44 keys

Polyphony: 4 notes

Power Consumption: 28 watts

Dimensions: 744 mm x 450 mm x 144 mm

Weight: 12 kg

User Demo Videos

Rating


4.7
(3 votes)

File Downloads

Korg Mono/Poly Manual

Korg Mono/Poly Service Manual

Items for Sale on Reverb

Legowelt Samplezzz Korg Mono/PolyLegowelt Samplezzz Korg Mono/Poly (FREE)

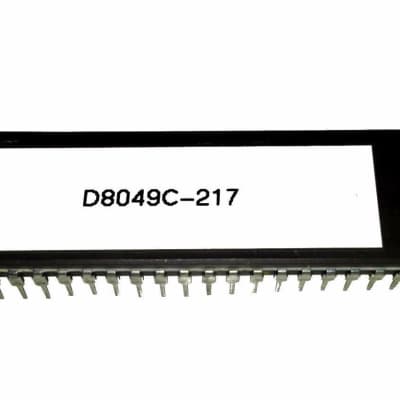

NEC D8049C-217 Key Assigner For Korg Mono/Poly Polysix & Poly61 Vintage CpuNEC D8049C-217 Key Assigner For Korg Mono/Poly Polysix & Poly61 Vintage Cpu ($35.34)

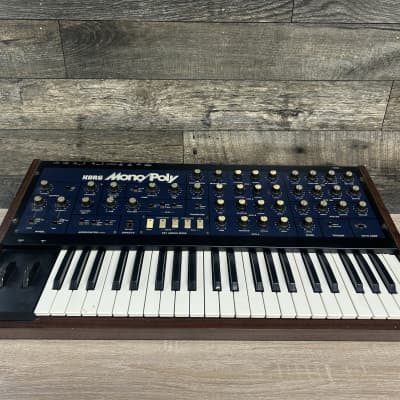

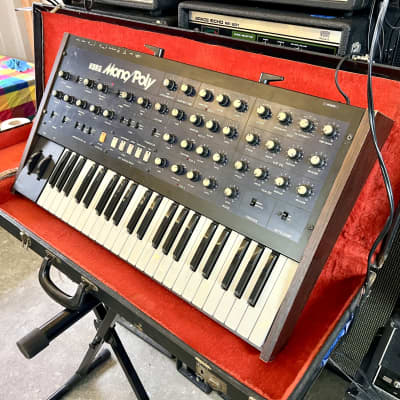

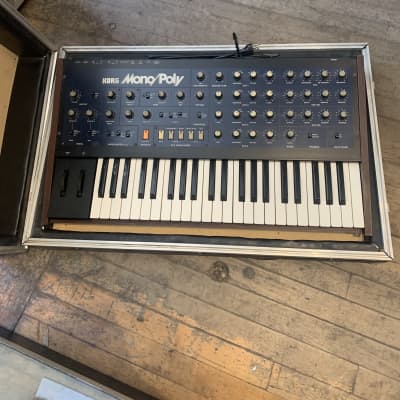

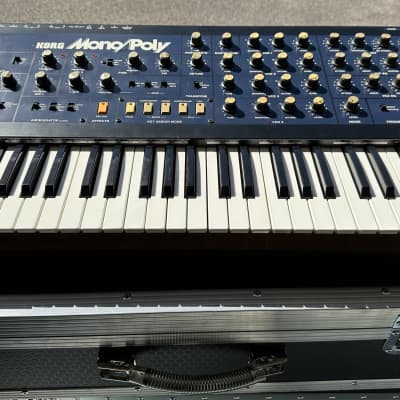

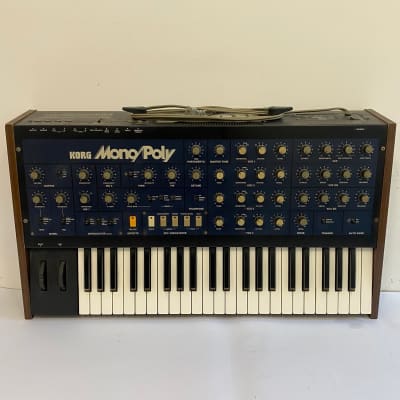

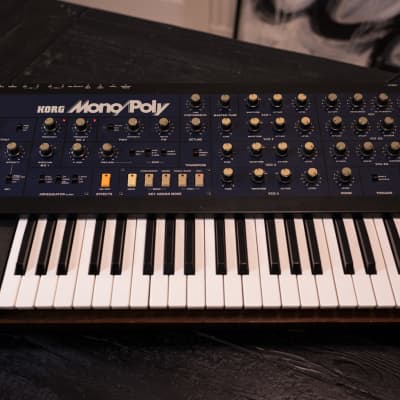

Korg Mono/Poly Analog Synthesizer with midipoly upgrade and original korg flightcaseKorg Mono/Poly Analog Synthesizer with midipoly upgrade and original korg flightcase ($2,624.63)

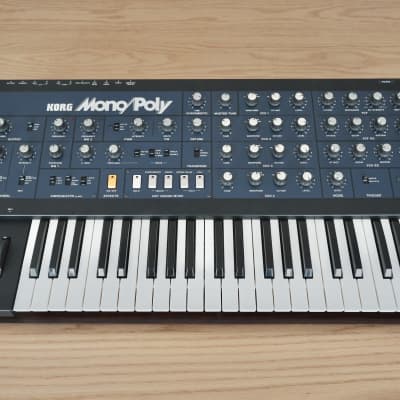

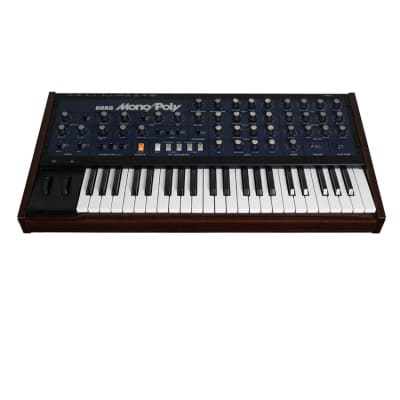

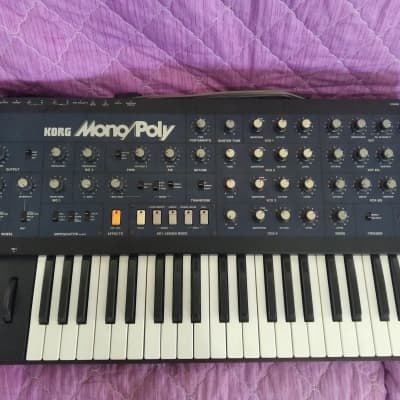

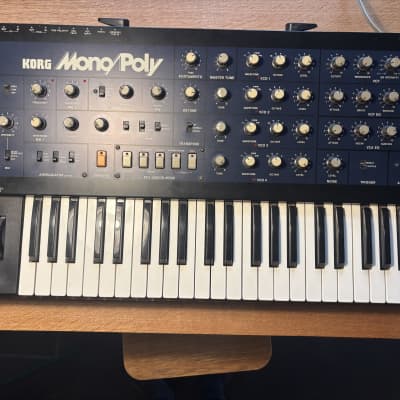

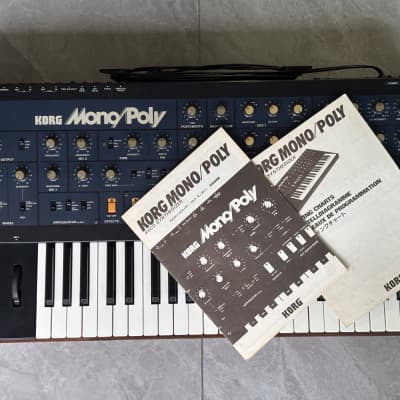

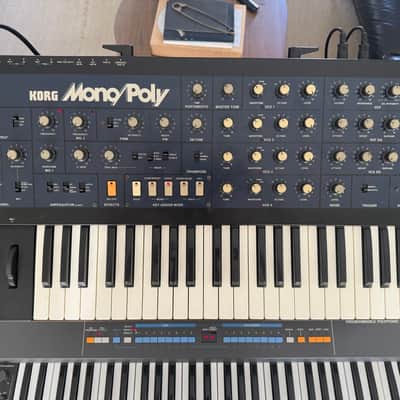

Korg Mono/Poly with Tubbutec MIDI+Original soft case + Sound Chart documents, serviced !Korg Mono/Poly with Tubbutec MIDI+Original soft case + Sound Chart documents, serviced ! ($2,335.57)

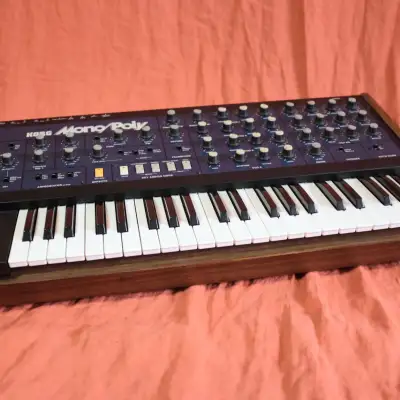

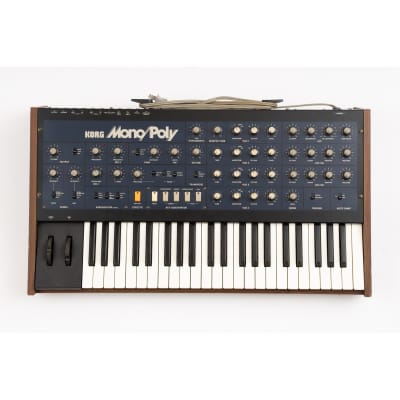

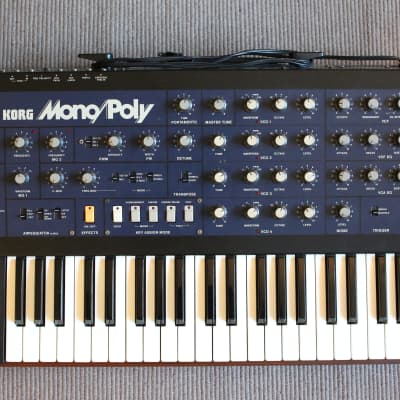

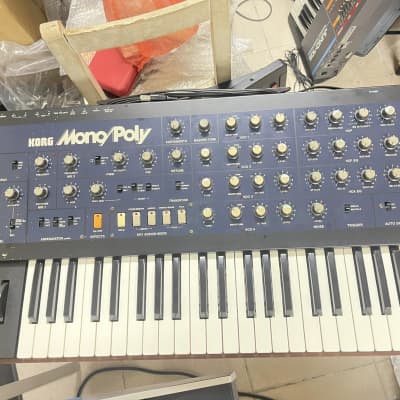

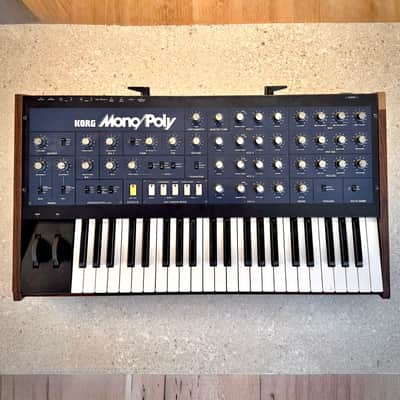

Korg Mono/Poly Analog Synthesizer With MidiKorg Mono/Poly Analog Synthesizer With Midi ($3,280.79)

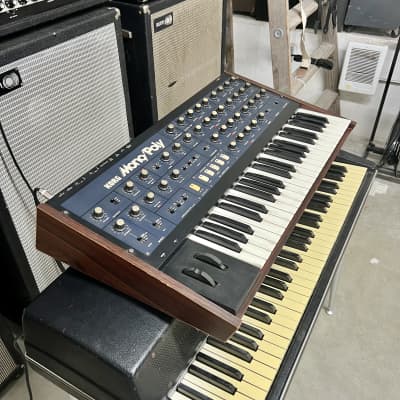

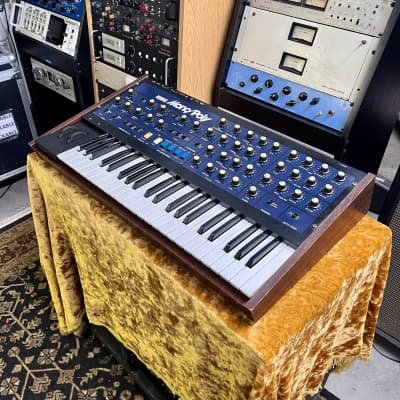

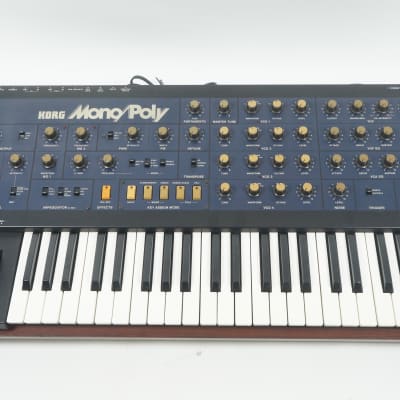

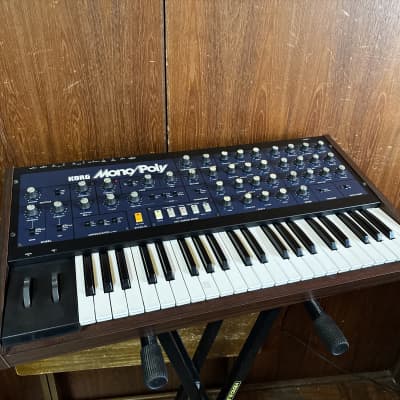

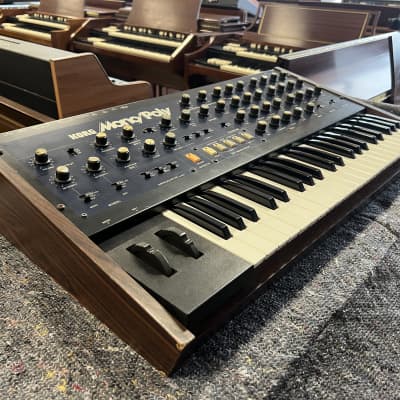

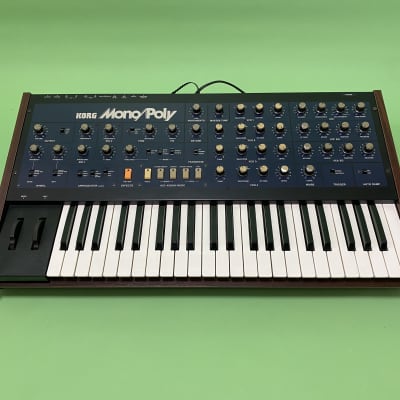

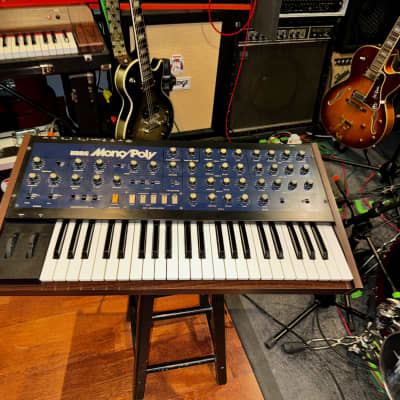

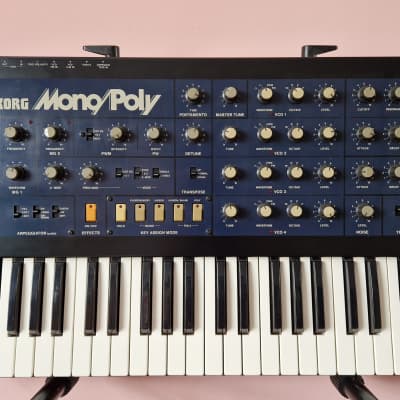

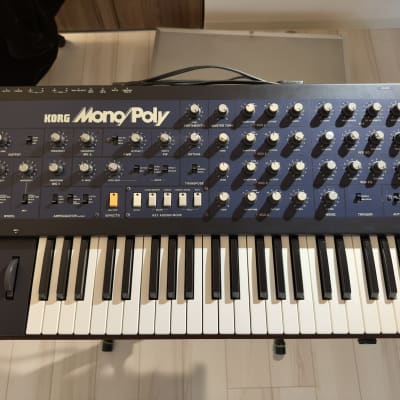

Korg Mono/Poly Analog SynthesizerKorg Mono/Poly Analog Synthesizer ($2,295)

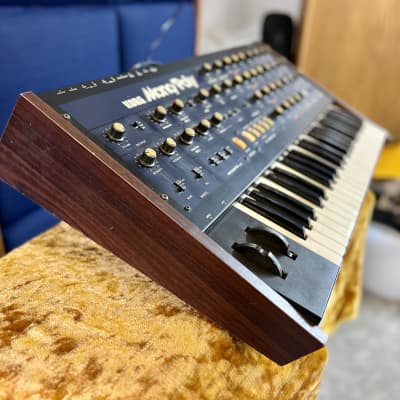

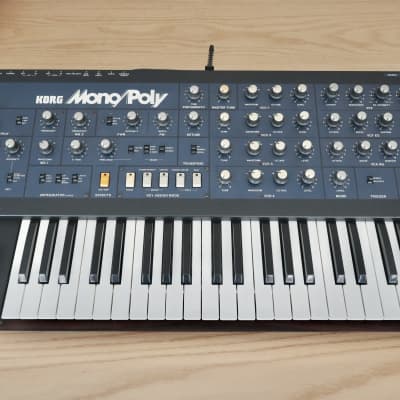

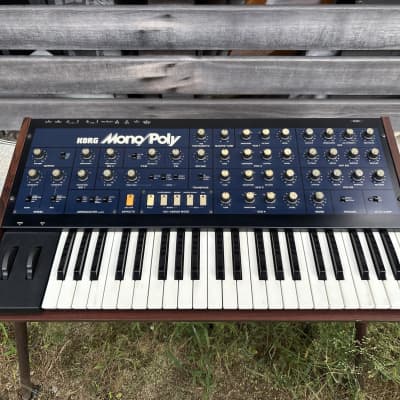

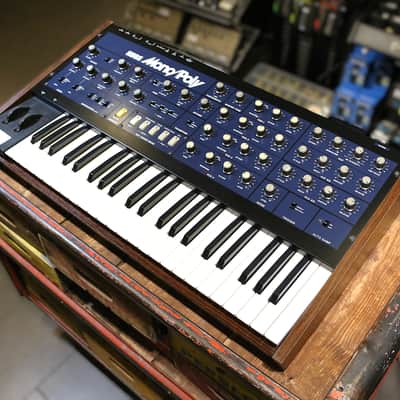

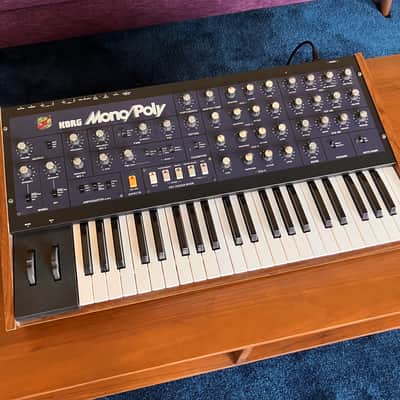

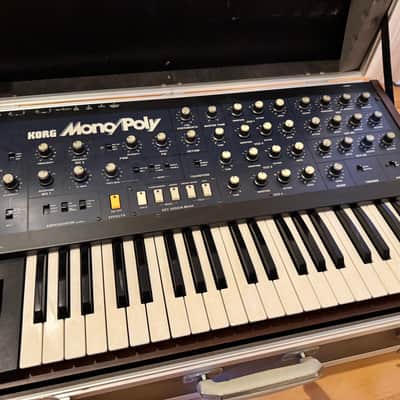

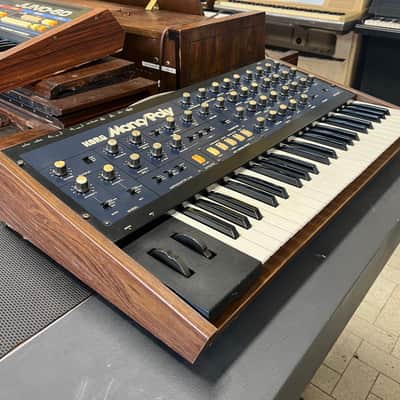

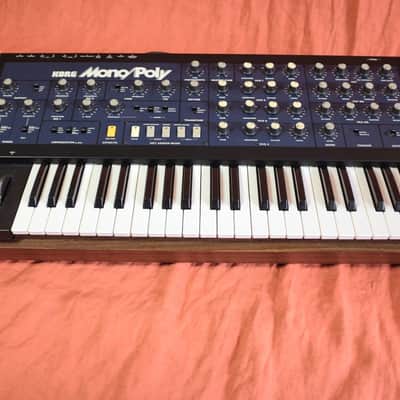

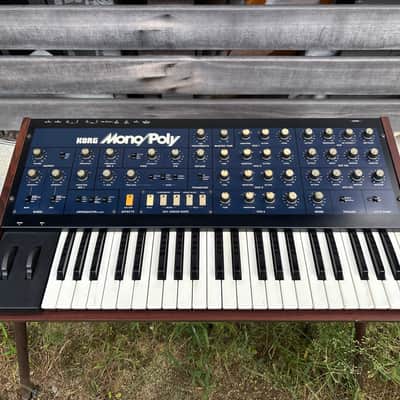

Korg Mono/Poly 1980sKorg Mono/Poly 1980s ($2,987.65)

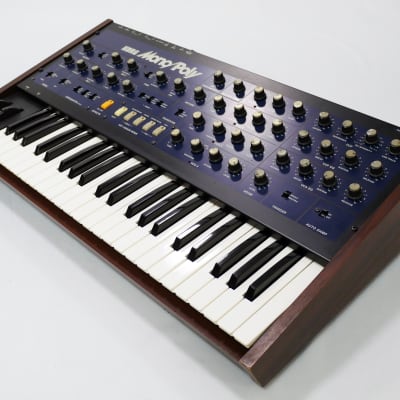

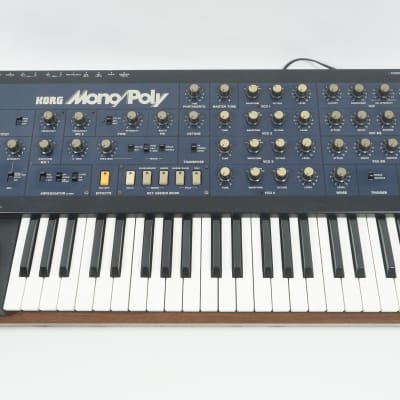

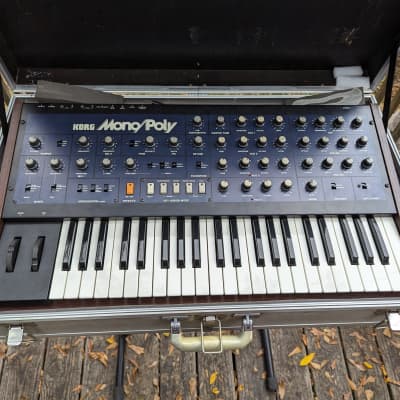

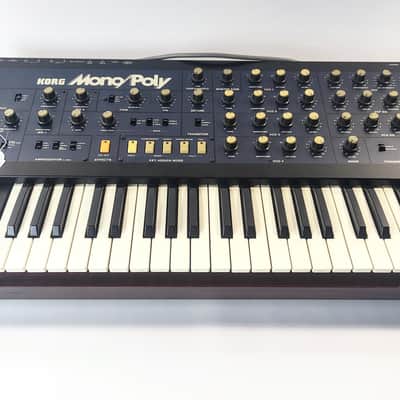

Korg Mono/Poly (Serviced / Warranty / Flightcase)Korg Mono/Poly (Serviced / Warranty / Flightcase) ($2,890.59)

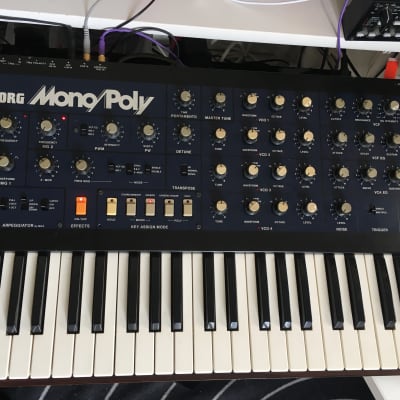

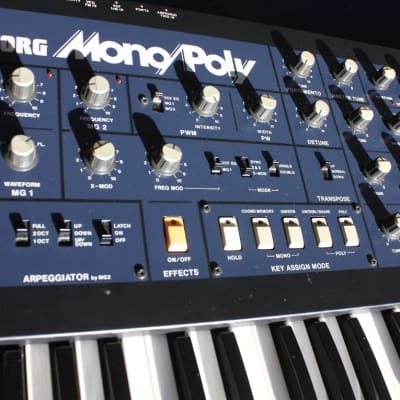

Korg Mono/poly Monopoly Vintage Analogue Polyphonic Synthesiser - 240VKorg Mono/poly Monopoly Vintage Analogue Polyphonic Synthesiser - 240V ($1,959.03)

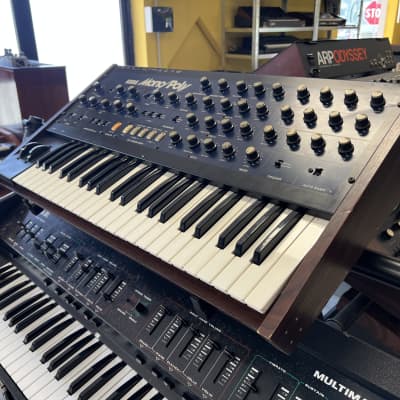

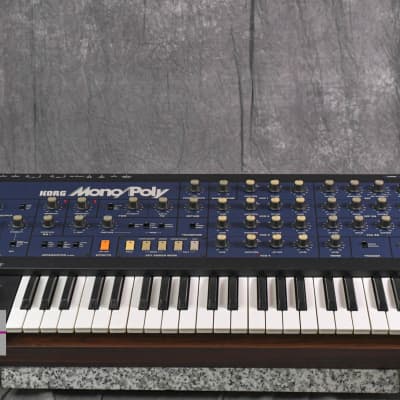

Korg MP-4 Mono/Poly *Soundgas Serviced & Guaranteed*Korg MP-4 Mono/Poly *Soundgas Serviced & Guaranteed* ($2,329.36)

Korg MP-4 Mono/Poly *Soundgas Serviced & Guaranteed*Korg MP-4 Mono/Poly *Soundgas Serviced & Guaranteed* ($2,217.81)

Replacement Keys for Korg  Poly-800 Poly-61 Polysix Mono/Poly  Kawai SX-210/240 Oberheim OB-8 Moog MemoryMoogReplacement Keys for Korg Poly-800 Poly-61 Polysix Mono/Poly Kawai SX-210/240 Oberheim OB-8 Moog MemoryMoog ($10)

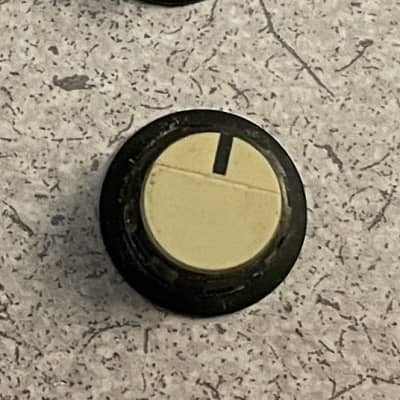

Korg PolySix, Poly-61, Mono/Poly Knobs Beige [Three Wave Music]Korg PolySix, Poly-61, Mono/Poly Knobs Beige [Three Wave Music] ($10)

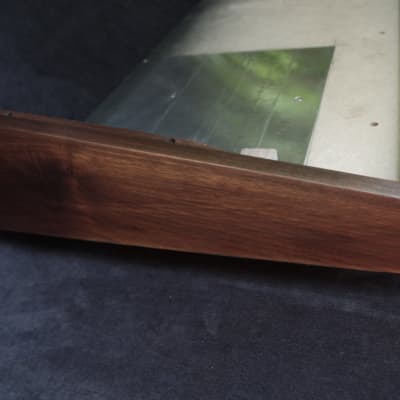

Korg Mono/Poly Custom Synthesizer Replacement Solid Walnut Chassis / Body / CaseKorg Mono/Poly Custom Synthesizer Replacement Solid Walnut Chassis / Body / Case ($239)

Korg Mono/Poly Analog Synthesizer Vintage Knobs - 36 Piece Lot CLEAN- 1-4 Day FREE Shipping WWKorg Mono/Poly Analog Synthesizer Vintage Knobs - 36 Piece Lot CLEAN- 1-4 Day FREE Shipping WW ($215)

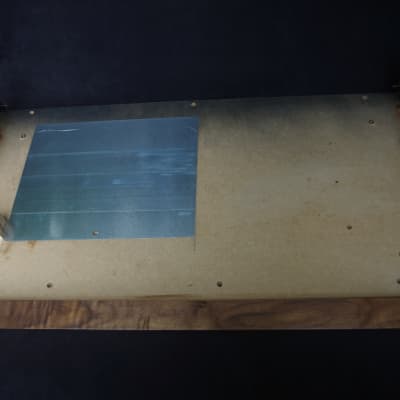

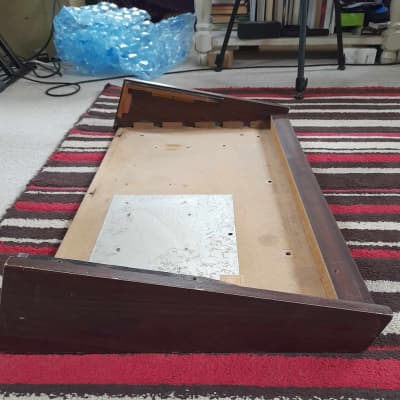

Korg Mono/Poly Original Chassis / Body / CaseKorg Mono/Poly Original Chassis / Body / Case ($200)

Korg Poly Six,Poly 61 & Mono/Poly knob beige 4 pack [Three Wave Music]Korg Poly Six,Poly 61 & Mono/Poly knob beige 4 pack [Three Wave Music] ($40)

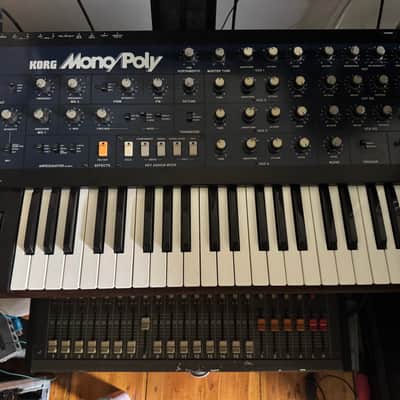

Tubbutec MODYPOLY MIDI & System Upgrade Kit (Korg Poly 6 /MonoPoly)Tubbutec MODYPOLY MIDI & System Upgrade Kit (Korg Poly 6 /MonoPoly) ($242.78)
