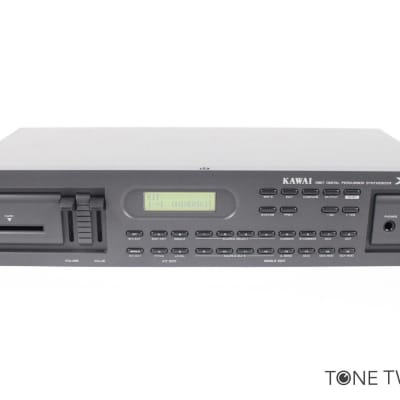

The Kawai XD-5 is a digital percussion synthesizer based on the same engine as the Kawai K4r synthesizer, but with ROM samples more suited toward percussion work. It uses 16-bit 44.1 KHz digital samples and has 256 waveforms to choose from when building drum sounds.

Version 1.0 had a SysEx bug that would mute the oscillators. This can be cleared by performing a factory reset: With the unit off, hold [SYSTEM] and [PREV], and turn on the POWER. This bug is fixed in versions 1.1 and 1.2 of the ROM.

Specifications

Year Released: 1989

Polyphony: 16 notes

User Patches: 64

User Drum Kits: 16

ROM: 256 waveforms at 16-bit resolution

Screen: 16 x 2 character backlit LCD

Dimensions: 483 mm x 218 mm x 88 mm

Weight: 2.8 kg

This is a 2-space rack unit.

User Demo Videos

Rating

File Downloads

Kawai XD-5 Patch List

Kawai XD-5 Manual

Kawai XD-5 Wave List

Items for Sale on Reverb

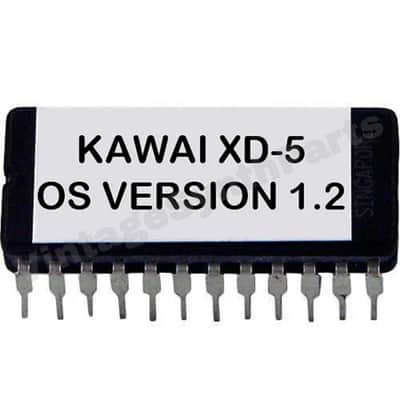

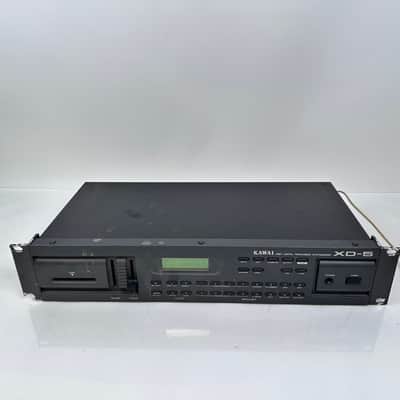

Kawai Xd-5 Version 1.2 firmware latest OS EPROM Xd5 Synth Drum Xd5 ($21.80)

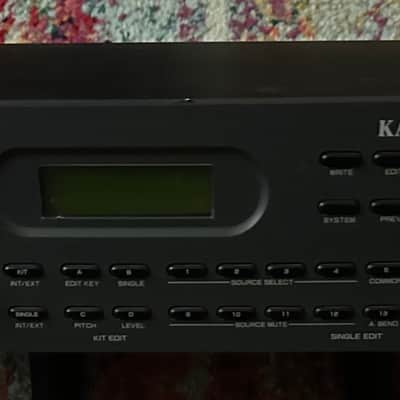

Kawai XD-5 16bit Rackmount Digital Percussion Synthesizer Needs Battery #54875 ($299)

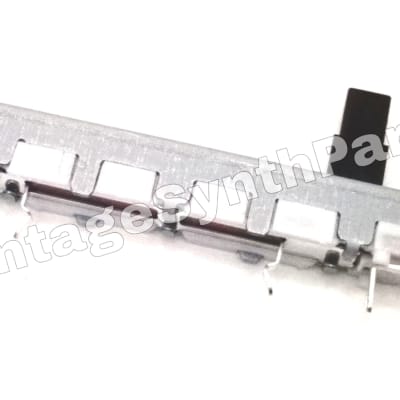

Kawai - XD-5 - Slide potentiometer for value ($14.90)

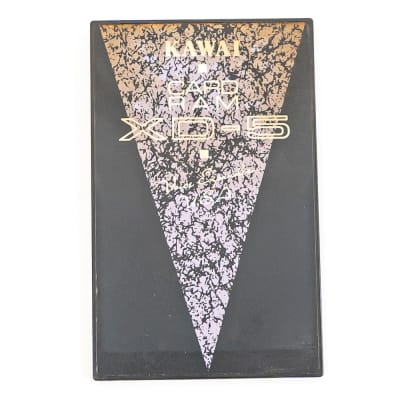

KAWAI XD-5 Voice Expander RAM Card with Original Anti-Static Sleeve ($199.99)

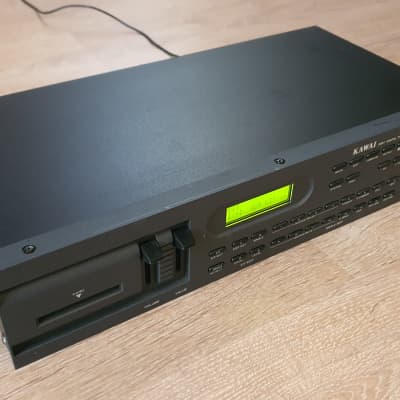

Kawai XD-5 ($450)

Kawai XD-5 *Serviced* ($299)

Kawai XD-5 Electronic Drum Synthesizer Rack Module VINTAGE SYNTH DEALER ($499.99)

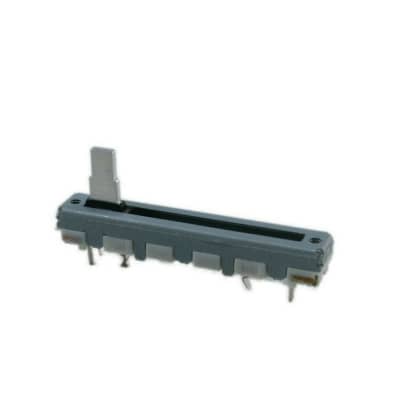

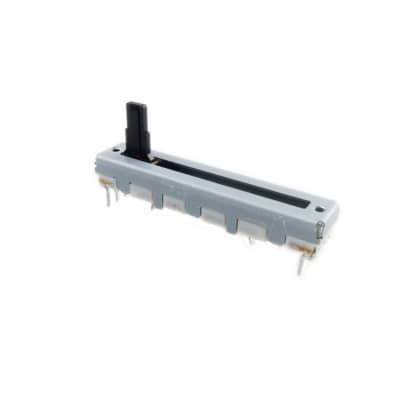

Volume Slide Potentiometer for Kawai XD-5 XD5 percussion synthesizer slider ($7.59)

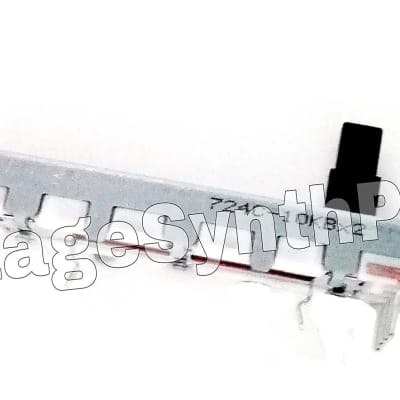

Value Slide Potentiometer for Kawai XD-5 XD5 percussion synthesizer slider ($7.59)

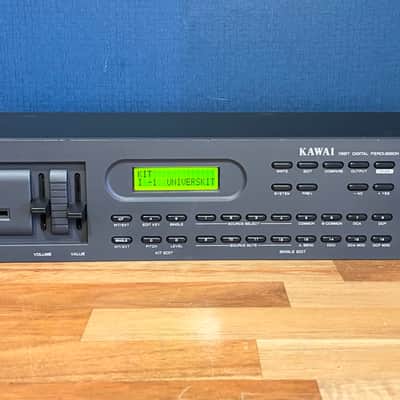

Kawai XD-5 Digital Percussion Synthesizer! ($330)

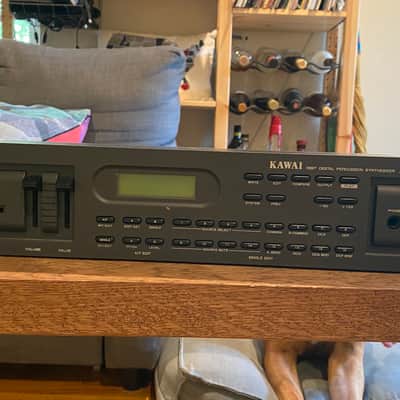

Kawai XD-5 ($260)

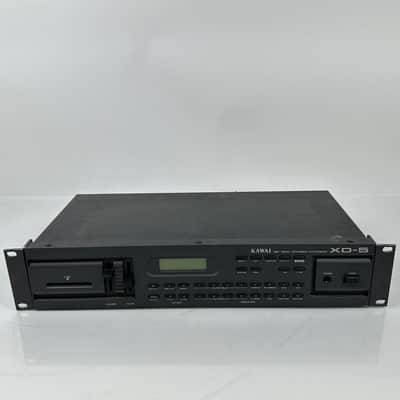

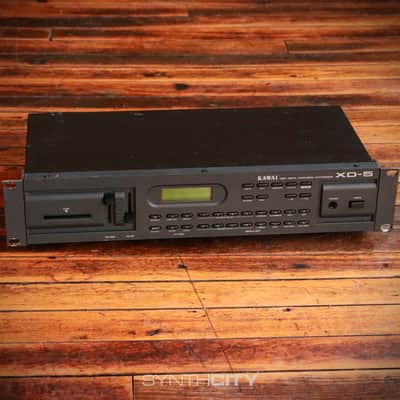

Kawai XD-5 Digital Percussion Synthesizer Sound Module ($429)

Kawai XD-5 Digital Percussion Synthesizer - New Internal Battery ($260)

Kawai XD-5 Rackmount Drum Synthesizer ($350)

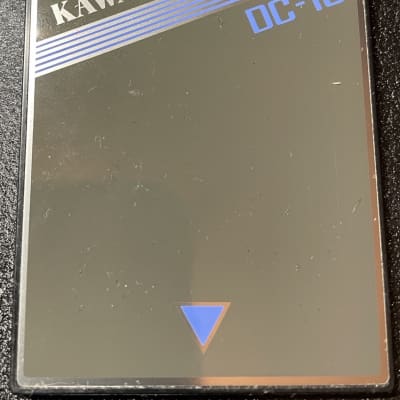

Kawai DC-16 XD-5 Sound Card D5-03 Electronic Sounds with List + Sleeve ($199.99)

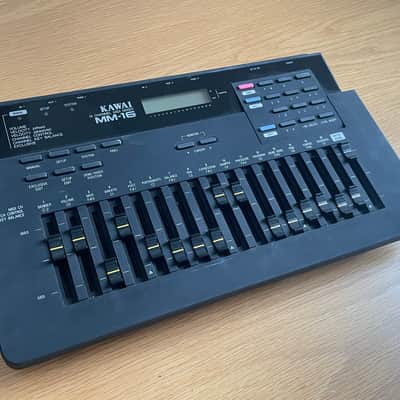

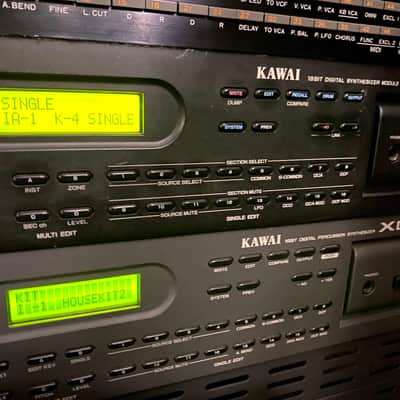

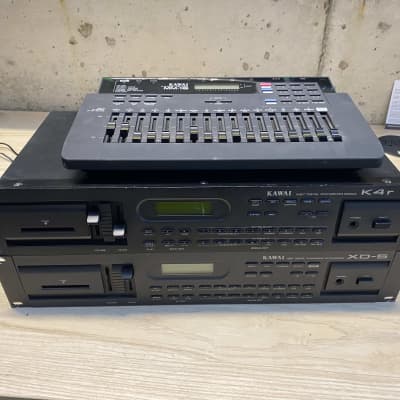

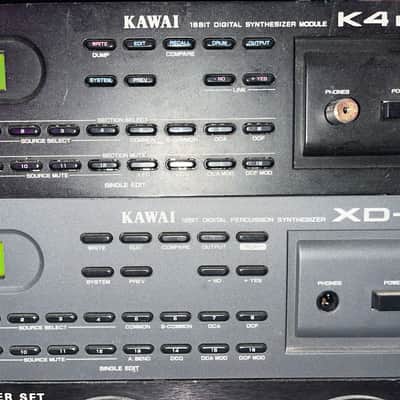

Kawai K4R + XD-5 + MM-16 ($2,300)

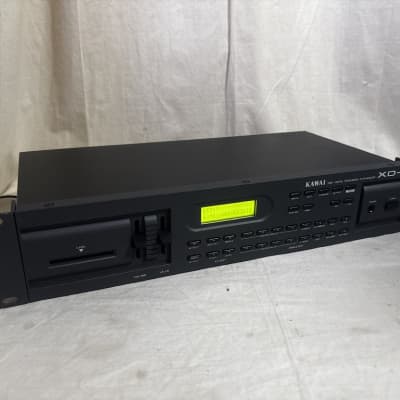

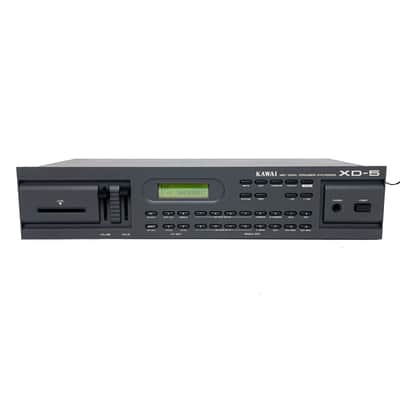

Kawai XD-5 w/ Universal Power supply & New internal battery Rare Drum Synthesizer module rack mount ($285)

Kawai EC-32 (Similar to DC-32 RAM) For K5m, K5, XD-5, K4, GB2/4 ($80)

Kawai - KC20 , XD-5 - Slide potentiometer for volume ($16.90)

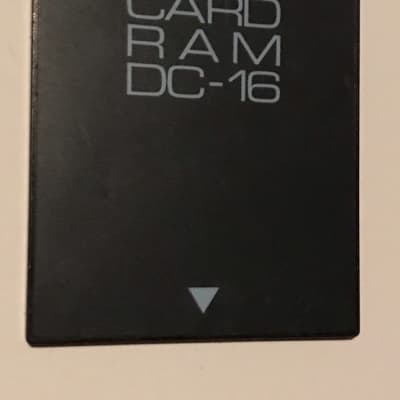

Rare Kawai DC-16 RAM Card For K4 Synthesizer K4R XD-5 Rack Modules ($100)

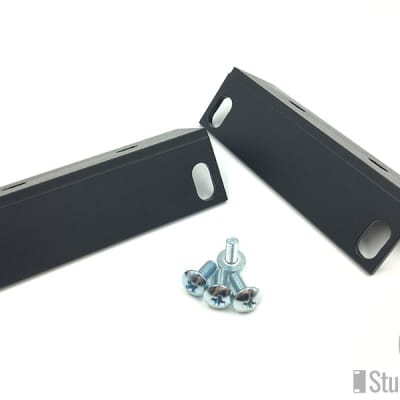

Kawai XD5 Rack Ears! NEW! ($48.99)
