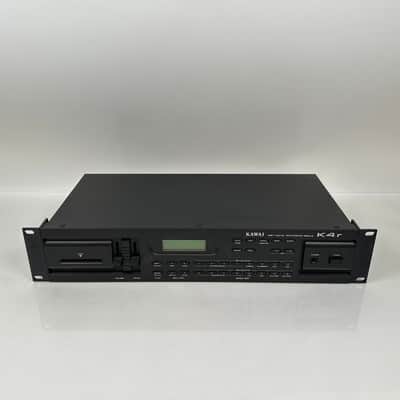

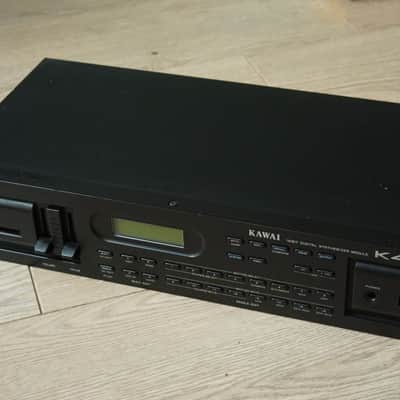

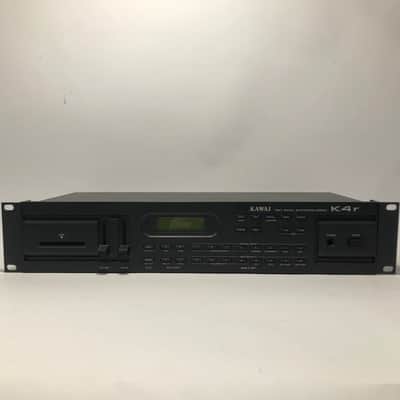

The K4r is a rackmount version of the Kawai K4. It lacks the digital effects of the keyboard version. It looks nearly identical to the Kawai XD-5 drum module that shares the same synth engine, but has a completely different sound set.

The K4r has 8 individual 1/4" outputs.

Specifications

Year Released: 1989

Polyphony: 16 notes

Multitimbral: 8 parts

User Patches: 64

User Performances: 64

ROM: 256 16-bit PCM waveforms

Screen: 16x2 character display

Power Consumption: 6.8 watts

Dimensions: 483 mm x 218.5 mm x 88 mm

Weight: 2.8 kg

This is a 2-space rack unit.

This keyboard is MIDI-enabled.

MIDI Connections: Standard 5-Pin MIDI in, out, and thru connections.

User Demo Videos

Rating

File Downloads

Kawai K4 Manual

Kawai K4 Wave List

Items for Sale on Reverb

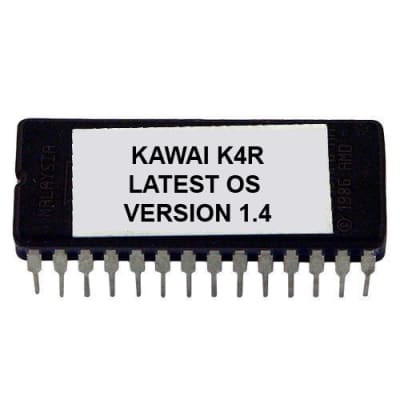

Kawai k4r versione 1.4 firmware Latest OS Update Upgrade EPROM Rom ($14.31)

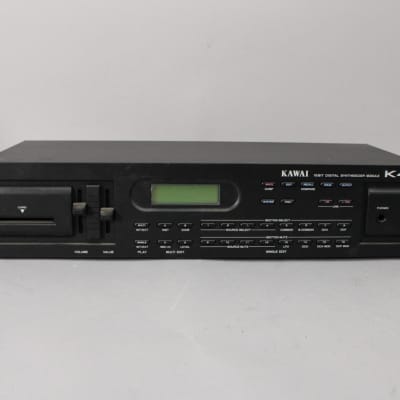

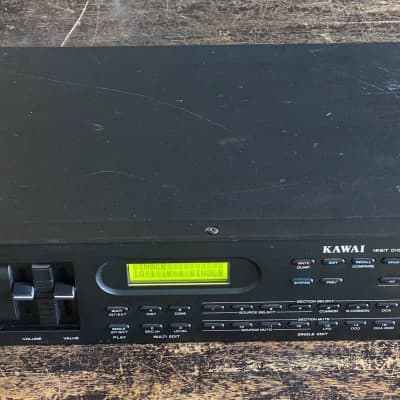

Kawai K4R Rackmount Digital Synthesizer Module JAPAN ($360)

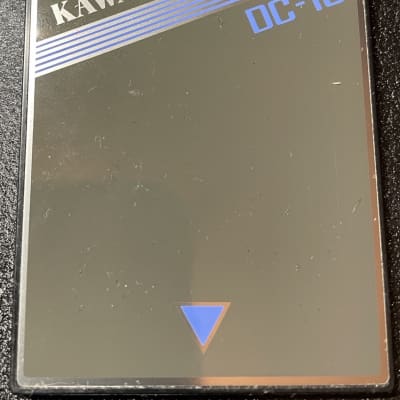

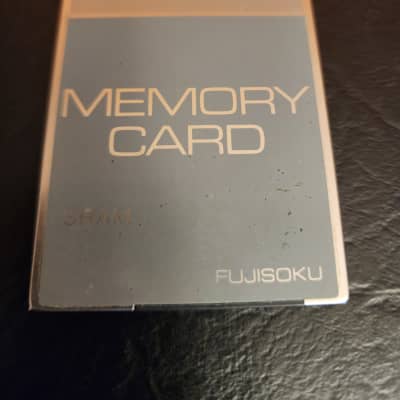

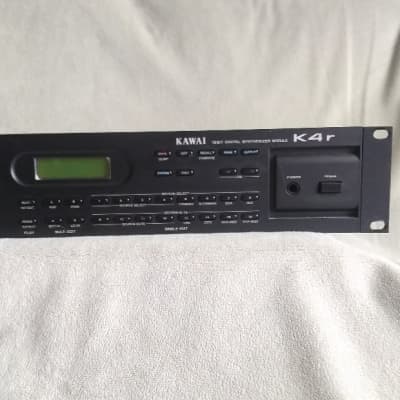

Kawai K4r Digital Synth Rack/Sound Module With Data Card ($317.77)

Kawai K4R K-4R Pushbuttons Tact Switches Full Set Of 31 Panel Switch ($15.31)

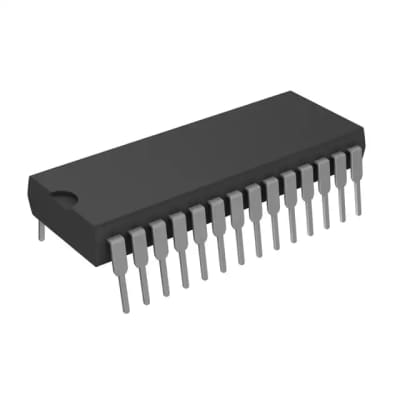

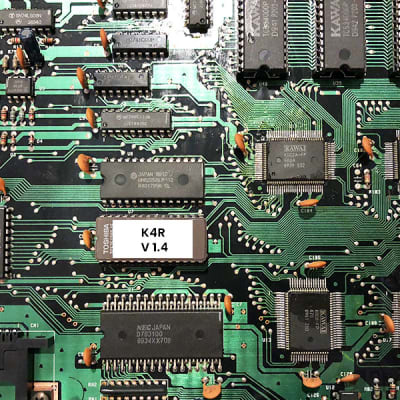

Kawai K4R V1.4 OS EPROM! NEW! ($18.99)

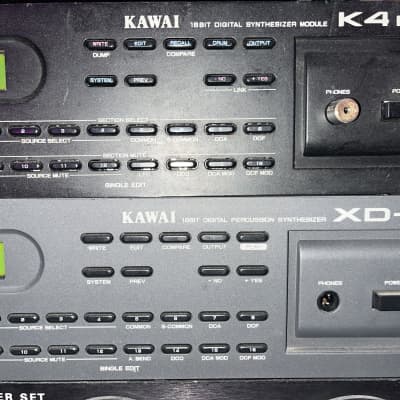

Kawai K4R + XD-5 + MM-16 ($2,300)

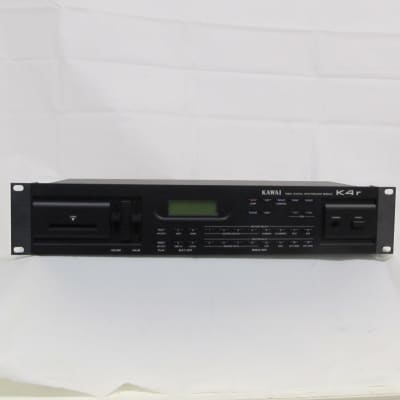

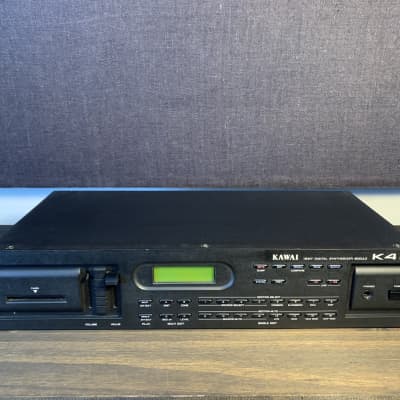

Kawai K4R rackmount synth ($397.43)

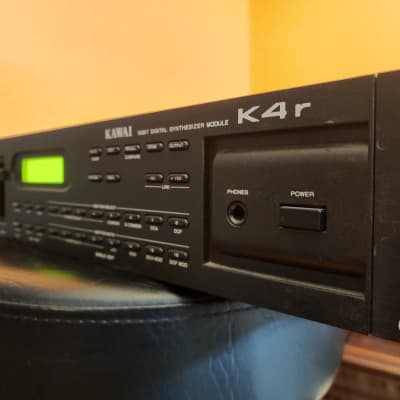

Kawai K4R ($350)

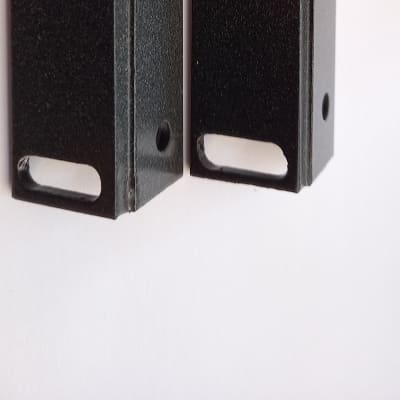

Kawai K4R Rack Ears! NEW! ($48.99)

Kawai K4R Synthesizer Rack // Rare find! ($525.07)

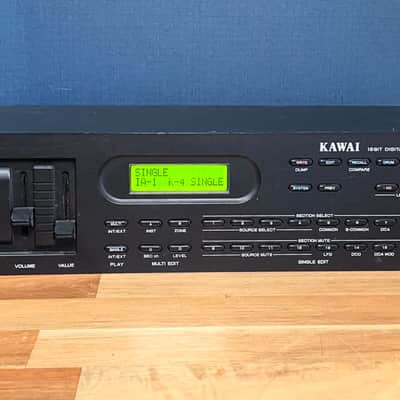

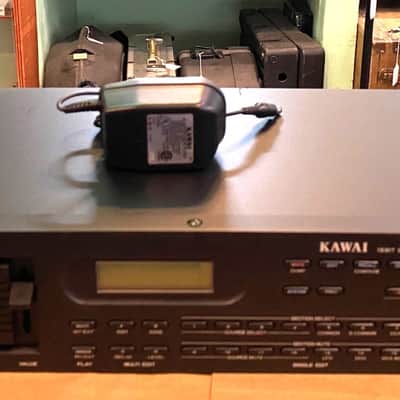

Kawai K4R w/Rack Ear, Power supply & New internal battery Rare16-bit digital synthesizer module rack mount ($280)

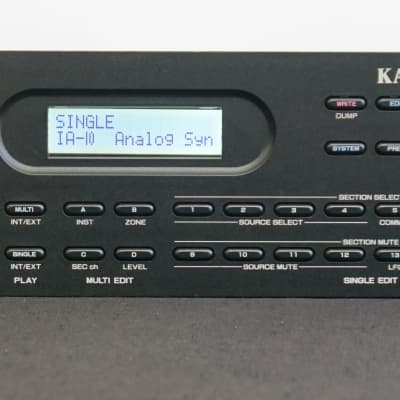

Kawai K4r Synthesizer Module ($386.89)

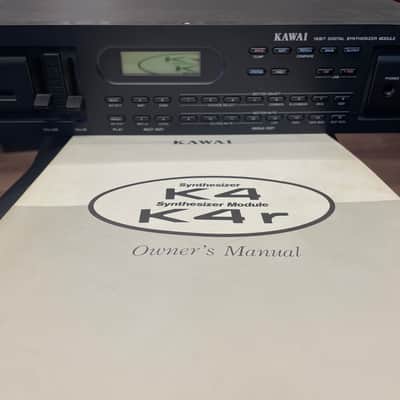

Kawai K4 K4r Owners Manual instruction user guide book VINTAGE SYNTH DEALER ($39.99)

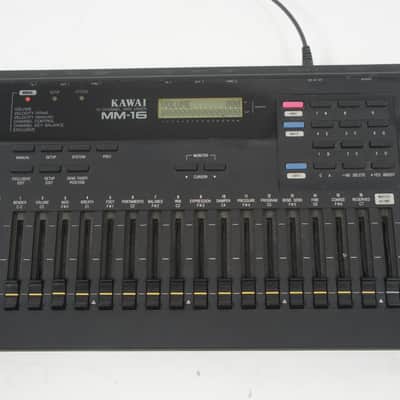

[SALE Ends Nov 19] KAWAI MM-16 16ch SysEx MIDI Mixer Controller for K1 K4 K4r XD-5 RARE w/ 100-240V ($279.99)

12V AC/DC Adapter Compatible with Kawai FS610 FS620 K4 ES-3 KC10 KC20 MDK61 MM16 MX4S PH50 PHM R50 ES1 PN60 PN80 PN81 PN90 FS630 FS640 FS650 FS660 Keyboard Piano PS-101 PS-102 PS-121 PS-123 U ($45.99)

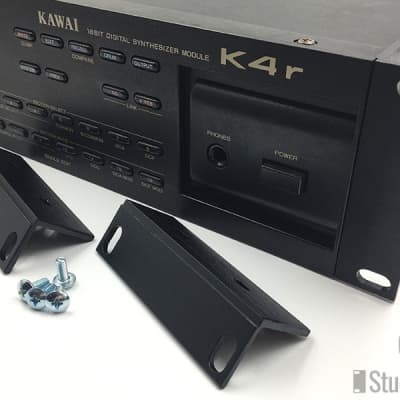

Rack ears to fit Kawai K4r rack ($33.16)
