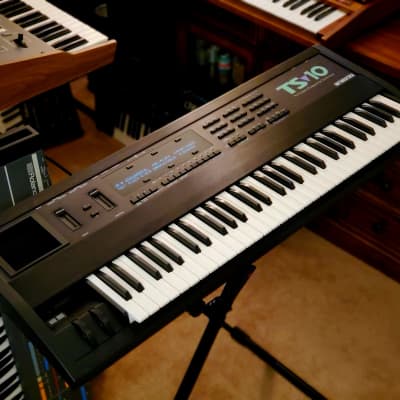

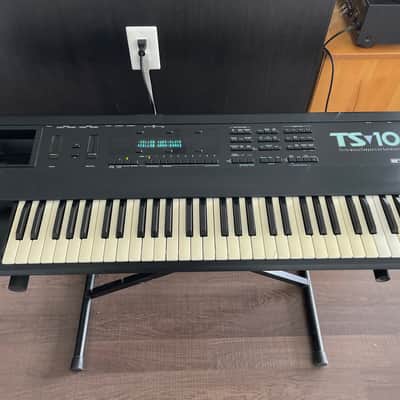

The TS-10 is a synthesizer with sampling capabilities that also includes a selection of transwaves.

It ships with 2 MB of Sample RAM, expandable to 8MB via industry-standard SIMMs. It is compatible with samples from Ensoniq's EPS and ASR series of samplers. An optional SCSI kit can be installed to enable reading from CD-ROMs.

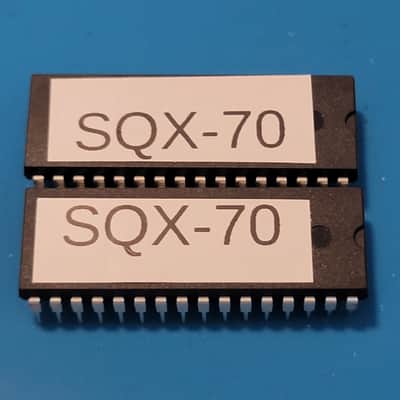

Its built-in sequencer can record up to 24 tracks and can be expanded to 97,000 note memory with the optional SQX-70.

Transwaves found in the TS-10:

• BELL-XWV1
• BELL-XWV2
• RESONANCE
• XWAVE-EE
• XWAVE-AY
• XWAVE-AA
• XWAVE-OH
• XWAVE-Z

The TS-10 is available in a 76-key version as the Ensoniq TS-12.

Notable Users: Beyond The Shattered Mirror

Specifications

Year Released: 1993

MSRP: 2595.00 USD

Keyboard: 61 keys with velocity and aftertouch

Polyphony: 32 notes

Multitimbral: 12 parts

Preset Patches: 317

User Patches: 120

Preset Performances: 180

User Performances: 120

ROM: 6MB (254 waveforms at 16-bit resolution)

Sequencer Memory: 30,000 notes

Sequencer Resolution: 96 PPQN

Effects: 24-bit effects processor with 73 algorithms

Dimensions: 1025 mm x 102 mm x 368 mm

Weight: 16.8 kg

Latest OS Version: 3.05

User Demo Videos

Rating

File Downloads

Ensoniq TS-10 Manual

Items for Sale on Reverb

Ensoniq TS-10 / TS-12, EVS-4 “TS Sequencer Turned On” Video Series VHS 1993 Rare Collector Item ($50)

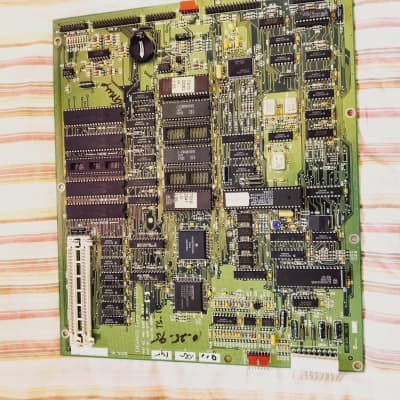

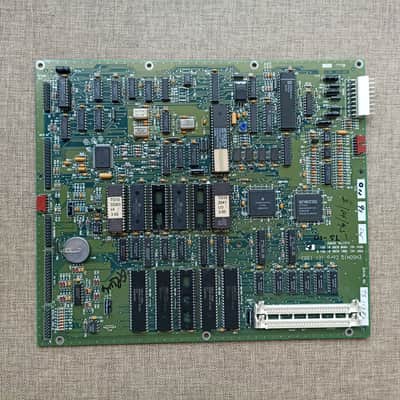

Ensoniq TS-10 Mainboard Spare Part Motherboard TS10 ($349)

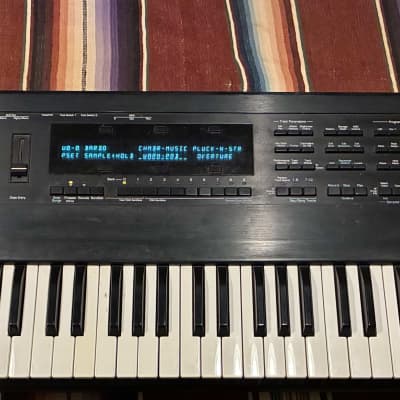

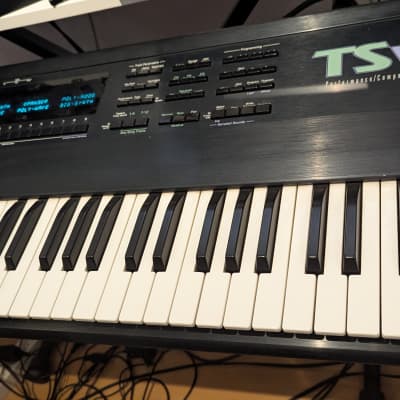

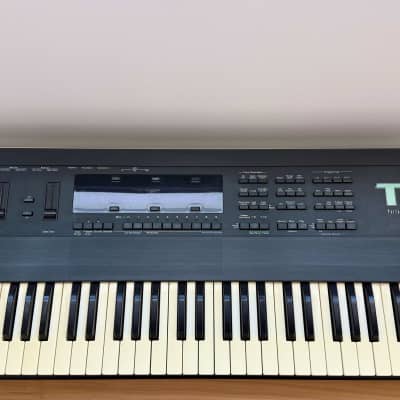

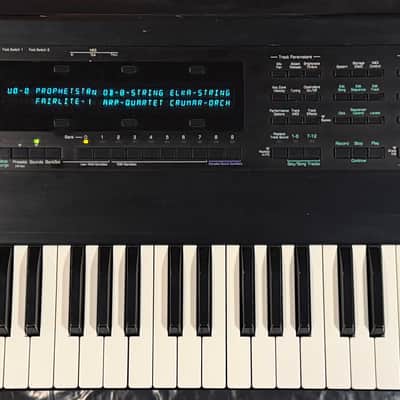

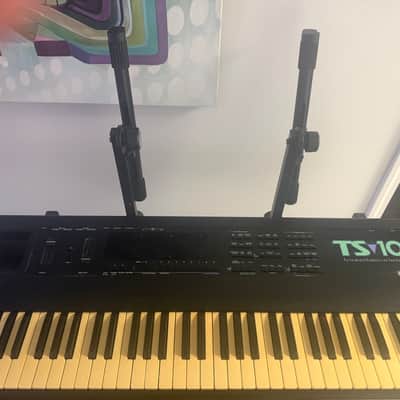

Ensoniq TS-10 Performance / Composition Synthesizer 1993 - Black ($1,150)

Ensoniq TS-10 Performance / Composition Synthesizer 1993 - Black ($850)

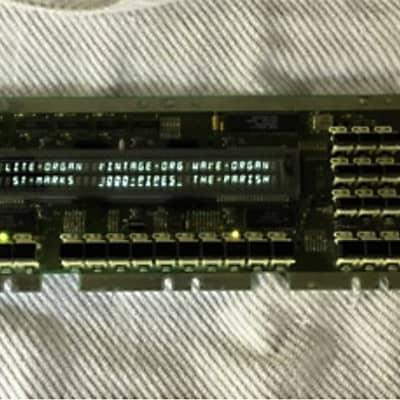

Ensoniq TS-10 / TS-12 Visual Display Board w/Buttons & Sliders ($225)

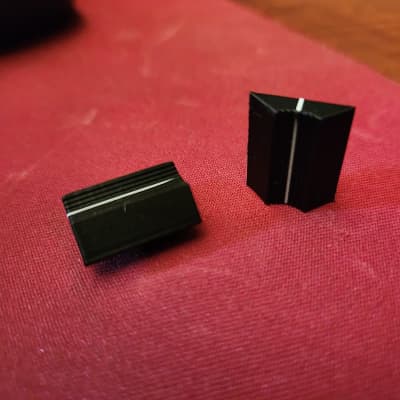

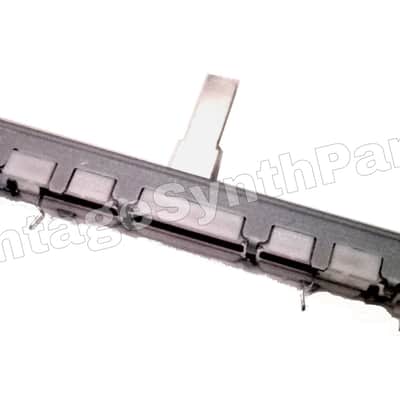

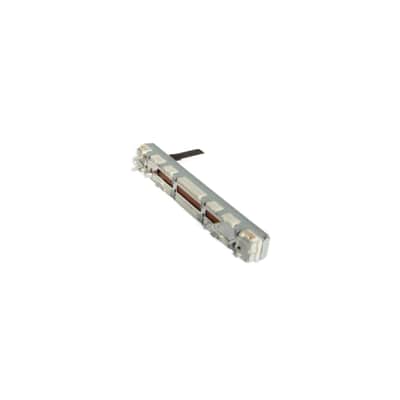

Ensoniq EPS-16 Plus , KS-32 , ASR-10 , KT-76 , KT-88 , MR-61 , TS-10 , TS-12, E-Prime Slide Potentiometer Slider ($11.87)

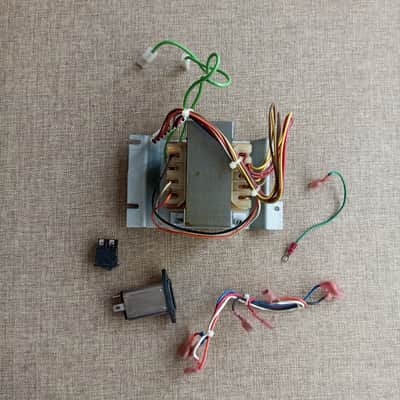

Ensoniq TS-10 Transformer Panel for 220 Volt ($69)

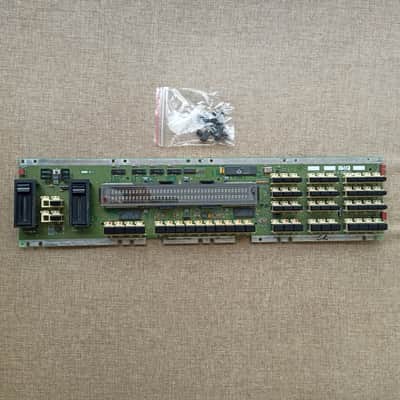

Ensoniq TS-10 Display Board With Slide Pots & Button Guides ($239)

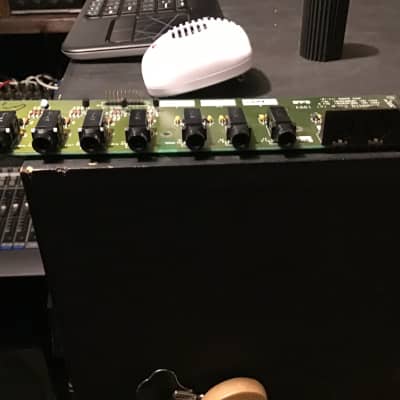

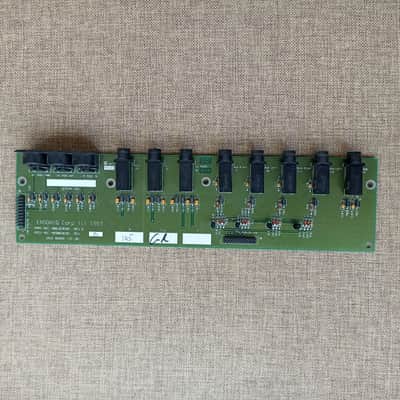

Ensoniq TS-10 Jack Board ($69)

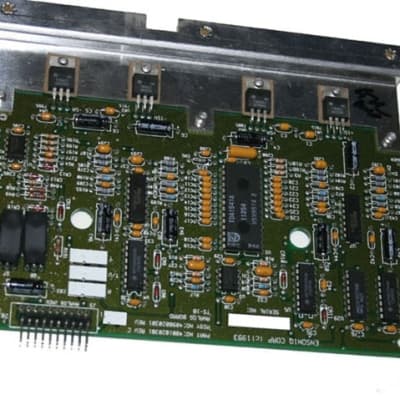

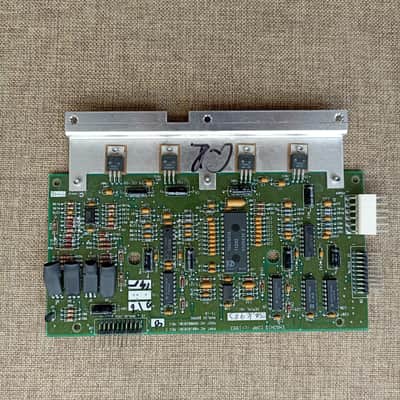

Ensoniq TS-10 Analog Board ($119)

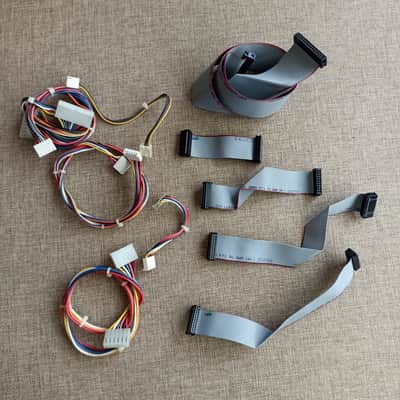

Ensoniq TS-10 Internal Cables ($29)

Ensoniq Ts-10 pitch bender, modulation ($53.68)

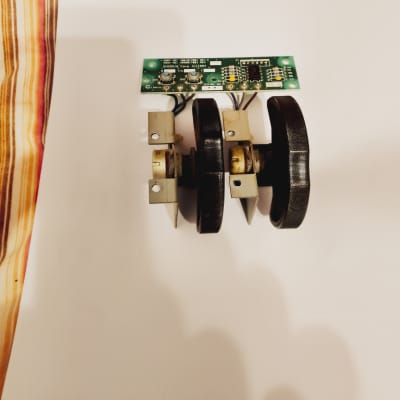

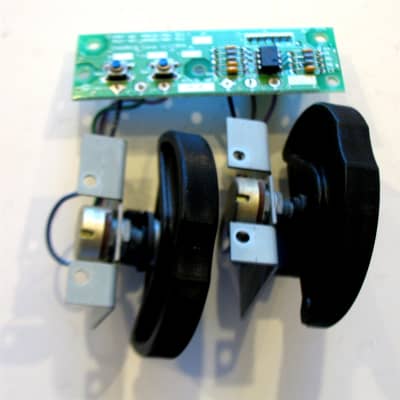

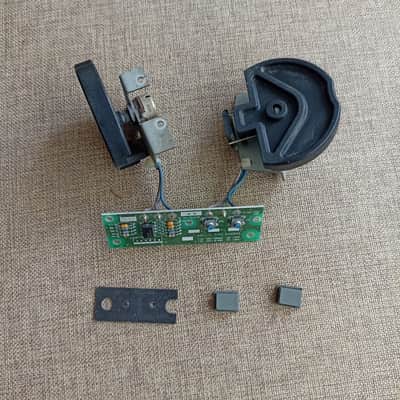

Ensoniq TS-10 Pitch Bend / Mod Wheel / Patch Select Assembly ($39)

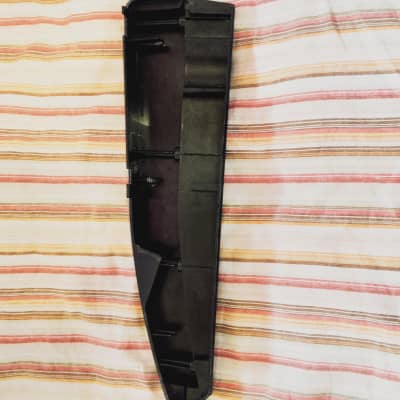

Ensoniq Ts-10 Left end cap ($71.57)

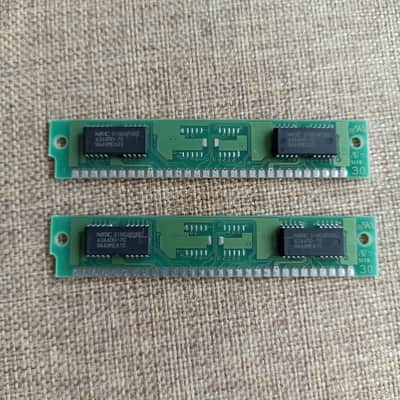

Ensoniq TS-10 Ram Memory Module 2 Meg NEC MC-421000ABBA-80 ($59)

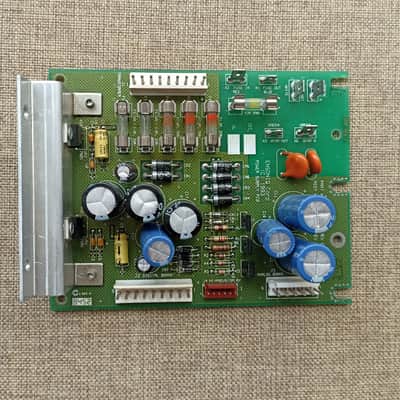

Ensoniq TS-10 Power Supply Board ($129)

Ensoniq ts10 output modulei ($90)

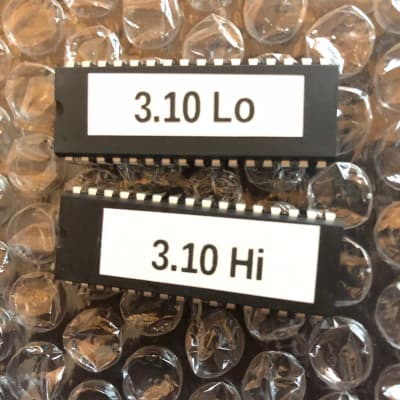

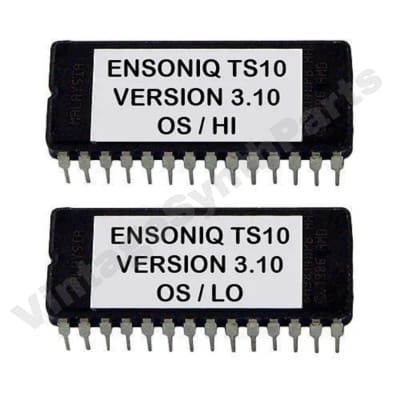

Ensoniq TS-10 Version 3.10 Eprom Rom Firmware Upgrade Update OS for TS10 ($29.76)

Ensoniq TS-10 TS-12 OS 3.10 upgrade kit - ROM firmware eprom set TS10 TS12 ($42)

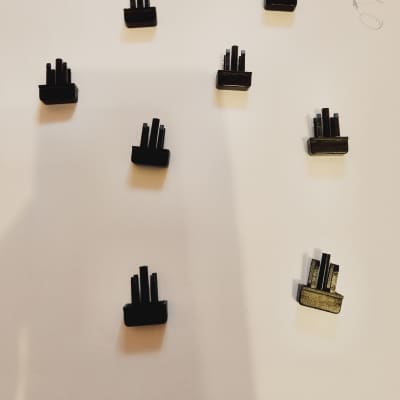

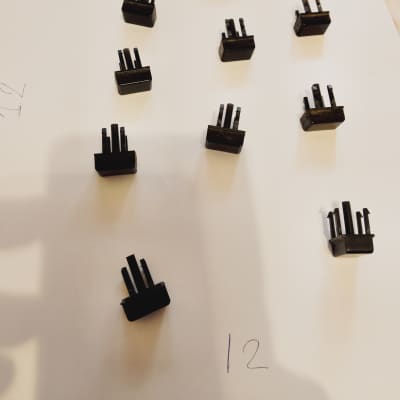

Ensoniq Ts 10 push buttons (big ones) ($59.64)

Ensoniq Ts 10 push buttons ($59.64)

Ensoniq Ts 10 small push buttons ($59.64)

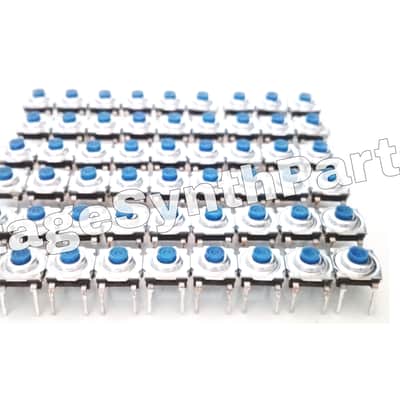

Full set of 60 pushbuttons front panel tact switches for ENSONIQ TS 12 / TS 10 ($45.86)

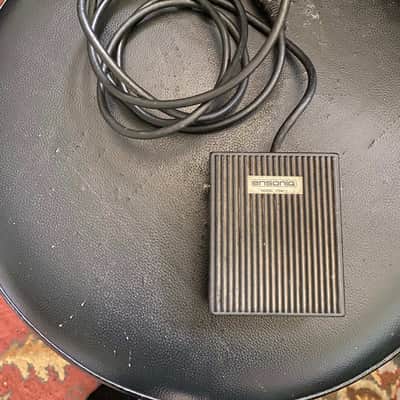

Ensoniq FSW-1 foot switch ESQ-1 SQ-80 TS-10 SD-1 ASR ($65)

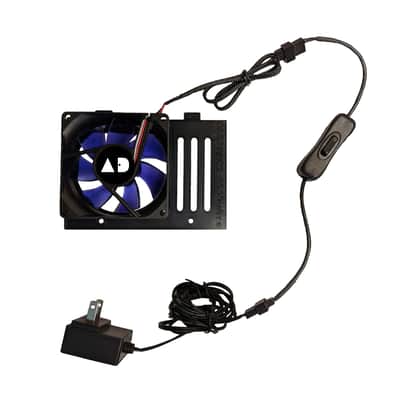

Abstract Doorway - "Cool Memory 001" Cooling Fan - (For Ensoniq Keyboards ASR-10, AS-88, TS-10, TS-12) ($100)

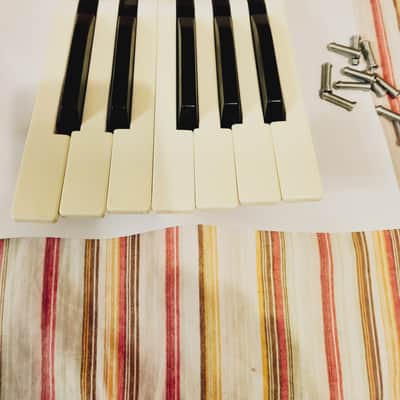

Ensoniq Asr 10, Vfx, Sd1, Ts10 Full Octave Keys ($81.11)

ORIGINAL Fatar TP/10 Replacement E Key for Kurzweil K2500X, PC2X, PC88; Ensoniq E-Prime, MR-76, KS32, KT76/KT88, TS12, ZR-76; Doepfer LMK2+/LMK3+/LMK4+ ($11.95)

ORIGINAL Fatar TP/10 Replacement G Key for Kurzweil K2500X, PC2X, PC88; Ensoniq E-Prime, MR-76, KS32, KT76/KT88, TS12, ZR-76; Doepfer LMK2+/LMK3+/LMK4+ ($11.95)

ORIGINAL Fatar TP/10 Replacement G Key for Kurzweil K2500X, PC2X, PC88; Ensoniq E-Prime, MR-76, KS32, KT76/KT88, TS12, ZR-76; Doepfer LMK2+/LMK3+/LMK4+ ($11.95)

ORIGINAL Fatar TP/10 Replacement A Key for Kurzweil K2500X, PC2X, PC88; Ensoniq E-Prime, MR-76, KS32, KT76/KT88, TS12, ZR-76; Doepfer LMK2+/LMK3+/LMK4+ ($11.95)

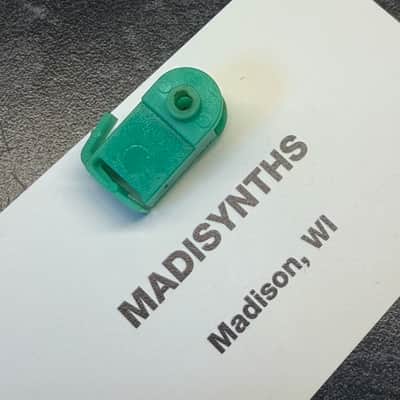

ORIGINAL Fatar TP/10 Key Pivot for Alesis QS8/8.1, Kurzweil K2500X/K2600X, PC2X, PC88; Ensoniq E-Prime, MR-76, KS32, KT76/KT88, TS12, ZR-76; Doepfer LMK2+/LMK3+/LMK4+; and more ($1.95)

ORIGINAL Fatar TP/10 Replacement SHARP/BLACK Key for Kurzweil K2500X, PC2X, PC88; Ensoniq E-Prime, MR-76, KS32, KT76/KT88, TS12, ZR-76; Doepfer LMK2+/LMK3+/LMK4+ ($9.95)

ORIGINAL Fatar TP/10 Replacement SHARP/BLACK Key for Kurzweil K2500X, PC2X, PC88; Ensoniq E-Prime, MR-76, KS32, KT76/KT88, TS12, ZR-76; Doepfer LMK2+/LMK3+/LMK4+ ($9.95)

ORIGINAL Fatar TP/10 Replacement B Key for Kurzweil K2500X, PC2X, PC88; Ensoniq E-Prime, MR-76, KS32, KT76/KT88, TS12, ZR-76; Doepfer LMK2+/LMK3+/LMK4+ ($11.95)

ORIGINAL Fatar TP/10 Key Spring (SHARP/BLACK) for Kurzweil K2500X, PC2X, PC88; Ensoniq E-Prime, MR-76, KS32, KT76/KT88, TS12, ZR-76; Doepfer LMK2+/LMK3+/LMK4+ ($1.95)

ORIGINAL Fatar TP/10 Replacement G Key for Kurzweil K2500X, PC2X, PC88; Ensoniq E-Prime, MR-76, KS32, KT76/KT88, TS12, ZR-76; Doepfer LMK2+/LMK3+/LMK4+ ($11.95)

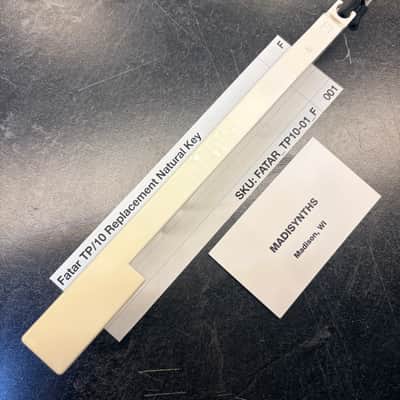

ORIGINAL Fatar TP/10 Replacement F Key for Kurzweil K2500X, PC2X, PC88; Ensoniq E-Prime, MR-76, KS32, KT76/KT88, TS12, ZR-76; Doepfer LMK2+/LMK3+/LMK4+ ($11.95)

ORIGINAL Fatar TP/10 Replacement A Key for Kurzweil K2500X, PC2X, PC88; Ensoniq E-Prime, MR-76, KS32, KT76/KT88, TS12, ZR-76; Doepfer LMK2+/LMK3+/LMK4+ ($11.95)

ORIGINAL Fatar TP/10 Replacement G Key for Kurzweil K2500X, PC2X, PC88; Ensoniq E-Prime, MR-76, KS32, KT76/KT88, TS12, ZR-76; Doepfer LMK2+/LMK3+/LMK4+ ($11.95)

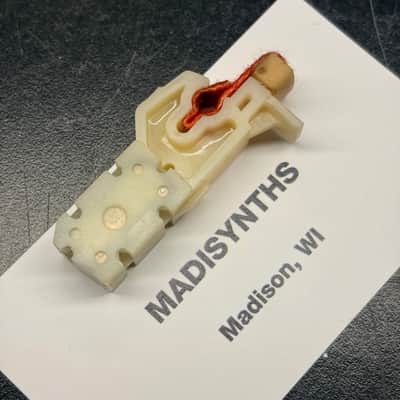

ORIGINAL Fatar TP/10 Key Weight (SHARP/BLACK) for Kurzweil K2500X, PC2X, PC88; Ensoniq E-Prime, MR-76, KS32, KT76/KT88, TS12, ZR-76; Doepfer LMK2+/LMK3+/LMK4+ ($3.95)

ORIGINAL Fatar TP/10 Replacement D Key for Kurzweil K2500X, PC2X, PC88; Ensoniq E-Prime, MR-76, KS32, KT76/KT88, TS12, ZR-76; Doepfer LMK2+/LMK3+/LMK4+ ($11.95)

ORIGINAL Fatar TP/10 Replacement B Key for Kurzweil K2500X, PC2X, PC88; Ensoniq E-Prime, MR-76, KS32, KT76/KT88, TS12, ZR-76; Doepfer LMK2+/LMK3+/LMK4+ ($11.95)

ORIGINAL Fatar TP/10 Replacement A Key for Kurzweil K2500X, PC2X, PC88; Ensoniq E-Prime, MR-76, KS32, KT76/KT88, TS12, ZR-76; Doepfer LMK2+/LMK3+/LMK4+ ($11.95)

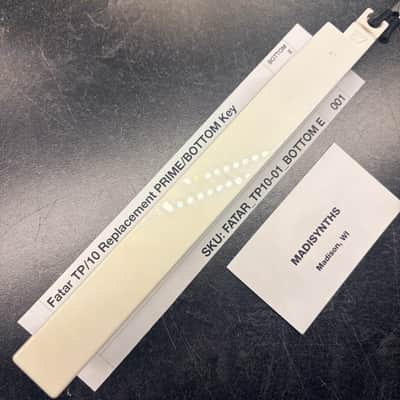

ORIGINAL Fatar TP/10 Replacement PRIME/BOTTOM E Key for Kurzweil K2500X, PC2X, PC88; Ensoniq E-Prime, MR-76, KS32, KT76/KT88, TS12, ZR-76; Doepfer LMK2+/LMK3+/LMK4+ ($29.95)

ORIGINAL Fatar TP/10 Replacement G Key for Kurzweil K2500X, PC2X, PC88; Ensoniq E-Prime, MR-76, KS32, KT76/KT88, TS12, ZR-76; Doepfer LMK2+/LMK3+/LMK4+ ($11.95)

ORIGINAL Fatar TP/10 Replacement E Key for Kurzweil K2500X, PC2X, PC88; Ensoniq E-Prime, MR-76, KS32, KT76/KT88, TS12, ZR-76; Doepfer LMK2+/LMK3+/LMK4+ ($11.95)

ORIGINAL Fatar TP/10 Replacement B Key for Kurzweil K2500X, PC2X, PC88; Ensoniq E-Prime, MR-76, KS32, KT76/KT88, TS12, ZR-76; Doepfer LMK2+/LMK3+/LMK4+ ($11.95)

ORIGINAL Fatar TP/10 Replacement A Key for Kurzweil K2500X, PC2X, PC88; Ensoniq E-Prime, MR-76, KS32, KT76/KT88, TS12, ZR-76; Doepfer LMK2+/LMK3+/LMK4+ ($11.95)

ORIGINAL Fatar TP/10 Replacement SHARP/BLACK Key for Kurzweil K2500X, PC2X, PC88; Ensoniq E-Prime, MR-76, KS32, KT76/KT88, TS12, ZR-76; Doepfer LMK2+/LMK3+/LMK4+ ($9.95)

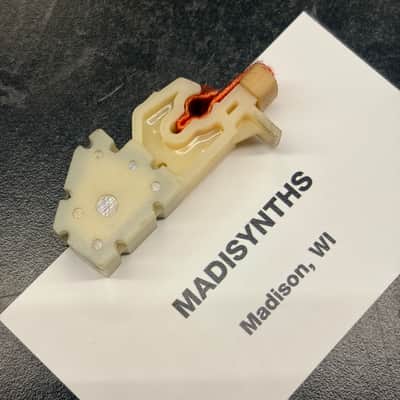

ORIGINAL Fatar TP/10 Key Weight (NATURAL/WHITE) for Kurzweil K2500X, PC2X, PC88; Ensoniq E-Prime, MR-76, KS32, KT76/KT88, TS12, ZR-76; Doepfer LMK2+/LMK3+/LMK4+ ($3.95)
