Synths ⇝ Ensoniq ⇝ Ensoniq ESQ-M

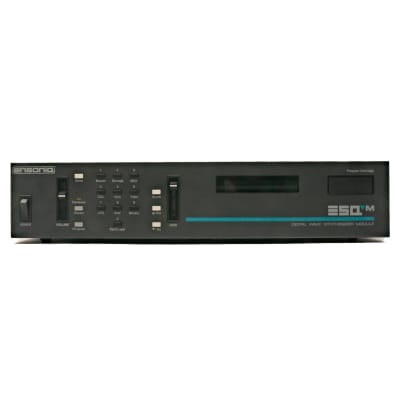

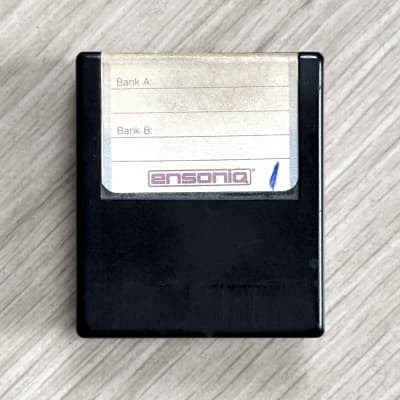

The ESQ-M is a rackmount version of the Ensoniq ESQ-1. Like the ESQ-1, it can store an additional 80 user patches on a RAM cartridge.

Its filters use Curtis CEM 3379 chips.

Thanks to Mark Wynkoop for providing the manual.

Specifications

Year Released: 1987

Polyphony: 8 notes

Multitimbral: 9 parts

User Patches: 40

ROM: 64 KB (32 8-bit waveforms)

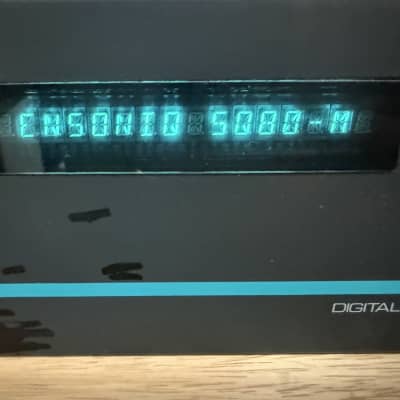

Screen: 16-character fluorescent display

Outputs: 1/4" stereo pair

Dimensions: 44 cm x 30 cm x 9 cm

Weight: 5.7 kg

This is a 2-space rack unit.

Newest OS Version: 1.20

User Demo Videos

Rating

File Downloads

Ensoniq ESQ-M Manual

Ensoniq ESQ-M Firmware Version 1.2

Items for Sale on Reverb

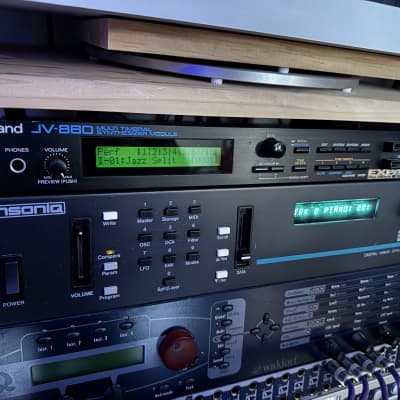

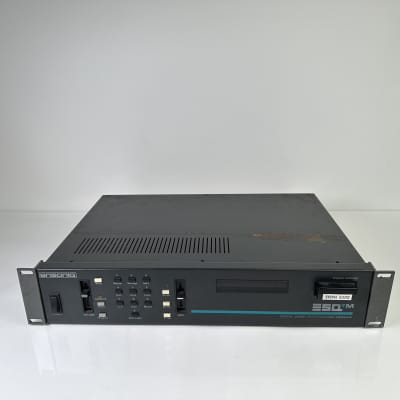

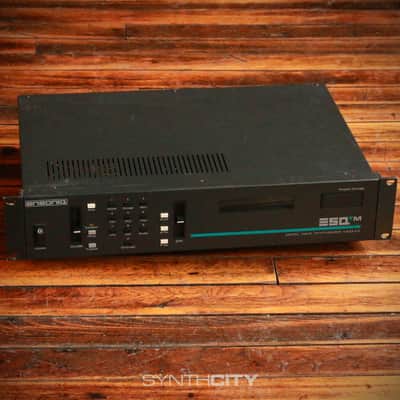

Ensoniq ESQ-M Digital Wave Synthesizer Module rack synthesizer effect vintage 1987 ($999)

Ensoniq ESQ-M Synthesizer Module 1988 Analog Curtis Filters ($888)

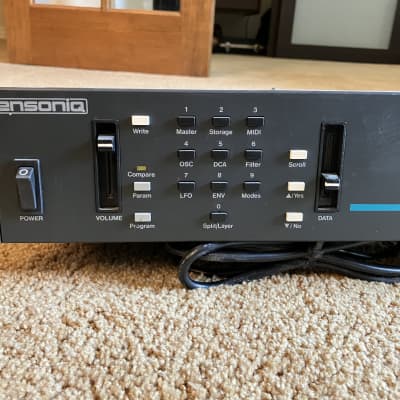

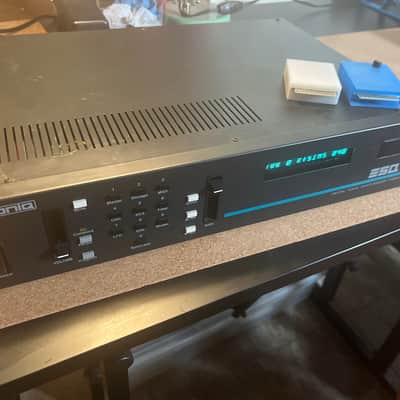

Ensoniq ESQ-M Digital Wave Synthesizer Module 1986 - 1988 - Black ($525)

Ensoniq ESQ-M Digital Wave Synthesizer Module 1986 - 1988 - Black ($650)

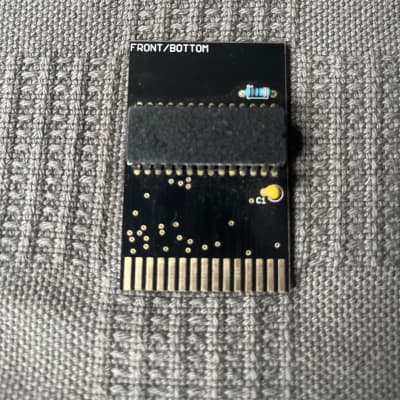

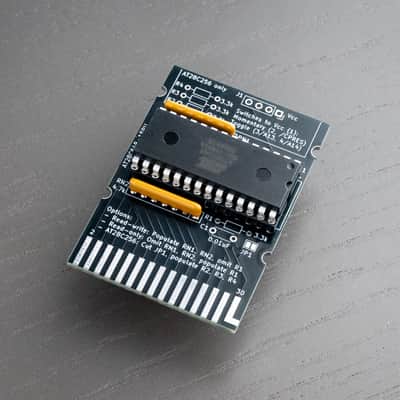

DIY Ensoniq ESQ-1/SQ-80/ESQ-M EEPROM RAM Cartridge ($61.38)

ENSONIQ ESQ-M SYNTH MODULE ESQ-M LATE 80'S ($600)

Ensoniq Slider Bezel for Ensoniq ESQ-1 (metal body), ESQ-M ($7.95)

Ensoniq Slider Bezel for Ensoniq ESQ-1 (metal body), ESQ-M ($7.95)

Ensoniq AC Line Filter for Ensoniq ESQ-1 (both), ESQ-M, Mirage (all) ($4.95)

Ensoniq Power Switch for Ensoniq ESQ-1 (both), ESQ-M, SQ-80, Mirage (all), VFX, VFX-SD, SD-1, SQ-2, SQ-R ($5.95)

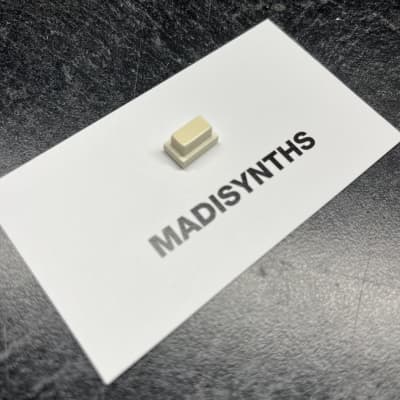

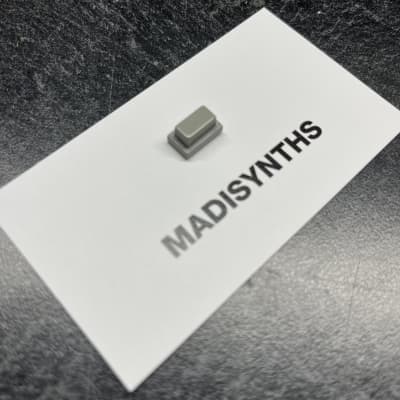

Ensoniq Replacement GRAY Button for ESQ-M, ESQ-1, Mirage DSK-8 (Gray) ($1.95)

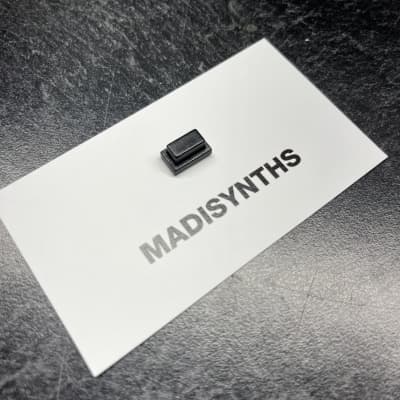

Ensoniq Replacement BLACK Button for ESQ-M, ESQ-1, Mirage DSK-8 (Gray) ($1.95)

Ensoniq Replacement WHITE Button for ESQ-M, ESQ-1, Mirage DSK-8 (Gray) ($1.95)

Ensoniq Replacement WHITE Button for ESQ-M, ESQ-1, Mirage DSK-8 (Gray) ($1.95)

Ensoniq Replacement WHITE Button for ESQ-M, ESQ-1, Mirage DSK-8 (Gray) ($1.95)

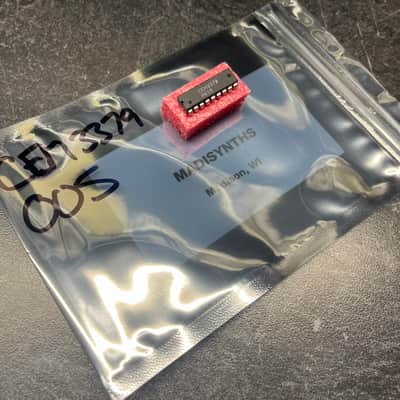

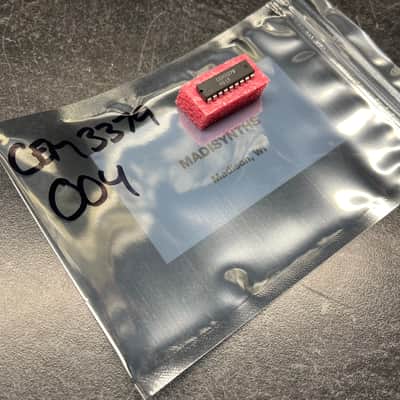

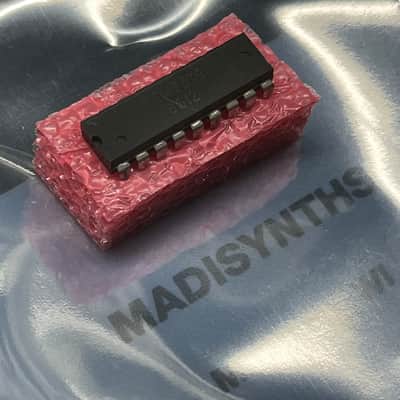

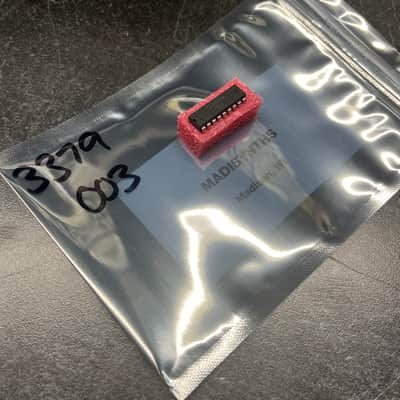

Curtis CEM3379 Synthesizer IC for Ensoniq ESQ-1 (both), ESQ-M, SQ-80, Sequential Prophet-2000/2002, Doepfer A-107/109 ($39.95)

Curtis CEM3379 Synthesizer IC for Ensoniq ESQ-1 (both), ESQ-M, SQ-80, Sequential Prophet-2000/2002, Doepfer A-107/109 ($39.95)

Curtis CEM3379 Synthesizer IC for Ensoniq ESQ-1 (both), ESQ-M, SQ-80, Sequential Prophet-2000/2002, Doepfer A-107/109 ($39.95)

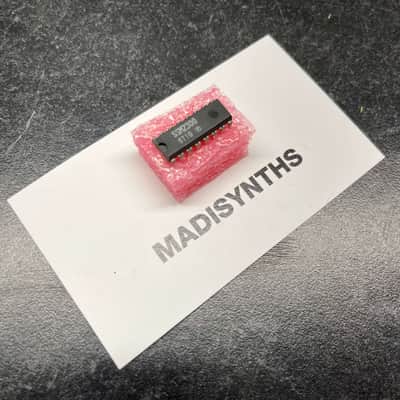

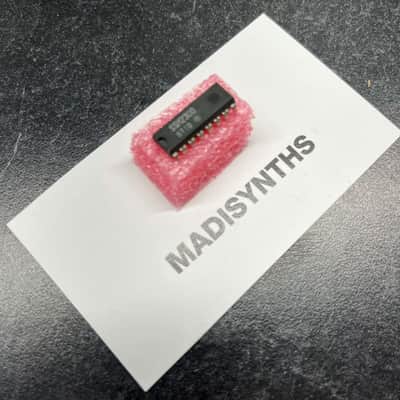

SSM 2300 Multiplexer IC for Ensoniq ESQ-1 (both), ESQ-M, SQ-80, Mirage (all), E-Mu Emulator III, Emax (both) ($24.95)

SSM 2300 Multiplexer IC for Ensoniq ESQ-1 (both), ESQ-M, SQ-80, Mirage (all), E-Mu Emulator III, Emax (both) ($24.95)

SSM 2300 Multiplexer IC for Ensoniq ESQ-1 (both), ESQ-M, SQ-80, Mirage (all), E-Mu Emulator III, Emax (both) ($24.95)

Curtis CEM 3379 Synthesizer IC for Ensoniq ESQ-1 (both), ESQ-M, SQ-80, Sequential Prophet-2000/2002, Doepfer A-107/109 ($39.95)

Curtis CEM3379 Synthesizer IC for Ensoniq ESQ-1 (both), ESQ-M, SQ-80, Sequential Prophet-2000/2002, Doepfer A-107/109 ($39.95)

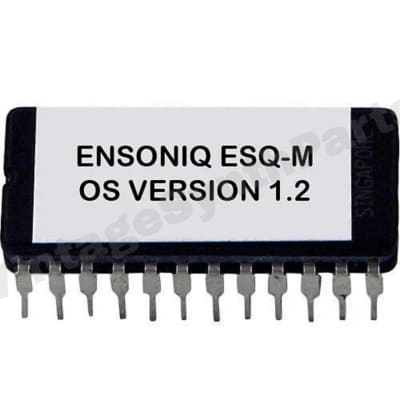

Ensoniq ESQ-m ESQm EPROM with the last firmware OS V1.2 Rom ($16.53)

Slide potentiometer For Ensoniq Esq-1 Esq-m Sq-80 volume or data Slider ($9.78)

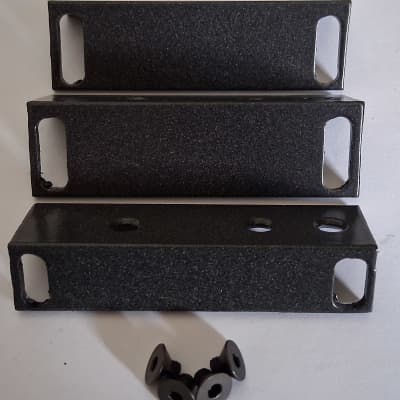

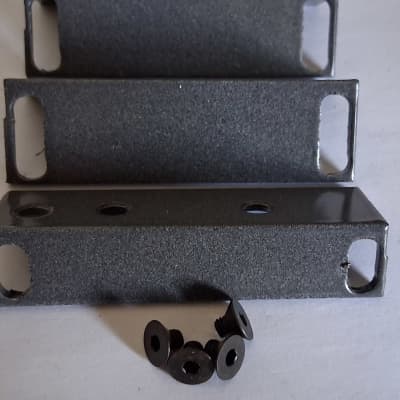

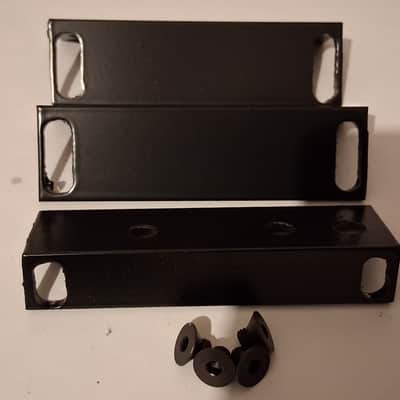

Rack ear kit to fit Ensoniq Mirage / ESQ-m rack with mounting screws ($49.74)
