Guitar Synths ⇝ Roland ⇝ Roland GR-50

The Roland GR-50 is a 1U rackmount guitar synthesizer with a built-in synthesis engine based on Roland's Linear Arithmetic (LA) synthesis used in the D-series synthesizers such as the D-50, D-550, and the later-generation D-10, D-20, and D-110.

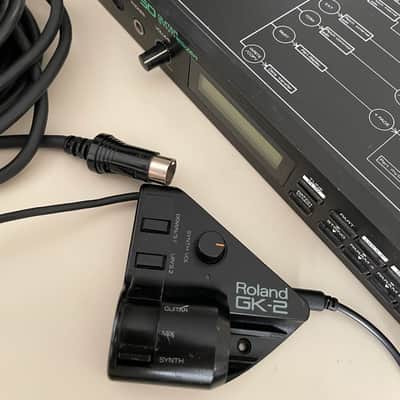

As part of Roland's second generation of guitar synthesizers, it uses a 13-pin cable input provided by a Roland GK-2, GK-2A, GK-3, or Yamaha G1D divided pickup. Some guitars, particularly some Godin and Brian Moore models, have built-in hexaphonic pickups that offer a 13-pin cable output.

The unit has a card slot for storing patches on an M-256D or M-256E memory card.

Specifications

Year Released: 1989

Polyphony: 32 notes

Preset Patches: 128

User Patches: 64

Power Consumption: 14 watts

Weight: 4.0 kg

Dimensions: 482 mm x 340 mm x 44 mm

User Demo Videos

Rating

File Downloads

Roland GR-50 Manual

Roland GR-50 Service Notes

Items for Sale on Reverb

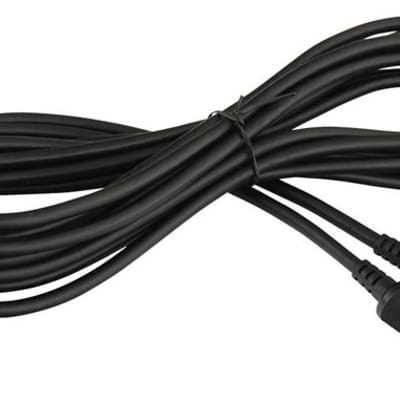

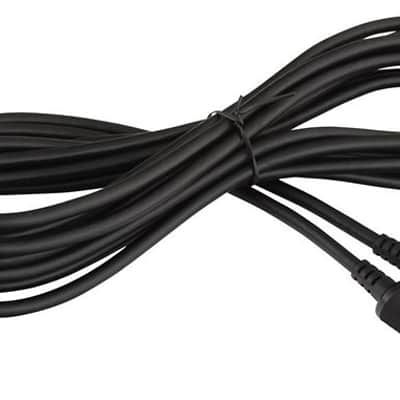

Roland Gr 50 Gk Cable 13 Pin Din Midi 6 Ft 2 M Replacement (2 Meter Gkc5 Version) ($19.51)

Roland Gr 50 Gk Cable 13 Pin Din 15 Ft 5 M Meter Replacement Gkc5 ($22.97)

Roland Gr 50 Guitar Synth Gk Cable 13 Pin Din 30 Ft 10 M Meter Replacement Gkc10 ($45.97)

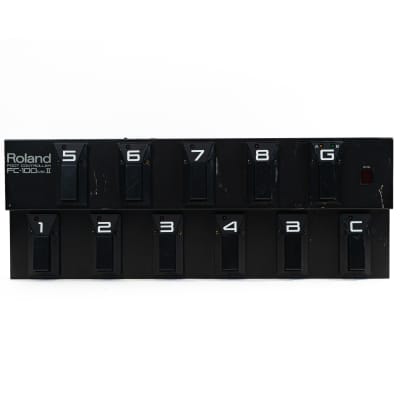

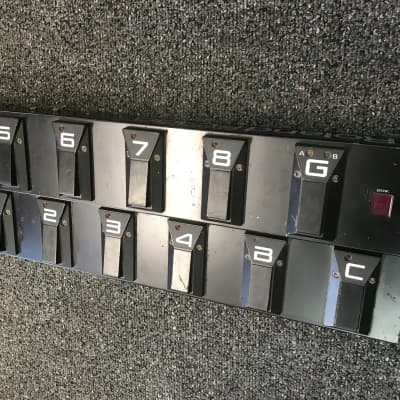

Roland FC-100 Foot Controller Compatible with Roland GP-8, GP-16, GR-50 and GM-70 in good condition ($175)

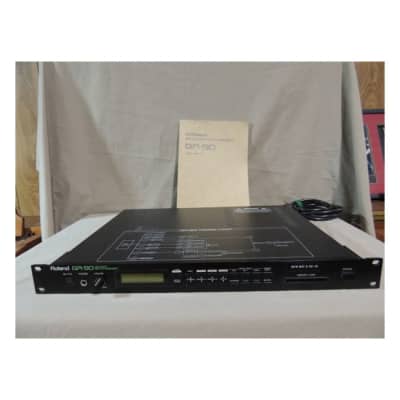

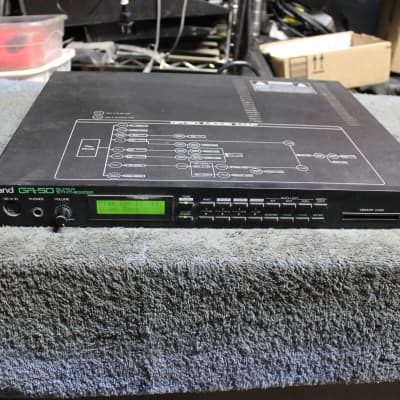

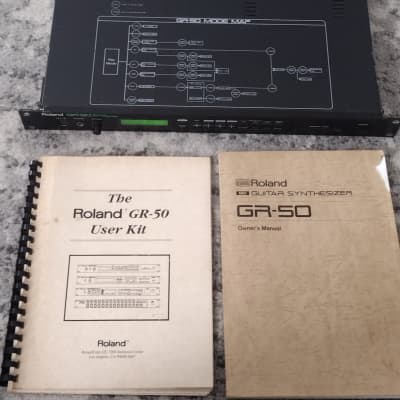

Roland GR-50 guitar synthesizer ($199.95)

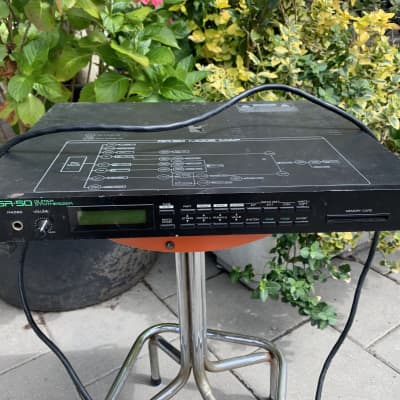

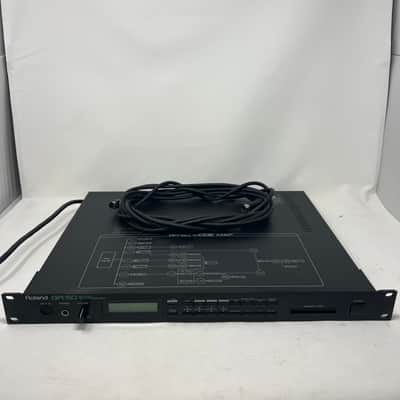

Roland GR-50 ($200)

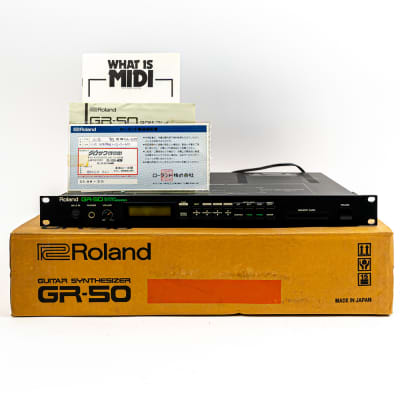

Roland GR-50 MIDI Guitar Synthesizer for Roland GK MIDI Pickups w/ OG Box, Power Supply — Unleash Your Guitar’s True Sonic Potential ($309.99)

Roland GR-50 MIDI Guitar Synthesizer for Roland GK MIDI Pickups w/ OG Box, Power Supply — Unleash Your Guitar’s True Sonic Potential ($309.99)

Roland GR-50 ROM card // PN-GR50-01 // GR Collection Vol.1 BOXED ($199.54)

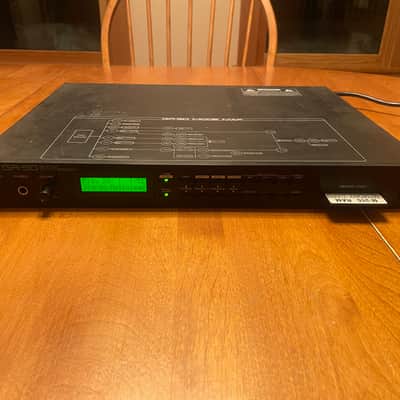

Roland GR-50 Guitar Synthesizer 1988 Black ($475)

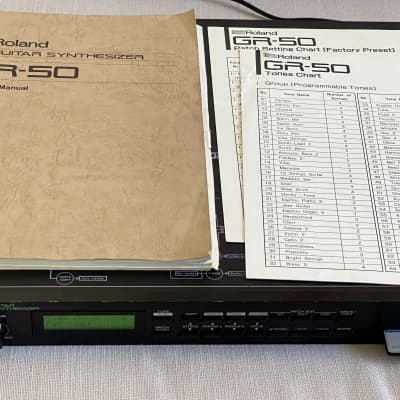

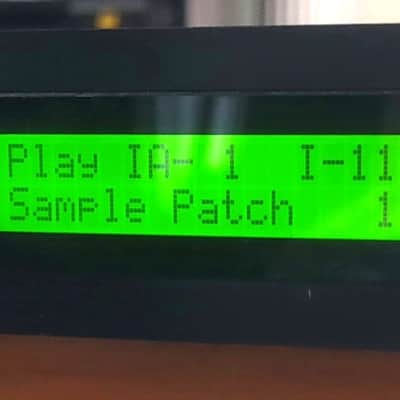

Roland GR-50 Guitar MIDI Controller/Synthesizer ($300)

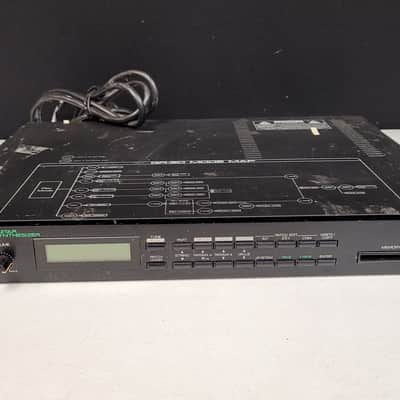

Roland GR-50 Guitar Synthesizer ($241.87)

Roland GR-50 90's ($276.58)

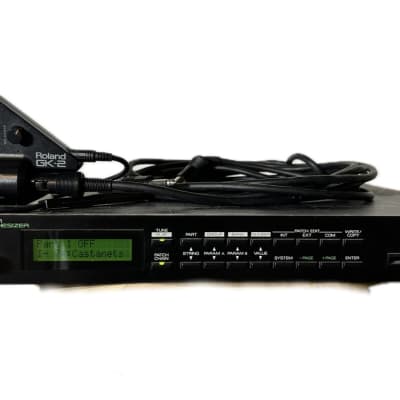

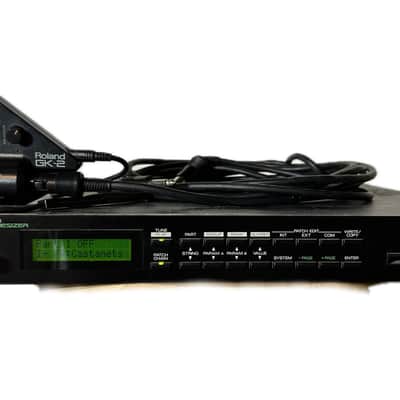

Roland GR-50 Guitar Synthesizer with GK-20 pickup ($225)

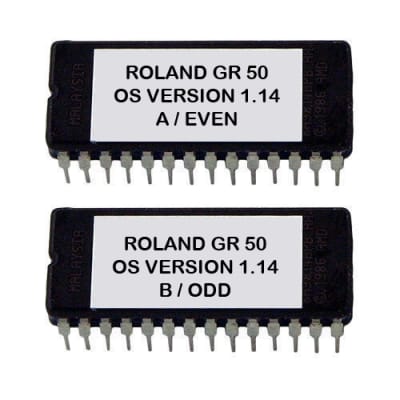

Roland GR-50 Version 1.14 firmware OS update upgrade Gr50 Eprom Rom ($20.50)

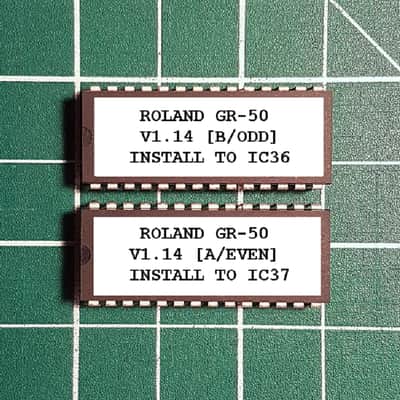

Roland GR-50 OS v1.14 EPROM Firmware Upgrade SET ($29.95)

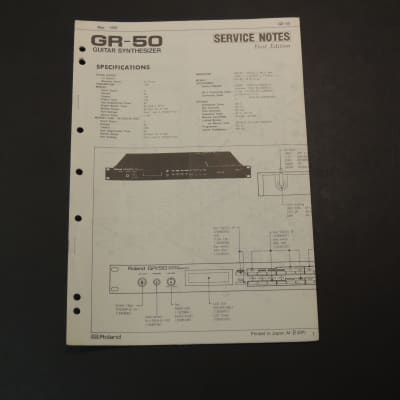

Roland GR-50 Service Notes [Three Wave Music] ($20)

Roland GR-50 Guitar Synthesizer with PN-GR50-01 Card ($264.85)

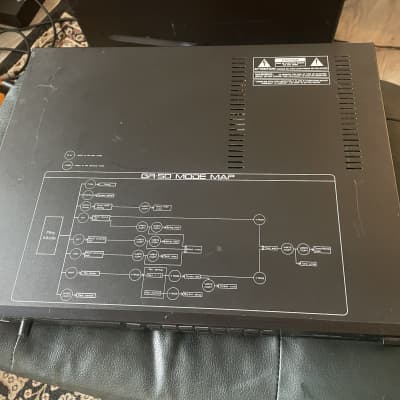

Roland GR-50/Guitar Synthesizer (Rack Mount) ($200)

Roland GR-50/Guitar Synthesizer (Rack Mount) ($200)

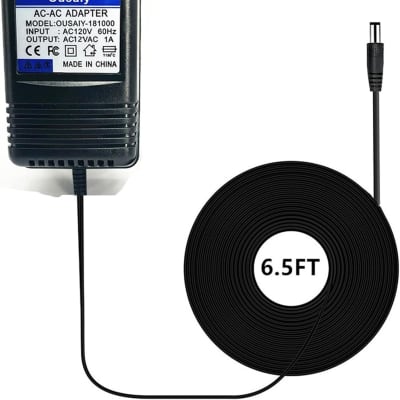

12V AC Power Adapter for FL FL-41120830A FL41120830A,Roland BOSS BRA-120 BRA-240 BRA-230 BRA-220,CL-50 DS-330 EH-50 GE-21 DL-50 DR-660 GR-09 JX-1,12VClass 2 Power Supply Cord Cable Charger Mains PSU ($41.26)

12V AC Power Adapter for FL FL-41120830A FL41120830A,Roland BOSS BRA-120 BRA-240 BRA-230 BRA-220,CL-50 DS-330 EH-50 GE-21 DL-50 DR-660 GR-09 JX-1,12VClass 2 Power Supply Cord Cable Charger Mains PSU ($38.99)

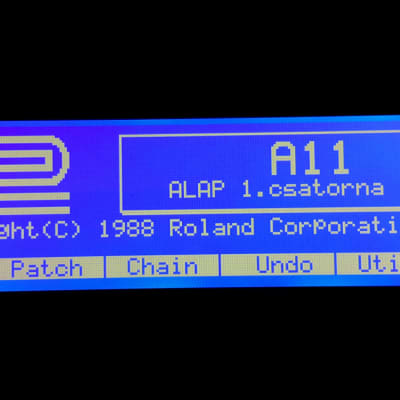

Graphic Display Upgrade - Roland W-30 A-50 A-80 D-70 JW-50 E-96 G-600 G-800 RA-800 ($179.53)

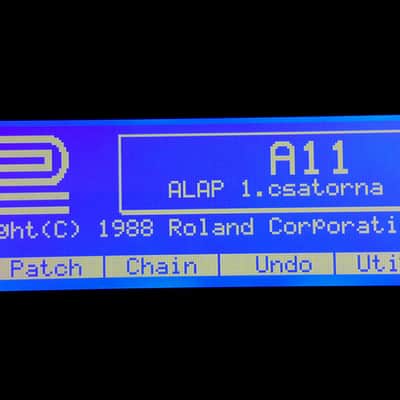

Graphic Display Upgrade - Roland A-50 Graphic Display Upgrade ($179.53)

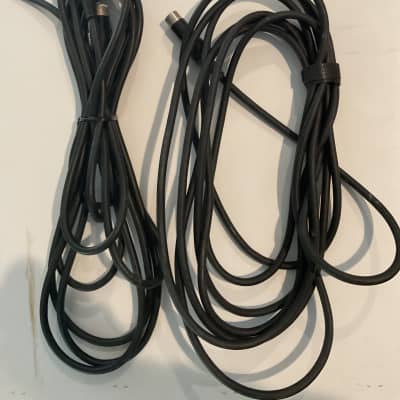

2 Roland GR50 multi pin cables 1990s - Black ($50)

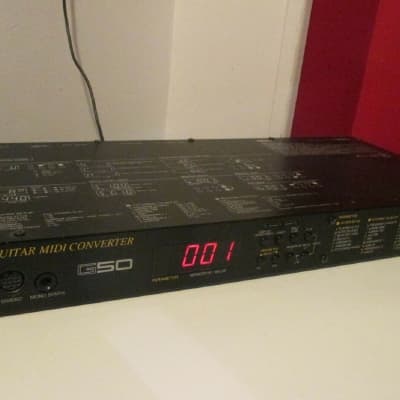

Yamaha YAMAHA G50 ROLAND GR 24 TO 13 PIN CONVERTER MOD FAST MIDI GUITAR CONVERTER 1996 ($349.51)
