Guitar SynthsRoland ⇝ Roland GR-1

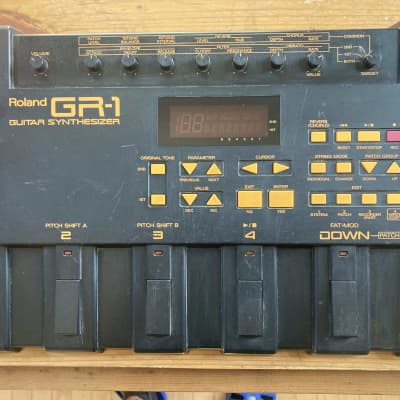

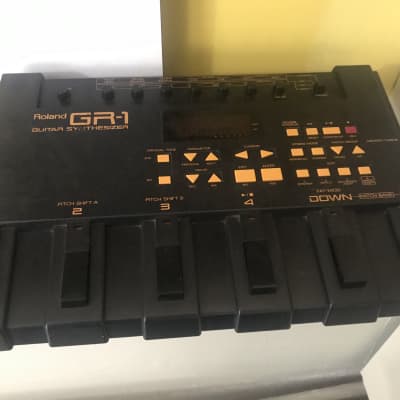

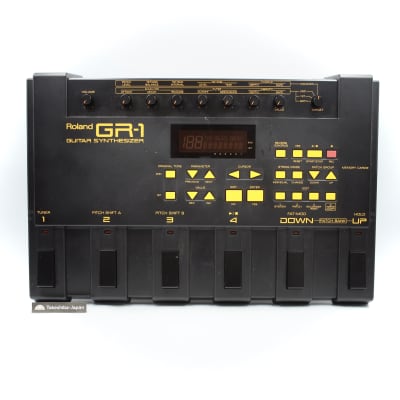

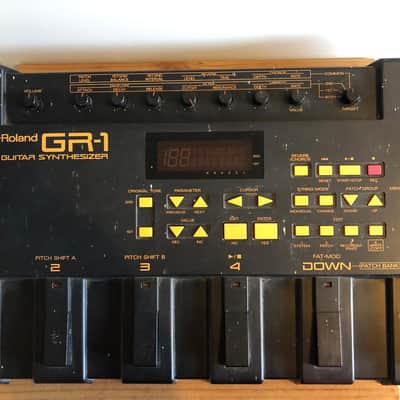

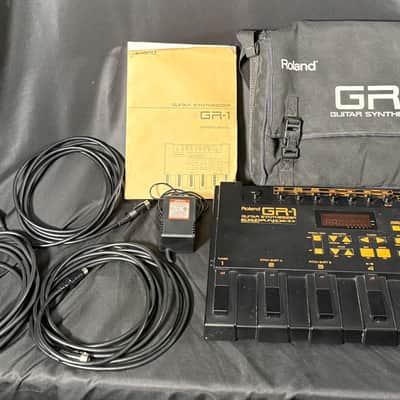

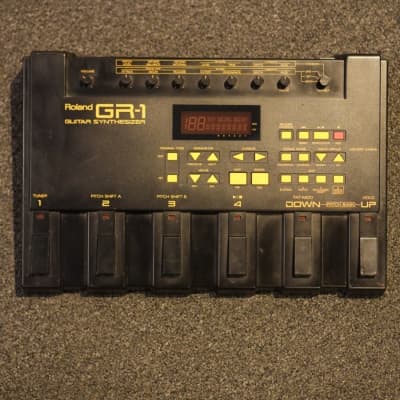

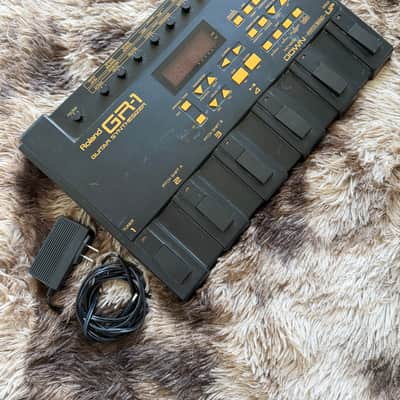

Roland GR-1

Roland PN-GR1-01 Expansion Board

The GR-1 uses a 13-pin connector and is compatible with the Roland GK-2A, Yamaha G1D, or other similar hexaphonic guitar synth pickups. Guitars with built in synthesizer pickups like the Brian Moore i8.13, Godin LGX-SA, and Roland-ready Stratocaster are also compatible.

The pitch tracking circuitry in the GR-1 is the same as those used in the GR-09, GR-50, GM-70, and GI-10 and note response will be at the same speed as in those units.

It uses an external 9-volt power supply. The unit is labeled "Use Roland ACB/ACI Adaptor Only". The ACB-120 is a 9V DC, 1200 mA unit with negative tip that consumes 24 watts of power.

Factory Reset:

(CAUTION: All USER information will be lost. Be sure to back up any information you wish to keep.)

1. Power on while holding WRITE/COPY. The display will show "ALL INIT" and "OK?" flashing.

2. Release WRITE/COPY and then press YES. "WAIT" will show in the display for a few seconds. When the Factory reset is complete, "11RHODES" will show in the display.

Expansion

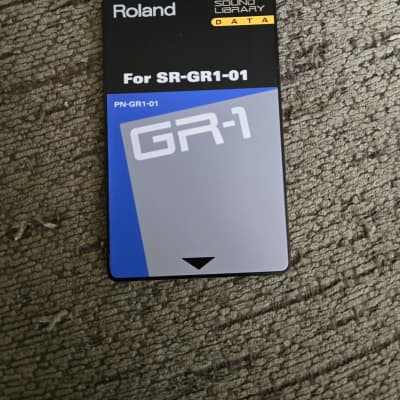

The GR-1 has 200 built-in waveforms and another 200 are available via the PN-GR1-01 expansion board, which comes with the SR-GR1-01 memory card.

SR-GR1-01 Expansion Board Demo Song (192 Kbit MP3, 3MB)

Specifications

Year Released: 1992

Polyphony: 24 notes

Multitimbral: 4 parts

User Patches: 64

ROM: 200 waveforms (expandable to 400)

Effects: Reverb, Delay, Chorus, Flange

Screen: custom fluorescent display

Power Consumption: 24 watts

Weight: 3.2 kg

Dimensions: 426 mm x 290 mm x 70 mm

Sequencer: 2000 Notes

User Demo Videos

Rating


4.5
(2 votes)

Sound Samples

WAV samples are available on freewavesamples.com.

File Downloads

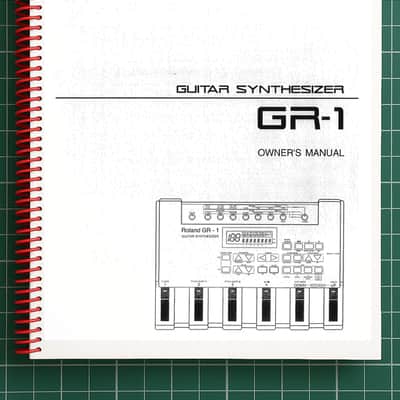

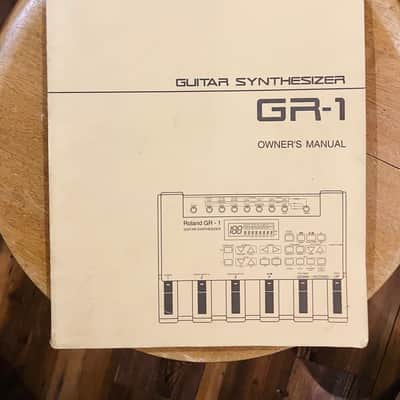

Roland GR-1 Manual

Roland SR-GR1-01 Manual

Items for Sale on Reverb

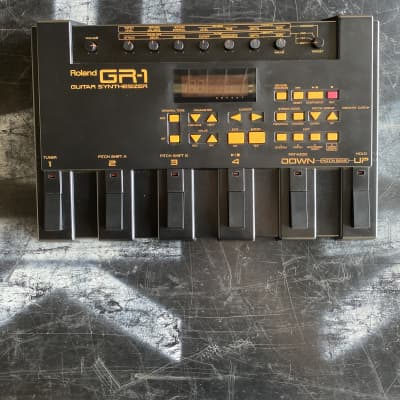

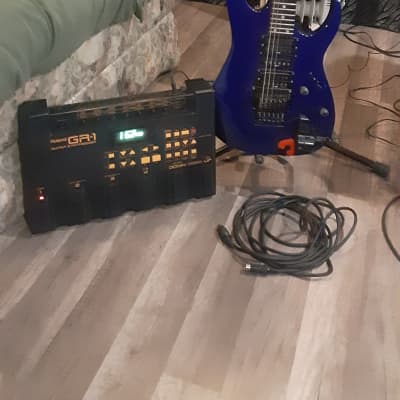

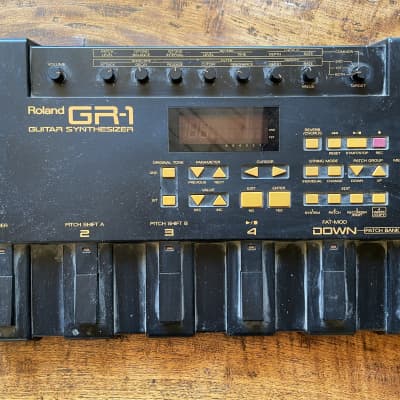

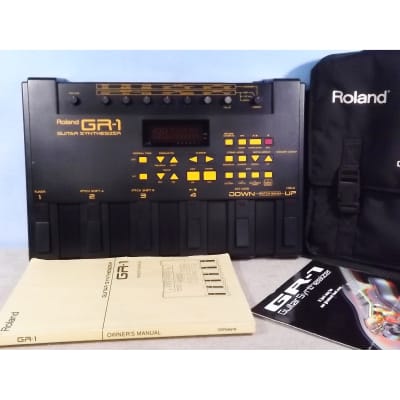

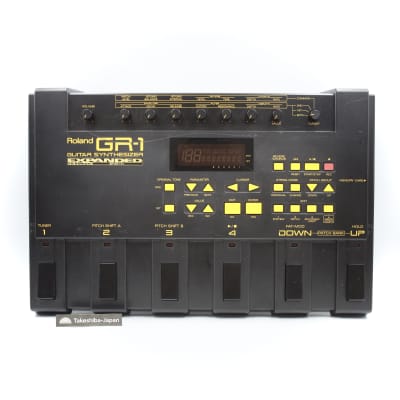

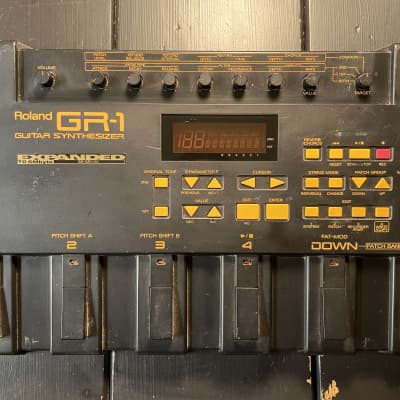

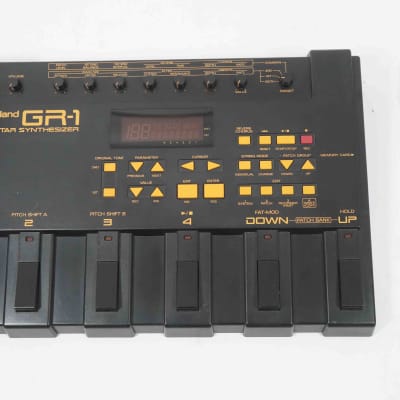

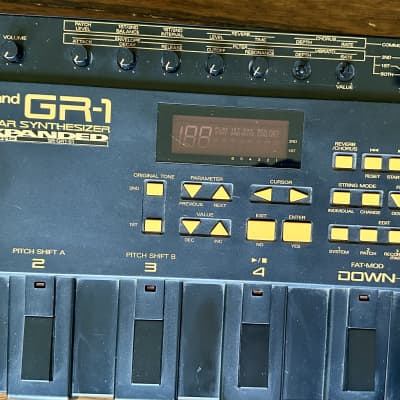

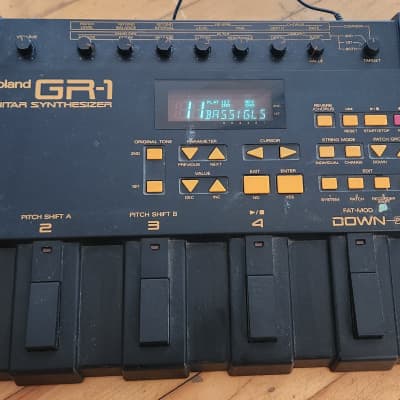

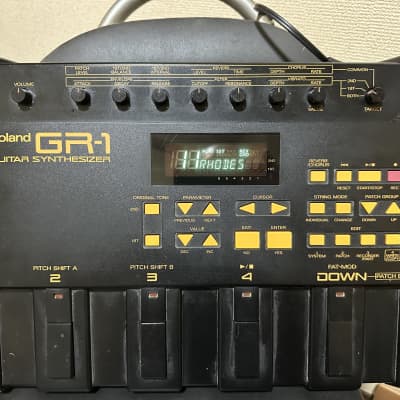

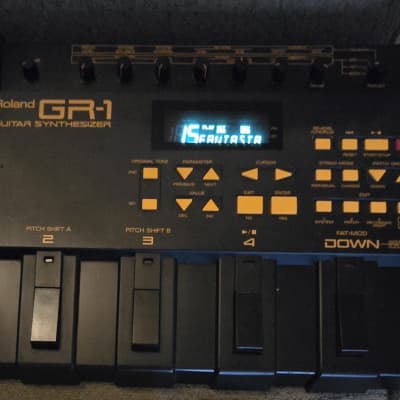

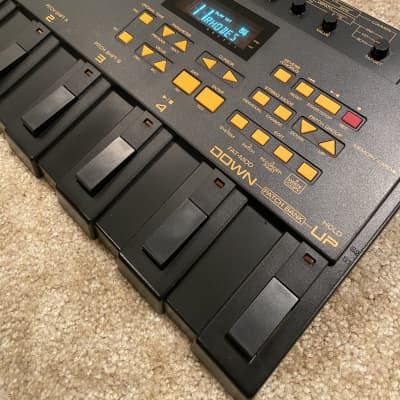

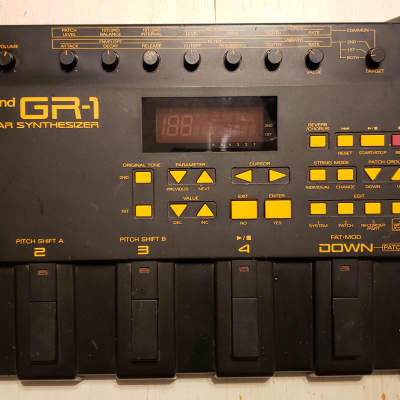

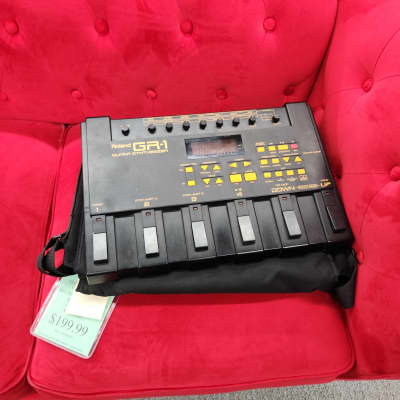

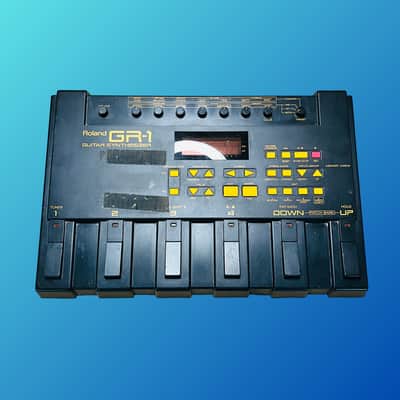

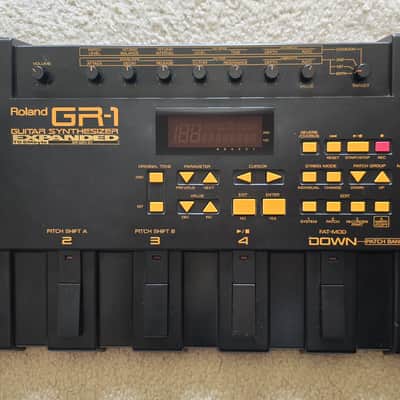

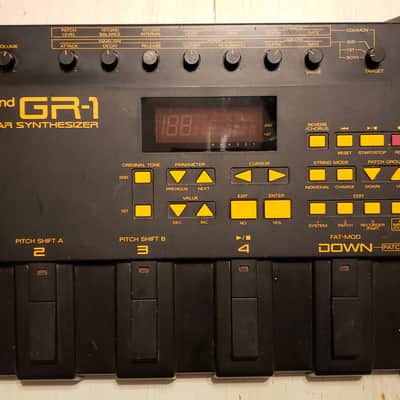

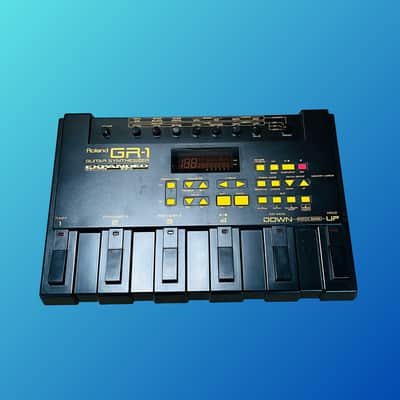

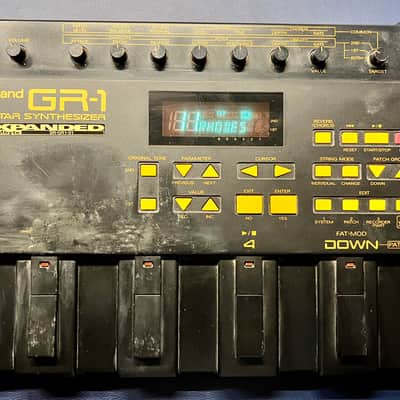

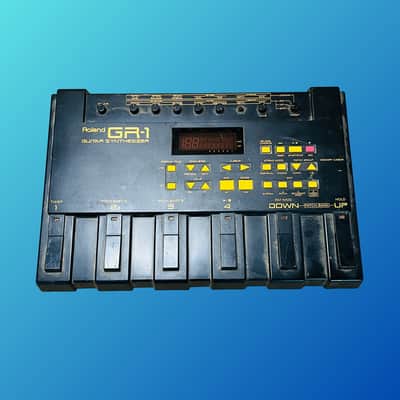

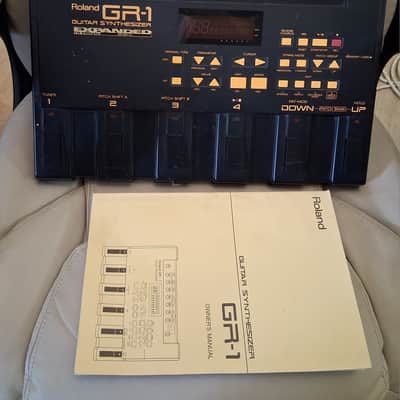

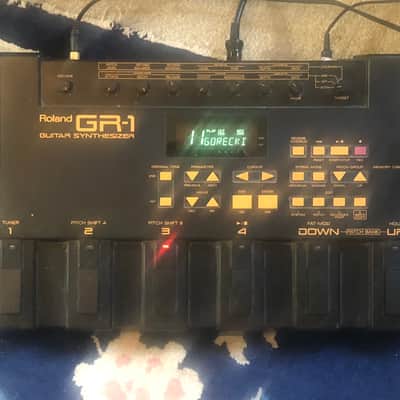

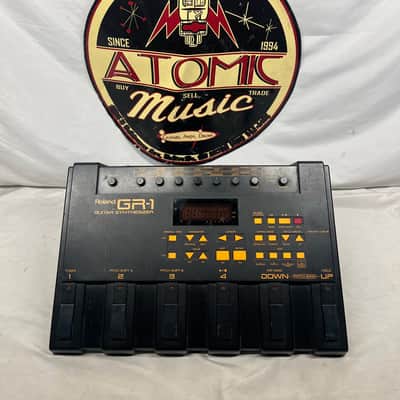

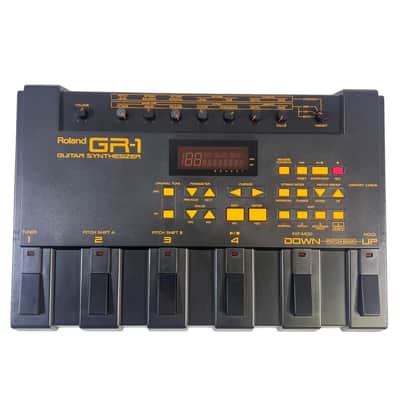

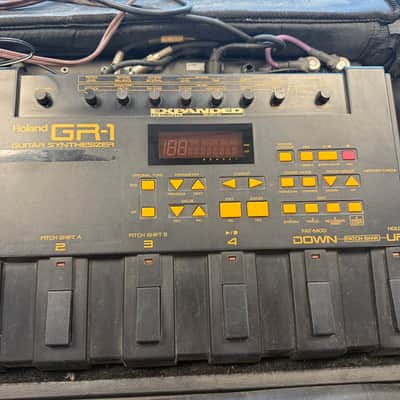

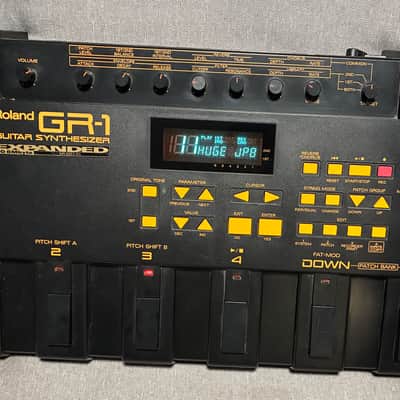

Roland GR-1 Guitar SynthesizerRoland GR-1 Guitar Synthesizer ($225)

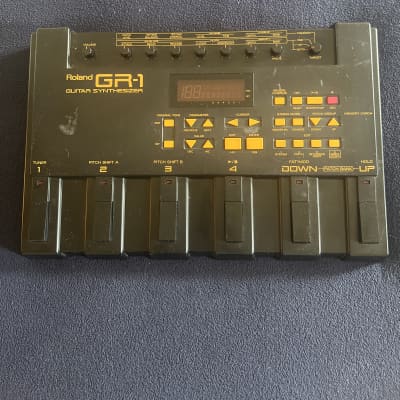

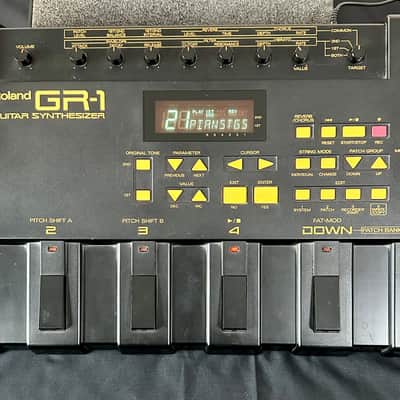

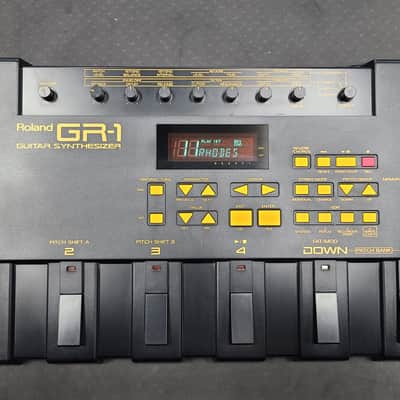

Roland GR-1 Guitar Synthesizer 2000s - BlackRoland GR-1 Guitar Synthesizer 2000s - Black ($150)

Roland GR-1 Guitar Synthesizer 2000s - BlackRoland GR-1 Guitar Synthesizer 2000s - Black ($170)

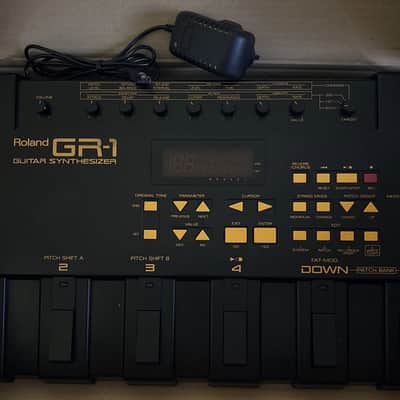

Roland GR-1 Guitar Synthesizer With Power Supply Midi Cable Made in Japan Guitar Effect Pedal ZE10726Roland GR-1 Guitar Synthesizer With Power Supply Midi Cable Made in Japan Guitar Effect Pedal ZE10726 ($190)

Roland GR-1 Guitar Synthesizer WITH GK2A Pickup includedRoland GR-1 Guitar Synthesizer WITH GK2A Pickup included ($345)

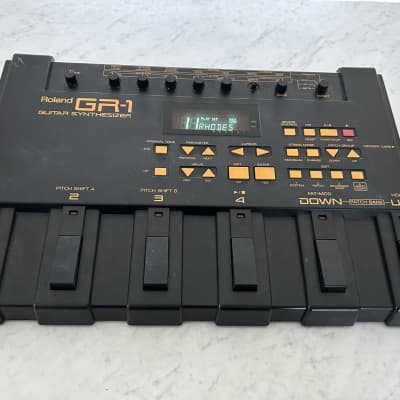

Roland GR-1 Guitar SynthesizerRoland GR-1 Guitar Synthesizer ($169.90)

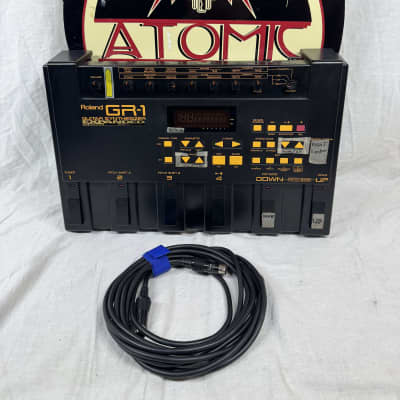

Roland GR-1 Guitar Synthesizer with CableRoland GR-1 Guitar Synthesizer with Cable ($308.08)

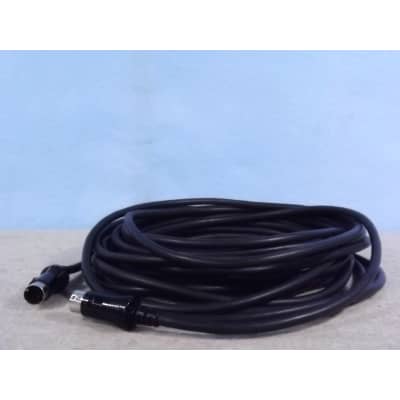

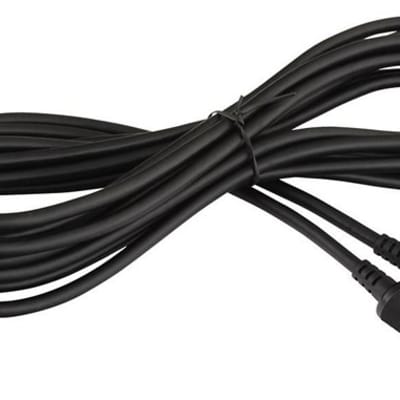

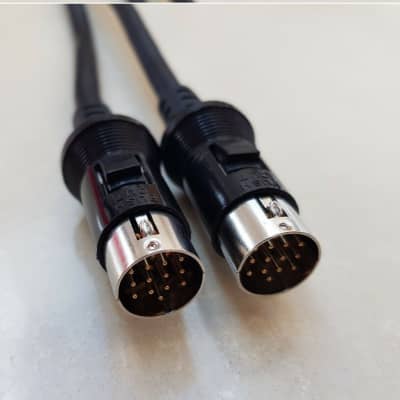

Roland Gr 1 Gk Cable 13 Pin Din Midi 6 Ft 2 M Replacement (2 Meter Gkc5 Version)Roland Gr 1 Gk Cable 13 Pin Din Midi 6 Ft 2 M Replacement (2 Meter Gkc5 Version) ($19.26)

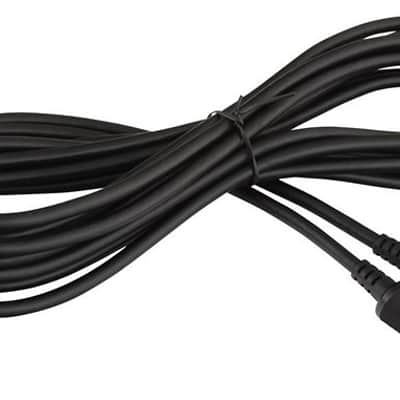

Roland Gr 1 Gk Cable 13 Pin Din 15 Ft 5 M Meter Replacement Gkc5Roland Gr 1 Gk Cable 13 Pin Din 15 Ft 5 M Meter Replacement Gkc5 ($22.67)

Roland Gr 1 Guitar Synth Gk Cable 13 Pin Din 30 Ft 10 M Meter Replacement Gkc10Roland Gr 1 Guitar Synth Gk Cable 13 Pin Din 30 Ft 10 M Meter Replacement Gkc10 ($45.37)

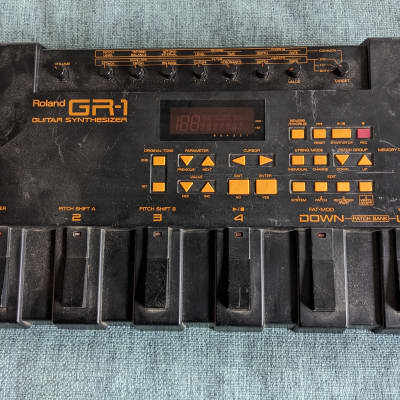

Roland GR-1 Guitar Synthesizer From 1994Roland GR-1 Guitar Synthesizer From 1994 ($30)

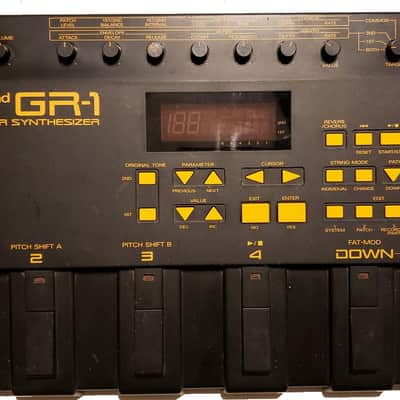

Roland GR-1 Guitar Synthesizer with GK-2A & M-512E Memory CardRoland GR-1 Guitar Synthesizer with GK-2A & M-512E Memory Card ($199)

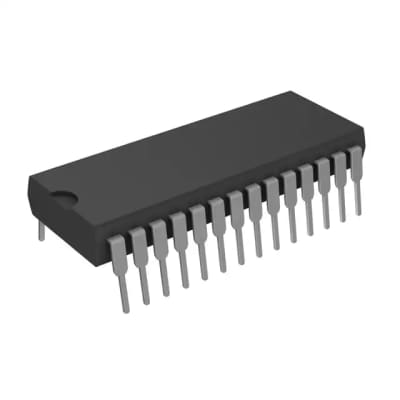

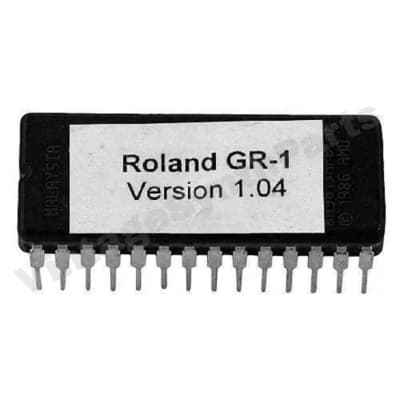

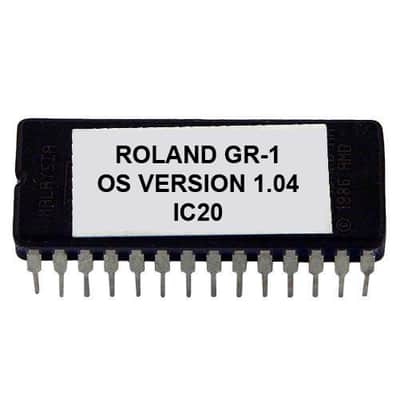

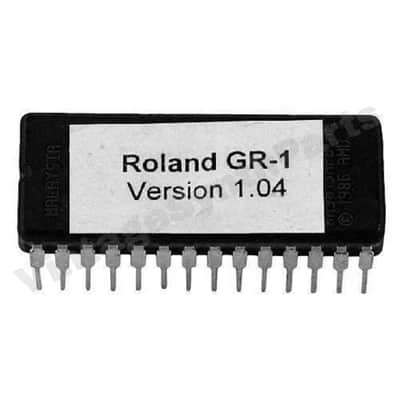

Roland GR-1 Version 1.04 firmware OS update upgrade EPROM GR1Roland GR-1 Version 1.04 firmware OS update upgrade EPROM GR1 ($17.12)

Roland GR-1 OS v1.04 EPROM Firmware Upgrade KIT / Brand New ROM Update Chip with Service Manual GR1Roland GR-1 OS v1.04 EPROM Firmware Upgrade KIT / Brand New ROM Update Chip with Service Manual GR1 ($20)

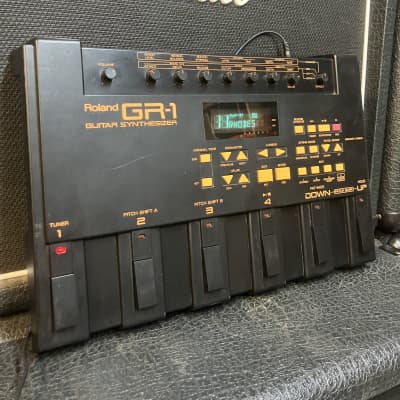

Roland GR-1 Guitar SynthesizerRoland GR-1 Guitar Synthesizer ($170.99)

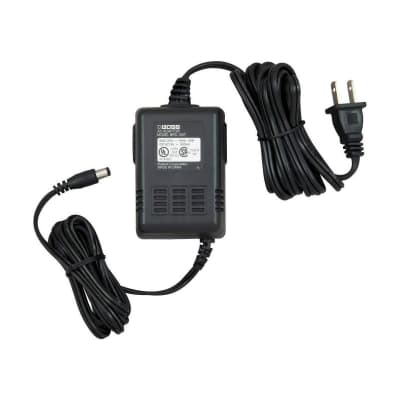

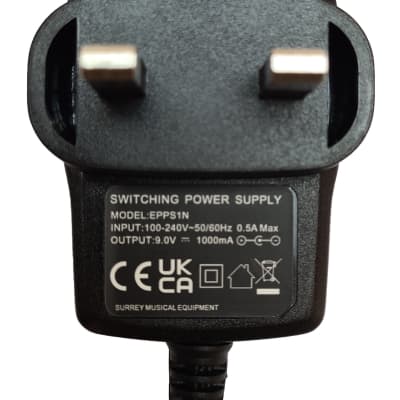

Power Supply Replacement for Roland Gr-1 Gr1 Adapter Uk 9VPower Supply Replacement for Roland Gr-1 Gr1 Adapter Uk 9V ($14.76)

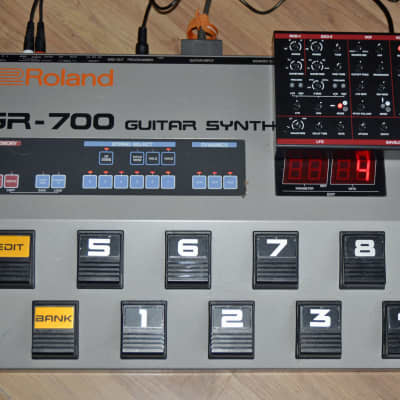

Roland GR-700 Guitar Synthesizer, RecentRoland GR-700 Guitar Synthesizer, Recent ($500)

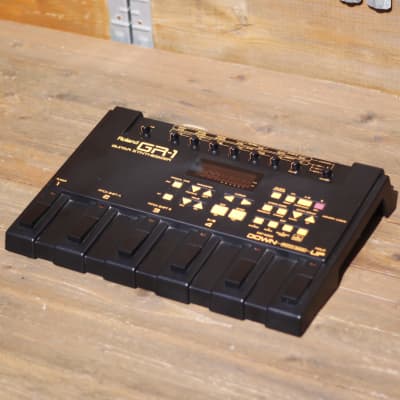

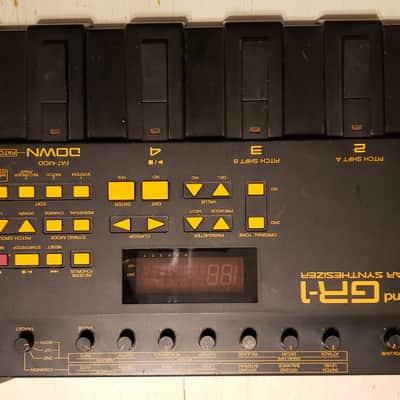

Roland GR1 Guitar SynthesizerRoland GR1 Guitar Synthesizer ($399.99)

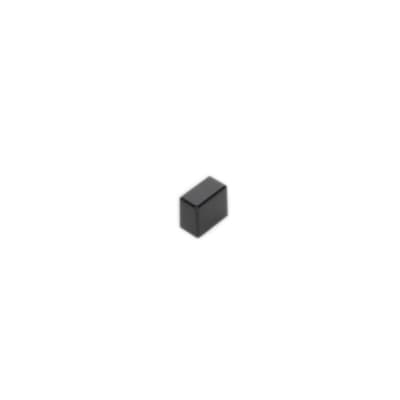

Roland - Power Button - GP-10S, GR-1, GR-55, GR-55-BK, GS-10, GT-10, GT-10B, GT-100, GT-3Roland - Power Button - GP-10S, GR-1, GR-55, GR-55-BK, GS-10, GT-10, GT-10B, GT-100, GT-3 ($14.90)

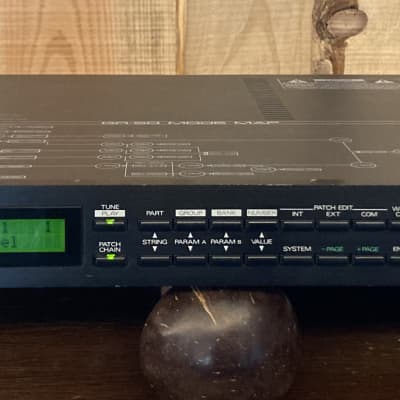

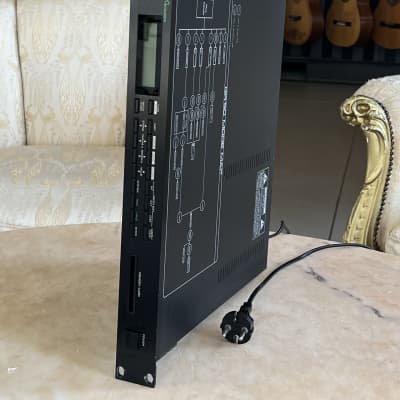

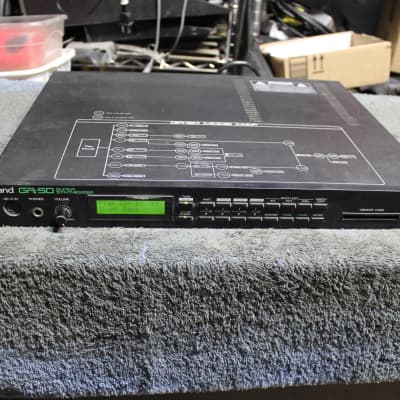

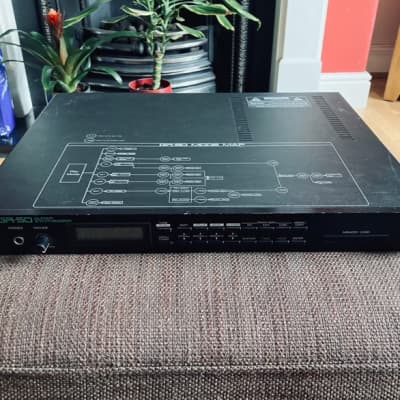

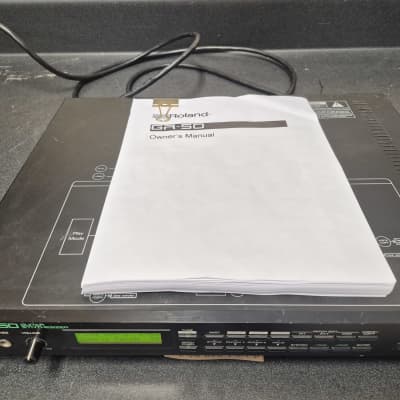

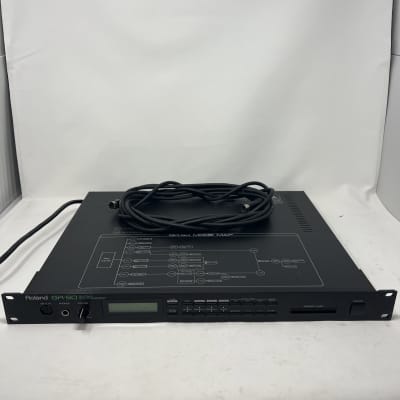

Roland GR-50/Guitar Synthesizer (Rack Mount)Roland GR-50/Guitar Synthesizer (Rack Mount) ($200)

1980s Roland GR-700 Guitar Synthesizer Non-Functioning?1980s Roland GR-700 Guitar Synthesizer Non-Functioning? ($599)

Roland GR-50 Guitar Synthesizer Module - Black w/ PN-GR50-01 Sound LibraryRoland GR-50 Guitar Synthesizer Module - Black w/ PN-GR50-01 Sound Library ($212.53)

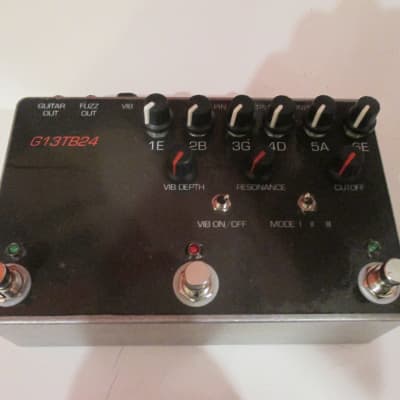

Roland gr type 13 to 24-pin converterRoland gr type 13 to 24-pin converter ($341.17)

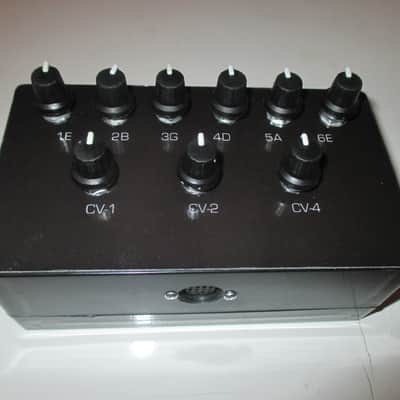

Roland gr TYPE 13 to 24-pin converterRoland gr TYPE 13 to 24-pin converter ($443.87)

Roland gr TYPE 13 to 24-pin converterRoland gr TYPE 13 to 24-pin converter ($398.23)

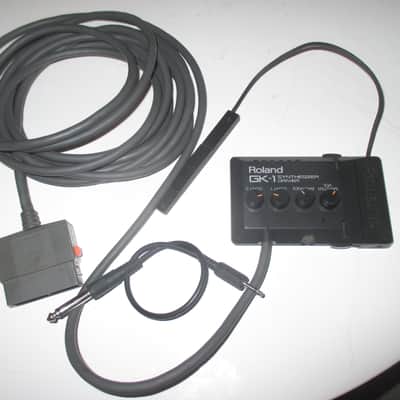

Roland GR-700 + GK-1 Driver + AB-700 Case + C24 cable 1984Roland GR-700 + GK-1 Driver + AB-700 Case + C24 cable 1984 ($1,129.64)

14VAC Adapter for Boss GT-3 GT-8 GS-10 VF-1 GX-700 SP-505 DR-770 ; Boss BRC-120 BRC120T,ME-8 ME-8B AF-70,GR-20,GR-33 Roland A41408DC Guitar Effects Processor PS Wall Home 14V Charger Mains PSU14VAC Adapter for Boss GT-3 GT-8 GS-10 VF-1 GX-700 SP-505 DR-770 ; Boss BRC-120 BRC120T,ME-8 ME-8B AF-70,GR-20,GR-33 Roland A41408DC Guitar Effects Processor PS Wall Home 14V Charger Mains PSU ($35.99)

Roland FC-100 MKII Foot Controller for GP-8, GP-16, GR-50, GM-70 and RMC-1Roland FC-100 MKII Foot Controller for GP-8, GP-16, GR-50, GM-70 and RMC-1 ($119.95)

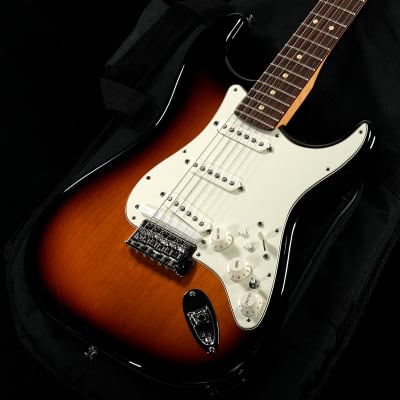

Fender Fender stratocaster Roland GC1 elettric synth Roland Gr20 pedal board synth 2002 - olympic whiteFender Fender stratocaster Roland GC1 elettric synth Roland Gr20 pedal board synth 2002 - olympic white ($1,122.34)

Roland Boss AC Adapter for DR-770/880, SP-505, VF-1, GR-33, GR-20, JS-5, GS-10, GT-3, GT-6, GT-6B, GT-8, GX-700Roland Boss AC Adapter for DR-770/880, SP-505, VF-1, GR-33, GR-20, JS-5, GS-10, GT-3, GT-6, GT-6B, GT-8, GX-700 ($39.99)

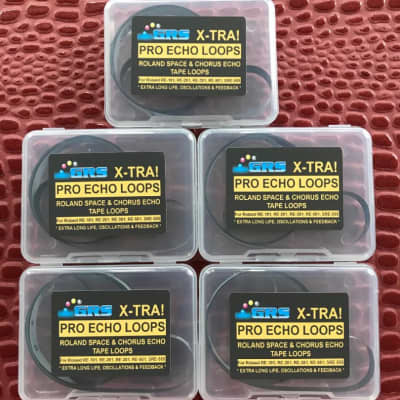

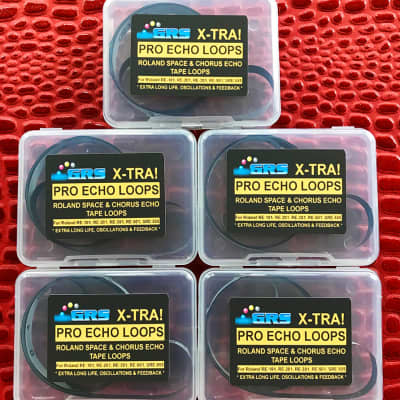

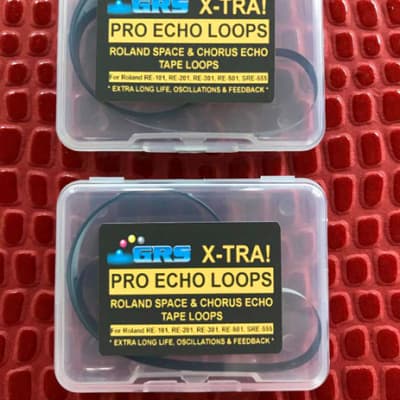

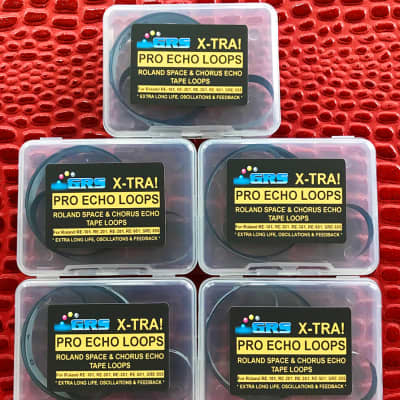

5 Roland Space Echo Tape Loops, 1 Meter Long, TL1m, by GRS 'X-TRA' Brand5 Roland Space Echo Tape Loops, 1 Meter Long, TL1m, by GRS 'X-TRA' Brand ($27.97)

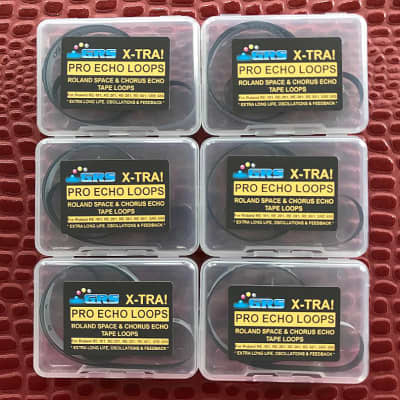

6 Roland Space Echo Tape Loops,  Standard 1 Meter Length, GRS X-TRA Brand, X-TRA Long Life, TL1m6 Roland Space Echo Tape Loops, Standard 1 Meter Length, GRS X-TRA Brand, X-TRA Long Life, TL1m ($29.97)

4 Roland Space Echo Tape Loops, 1 Meter Long, GRS X-TRA Brand, Long Life, TL1m4 Roland Space Echo Tape Loops, 1 Meter Long, GRS X-TRA Brand, Long Life, TL1m ($24.97)

Roland Gr1Roland Gr1 ($181.43)

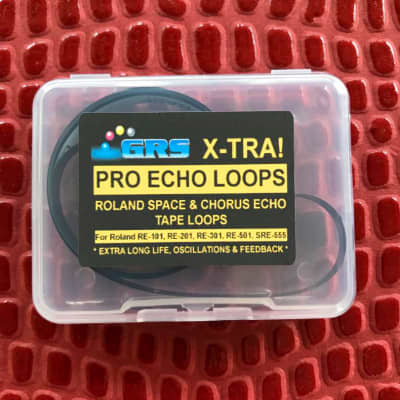

1 Roland Tape Loop for ALL Roland Space Echo & Chorus Echo, Standard 1 Meter Length, X-TRA BRAND1 Roland Tape Loop for ALL Roland Space Echo & Chorus Echo, Standard 1 Meter Length, X-TRA BRAND ($18.97)

2 Roland Tape Loops for ALL Roland Space Echo & Chorus Echo, Standard 1 Meter Long, X-TRA BRAND TL1m2 Roland Tape Loops for ALL Roland Space Echo & Chorus Echo, Standard 1 Meter Long, X-TRA BRAND TL1m ($18.97)

1 Roland Tape Loop for ALL Roland Space Echo & Chorus Echo, 4 METERS LONG, X-TRA BRAND, TL4m1 Roland Tape Loop for ALL Roland Space Echo & Chorus Echo, 4 METERS LONG, X-TRA BRAND, TL4m ($19.97)

5 Short Roland RE-201, RE-301, RE-501, SRE-555 Space & Chorus Echo Tape Loops, 1 Meter Long, TL1m5 Short Roland RE-201, RE-301, RE-501, SRE-555 Space & Chorus Echo Tape Loops, 1 Meter Long, TL1m ($27.97)

Roland Roland SR-GR1-01 Expansion Kit IncompleteRoland Roland SR-GR1-01 Expansion Kit Incomplete ($59.97)

12V AC Power Adapter for FL FL-41120830A FL41120830A,Roland BOSS BRA-120 BRA-240 BRA-230 BRA-220,CL-50 DS-330 EH-50 GE-21 DL-50 DR-660 GR-09 JX-1,12VClass 2 Power Supply Cord Cable Charger Mains PSU12V AC Power Adapter for FL FL-41120830A FL41120830A,Roland BOSS BRA-120 BRA-240 BRA-230 BRA-220,CL-50 DS-330 EH-50 GE-21 DL-50 DR-660 GR-09 JX-1,12VClass 2 Power Supply Cord Cable Charger Mains PSU ($46.99)

Roland GKC-5 Midi Cabel for Roland GP-10 SY-1000 GR-1 GR-33 GR-55 VG-99 etcRoland GKC-5 Midi Cabel for Roland GP-10 SY-1000 GR-1 GR-33 GR-55 VG-99 etc ($39)

5 Roland Space Echo Tape Loops, Standard Length: 1 Meter Long, TL1m,  X-TRA' Pro Echo Loops Brand.5 Roland Space Echo Tape Loops, Standard Length: 1 Meter Long, TL1m, X-TRA' Pro Echo Loops Brand. ($27.97)

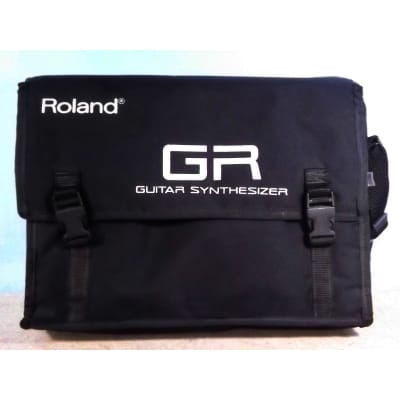

Gator Cases Padded Nylon Equipment Bag fits Roland GR-33 MX-1 SPD 20 VS-2000CDGator Cases Padded Nylon Equipment Bag fits Roland GR-33 MX-1 SPD 20 VS-2000CD ($89.99)
