Guitar SynthsRoland ⇝ Roland GM-70

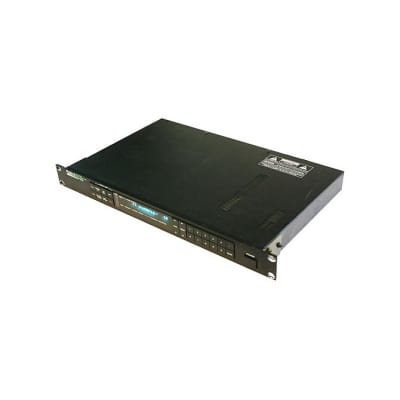

Roland GM-70 Front

Roland GM-70 Back

MIDI Connections: In, Out (No Thru)

The GM-70 is a mid-1980's guitar synthesizer that uses the older GK-1 divided pickup with a 24-pin connector. It is known for its ability to control a wide array of MIDI parameters and despite the fact that it is one of the slowest MIDI converters ever produced (with a 40 millisecond response time being typical), it is sought after for its control options.

The GM-70 does not have any built-in sounds of its own and must be connected to a MIDI synthesizer or sound module.

It has a built-in tuner, supports monophonic or polyphonic modes, and has connections for a FC-100 foot controller, EV-5 expression pedal, and DP-2 pedal switch.

Specifications

Year Released: 1986

User Patches: 128

Power Consumption: 22 watts

Weight: 4 kg

Dimensions: 482 mm x 276 mm x 44 mm

Rating


Not Yet Rated (click a star to rate)

File Downloads

Roland GM-70 Manual

Roland GM-70 Service Notes

Items for Sale on Reverb

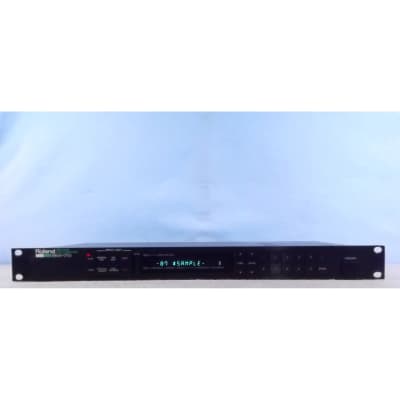

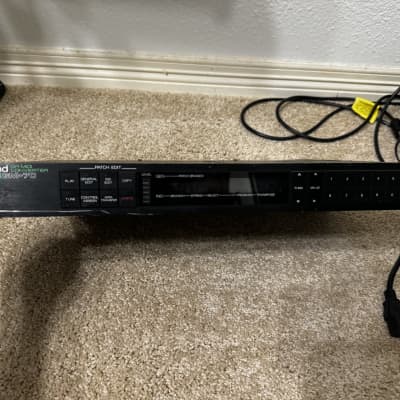

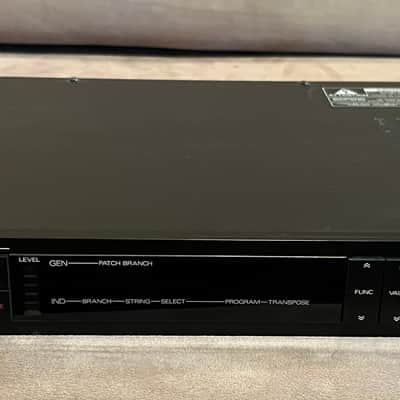

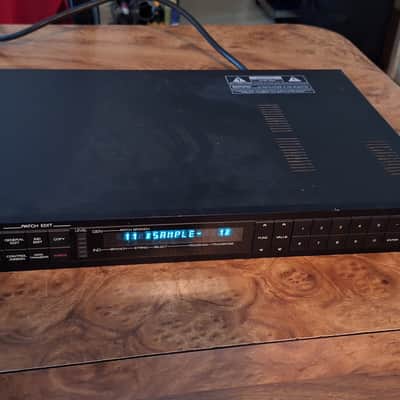

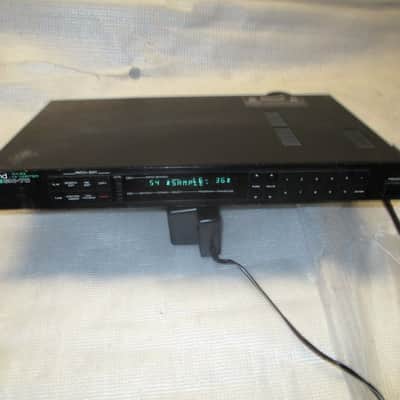

Roland GM-70 - 24 pin guitar to MIDI converter for Roland GK-1 style pickups - Fast & AccurateRoland GM-70 - 24 pin guitar to MIDI converter for Roland GK-1 style pickups - Fast & Accurate ($100)

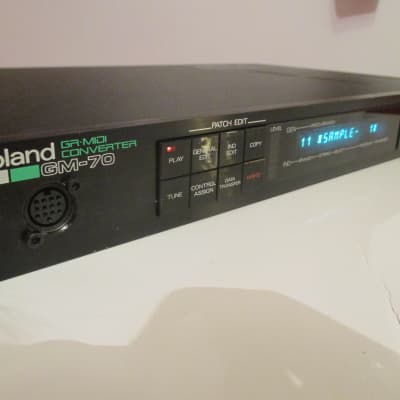

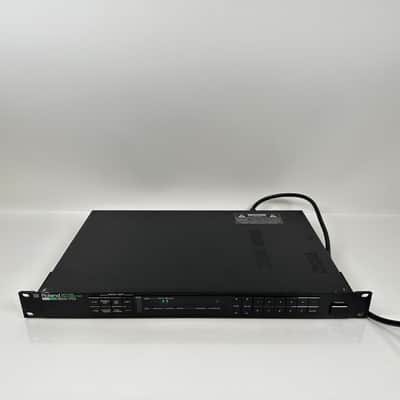

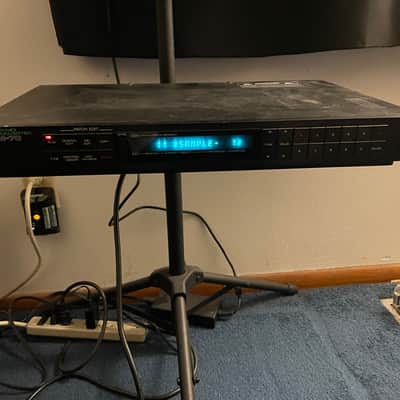

Roland GM-70 guitarsynth MIDI CONVERTER MODULE (110 volt, comes from the USA) 19” rack / synthguitarRoland GM-70 guitarsynth MIDI CONVERTER MODULE (110 volt, comes from the USA) 19” rack / synthguitar ($232.87)

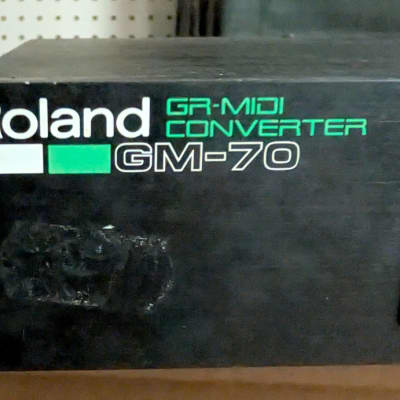

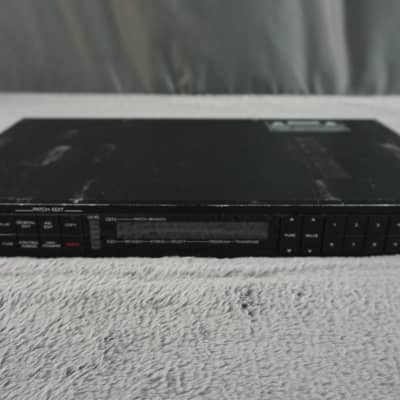

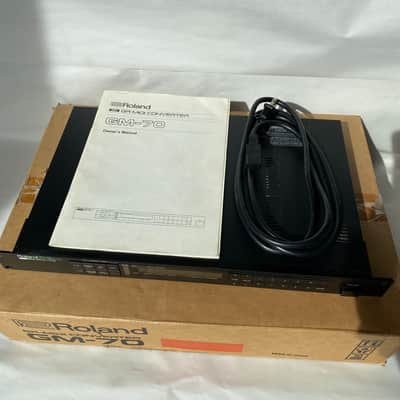

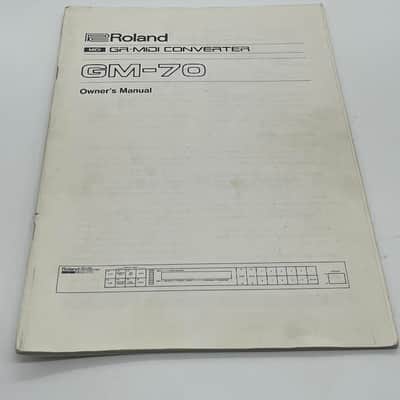

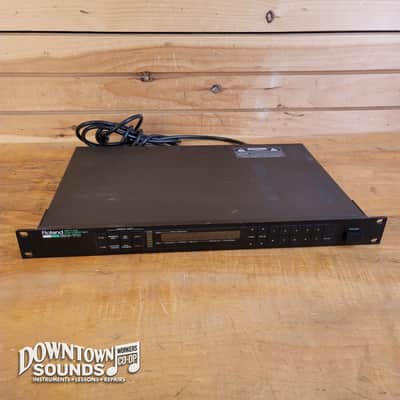

Roland GM-70 GR-MIDI Converter NOS MintRoland GM-70 GR-MIDI Converter NOS Mint ($125)

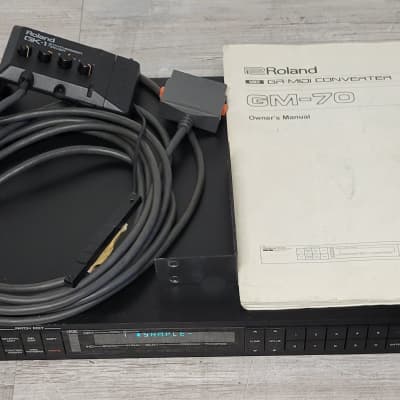

Roland GM-70 guitar synth MIDI & Pickup & Cable, complete setRoland GM-70 guitar synth MIDI & Pickup & Cable, complete set ($686.97)

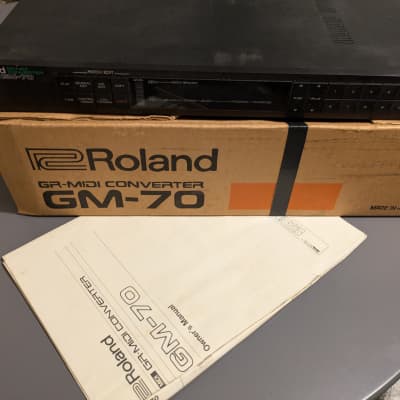

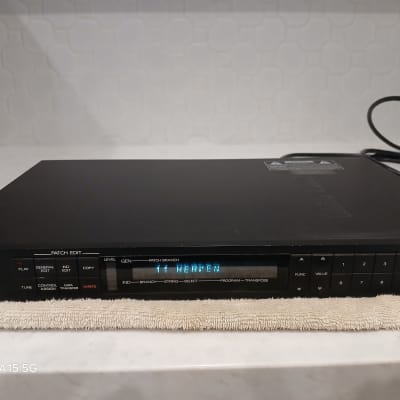

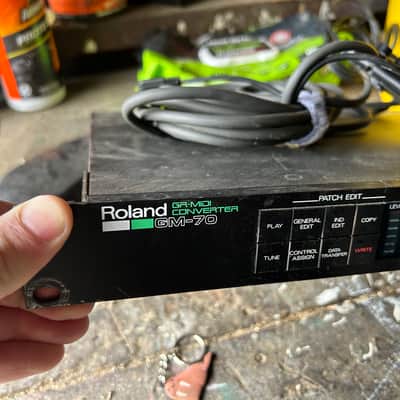

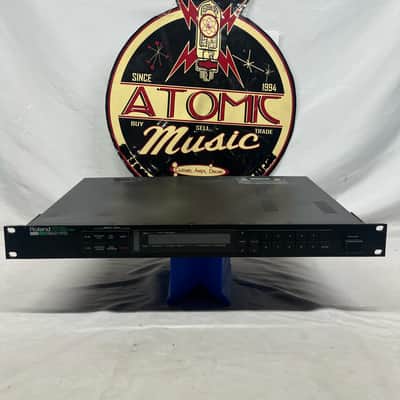

Roland  GM-70 GR-Midi ConverterRoland GM-70 GR-Midi Converter ($125)

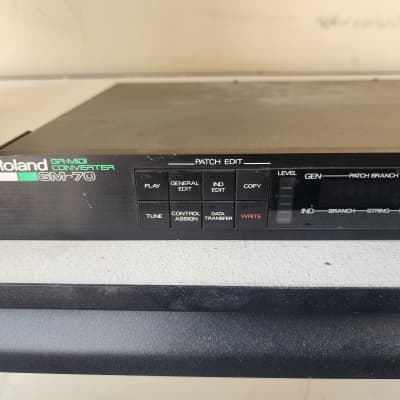

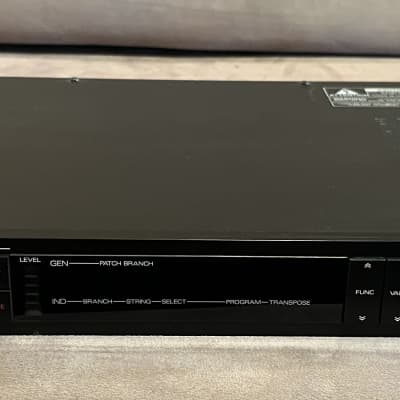

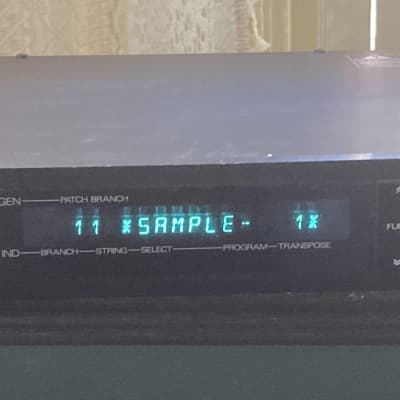

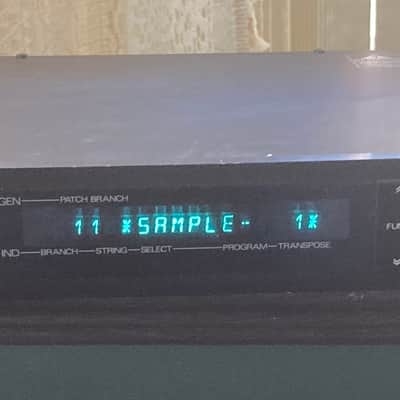

Roland GM-70 80'sRoland GM-70 80's ($75)

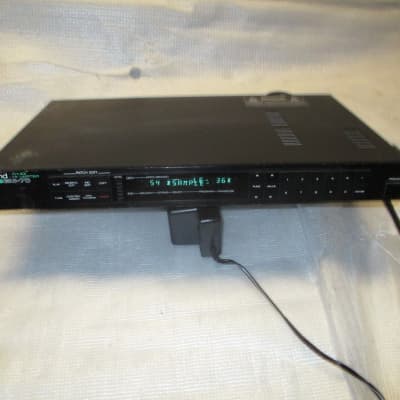

Roland  GM-70 GR MIDI Converter Pitch to MID Converter 1980s BlackRoland GM-70 GR MIDI Converter Pitch to MID Converter 1980s Black ($410)

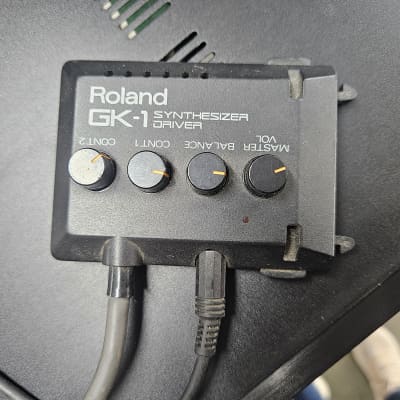

Roland GM-70 Guitar to MIDI converter with GK-1 Pickup GRRoland GM-70 Guitar to MIDI converter with GK-1 Pickup GR ($199)
