Guitar SynthsRoland ⇝ Roland GI-10

The Roland GI-10 is not technically a guitar synthesizer, but rather a guitar-to-MIDI converter with no tone generation capabilities of its own. It uses a 13-pin cable to interface with a guitar pickup such as the GK-2A and has the same tracking speed as the Roland GR-1, GR-09, GR-50, and GM-70.

The GI-10 has the ability to "thin" pitch bend data and reduce the number of MIDI messages transmitted in order to prevent overloading a connected device. It also has an attack noise filter that helps with filtering out "ghost notes" caused by attack transients.

It includes a built-in tuner and has inputs for a hold switch and an expression pedal. Configuration is done via plus and minus buttons that select parameters and change their values.

There is also a microphone input for monophonic pitch-to-MIDI conversion. The quality of conversion depends heavily on the source. It doesn't do as well with vocals as it does with instruments.

Specifications

Year Released: 1995

Screen: 3-character 8-segment LED display

Power Consumption: 9V, 260 mA

Weight: 1.3 kg

Dimensions: 217 mm x 235 mm x 45 mm

User Demo Videos

Rating


Not Yet Rated (click a star to rate)

File Downloads

Roland GI-10 Manual

Items for Sale on Reverb

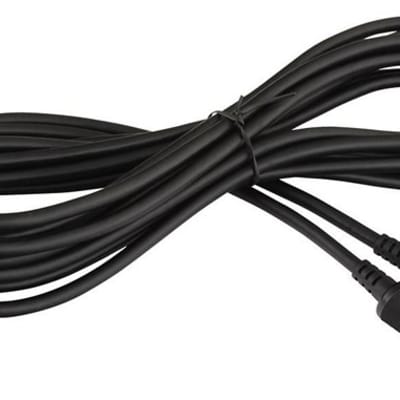

Roland Gi 10 Guitar Synth Gk Cable 13 Pin Din 30 Ft 10 M Meter Replacement Gkc10Roland Gi 10 Guitar Synth Gk Cable 13 Pin Din 30 Ft 10 M Meter Replacement Gkc10 ($105.39)

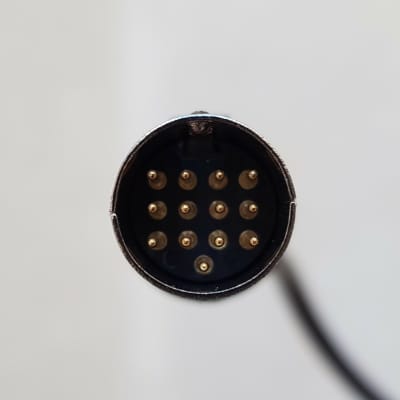

Roland Gi 10 Synth Gk Cable 13 Pin Din Midi 6 Ft 2 M (2 Meter Gkc5 Version)Roland Gi 10 Synth Gk Cable 13 Pin Din Midi 6 Ft 2 M (2 Meter Gkc5 Version) ($18.63)

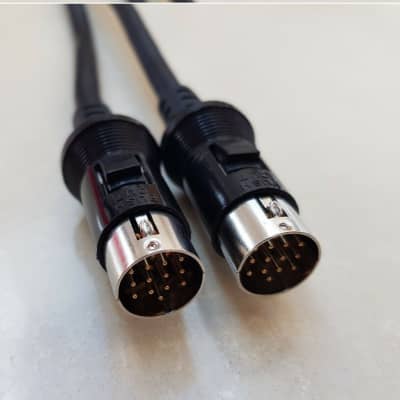

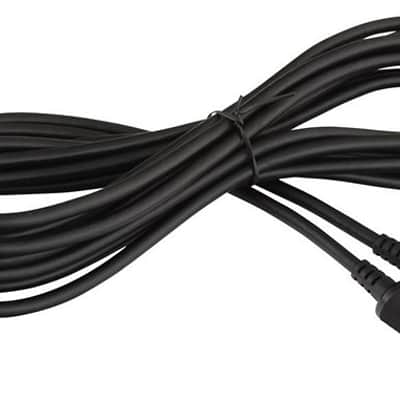

Roland Gi 10 Synth Gk Cable 13 Pin Din 15 Ft 5 M Meter Replacement Gkc5Roland Gi 10 Synth Gk Cable 13 Pin Din 15 Ft 5 M Meter Replacement Gkc5 ($21.92)

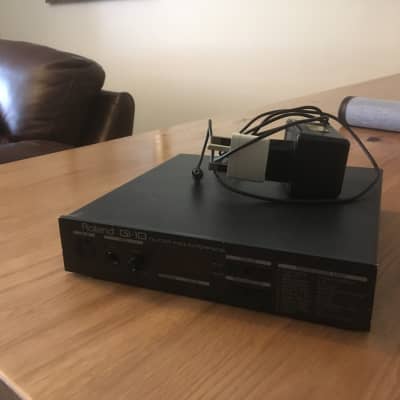

Roland GI-10Roland GI-10 ($74.99)

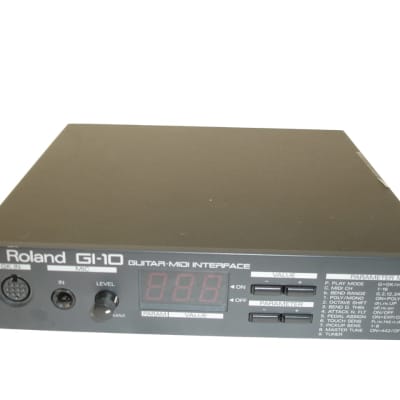

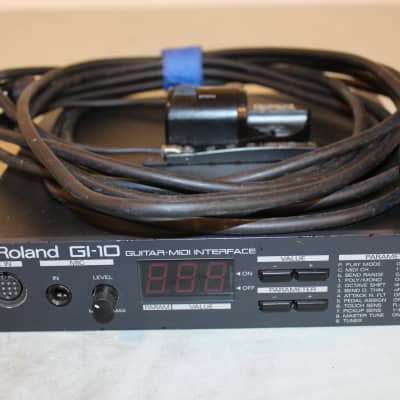

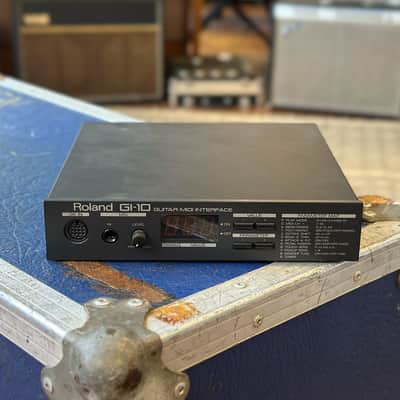

Roland GI-10 Guitar-Midi InterfaceRoland GI-10 Guitar-Midi Interface ($184.55)

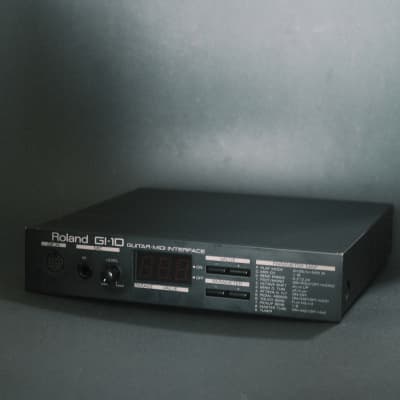

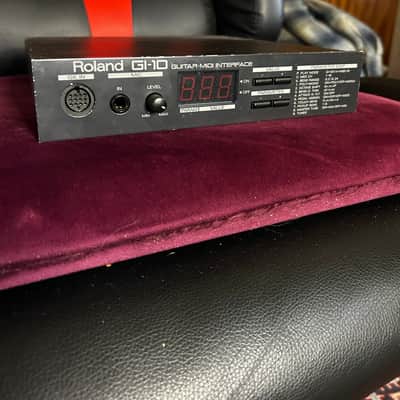

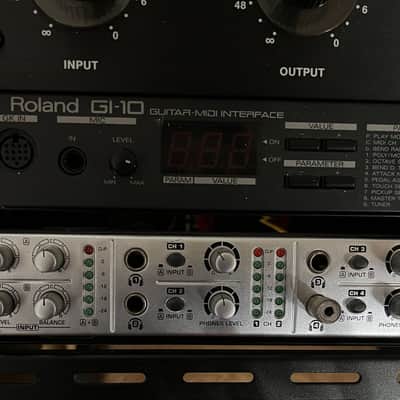

Roland GI-10 Guitar-MIDI-Interface 1995 BlackRoland GI-10 Guitar-MIDI-Interface 1995 Black ($205)

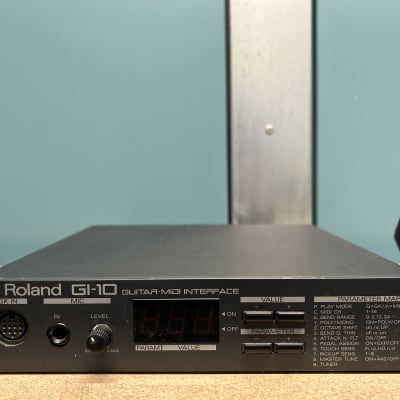

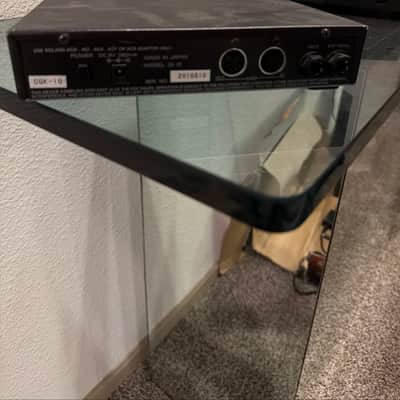

Roland GI-10Roland GI-10 ($174)

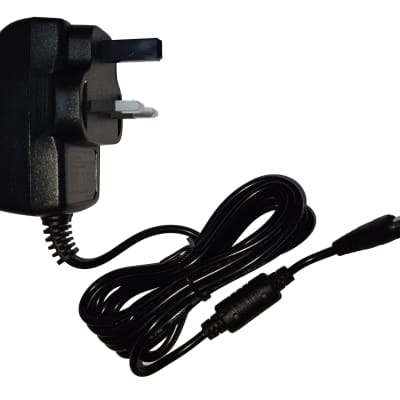

Power Supply Replacement for Roland Gi-10 Gi-20 Adapter 9VPower Supply Replacement for Roland Gi-10 Gi-20 Adapter 9V ($14.28)

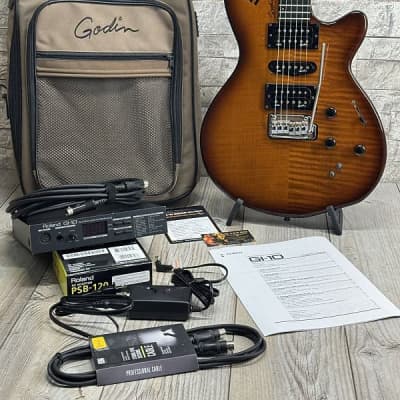

ONE OF A KIND: Roland G707 w/ installed Roland GK MIDI Pickup, MIDI Cable, Roland GI-10 w/ PSUONE OF A KIND: Roland G707 w/ installed Roland GK MIDI Pickup, MIDI Cable, Roland GI-10 w/ PSU ($1,300)

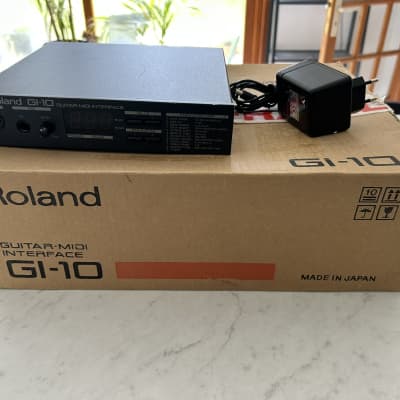

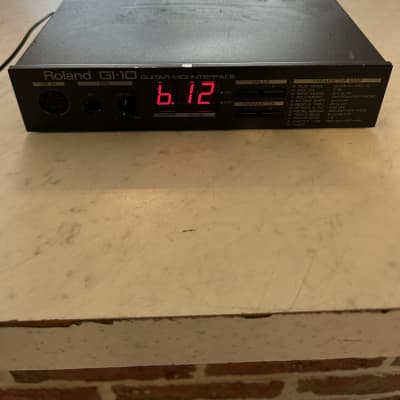

Roland GI 10Roland GI 10 ($203.03)
