Guitar SynthsRoland ⇝ Roland GI-10

The Roland GI-10 is not technically a guitar synthesizer, but rather a guitar-to-MIDI converter with no tone generation capabilities of its own. It uses a 13-pin cable to interface with a guitar pickup such as the GK-2A and has the same tracking speed as the Roland GR-1, GR-09, GR-50, and GM-70.

The GI-10 has the ability to "thin" pitch bend data and reduce the number of MIDI messages transmitted in order to prevent overloading a connected device. It also has an attack noise filter that helps with filtering out "ghost notes" caused by attack transients.

It includes a built-in tuner and has inputs for a hold switch and an expression pedal. Configuration is done via plus and minus buttons that select parameters and change their values.

There is also a microphone input for monophonic pitch-to-MIDI conversion. The quality of conversion depends heavily on the source. It doesn't do as well with vocals as it does with instruments.

Specifications

Year Released: 1995

Screen: 3-character 8-segment LED display

Power Consumption: 9V, 260 mA

Weight: 1.3 kg

Dimensions: 217 mm x 235 mm x 45 mm

User Demo Videos

Rating


Not Yet Rated (click a star to rate)

File Downloads

Roland GI-10 Manual

Items for Sale on Reverb

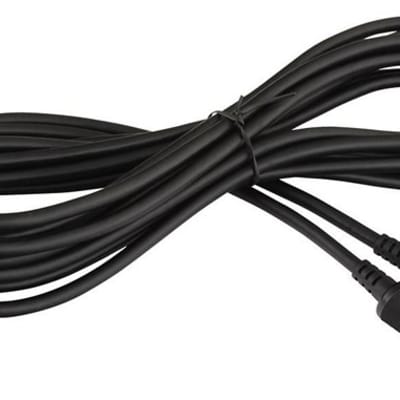

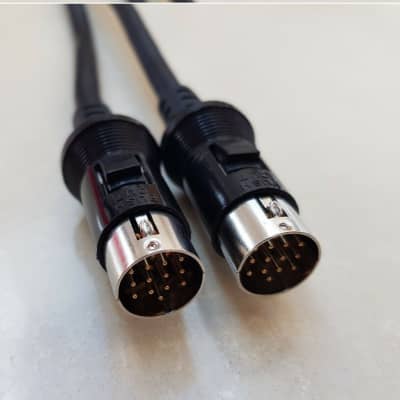

Roland Gi 10 Guitar Synth Gk Cable 13 Pin Din 30 Ft 10 M Meter Replacement Gkc10Roland Gi 10 Guitar Synth Gk Cable 13 Pin Din 30 Ft 10 M Meter Replacement Gkc10 ($43.62)

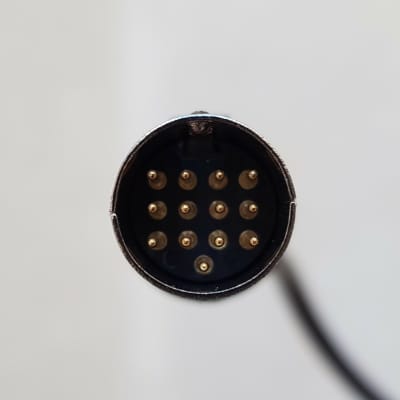

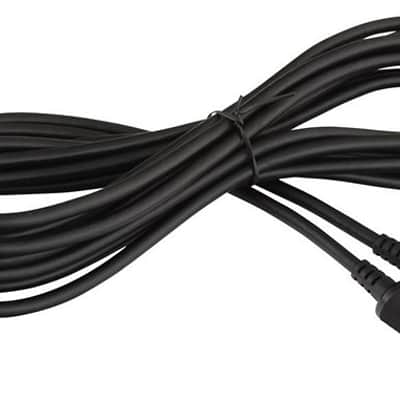

Roland Gi 10 Synth Gk Cable 13 Pin Din 15 Ft 5 M Meter Replacement Gkc5Roland Gi 10 Synth Gk Cable 13 Pin Din 15 Ft 5 M Meter Replacement Gkc5 ($21.79)

Roland Gi 10 Synth Gk Cable 13 Pin Din Midi 6 Ft 2 M (2 Meter Gkc5 Version)Roland Gi 10 Synth Gk Cable 13 Pin Din Midi 6 Ft 2 M (2 Meter Gkc5 Version) ($18.51)

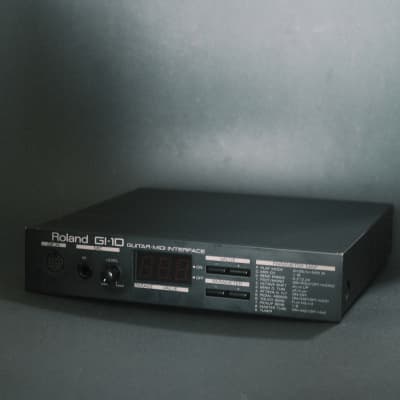

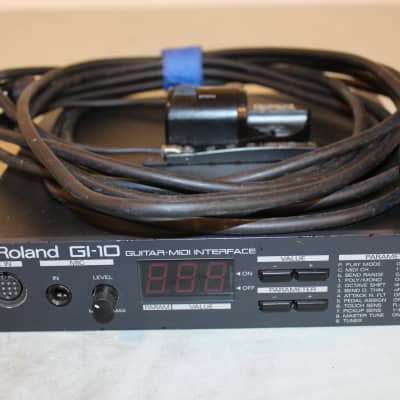

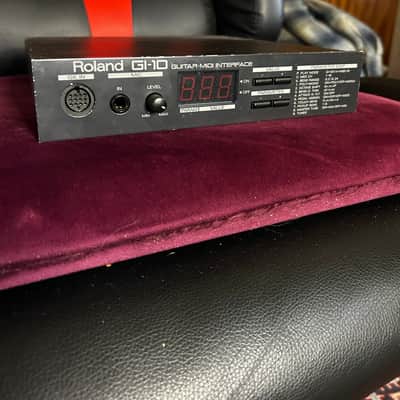

Roland GI-10 Guitar MIDI Interface for Roland GK Pickups - Take your Guitar playing to a new Sonic DimensionRoland GI-10 Guitar MIDI Interface for Roland GK Pickups - Take your Guitar playing to a new Sonic Dimension ($179.99)

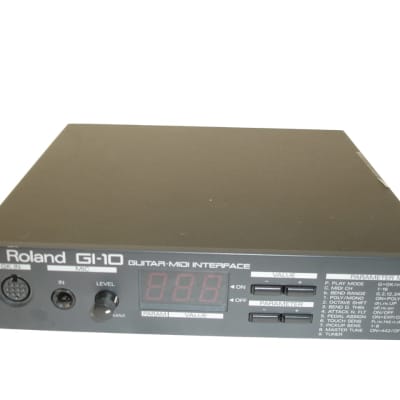

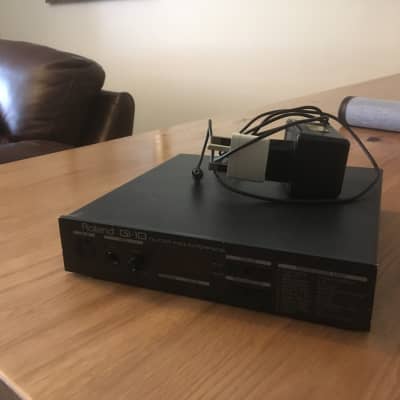

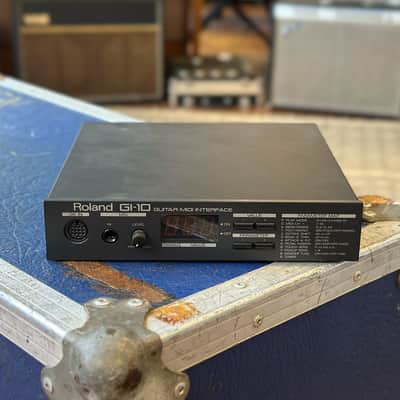

Roland GI-10 Guitar-Midi InterfaceRoland GI-10 Guitar-Midi Interface ($183.44)

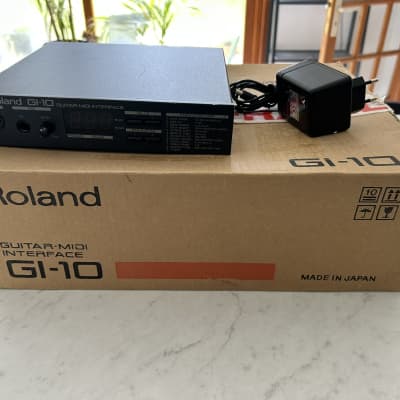

Roland GI-10 2000s - BlackRoland GI-10 2000s - Black ($165)

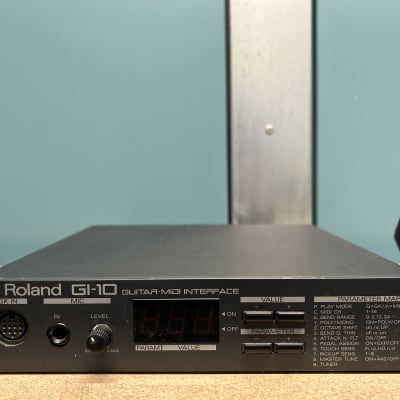

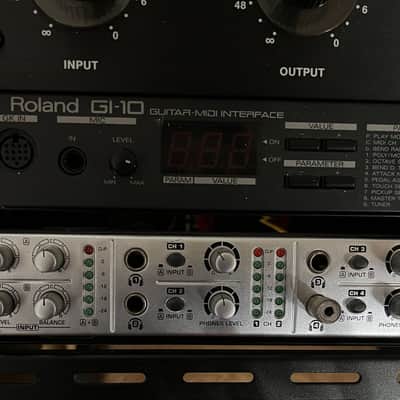

Roland GI-10 Guitar-MIDI-Interface 1995 BlackRoland GI-10 Guitar-MIDI-Interface 1995 Black ($205)

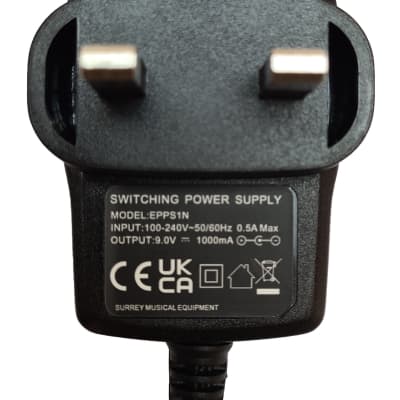

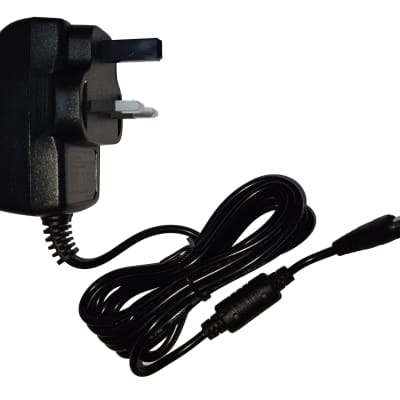

Power Supply Replacement for Roland Gi-10 Gi-20 Adapter 9VPower Supply Replacement for Roland Gi-10 Gi-20 Adapter 9V ($10.90)

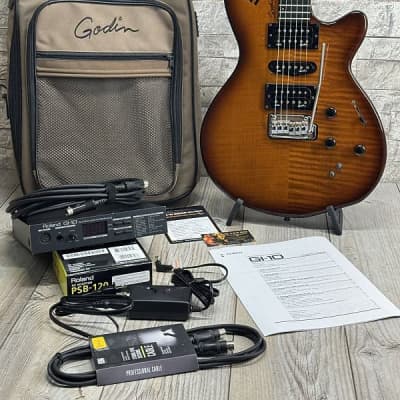

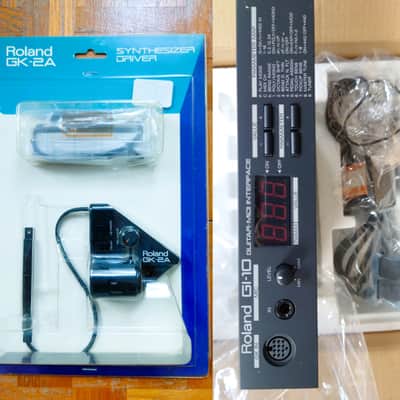

Roland Gi-10 & GK2a 1990's -2000's  - BlackRoland Gi-10 & GK2a 1990's -2000's - Black ($270.29)

Roland GI-10 Guitar MIDI Interface for Roland GK Pickups - Take your Guitar playing to a new Sonic DimensionRoland GI-10 Guitar MIDI Interface for Roland GK Pickups - Take your Guitar playing to a new Sonic Dimension ($179.99)

Roland Gi 20 Guitar Synth Gk Cable 13 Pin Din 30 Ft 10 M Meter Replacement Gkc10Roland Gi 20 Guitar Synth Gk Cable 13 Pin Din 30 Ft 10 M Meter Replacement Gkc10 ($43.62)

Roland Gi 20 Synth Gk Cable 13 Pin Din 15 Ft 5 M Meter Replacement Gkc5Roland Gi 20 Synth Gk Cable 13 Pin Din 15 Ft 5 M Meter Replacement Gkc5 ($21.79)

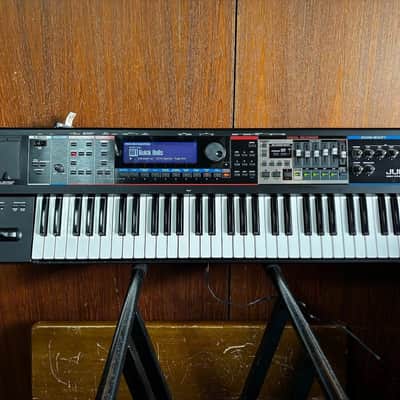

Power Supply Replacement for Roland Juno-Gi Adapter Uk 9VPower Supply Replacement for Roland Juno-Gi Adapter Uk 9V ($10.90)
