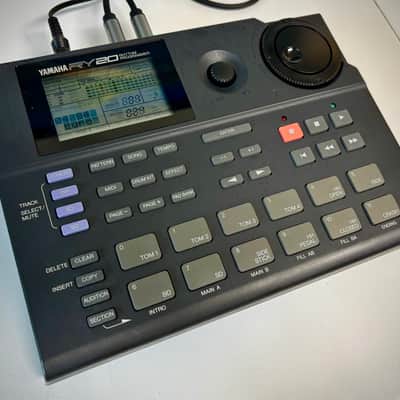

Drum Machines ⇝ Yamaha ⇝ Yamaha RY20

Although released a few years after the Yamaha RY30, the RY20 is considered a notch below it because the RY30 is more programmable. However, the RY20 has more than three times as many sounds in ROM.

It uses a 3v lithium battery for its internal memory. The battery is soldered to the circuit board and a common modification is to replace the battery with a standard CR2032 battery holder when replacing it.

Specifications

Year Released: 1994

Number of Pads: 12

Polyphony: 28 notes

Preset Patterns: 50

User Patterns: 50

User Songs: 50

Preset Drumkits: 20

User Drumkits: 20

Tempo Range: 40 - 250 BPM

ROM Size: 300 waveforms

Effects: reverb and delay

Weight: 0.7 kg without batteries

Dimensions: 240 mm x 176 mm x 48 mm

User Demo Videos

Rating

File Downloads

Yamaha RY20 Manual

Items for Sale on Reverb

Yamaha RY20 ry 20 Rhythm Programmer Drum Machine ($99)

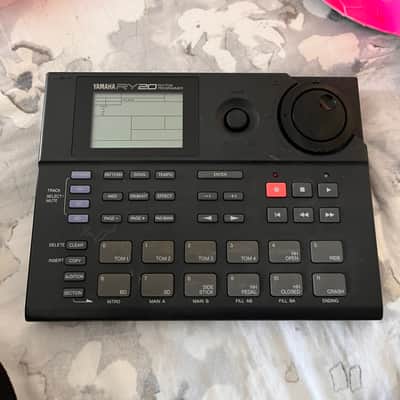

Yamaha RY20 - Grey Rhythm Programmer ($89)

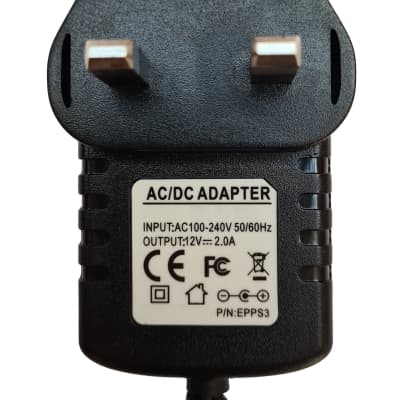

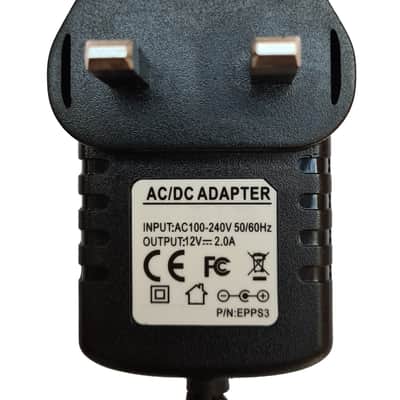

Power Supply Replacement for YAMAHA RY20 DIGITAL DRUM MACHINE ADAPTER 12V ($11.63)

Yamaha RY-20 ($89)

Yamaha - RX11, RX21, RX5, RX120, RY10, RY20, RY30, RX15, RX17 , RX21L - Battery ($5.90)

Yamaha RX11, RX21, RX5, RX120, RY10, RY20, RY30, RX15, RX17, RX21L - Battery Replacement Fix ($9.32)

Yamaha - KX88 , KX76 , RX Series , DX Series, DX7, RY-10, RY-20, RY-30 , DX11 , TF1 - Battery ($6.98)

YAMAHA kx88 DX RX dx7 ry-10 ry-20 ry-30 dx11-Battery Replacement fix ($9.32)

Yamaha KX88 , KX76 , RX Series , DX Series, DX7, RY-10, RY-20, RY-30 , DX11 , TF1 Battery ($6.98)

Yamaha - KX88 , KX76 ,RX Series ,DX Series,DX7,RY-10,RY-20,RY-30 , DX11 , TF1 - Battery ($5.90)

8 Feet Cable Adapter Power Supply Charger Compatible With Yamaha Digital Drum Bank Mac Hine Dd-55 Dd-55C Dd-6 Dd-65 Dd-7 Dd-8 Dd-9 Ry20 Ry8 Ry9 Ydd-60 ($50.59)

Yamaha Power Supply for RX5, RY20, S08, YPG-635, YPP-100 ($49.99)

Power Supply Adapter for Yamaha RM1X, RX5, RY20, S08, YDP-131, YDP-140, YDP-141 ($29.99)

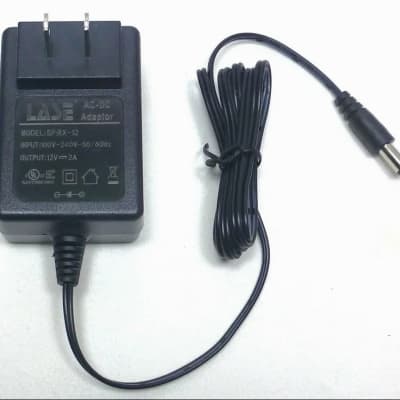

LASE Compatible Power Supply for YAMAHA RX-5, RX-7,DD3/5/6, RY20/21/21L,10,20, DX27, DX100 . ($19.99)
