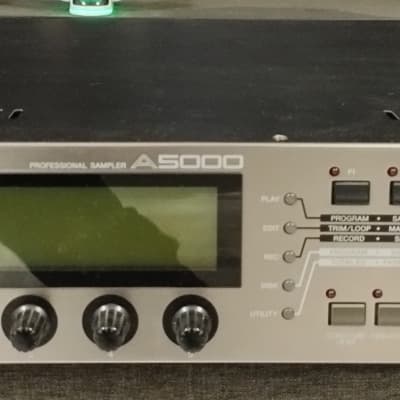

SamplersYamaha ⇝ Yamaha A5000

The A5000 was for sale at the same time as the Yamaha A4000 and was the higher-end option of the two with higher polyphony and more effects processors.

Its memory can be upgraded using standard 72-pin SIMM modules in matched pairs of 4, 8, 16, or 32MB each. The modules should have an access time of 70 nanoseconds or less.

It also supports installing an internal 3.5 inch 40-pin IDE or 50-pin SCSI hard drive. Seagate drives are the best-supported with models ST34311A (4.3 GB), ST36421A (6.4 GB), and ST38421A (8.4 GB) supported. Some Quantum Fireball and Western Digital drives also work. Installing an internal Zip drive is also supported.

Specifications

Year Released: 2000

Standard Sample Memory: 4 MB

Max Sample Memory: 128 MB

Bit Depth: 16-bit

Max Sample Rate: 44.1 kHz

Min Sample Rate: 5.5125 kHz

Polyphony: 126 notes

Multitimbral: 32 parts

User Patches: 128

Effects: 6 effects blocks with 96 different effects

Screen: 320 x 80 pixel backlit LCD

Dimensions: 480 mm x 461 mm x 90 mm

Weight: 8.0 kg

This is a 2-space rack unit.

Rating


Not Yet Rated (click a star to rate)

File Downloads

Yamaha A4000 and A5000 Manual

Items for Sale on Reverb

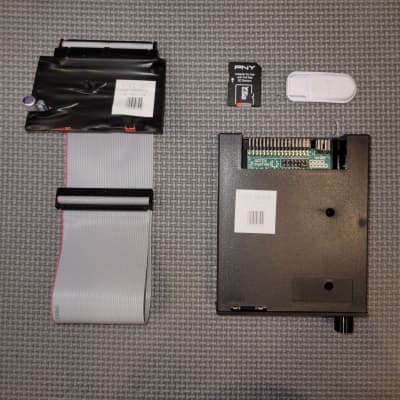

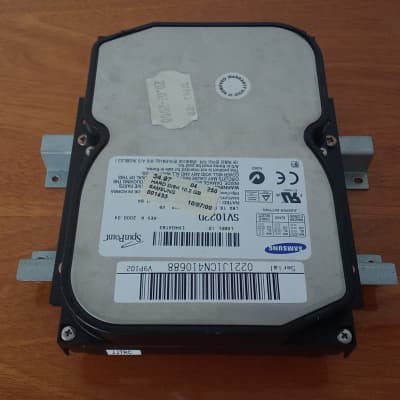

Yamaha A4000 / A5000 Hard Drive Kit With Caddy And Screws 8gbYamaha A4000 / A5000 Hard Drive Kit With Caddy And Screws 8gb ($30)

Yamaha Ram memory 2 x 16 Mo for A3000 A4000 A5000 SU700Yamaha Ram memory 2 x 16 Mo for A3000 A4000 A5000 SU700 ($23.15)

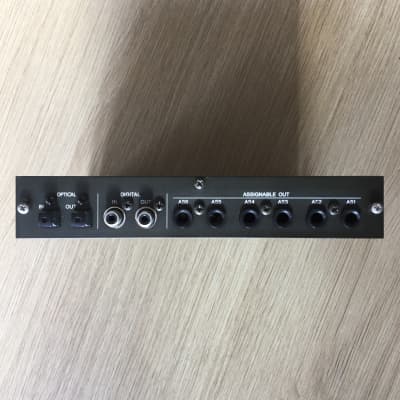

Yamaha AEIB-1 separates output for A3000 A4000 A5000 SU700Yamaha AEIB-1 separates output for A3000 A4000 A5000 SU700 ($169.39)
