Samplers ⇝ Roland ⇝ Roland S-760

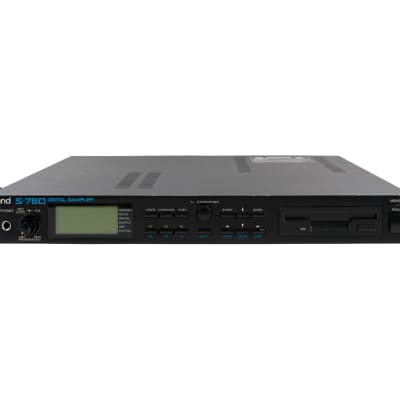

Roland S-760 Front

Roland S-760 Back

Although the S-760 is a 16-bit sampler, it uses 24-bit internal processing and has high-quality D/A converters. It is known for its good filters and powerful equalizer capabilities, although it lacks additional effects.

Memory: 2MB standard, 32MB max using Macintosh SIMMs

Connections: 25-pin SCSI, MIDI In, MIDI Out/Thru, 1x 1/4-inch Input Stereo Pair, 2x 1/4-inch Output Stereo Pair

Sampling Rates: Minimum 22.5kHz 16-bit, Maximum 48kHz 16-bit

Sample Compatibility: Reads Akai S-1000 and S-1100 format.

The sdisk utility is needed to copy the S-760 firmware to a floppy disk. Instructions are included in the zip file.

Specifications

Year Released: 1993

Polyphony: 24 notes

Multitimbral: 24 parts

Dimensions: 482 mm x 362.3mm x 44.8mm

Weight: 4.2 kg

This is a 1-space rack unit.

User Demo Videos

Rating


4.8
(4 votes)

File Downloads

Roland S-760 Manual

Roland Sampler Firmware Sdisk Utility

Roland S-760 Firmware Version 2.24

Roland S-760 Service Notes

Items for Sale on Reverb

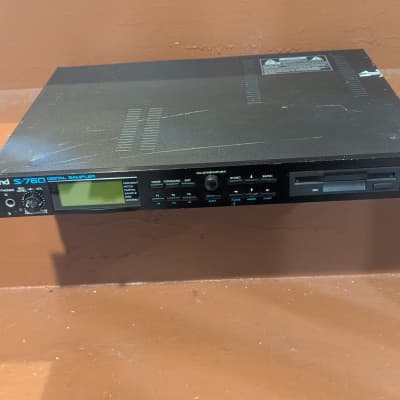

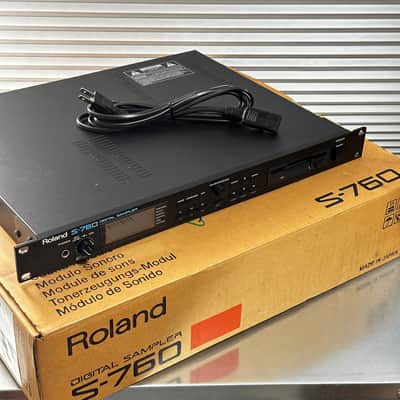

Roland S-760 Digital Sampler with OP-760-1 Expansion boardRoland S-760 Digital Sampler with OP-760-1 Expansion board ($575)

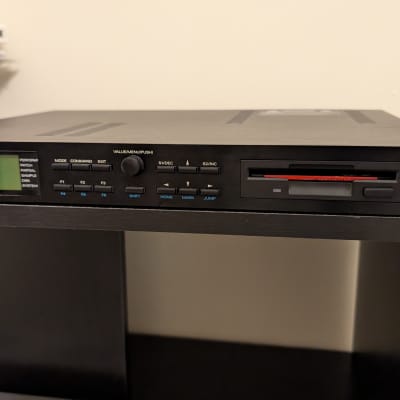

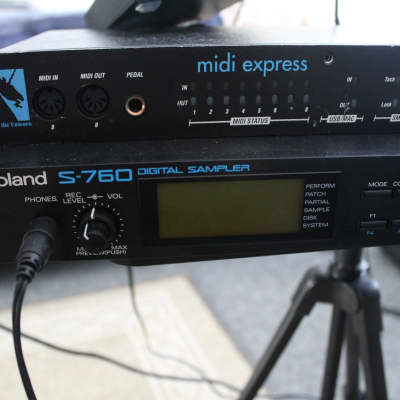

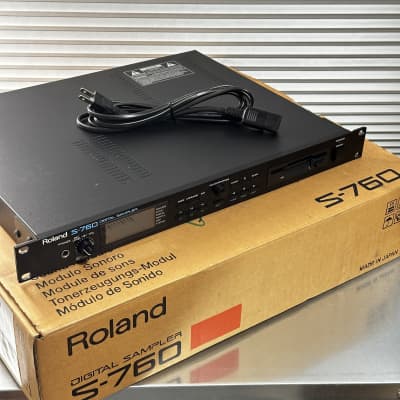

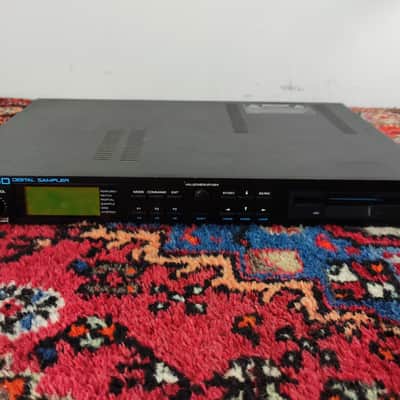

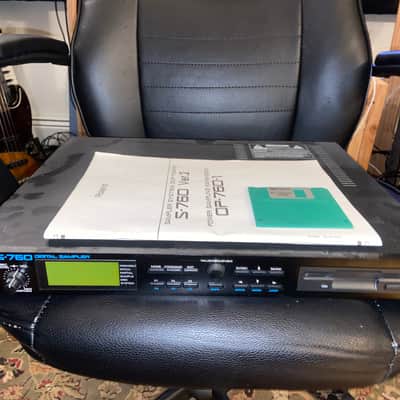

Roland S-760 Digital Sampler 1994 - 1998 - BlackRoland S-760 Digital Sampler 1994 - 1998 - Black ($114.75)

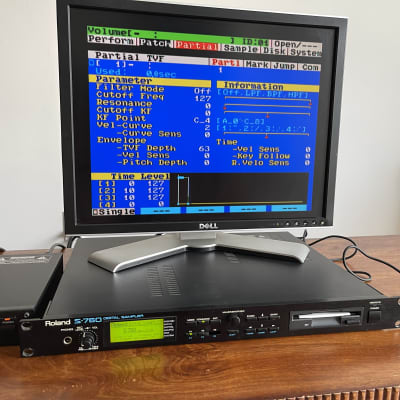

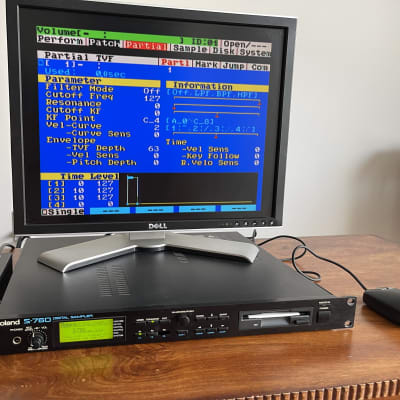

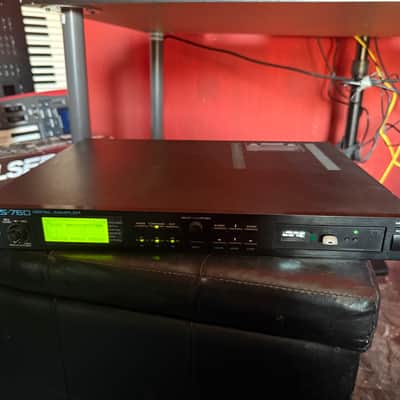

Roland S-760 with SCSI2SD & SD Sample Cards (Local Pickup)Roland S-760 with SCSI2SD & SD Sample Cards (Local Pickup) ($600)

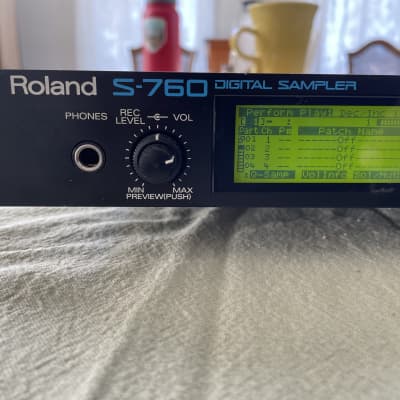

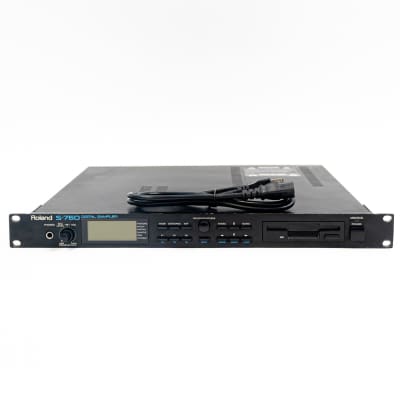

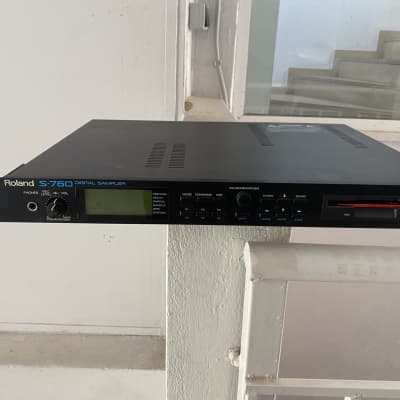

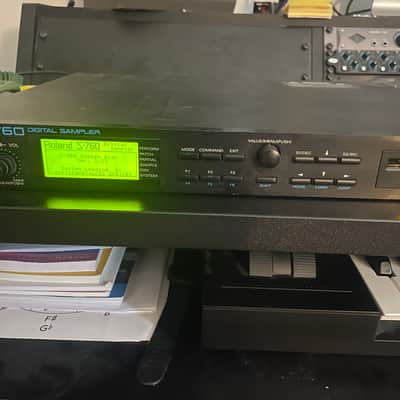

Roland S-760 Digital Sampler 1994 - 1998 - BlackRoland S-760 Digital Sampler 1994 - 1998 - Black ($450)

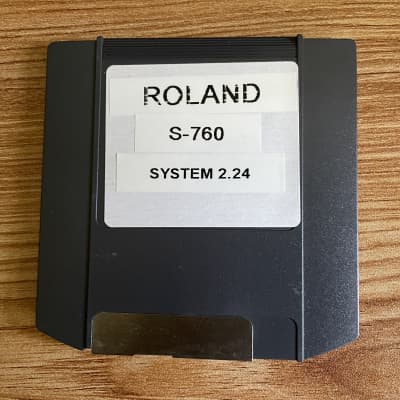

Roland S-760 Early 90s - Roland S760 Boot ZiP DiskRoland S-760 Early 90s - Roland S760 Boot ZiP Disk ($8.50)

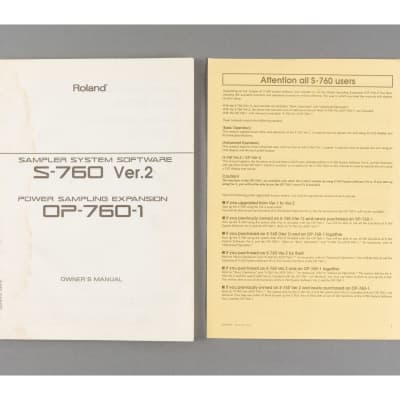

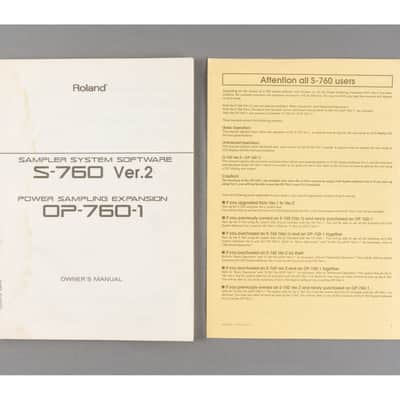

Roland S-760 Ver 2 Owner's Manual [USED]Roland S-760 Ver 2 Owner's Manual [USED] ($9.99)

Roland S-760 Ver 2 Owner's Manual [USED]Roland S-760 Ver 2 Owner's Manual [USED] ($9.99)

Roland S-760 Ver 2 Owner's Manual [USED]Roland S-760 Ver 2 Owner's Manual [USED] ($9.99)

Roland S-760 Ver 2 Owner's Manual [USED]Roland S-760 Ver 2 Owner's Manual [USED] ($9.99)

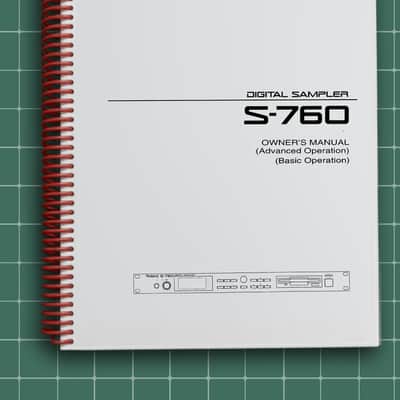

Roland S-760 Digital Sampler Owner's Manual 1993Roland S-760 Digital Sampler Owner's Manual 1993 ($19.95)

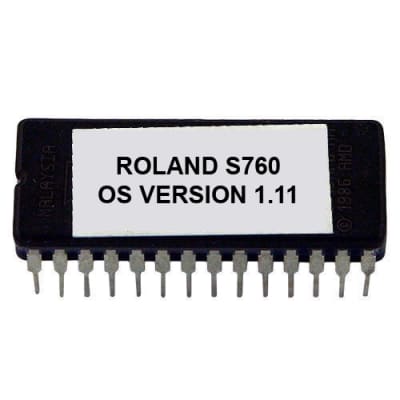

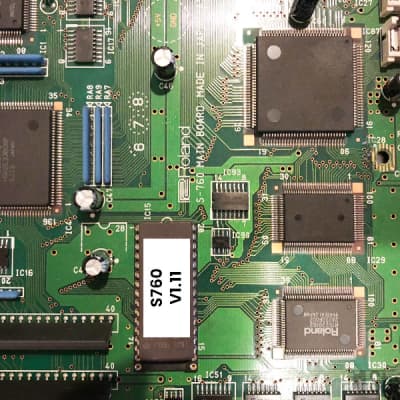

Roland S-760 V1.11 Firmware EPROM! NEW!Roland S-760 V1.11 Firmware EPROM! NEW! ($18.99)

Roland S760 OS v1.11 EPROM Firmware Upgrade KIT / Brand New ROM Final Update Chip S-760Roland S760 OS v1.11 EPROM Firmware Upgrade KIT / Brand New ROM Final Update Chip S-760 ($19.95)

Roland S-760 Digital Sampler Non-Original Documentation (Owner's Manual + MIDI Impl.)Roland S-760 Digital Sampler Non-Original Documentation (Owner's Manual + MIDI Impl.) ($19.95)

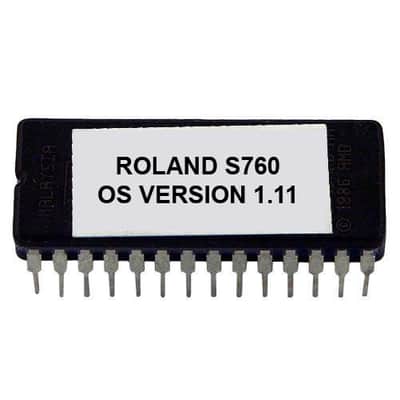

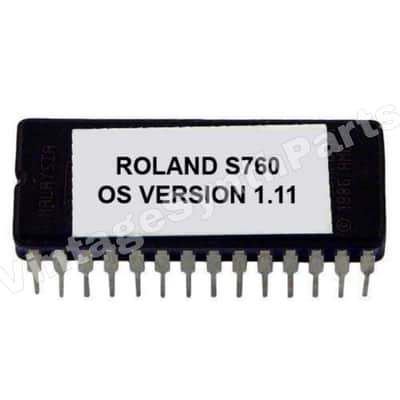

Roland S-760 Version 1.11 firmware Latest OS update upgrade EPROM S760 SamplerRoland S-760 Version 1.11 firmware Latest OS update upgrade EPROM S760 Sampler ($17.15)

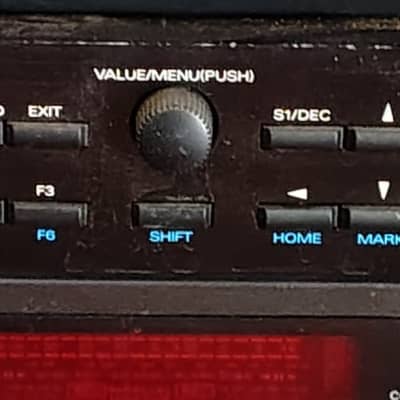

ROLAND S-760 s760 sampler LED screen display REPLACEMENT LOW price for next few days!!!ROLAND S-760 s760 sampler LED screen display REPLACEMENT LOW price for next few days!!! ($176.07)

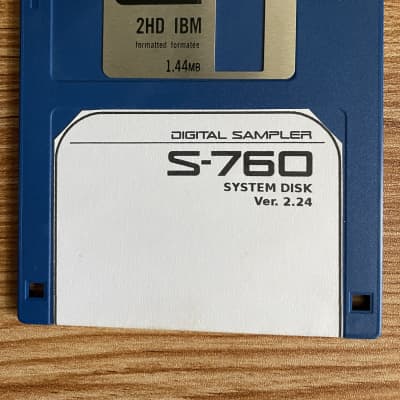

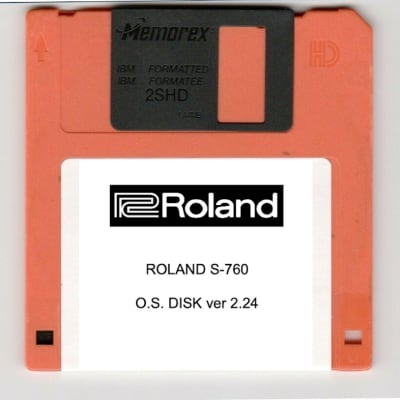

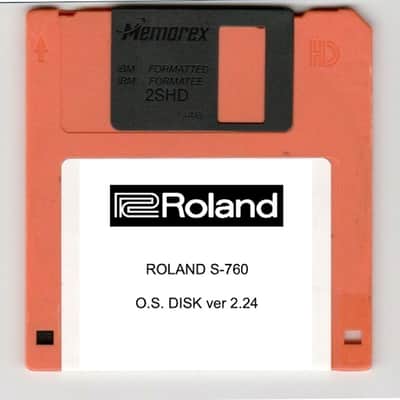

system disk (Floppy) Version 2.24system disk (Floppy) Version 2.24 ($5.99)
