SamplersAkai ⇝ Akai S5000

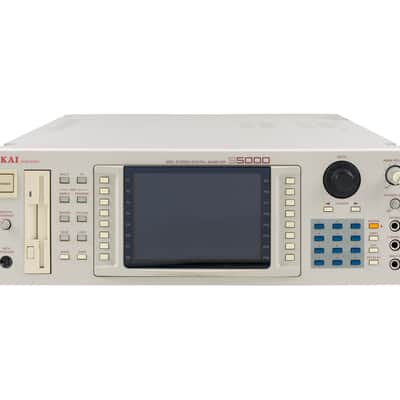

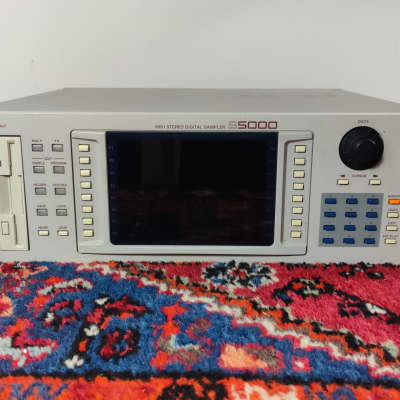

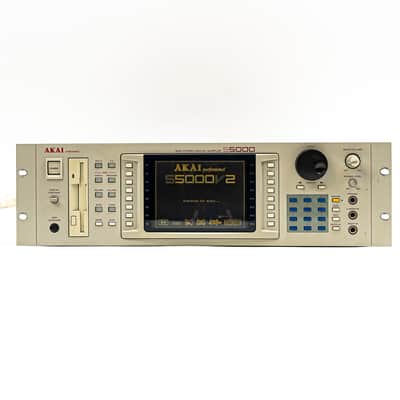

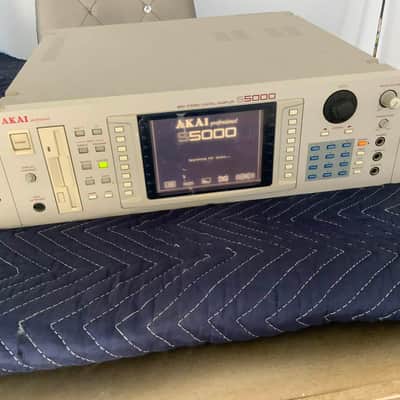

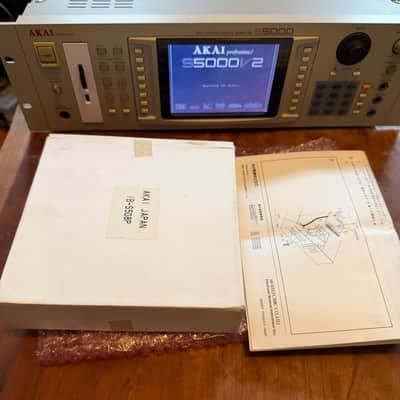

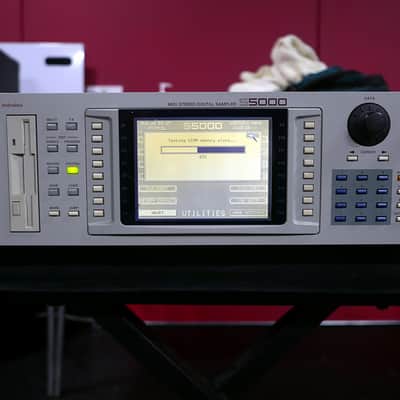

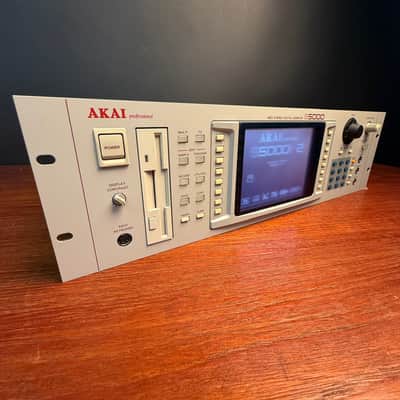

Akai S5000 Front

Akai S5000 Back

Akai S5000 Internal

Specifications

Year Released: 1998

Standard Sample Memory: 8 MB

Max Sample Memory: 256 MB (4x 72-pin SIMM slots, maximum 64 MB each)

Bit Depth: 16

Max Sample Rate: 48 kHz

Min Sample Rate: 44.1 kHz

Multitimbral: 32 parts

Effects: SampleVerbII (EB20) 20-bit 4-Channel Multi-effects processor

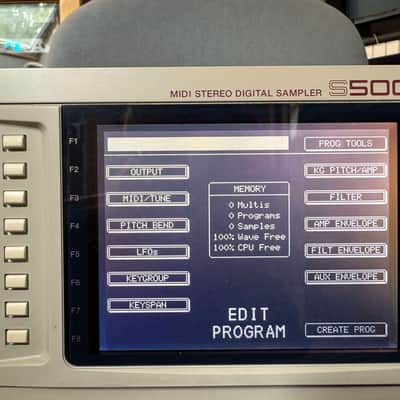

Screen: 320 x 240 pixel backlit LCD

Power Consumption: 28 watts

Dimensions: 483 mm x 410 mm x 133 mm

Weight: 8.9 kg

This is a 3-space rack unit.

Maximum Polyphony: 64 (Expandable to 128)

Filters: Resonant, 26 types

LFOs: 2, 9 different waveforms

Converters: 18-bit A-D converters with 64 times oversampling (5th Order Delta Sigma), D-A converters are 20-bit with 128 times oversampling (Delta Sigma) with 8x digital filter on all outputs.

Compatibility: Akai S1000 and S3000 Series

Connectors: 8x Audio Out, 2x Audio In, 2x MIDI out, 2x MIDI in, 2x 50-pin SCSI

User Demo Videos

Rating


5
(3 votes)

File Downloads

Akai S5000 and S6000 Manual

Items for Sale on Reverb

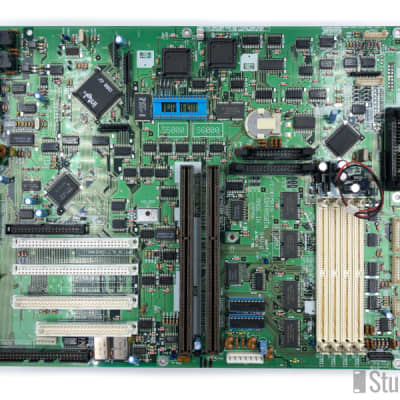

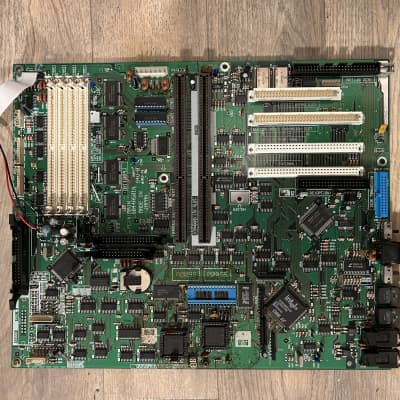

Akai S5000 MotherboardAkai S5000 Motherboard ($105.73)

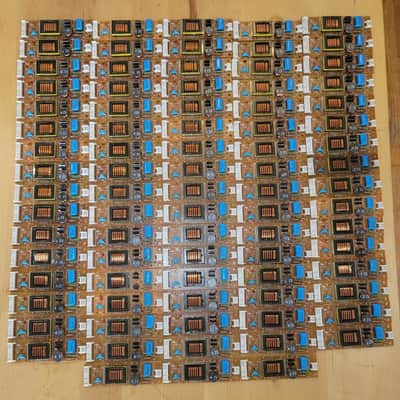

Akai Inverter for S5000 S6000 Z4 Z8 MPC2000 MPC2000XLAkai Inverter for S5000 S6000 Z4 Z8 MPC2000 MPC2000XL ($81.97)

Akai S5000 Sampler - 64Gb Sd, 192mb, ADAT, 32 OutputsAkai S5000 Sampler - 64Gb Sd, 192mb, ADAT, 32 Outputs ($790.02)

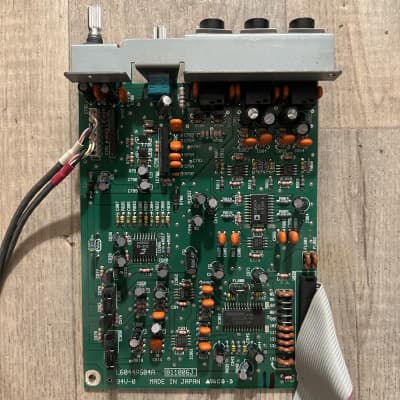

Akai S5000 Input BoardAkai S5000 Input Board ($59.40)

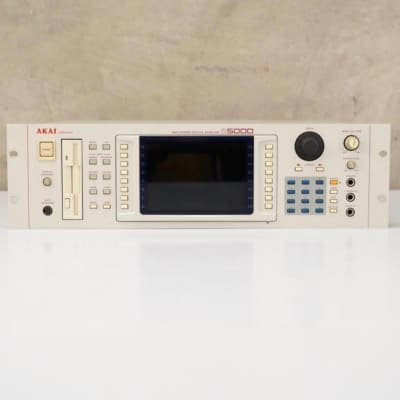

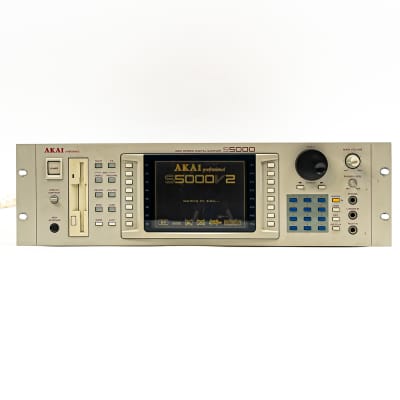

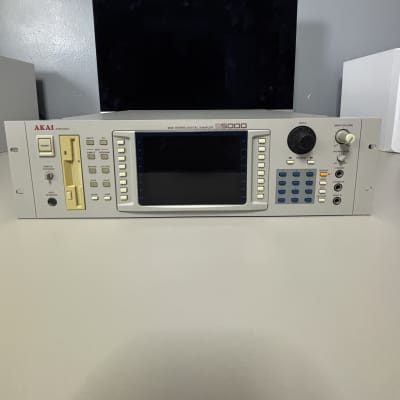

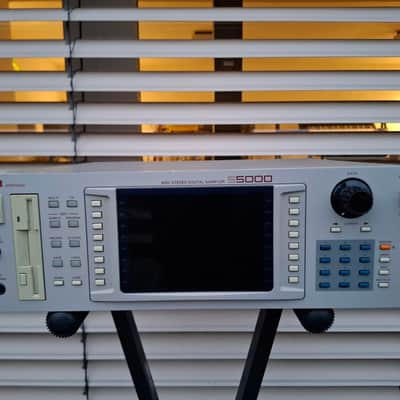

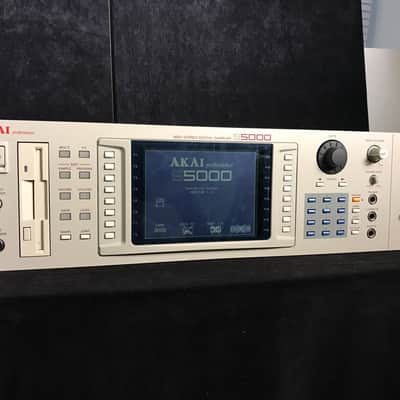

Akai S5000 MIDI Stereo Digital Sampler 1998 - WhiteAkai S5000 MIDI Stereo Digital Sampler 1998 - White ($652.22)

Akai S5000 MIDI Stereo Digital Sampler 1998 - WhiteAkai S5000 MIDI Stereo Digital Sampler 1998 - White ($544.78)

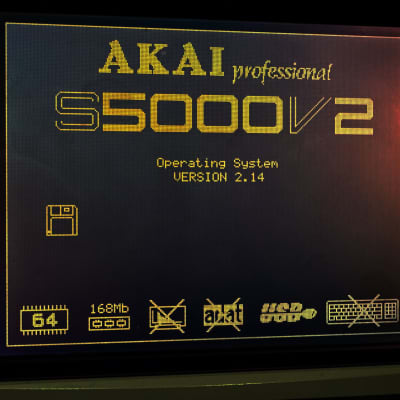

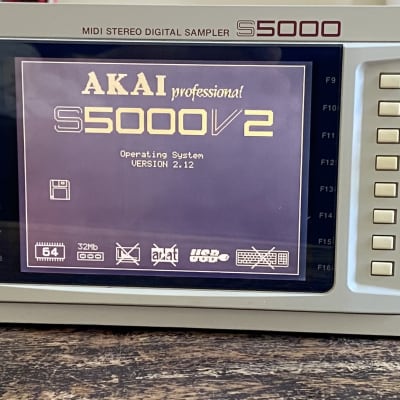

Akai S5000 v2 + FX EB20 + USB + SCSI2SDAkai S5000 v2 + FX EB20 + USB + SCSI2SD ($920.71)

Akai S5000 S6000 Midi BoardsAkai S5000 S6000 Midi Boards ($70.09)

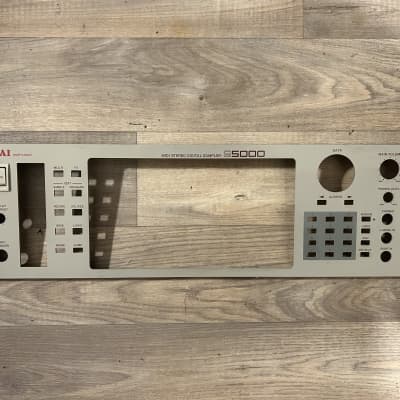

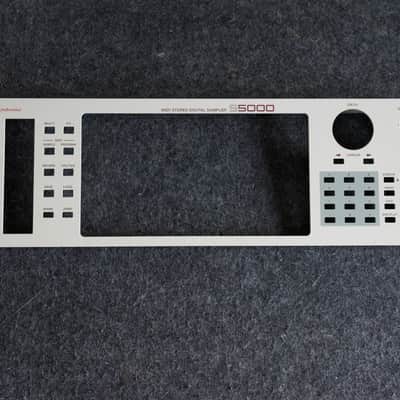

Akai  S5000 FaceplateAkai S5000 Faceplate ($47.52)

Akai S5000 MIDI Stereo Digital Sampler (1998) - 8 Analog outs, 1TB SD ZuluSCSI w 100+GB of sound, sample & instrument librariesAkai S5000 MIDI Stereo Digital Sampler (1998) - 8 Analog outs, 1TB SD ZuluSCSI w 100+GB of sound, sample & instrument libraries ($750)

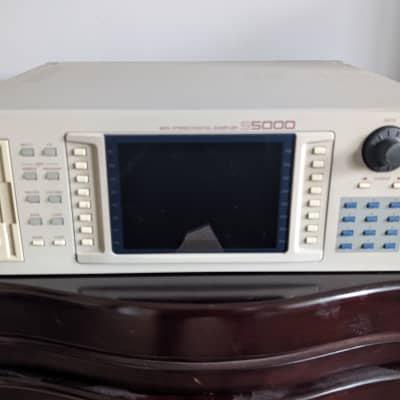

Akai S5000 MIDI Stereo Digital Sampler 1998 - WhiteAkai S5000 MIDI Stereo Digital Sampler 1998 - White ($450)

Akai S5000.Max ramAkai S5000.Max ram ($653.40)

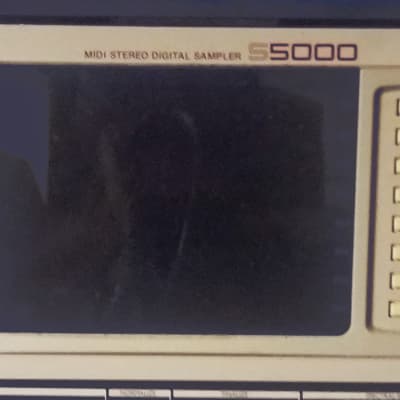

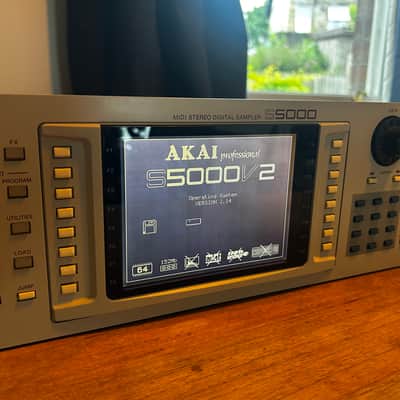

Akai S5000 SamplerAkai S5000 Sampler ($2,482.94)

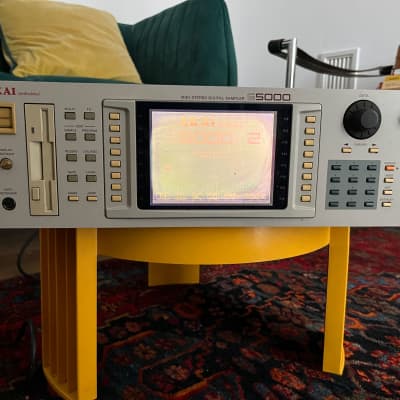

Akai S5000 MIDI Stereo Digital Sampler 1998 - WhiteAkai S5000 MIDI Stereo Digital Sampler 1998 - White ($534.60)

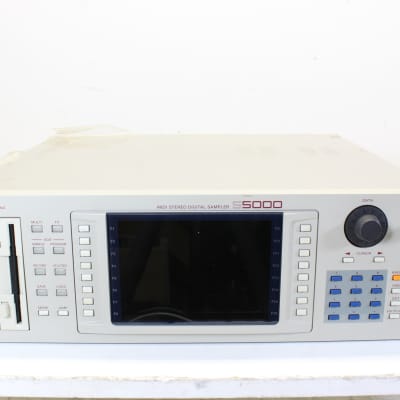

Akai S5000 MIDI Stereo Digital Sampler 1998 - WhiteAkai S5000 MIDI Stereo Digital Sampler 1998 - White ($475.20)

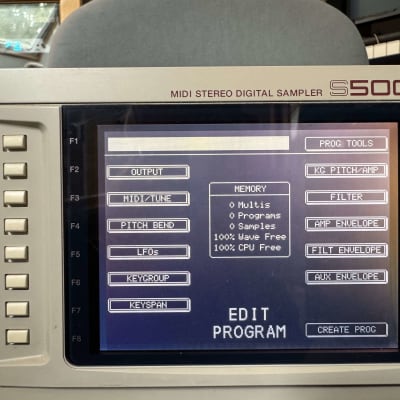

Akai S5000 MIDI Stereo Digital Sampler 1998 - WhiteAkai S5000 MIDI Stereo Digital Sampler 1998 - White ($712.80)

Akai S5000 MIDI Stereo Digital Sampler 1998 - WhiteAkai S5000 MIDI Stereo Digital Sampler 1998 - White ($712.80)

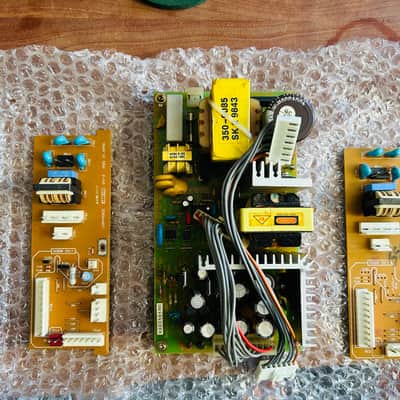

New, Original Sealed NOS Replacement PSU and Transformer Interface board for Akai S5000/S6000 (1999)New, Original Sealed NOS Replacement PSU and Transformer Interface board for Akai S5000/S6000 (1999) ($160)

Backlight Lamp for Display Panel AKAI Sampler S5000 and S6000, Plug & play + bonus sticker AKAIBacklight Lamp for Display Panel AKAI Sampler S5000 and S6000, Plug & play + bonus sticker AKAI ($29.69)

Akai S5000 Main Board L6044A501AAkai S5000 Main Board L6044A501A ($198.99)

Replacement Backlight LEDs for Display Panel AKAI Sampler S5000 and S6000, 5VReplacement Backlight LEDs for Display Panel AKAI Sampler S5000 and S6000, 5V ($29.69)

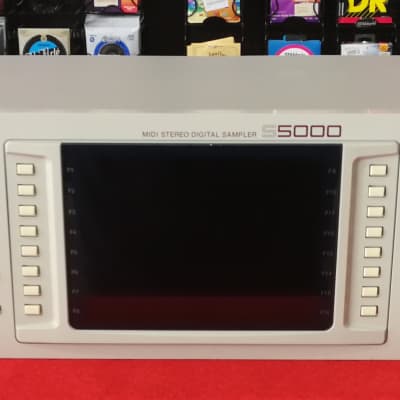

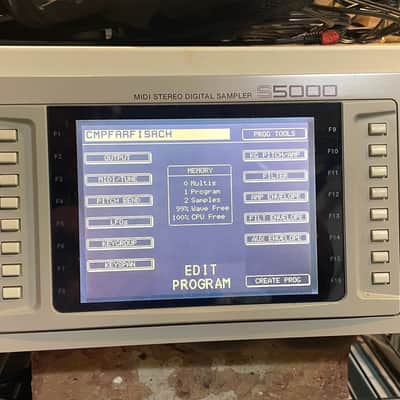

Akai S5000 Sampler With owners manualsAkai S5000 Sampler With owners manuals ($831.61)

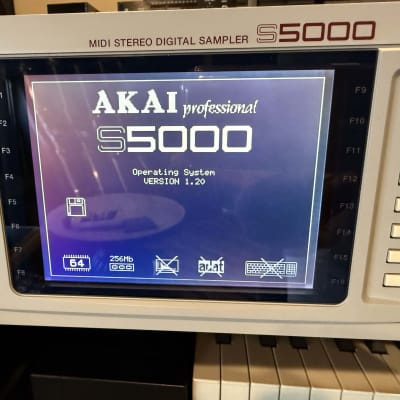

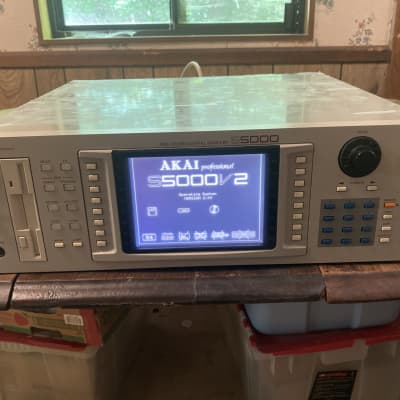

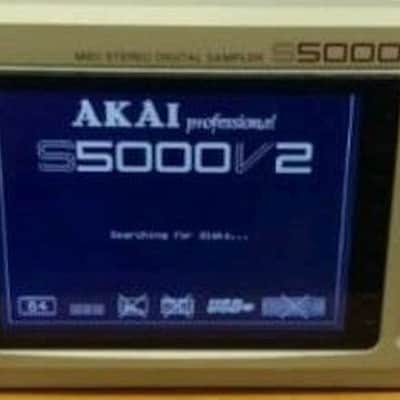

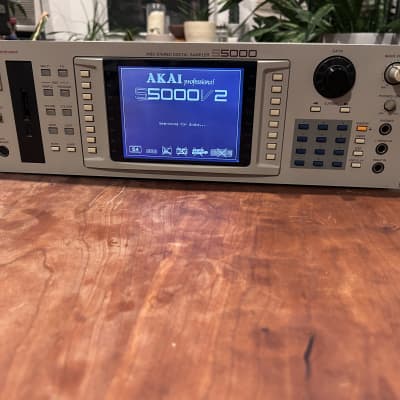

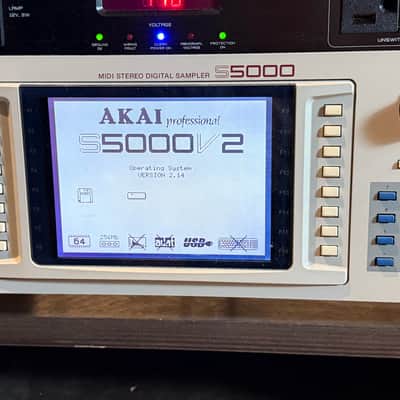

Akai s5000 v2Akai s5000 v2 ($558.36)

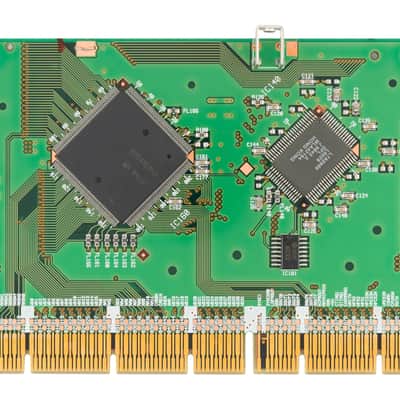

Akai VOX64 S5000 S6000 64 Voice Expansion Board L5224B5010Akai VOX64 S5000 S6000 64 Voice Expansion Board L5224B5010 ($158.99)

Akai - Z8 / Z4/ S5000 / S6000 - New EncoderAkai - Z8 / Z4/ S5000 / S6000 - New Encoder ($9.90)

Akai - Z8 / Z4/ S5000 / S6000 - New EncoderAkai - Z8 / Z4/ S5000 / S6000 - New Encoder ($7.84)

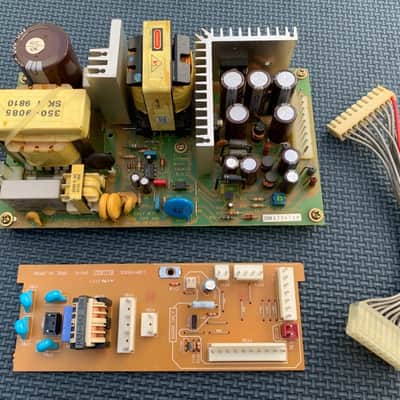

Akai S5000 S6000 Power Supply (SKYNET AKI-9085)Akai S5000 S6000 Power Supply (SKYNET AKI-9085) ($138.99)
