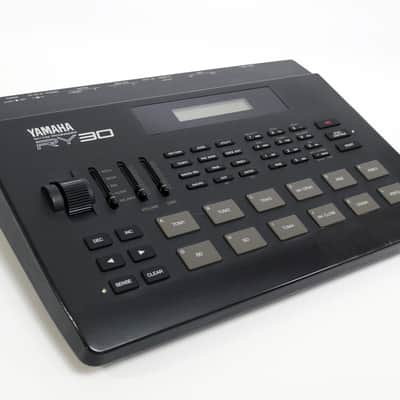

Drum Machines ⇝ Yamaha ⇝ Yamaha RY30

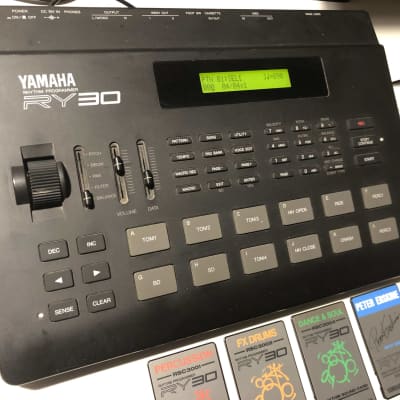

The RY30 can load an additional 32 waveforms via ROM cards. In addition to RY30 and RM50 cards, it can also load sounds from some of SY/TG series expansion cards.

Some available ROM expansion cards are:

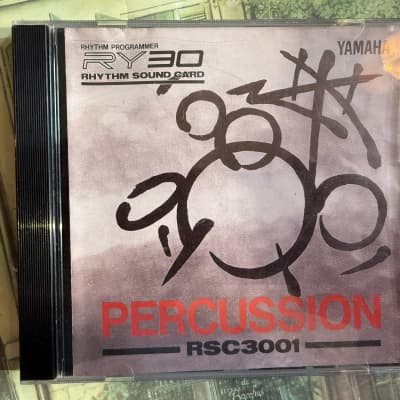

• RSC3001: Percussion Rhythm Sound Card
• RSC3002: FX Drums
• RSC3003: House and Rap Rhythm Sound Card

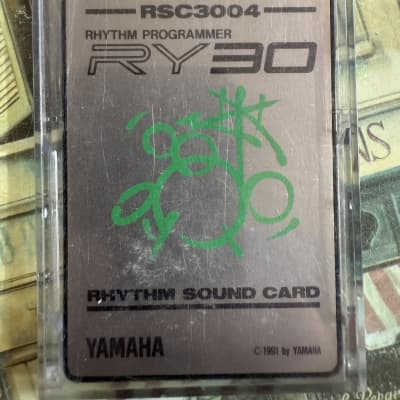

• RSC3004: Dance and Soul Rhythm Sound Card
• RSC3071: Dave Weckl Artist Series

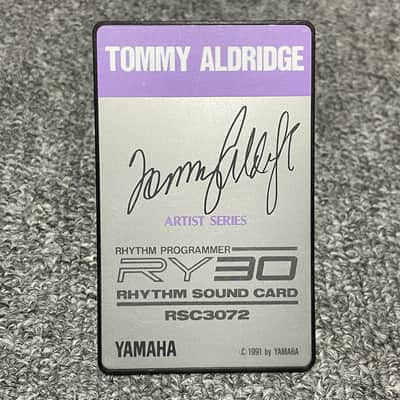

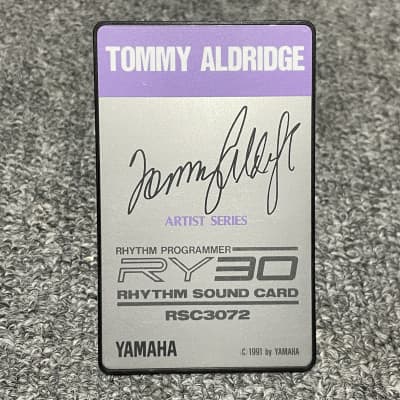

• RSC3072: Tommy Aldridge Artist Series

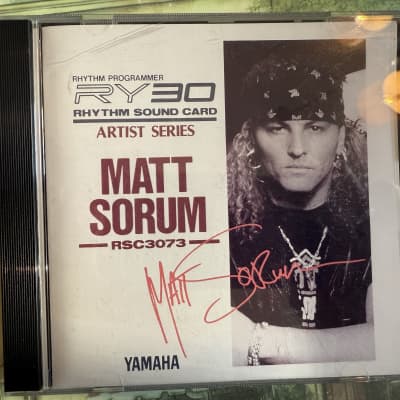

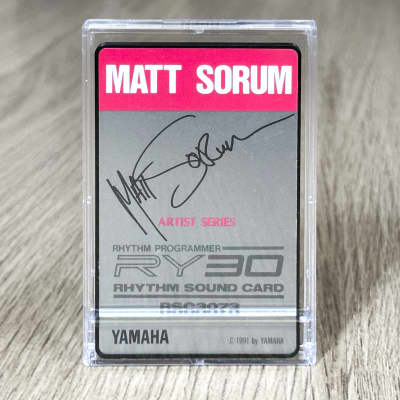

• RSC3073: Matt Sorum Artist Series
• RSC3074: Peter Erskine Artist Series

Specifications

Year Released: 1991

Number of Pads: 12

Polyphony: 15 notes

Multitimbral: 16 parts

Preset Patterns: 100

User Patterns: 100

User Songs: 20

Tempo Range: 40 - 250 BPM

Sequencer Resolution: 96PPQN

ROM Size: 96 16-bit 48KHz samples

Effects: High-pass (12 and 24 dB/octave) and Low-pass (12 and 24 dB/octave) digital filters.

Screen: 24 x 2 character backlit LCD

Weight: 2.1 kg

Dimensions: 370 mm x 254 mm x 67 mm

User Demo Videos

Rating

File Downloads

Yamaha RY30 Manual

Items for Sale on Reverb

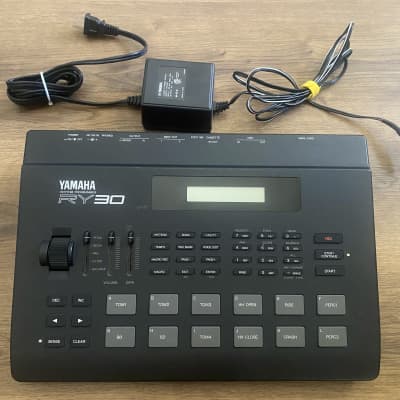

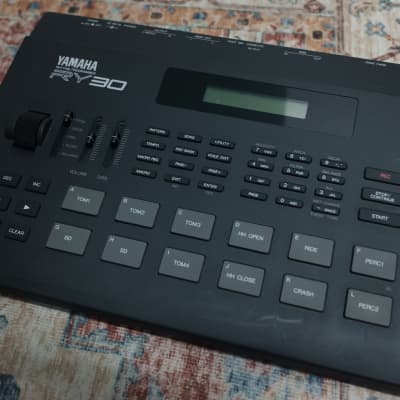

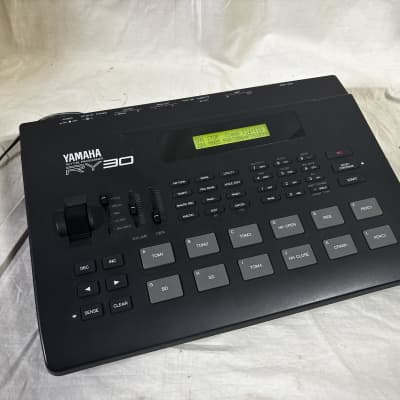

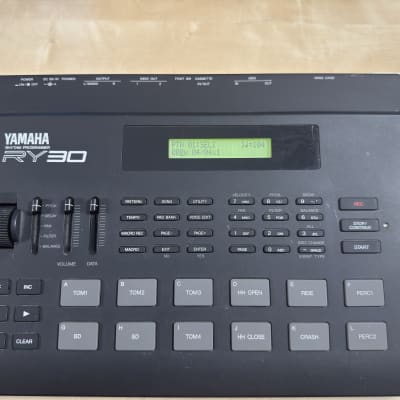

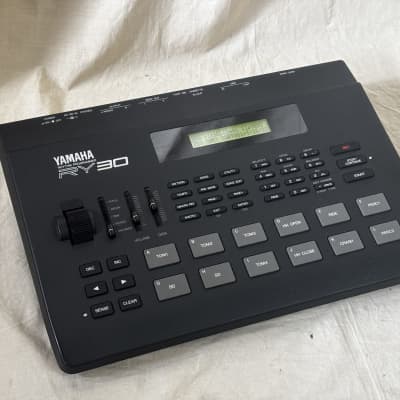

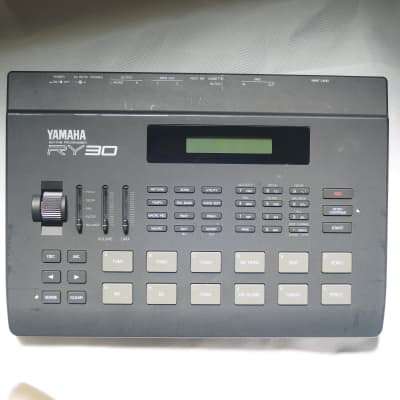

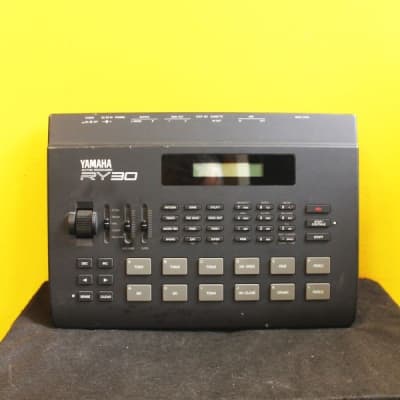

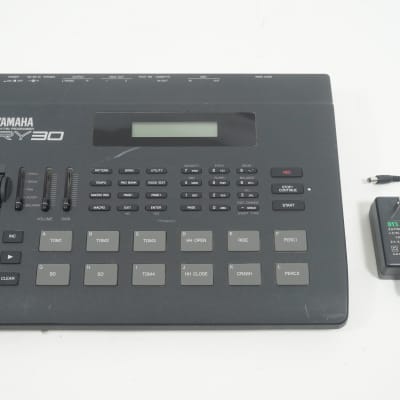

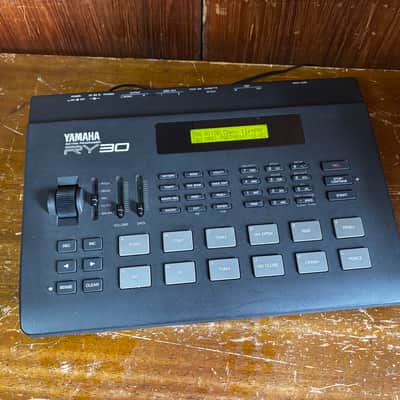

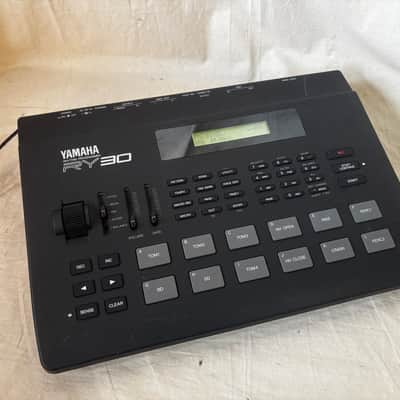

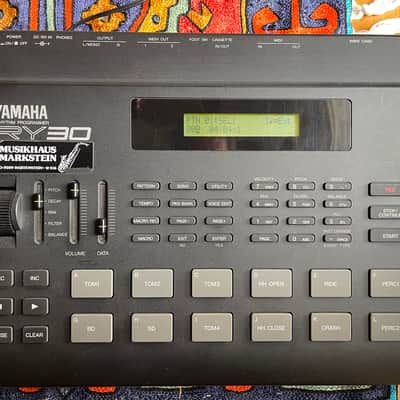

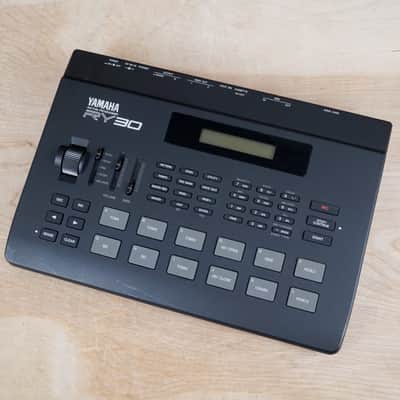

Yamaha RY30 RHYTHM PROGRAMMER 1991 ($455.91)

Yamaha RY30 / RM50 / SY77 / SY85 / SY99 / TG500 / TG77 RSC3004 Waveform ROM card Dance & Soul ($157.40)

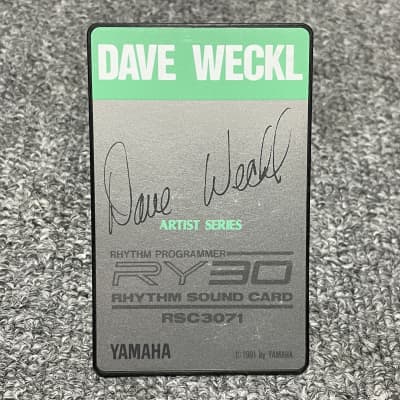

Yamaha RY30 Rhythm Sound Card Artist Series Dave Weckl RSC3071 1991 ($92)

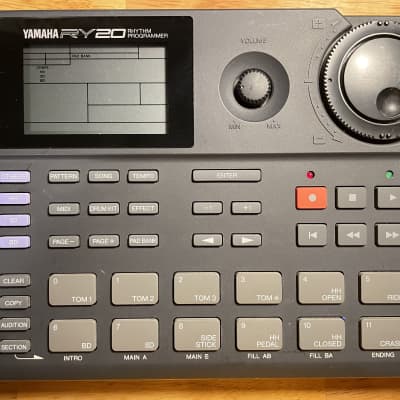

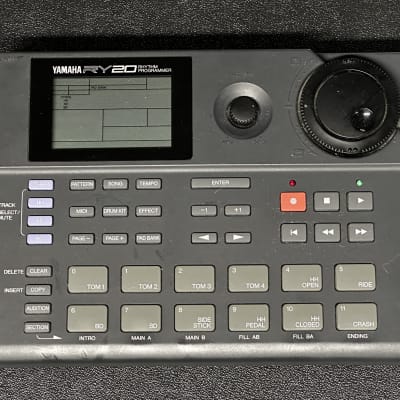

YAMAHA RY20 Rhythm Programmer Digital Drum Machine w/ 100-240V PSU ($99.99)

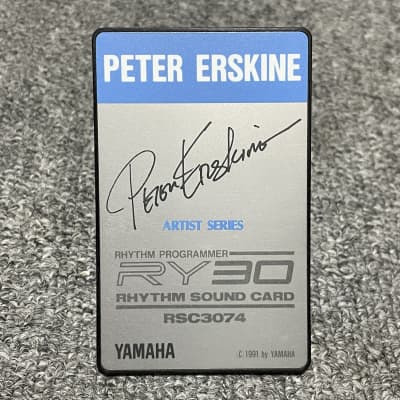

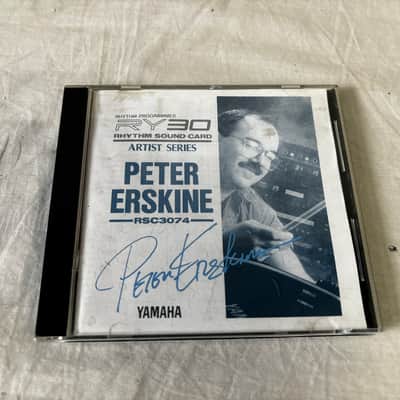

YAMAHA RHYTHM SOUND CARD RSC3074 PETER ERSKINE RY30 w/ case ($120)

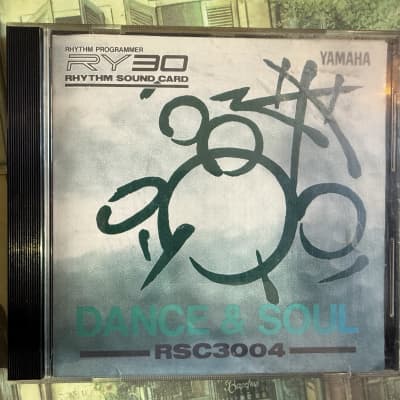

Yamaha RY30 DANCE & SOUL rhythm sound card RSC3004 ($59)

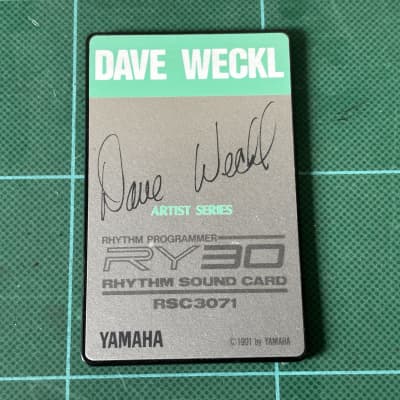

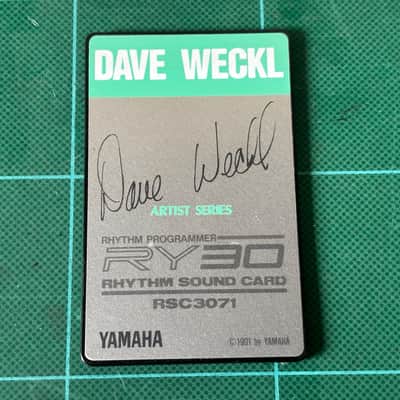

YAMAHA RHYTHM SOUND CARD RSC3071 DAVE WECKL RY30 ($100)

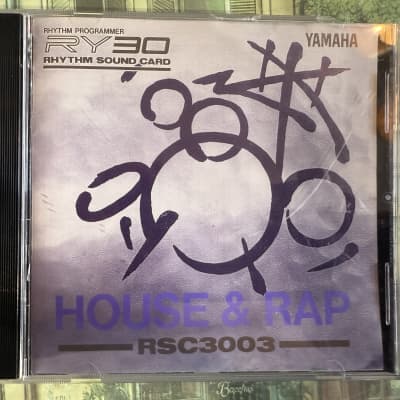

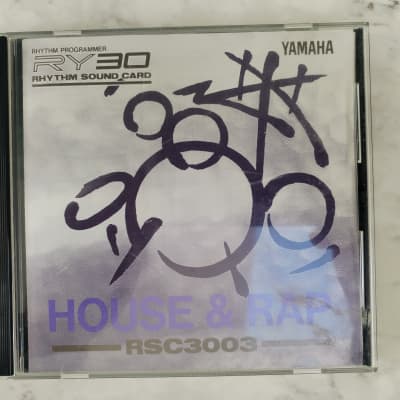

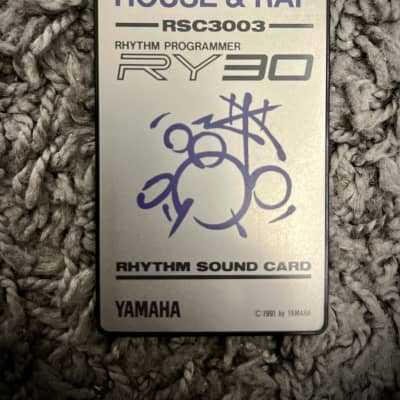

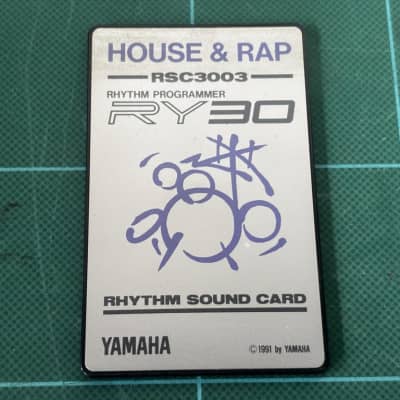

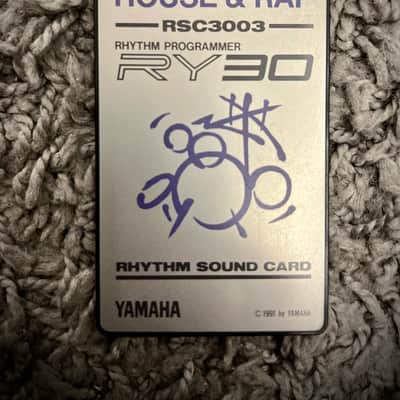

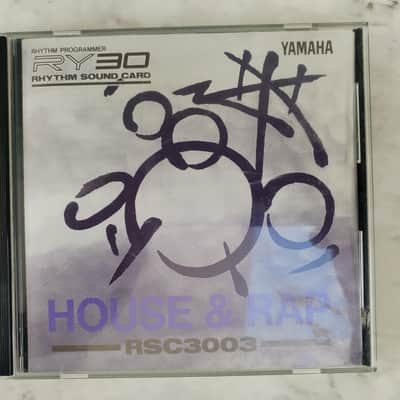

Yamaha RY30 HOUSE & RAP rhythm sound card RSC3003 ($59)
