Drum Machines ⇝ Roland ⇝ Roland R-8

Marketed as the "Human Rhythm Composer", the R-8 has one card slot for SN-R8 PCM expansion cards and one RAM card slot (for an M-256D or M-256E).

It was released in module form with the same sound set but without pattern sequencing capabilities as the Roland R-8M. An upgraded version with more sounds was released as the Roland R-8 Mk II

Specifications

Year Released: 1989

Number of Pads: 16

Polyphony: 32 notes

Multitimbral: 4 parts

Preset Patterns: 32

User Patterns: 100

User Songs: 10

User Drumkits: 32

Tempo Range: 20 - 250 BPM

Sequencer Resolution: 96 PPQN

ROM Size: 68 sampled waveforms at 16-bit, 44.1 kHz resolution

Outputs: 8 individual 1/4" outputs

Screen: 20 x 2 character LCD

Power Consumption: 7 watts

Weight: 3.1 kg

Dimensions: 410 mm x 290 mm x 70 mm

User Demo Videos

Rating

Sound Samples

WAV samples are available on freewavesamples.com.

File Downloads

Roland R-8 Manual

Items for Sale on Reverb

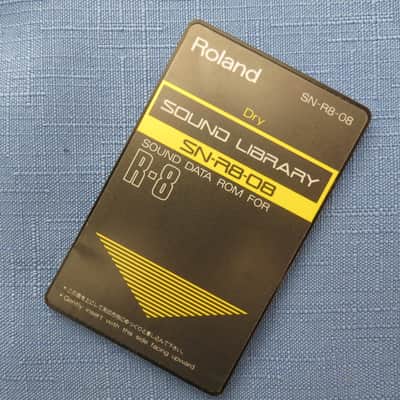

ROLAND Expansion Drum card for R-8M, R-8 and R-8M mkII Late 90's - black ($80.79)

ROLAND Jazz Brush Drum Expansion card for R-8M, R-8 and R-8M mkII ($80.79)

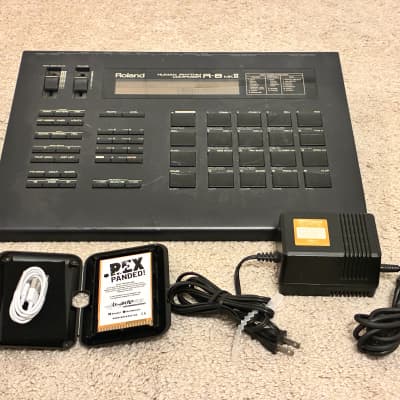

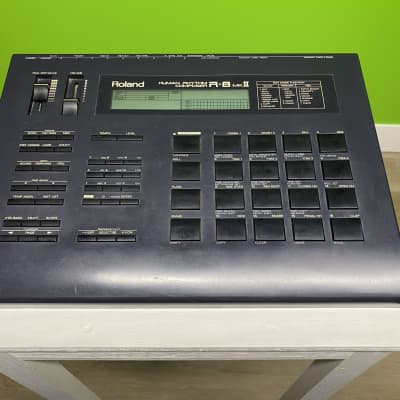

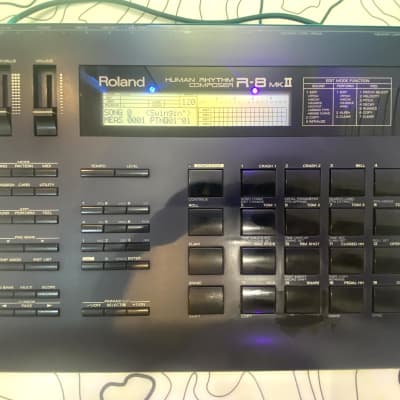

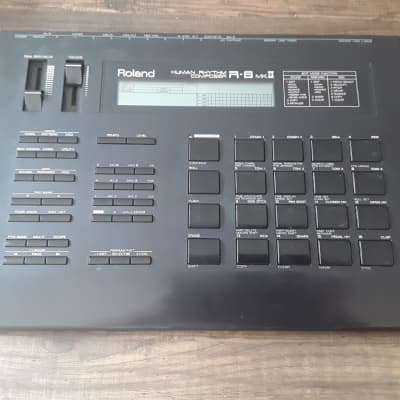

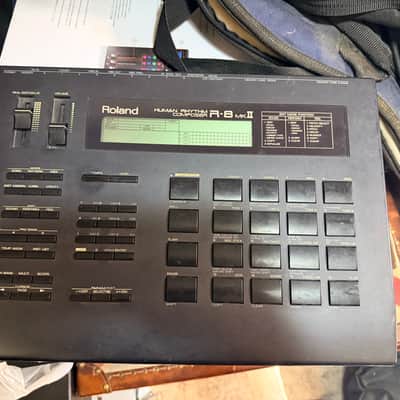

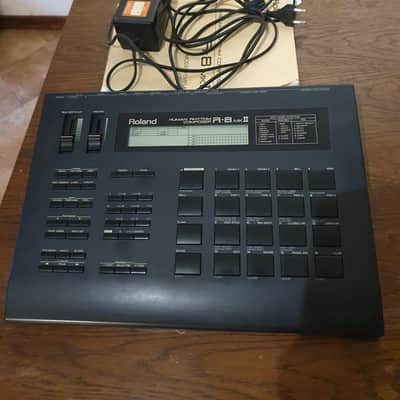

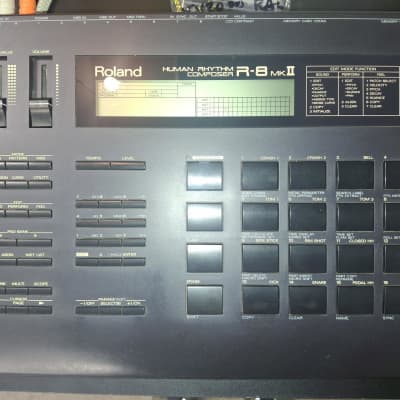

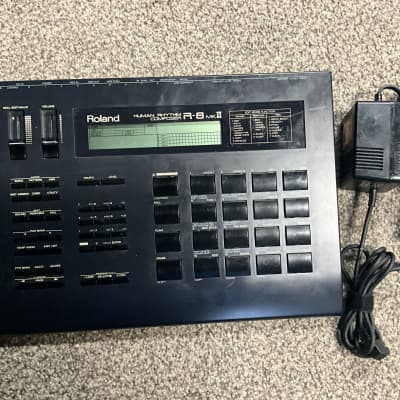

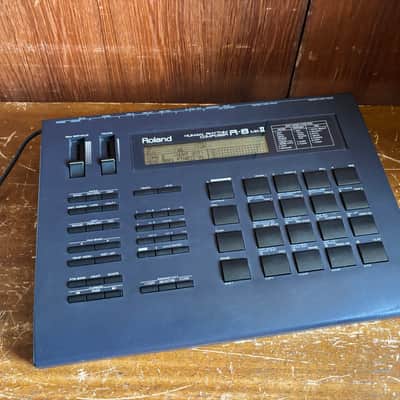

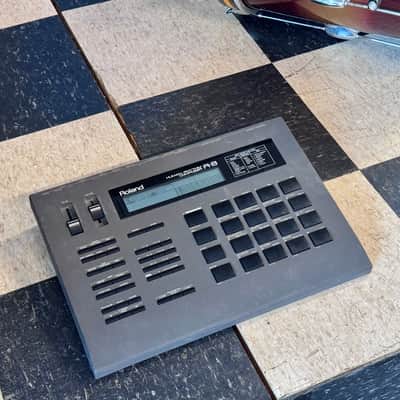

Roland R-8 MKII Human Rhythm Composer 1990s - Black ($760.56)

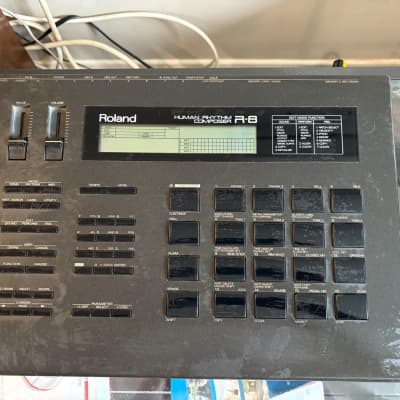

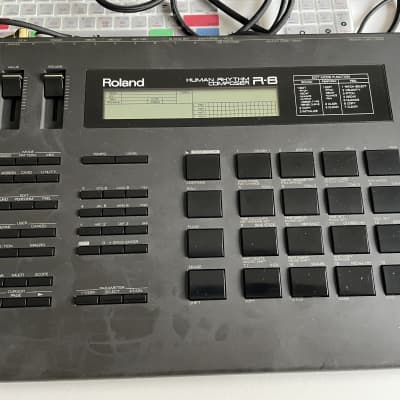

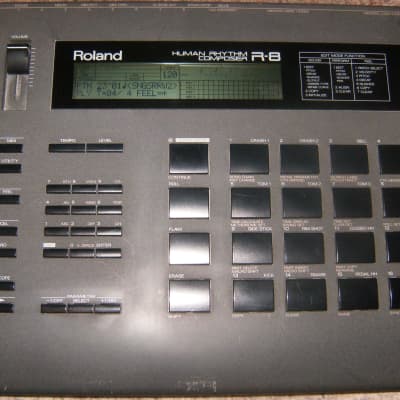

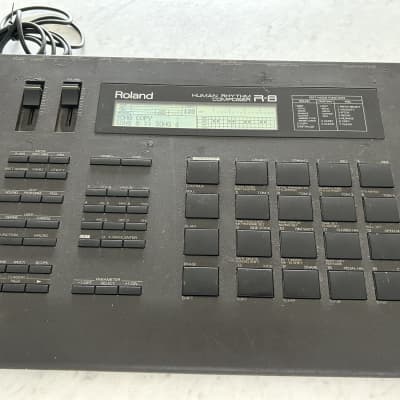

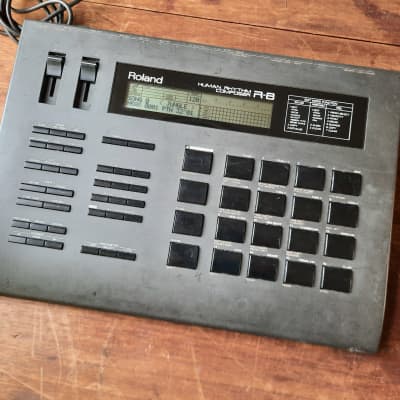

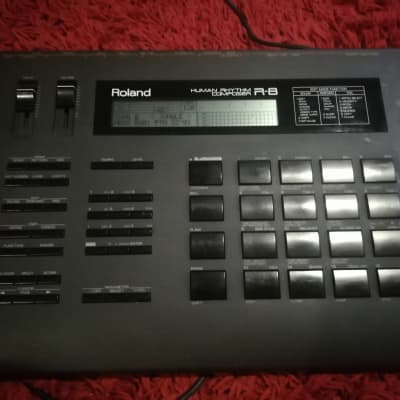

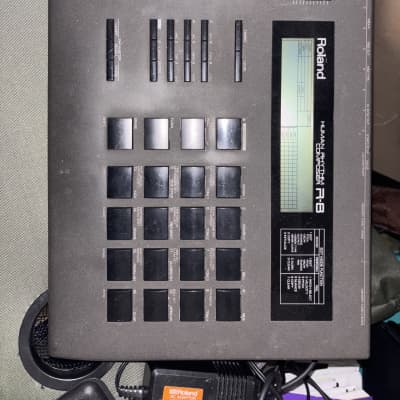

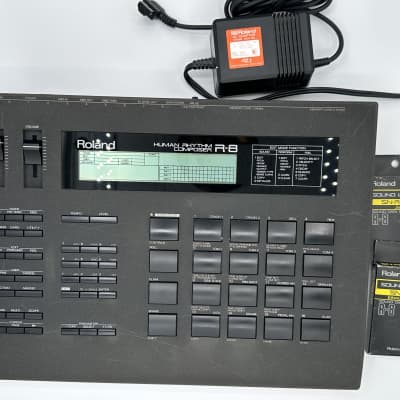

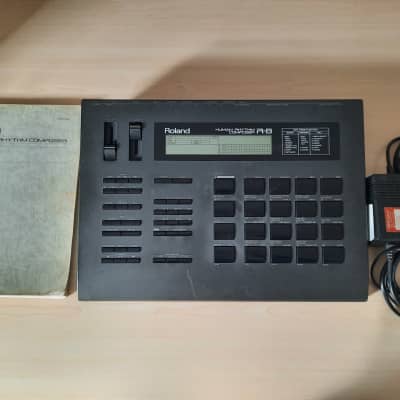

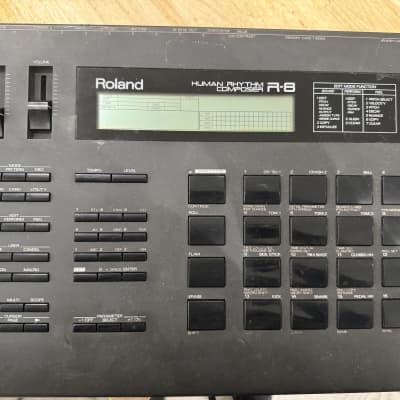

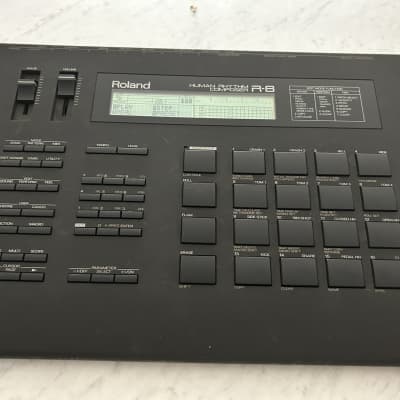

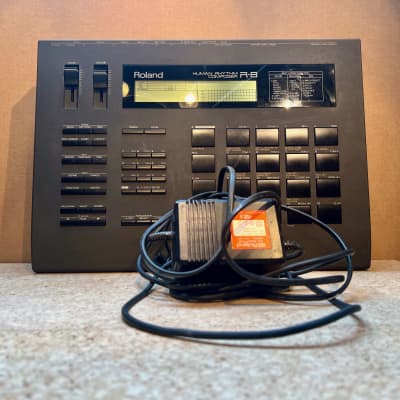

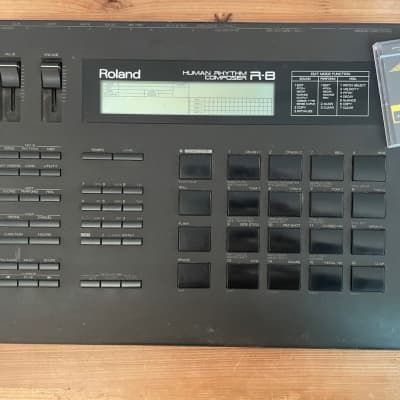

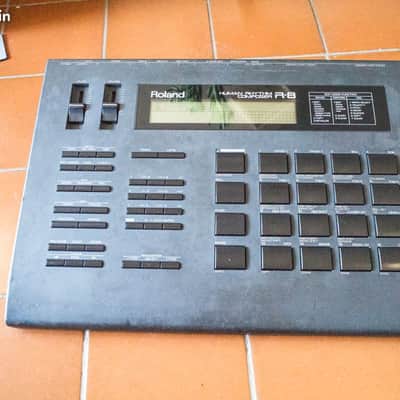

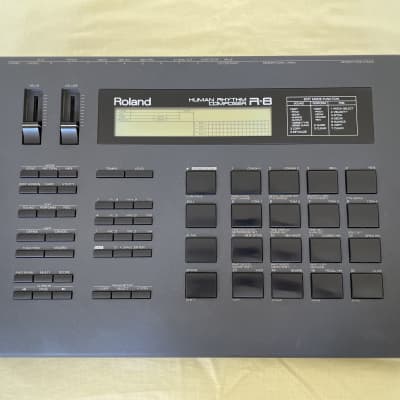

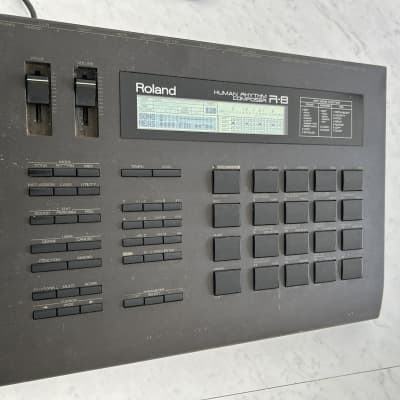

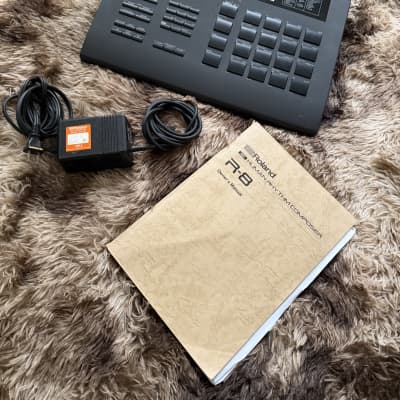

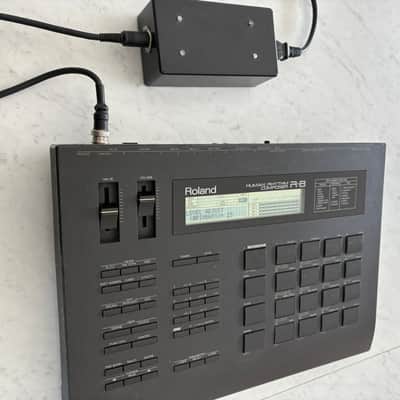

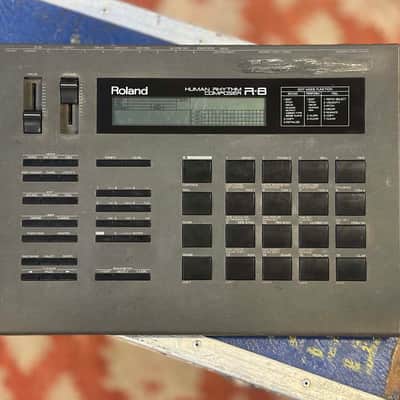

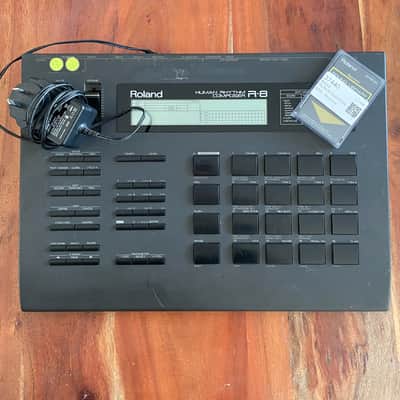

Roland R-8 Human Rhythm Composer 1980s ($396.66)

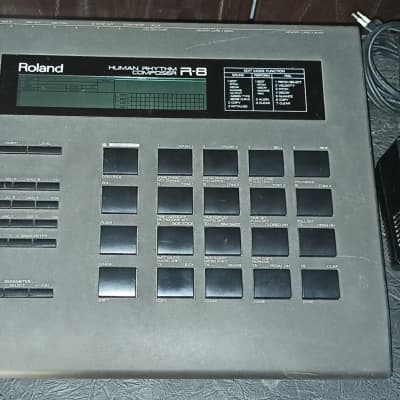

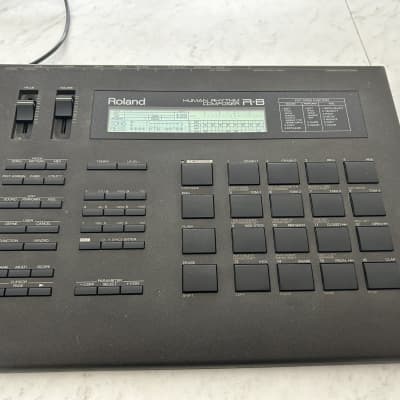

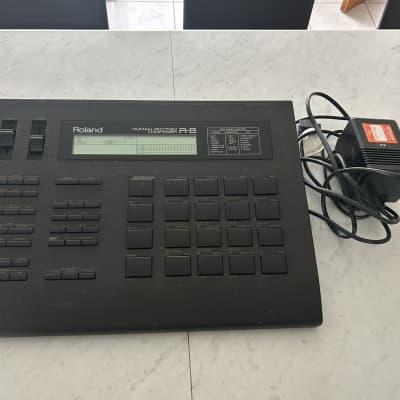

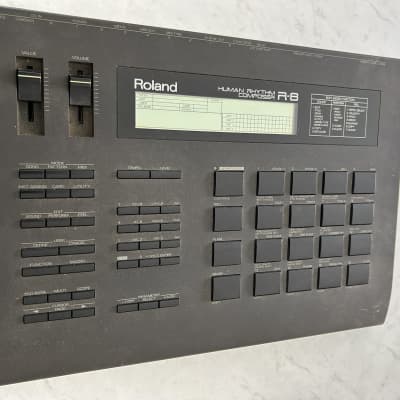

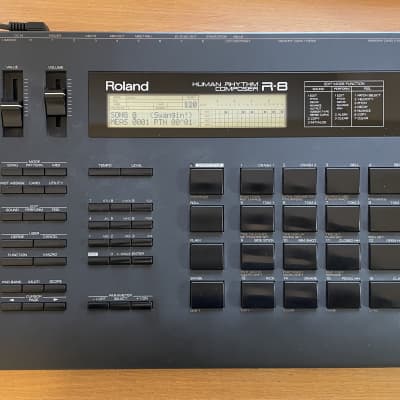

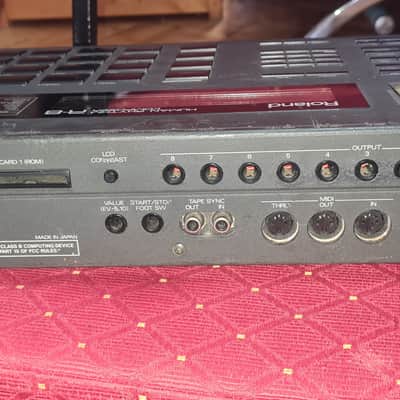

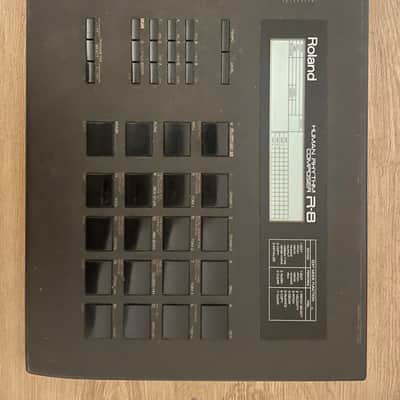

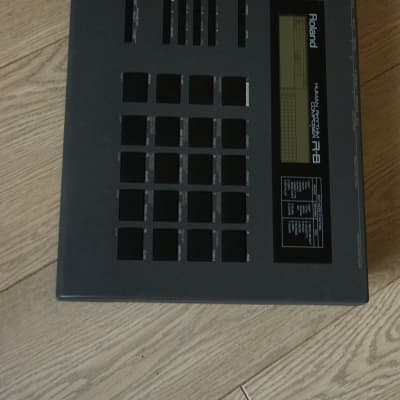

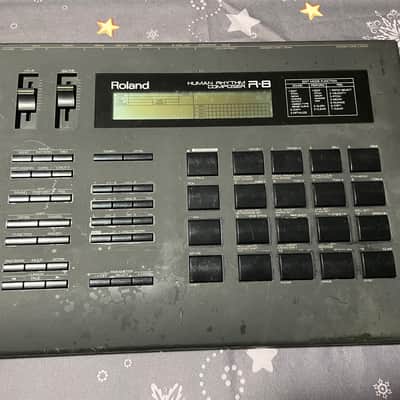

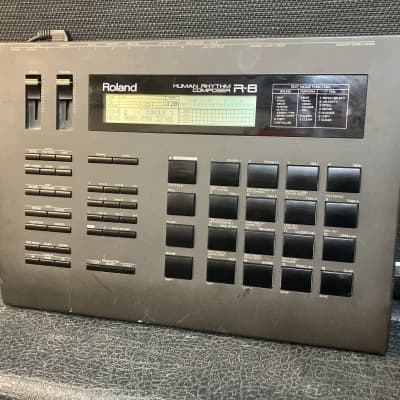

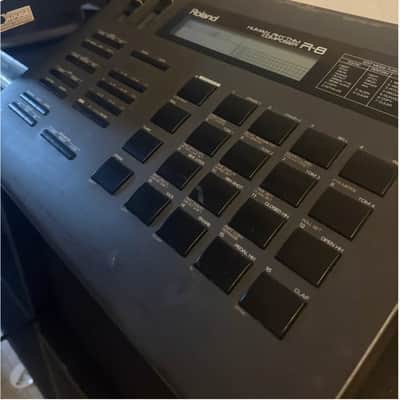

Roland R-8 Human Rhythm Composer 1980s - Black ($395.37)

Roland R-8 Human Rhythm Composer (vintage digital drum-machine, Japan, 1989) ($374.43)

Roland R-8 Red Display MOD ($533.98)

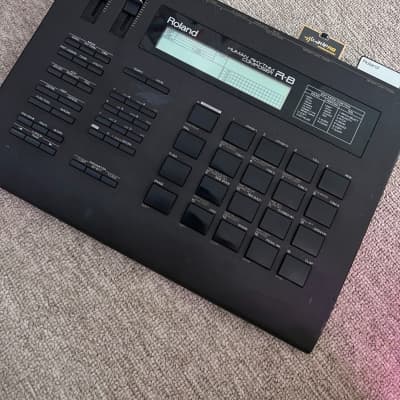

Roland R-8 Human Rhythm Composer Drum Machine ($450.49)

Roland R-8 chassis+pads for spare parts ($64.36)

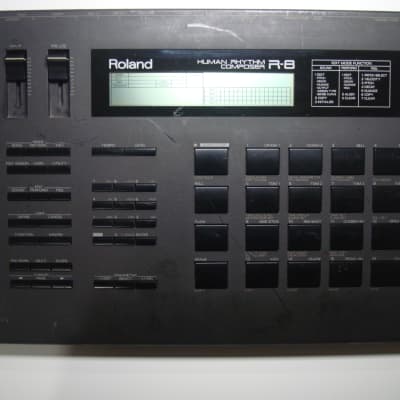

Roland R-8 Human Rhythm Composer 1980s - Black ($483.38)

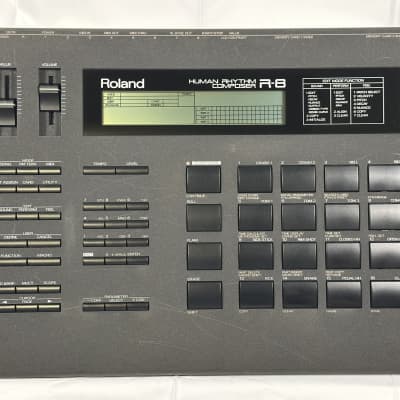

Roland R-8 Human Rhythm Composer ($650)

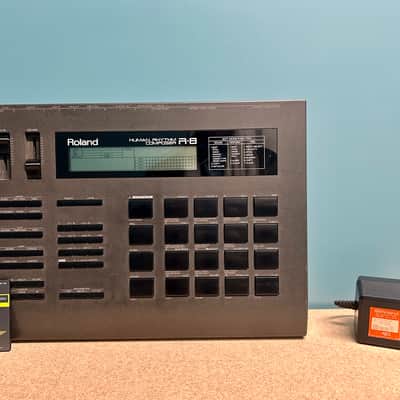

Roland R-8 with Electronic Card ($700.88)

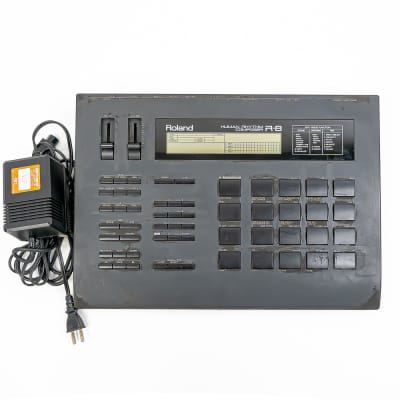

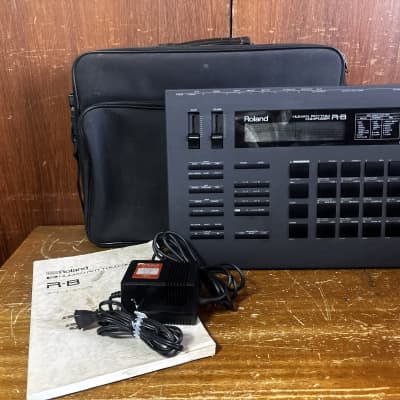

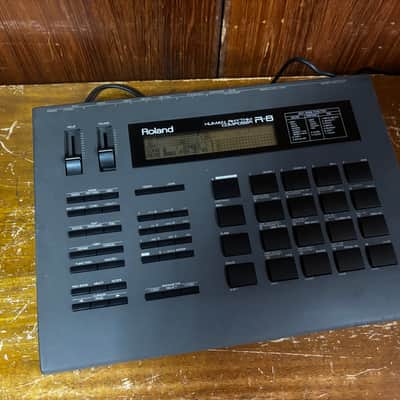

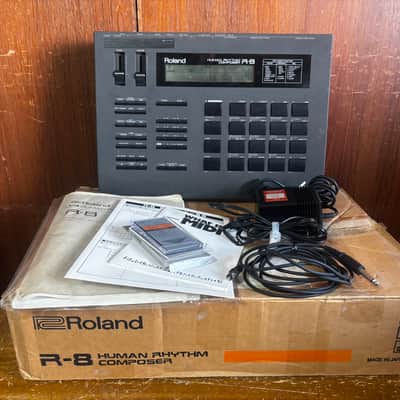

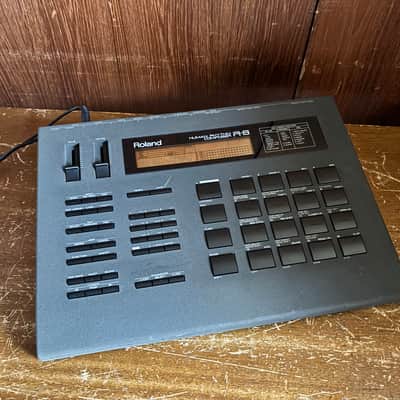

Roland R-8 Human Rhythm Composer Drum Machine NEW INTERNAL BATTERY w/ power supply ($500)

Roland R-8 Human Rhythm Composer Drum Machine ($499.99)

Modified Roland R-8 Human Rhythm Composer DC-DC converter installation From JP ($460)

Roland R-8 Human Rhythm Composer - Non-Functional ($150)

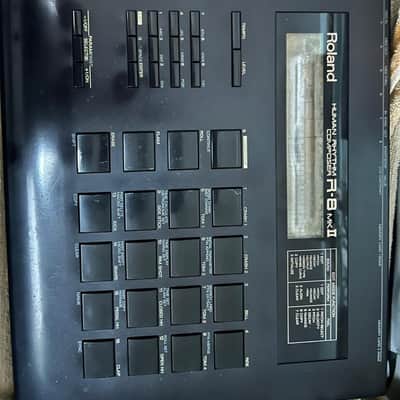

Roland R-8 Human Rhythm Composer 1980s - Black ($526.54)

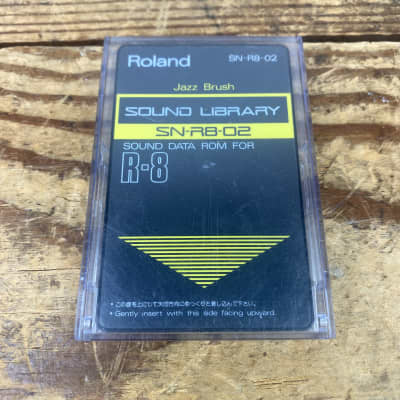

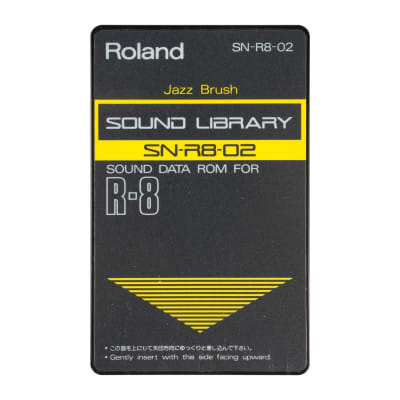

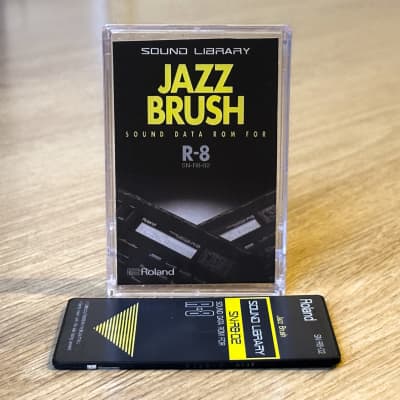

Roland R-8 / R-8m / R-8 MKII | SN-R8-02 JAZZ BRUSH | Waveform ROM Voice Card | ($169.66)

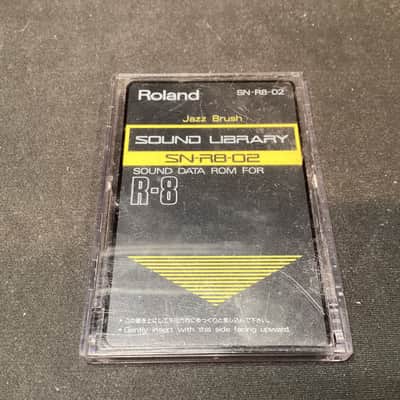

Roland SN-R8-04 R-8 Jazz Brush Sound Card ($129.99)

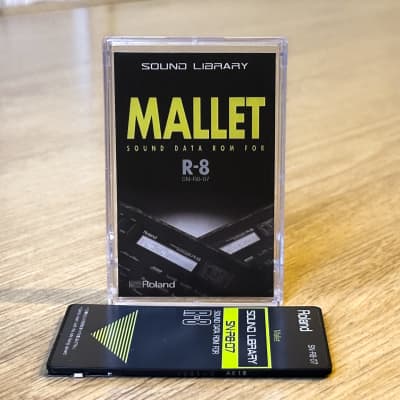

Roland R-8 / R-8m / R-8 MKII | SN-R8-07 MALLET | Waveform ROM Voice Card | ($169.66)

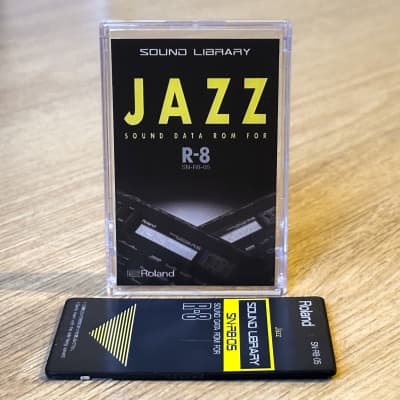

Roland R-8 / R-8m / R-8 MKII | SN-R8-05 JAZZ | Waveform ROM Voice Card | ($169.66)

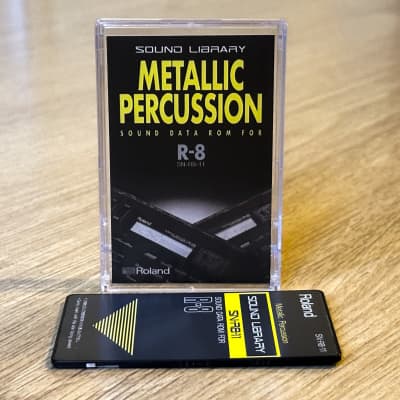

Roland R-8 / R-8m / R-8 MKII | SN-R8-11 METALLIC PERCUSSION | Waveform ROM Voice Card | ($193.07)

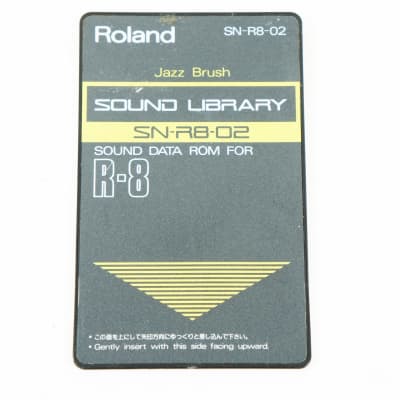

Roland R-8 / R-8m / R-8 MKII | SN-R8-02 JAZZ BRUSH | Waveform ROM Voice Card | ($169.66)

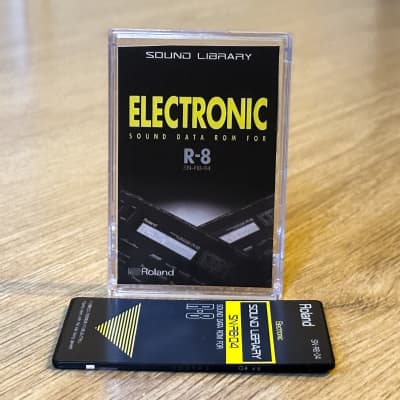

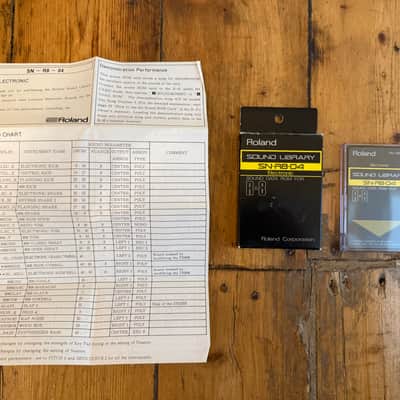

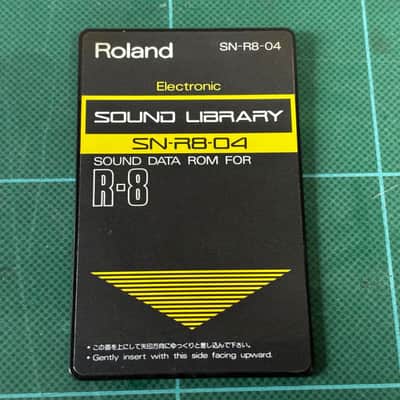

Roland R-8 / R-8m / R-8 MKII | SN-R8-04 ELECTRONIC | Waveform ROM Voice Card | ($286.67)

Roland R-8 / R-8m / R-8 MKII | SN-R8-06 ETHNIC PERCUSSION | Waveform ROM Voice Card | ($193.07)

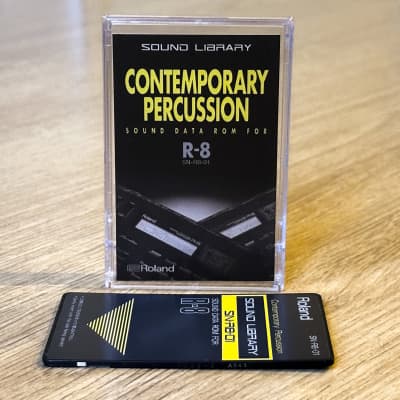

Roland R-8 / R-8m / R-8 MKII | SN-R8-01 CONTEMPORARY PERCUSSION | Waveform ROM Voice Card | ($169.66)

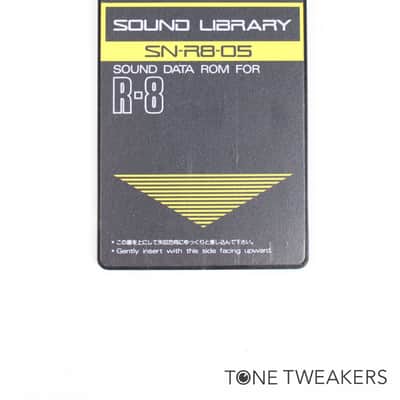

Roland SN-R8-05 Jazz Sound Library Data ROM Card for R-8 VINTAGE GEAR DEALER ($69.99)

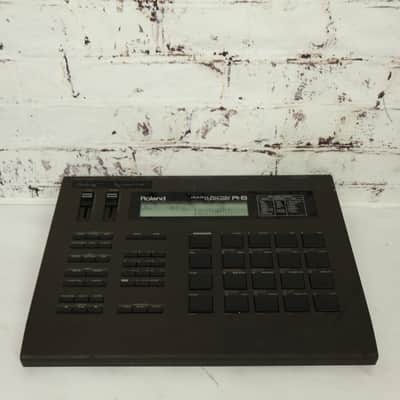

Roland Human Rhythm Composer R-8 Drum Machine *Untested/Sold As-Is* ($544.99)

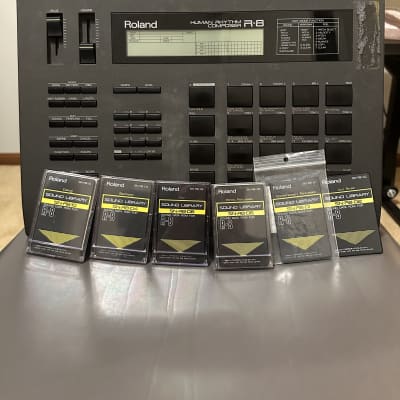

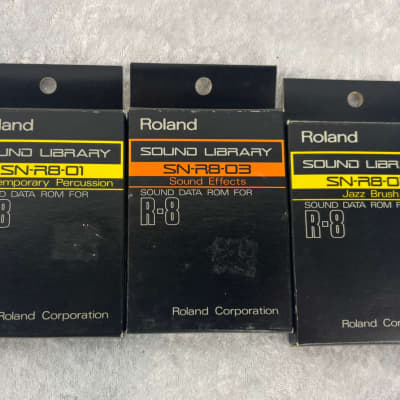

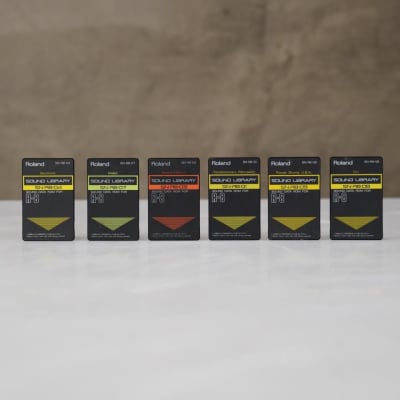

Lot of 3 Roland Sound Library R-8 Sound Data Rom Cartridges SN-R8-01 SN-R8-02 SN ($195)

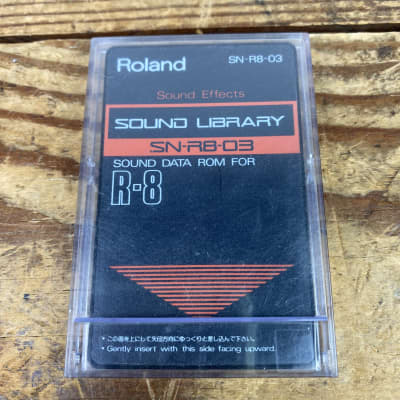

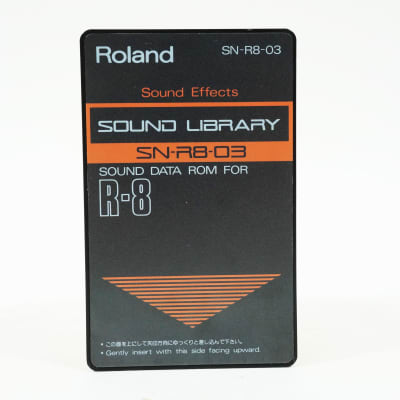

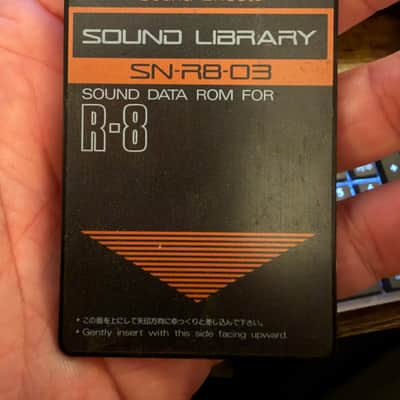

Roland SN-R8-03 Sound Effects ROM CARD FOR ROLAND R8 R-8 MKⅡ ($80)

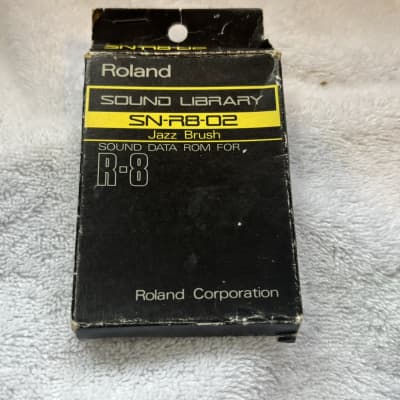

Roland SN-R8-02 Jazz Brush ROM CARD for ROLAND R8 R-8 MKⅡ ($70)

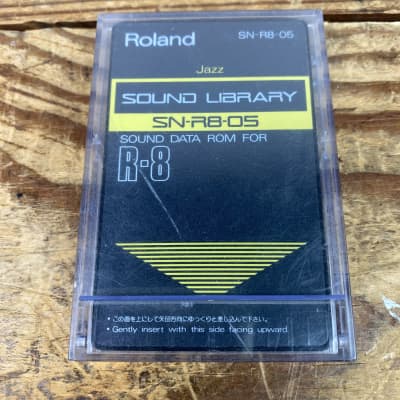

Roland SN-R8-05 JAZZ ROM CARD for ROLAND R8 R-8 MKⅡ ($80)

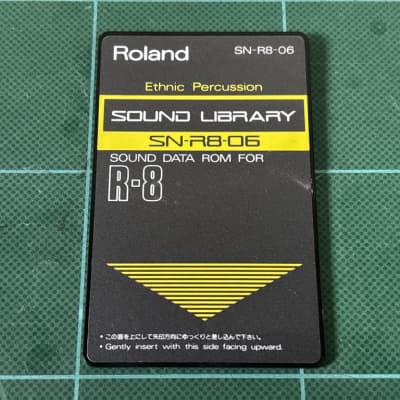

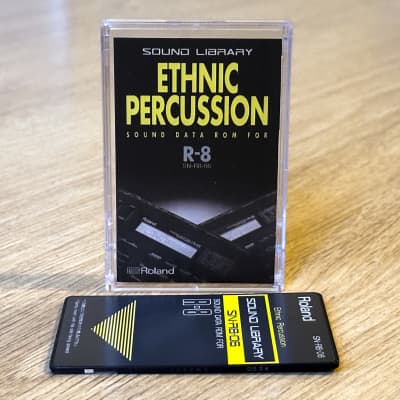

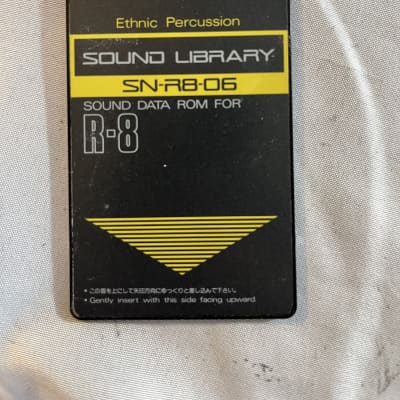

Roland SN-R8-06 Ethnic Percussion ROM CARD FOR ROLAND R8 R-8 MKⅡ ($80)

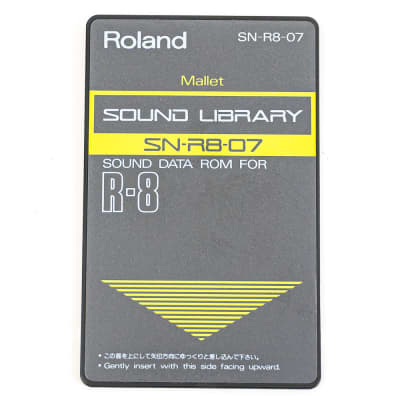

Roland SN-R8-07 Mallet Sound Library Card for R-8 Drum Machine ($50)

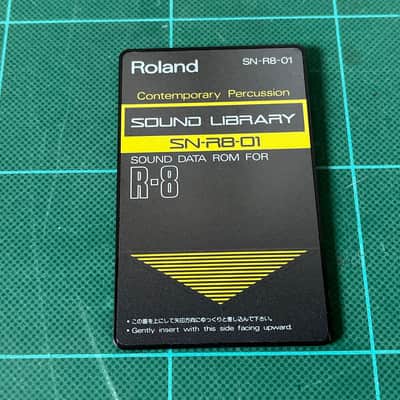

Roland SN-R8-01 Contemporary Percussion ROM CARD for R8 R-8 MKⅡ ($70)

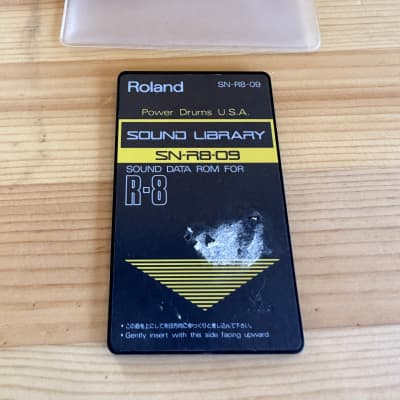

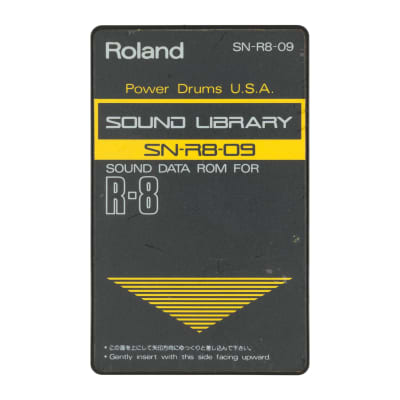

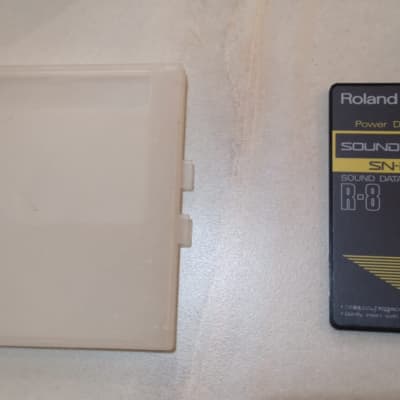

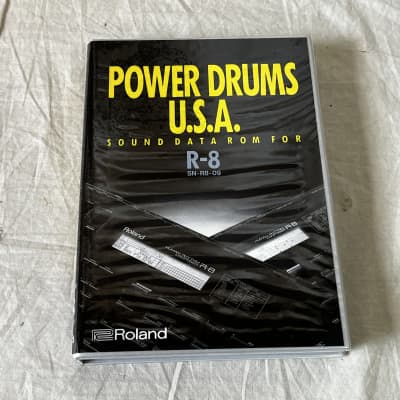

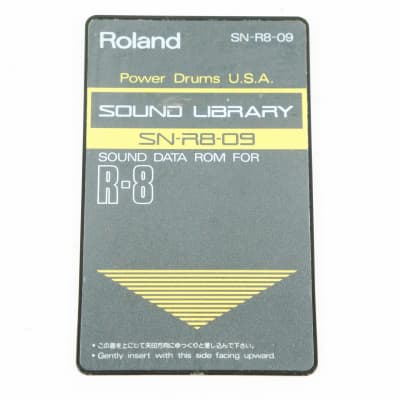

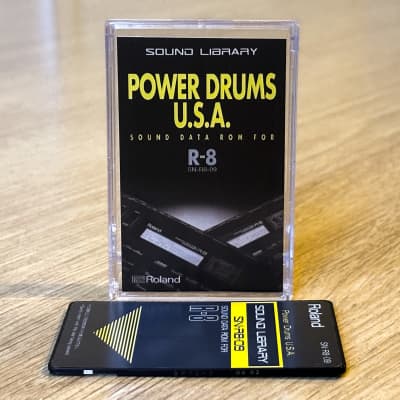

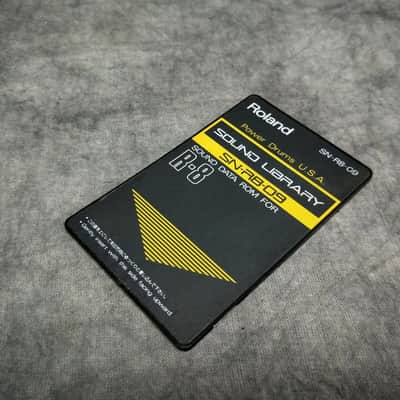

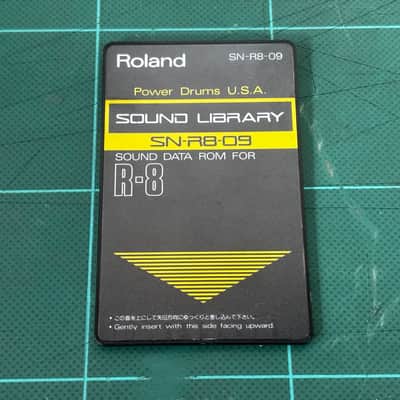

Roland SN-R8-09 POWER DRUMS U.S.A. for R-8 ($115.72)

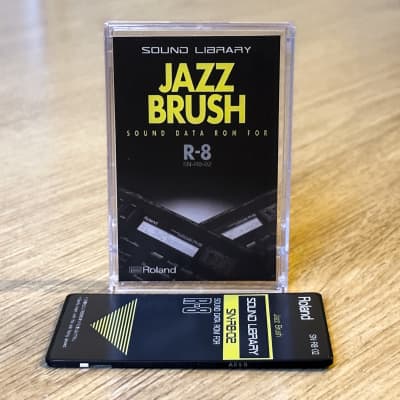

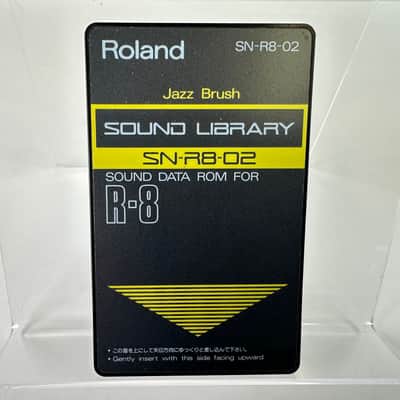

Roland SN-R8-02 Jazz Brush Sound Library PCM Expansion Card for R-8 ($68.99)

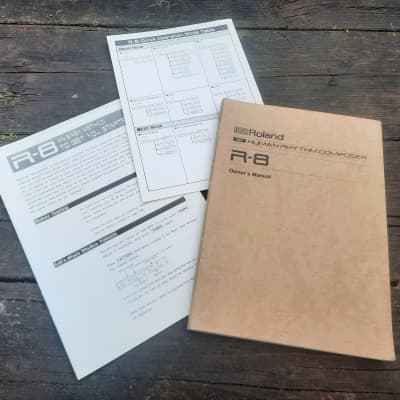

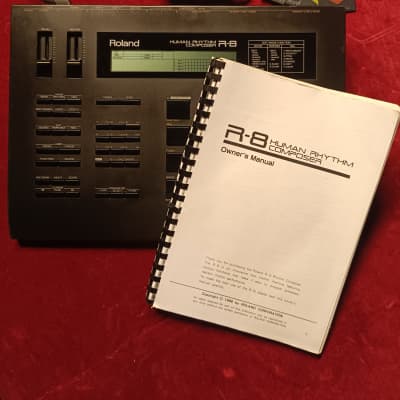

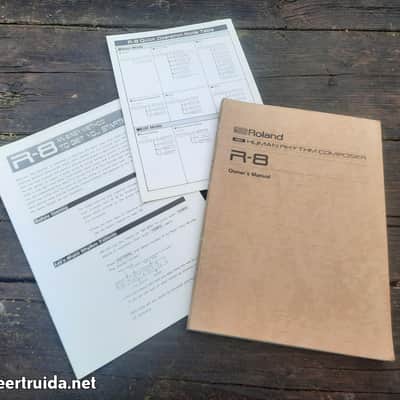

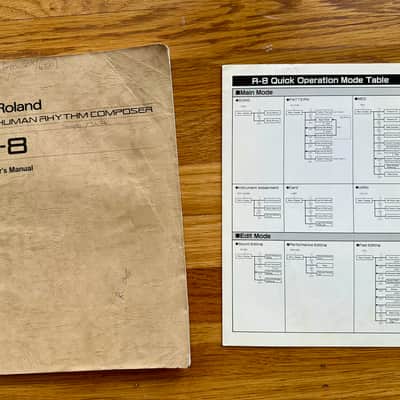

Roland R-8 Owner's Manual + Quick Operation card ($25)

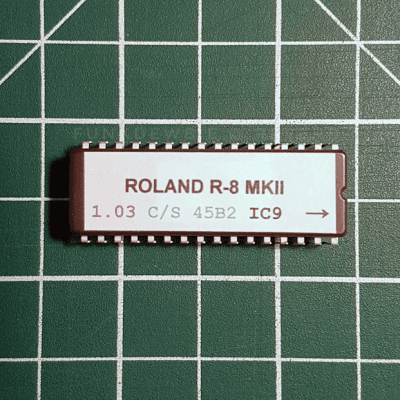

Roland R-8 MK2 OS v1.03 Final EPROM Firmware Upgrade KIT / Brand New ROM Update Chip R8 MKII ($24.95)

Roland R-8 Human Rhythm Composer Original Manuals ($19.95)

Roland R-8 Human Rhythm Composer Original Screen ($35.10)

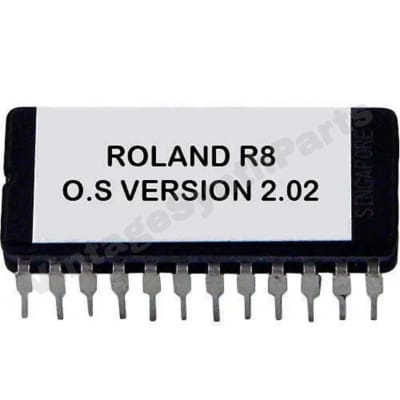

Roland R-8 OS v2.02 EPROM Firmware Upgrade KIT / Brand New ROM Update Chip with Service Manual R8 ($24.95)

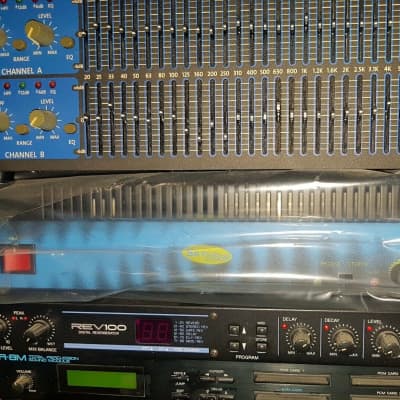

Roland R 8 M Drum Machine Module ($287.84)

Roland R 8 M [Za90769] (08/31) ($353.76)

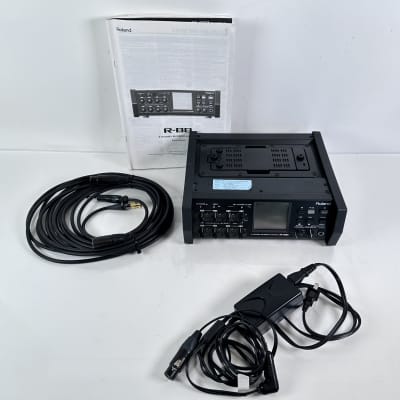

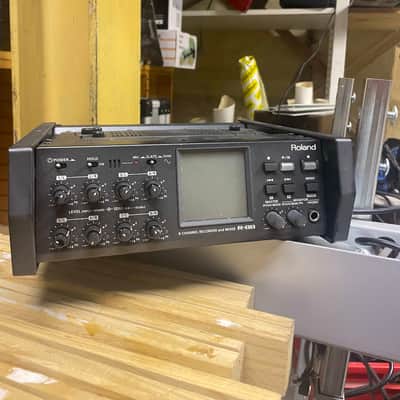

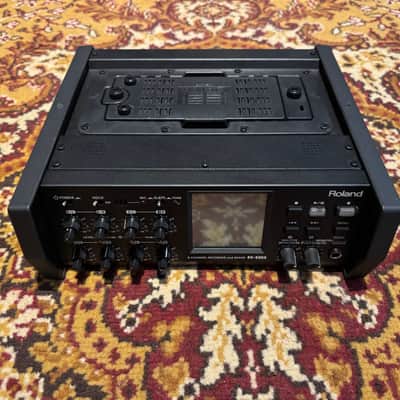

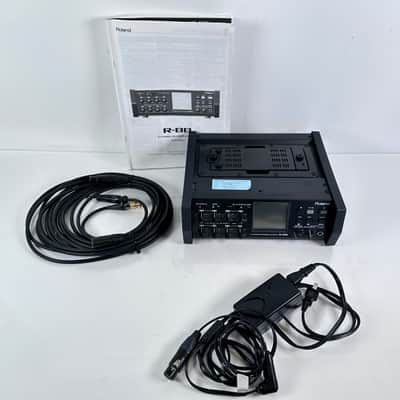

Roland R-88 8-Channel Recorder and Mixer ($899.99)

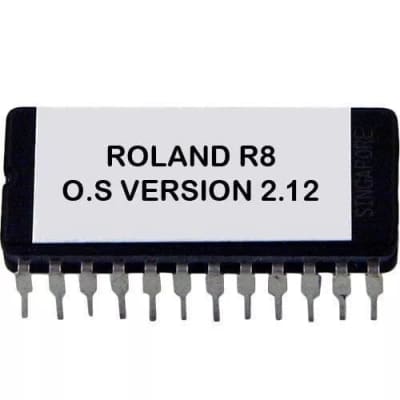

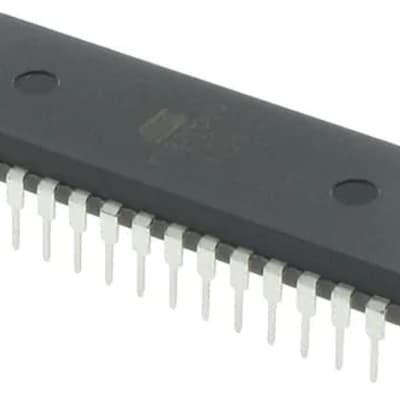

Roland R-8 latest firmware version 2.12 firmware OS update EPROM R8 drum machine eprom ($19.83)

Roland R-8 firmware Version 2.02 firmware OS update EPROM R8 drum machine eprom ($19.83)

Roland R-8 MK2 OS v1.03 Final EPROM Firmware Upgrade Kit Update Chip ($19.83)

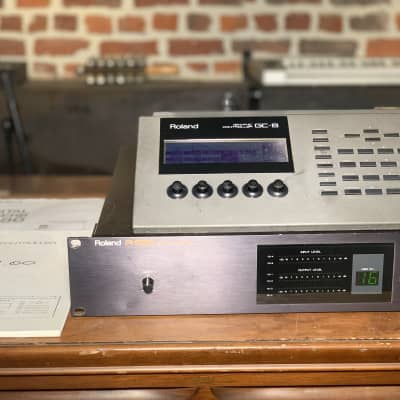

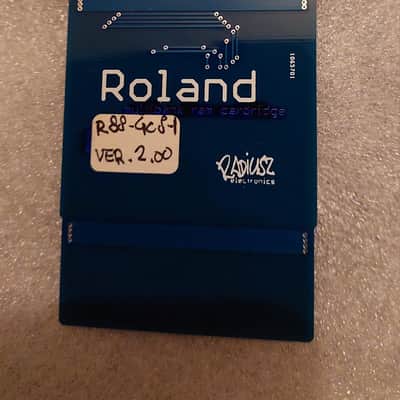

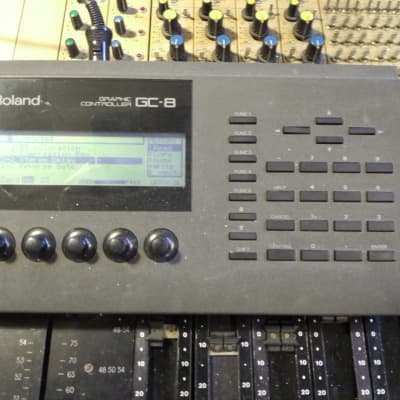

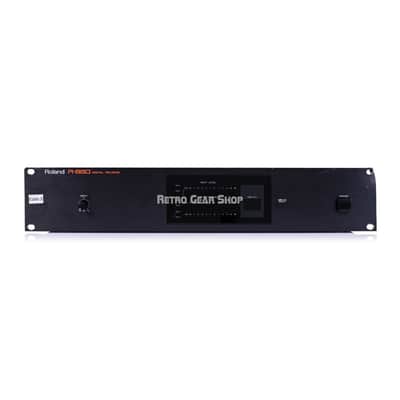

Roland R-880 Digital Reverb + GC-8 Graphic Controller + Version 2.00 System Card ($855)

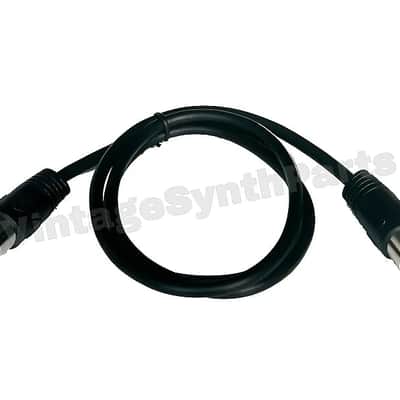

Cable for Roland R880 R-880 to GC-8 Remote Controller 6 pin DIN, male to male 1MT ($22.17)
